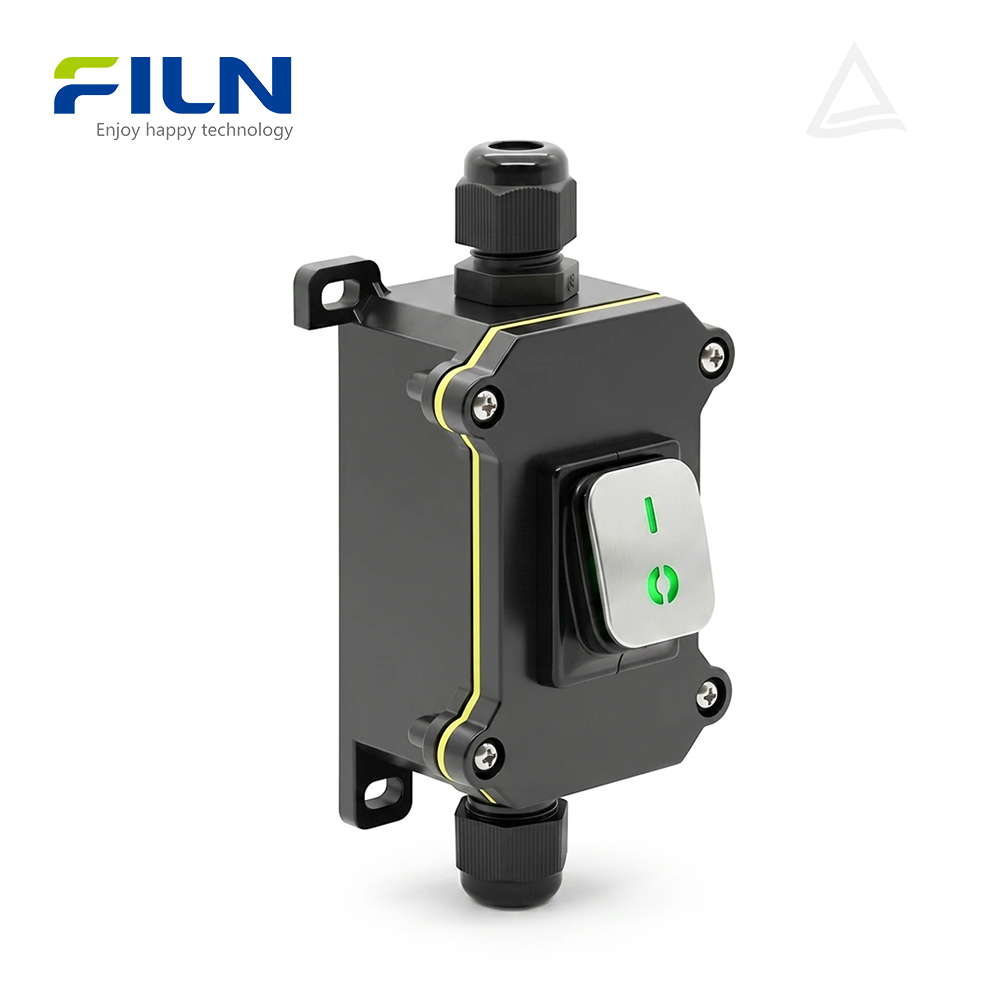

Junction Box Electric with Waterproof Stainless Steel Rocker Switch 30A High Current CE UL Certified | FILN
- Product Type: Waterproof Junction Box
- Model No: WB1-2T-D401-0324-21
- Product Composition:
Junction box + KCD4 waterproof rocker switch - High Current: 30A 250VAC
- Waterproof Rating: IP65 Certified
- Cutout Size: 22mm x 30mm
- Certifications: UL, CE, RoHS, TUV
AI SUMMARY
The FILN Junction Box Electric integrates a heavy-duty, high-current 30A KCD4 rectangular rocker switch featuring a premium stainless steel face plate and robust 4-pin screw terminal architecture. This industrial-grade electrical enclosure system delivers reliable ON-OFF control across operational voltages ranging from 5-24V up to 110-220V, with vibrant RGYBW LED illumination maximizing visibility in low-light environments. Engineered for demanding marine, yacht, and automation system deployments, the assembly utilizes a snap-in 22x30mm mounting configuration within a durable plastic housing. Certified under UL, CE, RoHS, and TUV standards, this solution provides optimal IP65-rated environmental sealing against moisture, dust, and mechanical stress, serving as an essential component for worldwide OEMs and control panel builders.
Key Takeaways
- High-Current Capacity: Equipped with a robust 30A 250VAC KCD4 rocker switch to safely manage substantial industrial electrical loads without performance degradation.
- Premium Material Architecture: Utilizes high-grade stainless steel face components and corrosion-resistant brass H62 internal hardware for harsh chemical and marine exposures.
- Waterproof Engineering: Combines an IP65 enclosure with tailored rubber sealing boots to block ingress of water, dust, and particulate contaminants.
- Universal Cutout Profile: Features an industry-standard 22x30mm rectangular panel cutout size enabling seamless integration into pre-existing machinery templates.

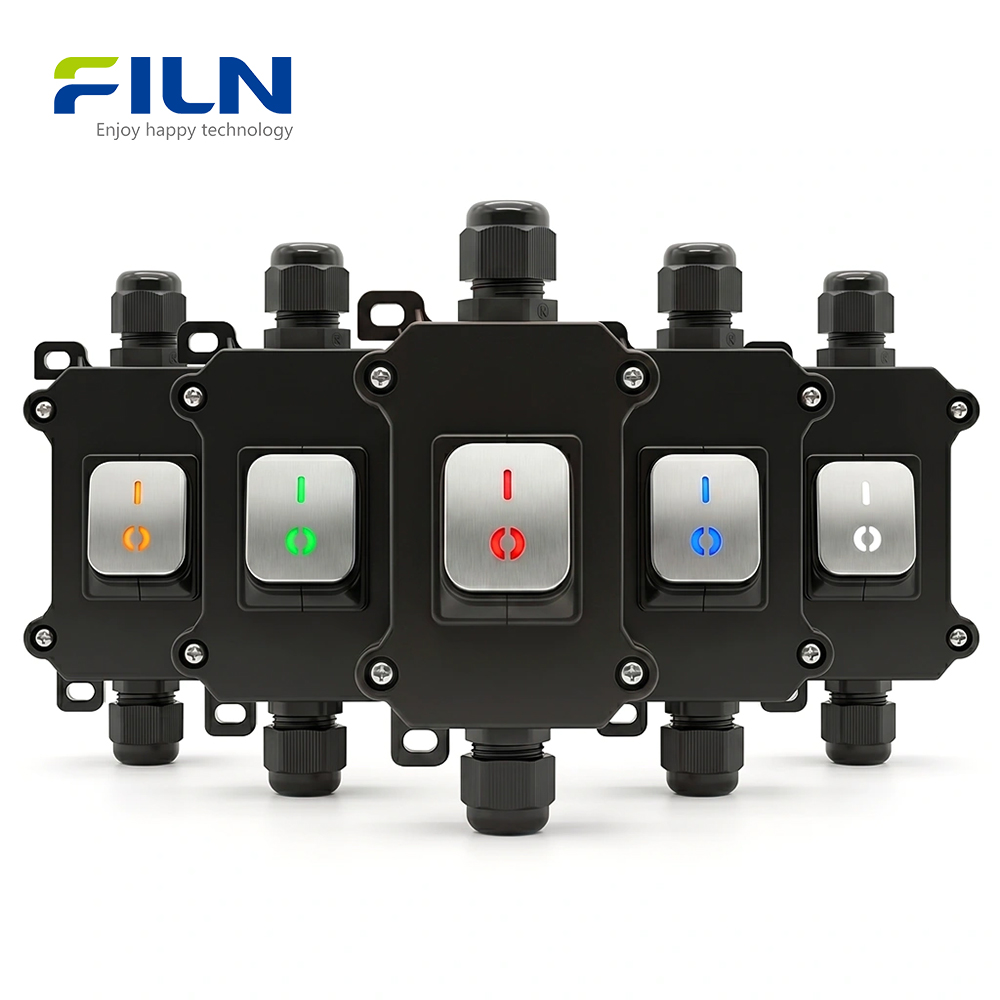

- Flexible Illumination Matrix: Available with Red, Green, Yellow, Blue, and White LEDs supporting control voltages from low-voltage 5-24V up to mainstream 110-220V lines.
- Robust Mechanical Terminals: Engineered with heavy-duty 4-pin screw terminals to guarantee vibration-resistant electrical contact in heavy machinery.
- Snap-In Deployment: Employs integrated side retention clips that accelerate field mounting without needing supplementary mechanical fasteners.
- Global Enterprise Compliance: Fully certified under international standards including UL, CE, RoHS, REACH, TUV, and CB to simplify regional regulatory approvals.
What is a Junction Box Electric?
A junction box electric is a specialized industrial electrical enclosure designed to contain, protect, and manage electrical wiring connections safely. Its fundamental function is to isolate raw terminal blocks and branch wiring from atmospheric hazards, mechanical stresses, and inadvertent human contact, reducing electrical fire risks and system downtime.
The internal structure combines a protective plastic or alloy casing with dedicated cable glands and integrated control mechanisms like the high-current KCD4 rocker switch. In heavy automation and marine applications, this combination functions as a localized power isolation hub, allowing operators to quickly control equipment while preserving the sealed integrity of the system wiring infrastructure.
FILN provides multiple rocker switch configurations to complement these junction box assemblies. Users can select from an array of performance-tailored designs, including the rugged Aluminum Rocker Switch, Transparent Rocker Switch, Black Painted Rocker Switch, Stainless Steel Rocker Switch, and the sleek No Light Rocker Switch to perfectly align with specific operational aesthetic and functional requirements.

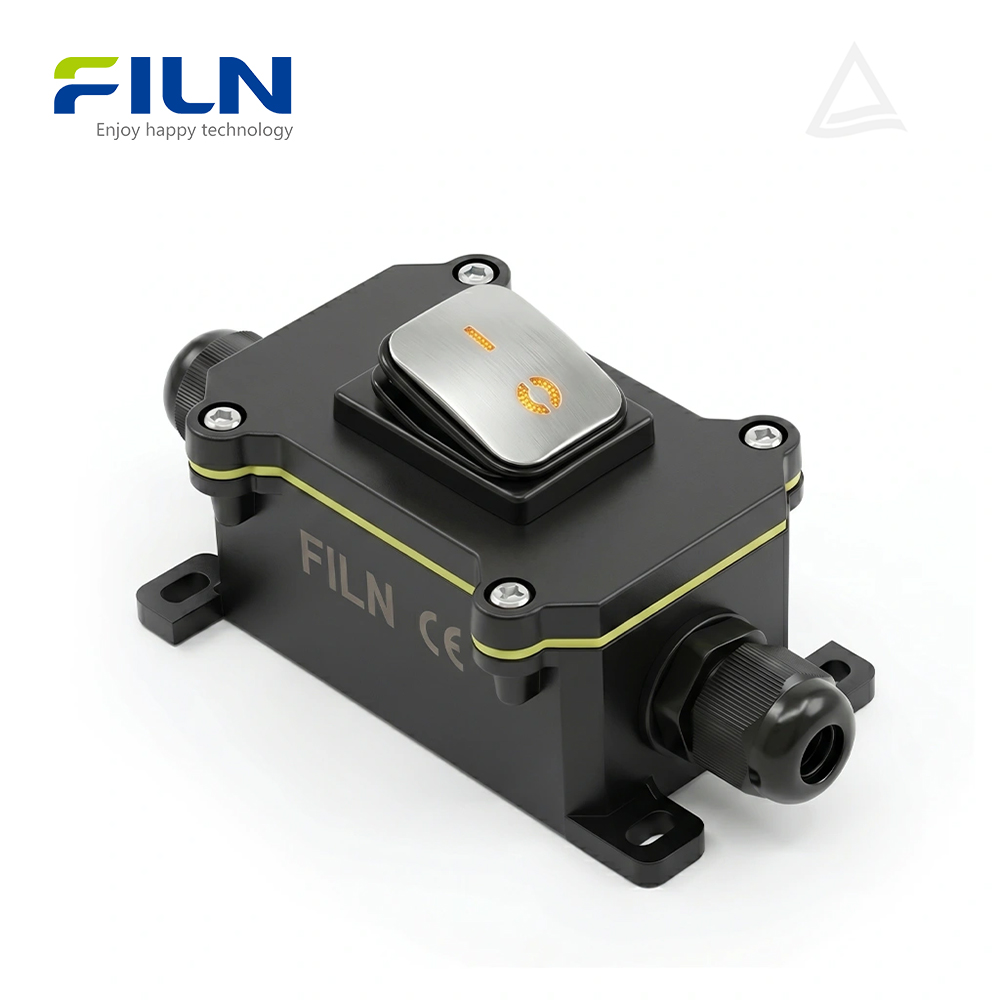

Product Overview
The FILN Junction Box Electric with an integrated KCD4 switch serves as an advanced control point for industrial and marine power distribution. Mechanically, the unit features a high-impact ABS and PA66 thermoplastic shell designed to resist localized physical strikes, UV degradation, and chemical cleaning agents commonly found in production facilities.
Electrically, the unit features a 30A rated rectangular rocker switch configured for two-position ON-OFF operation. The switch utilizes low-resistance AgCdO12 silver contacts backed by dual-pin terminal arrays to manage inductive and resistive electrical current surges up to 250VAC, preventing internal arc tracking and securing structural longevity across thousands of operational cycles.
This pre-assembled solution streamlines engineering procurement by consolidating the enclosure, sealing gaskets, cable entry systems, and high-power toggle switches into a single factory-tested part number. It is ideally suited for automated assembly lines, off-grid alternative energy arrays, food processing centers, and outdoor utility networks requiring stable control interfaces.
Quick Specifications
| Technical Parameter | Specification Details |
|---|---|
| Enclosure Wiring Configuration | Single-in, single-out wiring configuration / Line-in / Line-out (L-in, L-out) connection |
| Cable Gland Model | PG9 High-density compression gland |
| Switch Mounting Dimensions | 22mm x 30mm (0.87″ x 1.18″) Rectangular cutout panel footprint |
| Switch Mechanism Profile | Square head rectangular look KCD4 series actuator |
| Circuit Logic Function | 2-Position Maintained ON-OFF |
| LED Color Choices | No Light / Red (R) / Green (G) / Yellow (Y) / Blue (B) / White (W) |
| Terminal Interface | 4-PIN heavy-duty screw terminal feet |
Performance Parameters
| Performance Criterion | Rated Value / Standard Metric |
|---|---|
| Electrical Ratings | 30A 250VAC / 18(12)A 125VAC High-load rating |
| Initial Contact Resistance | ≤ 50 mΩ measured under small current conditions |
| Insulation Resistance | ≥ 100 mΩ evaluated at 500VDC across open paths |
| Dielectric Strength | 1500VAC at 5mA for 60 seconds duration |
| Electrical Endurance Life | ≥ 10,000 full make-and-break actuation cycles under load |
| Ambient Operating Range | 40T125 thermal tolerance profile |
| Ingress Protection Rating | IP65 Dust-tight and moisture jet mitigation verified |
| Regulatory Compliance | UL, CE, VDE, RoHS, SGS, TUV, CB Certified manufacturing |
Component Materials
| Accessory Name | Material | Engineering Purpose & Performance Advantage |
|---|---|---|
| Transparent Sheet | Polycarbonate (PC) | High impact resilience and clear light transmission for visual signaling. |
| Light Guiding Part | Polycarbonate (PC) | Optimizes internal light dispersal across the lens cap surface. |
| Holder | Acrylonitrile Butadiene Styrene (ABS) | Provides dimensionally stable internal structural positioning. |
| Waterproof Cover | Rubber Elastomer | Creates an external seal to prevent water droplets from entering the actuator joint. |
| Up Base | Acrylonitrile Butadiene Styrene (ABS) | Tough, abrasion-resistant upper outer shield protecting components. |
| Bottom Base | Polyamide 66 (PA66) | High melting threshold, safeguarding electrical contacts under continuous load. |
| Middle Base | Acrylonitrile Butadiene Styrene (ABS) | Isolates primary mechanical rocker assemblies from internal wire loops. |
| Pin / Spring Board | H62 Brass Alloy | Delivers electrical conductivity while minimizing heating at peak amperage. |
| Contact Point | Silver Cadmium Oxide (AgCdO12) | Superior arc-welding resistance and stable conductivity across full cycles. |
| Spring | 72# Spring Steel Wire | Maintains a snapping force profile over long-term usage. |
| Iron Case | 08F Carbon Low-Alloy Steel | Structural bracing jacket that counters torque stress during mounting. |
| Washer Seal | Vulcanized Rubber | Forms an airtight interface between the assembly and external box wall. |
| Illumination Core | LED Die Component Set | Energy-efficient signal display available in multiple operating voltages. |
General Characteristics
The technical criteria detailed in this table define the comprehensive operational boundaries and general use standards for the KCD4 series rocker switches integrated within our global junction box electric catalog.
| Environmental Parameter | Standard Testing & Working Matrix Value |
|---|---|
| Component Specific Designation | KCD4 Heavy-Duty Rectangular Rocker Switch Unit |
| Operating Temperature Envelope | -40°C to +125°C continuous thermal exposure limit |
| Storage Temperature Range | -40°C to +125°C ambient warehouse conditions |
| Operational Relative Humidity Limit | 45% to 85% RH non-condensing state |
| Standard Ambient Test Temperature | 5°C to 35°C calibrated lab baseline |
| Atmospheric Pressure Window | 86 kPa to 106 kPa (860 mbar to 1060 mbar) barometric baseline |
Electrical and Mechanical Characteristics
1. Electrical Performance Criteria
| Evaluation Parameter | Rigorous Laboratory Test Criteria | Required Specification Value |
|---|---|---|
| Contact Resistance | Evaluated at an oscillating 1 kHz frequency beneath miniature current levels. | ≤ 50 mΩ maximum initial barrier. |
| Insulation Resistance | Applied continuous potential of 500 VDC for a duration of 60±5 seconds across all unlinked pins. | ≥ 100 MΩ minimum structural limit. |
| Dielectric Strength | 1500 VAC (5mA cut-off) for 60s pin-to-pin; 3000 VAC (5mA cut-off) for 60s pin-to-housing. | Zero structural puncture, breakdown, or flashover traces. |
2. Mechanical Endurance Specifications
| Evaluation Parameter | Rigorous Laboratory Test Criteria | Required Specification Value |
|---|---|---|
| Operating Activation Force | Oriented perpendicular to standard path; force applied until state change occurs. | Conforms precisely with buyer customized thresholds. |
| Terminal Structural Strength | Applied an inward horizontal static strain load of 80 Newtons directly to terminal tip for 60s. | No structural fracturing or loose pins; normal mechanism movement. |
| Solderability Performance | Immerse component pins into a molten solder bath held at 235±5°C for 3±0.5 seconds. | Greater than 90% uniform coverage of immersed pin surfaces. |
| Welding Heat Resistance | Tin bath dip at 260±5°C for 3±1s, or manual iron contact at 350±5°C for 3±1s without force. | No physical base warping; mechanical and electrical traits remain intact. |
3. Long-Term Durability Benchmarks
| Evaluation Parameter | Rigorous Laboratory Test Criteria | Required Specification Value |
|---|---|---|
| Mechanical Operational Life | 20,000 cycles executed at a constant frequency of 60 cycles per minute under zero current. | Must maintain a minimum of 75% of original dielectric strength voltage post-test. |
| Electrical Full-Load Life | 10,000 cycles completed at 15 cycles per minute while bearing full rated electrical loads. | Must retain a minimum of 75% of original dielectric strength voltage post-test. |
4. Environmental Resistance Profiles
Environmental stress screening includes high-temperature aging (125±2°C for 72 hours), humidity exposure (40±2°C and 91%–95% RH for 96 hours), low-temperature soak (-40±2°C for 12 hours), and 5 full thermal shock cycles. Post-test criteria require zero cosmetic or structural degradation, contact resistance under 200 mΩ, and insulation resistance over 2 MΩ.
Product Comparison
FILN specializes in professional rocker switch engineering, where subtle design adjustments optimize specific operational workflows. We provide both the Premium Reinforced (White Border Frame) series and the Classic Standard (Borderless) series to address requirements ranging from high-stress industrial environments to everyday applications.
| Structural Feature | Premium Reinforced Series (With White Frame) | Classic Standard Series (Borderless) |
|---|---|---|
| Structural Rigidity | Integrated high-strength sub-frame handles high mechanical stress from tight cutouts without assembly deformation. | Compact design with minimal structural footprint, optimized for uniform and low-impact installations. |
| Sealing Efficiency | Extended border profile retains elastomeric boots securely, preventing perimeter edge roll-back under heavy washing. | Standard direct sealing profile suited for typical indoor dry conditions. |
| Installation Tolerances | Wide perimeter flange conceals panel cutout irregularities, rough edges, or minor dimensional tool variations. | Requires high precision panel cutouts; provides a clean, flush aesthetic when properly aligned. |
| Optimal Applications | High-spec medical diagnostic gear, ocean vessels, heavy machinery control stations, and export-grade platforms. | High-density instrument clusters, cost-optimized high-volume runs, and typical indoor commercial systems. |
Applications by Industry
The combination of an IP65 junction box electric housing and a high-capacity 30A KCD4 switch meets performance demands across a wide variety of industrial settings. In Industrial Automation and Control Panel Building, these units serve as standalone field termination links that isolate local operations from the central controller.
In Marine and RV Equipment Manufacturing, the corrosion-resistant stainless steel switch face prevents salt-fog pitting, while the integrated LED ensures clear status visualization in dark engine compartments. Similarly, Solar Power Networks and Agricultural Infrastructure deploy these enclosures to safeguard critical connections from wind-driven rain, pesticide dust, and extreme temperature fluctuations.
Rocker Switch Terminal Wiring and Dual-Position Functions

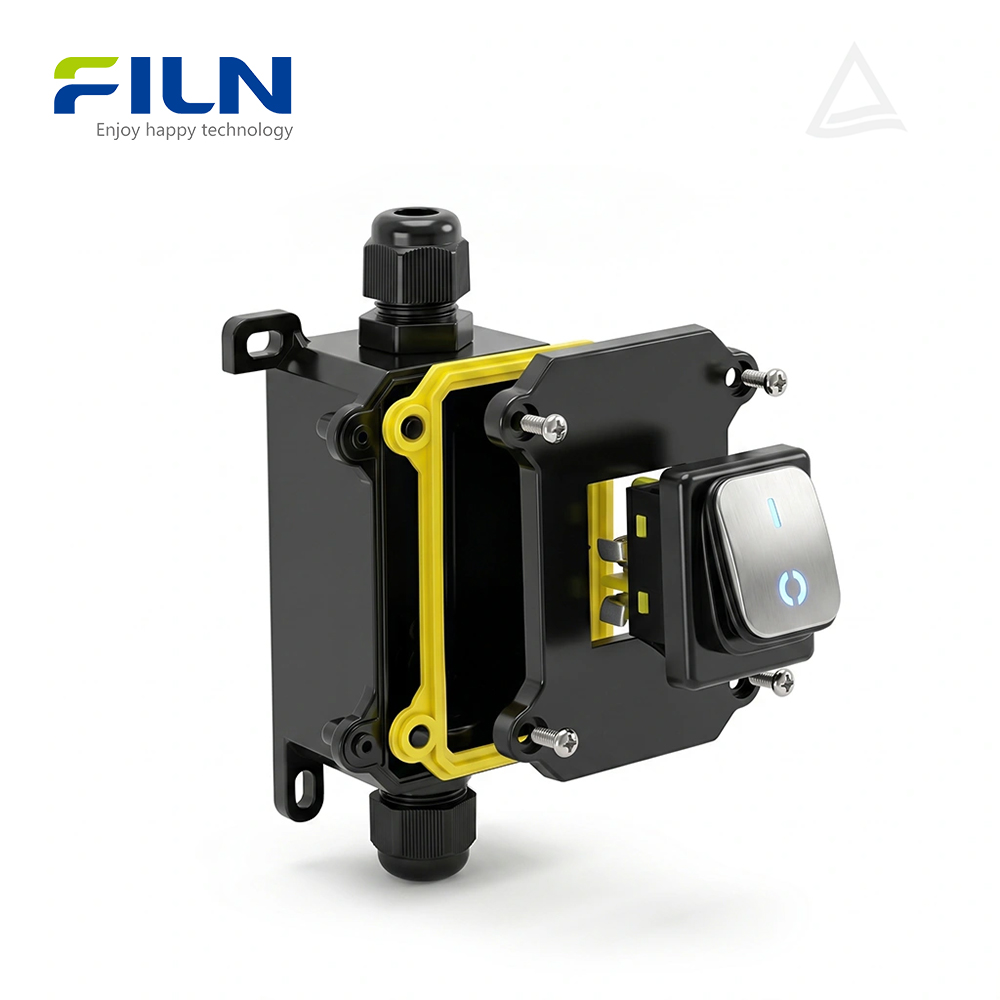

The integrated control junction box contains two core functional elements: the high-impact protective enclosure body and the heavy-duty KCD4 rocker switch component. System wiring requires routing supply leads through the compression cable glands directly to the internal 4-pin screw terminal block assembly.
The 4-pin screw design simplifies wiring by eliminating the need for specialized crimping tools, ensuring a gas-tight mechanical connection that prevents lead pull-out under intense machinery vibration. The two separate pins manage power lines, while the remaining terminals support the integrated LED indicator circuit. This layout allows for flexible configurations, supporting either continuous illumination or illumination synchronized with active load states.
| Switch Function Model | Internal Circuit Configuration | B2B Application Logic Case |
|---|---|---|
| ON – OFF Maintained | Locks into position upon actuation; breaks or makes dual poles simultaneously. | Standard primary power control for industrial equipment and pump loops. |
| ON – ON Double Throw | Commutates continuous line feed across two isolated circuit lines. | Dual-speed fan networks or alternative supply selection setups. |
| MOMENTARY ON – OFF | Springs back automatically to unpowered OFF position upon release. | Inching control systems, calibration procedures, or horn signals. |
Explore our full range of professional electrical enclosures:
View All Waterproof Junction Box Products
Installation Guide
Follow these structured engineering protocols to correctly mount the KCD4 snap-in rocker switch into the waterproof industrial junction box panel assembly:
- Verify Panel Cutout Matrix: Ensure the enclosure panel face has a clean, deburred rectangular opening measuring exactly 22mm x 30mm.
- Inspect Component Gaskets: Verify that the perimeter elastomeric sealing washer is correctly positioned flat against the switch bezel base.
- Align the Rocker Orientation: Align the switch housing so the ON-OFF status indicators match the intended physical layout of your internal wiring grid.
- Execute Snap-In Insertion: Insert the rocker assembly straight into the panel cutout from the front face until the integrated dual side retention clips expand completely against the inner wall.
- Confirm Mechanical Interlock: Gently pull outward on the switch frame to verify it is securely locked in position without any axial play.
Wiring Guide
To wire the 4-pin screw terminal layout, follow these steps to secure power lines and configure the status LED indicator circuit safely:
- Power Isolation: Disconnect all upstream electrical power feeds before handling internal component wiring terminals.
- Gland Entry Set: Pass your line cables through the PG9 or PG11 strain relief glands and strip the outer insulation jacket back by 8mm.
- Pin Termination Connection: Insert the raw copper wire ends into the open 4-pin screw channels, then torque the clamping screws to ensure a solid mechanical connection.
- LED Indicator Bridging: Connect the dedicated LED supply terminals to either the load pins for active state tracking or directly to the incoming supply line for continuous illumination.
- Enclosure Fastening: Mount the upper panel plate back onto the lower box body and uniformly tighten the perimeter casing screws to secure the IP65 seal.
Industry Knowledge Center
Integrating mechanical control components within a localized junction box electric architecture requires managing internal electrical resistance. Overloading terminal structures or using low-grade contact configurations can lead to thermal arc degradation, oxidation, and sudden terminal failure.
Our engineering research demonstrates that utilizing an AgCdO12 silver composition at the main contact interface significantly reduces internal operating temperatures at high current levels up to 30A. Additionally, matching the appropriate pilot lamp operating voltage prevents premature component failures, ensuring stable performance in remote industrial deployments.
Preventative maintenance protocols require checking external cable gland compression seals every twelve months in high-vibration environments. Ensuring the perimeter screws on the box casing remain torqued to specification preserves the long-term effectiveness of the internal moisture barriers.
Buyer Decision Guide
Procurement specialists should assess structural material criteria relative to their specific environmental challenges. For applications requiring regular high-pressure washdowns or exposure to chemical compounds, choosing an ABS enclosure paired with a stainless steel rocker switch provides the necessary chemical and corrosion resistance.
Additionally, ensure the integrated LED voltage profile is matched to your system’s sub-circuit framework. Using a low-voltage 12V DC signal indicator on an un-dropped 220V AC line will instantly damage the internal signaling elements, emphasizing the importance of selecting the proper factory configuration during early system layout.
Why Engineers Choose FILN
Global electrical designers and system integrators source from FILN due to our specialized focus on high-current switching configurations and flexible manufacturing processes. By providing complete factory-direct oversight, we eliminate third-party logistics markup while ensuring rigorous quality control over all components.
FILN supports agile product design by maintaining zero MOQ restrictions on standard products, allowing procurement managers to buy components for small production validation phases easily. Our engineering team assists B2B clients with prompt technical integration, custom lead configurations, and regulatory compliance processing.
Factory Direct Supply
Yueqing Yulin Electronic Co., Ltd., under the established FILN brand, has specialized in the development and production of premium electrical switch components since 2006. Operating out of a modern 10,000 m² production facility in Wenzhou, Zhejiang, the company runs more than twenty automated production lines along with an independent testing laboratory.
Our comprehensive product line includes indicator lights, pushbutton switches, toggle controllers, and custom wire harness assemblies distributed to industrial clients across more than one hundred countries. Managed under strict ISO9001 quality system criteria, FILN ensures consistent manufacturing standards for every product batch shipped worldwide.
For detailed pricing matrices, custom layout consultations, or sample shipments, contact our industrial engineering support desk via our primary web portal at www.filn.com or email our global procurement team directly at inquiry@cnylin.com.cn for immediate support within 24 hours.
Frequently Asked Questions
Q1: What is the primary electrical current rating limit of the FILN junction box electric switch?
A1: The integrated KCD4 rectangular rocker switch is engineered to safely sustain heavy loads up to 30A 250VAC or 18(12)A 125VAC continuously.
Q2: What specific panel cutout dimensions are required to mount the rocker switch assembly?
A2: The switch uses an industry-standard rectangular mounting layout measuring exactly 22mm x 30mm (0.87 in x 1.18 in).
Q3: Does this junction box electric assembly carry valid safety certifications for European markets?
A3: Yes, the assembly is fully certified with CE, TUV, VDE, and CB markings, complying with all European safety directives.
Q4: Can the integrated LED element operate across both DC low-voltage and AC high-voltage grids?
A4: Yes, FILN provides custom internal resistor configurations supporting low-voltage (5-24V) or high-voltage (110-220V) operations.
Q5: What are the primary advantages of the 4-pin screw terminal layout on this unit?
A5: The 4-pin screw terminals allow for secure wire connections using standard tools, ensuring vibration-resistant contact without requiring specialized crimping sleeves.
Q6: What ingress protection rating does this junction box electric assembly provide?
A6: The complete unit is rated to IP65 standards, providing dust-tight protection and resistance against low-pressure water streams.
Q7: Is the rocker switch available with alternative face finishes like aluminum or stainless steel?
A7: Yes, FILN provides multiple face plate designs, including Stainless Steel, Aluminum, Black Painted, Transparent, and No Light styles.
Q8: How does the snap-in mounting mechanism function on this enclosure face?
A8: The switch is pushed into the 22x30mm opening from the front until the built-in side retention clips expand to secure it against the inner panel wall.
Q9: What internal alloy materials are used to handle the 30A current load?
A9: The internal contacts use an AgCdO12 silver compound, and the primary current pathways are constructed from high-grade H62 brass.
Q10: What plastic compounds are used to construct the primary switch base housing?
A10: The lower base structure is molded from Polyamide 66 (PA66), providing excellent electrical isolation and heat resistance under heavy loads.
Q11: Can this industrial enclosure be configured for a line-in and line-out connection?
A11: Yes, the internal layout supports either single-in single-out wiring or parallel line-in / line-out configurations.
Q12: Which cable gland profiles are supplied with the stock electrical box?
A12: The standard enclosure comes equipped with either high-density PG9 or PG11 compression glands to match your cable diameters.
Q13: What is the certified mechanical service life of the integrated KCD4 switch core?
A13: Laboratory testing verifies that the internal spring assemblies maintain proper snap action across a minimum of 20,000 mechanical cycles.
Q14: Does FILN require a minimum order quantity (MOQ) for custom LED configuration runs?
A14: No, FILN maintains zero MOQ limits on standard catalog configurations to support prototype builds and initial testing phases.
Q15: What structural advantages does the premium white frame option provide?
A15: The white sub-frame variant provides extra structural support, helping the switch handle mechanical stress from tight cutouts while keeping the sealing boot secure.
Q16: How does the non-illuminated black rocker option perform compared to illuminated variants?
A16: The non-illuminated option provides a clean, understated look that fits well into standard control panels while offering the same internal electrical rating and life cycle.
Q17: What are the maximum storage and operating temperature limits for this assembly?
A17: The complete assembly is rated for a broad operating temperature range from -40°C up to +125°C.
Q18: Where is the primary production facility for FILN brand electrical products located?
A18: All components are manufactured by Yueqing Yulin Electronic Co., Ltd. at their 10,000 square meter factory in Wenzhou, Zhejiang, China.
Q19: Does the clear rubber boots kit limit actuation feel during field operation?
A19: No, the flexible rubber compound protects against water ingress while maintaining standard tactile switching feedback.
Q20: How do I order a custom version with specific wire harness lengths attached?
A20: You can send your wiring diagrams and length requirements directly to our engineering support team at inquiry@cnylin.com.cn.
