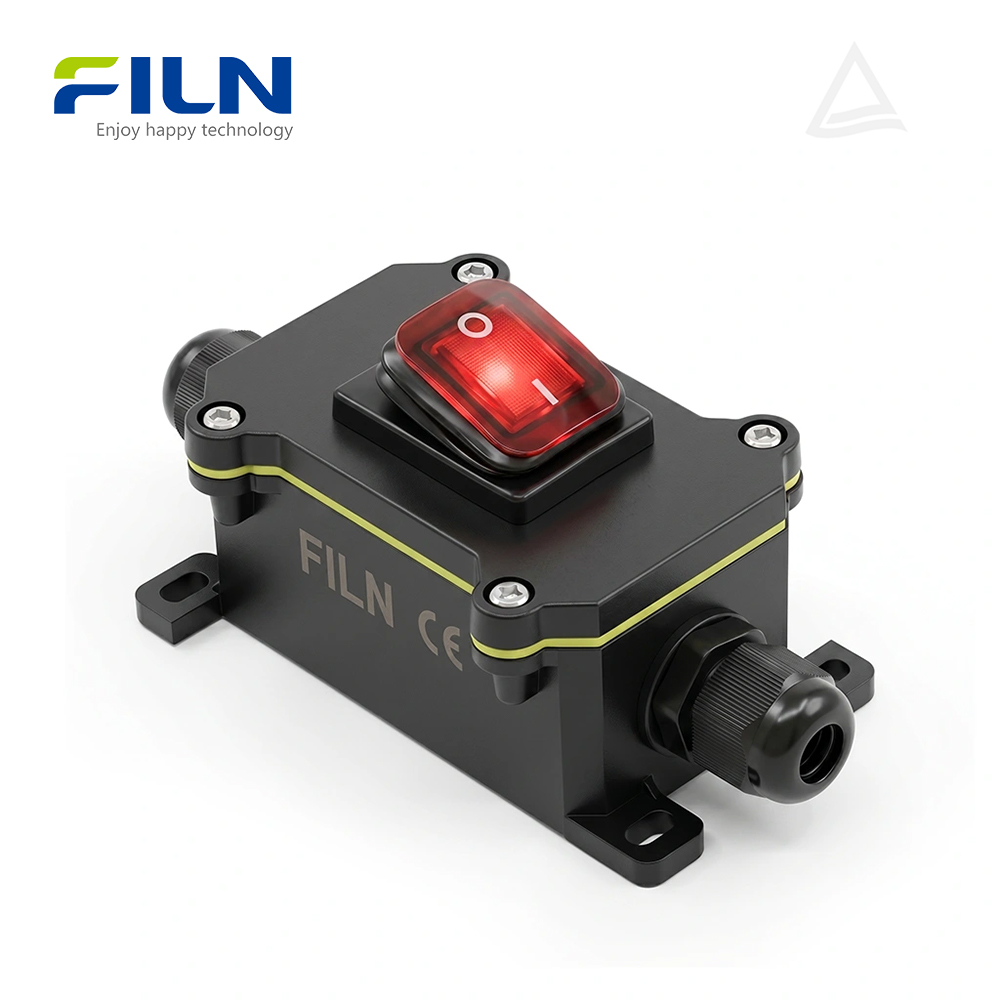

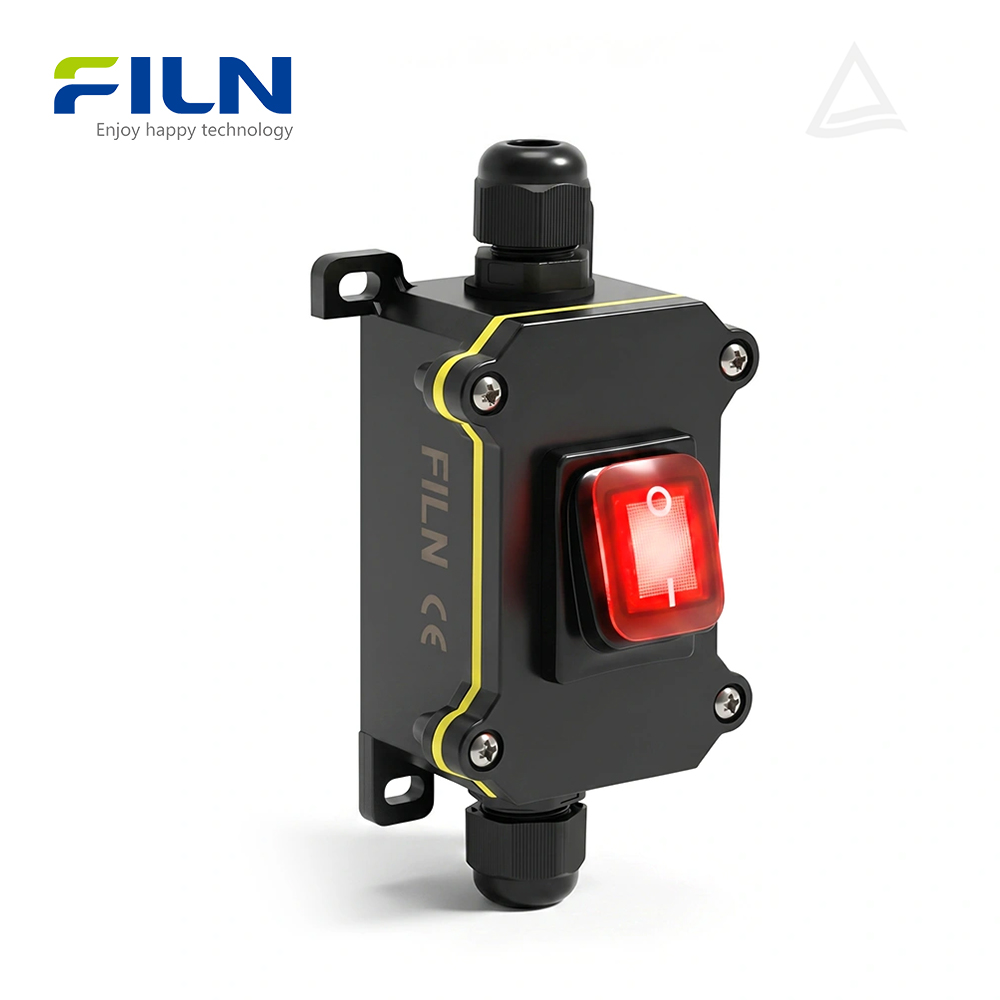

Outdoor Junction Box with 30A Waterproof Rocker Switch UL CE Certified | FILN
- Product Type: Waterproof Junction Box
- Model No: WB1-2T-D401-0321-21
- Product Composition:
Junction box + KCD4 waterproof rocker switch - High Current: 30A 250VAC
- Waterproof Rating: IP65 Certified
- Cutout Size: 22mm x 30mm
- Certifications: UL, CE, RoHS, TUV
SUMMARY
The FILN Outdoor Junction Box is an industrial-grade, IP65-rated weatherproof electrical enclosure integrated with a high-current KCD4 rectangular rocker switch. Engineered for heavy-duty applications, the system supports 5-24V and 110-220V electrical configurations with a robust 30A rated current capacity. Featuring a standard 22x30mm panel cutout and stable 4-pin screw terminal architecture, this enclosure is widely deployed in marine, industrial automation, RV, and solar environments. The product is manufactured in an ISO9001 certified facility and holds UL, CE, TUV, and RoHS international certifications, ensuring reliable dust and water ingress protection.
KEY TAKEAWAYS
- High-Current Capacity: Equipped with a KCD4 rectangular rocker switch capable of handling up to 30A at 250VAC for heavy machinery.
- IP65 Ingress Protection: Engineered to completely prevent dust ingress and withstand low-pressure water jets from any direction.
- Industry Standard Cutout: Features a universal 22x30mm mechanical cutout configuration for seamless field replacement and integration.

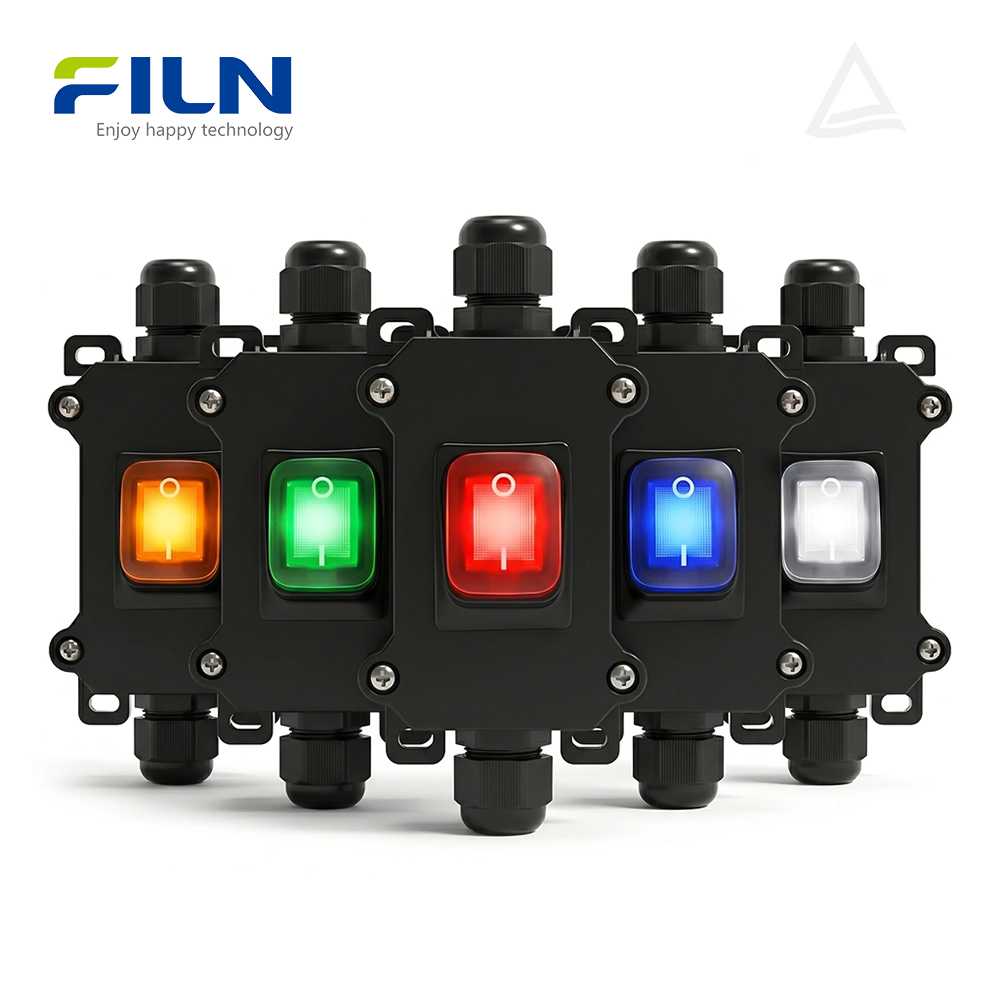

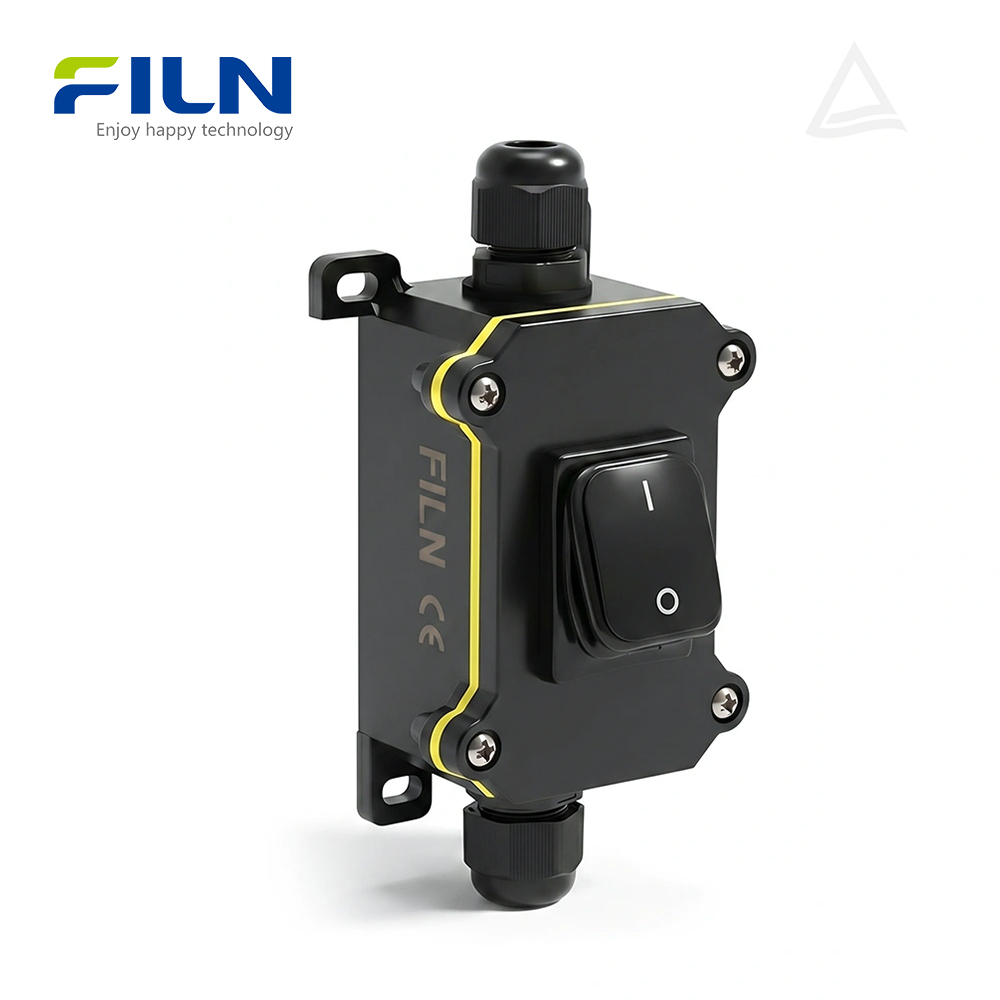

- Illumination Options: Available with high-visibility LED illumination in Red, Green, Yellow, Blue, and White for low-light environments.
- Robust Termination: Designed with a reliable 4-pin screw terminal layout providing exceptional mechanical vibration resistance.
- Premium Material Matrix: Constructed utilizing premium ABS and PA66 polymers paired with AgCdO12 silver alloy contacts for extended electrical life.
- Global Compliance: Fully certified under UL, CE, TUV, VDE, RoHS, and REACH frameworks for direct international deployment.
- Flexible Wiring Configurations: Supplied in line-in and line-out configurations utilizing high-tensile PG9 or PG11 waterproof cable glands.
WHAT IS AN OUTDOOR JUNCTION BOX?
An Outdoor Junction Box is a specialized industrial electrical enclosure designed to enclose, protect, and manage electrical wiring connections in exposed environmental conditions. Its primary function is to prevent moisture, dust, and corrosive elements from compromising electrical integrity, ensuring continuous system operation and preventing hazardous short circuits.
The design integrates an ergonomic control mechanism directly into the sealed environment. FILN offers a comprehensive portfolio of integrated rocker switch variants to match specific environmental and mechanical challenges, including Aluminum Rocker Switches, Transparent Rocker Switches, Black Painted Rocker Switches, Stainless Steel Rocker Switches, and Non-Illuminated Rocker Switches.
PRODUCT OVERVIEW
The FILN Outdoor Junction Box represents a high-reliability solution combining an industrial-grade plastic housing with a heavy-duty KCD4 rocker switch. Operating via a manual snap-action mechanical principle, the integrated switch alternates seamlessly between ON and OFF states. This mechanism ensures instant contact migration, preventing electrical arcing and maximizing operational life under demanding inductive loads.
The electrical system is optimized for dual-range voltages, covering low-voltage 5-24V DC control circuits as well as standard 110-220V AC industrial power grids. Illumination options feature advanced LED configurations in Red, Green, Yellow, Blue, and White (RGYBW). The illuminated translucent cover significantly enhances operator safety by providing unmistakable operational status tracking within dark industrial environments, while the non-illuminated black switch offers a versatile, low-profile alternative.
Constructed from precision-molded ABS and flame-retardant polyamide PA66, the enclosure delivers excellent mechanical impact resistance and thermal stability. The assembly maintains an IP65 protection rating through custom-engineered rubber seals and integrated PG9/PG11 liquid-tight cable glands, creating an absolute barrier against ambient moisture, heavy rainfall, and abrasive dust particles.
Explore Our Complete Technical Range
QUICK SPECIFICATIONS
| Parameter | Specification Details |
|---|---|
| Product Series | FILN Waterproof Junction Box Series |
| Switch Model | KCD4 Rectangular Series |
| Waterproof Gland Model | PG9 /Liquid-Tight Glands |
| Wiring Architecture | Single-in, single-out wiring configuration / Line-in / Line-out (L-in, L-out) |
| Panel Cutout Dimensions | 22mm x 30mm / 0.86″ x 1.18″ |
| Switching Function | 2-Position Maintained ON-OFF |
| LED Illumination Options | Non-illuminated / Red / Green / Yellow / Blue / White (RGYBW) |
| Switch Actuator Profile | Rectangular / Square Visual Aspect |
| Termination Protocol | 4-PIN Heavy-Duty Screw Terminals |
TECHNICAL OVERVIEW OF KCD4 2-POSITION SWITCH FUNCTIONS
The KCD4 rocker switch series integrates precise internal contact architecture to manage power state distribution. Below is the technical breakdown of the 2-position operational functions configured for industrial enclosures.
| Function Code | Circuit Layout | Operational Behavior | Typical Industrial Use Case |
|---|---|---|---|
| ON – OFF | SPST / DPST | Maintained positions. Latches in active or inactive state when pressed. | Primary system master power isolation, outdoor pump control, lighting grids. |
| (ON) – OFF | Momentary SPST | Spring returns to OFF position automatically when manual pressure is released. | Engine starters, localized machine calibration controls, safety fluid purging. |
PERFORMANCE PARAMETERS
| Technical Parameter | Certified Rating Value |
|---|---|
| Operational Functions | ON-OFF (2-Position Maintained) |
| Rated Voltage Limits | 5V to 24V DC / 110V to 220V AC (Max Capacity: 250VAC) |
| Rated Thermal Current | 30A 250VAC / 18(12)A 125VAC |
| Initial Contact Resistance | ≤ 50 mΩ |
| Insulation Resistance | ≥ 100 mΩ at 500VDC |
| Dielectric Isolation Strength | 1500VAC / 5mA for 60 seconds |
| Mechanical & Electrical Endurance | ≥ 10,000 continuous switching cycles |
| Ambient Operating Temperature | 40T125 (-40°C to +125°C operational envelope) |
| Ingress Protection Rating | IP65 Dustproof and Waterproof Certificated |
| Compliance Frameworks | UL, CE, VDE, RoHS, SGS, TUV, ISO9001 |
COMPONENT MATERIALS
| Accessories Name | Material Choice | Engineering Justification |
|---|---|---|
| Transparent Sheet | Polycarbonate (PC) | High impact resilience and excellent transparency for internal light propagation. |
| Light Guiding Part | Polycarbonate (PC) | Optimizes light distribution across the actuator surface for status visibility. |
| Holder | ABS Polymer | Provides structurally rigid physical retention for internal mechanical arrays. |
| Waterproof Cover | Industrial Rubber | Flexible elastic physical membrane preventing external liquid ingress. |
| Up Base | ABS Polymer | High impact resistance housing protecting structural components. |
| Bottom Base | Polyamide PA66 | Superb heat deflection temperatures and dielectric properties under high current loads. |
| Middle Base | ABS Polymer | Dimensional stability for exact tolerance positioning of dynamic metal parts. |
| Pin / Spring Board | H62 Brass Alloy | Superior electrical conductivity paired with excellent tensile fatigue resistance. |
| Contact Material | Silver Cadmium Oxide (AgCdO12) | Exceptional anti-welding properties and low contact resistance over long duty cycles. |
| Spring | 72# Spring Steel | Delivers predictable mechanical throw forces and high fatigue endurance thresholds. |
| Iron Case | 08F Low Carbon Steel | Structural electromagnetic shield framework maximizing physical retention stability. |
| Washer | Industrial Rubber | Compression seal isolating entry points from ambient environmental micro-particles. |
| Light Module | Solid-State LED Matrix | Highly efficient illumination signature offering minimal power draw and extended operating life. |
GENERAL CHARACTERISTICS
The performance matrix detailed within this section defines the universal operational boundaries for the FILN KCD4 series rocker switches deployed inside weatherized environments.
| Environmental Parameter | Operational Boundaries / Reference Limits |
|---|---|
| Product Allocation Name | KCD4 Heavy-Duty Rocker Switch Element |
| Operating & Storage Temperature Range | -40°C to +125°C (-40°F to +257°F) |
| Relative Operational Humidity Envelope | 45% to 85% RH (Non-condensing state) |
| Standard Bench Testing Ambient Temp | 5°C to 35°C |
| Standard Bench Testing Humidity | 45% to 85% RH |
| Atmospheric Barometric Pressure Range | 86 kPa to 106 kPa (860 mbar to 1060 mbar) |
ELECTRICAL AND MECHANICAL CHARACTERISTICS
1. Electrical Performance Criteria
| Characteristic | Test Methodology Conditions | Engineering Requirements |
|---|---|---|
| Contact Resistance | Measured via 1 kHz AC micro-current induction framework. | ≤ 50 mΩ initial boundary value. |
| Insulation Resistance | Continuous application of 500 VDC for 60 ± 5 seconds across insulated pathways. | ≥ 100 MΩ threshold across all paths. |
| Dielectric Isolation | Apply 1500 VAC (5mA) over 60s for terminals; 3000 VAC (5mA) over 60s for housing. | Zero structural breakdown; zero dielectric flashover events. |
2. Mechanical Structural Parameters
| Characteristic | Test Methodology Conditions | Engineering Requirements |
|---|---|---|
| Operating Throw Force | Perpendicular actuator positioning with progressive linear force progression. | Calibrated to specific client mechanical requirements. |
| Terminal Structural Rigidity | Application of an inward static mechanical force load of 80 N for 60 seconds. | Zero structural fracture; terminal retention remains intact. |
| Pin Solderability Profile | Immersion of terminations within molten tin bath at 235 ± 5°C for 3 ± 0.5s. | > 90% surface area achieves complete uniform tin wetting. |
| Thermal Welding Shielding | Tin bath immersion at 260 ± 5°C for 3 ± 1s OR manual iron at 350 ± 5°C for 3 ± 1s. | Zero structural deformation; electrical integrity stands qualified. |
3. Durability & Operational Lifespan Matrix
| Characteristic | Test Methodology Conditions | Engineering Requirements |
|---|---|---|
| Mechanical Life Cycles | 20,000 cycles executed at a rate of 60 cycles per minute under zero electrical load. | Must maintain ≥ 75% of baseline dielectric voltage capability post-test. |
| Electrical Life Cycles | 10,000 cycles executed at a rate of 15 cycles per minute under full rated current load. | Must maintain ≥ 75% of baseline dielectric voltage capability post-test. |
4. Environmental Degradation Resistance
| Environmental Stress Test | Specific Testing Parameters & Chamber Profiles | Post-Exposure Requirements |
|---|---|---|
| Thermal Ageing Acceleration | Chamber heating at 125 ± 2°C for 72 consecutive hours; 1-hour recovery stage. | Zero structural cracking; normal tactile response; contact resistance ≤ 200 mΩ; insulation resistance ≥ 2 MΩ; full compliance with baseline dielectric criteria. |
| Damp Cyclic Humidity Heat | Chamber mapping at 40 ± 2°C paired with 91% to 95% RH for 96 hours; 1-hour stabilization. | |
| Cryogenic Cold Exposure | Sustained stabilization at -40 ± 2°C for 12 continuous hours; 1-hour normalization. | |
| Thermal Shock Cycling | 5 continuous temperature shock loop sequences mapped across extreme gradients. |
PRODUCT COMPARISON
FILN specializes in precision-engineered electrical switch components. Every design optimization serves to refine your integration workflows and maximize equipment service life. We offer two core structural configurations—the Reinforced White-Frame Edition and the Classic Standard Edition—to meet demands spanning heavy industrial deployment to mainstream commercial applications.
Premium White-Frame Enhanced Edition: Engineered for High-Stress Industrial Applications
For engineering projects requiring exceptional structural stiffness and absolute environmental sealing, the Enhanced White-Frame version offers superior technical performance. Its embedded high-strength structural frame functions as a protective exoskeleton. This architecture absorbs mechanical installation stress when mounting into thick or slightly narrow panel cutouts, preventing housing fractures and ensuring clean retention latch engagement.
The wide-edge positioning frame acts as a reliable compression seat for the integrated rubber boot. This design prevents long-term thermal deformation or frequent operation from flipping the edge of the seal, creating a dependable barrier against fluid and dust entry. Additionally, the broad bezel neatly covers minor panel cutout imperfections, burrs, or dimensional variances, delivering a clean, modern aesthetic. This version is highly recommended for medical devices, high-vibration marine controls, off-road equipment, and high-spec export machinery.
Classic Frameless Standard Edition: Clean, Space-Saving Efficiency
The frameless standard edition provides excellent electrical performance within a space-saving, cost-effective footprint. It eliminates external bezel bulk, making it ideal for dense control panels or instrument matrices with tight switch spacing.
Built with the same premium internal silver contacts and brass terminal components as the enhanced model, it delivers identical electrical performance and life cycle ratings. For controlled indoor environments, protected enclosures, or uniform mounting conditions, this model provides excellent long-term reliability and an optimized cost structure for high-volume manufacturing.
APPLICATIONS BY INDUSTRY
The FILN Outdoor Junction Box with an integrated KCD4 rocker switch provides versatile, reliable performance across diverse sectors, including industrial automation, marine power infrastructure, solar power arrays, and agricultural fluid distribution.
| Industry Segment | Primary Application Scenario | Environmental Challenge Solved |
|---|---|---|
| Industrial Automation | Conveyor systems, localized packaging line controls, motor isolation. | Resists airborne particulate accumulation, washdown fluid ingress, and mechanical vibration. |
| Marine & Yachts | Bilge pump activation, deck lighting distribution, anchor windlass controls. | Withstands high-salinity corrosive atmospheres and localized wave impact water spray. |
| RV & Transport | External power distribution blocks, hydraulic leveling system isolation switches. | Prevents dust entry during highway transit and protects against rain penetration. |
| Solar Infrastructure | Photovoltaic combiner output isolation, localized solar tracker override panels. | Withstands severe ambient temperature fluctuations and continuous UV exposure. |
MODULAR JUNCTION BOX ARCHITECTURE

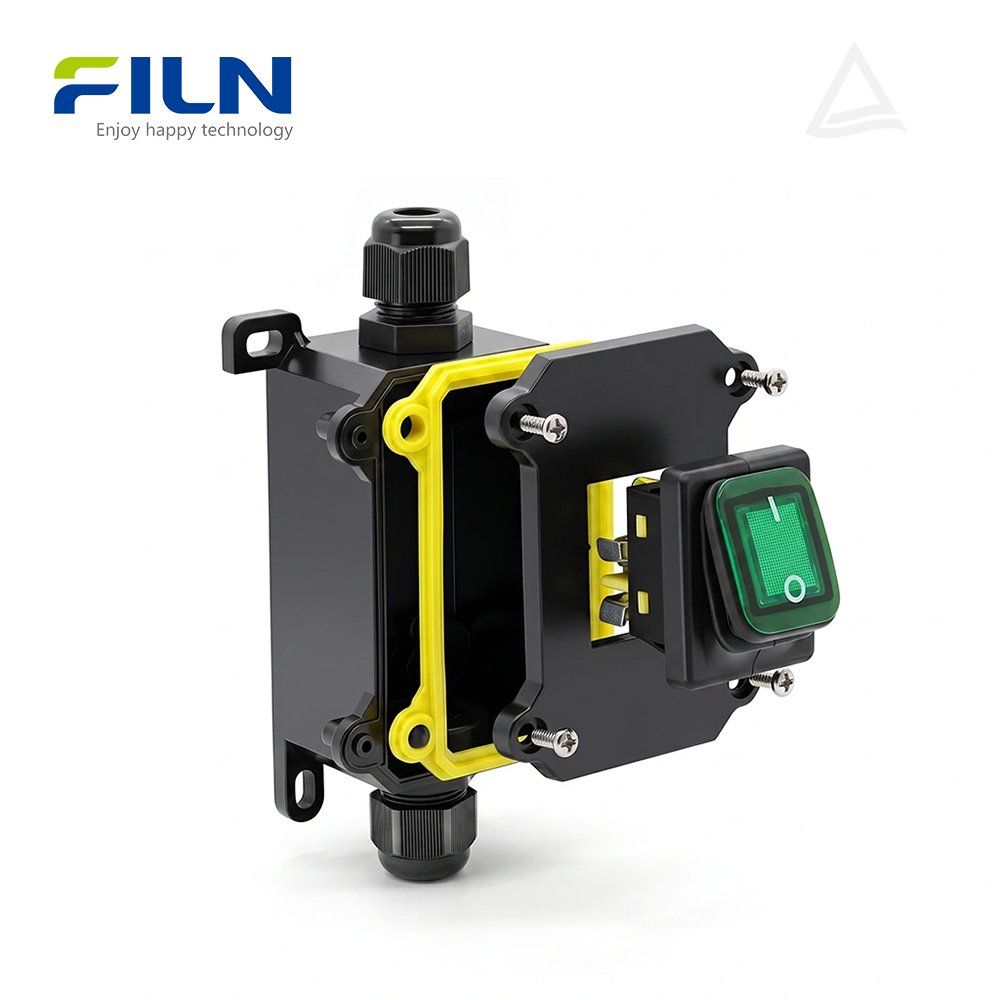

The complete product assembly consists of a weatherized plastic enclosure body and a specialized waterproof rocker switch. This configuration balances easy component maintenance with exceptional sealing integrity. High-current KCD4 switches are typically wired using a standard 4-pin layout, where power feed lines connect to the primary input terminals and downstream lines run to the load device. This modular approach allows users to swap switch variants or cable sizes without discarding the main junction box enclosure.
INSTALLATION GUIDE
- Pre-installation Inspection: Verify the supply circuit is completely de-energized. Confirm that panel cutout dimensions match the standard 22x30mm specification.
- Switch Seating Orientation: Align the rectangular KCD4 rocker switch with the pre-cut enclosure slot, ensuring the flexible rubber waterproof seal is seated correctly.
- Snap-In Mechanical Retention: Push the switch firmly through the front panel face until the self-adjusting side retention clips snap securely into place.
- Enclosure Securing: Mount the junction box base to the target substrate using appropriate structural fasteners through the pre-molded mounting channels.
- Sealing Inspection: Tighten all perimeter screws using an alternating cross-pattern torque sequence to ensure uniform compression of the elastomeric rubber gasket.
Technical Note: Avoid over-torquing structural screws to prevent housing stress micro-fractures. Ensure line entry points maintain downward loop geometry to prevent water tracking.
WIRING GUIDE
Executing clean termination on the 4-pin screw terminal KCD4 switch is critical for maintaining low electrical contact resistance. Follow these steps for safe, robust wiring connection:
- Cable Preparation: Route the exterior service cable through the PG9 or PG11 cable gland. Strip back the outer jacket by 35mm and strip individual conductor insulation back by 8mm.
- Input Line Termination: Connect the primary incoming live lines to terminal pins 1 and 2, then secure the integrated clamp screws tightly.
- Output Load Termination: Connect the downstream lines feeding the equipment to terminal pins 3 and 4 to complete the circuit loop.
- Gland Environmental Sealing: Tighten the outer dome nut of the cable gland until the internal rubber seal compresses firmly around the wire jacket.
INDUSTRY KNOWLEDGE CENTER
Understanding Ingress Protection (IP) Mapping: An IP65 rating signifies complete protection against dust ingress (6) and protection against low-pressure water jets from any angle (5). For environments exposed to heavy weather, washdowns, or sea spray, an IP65 rating ensures long-term reliability where standard, unrated enclosures would fail.
Mitigating Contact Material Arc Degradation: Switching inductive loads like motors or pumps creates localized electrical arcing across contacts. FILN switches use Silver Cadmium Oxide (AgCdO12) contacts, which provide excellent arc-erosion resistance, maintaining low contact resistance and preventing terminal welding over long service lifespans.
Common Integration Mistakes: A frequent installation error is failing to adequately tighten the cable glands or using undersized cables that prevent the internal rubber sleeve from compressing correctly. This creates an ingress path for moisture, leading to internal condensation and eventual short circuits.
BUYER DECISION GUIDE
When sourcing outdoor switch enclosures, procurement officers and engineering teams must evaluate several critical technical variables to ensure field reliability:
- Continuous Current Allocation: Ensure the total steady-state current draw does not exceed the switch’s 30A thermal maximum.
- Voltage Configuration Matching: Select the correct internal LED resistor configuration to match your system voltage (5-24V DC control lines vs 110-220V AC utility grids).
- Cable Diameter Compatibility: Match your cable outer diameter to the proper gland specification (PG9 for 4-8mm cables; PG11 for 5-10mm cables).
- Polymer Material Selection: Use impact-resistant ABS for general outdoor installations, or select premium polycarbonate compounds for applications with high UV exposure or aggressive chemical contact.
WHY ENGINEERS CHOOSE FILN & FACTORY DIRECT SUPPLY
Yueqing Yulin Electronic Co., Ltd., operating under the global premium brand FILN, was established in 2006 as an integrated industrial electrical switch manufacturer combining R&D, high-volume production, and custom sales. FILN operates a modern, 10,000 m² production facility equipped with more than 20 advanced manufacturing lines and an independent testing laboratory in Wenzhou, Zhejiang. Adhering strictly to the ISO9001 quality management system, FILN delivers industry-leading component innovation, robust mechanical structures, and stable electrical performance across more than 100 countries.
Our certified product portfolio includes indicator lights, pushbutton switches, rocker switches, toggle switches, and custom wire-harness assemblies. These components are widely specified across kitchen appliances, energy storage systems, EV charging networks, automotive systems, marine electronics, and commercial security installations. Holding certifications from UL, CE, RoHS, REACH, TUV, and CB, FILN provides direct engineering assistance, flexible no-MOQ production capabilities, rapid manufacturing lead times, and tailored custom engineering solutions.
Contact our engineering team today to receive direct pricing updates and full technical drawings:
Official Technical Platform: www.filn.com
Direct Procurement Routing: inquiry@cnylin.com.cn
FREQUENTLY ASKED QUESTIONS
Q1: What is the standard ingress protection level of this outdoor junction box?
A1: The complete system achieves an IP65 protection rating, which ensures total sealing against dust penetration and reliable defense against low-pressure water streams from any direction.
Q2: Can the integrated KCD4 rocker switch handle a continuous 30A current load?
A2: Yes, the switch is structurally rated to handle a maximum thermal current of 30A at 250VAC, making it suitable for demanding industrial and heavy machinery control circuits.
Q3: What are the exact structural panel cutout dimensions required for this switch?
A3: The KCD4 switch utilizes a standard rectangular cutout sizing configuration of 22mm x 30mm (0.86″ x 1.18″) for seamless panel integration.
Q4: What voltage options are available for the built-in LED illumination modules?
A4: The integrated LED modules can be configured to support low-voltage 5-24V DC systems as well as standard 110-220V AC utility power setups.
Q5: What are the advantages of using 4-pin screw terminal connections over quick-connect spade tabs?
A5: Heavy-duty 4-pin screw terminals offer superior mechanical retention and higher resistance to vibration, preventing wire pull-out and minimizing contact resistance in high-current applications.
Q6: What material choices are used for the internal electrical switch contacts?
A6: The switch elements utilize premium Silver Cadmium Oxide (AgCdO12) contacts, providing excellent electrical conductivity and high resistance to contact welding or arc degradation.
Q7: Is the plastic enclosure material UV stable for direct outdoor installation?
A7: Yes, the housing options are constructed using stabilized ABS or premium polycarbonate blends engineered to withstand prolonged UV exposure without cracking or degrading.
Q8: What cable gland sizes are supplied with the FILN outdoor junction box?
A8: The enclosure is configured with liquid-tight PG9 or PG11 cable glands to match a wide range of external wire jacket diameters.
Q9: Does this electrical product hold safety certifications for export to the US and Europe?
A9: Yes, the component array is fully certified under UL, CE, TUV, VDE, RoHS, and REACH international safety standards.
Q10: What LED illumination colors are available for the KCD4 switch?
A10: FILN offers five high-visibility LED colors: Red, Green, Yellow, Blue, and White (RGYBW), along with a standard non-illuminated black version.
Q11: Can this product be deployed in marine or saltwater environments?
A11: Yes, the combination of an IP65 sealed housing, rubber sealing boots, and non-corrosive H62 brass alloy terminal structures makes it ideal for marine and yacht wiring applications.
Q12: What is the baseline mechanical service life rating of the internal rocker switch?
A12: The mechanical structural architecture is engineered and tested to achieve a minimum lifespan of 20,000 operational cycles under zero-load bench testing.
Q13: Does FILN require a minimum order quantity (MOQ) for custom wiring configurations?
A13: FILN offers a flexible, no-MOQ policy for standard products and prototype samples to support industrial engineering design verification.
Q14: How does the internal light-guiding PC element improve safety in low-light environments?
A14: The integrated polycarbonate light guide projects sharp, uniform illumination across the translucent cover, allowing operators to quickly identify switch locations and status in dark work areas.
Q15: What is the ambient operational temperature range for this enclosure assembly?
A15: The unit features a certified 40T125 thermal class rating, allowing reliable operation in extreme environments ranging from -40°C up to +125°C.
Q16: How do the PG series cable glands prevent water tracking along incoming wires?
A16: The glands compress an internal rubber sleeve tightly around the cable jacket as the dome nut is tightened, creating a secure environmental seal at the wire entry point.
Q17: What is the functional circuit configuration of the standard KCD4 switch?
A17: The standard configuration uses a 2-position maintained ON-OFF functional layout, allowing positive circuit latching in both electrical states.
Q18: Can I request customized pre-terminated internal wiring harnesses directly from the factory?
A18: Yes, FILN provides comprehensive OEM/ODM engineering services, including custom internal lead preparation, specialized terminal crimping, and modified housing layouts.
Q19: How does the snap-in mounting mechanism function during final assembly?
A19: The switch body features flexible molded side retention tabs that compress during insertion and expand securely against the back of the panel to lock the unit in place.
Q20: Who should I contact for large-volume wholesale pricing and custom technical assistance?
A20: Please route technical design specifications and volume quote requests directly to our global engineering group via email at inquiry@cnylin.com.cn.
