Waterproof Junction Box with 30A Aluminum LED Rocker Switch UL CE Certified | FILN
- Product Type: Waterproof Junction Box
- Model No: WB1-2T-D401-082
- Product Composition:
Junction box + KCD4 waterproof rocker switch - High Current: 30A 250VAC
- Waterproof Rating: IP65 Certified
- Cutout Size: 22mm x 30mm
- Certifications: UL, CE, RoHS, TUV
SUMMARY
The FILN waterproof junction box integrates a premium KCD4 rectangular illuminated rocker switch with a heavy-duty electrical enclosure engineered for challenging industrial environments. Featuring a high-current rating of 30A at 250VAC, this component utilizing an aluminum faceplate with an LED ring light ensures exceptional power distribution control. It possesses an IP65 protection rating, UL, CE, RoHS, and TUV certifications, making it suitable for marine, automotive, and automation systems across the United States, Europe, and Australia. Designed with a 22x30mm mounting cutout and a 4PIN screw terminal mechanism, this single-in single-out configuration offers reliable operation under extreme temperatures ranging from -40°C to +125°C.
KEY TAKEAWAYS
- High-Amperage Control: Features a premium built-in KCD4 switch supporting 30A 250VAC / 18(12)A 125VAC heavy-duty industrial loads.
- Engineered Enclosure Protection: Complete IP65 dust-tight and water-resistant execution ensuring safe distribution.
- Universal Mounting Dimensions: Leverages the industry-standard 22mm x 30mm rectangular panel cut-out profile.
- Robust Screw Terminal Interface: Equipped with a 4PIN heavy-duty screw terminal layout ensuring stable field wiring connections.
- Illumination Configurations: Offered with energy-efficient LED light options across Red, Green, Yellow, Blue, and White (RGYBW) spectrums.
- Premium Aluminum Faceplate: Metallic ring-lit design offers superior structural integrity compared to standard plastic alternatives.
- Global Compliance Approvals: Fully tested and certified under ISO9001, UL, CE, TUV, VDE, CB, RoHS, and SGS standards.
- Extreme Environmental Resiliency: Confirmed operating capability spanning ultra-low and high-temperature boundaries from -40°C to +125°C.
- Optimized Field Cable Entry: Integrated factory-threaded PG9 or PG11 strain-relief compression cable glands pre-configured.
- Versatile Operational Layouts: Available in precise ON-OFF, ON-ON, and 3-position ON-OFF-ON electrical mechanical configurations.

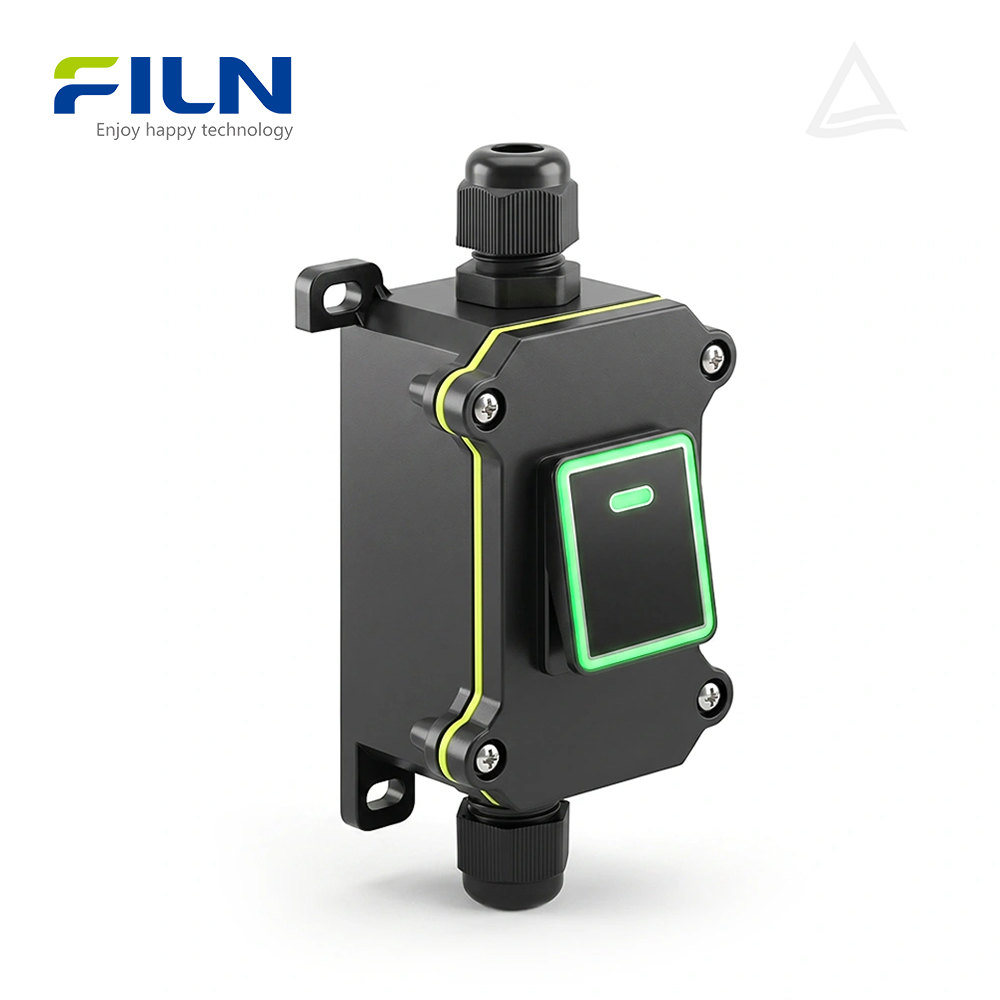

WHAT IS A WATERPROOF JUNCTION BOX WITH ROCKER SWITCH
A waterproof junction box is a highly resilient electrical enclosure specifically engineered to shield critical electrical wiring connections from ambient moisture, particulate ingress, and corrosive substances. Integrated with a high-performance KCD4 rocker switch, this distribution assembly establishes localized control over high-amperage sub-circuits. Operating as a safe point of termination, the box houses rugged terminal paths and provides robust mechanical strain relief via compression glands.

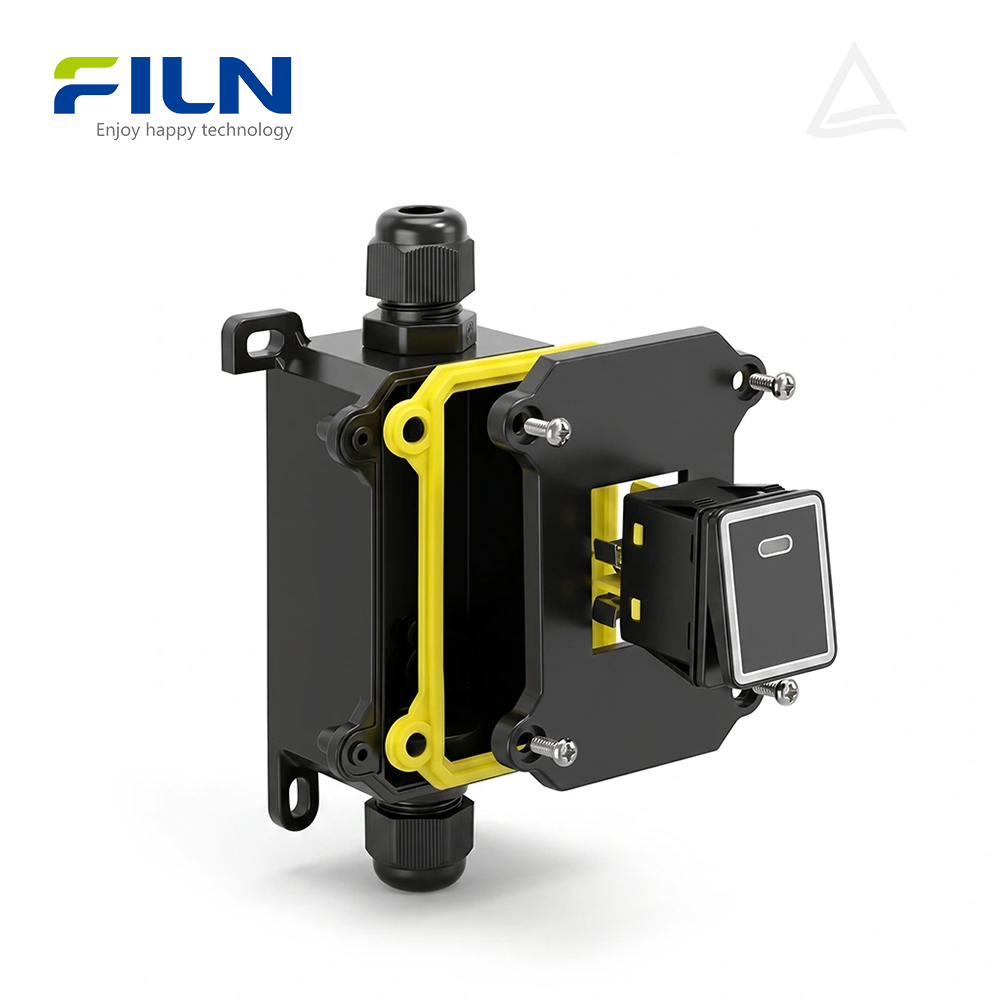

The internal architecture consists of an engineered plastic housing combined with a sealed operator interface that isolates live currents from dangerous grounding shorts. Electrical installers deploy these units within demanding machinery zones, commercial washdown environments, and marine applications where conventional switch panels fail. This design reduces circuit layout complexity by unifying environmental sealing with local power isolating controls.
To satisfy diverse industrial engineering mandates, FILN offers multiple premium rocker switch configurations within this sealed enclosure product family. Control panel builders can specify Aluminum Rocker Switches for heavy mechanical protection, Transparent Rocker Switches for direct internal visual feedback, Black Painted Rocker Switches for specialized aesthetic integration, Stainless Steel Rocker Switches for highly corrosive chemical exposures, or No Light Rocker Switches for standard light-sensitive applications.
EXPLORE OUR COMPLETE ENCLOSURE RANGE
Discover our full collection of premium industrial electrical protection and switching products.
PRODUCT OVERVIEW
The FILN waterproof junction box assembly represents a factory-integrated solution combining a rigid, dust-tight base housing with an illuminated rectangular KCD4 rocker switch. The primary mechanical principle involves a robust snap-in retention system paired with a compressed rubber gasket matrix that resists external pressure. Electrically, the internal switch utilizes premium silver alloy contacts to handle continuous currents up to 30 Amperes without overheating.
This component utilizes an isolated internal circuit design supporting selectable LED operating voltages from 5-24V up to 110-220V. Cable termination uses industrial 4PIN heavy-duty screw terminals that provide superior vibration resistance compared to standard quick-connect spade lugs. This structural rigidity helps ensure consistent electrical performance in maritime yachts, automated machinery, and power distribution setups.
Manufactured from high-grade ABS and PA66 nylon, the assembly exhibits strong dielectric strength and physical impact durability. Integrated PG9 or PG11 cable compression glands maintain the IP65 seal integrity at the wire access points. Complete compliance with international testing frameworks ensures straightforward integration into municipal control infrastructure and high-volume OEM equipment builds.
QUICK SPECIFICATIONS
| Technical Parameter | Specification Value |
|---|---|
| Enclosure Product Brand | FILN |
| Primary Product Assembly | Waterproof Junction Box with Integrated Switch |
| Switch Series Profile | KCD4 Rectangular Series |
| Waterproof Joint / Gland Model | PG9 / PG11 High-Compression Strain Relief Glands |
| Wiring Configuration Path | Single-in, single-out wiring configuration / Line-in / Line-out (L-in, L-out) |
| Switch Actuator Geometry | Square / Rectangular Profile Appearance |
| Switch Mounting Cutout | 22mm x 30mm (0.866″ x 1.181″) Dimensions |
| Primary Switching Functions | ON-OFF / ON-ON / ON-OFF-ON 3-Position Option |
| Integrated LED Indicator Color | No Light Option / Red (R) / Green (G) / Yellow (Y) / Blue (B) / White (W) |
| Wiring Connection Mechanism | 4PIN Heavy-Duty M3 Screw Foot Terminals |
| Input Control Voltage Range | 5V to 24V DC / 110V to 220V AC Options |
PERFORMANCE PARAMETERS
| Parameter Index Category | Verified Engineering Value |
|---|---|
| Electrical Function Matrix | Two-position latching ON-OFF |
| Maximum Rated Load Voltage | 30A 250VAC / 18(12)A 125VAC High Load Range |
| Continuous Working Amperage | 30 Amperes peak structural tolerance |
| Initial Contact Resistance | ≤ 50 milli-Ohms (mΩ) baseline maximum |
| Insulation Breakdown Resistance | ≥ 100 Mega-Ohms (MΩ) evaluated at 500VDC |
| Dielectric Strength Voltage | 1500VAC / 5mA under continuous 60-second test |
| Electrical Lifecycle Endurance | ≥ 10,000 cycles completed at maximum electrical load |
| Ambient Boundary Temperatures | -40°C minimum to +125°C maximum (40T125 thermal class) |
| Ingress Protection Classification | IP65 Dustproof and Waterproof certified alignment |
| Factory Product Certifications | ISO9001, CE, UL, TUV, VDE, RoHS, SGS, CB Compliance |
The factory performance certifications detailed above are verified by our internal labs and independent third-party test organizations. The official certification log below outlines our global distribution compliance:
COMPONENT MATERIALS
| Component / Accessory Name | Material Specified | Engineering Purpose & Justification |
|---|---|---|
| Transparent Sheet | Polycarbonate (PC) | High clarity combined with high impact strength and thermal resistance. |
| Light Guiding Part | Polycarbonate (PC) | Optimizes light refraction for high-efficiency, uniform LED luminance distribution. |
| Switch Holder Structural Ring | Acrylonitrile Butadiene Styrene (ABS) | Provides mechanical rigidity and structural stability to prevent body flexing under load. |
| Waterproof Protection Cover | Premium Vulcanized Rubber | Maintains a flexible, long-lasting environmental seal across cold and hot temperature cycling. |
| Up Base Shell Housing | Acrylonitrile Butadiene Styrene (ABS) | High external impact resistance and surface hardness to protect against physical abuse. |
| Bottom Isolation Base | Polyamide 66 Nylon (PA66) | High dielectric strength and heat deflection performance under heavy electrical load. |
| Middle Interlocking Seat | Acrylonitrile Butadiene Styrene (ABS) | Maintains alignment between internal switching points and external mechanical components. |
| Pin, Edge Leg & Spring Board | H62 High-Grade Industrial Brass | Excellent electrical conductivity combined with a low resistance coefficient to reduce thermal load. |
| Electrical Switch Contacts | Silver Cadmium Oxide (AgCdO12) | Resists arc erosion and prevents contact welding under peak 30A inrush loads. |
| Actuator Internal Spring | 72# Carbon Spring Steel Wire | Provides consistent mechanical recoil and actuation force across prolonged duty cycles. |
| Iron Frame Structural Case | 08F Low-Carbon Automotive Steel | Structural enforcement matrix preventing physical housing shift within heavy panel integrations. |
| Enclosure Compression Washer | Premium Vulcanized Rubber | Provides positive compression seal tracking along the gland entry boundaries to block water. |
| Illumination Core Element | Solid-State LED Matrix Module | High-efficiency, low-power visual monitoring with a service life exceeding 50,000 operational hours. |
GENERAL CHARACTERISTICS
This technical specification profile defines the general application envelope for the KCD4 series rocker switches integrated within FILN’s protective industrial enclosures. These characteristics guide electrical engineers during system design and field integration.
| Environmental Metric Type | Target Environmental Threshold Limits |
|---|---|
| Design Scope Designation | General application range profiles for KCD4 heavy-duty rocker switch modules |
| Component Nomenclature | High-amperage rocker mechanism and weather-shielded industrial enclosure |
| Active Operating Temperature Boundary | -40℃ to +125℃ continuous operational tracking range |
| Static Storage Temperature Boundary | -40℃ to +125℃ maximum safe passive exposure limit |
| Permissible Relative Humidity Envelope | 45% to 85% relative humidity boundaries without internal condensation |
| Baseline Testing Evaluation Temperature | Controlled ambient baseline window of 5℃ to 35℃ for technical certification |
| Baseline Testing Relative Humidity | 45% to 85% reference standard atmosphere limits during diagnostic sweeps |
| Atmospheric Operational Pressure | 86 kPa to 106 Kpa (860 mbar to 1060 mbar) total system tracking matrix |
ELECTRICAL AND MECHANICAL CHARACTERISTICS
1. Detailed Electrical Parameters
| Electrical Attribute | Standard Testing Environment Condition | Mandatory Engineering Criteria |
|---|---|---|
| Contact Resistance Profile | Measured via 1 kHz AC micro-signal source under a low-current configuration. | ≤ 50 milli-Ohms (mΩ) initial rating. |
| Insulation Resistance Capacity | Continuous application of 500VDC for a period of 60 ± 5 seconds across all adjacent terminals. | ≥ 100 Mega-Ohms (MΩ) isolation value. |
| Dielectric Voltage Insulation | Applies 1500VAC (5mA cutoff) for 60s across terminals; applies 3000VAC (5mA cutoff) between terminal and frame. | Zero structural insulation breakdown, failure, or surface flashover. |
2. Mechanical Structural Performance
| Mechanical Metric Type | Standard Testing Environment Condition | Mandatory Engineering Criteria |
|---|---|---|
| Actuator Operating Force | Switch fixed perpendicular to toggle travel vector; incremental load is applied to calculate peak force. | Maintains alignment with custom engineering specification bands. |
| Connection Terminal Strength | Applies a continuous 80 Newton (80 N) static load directed along the terminal terminal axis for 60s. | No component deformation, fracturing, loose pins, or tracking disconnects. |
| Terminal Solderability Path | Immerse connection leads into a molten tin bath at 235 ± 5℃ for a period of 3 ± 0.5 seconds. | Solder wetting must cover more than 90% of the active immersion zone. |
| Welding Thermal Resistance | Immerse pins at 260 ± 5℃ for 3 ± 1s, OR apply manual soldering irons at 350 ± 5℃ for 3 ± 1s. | Zero structural deformation; mechanical toggle and electrical functions remain nominal. |
3. Durability Life Requirements
| Durability Metric Type | Standard Testing Environment Condition | Mandatory Engineering Criteria |
|---|---|---|
| Mechanical Working Life | 20,000 cycles at 60 operations/minute under zero electrical load conditions. | Withstands ≥ 75% of the original dielectric breakdown tracking voltage post-test. |
| Electrical Load Life | 10,000 cycles at 15 operations/minute under maximum rated inductive and resistive load. | Withstands ≥ 75% of the original dielectric breakdown tracking voltage post-test. |
4. Environmental Resistance Matrix
| Stress Profiles | Testing Environment Parameters | Post-Environmental Operational Requirements |
|---|---|---|
| High-Temperature Stress | Continuous soak at 125 ± 2℃ for 72 hours; 1-hour ambient recovery room cool down. | 1. No physical structural deformation or micro-fracturing. 2. Consistent contact tactile response. 3. Final contact resistance measures ≤ 200 mΩ. 4. Final insulation resistance tracking remains ≥ 2 MΩ. 5. Dielectric strength performance continues to pass baseline parameters. |
| Humidity & Heat Stress | Continuous soak at 40 ± 2℃ alongside relative humidity bounds of 91% to 95% RH for 96 hours. | |
| Low-Temperature Stress | Continuous environmental exposure at -40 ± 2℃ for a period of 12 hours. | |
| Thermal Temperature Cycling | 5 complete hot-to-cold thermal shock transitions based on product specification limits. |
PRODUCT COMPARISON SOLUTIONS
In electrical distribution architectures, specific detail adjustments significantly influence long-term operational reliability. FILN provides two structural variants within the KCD4 rocker switch family—the Reinforced Framed White-Border Series and the Standard Frameless Series—to balance specific application requirements from heavy-duty industrial processing to cost-sensitive equipment builds.
The Enhanced Framed Series: White Frame Structural Optimization
Designed for high-vibration control panels, machinery exports, and heavy duty industrial environments, the white-frame option incorporates an integrated structural exoskeleton. This design reinforces the switch housing, helping to prevent body deformation during installation into rigid or slightly undersized cutouts. This protection ensures reliable snap-arm recoil and secure engagement.
Additionally, this perimeter frame acts as an anchor for the vulcanized rubber waterproof cover, preventing edges from rolling or unseating under repetitive use or high temperatures. This design provides a reliable physical barrier against water droplets and fine abrasive dust in marine, outdoor solar, and automated equipment applications. The extended frame geometry also covers minor panel cutout imperfections like burrs or slight edge chips, yielding a clean, premium integration.
The Standard Frameless Series: Compact Profile Efficiency
The classic frameless variant offers a space-efficient layout for high-density control panels and general purpose electronics. By eliminating the extended outer frame, this profile allows for closer multi-switch grouping where mounting area is limited. It utilizes the same silver-alloy contacts and internal brass current tracks as the framed series, maintaining matching electrical performance. For interior, low-moisture environments with precise cutouts, this variant delivers consistent switching lifetimes while reducing total component cost in high-volume production projects.
ROCKER SWITCH CIRCUIT FUNCTION MODES
The integrated rectangular KCD4 series rocker switch can be configured with specific circuit logic paths to match various application control requirements. The table below details the electrical behaviors, terminal path links, and typical system use cases for 2-position and 3-position configurations.
| Circuit Function Type | Mechanical Positions | Internal Terminal Path Behavior | Typical Industrial Engineering Use Case |
|---|---|---|---|
| ON – OFF | 2 Positions (Latching) | Maintains a closed circuit in the ON position and completely opens the path in the OFF position. Disconnects both lines when using a 4PIN layout. | Primary system power isolation, sub-circuit on/off control, single-phase motor isolation. |
| ON – ON | 2 Positions (Latching) | Alternates electrical path delivery between Output Set A and Output Set B, preventing a shared open state. | Dual power source selection, alternating system operation, instrumentation circuit routing. |
| ON – OFF – ON | 3 Positions (Latching) | The center position opens all terminal connections. Actuating left or right closes separate target circuits. | Manual motor directional controls (Forward-Stop-Reverse), alternative grid/generator sourcing. |
| (ON) – OFF / ON – (OFF) | 2 Positions (Momentary) | Maintains active loop continuity only while holding down the actuator actuator. Spring-returns to baseline open state when released. | System testing, fluid purge loops, jog controls, localized calibration routines. |
APPLICATIONS BY INDUSTRY
The FILN waterproof junction box assembly is deployed across various heavy-duty industrial sectors due to its integrated design and environmental protection ratings. In industrial automation, control engineers use these boxes to distribute localized field power and provide manual isolation switches for conveyors and sortation lines. The IP65 enclosure protects the terminal connections from routine chemical washdowns and airborne particulates.
In marine and recreational vehicle applications, the assembly provides centralized power control for onboard bilge pumps, internal lighting grids, and navigation arrays. The H62 brass current paths and optional white-frame sealing help resist salt fog oxidation and mechanical stress from hull vibration. In solar energy arrays and automated agricultural systems, the UV-stabilized housing shields terminal connections from rain and extreme sun exposure, helping to ensure consistent operation.
Commercial building operations and medical manufacturing facilities utilize these assemblies in sanitization zones, climate-controlled clean rooms, and outdoor HVAC configurations. For dark or low-light operating conditions, the integrated KCD4 switch with an active LED ring light provides clear status tracking. Conversely, for darkroom or light-sensitive applications, the unilluminated matte black option integrates cleanly into standard equipment configurations.
WATERPROOF JUNCTION BOX SWITCH INTEGRATION

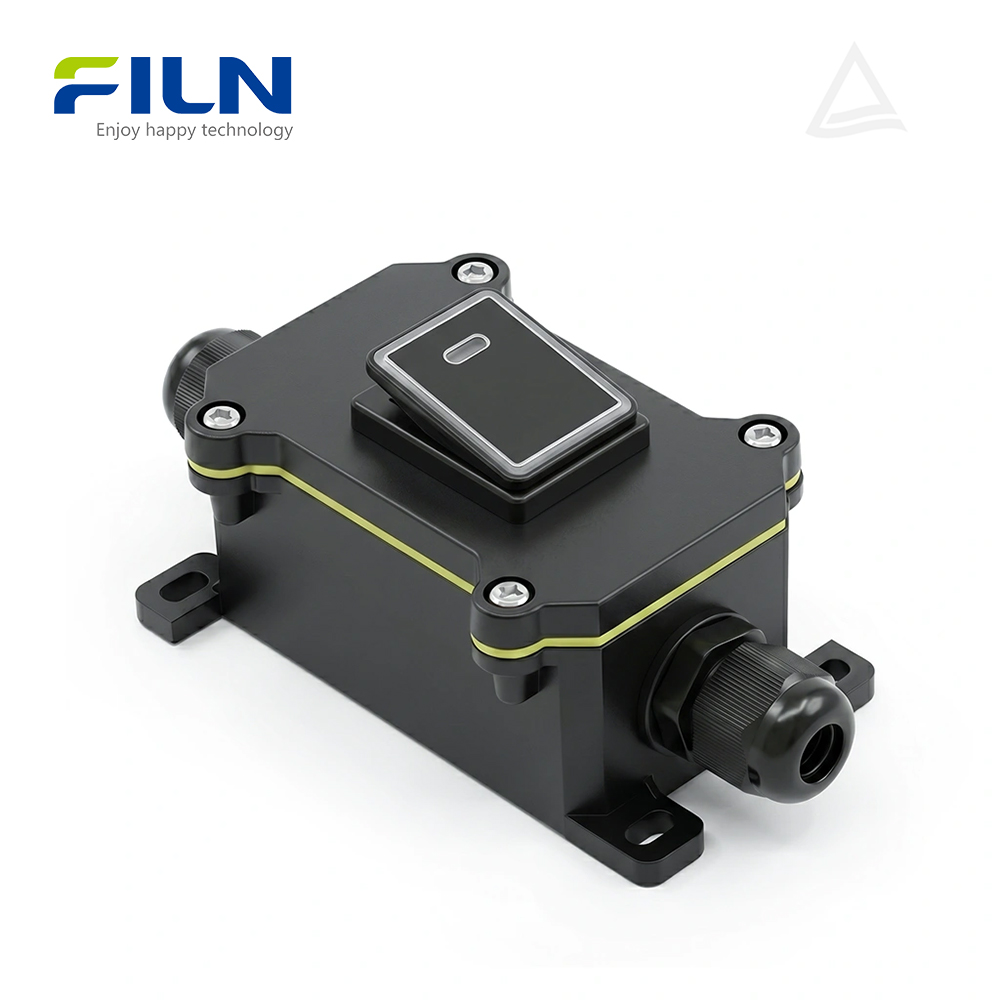

This industrial junction box unifies an IP65 polycarbonate protective enclosure with a high-current rectangular rocker switch to provide a sealed power control node. The internal layout supports straightforward cable routing, featuring dedicated line-in and line-out paths secured by compression glands. The 4PIN screw terminal block eliminates the need for manual soldering or push-on crimp lugs, providing a reliable connection that resists mechanical relaxation from thermal expansion and vibration.
Proper integration requires running the incoming supply line through the compression gland directly to the input pins of the KCD4 switch. The corresponding output pins route power to the load device, while the independent LED pins are linked to the switched hot line to provide illumination when the circuit is active. Maintaining correct terminal alignment preserves structural isolation between phases and ensures the integrated rubber gasket seats firmly against the enclosure lip.
INSTALLATION GUIDE
Follow these systematic engineering procedures to mount the waterproof junction box onto structural support frameworks or equipment chassis:
- Isolate Power Supply: Ensure all upstream circuit breakers are locked and tagged out in accordance with standard industrial safety procedures before handling any conductor wiring.
- Inspect Component Seal: Verify that the perimeter rubber gasket is properly seated within its channel and free of dust or physical twisting.
- Prepare Surface Panel: Create the required rectangular installation cutout to the precise dimensions of 22mm x 30mm using standard machining tools.
- Mount Enclosure Body: Position the base enclosure against the mounting surface, securing it with appropriate fasteners through the integrated mounting points.
- Insert Switch Mechanism: Align the KCD4 rocker switch with the pre-machined panel opening and push firmly until the dual side retention clips snap securely into place.
- Secure Cable Glands: Thread the provided PG9 or PG11 compression glands into the enclosure entry ports, tightening them to the recommended torque specifications to establish an environmental seal.
SAFETY NOTICE: Always verify that the total circuit load does not exceed the maximum rating of 30A 250VAC to prevent thermal breakdown or component failure.
WIRING GUIDE
Follow this detailed wiring sequence to connect standard single-phase power lines through the 4PIN screw terminal interface:
- Strip Insulation Layers: Strip the outer jacket of the line-in and line-out cables back by 25mm, then strip the individual conductors by 7mm to expose clean copper strands.
- Route Through Glands: Pass the prepared cable ends through the loosened PG9/PG11 cable glands into the internal chamber of the enclosure.
- Connect Source Supply Line: Insert the incoming hot and neutral conductors into the primary input screw terminals (Pins 1 and 2) of the KCD4 switch, tightening the M3 screws securely.
- Connect Load Outbound Line: Connect the outbound hot and neutral load leads to the corresponding output screw terminals (Pins 3 and 4) on the opposite side of the switch block.
- Bridge Indicator LED: For illuminated configurations, verify that the internal LED jumper connects across the switched load terminals to provide active power status indication.
- Final Tightening Sequence: Tighten the outer compression nuts of the cable glands to clamp down on the cable jacket, checking that the wires are secure and the box is sealed.
INDUSTRY KNOWLEDGE CENTER
Understanding the distinction between electrical enclosure protection levels is critical for safety and operational longevity. An IP65 rating signifies complete protection against dust ingress and resistance to low-pressure water jets from any direction. This level of protection makes the assembly suitable for industrial washdown environments and marine deck setups subject to splashing water and heavy rain.
When designing power distribution for high-current circuits, selecting the proper contact material is essential to prevent thermal failures. Standard consumer-grade switches often use thin copper plating that can degrade or pit under continuous high-amperage switching. FILN utilizes heavy silver cadmium oxide (AgCdO12) contacts, which offer high conductivity and resistance to electrical arc erosion under a full 30 Ampere load.
A common error during field installation is over-tightening the cable gland compression nuts, which can pinch or deform the internal rubber seals and create pathways for moisture ingress. Systems integrators should tighten the glands until the rubber ring compresses uniformly around the cable jacket, providing positive strain relief without altering the cable geometry. Routine maintenance should include checking screw terminal torque levels to ensure connections remain secure during thermal cycling.
BUYER DECISION GUIDE
When selecting a waterproof junction box assembly for volume OEM manufacturing or specific project retrofits, buyers should evaluate several design criteria:
First, verify total circuit load requirements. While standard applications may only need 15A or 20A capacity, specifying a 30A rated KCD4 core switch provides additional safety margin and protection against transient inrush currents from inductive loads like motors or large power supplies. Second, match the cable entry diameter with the correct gland size; use the PG9 gland for smaller control cables (4-8mm) and the PG11 gland for heavier power lines (5-10mm).
Material selection should also align with the installation environment. For general manufacturing and marine deck applications, the standard impact-resistant ABS enclosure provides adequate durability. For installations exposed to harsh chemicals, fuels, or prolonged UV light, specify polycarbonate or PA66 nylon bases to prevent housing degradation. Lastly, choose the appropriate visual indicator configuration—ranging from unilluminated black to bright 220V neon LED modules—to ensure clear operation in the intended environment.
WHY ENGINEERS CHOOSE FILN
Electrical design engineers and B2B procurement managers partner with FILN because of our factory-direct manufacturing model and comprehensive engineering support. We eliminate standard distributor markups and minimum order quantity (MOQ) restrictions, enabling rapid prototyping and cost-effective scaling from low-volume trials to high-volume production runs. This direct oversight helps ensure consistent component quality and streamlined delivery schedules.
Our engineering team provides full custom configuration support, including specialized wire harness integration, custom laser engraving, and alternative terminal configurations. With production facilities certified to ISO9001 and products carrying UL, CE, TUV, and RoHS approvals, FILN components are ready for integration into equipment destined for international markets. We handle all manufacturing steps in-house to maintain strict quality control and provide reliable technical support throughout your product’s lifecycle.
FACTORY DIRECT SUPPLY CAPACITY
Yueqing Yulin Electronic Co., Ltd., operating under the global brand name FILN, was established in 2006 as an integrated designer and manufacturer of specialized electrical components. From our 10,000 square meter facility equipped with 20 advanced production lines, we supply components to industrial clients in over 100 countries. Our catalog includes high-quality indicator lights, pushbutton switches, toggle controls, and custom waterproof enclosure assemblies.
FILN operates an independent testing laboratory and strictly follows ISO9001 quality management guidelines to ensure consistent electrical and mechanical performance. Our product certifications include UL, CE, VDE, RoHS, SGS, TUV, and CB, facilitating compliance approval for global OEM exports. Our technical sales team acts as a direct engineering contact to assist with custom design requirements and complex application challenges.
For volume pricing requests, customized lead wire integrations, or specific product documentation, contact our international sales desk directly. We provide comprehensive engineering submittals and rapid-ship production sampling to support your project timelines.
Corporate Contact Channels:
• Official Technical Portal: www.filn.com
• Engineering Support Email: inquiry@cnylin.com.cn
FREQUENTLY ASKED QUESTIONS
Q1: What is the primary current rating of the integrated KCD4 rocker switch?
A1: The built-in switch is designed for heavy-duty industrial applications, rated for up to 30A at 250VAC or 18(12)A at 125VAC.
Q2: Does this junction box assembly have an official ingress protection rating?
A2: Yes, the full assembly carries an IP65 protection rating, verifying it is dust-tight and resistant to water spray from any direction.
Q3: What are the standard dimension cutouts required to mount the rocker switch component?
A3: The switch uses the standard rectangular footprint of 22mm x 30mm (0.866 inches by 1.181 inches).
Q4: What terminal choices are available on the back of the KCD4 switch?
A4: This model features heavy-duty 4PIN screw terminals that provide secure wire termination without the need for manual soldering.

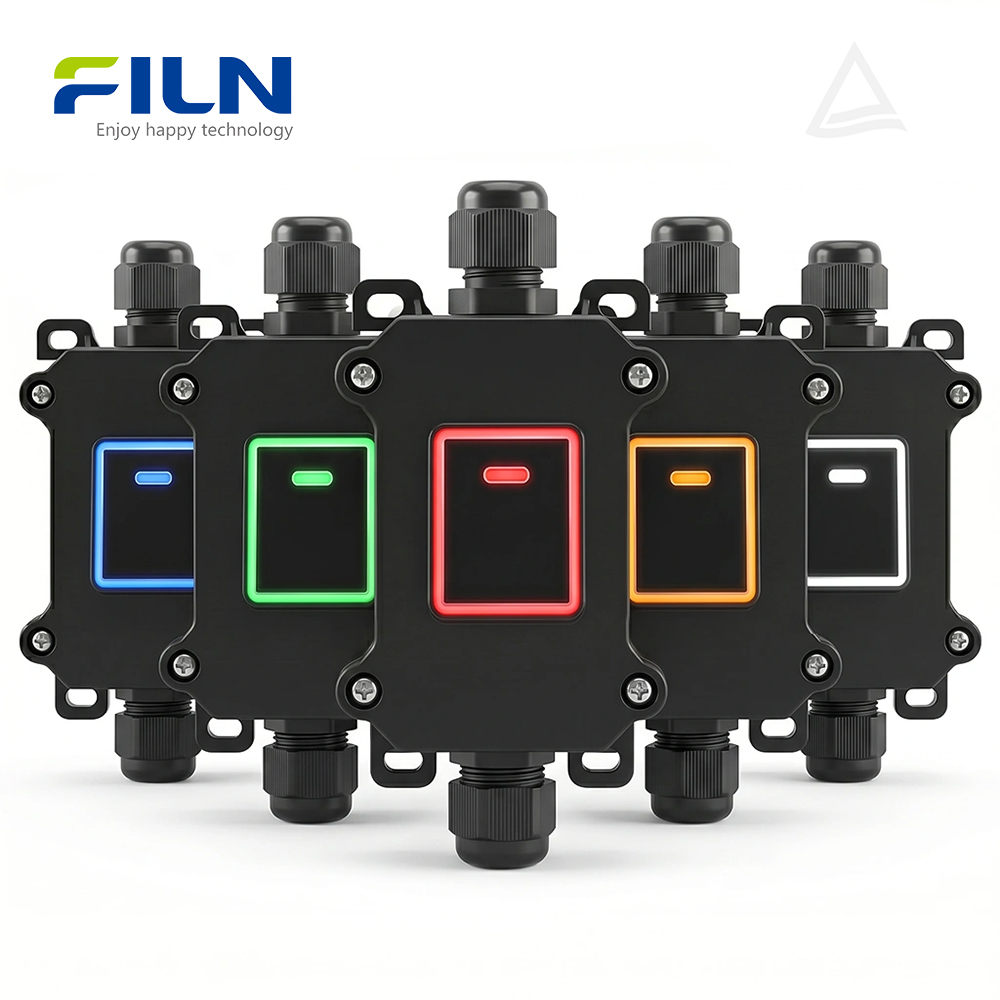

Q5: Can I order this waterproof junction box with different LED indicator colors?
A5: Yes, the switch is available with Red, Green, Yellow, Blue, and White (RGYBW) LED modules, or as an unilluminated model.
Q6: What input voltage selections are available for the illuminated switch model?
A6: FILN offers internal LED configurations supporting lower-voltage 5-24V DC circuits up to standard 110V-220V AC power lines.
Q7: What type of wiring configuration is supported by the enclosure access ports?
A7: The box uses a single-in, single-out wiring configuration, supporting direct inline power control.
Q8: What cable gland sizes are supplied with the enclosure ports?
A8: Depending on your cable specification requirements, the unit can be supplied with threaded PG9 or PG11 compression glands.
Q9: Are the internal switching contacts robust enough for high inductive motor loads?
A9: Yes, the switch features premium silver cadmium oxide (AgCdO12) contacts designed to resist pitting and arc erosion from inductive loads.
Q10: What plastic material is used to mold the primary enclosure body?
A10: The housing uses high-impact ABS for the outer shell, combined with an isolated PA66 nylon base terminal structure.
Q11: What is the maximum safe operating temperature range for this product?
A11: The entire assembly is certified under the 40T125 thermal classification, operating safely across temperature boundaries from -40°C up to +125°C.
Q12: Does FILN enforce a minimum order quantity (MOQ) for custom lead configurations?
A12: No, FILN maintains a zero minimum order quantity policy to support direct engineering prototypes and low-volume production builds.
Q13: Which global testing certifications does this junction box family carry?
A13: The component line is certified compliant under UL, CE, TUV, VDE, CB, RoHS, and SGS international safety frameworks.
Q14: What faceplate options can be specified for the KCD4 switch module?
A14: Buyers can choose from Aluminum, Transparent, Black Painted, Stainless Steel, or unilluminated standard faceplate designs.
Q15: How does the white-frame option compare to the standard frameless series?
A15: The white-frame version provides an integrated exoskeleton for added rigidity and improved cover sealing in harsh environments, while the frameless model offers a more compact footprint for tight panel spaces.
Q16: Can the KCD4 switch be supplied with three-position toggle logic?
A16: Yes, we manufacture the switch in standard 2-position ON-OFF and ON-ON configurations, as well as 3-position ON-OFF-ON paths.
Q17: Is this junction box safe for long-term deployment in marine yacht electronics?
A17: Yes, the combination of an IP65 housing, H62 brass internals, and salt-fog resistant materials makes it suitable for marine environments.
Q18: What is the tested mechanical life expectancy of the toggle switch actuator mechanism?
A18: The switch is rated to complete a minimum of 20,000 mechanical open-close cycles under zero-load conditions.
Q19: Where is the official corporate headquarters of the manufacturer FILN located?
A19: FILN components are produced by Yueqing Yulin Electronic Co., Ltd., located in Wenzhou within the Zhejiang province of China.
Q20: Can the factory supply custom pre-wired wire harness leads attached to the switch?
A20: Yes, FILN provides full ODM integration, including custom length wire leads, crimped terminal plugs, and specialized connection arrays.
