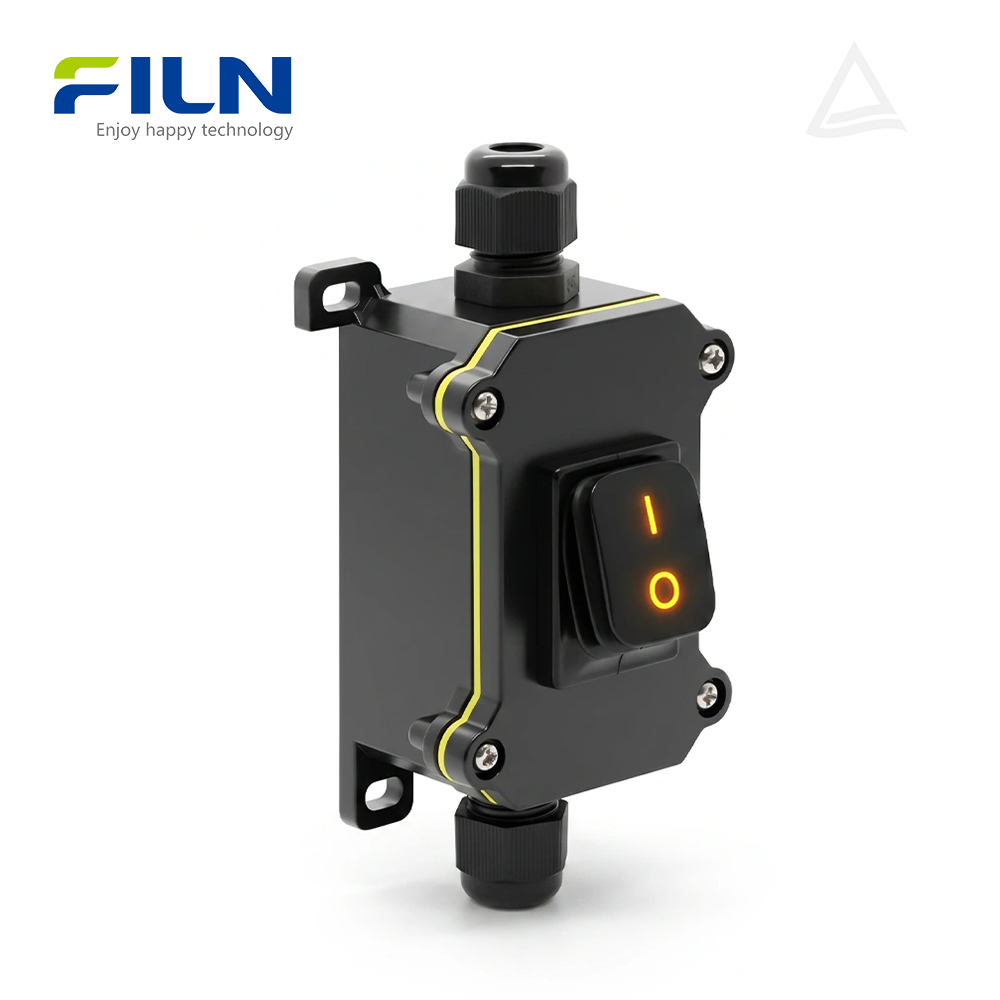

Plastic Junction Box with Waterproof 30A Black Painted Rocker Switch KCD4 Enclosure | FILN
- Product Type: Waterproof Junction Box
- Model No: WB1-2T-D401-0323-21
- Product Composition:
Junction box + KCD4 waterproof rocker switch - High Current: 30A 250VAC
- Waterproof Rating: IP65 Certified
- Cutout Size: 22mm x 30mm
- Certifications: UL, CE, RoHS, TUV
SUMMARY
The FILN Plastic Junction Box integrates a heavy-duty, high-current 30A KCD4 rectangular rocker switch featuring a premium black painted surface and robust 4-pin screw terminal architecture. This industrial-grade electrical enclosure system delivers reliable ON-OFF control across operational voltages ranging from low-voltage 5-24V up to high-voltage 110-220V systems, with vibrant RGYBW LED illumination maximizing visibility in low-light environments. Engineered for demanding marine, yacht, and automation system deployments, the assembly utilizes a snap-in 22x30mm mounting configuration within a durable plastic housing. Certified under UL, CE, RoHS, and TUV standards, this solution provides optimal IP65-rated environmental sealing against moisture, dust, and mechanical stress, serving as an essential component for worldwide OEMs and control panel builders.
KEY TAKEAWAYS
- High-capacity electrical switching integrated directly into a heavy-duty, protective Plastic Junction Box housing for optimal industrial power distribution.
- Equipped with a premium 30A KCD4 rectangular rocker switch featuring a high-durability black painted face plate to resist impact and corrosion.
- Versatile voltage compatibility supporting operational ranges from low-voltage 5-24V up to high-voltage 110-220V systems.
- Standardized industrial mounting configuration utilizing a 22x30mm cutout layout for drop-in panel and enclosure compatibility.
- Ergonomic, high-visibility RGYBW LED illumination color options for precise circuit status indication in dark operational spaces.

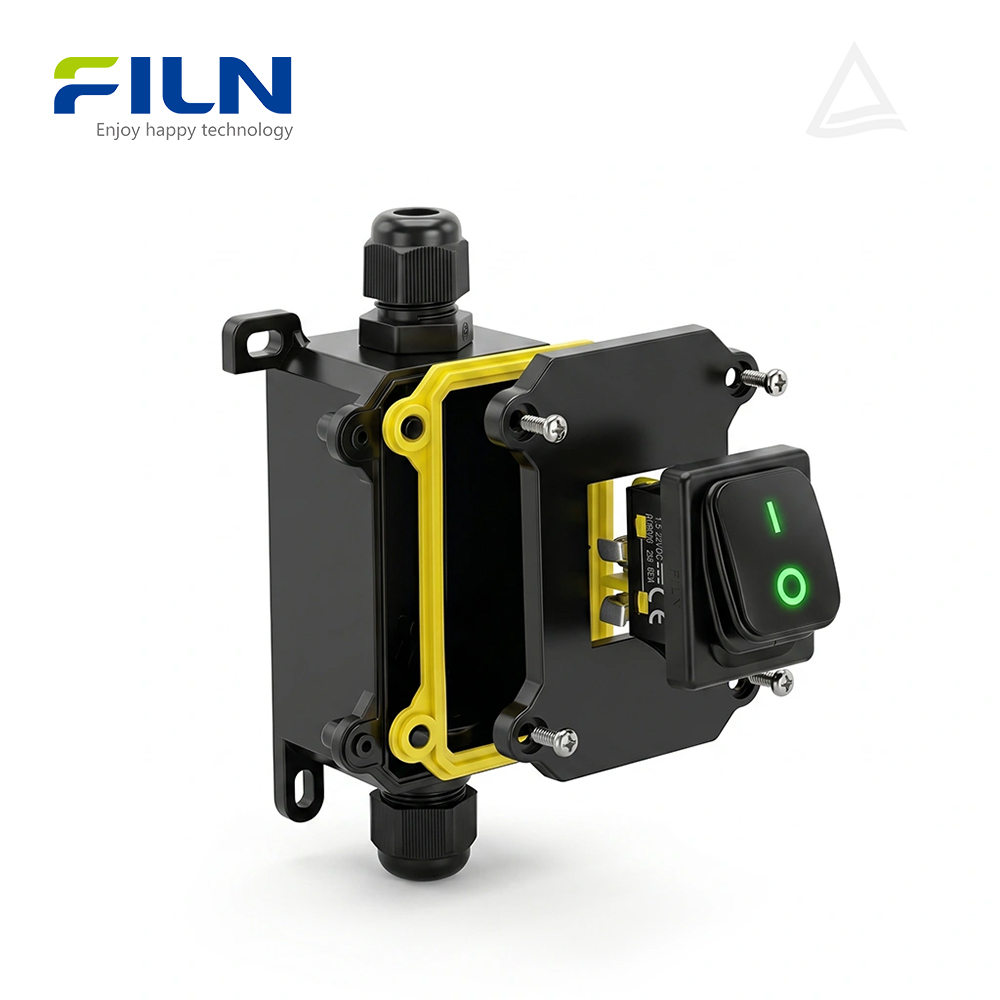

- Robust 4-pin screw terminal architecture guarantees a highly secure, vibration-resistant mechanical and electrical connection under heavy loads.
- Comprehensive international certifications including UL, CE, RoHS, and TUV ensure strict adherence to safety and environmental standards.
- Full factory customization capabilities provided directly by FILN, eliminating intermediate supply layers and lowering total procurement costs.
WHAT IS A PLASTIC JUNCTION BOX WITH ROCKER SWITCH?
A Plastic Junction Box represents a dedicated industrial enclosure designed to protect critical wiring connections, house terminal terminations, and integrate manual control components like specialized rocker switches. The primary function of this assembly is to shield electrical wiring from mechanical stress, ambient environmental hazards, moisture penetration, and accidental contact by personnel. Mechanically, the structure consists of a rugged plastic base block combined with a secure cover plate that features an engineered cutout designed specifically to accommodate high-amperage switching devices.
The integrated manual control interface utilizes a versatile KCD4 industrial switch platform that provides reliable ON-OFF mechanism operation. FILN engineering ensures that users can select from an array of specialized switch options tailored to explicit application environments, including structural variants such as the Aluminum Rocker Switch, Transparent Rocker Switch, Black Painted Rocker Switch, Stainless Steel Rocker Switch, and the sleek No Light Rocker Switch configuration. By integrating these specific components directly into an environmental housing, control engineers achieve an uncompromised user interface that handles high-current routing while sustaining high ingress protection levels.
Explore Our Complete Product Catalog
Discover our full selection of heavy-duty, professionally configured industrial enclosures and control interfaces engineered for international compliance.
PRODUCT OVERVIEW AND OPERATING PRINCIPLE
The FILN heavy-duty Plastic Junction Box is engineered to serve as an independent, localized power distribution and control hub for challenging applications like marine yacht panels and automated assembly floors. Operating on an optimized mechanical snap-in principle, the internal rectangular KCD4 switch locks into a precisely milled 22x30mm opening using integrated structural side tabs that secure the switch mechanism against displacement during repetitive actuation. Electrically, the internal mechanism utilizes a solid silver alloy contact assembly engineered to bridge or isolate power across two separate lines simultaneously under heavy inductive loads.
The final visual and operational configuration presents an illuminated KCD4 rocker switch integrated onto a sleek black plastic enclosure, maximizing contrast and functional utility. Under low-light conditions, the integrated LED lighting cuts through dark ambient backdrops to provide rapid status identification for operators. Alternatively, selecting a non-illuminated classic black rocker switch configuration offers an ultra-adaptable, professional profile that blends into custom dashboard builds. When paired with our high-grade environmental sealing boots, this setup acts as a barrier that prevents external moisture vectors and ambient dust micro-particles from entering the box core.
QUICK SPECIFICATIONS
| Technical Parameter Block | Industrial Specification Value |
|---|---|
| Enclosure System Classification | Plastic Junction Box Series |

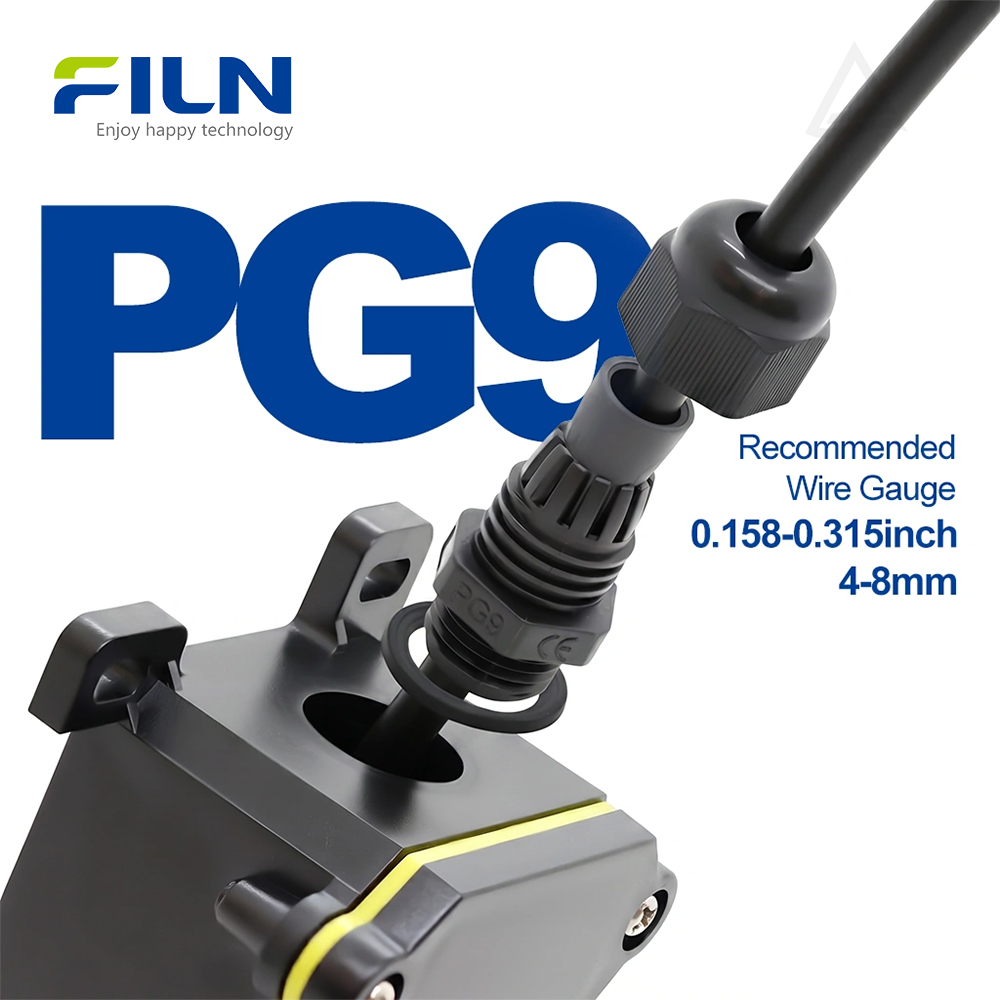

| Waterproof Cable Gland Spec | PG9 Heavy-Duty Compression Fitting |
| Internal Wiring Topology | Single-in, single-out wiring configuration / Line-in / Line-out (L-in, L-out) connection |
| Switch Structural Dimension | Standard 22mm x 30mm Cutout (Rectangular Form Factor) |
| Switch Actuation Function | 2-Position Maintained ON-OFF Control |
| LED Illumination Colors Available | Non-Illuminated / Red (R) / Green (G) / Yellow (Y) / Blue (B) / White (W) |
| Electrical Interface Connection | 4-PIN Robust Screw Terminals |
PERFORMANCE PARAMETERS
| Performance Metric | Technical Data Values |
|---|---|
| Switch Function | ON-OFF |
| Rated Operating Voltage | 30A 250VAC / 18(12)A 125VAC (Compatible with 5-24V, 110-220V systems) |
| Rated Operational Current | Maximum 30 Amperes |
| Initial Contact Resistance | ≤ 50 Milliohms (mΩ) |
| Insulation Resistance | ≥ 100 Megohms at 500VDC (MΩ) |
| Dielectric Isolation Strength | 1500VAC / 5mA for 60 Seconds |
| Electrical Endurance Life | ≥ 10,000 Complete Cycles under full thermal load |
| Ambient Working Temperature | 40T125 (-40°C to +125°C Operational Limits) |
| Environmental Ingress Rating | IP65 Certified Sealing Integrity |
| Global Industry Certifications | UL, CE, RoHS, REACH, TUV, CB Approval Codes |
COMPONENT MATERIALS SPECIFICATION
| Component Accessories Name | Material Composition | Engineering Justification |
|---|---|---|
| Transparent sheet | Polycarbonate (PC) | Delivers high optical clarity paired with high impact resistance. |
| Light guiding part | Polycarbonate (PC) | Ensures uniform LED illumination distribution across the lens face. |
| Holder | Acrylonitrile Butadiene Styrene (ABS) | Provides high rigidity and structural strength during integration. |
| Waterproof cover | Industrial Rubber Compounds | Maintains excellent flexible environmental sealing against moisture ingress. |
| Up base | Acrylonitrile Butadiene Styrene (ABS) | Shields internal terminal paths from external physical forces. |
| Bottom base | Polyamide 66 (PA66) | Offers superior heat deflection characteristics and electrical isolation. |
| Middle base | Acrylonitrile Butadiene Styrene (ABS) | Stabilizes mechanical pivoting components over long lifetimes. |
| Pin / spring board | H62 Brass Alloy | Delivers exceptional current density capacities and minimal heating. |
| Contact interfaces | Silver Cadmium Oxide (AgCdO12) | Resists micro-welding and electrical arcing under heavy loads. |
| Spring | 72# High-Carbon Steel Wire | Retains excellent elastic memory through continuous cycles. |
| Iron case | 08F Low-Carbon Cold-Rolled Steel | Provides high mechanical anchoring and durability for the frame. |
| Washer elements | Elastomeric Rubber | Maintains tight compression limits to seal against water. |
| Light module assembly | Solid-State Semiconductor LED | Provides low-power, vibration-immune, long-life status indication. |
GENERAL CHARACTERISTICS
This technical document establishes the baseline quality criteria and general application operational limits for the FILN KCD4 series heavy-duty rocker switch line integrated inside protective electrical enclosure modules. The scope encompasses standard operations across thermal variations, precise atmospheric testing rules, and environmental humidity variables.
| Environmental Metric Name | Standard Operational Limit |
|---|---|
| Equipment Application Scope | Industrial General Use Range for KCD4 Rocker Switch Systems |
| Operating & Storage Thermal Limits | -40°C to +125°C (Sustained Full Range Performance) |
| Relative Air Humidity Band | 45% to 85% RH Range (Non-Condensing Ambient States) |
| Standard Testing Temperatures | Controlled Laboratory Ambient of 5°C to 35°C |
| Reference Atmospheric Pressure | 86 to 106 Kpa (Equivalent to 860 to 1060 mbar) |
ELECTRICAL AND MECHANICAL CHARACTERISTICS
1. Electrical Performance Verification
| Parameter Block | Testing Condition Matrix | Pass Threshold Limit |
|---|---|---|
| Contact Resistance | Measured at a baseline frequency of 1 kHz under low-current test conditions. | ≤ 50 Milliohms (mΩ) |
| Insulation Resistance | Apply 500 VDC continuously for 60 ± 5 seconds across insulated terminals and exposed non-carrier metals. | ≥ 100 Megohms (MΩ) |
| Dielectric Strength | Inject 1500 VAC (5 mA) for 60s between open poles; inject 3000 VAC (5 mA) for 60s between terminal paths and outer chassis frame. | Zero breakdown; zero insulation flashover anomalies. |
2. Mechanical Durability and Structural Metrics
| Parameter Block | Testing Condition Matrix | Pass Threshold Limit |
|---|---|---|
| Operating Force | Position switch perpendicular to actuation vectors; linearly increase force on button tip until physical conduction triggers. | Conforms completely to original OEM procurement specifications. |
| Terminal Strength | Exert an inward static load profile of 80 Newtons against the terminal tip structure for 60 seconds. | Zero mechanical structural fracturing; component functions normally. |
| Solderability Data | Submerge contact interface tips completely inside molten tin mixtures kept at 235 ± 5°C for 3 ± 0.5 seconds. | Greater than 90% uniform wet tin coverage across active test zones. |
| Welding Heat Resistance | Submerge terminals inside 260 ± 5°C liquid tin for 3 ± 1s, OR execute hand-soldering iron tracking at 350 ± 5°C for 3 ± 1s. | No core plastic deformation; mechanical features remain compliant. |
3. Endurance Lifecycle Ranges
| Lifecycle Group | Testing Condition Matrix | Post-Test Requirements |
|---|---|---|
| Mechanical Lifetime | 20,000 cycles completed at an activation frequency of 60 cycles/min under open no-load terminal conditions. | Must sustain ≥ 75% of original baseline dielectric tracking insulation. |
| Electrical Lifetime | 10,000 continuous cycles at 15 cycles/min tracking under fully rated electrical inductive load parameters. | Must retain ≥ 75% of initial isolation breakdown voltages. |
4. Environmental Resistance Profiles
Environmental integrity is validated via standard multi-day thermal and atmospheric humidity exposures: High Temperature profiling requires keeping modules at 125 ± 2°C for 72 continuous hours; Humidity-Heat soaking requires storage at 40 ± 2°C paired with relative humidity levels between 91% and 95% for 96 continuous hours; Low Temperature soaking isolates modules at -40 ± 2°C for 12 hours. Thermal Cycling requires executing 5 uninterrupted cycles according to specified high-low transition limits, with all configurations followed by a 1-hour ambient equalization rest period prior to technical evaluation.
Post-environmental inspection requires zero physical damage to structural casings, a normal tactile feel during actuation, an increased contact resistance ceiling ≤ 200 Milliohms, an insulation resistance floor ≥ 2 Megohms, and overall dielectric isolation properties remaining within original baseline values.
PRODUCT SERIES ARCHITECTURE COMPARISON
The FILN professional KCD4 rocker switch product family leverages deep architectural optimization to deliver targeted solutions for varying field environments. Project managers can choose between the structural White-Framed Enhanced Variant and the space-optimized Classic Standard Variant depending on structural rigidity, environment, and panel aesthetics.
| Structural Engineering Aspect | White-Framed Enhanced Variant (Heavy Industrial) | Classic Standard Variant (Space Optimized) |
|---|---|---|
| Mechanical Frame Rigidity | Internal white support cage provides an exoskeleton that resists mechanical stress in tight cutouts. | Frameless edge design utilizes the parent panel walls directly for mechanical positioning. |
| Waterproof Gasket Retaining | Extended structural border locks the rubber boot edges to prevent peeling or distortion. | Relies on direct panel compression seals, optimized for uniform flat-surface installations. |
| Cutout Defect Masking | Wide bezel layout completely hides irregularities, burrs, or small measurement variances. | Ultra-clean flush edge profile requires precision CNC laser cutout tolerances. |
| Space Efficiency Index | Requires extra clearance along the perimeter to fit the wide design. | Enables high-density placement on highly populated multi-switch control arrays. |
| Target Deployment Fields | Export machinery, clinical environments, high-vibration marine panels. | High-volume commercial assemblies, internal wiring enclosures. |
TECHNICAL ANALYSIS OF 2-POSITION SWITCH CONFIGURATIONS
Industrial automation requirements depend heavily on specific circuit actuation states. The KCD4 switch platform supports multiple configuration options, allowing buyers to select the precise electrical mechanism for their circuit logic.
| Circuit Scheme Code | Mechanical Contact Mechanism Type | Operational Field Application Logic |
|---|---|---|
| ON-OFF (Maintained) | Locks into the selected state upon actuation; requires physical force to return to the original position. | Serves as the master system power switch for automation systems and power distribution setups. |
| (ON)-OFF (Momentary) | Internal spring return auto-resets contact to OFF state as soon as the user releases the actuator. | Used for localized system testing, manual circuit priming, or motor starter triggers. |
APPLICATIONS BY INDUSTRY
The FILN plastic enclosure system with an integrated high-amperage rocker switch delivers critical environmental protection across diverse industries. In industrial automation sectors, these pre-assembled modules act as independent field-level isolation boxes to protect high-load relays and safety mechanisms from floor contaminants. In marine and yacht installations, the robust black painted face plate combined with a continuous rubber boot offers long-term resistance to salt-fog corrosion and water splash on open vessel decks.
In renewable energy frameworks, such as solar power distribution grids and automated agricultural machinery, these modules serve as reliable outdoor disconnect points that protect internal wiring from extreme thermal cycling and UV radiation. Commercial facilities and medical laboratories deploy these modules to establish clear, easily cleaned, and reliable equipment activation panels that satisfy strict code compliance guidelines.
WATERPROOF MECHANISM COMPOSITION AND INTEGRATION
The structural integrity of this assembly relies on combining an impact-resistant Plastic Junction Box enclosure body with a high-current, waterproof KCD4 rocker switch component. The perimeter of the rectangular switch is wrapped in an engineered elastomeric sealing boot that prevents moisture from getting past the mounting cutout borders. Integrating these components ensures that internal wire terminations remain completely dry and isolated from external conditions.
Inside the enclosure, wiring connections to the rocker switch are designed to simplify field deployment while maximizing mechanical hold. The 4-pin screw terminal layout allows technicians to form reliable, gas-tight mechanical wire terminations without relying on specialized crimping tools or field soldering. This layout is ideal for harsh environments prone to thermal expansion and ongoing physical vibrations.
INSTALLATION GUIDE
- Verify Panel Cutout Metrics: Ensure the top cover plate cutout measures exactly 22mm x 30mm to receive the KCD4 rocker switch frame.
- Execute Snap-In Mounting: Position the KCD4 rocker switch from the upper face of the box, pushing downward until the dual structural side tabs snap securely over the plate border.
- Prepare External Cable Ingress Paths: Install the PG9 compression cable gland into the pre-drilled side wall port, verifying that the rubber compression ring is correctly aligned.
- Route Power Cabling: Feed the multi-core industrial power cable through the PG9 gland body into the junction box interior cavity.
- Anchor Base Casing Structures: Secure the underlying junction box base plate onto the structural surface using corrosion-resistant industrial mounting fasteners.
*Safety Note: Disconnect all upstream power supplies prior to handling raw conductors. Verify compliance with regional low-voltage electrical safety codes before finishing assembly.
WIRING GUIDE
Wiring the integrated Plastic Junction Box setup utilizes a clear single-in, single-out wiring configuration (L-in, L-out) to manage power routing safely. The 4-pin screw terminal layout features two independent line-in poles alongside two dedicated load-out termination points. Stripped conductor ends are inserted directly under the heavy-duty terminal clamping plates, where tightening the screw connections locks the wire in place without damage.
For illuminated configurations running on either 5-24V low-voltage lines or 110-220V grid feeds, the internal LED module is pre-wired to illuminate when the switch is set to the ON position. Using the illuminated switch ensures the control face remains easy to navigate in dark industrial environments. Non-illuminated black rocker switch variants offer a subtle, versatile aesthetic that blends seamlessly into generic control panels while protecting internal components from ambient moisture and dust.
INDUSTRY KNOWLEDGE CENTER
Selecting heavy-duty electrical components requires understanding core engineering standards like contact material composition and environmental ingress ratings. For high-current 30A switching demands, regular copper contacts face significant risk of contact degradation and micro-welding due to inductive arcing. FILN engineering addresses this by utilizing premium Silver Cadmium Oxide (AgCdO12) contact interfaces, which provide excellent thermal dispersion and stable contact resistance metrics throughout the device’s operational life.
A frequent oversight during field integration is failing to match cable diameters with the sealing range of the cable gland. If a gland is paired with a cable that is too thin, the seal will fail to compress adequately, compromising the box’s IP65 protection rating. Maintenance protocols should include checking the tightness of terminal screws during annual shut-downs to prevent any loosening caused by continuous machinery vibrations.
BUYER DECISION GUIDE
When sourcing an integrated Plastic Junction Box assembly, procurement officers must match structural material attributes with field environment demands. For installations exposed to harsh chemical cleaners or prolonged outdoor UV radiation, combining an ABS enclosure base with a black painted face plate switch offers the best balance of structural strength and chemical resistance. Buyers must verify that electrical voltage requirements (such as 5-24V control lines or 110-220V main lines) match the internal LED indicator specifications to ensure proper brightness and service life.
FILN offers complete configuration flexibility across the entire KCD4 product line, allowing engineering teams to order custom cable entries and pre-cut terminal blocks tailored to their project’s wiring layout. This direct-from-factory customization shortens assembly timelines for equipment manufacturers, control panel builders, and automation system integrators across global markets.
WHY ENGINEERS CHOOSE FILN
Design engineers and procurement experts worldwide partner with FILN because of our engineering expertise, flexible production, and reliable supply chain execution. Operating as a direct manufacturer with no minimum order quantity (No MOQ) requirements, FILN enables development teams to source prototypes and scale up to high-volume production runs seamlessly without financial friction.
Our in-house testing facilities provide immediate certification data and full engineering assistance, ensuring smooth approvals for global equipment deployments. By keeping full control over tooling development and component manufacturing, FILN consistently delivers industry-leading lead times alongside reliable quality assurance across our entire electrical product line.
FACTORY DIRECT SUPPLY CAPABILITIES
Yueqing Yulin Electronic Co., Ltd., under the premium brand name FILN, located in Wenzhou, Zhejiang, was established in 2006 as a professional electrical switch manufacturer integrating R&D, production, and sales. Its high-performance products are exported to over 100 countries. FILN operates a modern 10,000 m² facility running more than 20 advanced automated production lines alongside an independent, fully equipped quality testing lab. Driven by scientific workflows and the ISO9001 quality system, FILN ensures excellent product consistency and dependable electrical performance. Our certified products carry global marks including UL, CE, RoHS, REACH, TUV, and CB, and are widely used across kitchen appliances, energy storage systems, EV charging setups, automotive control panels, marine systems, and security applications.
FILN manufacturing capabilities cover an extensive selection of compact electrical control components, including indicator lights, pushbutton switches, rocker switches, and toggle switch assemblies, along with custom wire harness integration. Our technical engineering division specializes in solving complex client layout challenges by designing tailored structural solutions. For procurement requests, custom quotes, or technical questions, clients can reach our engineering team directly via our primary corporate website or email communications.
Corporate Platform Link: www.filn.com
Direct Engineering Contact Email: inquiry@cnylin.com.cn
FREQUENTLY ASKED QUESTIONS
Q1: What is the primary focus keyword and application of this product module?
A1: The primary focus is the Plastic Junction Box configured with an integrated 30A rocker switch to deliver isolated, protected power control in demanding automation and marine layout environments.
Q2: What is the electrical current rating capacity of the built-in KCD4 rocker switch?
A2: The built-in rectangular KCD4 switch is engineered to handle heavy electrical loads up to a maximum rating of 30 Amperes at 250VAC.
Q3: Which operating voltage configurations does this plastic junction box support?
A3: This configuration supports diverse voltage requirements, working reliably across low-voltage 5-24V control lines as well as standard 110-220V power circuits.
Q4: What are the primary lens colors available for the LED status indicators?
A4: Systems can be equipped with high-visibility RGYBW solid-state LED modules, providing choice between Red, Green, Yellow, Blue, and White status tracking.
Q5: What are the exact dimensions required for mounting the KCD4 switch frame?
A5: The integrated rectangular KCD4 switch matches industry-standard panel cutouts measuring exactly 22mm x 30mm.
Q6: How does the switch mount securely into the plastic junction box plate cutout?
A6: It uses an efficient snap-in installation design. The switch body is pushed through the top face cutout until flexible integrated side tabs spring open, locking it securely against the panel wall.
Q7: What type of wiring terminations are provided on the back of the 30A rocker switch?
A7: The switch features a robust 4-pin screw terminal layout that allows for high-torque mechanical wire clamping without needing field crimping or soldering tools.
Q8: What environmental ingress rating does this integrated enclosure provide?
A8: The completed plastic junction box assembly delivers an IP65 protection rating, sealing internal connections against low-pressure water streams and fine dust ingress.
Q9: What material options are available for the rocker switch face plate customization?
A9: FILN offers several specialized configurations, including Aluminum, Transparent, Black Painted, Stainless Steel, and non-illuminated classic switch options.
Q10: What are the engineering advantages of using a black non-illuminated rocker switch?
A10: Non-illuminated black configurations provide a clean, versatile aesthetic that coordinates easily with generic industrial control panels while ensuring dependable mechanical operation.
Q11: Why is an illuminated rocker switch recommended for dark or low-light work environments?
A11: The integrated LED lights provide high visibility, helping operators quickly locate controls and verify circuit status in dim or unlit industrial areas.
Q12: What type of compression cable gland fitting is supplied with the plastic junction box?
A12: The enclosure body comes pre-fitted with a heavy-duty PG9 compression cable gland that creates a secure, moisture-resistant seal around incoming wiring.
Q13: Which international safety and quality certifications does this product carry?
A13: The assembly is fully certified under major global standards, carrying official compliance marks from UL, CE, RoHS, and TUV testing laboratories.
Q14: Does FILN require a minimum order quantity (MOQ) for custom technical orders?
A14: No, FILN operates with a strict No MOQ policy, giving engineering teams the flexibility to order individual prototypes or scale directly to high-volume production.
Q15: What contact material is utilized internally to manage the 30A current loads?
A15: The switch mechanism features premium Silver Cadmium Oxide (AgCdO12) contacts, chosen for their excellent resistance to arc erosion and micro-welding under heavy inductive loads.
Q16: Can the plastic junction box handle continuous exposure to outdoor marine environments?
A16: Yes, the combination of a corrosion-resistant black painted switch face, an elastomeric rubber boot, and a sealed ABS enclosure base ensures long-term durability against salt-fog and water spray.
Q17: What temperature limits define the safe operation of this switch housing system?
A17: The components are rated for stable operation across an ambient industrial temperature range from -40 degrees Celsius up to +125 degrees Celsius.
Q18: What is the mechanical lifetime rating of the KCD4 rocker switch series?
A18: Laboratory testing confirms the switch mechanisms achieve a mechanical lifespan of at least 20,000 complete actuation cycles under open no-load conditions.
Q19: How can an engineer request a custom modification or specific wire harness layout from FILN?
A19: Engineering teams can submit drawings and technical requirements directly to our technical support team via email at inquiry@cnylin.com.cn for tailored OEM solutions.
Q20: Where can I review the complete line of pre-assembled waterproof junction boxes?
A20: Our full selection of industrial enclosure products and integrated control interfaces is available on our dedicated catalog page at https://www.cnfiln.com/collections/waterproof-junction-box.
