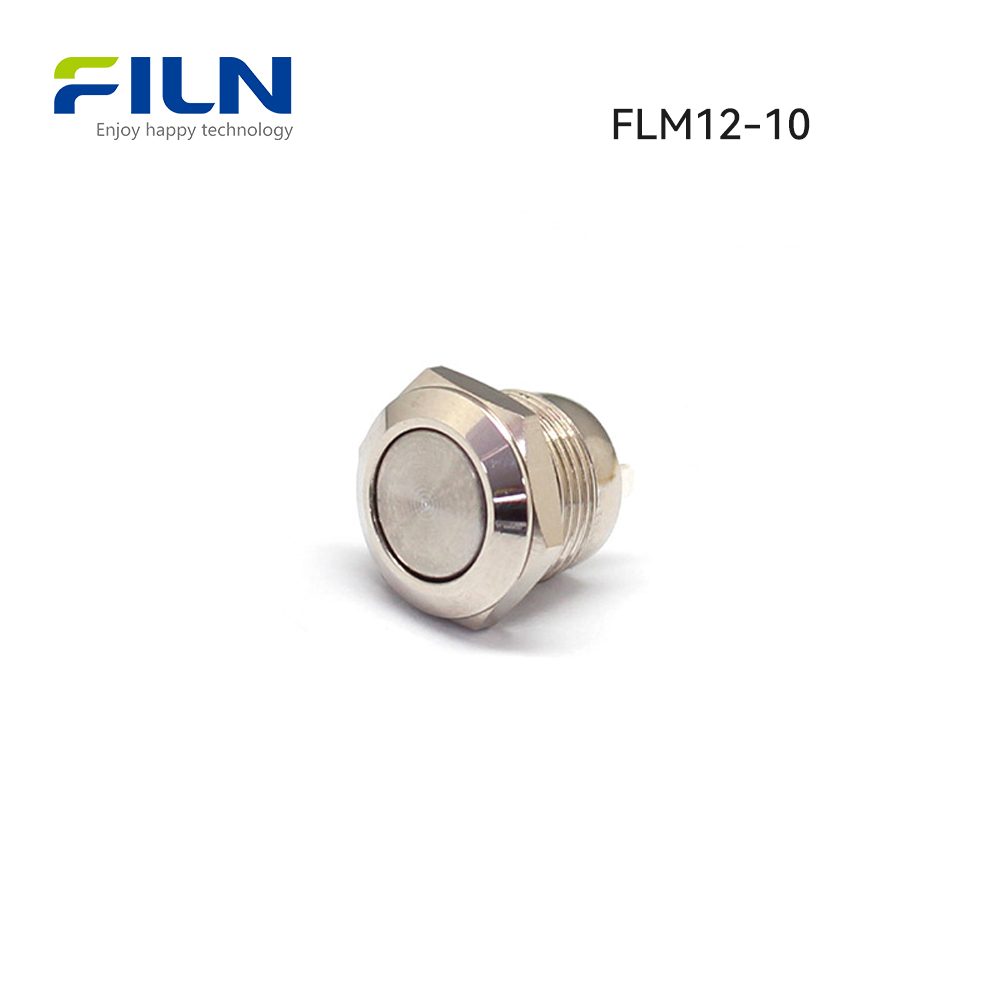

FILN Metal Momentary Push Button Switch Short Version 12MM Flush Button

Product Drawing

A metal momentary push button is a type of switch commonly used in various electronic and electrical applications.

It is designed to be pressed down temporarily, and when released, it returns to its original position.

Product Parameters:

Both circuit setups are viable options depending on your needs, but they offer different advantages and disadvantages. Knowing how the press button switch operates in each setup helps you choose the right configuration for your application.

Customization Advantages of FILN press button switch

The FILN press button switch is a versatile product that can be customized according to the needs of different customers. This flexibility opens up an array of advantages for users, making it a sought-after component in various applications.

Why Customization is Important for press button switch ?

Customization is not just a luxury but a necessity in the ever-competitive market. Manufacturers are under constant pressure to provide products that meet specific customer needs. In the case of the FILN press button switch, customization has a significant impact in terms of functionality, aesthetics, and adaptability.

1. Industry requirements differ: Different sectors have different requirements for push button switches. For example, the medical industry might require switches that are easily sterilizable, while the automotive industry may need switches that can withstand harsh conditions.

2. Consumer Preferences: End-users may prefer specific symbols or lights that make the switches easier to use or identify, enhancing the user experience.

3. Technological Advances: As technology progresses, the requirement for switches also changes. Customization ensures that the product remains relevant.

Customizable Voltage Options

Another crucial aspect of customization is the voltage of the push button switch. FILN offers various voltage options, such as 110v push button switches, to cater to the varied needs of customers.

1. Geographic Requirements: Different countries have different standard voltages. Custom voltage options allow for the global distribution of products.

2. Device Compatibility: Customizable voltage ensures that the switches can be easily integrated into different systems without requiring additional components.

3. Energy Efficiency: The ability to customize voltage can help in creating energy-efficient systems.

Customizable Button Connectors

The FILN press button switch also offers customizable button connectors, making it easier for customers to use the switch in their unique setups.

1. Ease of Installation: Custom connectors can make the installation process simpler and quicker, saving both time and money.

2. System Compatibility: Different systems may require different types of connectors. Customization ensures that the push button switch can be integrated seamlessly.

3. Durability: The type of connector can also affect the durability of the switch, especially in harsh conditions.

FILN’s commitment to customization offers not just product variety but also competitive advantage. Whether it’s custom symbols, voltages, or connectors, the FILN press button switch can be tailored to meet the unique demands of your project, making it a smart choice for a multitude of applications.
