Key Takeaways for Engineers and Procurement Managers

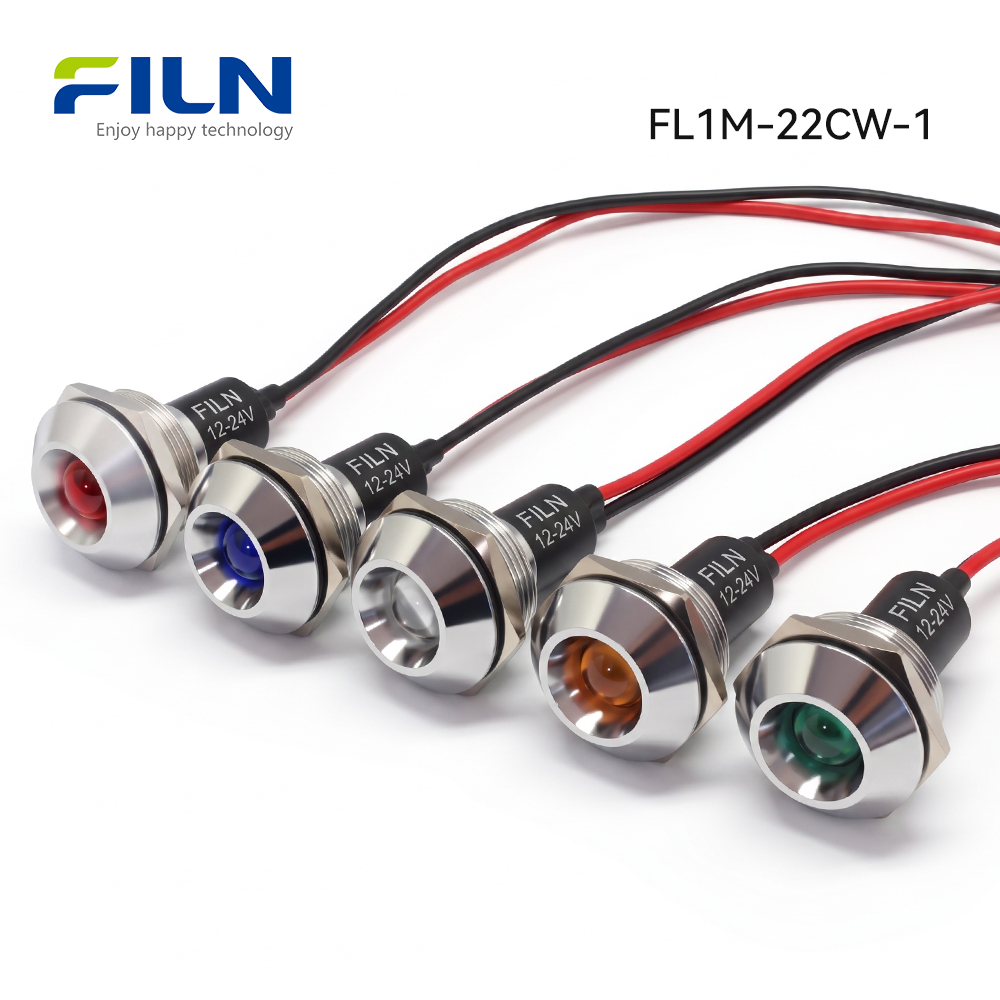

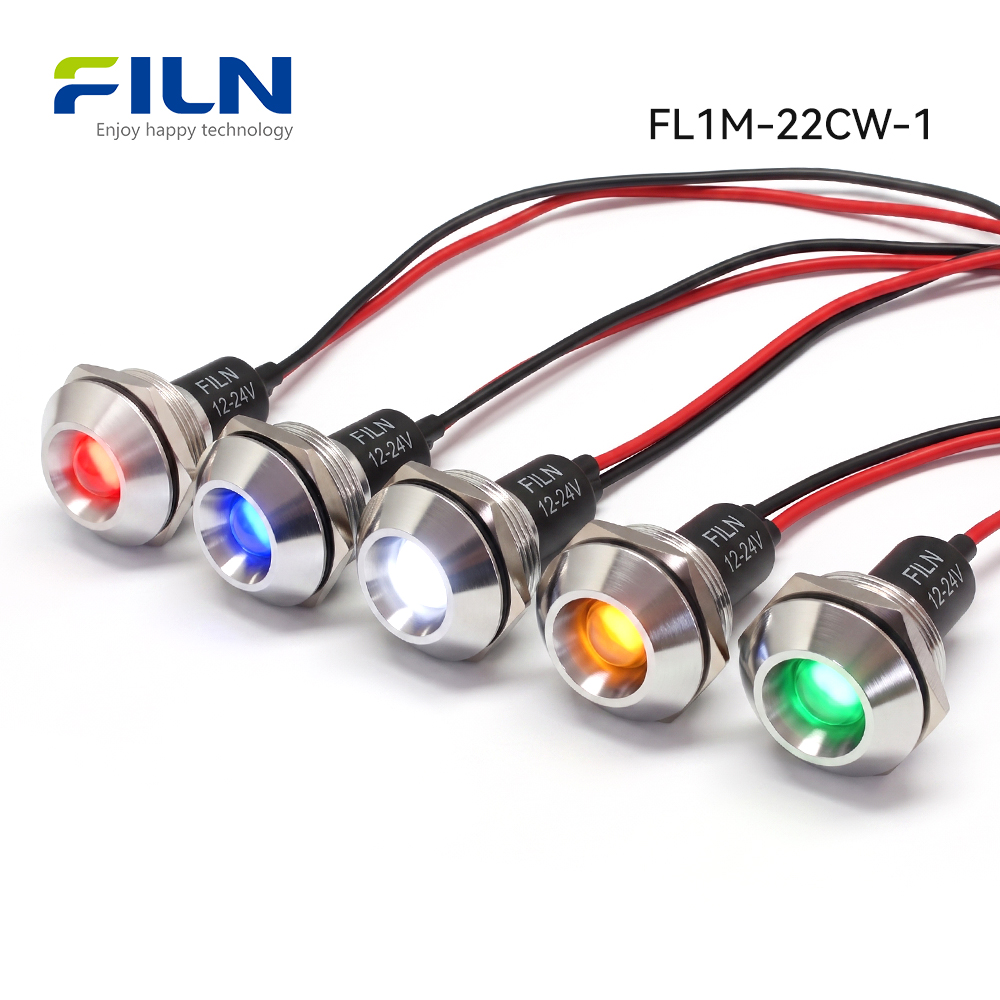

- Product Identity: The led indicator lamp 22mm (FL1M-22CW-1) is a professional-grade panel-mount signal light featuring a concave head design for enhanced visual clarity from wide angles.
- Mounting Standard: Engineered for a standard 22mm panel cutout, utilizing a single single-nut threaded locking mechanism for secure mechanical retention.
- Electrical Versatility: Supports a wide operational voltage range from 3V to 480V DC/AC with customized internal resistor configurations tailored to exact application requirements.
- Ingress Protection: Achieves IP65 to IP67 waterproof and dustproof ratings when installed correctly with the supplied silicone O-ring and stainless steel lock washer.
- Wiring Configuration: Built with direct 2PIN wire leads, eliminating the risk of loose terminal pins under continuous industrial vibration.
- Material Engineering: Constructed with a durable copper alloy or zinc-aluminum alloy shell, PA66 lamp holder, and polycarbonate (PC) lens.
- Optical Performance: High-brightness LED luminescent source delivering stable illumination with an operational lifespan rated between 50,000 and 100,000 hours.
- Manufacturer Direct Supply: Produced by FILN in a 10,000 square meter manufacturing facility with strict ISO9001 quality control and global export capabilities.
- Customization Support: Full OEM and ODM capabilities including custom wire harnesses, lead lengths, laser marking, and specialized housing platings.
- Procurement Efficiency: Direct factory communication channels available for engineering drawings, technical datasheets, and bulk wholesale inquiries via inquiry@cnylin.com.cn.
What Is the LED Indicator Lamp 22mm?
An industrial led indicator lamp 22mm is an electromechanical signaling device mounted onto control panels, switchboards, and machine chassis to visually communicate operational states, power status, warnings, or fault conditions. FILN manufactures a comprehensive range of indicator lights across multiple dimensional tiers spanning from 6mm to 30mm, offering both plastic and metal housing constructions. Metal indicators are engineered into flat head, protruding head, and concave head geometries to suit specific aesthetic and functional requirements. Terminal configurations include traditional solder pin terminals and direct pre-wired cable assemblies.

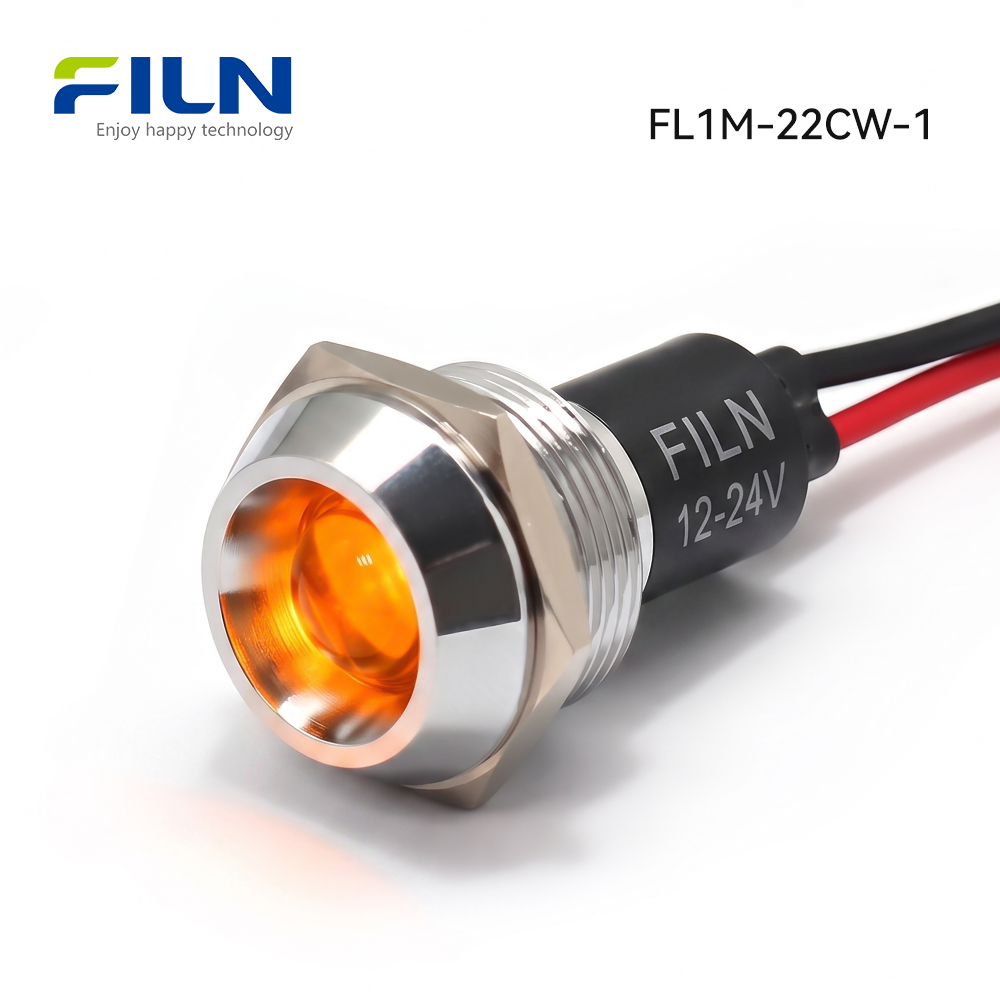

The concave head design of model FL1M-22CW-1 recesses the optical lens slightly below the bezel rim, protecting the emitting surface from accidental mechanical impacts while focusing light distribution for clear visibility across wide viewing angles in bright industrial environments.
Product Overview and Engineering Principles
The FILN led indicator lamp 22mm operates by converting electrical energy into optical photon emission via a solid-state high-brightness LED chip integrated with a precise current-limiting carbon film resistor. Electrically, the internal diode requires proper forward bias, while the mechanical assembly utilizes single-hole threaded mounting to clamp firmly against control panel plates.
Industrial advantages include superior resistance to mechanical shock, vibration isolation provided by the integrated 2PIN wire lead configuration, and reliable thermal dissipation through the solid metal housing. These design characteristics prevent premature lamp failure commonly observed in cheaper plastic alternatives exposed to constant workshop vibration.
Explore our complete catalog of metal indicator light solutions or view direct purchase options for the 22mm concave head led indicator.
Quick Technical Specifications
| Product Description |
Metal indicator lamp with pre-wired leads |
| Indicator Light Model |
FL1M-22CW-1 |
| Mounting Hole Size |
22 mm (approx. 0.87 inches) |
| Operating Voltage |
3V – 480V DC/AC (Customizable) |
| LED Color Options |
Red (R), Green (G), Yellow (Y), Blue (B), White (W) |
| Waterproof Protection Rating |
IP65 / IP67 (with silicone O-ring assembly) |
| Wiring Type |
2PIN direct wire lead (custom lengths available) |
| Head Type |
Concave recessed head |
| Surface Quality |
Smooth, flat, free from burrs, oxidation, cracks, or visible defects. |
| Assembly Standard |
Head and base assemblies tightly fitted to prevent rotation, detachment, tilt, or deformation. |
Performance Parameters and Electrical Ratings
| Rated Operating Voltage |
3V – 480V DC/AC (Customizable per customer requirements) |
| AC Frequency |
50/60 Hz |
| Rated Operating Current |
≤ 20 mA |
| Rated Power Consumption |
Approx. 0.2 W |
| Insulation Resistance |
≥ 100 MΩ (Tested at 500V DC between lead wires and housing) |
| Dielectric Strength |
1500V – 1800V AC, no breakdown or flashover |
| Operating Life Expectancy |
50,000 to 100,000 hours |
| Ingress Protection |
IP65 / IP67 standard compliance |
Component Materials and Engineering Selection
Every material utilized in the led indicator lamp 22mm is selected to withstand harsh industrial environments, mechanical stress, and corrosive operational conditions.
| Component Part |
Material Specification |
Engineering Purpose |
| Shell / Housing |

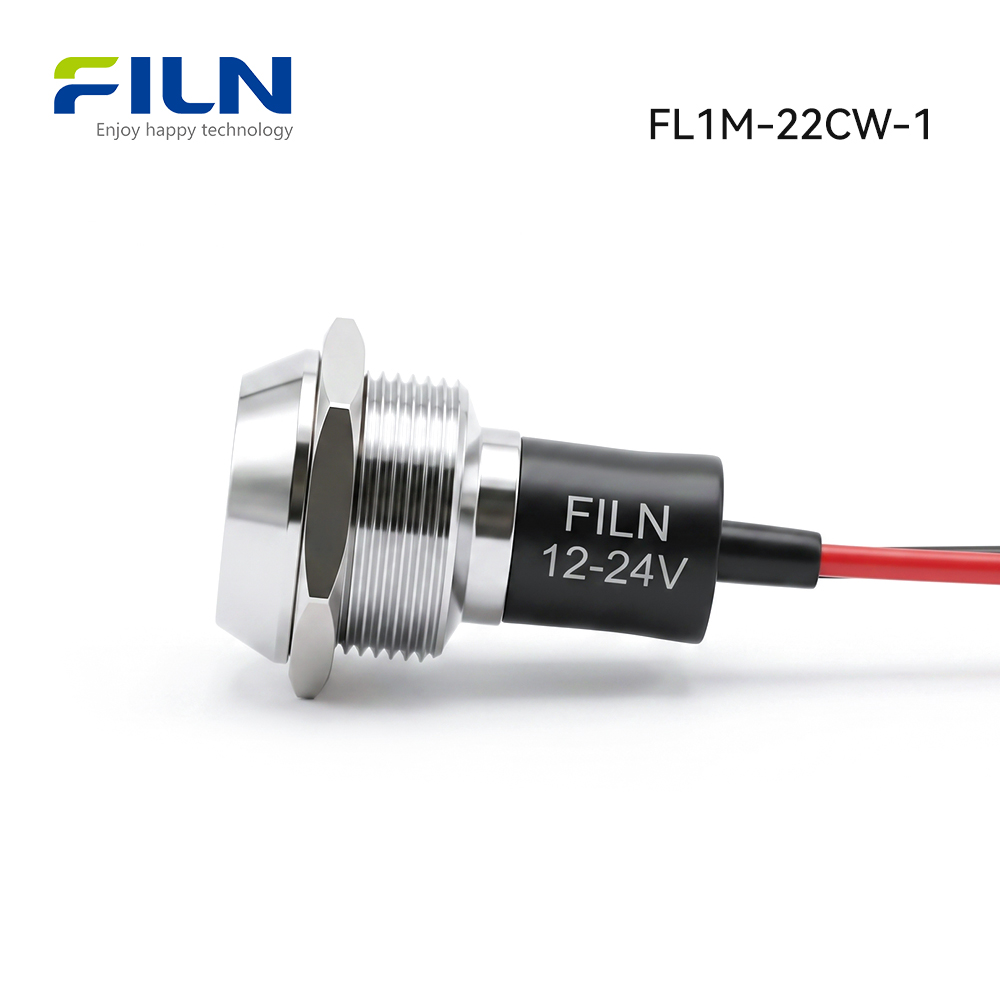

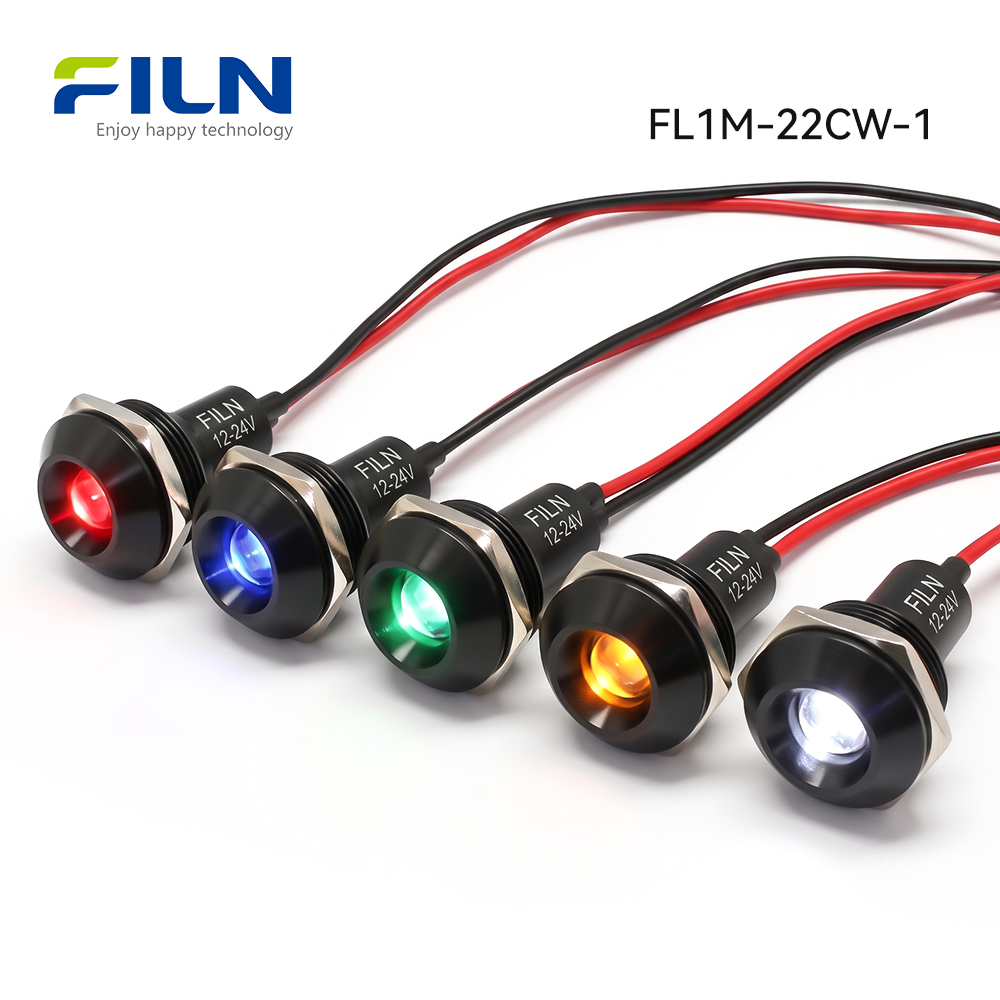

Copper alloy / Black-plated zinc-aluminum alloy |
Provides mechanical rigidity, impact resistance, and electromagnetic shielding. |
| Lamp Holder |
PA66 (Polyamide 66) |
Offers high thermal stability and electrical insulation properties. |
| Lampshade / Lens |
Polycarbonate (PC) |
Ensures high optical transmittance and resistance to shattering. |
| Luminescent Source |
High-brightness LED |
Delivers energy-efficient, long-lasting visual signal output. |
| Resistor |
Carbon film resistor |
Regulates current across varying voltage inputs. |
| Wire / Lead Wire |
PVC insulated lead wire |
Ensures flexible and reliable electrical connection. |
| Locking Nut |
Copper alloy |
Secures the indicator firmly to control panels without stripping threads. |
| O-Ring Seal |
Silicone / Silica gel |
Blocks moisture and dust ingress at the panel interface. |
| Lock Washer |
Stainless steel plum blossom gasket |
Prevents loosening caused by continuous industrial vibration. |
Environmental Performance Specifications
The metal indicator light series is engineered to perform reliably under rigorous environmental conditions, verified through rigorous testing standards.
| Operating & Storage Temperature |
-40°C ~ +80°C |
| Operating Relative Humidity |
≤ 85% at +40°C |
| High Temperature Test |
96 hours at 80 ± 2°C |
| Low Temperature Test |
96 hours at -40 ± 2°C |
| Constant Temperature & Humidity |
96 hours at 40 ± 2°C, 90% ~ 95% RH |
| Temperature Cycling Test |
Alternate between -40°C (30 min) and 85°C (30 min), 5 cycles total |
LED Technical and Electro-Optical Specifications
Absolute maximum ratings and electro-optical characteristics of the embedded LED semiconductor chip utilized within the led indicator lamp 22mm:
| Parameter |
Rating / Condition |
| Maximum Forward Current (IFP) |
20 mA |
| Reverse Voltage (VR) |
5 V |
| Power Dissipation (PD) |
60 mW |
| Forward Voltage (VF) |
2.8V (Min.) ~ 3.2V (Max.) at IF = 20 mA |
| Reverse Current (IR) |
5 µA Max. at VR = 5 V |
| Viewing Angle (2θ1/2) |
60° typical |
| Luminous Intensity (Iv) |
500 mcd (Min.) ~ 800 mcd (Max.) at IF = 20 mA |
| Dominant Wavelength (λd) |
520 nm ~ 525 nm (for green variant) |
Standard Test Conditions and Calibration
Unless otherwise specified, all electrical and optical parameters are measured under standard atmospheric conditions:
- Ambient Temperature: 5°C to 35°C
- Relative Humidity: 45% to 85%
- Air Pressure: 86 to 106 kPa (860 to 1060 mbar)
Note: Luminous intensity and dominant wavelength are calibrated in accordance with CIE international standards. Measurement tolerances are ±15% for luminous intensity and ±0.1V for operating voltage.
Applications by Industry
Metal indicator lights utilize high-strength copper alloy or stainless steel metal housings, offering exceptional impact resistance and IP67 waterproof protection. While plastic indicators degrade, crack, and warp under continuous thermal exposure, metal indicators excel in harsh industrial environments.
1. Industrial Automation and Machinery Manufacturing
CNC machine control panels use red, yellow, and green metal indicators to display running status, standby warnings, and emergency stop conditions while resisting cutting fluids and metallic debris. Large PLC control cabinets utilize 22mm indicators for main power status visualization.
2. Renewable Energy and Outdoor Power Distribution
Outdoor EV charging stations and photovoltaic combiner boxes deploy flat-head metal status lights to indicate charging progression and fault conditions, withstanding severe weather and UV exposure across temperatures from -40°C to 80°C.
3. Transportation, Heavy Vehicles, and Marine Equipment
Excavators, cranes, and marine control consoles utilize metal indicator lamps to resist continuous vibration and high salinity salt spray environments.
LED Indicator Color Meanings and Application Guide

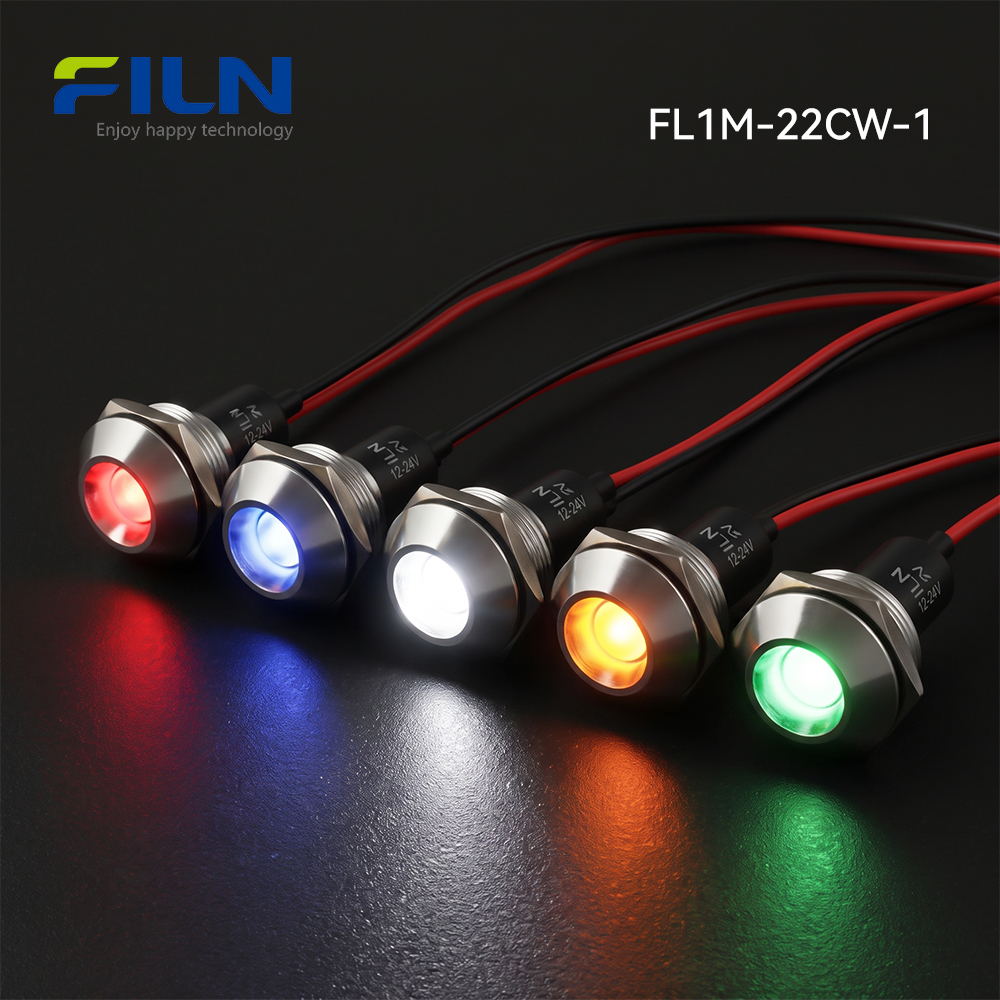

Indicator colors convey critical operational states. FILN offers single-color, dual-color, and tri-color configurations. Below is a practical guide for standard industrial color conventions:
| Color |
Common Meaning |
Typical Status |
Recommended Application |
| Red |
Danger / Stop |
Emergency stop, fault, alarm |
Machine shut-off switches, hazard alerts |
| Green |
Normal / Safe |
System operating normally |
Power ON indicator, cycle start confirmation |
| Yellow / Amber |
Caution / Attention |
Standby, temperature warning |
Pre-heating state, oil pressure warning |
| Blue |
Mandatory Action |
Active function state |
EV charging active, cooling fan running |
| White |
General Information |
System live / auxiliary power |
Control box illumination status |
Installation Guide
Proper installation ensures structural stability and IP65/IP67 ingress protection. Follow these technical steps:
- Panel Preparation: Drill a precise 22mm circular mounting hole into the control panel surface using appropriate tooling. Ensure burrs are removed.
- O-Ring Placement: Slide the silicone waterproof O-ring onto the threaded body of the indicator lamp.
- Insertion: Insert the indicator lamp body from the front side of the control panel.
- Securing: Thread the M22 mounting nut onto the rear housing and tighten securely using a standard socket wrench. Do not overtighten to avoid thread stripping.
- Gasket Installation: Position the stainless steel plum blossom lock washer behind the nut for vibration resistance.
- Electrical Connection: Proceed with wiring as detailed in the wiring section below, ensuring power is disconnected prior to installation.
Wiring Guide and Terminal Comparison

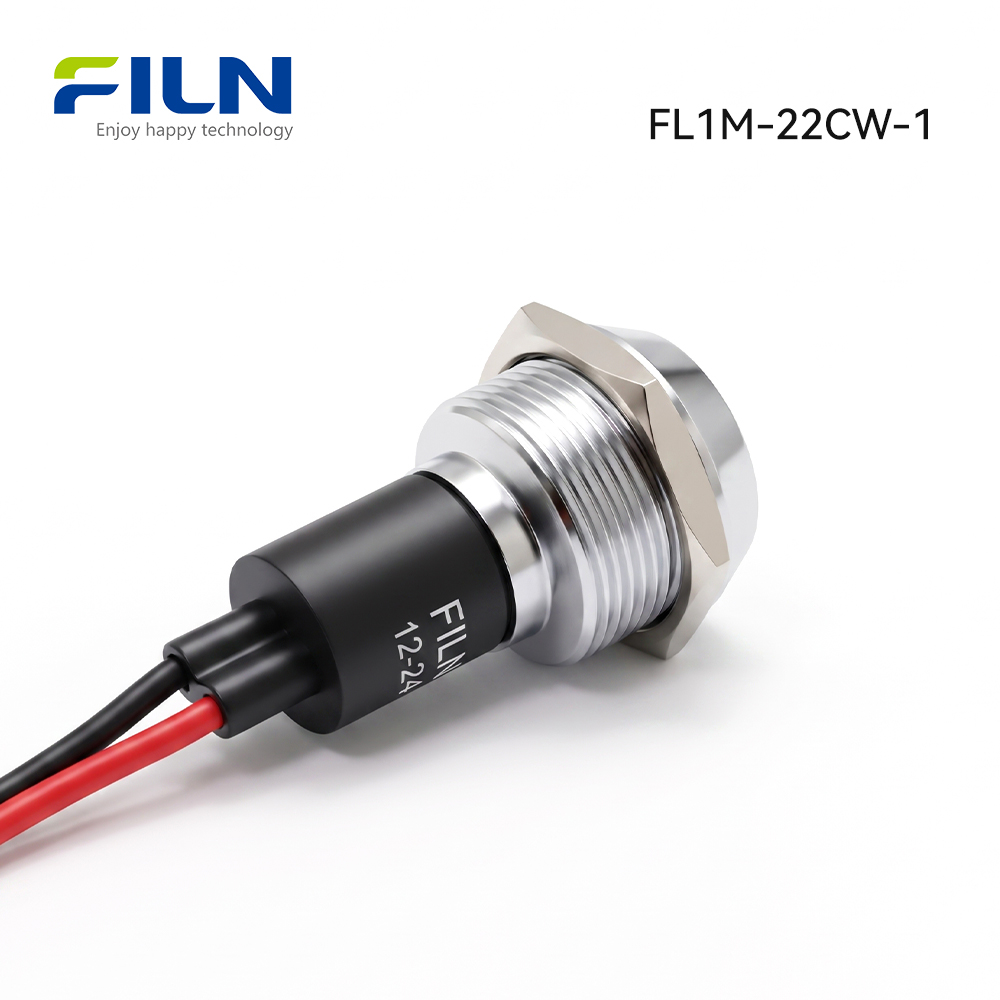

The led indicator lamp 22mm utilizes a direct 2PIN wire lead configuration. Pre-wired lead indicators can be connected securely using quick-link wire connectors, soldered joints, or insulated terminal blocks. Always ensure main power is cut off before servicing electrical connections.
When designing control panels, engineers often weigh the benefits of pin terminals versus wire lead models:
| Terminal Type |
Advantages |
Best Suited For |
| Direct Wire Lead (e.g., FL1M-22CW-1) |
Vibration resistant, waterproof rear seal, quick installation |
High-vibration machinery, outdoor cabinets, vehicles |
| Pin Terminal (e.g., FL1M-19CJ-1) |
Modular wiring, easy replacement, standard plug connectors |
Indoor control panels, modular switchboards |
For modular pin terminal options, consider the 19mm pin terminal concave indicator FL1M-19CJ-1.
Industry Knowledge Center
Understanding indicator light engineering principles helps prevent common field failures. Phantom illumination (faint glowing in 12V LED indicators when switched off) is typically caused by residual leakage current from solid-state PLC outputs or long parallel wiring runs acting as capacitive couplings. Adding a suitable bleeder resistor across the input terminals resolves this issue.
Selecting the correct IP rating ensures longevity in washdown environments, protecting internal LED diodes from moisture ingress and chemical degradation.
Buyer Decision Guide and RFQ Checklist
Choosing the right material variant is crucial for performance. FILN provides brass nickel-plated, stainless steel, and zinc-aluminum alloy housings:
| Material Option |
Advantages |
Target Environment |
| Brass Nickel-Plated |
Excellent corrosion resistance, high mechanical strength |
General industrial machinery, control cabinets |
| Stainless Steel |
Superior chemical resistance, rust-free lifespan |
Food processing, marine environments, medical devices |
| Zinc-Aluminum Alloy |
Cost-effective, lightweight, sturdy molding |
Commercial appliances, standard control panels |
RFQ Checklist for Procurement Managers
When requesting a quotation for the led indicator lamp 22mm, please provide the following details to ensure accurate processing by FILN engineering:
- Product Model: FL1M-22CW-1
- Mounting Hole Size: 22mm
- Operating Voltage and Type (DC/AC)
- LED Color (Red, Green, Yellow, Blue, White)
- Wiring Requirement & Lead Wire Length
- Required Quantity & Target Delivery Date
- OEM / Custom Marking Requirements
Providing these specifications helps our sales team confirm compatibility quickly. Contact inquiry@cnylin.com.cn for prompt support.
FILN Manufacturing and Engineering Capabilities
Yueqing Yulin Electronic Co., Ltd. (brand name FILN), located in Wenzhou, Zhejiang, was established in 2006 as a professional electrical switch manufacturer integrating R&D, production, and sales. FILN operates a modern 10,000 m² facility with 20+ advanced production lines and an independent testing laboratory. Driven by rigorous ISO9001 quality systems, FILN products are sold in over 100 countries.
Our production capabilities encompass indicator lights, push button switches, rocker switches, toggle switches, and custom electrical assemblies. FILN products hold international certifications including CE, VDE, RoHS, SGS, UL, CCC, and IP65/IP67 ratings.
Official Website: www.filn.com | Direct Inquiry Email: inquiry@cnylin.com.cn
Frequently Asked Questions
1. How to prevent phantom illumination (faint glowing) in 12V LED indicators?
Phantom illumination in 12V LED indicators is typically caused by residual leakage current from solid-state controller outputs or capacitive coupling in long parallel wire runs. Installing a suitable bleeder resistor in parallel across the indicator input terminals will bypass the leakage current and eliminate faint glowing when switched off.
2. Can this IP67 indicator light be washed down with caustic chemicals?
Yes, when selecting the stainless steel housing variant with proper silicone O-ring compression, the indicator withstands regular washdown procedures. However, specific chemical compatibility should be verified with FILN engineering for extreme industrial solvents.
3. What is the standard panel cutout required for the led indicator lamp 22mm?
The required panel cutout diameter is exactly 22mm, fitting standard industrial push button and pilot light knockout dimensions across electrical control panels.
4. Can FILN customize the wire lead length for pre-wired indicator lights?
Yes, FILN supports fully customized wire lengths, pre-stripped ends, and specialized connector attachments tailored to your wiring harness requirements.
5. What operating voltages are available for model FL1M-22CW-1?
The indicator supports a wide flexible voltage range from 3V to 480V DC/AC, with internal resistors custom-matched to your specified operating voltage.
6. Are waterproof sealing rings included with the indicator lamp?

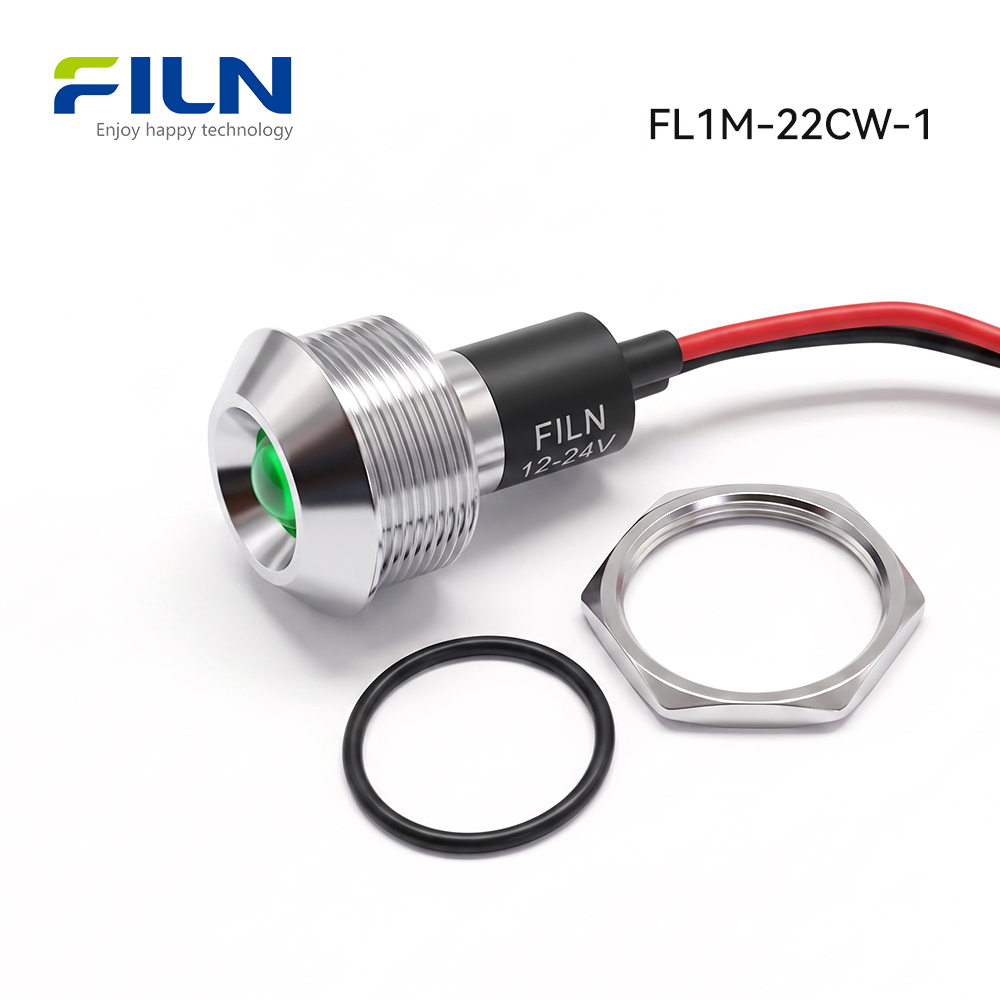

Yes, every package includes the indicator lamp, a silicone waterproof O-ring, a stainless steel lock washer, and a copper alloy M22 mounting nut.
7. What is the expected operational lifespan of the LED luminescent source?
The embedded high-brightness LED features an expected operational lifespan rated between 50,000 and 100,000 hours under normal operating conditions.
8. How does a concave head indicator differ from a flat head indicator?
The concave head design recesses the lens slightly below the metal bezel rim, offering protection against physical impact while focusing light diffusion for clear side-angle visibility.
9. What certifications do FILN metal indicator lights hold?
FILN indicators hold international quality and safety certifications including CE, VDE, RoHS, SGS, UL, CCC, and IP65/IP67 ratings depending on the specific model configuration.
10. How can I request bulk wholesale pricing or custom samples?
Procurement managers and engineers can contact FILN directly via email at inquiry@cnylin.com.cn to discuss bulk orders, custom specifications, and sample requests.
11. What is the advantage of a copper alloy shell over plastic?
Copper alloy shells provide superior impact resistance, thermal dissipation, and structural rigidity compared to plastic housings, preventing cracking and UV degradation in demanding environments.
12. Is AC/DC universal operation supported?
Yes, internal rectification or multi-voltage resistor options can be configured for universal AC/DC operation upon request during the RFQ process.
13. What is the typical lead time for custom manufactured orders?
Lead times vary depending on order volume and custom requirements. Please contact FILN engineering directly at inquiry@cnylin.com.cn for accurate scheduling.
14. Can these indicators be used in marine and high-salt environments?
Yes, our stainless steel and nickel-plated brass variants paired with silicone O-rings provide excellent resistance against salt spray corrosion in marine applications.
15. What wire gauge is utilized for the standard pre-wired leads?
Standard lead wires utilize high-conductivity stranded copper wiring insulated with flexible PVC, optimized for secure crimping or terminal block insertion.
16. Does FILN provide 3D CAD models for engineering design?
Yes, 3D step files and technical drawings are available upon request for control panel integration and enclosure design.
17. What is the maximum panel thickness supported by the mounting hardware?
The standard M22 threaded body accommodates control panel thicknesses ranging from 1mm up to 6mm securely.
18. How does vibration affect wire lead indicators versus pin terminals?
Wire lead indicators eliminate plug-on terminal looseness caused by continuous machine vibration, as the direct wire connection can be securely harnessed and routed away from high-vibration sources.
19. Are dual-color indicators available in the 22mm size?
Yes, dual-color and tri-color LED configurations (such as Red/Green switching) are available as custom OEM options.
20. How do I initiate an OEM/ODM customization project with FILN?
You can initiate an OEM/ODM project by sending your technical drawings, voltage specifications, and volume estimates directly to our engineering team at inquiry@cnylin.com.cn.
