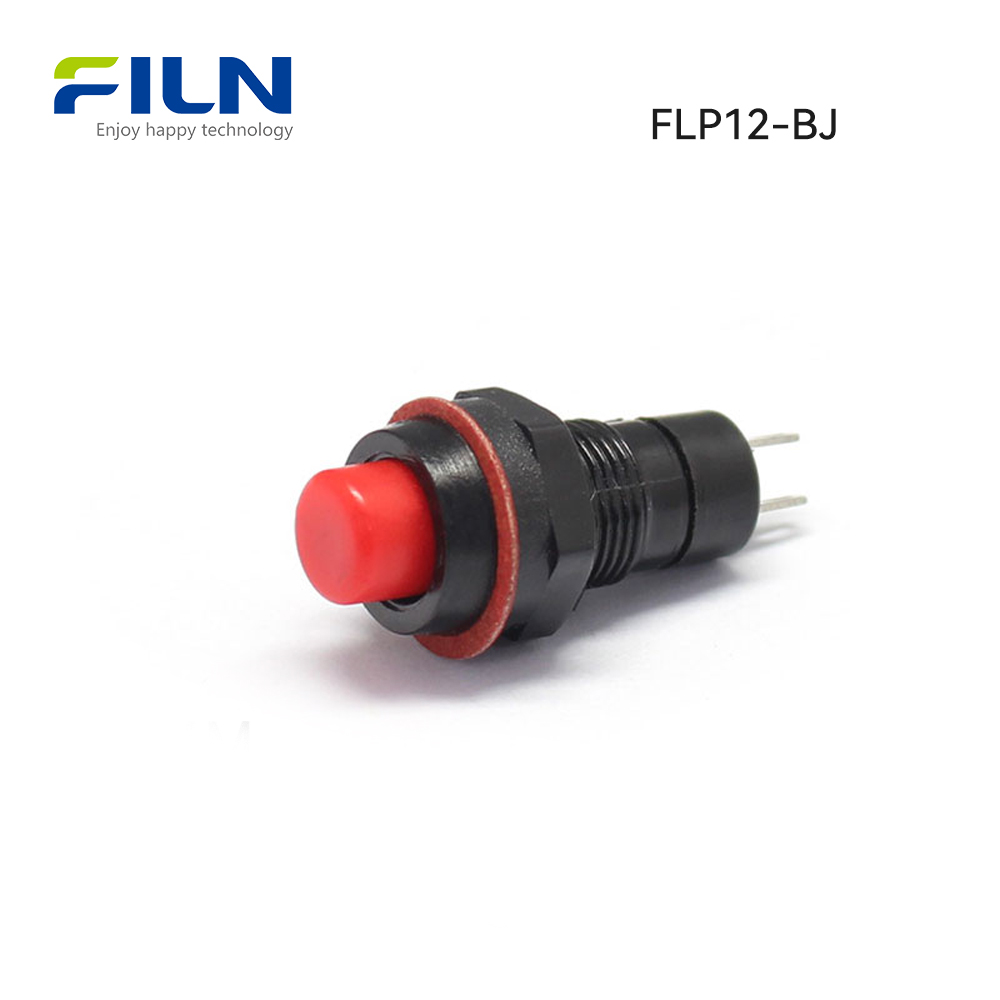

10MM Momentary Dpdt Push Button Switch on off 2 Pins

Product drawings

Product Parameters:

Push Button Switch Wiring Method:

The product’s wiring method is very simple, similar to the connection on the picture.

Connect the positive pole to one pin of the push button, then connect with it from the other pin.

Press down the push button, the load is powered on, when release the push button, it is powered off.

Related products:

The description of the button switch on off.

Regarding the button switch on off, the diameter is 10mm, and its head can be achieved six colors of red, yellow, blue, green, white, black.

The material of the key and housing sleeve are PC, the pin’s material of the push button is H62 copper alloy, the base’s material is PA66+GF20% inflaming retarding nylon.

Please refer to the below drawing of the plastic push button.

How does a push button on off switch work?

The button switch on off has two functions of self-locked and self-reset.

1. The self-locked button switch on off means press the key, it do not return automatically, when you press the key again with your finger, it will go back in original position.

2. The self-reset button switch on off means press the switch, the key is down, when you release your hand, it will go back in original position.

Where does the button switch on off used?

Most electronic devices can use the push button, using different functions depending on the actual use scene needs.

In general, the button switch on off can be applied in car modification, medical equipment, engineering instruments, access control switches, CNC molds, computer modification, commercial kitchen, electronic and electrical equipment and more. Application scenario pictures are shown below.

Where to buy the button switch on off?

First, you need to determine what kinds of switch you need, and then find a reliable seller.

If you’re not familiar with this plastic button switch on off, you can contact us, we can provide a number of samples free of charge for your choosing.

Meanwhile, you can also leave us messages through Alibaba or at the bottom of this page. Our professional salesmen will give you a professional reply.

If you are a factory and need large quantity products, you can email Filn’s sales director directly, his email address is inquiry@cnylin.com.cn, and will give you the best price.

The Filn push button switch sales team has 10 years of sales experience and service in foreign trade, we will reply to you within 24 hours.

You can also click on the online store link below to purchase

What are the payment ways of purchasing the button switch on off?

In general, we accept paypal, T/T, West Union, letter of credit, etc.

If you’re an Alibaba buyer, we can draft an order through Alibaba, and you can arrange the payment through the Alibaba order link.
