Beyond Red & Green: What Your Indicator Lights Really Mean

1. The Critical, Silent Language of Your Equipment

Have you ever stared at a control panel, confused by a blinking light? Does that steady yellow glow mean ‘standby,’ or is it a ‘caution’ warning? What does that unfamiliar symbol etched onto the lens even signify? In the fast-paced world of industrial machinery, medical devices, and sophisticated electronics, a moment of hesitation caused by a confusing indicator light is more than just frustrating. It can lead to operational inefficiency, costly errors, and even serious safety hazards.

This confusion stems from a simple, often overlooked truth: indicator lights are not just about ‘on’ and ‘off.’ They are a powerful, silent language of communication between a machine and its human operator. The color, brightness, and symbols used are the critical vocabulary of this language. When the vocabulary is clear, operations are smooth, safe, and efficient. When it’s ambiguous, the entire system’s integrity is at risk.

This article delves deep into the psychology and semantics of indicator light colors, revealing how specific hues influence human perception, decision-making, and behavior. But we won’t stop at color theory. We will explore how fully customizable indicator light solutions—spanning color, size, material, and most importantly, bespoke symbols—can transform this silent language from a source of confusion into a beacon of clarity.

By understanding these principles, you can design and implement an indicator system for your equipment, control panels, or products that offers a superior user experience, enhanced safety, and compliance with global standards. Thanks to our full customization capabilities, including custom voltage, a wide range of sizes (6mm to 22mm), metal or plastic housings, and precise symbol printing using advanced techniques like the FILN process, achieving this ideal level of communication has never been easier.

2. The Power of Color: Decoding the Universal Language of Indicator Lights

Consistency is the cornerstone of effective communication, and this is especially true for indicator lights. Over decades of industrial design and human-factors engineering, a generally accepted color code has emerged, rooted in deep-seated psychological associations. Understanding this “color language” is the first step toward building an intuitive user interface.

The Psychology and Semantics of Core Colors

Red: The Unmistakable Call for Immediate Action

Psychology & Meaning: Red is the most powerful color in the spectrum, universally associated with urgency, danger, and the need to stop. It triggers an alert, fight-or-flight response in the human brain, demanding immediate attention. Its long wavelength makes it highly visible from a distance, cutting through other visual noise.
Common Applications: The most critical applications demand a red warning light, as it is the standard for communicating imminent danger or a serious malfunction. It functions as a potent danger indicator light that commands attention above all else. You will find it integrated into an emergency stop light circuit, serving as a critical fault indicator for a system failure, or acting as a general machine alarm light that signals an immediate need for shutdown or intervention.

Green: The Reassuring Sign of Safety and Normalcy

Psychology & Meaning: Green is the color of nature, growth, and safety. It has a calming effect, signaling that conditions are normal, a process is running correctly, and it is safe to proceed. It signifies permission and a “go” state.
Common Applications: A green status indicator light is the perfect choice to confirm normal operations. As a power on light, it clearly shows a machine is energized. As a running light, it confirms a process is active and proceeding as expected. Its presence serves as a safe condition indicator, assuring the operator that the equipment is in a machine ready light state and it is safe to begin or continue work.

Yellow / Amber: The Essential Prompt for Awareness and Caution

Psychology & Meaning: Yellow and amber are highly visible and serve as an intermediary signal. They don’t scream “danger” like red, but they effectively break the “normal” state communicated by green. They signal that a change is imminent or that the operator’s attention is required. This color communicates caution, standby, or a developing condition that may require intervention.
Common Applications: A yellow caution indicator light or an amber warning light effectively draws attention without causing alarm. It’s ideal for functions like a standby light indicating a machine is paused, or as a maintenance required light for non-critical service needs. In many systems, it functions much like a check engine light, flagging an issue that needs investigation soon.

Blue: The Cool Communicator of Specific Information

Psychology & Meaning: Blue conveys coolness, calmness, and technical information. It is distinct from the primary “Stop-Caution-Go” trio, making it ideal for conveying specific status information that is neither a warning nor a safety confirmation. It indicates a change in state or an activated function that is part of a non-critical process.
Common Applications: Use a blue information indicator light for states that are purely informational. It’s an effective active status light or function-on indicator, for example, to show that a specific, non-critical feature has been enabled. As a general process indicator light, it can signify states like “cooling cycle active” or “data transfer in progress.”

White / Clear: The Neutral and Versatile Option

Psychology & Meaning: White is a neutral, clean color. It can be used for general status information where no other color is more appropriate or to provide high-contrast illumination. It is often used to indicate that a circuit is energized and ready for command, without implying a specific operational state.
Common Applications: A white universal indicator light is excellent for general status indications. For panels needing clear visibility of labels in all conditions, a panel backlight indicator using white LEDs is a superb choice. It’s also the go-to color for any high brightness indicator light application. As a neutral status light, it can simply indicate power is available to a circuit without implying anything further.

Beyond the Basics: Purple, RGB, and Bi-Color

Specialized Meanings: Colors like purple are less common and therefore have no strong pre-existing association, making them suitable for unique, user-defined statuses within a closed system. Modern LED technology also allows for bi-color (e.g., red/green) or tri-color (RGB) indicators that can display multiple statuses in a single component, saving panel space. However, the meaning of these multi-color states must be explicitly defined in the equipment’s user manual to avoid confusion.

The Golden Rule: Whichever colors you choose, consistency is paramount. The meaning of red on one part of your machine must be the same on all other parts and, ideally, consistent with other equipment in the same facility. This predictability is the foundation of a safe and efficient human-machine interface.

3. Beyond Color: The Revolutionary Clarity of Custom Symbol Indicators

What happens when your system’s complexity outpaces the simple language of color? In a multi-stage process, a single yellow light could mean “pre-heating,” “low pressure,” or “filter needs cleaning.” For equipment sold globally, language-based text on a panel is a barrier. This is where relying solely on color breaks down.

The Pain Point Upgraded: A complex control panel, a multilingual workforce, or a need to comply with specific industry standards (like ISO or ANSI) can make color-only indicators a liability. An ambiguous warning light doesn’t just slow down an operator—it forces them to guess, cross-reference a manual, or potentially make a critical mistake. A clear symbol for ‘⚠️ High Temp’ or ‘💧 Low Oil’ is instantly understood.

This is precisely where the power of fully customizable symbol indicator lights, enabled by advanced techniques like the FILN printing process, becomes indispensable.

The Unmatched Advantages of Custom Symbols:

Eradicate Ambiguity: Replace guesswork with certainty. A universally recognized icon for a fan, a pump, a battery, or a snowflake instantly communicates the specific system in question. Adding a custom legend indicator light with clear text like “RUN,” “FAULT,” or “CLOSE” leaves no room for error.
Transcend Language Barriers: Icons are the world’s most universal language. A standard power symbol is understood in every country, eliminating the need for costly and space-consuming multi-language text labels. This is critical for any manufacturer exporting their products.
Ensure Industry Compliance: Many industries mandate the use of specific symbols defined by bodies like ISO and ANSI. We can create a perfect ISO symbol indicator light to ensure your product meets regulatory standards out of the box, simplifying your compliance process.
Reinforce Brand Identity: Go beyond standard icons. We can create a custom logo indicator light by etching your company’s logo or a specific brand element directly onto the lens. This creates a cohesive, professional look that reinforces your brand’s commitment to quality and detail.
Elevate Professionalism & User Experience: A panel with clear, intuitive symbols looks more professional and is fundamentally easier and safer to use. This reduces operator training time, minimizes errors, and enhances the overall perceived value of your equipment.

Our Customization Promise: We can precisely and permanently print any symbol, text, or graphic you require onto the indicator lens. Simply provide us with your CAD drawing, a concept sketch, or even a detailed description, and our engineers will bring your vision to life. From simple directional arrows to complex schematic diagrams, your communication needs are our blueprint.

4. Your Perfect Indicator Solution: Total Customization Freedom

We don’t just sell indicator lights; we provide 100% on-demand visual communication solutions. Generic, off-the-shelf components force you to design your system around their limitations. We empower you to design the perfect component for your system. Our comprehensive customization covers every aspect of the indicator’s form and function.

Our Unique Selling Proposition: Full-Spectrum Customization

Size On Demand (6mm – 22mm)

Whether you’re designing a compact device or a large industrial cabinet, we have the right fit. Our range ensures seamless integration for any panel mount indicator light. We offer every common size, including the compact 6mm indicator light, the versatile 8mm pilot light and 12mm pilot light, and the robust 16mm indicator, 19mm indicator light, and large-format 22mm indicator light.

Material of Choice (Metal / Plastic)

The operating environment dictates the ideal material. We offer robust options for any application.

A metal indicator light is the ultimate choice for durability. Options like our stainless steel indicator light or brass indicator light offer superior resistance to impact and corrosion. This makes any heavy duty indicator light from our metal series, often designed as a vandal proof indicator light, ideal for harsh industrial or public-facing applications.
A plastic indicator light, made from materials like Polycarbonate or Nylon, is a versatile and cost-effective solution. A polycarbonate indicator light is lightweight and provides excellent electrical insulation, making it perfect for general controls and medical devices.

Full Voltage Compatibility (3V – 380V and Beyond)

Match your circuit’s requirements perfectly without external resistors. Our engineering allows us to build an indicator for any voltage. We commonly produce a 12V indicator light and 24V indicator light for vehicle and automation systems, a 5V LED indicator for electronics, and standard line-voltage models like a 110V indicator light or 220V panel light. If you have unique needs, our custom voltage indicator light service is the solution.

Deep Appearance Customization

Fine-tune every visual detail to match your design language. You can select the lens shape, like a modern flat head indicator light, and the mounting style, such as a threaded type or a snap in indicator light for fast assembly. We also offer components with high IP ratings, ensuring you can get a fully waterproof indicator light like an IP67 indicator light for wet or dusty environments.

Symbol & Graphic Customization (Our Core Strength)

As our core specialty, we can create any custom symbol indicator light you can imagine. Our advanced FILN indicator light process ensures your graphics are crisp and durable. Whether you need a simple icon or a detailed custom legend light, our etched symbol indicator technology delivers a premium, permanent result.

Applications Across All Industries

Our custom solutions are trusted in a vast array of sectors:

Industrial Control Cabinets & Automation
Machine Tool Status Indication
Medical Device Alarms & Status Panels
Elevator and Transit Control Panels
Marine and Shipbuilding Dashboards
Laboratory and Scientific Instruments
Smart Home & Building Automation
Telecommunication & Networking Equipment

5. Ready to Enhance Your Machine’s Communication? Take Action Now.

Stop letting ambiguous indicator lights be the weak link in your design. Cease allowing them to become a bottleneck for operators or a potential safety liability. By harnessing the proven science of color psychology and the limitless potential of our unmatched customization capabilities, you can design a user interface that is intuitive, efficient, and fundamentally safer.

Don’t settle for “good enough.” Create the perfect communication tool for your unique application.

Get Your Custom Indicator Light Solution!

Our team of specialists is ready to partner with you. We thrive on challenges and are dedicated to providing the perfect solution, whether you need a small batch of standard lights or a large run of completely unique, custom-designed components.

Provide us with your basic requirements—your application, a sketch of the symbol you need, the operating voltage, preferred size, and material—and our expert team will quickly provide an optimal design proposal and a competitive quote.

Why Partner With FILN?

Rapid Response: We value your time and provide fast answers and quotes.
Expert Guidance: Not sure what you need? Our engineers will help you choose the best options.
Small Batch Support: We support projects of all sizes, from prototype to full-scale production.
Guaranteed Quality: Our products are built to last, using high-quality materials and rigorous testing.

FILN Toggle Switch Box Waterproof Electrical Control Unit ON-OFF-ON

The toggle switch is a classic for a reason. In the world of industrial, marine, and automotive controls, its definitive, tactile “flick” provides unmistakable feedback that is essential for critical operations. It’s simple, reliable, and universally understood. However, this classic component has a traditional weakness: vulnerability to the elements. Dust, moisture, and physical impact can quickly lead to corrosion and failure.

So, how do you deploy this essential control component in the toughest environments? The answer is a purpose-built, protective enclosure: a Toggle Switch Box.

We are proud to introduce the FILN control unit, the ultimate waterproof Toggle Switch Box. It is designed to offer universal compatibility for the switches you trust, combined with the IP-rated protection needed for real-world reliability. It’s the perfect solution for creating a rugged, long-lasting control station.

The Universal Solution for Protecting Your Controls

The primary advantage of the FILN Toggle Switch Box is its incredible flexibility. It is designed to be a universal protective housing for one of the most common components in the industry.

Universal 12mm Mounting Hole

At the heart of its design is a standard 12mm mounting hole. This feature makes the box compatible with the vast majority of industrial toggle switches available on the market. This universal compatibility gives you the freedom to:

Purchase the empty, waterproof enclosure to house your own preferred toggle switches.
Order a complete, pre-assembled unit from us, configured with the exact switch function you need.

Complete Environmental Protection

This rugged box is engineered to provide a completely sealed environment, shielding the delicate switch mechanism and its wiring from all external threats. Its IP66-rated construction ensures total protection from dust ingress and can withstand powerful jets of water, making it ideal for any indoor or outdoor application.

Key Features of the FILN Toggle Switch Solution

When ordered as a complete unit, the FILN Toggle Switch Box comes with a suite of high-quality features designed for performance and ease of use.

Enhanced Waterproofing with a Protective Cap

A toggle switch’s lever is its most exposed part. To ensure a truly waterproof seal, our assemblies include a threaded waterproof cap. This durable silicone boot screws down over the switch’s mounting threads, completely sealing the lever’s entry point from water, dust, and grime. This is a critical feature for any serious marine or outdoor application.

A Switch for Every Function

We can pair the Toggle Switch Box with a high-quality toggle switch to match any control requirement. The most common configurations include:

ON-OFF (2-Position): For simple power control over a single circuit.
ON-OFF-ON (3-Position): Perfect for multi-function control, such as controlling the speed of a motor (High/Low), the direction of an actuator, or managing multiple lighting systems from a single switch.
Momentary (Self-Resetting): We can also supply momentary toggle switches for functions that require temporary activation, such as engine starters, horns, or system test sequences.

Easy, Secure Wiring with Screw Terminals

To simplify installation and ensure reliability, the toggle switches we provide feature convenient screw terminals. This professional design allows for quick, easy, and secure wire connections without the need for special crimping tools or soldering, guaranteeing a solid connection that won’t loosen with vibration.

Applications: Where a Rugged Toggle Switch Box Excels

The definitive action and robust protection of this Toggle Switch Box make it the ideal choice for a wide range of applications:

Industrial Machinery: As a durable start/stop, forward/reverse, or mode select control on lathes, presses, grinders, and conveyor systems.
Marine & Boating: For reliably controlling bilge pumps, navigation/anchor lights, trim tabs, and other critical onboard systems where a positive switch feel is essential.
Automotive & Off-Road: A perfect solution for auxiliary lighting, differential lockers, air compressors, and other accessories that require a solid, unmistakable switch.
Agricultural Equipment: As a dependable control for sprayers, augers, seeders, and other farm machinery constantly exposed to dust and moisture.

Build Your Ideal Control Station

The FILN Toggle Switch Box offers the ultimate in flexibility. You are empowered to create the exact control unit your project demands. Whether you purchase our universal enclosure to protect your own 12mm toggle switch or order a complete, pre-assembled station from us, you are guaranteed a foundation of rugged, waterproof protection.

Protect your critical controls with a solution that’s as tough as it is versatile.

Contact our team today to configure your perfect Toggle Switch Box, or to inquire about our universal enclosure for your own switches.

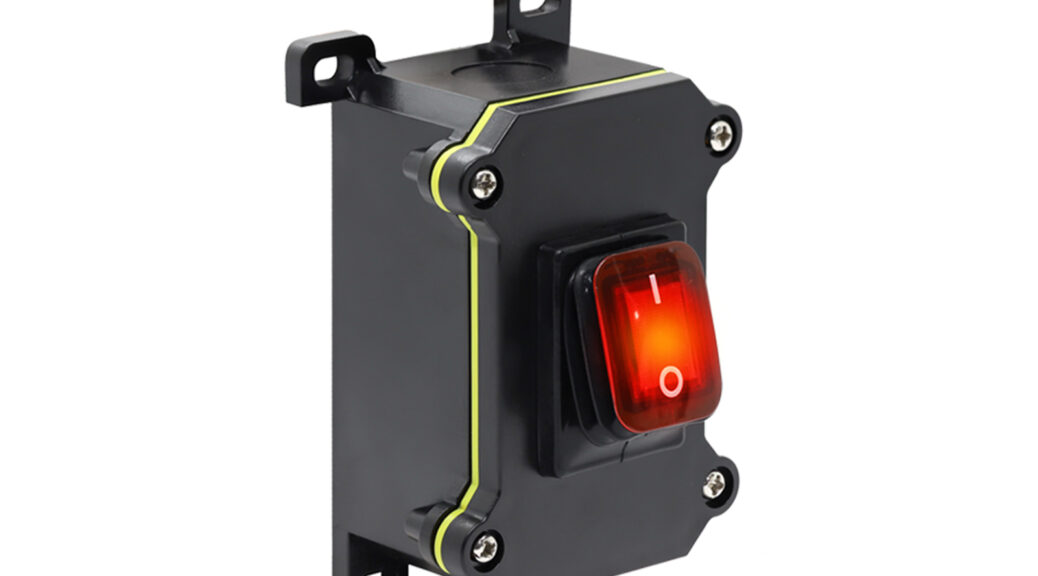

FILN 30A Waterproof Electrical Junction Box with Rocker Switch ON-OFF

In any environment where electricity, moisture, and dust coexist, protecting electrical connections is the number one priority for safety and reliability. A high-quality waterproof electrical junction box is the standard solution for shielding vulnerable wiring from the elements. But what if you need more than just a passive enclosure? What if you need to add a heavy-duty, accessible switch directly onto a power cord itself?

This challenge requires a specialized solution. We are proud to present the FILN heavy-duty inline control unit—a product that combines the robust protection of a waterproof electrical junction box with the functionality of a powerful and customizable 30A rocker switch.

This assembly is specifically designed to be installed “inline” on a power cable, giving you the ability to add a safe, convenient, and incredibly durable ON-OFF switch exactly where you need it most.

The Essential Role of a Waterproof Electrical Junction Box

At its core, the function of this product is to provide uncompromising protection. As a top-tier waterproof electrical junction box, it is engineered to create a completely sealed environment for the high-power switch and its critical connections. Key features include:

An IP66 Weatherproof Rating: The enclosure is rigorously tested to be completely dust-tight and is proven to resist powerful jets of water from all directions. This makes it ideal for outdoor use, marine applications, and industrial washdown environments.
Durable Construction: Made from high-impact materials, the box is built to withstand physical abuse, ensuring the components inside remain safe.
Watertight Cable Glands: The entry and exit points for the cord are fitted with secure glands. These not only prevent moisture ingress but also provide essential strain relief, gripping the cable firmly to protect the internal wiring from tension and pulling forces.

Beyond the Box: A High-Power, Customizable Switch

While the box provides the protection, the KCD4 rocker switch inside delivers the performance and versatility. We understand that different applications have different requirements, which is why we offer a range of options for this heavy-duty switch.

Heavy-Duty 30A Power Rating

This is not a standard light-duty component. The switch is rated for a massive 30 Amps, giving it the capacity to safely handle high-current equipment like industrial motors, large pumps, professional power tools, and heating elements directly through the cord.

Material Options for Every Application

You can create the perfect switch for your project by choosing from three distinct face materials:

Standard Plastic Face: A robust and economical option perfect for general industrial and workshop use where functionality is the top priority.
Painted Black Face: Offers a sleek, modern matte black finish, ideal for professional equipment, vehicles, or any application where a non-reflective, stylish look is desired.
Stainless Steel Face: The ultimate choice for durability and a premium aesthetic. The stainless steel face provides maximum resistance to corrosion and physical impact, making it perfect for harsh marine environments, food-grade applications, and high-end equipment.

Designed for Easy and Secure Wiring

Inside every waterproof electrical junction box, the switch is equipped with professional-grade screw terminals. This feature allows for a fast, simple, and incredibly secure connection of the electrical wires, ensuring a solid bond that can handle the full 30A current and resist loosening from vibration.

The Inline Advantage: Control Where You Need It Most

The true innovation of this product is its inline design. This specific waterproof electrical junction box is built to be integrated seamlessly along a power cable, offering unparalleled convenience and safety. Its primary applications include:

Upgrading Existing Equipment: Replace the flimsy, non-waterproof cord switch on your power tools or portable machinery with this heavy-duty, safe alternative.
Creating Custom Switched Extension Cords: Build your own industrial-grade, switched extension cord that can safely handle high-power equipment outdoors or on a job site.
Adding Convenient Control: Easily add a primary ON-OFF switch to the power cord of equipment like pumps, industrial fans, or portable heaters that lack an accessible built-in switch.

Assemble Your Perfect Control Solution

With the FILN inline control station, you are in complete command. You can design the exact inline switch that your project requires by combining the proven IP66 protection of our waterproof electrical junction box with the KCD4 rocker switch that best suits your needs—whether you prioritize economy, style, or extreme durability.

Don’t compromise on safety or convenience. Let us build the perfect inline control switch for your application.

Contact our team today to discuss your requirements. We are ready to assemble the ideal 30A Waterproof Electrical Junction Box to meet your specific needs.

FILN Inline Cord Box Waterproof Switch 30A KCD4 Aluminum Rocker

Convenience and safety in power control often mean having a switch right where you need it, but what happens when a wall-mounted panel is not an option? For portable equipment, power tools, and outdoor lighting, you need control directly on the power line. However, typical cheap, plastic cord switches are flimsy, low-amperage, and certainly not waterproof. They represent a significant weak point, prone to failure from water, dust, or simple wear and tear.

This is where a professionally engineered solution is required. You need a heavy-duty Inline Cord Box Waterproof Switch designed to withstand real-world use.

We are proud to introduce the FILN KCD4 model, the ultimate inline control solution. This product combines the go-anywhere convenience of a cord switch with the immense power (30A), rugged durability (IP66), and premium style (brushed aluminum) of a high-end industrial component.

What is an Inline Cord Box Waterproof Switch?

An Inline Cord Box Waterproof Switch is a specialized, fully sealed enclosure designed to be integrated directly along a heavy-duty electrical cable. Unlike a surface-mounted junction box, which terminates wiring on a wall or panel, an inline switch interrupts the cord itself.

This allows you to add a robust, safe, and reliable ON-OFF switch to any existing power cord. The process is simple: you cut the cord, wire each end to the secure terminals inside the box, and seal the unit. The result is a seamless, factory-quality switch that gives you direct control over any device plugged in at the end of the line. This approach eliminates the need for extra electrical boxes or complex panel wiring, providing control exactly where it’s needed most.

Built for Heavy-Duty Performance

This FILN model is engineered from the ground up to handle demanding tasks and harsh environments.

Massive 30A Power Handling

This is not a lamp switch. The internal KCD4 aluminum rocker switch is rated for a massive 30 Amps. This high-current capacity means this Inline Cord Box Waterproof Switch can safely manage the power draw of professional equipment without overheating or failing. It is ideal for controlling:

High-power industrial tools and machinery
Large water pumps and compressors
Professional-grade pressure washers
Heavy-duty outdoor and landscape lighting

IP66 Weatherproof Durability

The rugged enclosure is sealed to an IP66 rating, offering complete protection for the internal wiring. This means the unit is fully dust-tight and can withstand powerful water jets from any direction. This level of durability makes it the perfect switch for outdoor job sites, marine applications, workshops, and any environment where moisture and debris are a constant concern.

Secure Cord Grip & Strain Relief

A key feature of any quality inline switch is its cable entry points. The watertight cable glands on this box not only keep moisture out, but they also grip the cord securely. This provides critical strain relief, ensuring the cable cannot be accidentally pulled out or put stress on the internal electrical connections.

Premium Design & User-Friendly Features

While built for toughness, this Inline Cord Box Waterproof Switch also incorporates high-end features for a superior user experience.

Multiple Brushed Aluminum Face Options

The powerful 30A rocker switch features a stylish and durable aluminum face. To match your equipment or aesthetic preference, it is available in three different brushed metal finishes. This allows you to choose a look that ranges from ruggedly industrial to professionally sleek, a significant upgrade over standard plastic switches.

Optional LED Status Illumination

For enhanced safety and convenience, the switch can be configured with a built-in LED indicator light. Available in five colors (Red, Green, Yellow, Blue, and White), the light provides a clear, at-a-glance “power on” status—a critical feature when operating powerful machinery from a distance.

Fast and Secure Screw Terminals

Inside the sealed enclosure, the switch is equipped with heavy-duty screw terminals. This allows you to easily and securely attach the wires of the power cord, ensuring a solid, reliable connection that can safely handle the full 30A current and withstand vibration.

Applications & Use Cases

The unique inline design of this switch opens up a world of practical applications:

For Professionals: Add a waterproof switch directly to the power cord of a concrete mixer, a high-power tile saw, or an industrial vacuum for convenient control on the job site.
For Outdoor Use: Create your own custom, heavy-duty switched extension cord for managing landscape lighting, pond pumps, or outdoor event equipment.
For the Workshop: Install a convenient ON/OFF switch on the cord of a table saw, drill press, or other stationary power tool that has an awkwardly placed factory switch.

Stop settling for flimsy cord switches that can’t handle the job. Take direct, safe, and reliable control of your heavy-duty equipment.

Contact our team to learn more about the FILN Inline Cord Box Waterproof Switch and how it can make your work safer and more efficient.

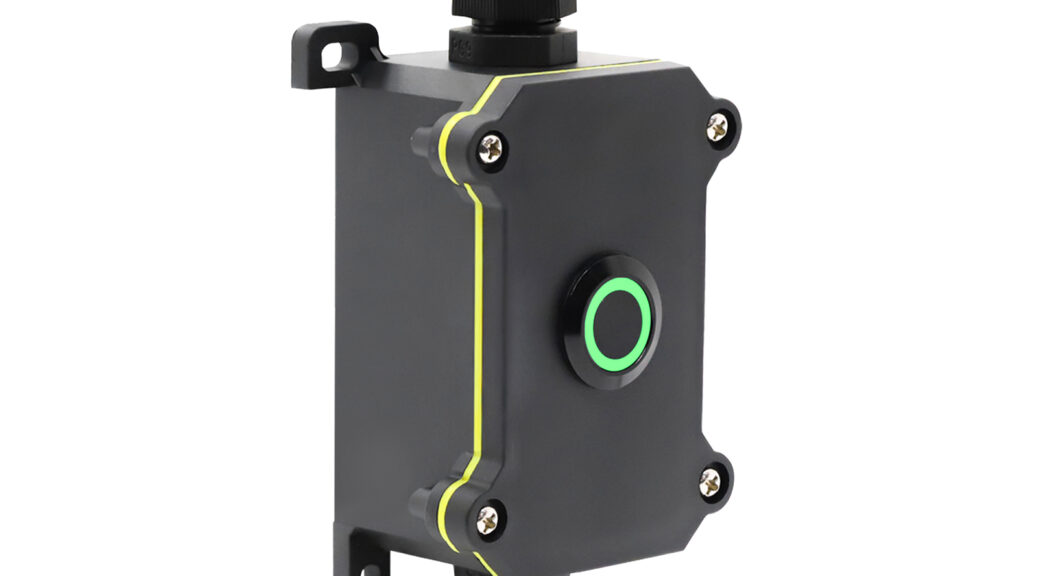

FILN 20A Waterproof Push Button Switch Box Metal Button Switch

Modern industrial, marine, and automotive design demands controls that are not only incredibly rugged but also aesthetically sophisticated. The era of bulky, purely functional plastic switches is giving way to sleek, durable metal interfaces that signal quality and high performance. The challenge, however, is integrating these beautiful components into real-world environments where they will be exposed to water, dust, and physical stress.

The solution is a professionally engineered, sealed enclosure: a Waterproof Push Button Switch Box.

This article introduces the premier FILN control station—a perfect marriage of brawn and beauty. It combines a tough, IP66-rated junction box with a high-end, 20A ring-lit metal push button switch, offering a complete and elegant solution for any modern application.

The Protective Core: The IP66 Junction Box

The foundation of this high-performance assembly is the rugged black junction box. It is designed to create a completely sealed environment, providing the ultimate protection for the sophisticated push button switch and its electrical connections. The quality of this protective housing is guaranteed by its IP66 rating, which ensures:

Total Dust-Tight Integrity: The enclosure prevents any ingress of dust, dirt, or debris, making it perfect for off-road, agricultural, and industrial factory settings.
Protection from Powerful Water Jets: It is proven to resist high-pressure water streams from any direction, making it the ideal choice for marine consoles, outdoor equipment, and machinery that requires regular washdowns.

This robust housing ensures that the control component inside remains in pristine condition, delivering flawless performance year after year.

Sophisticated Control: The 20A Metal Push Button Switch

At the heart of this Waterproof Push Button Switch Box is the 19mm metal push button switch, a component that delivers on both performance and high-end style.

High-End Materials & Appearance

This switch immediately elevates the look and feel of any control panel. It is crafted from durable metal and is available in two distinct finishes:

Classic Silver: A timeless stainless steel look that conveys durability and a clean, professional aesthetic.
Modern Black: A sleek, anodized black finish for a stealthy, high-tech appearance.

Enhancing its sophisticated design is the brilliant ring illumination, available in Red, Green, Yellow, Blue, and White. This feature provides clear, elegant status feedback that is far superior to standard indicator lights.

High-Current 20A Performance

Uncommon for a switch of this size, this component boasts a powerful 20A current rating. This allows it to directly control a wide range of substantial electrical loads without needing an intermediate relay, including motors, pumps, and high-power lighting systems.

Functional Versatility: Momentary & Latching Options

To suit any type of application, the switch is available in two distinct functions:

Momentary (Self-Resetting): The switch is active only while it is being pressed. This is ideal for functions like horns, engine starters, or machine jogging controls.
Latching (Self-Locking): Press once to turn ON, and press again to turn OFF. This is perfect for standard ON/OFF control of lights, pumps, fans, and other equipment.

Designed for Seamless Integration

This Waterproof Push Button Switch Box is engineered to be as user-friendly as it is powerful.

Simplified Wiring & Installation

Each switch comes with a default 20cm wire lead, which dramatically simplifies the installation process. There is no need for soldering or attaching small terminals in a cramped space; you can quickly and reliably connect the switch to your system. Combined with the easy surface-mount design of the box itself, installation is fast, simple, and secure.

Broad Voltage Compatibility

The assembly is designed for maximum flexibility, offered in two versatile voltage ranges that cover the vast majority of applications:

12V – 24V DC
110V – 220V AC

This allows you to use the same high-quality control station for everything from vehicle and marine systems to industrial and line-voltage equipment.

The Premier Choice for Modern Applications

This FILN assembly is more than just a protective box; it’s a complete, high-end control station that enhances the value, functionality, and appearance of any equipment. It is the ideal choice for applications where both durability and sophisticated design are critical, including:

Marine and yacht control consoles
Custom vehicle dashboards (4×4, RVs, trucks)
High-tech industrial machinery and control panels
Architectural outdoor controls and lighting
Public-use kiosks and access control panels

Ready to upgrade your controls to a modern, durable, and elegant solution? Contact our team to discuss your project and find the perfect configuration for your needs.

FILN ON-OFF Waterproof Junction Boxes with 30A Rocker Switch IP66

In demanding industrial, marine, or outdoor environments, electrical system failure is not an option. Standard electrical controls, when exposed to moisture, dust, and physical impact, are a common point of weakness, leading to dangerous short circuits, corrosion, and costly operational shutdowns. The solution requires moving beyond basic components to a fully protected, versatile control system.

This is the exact purpose of heavy-duty waterproof junction boxes. They are designed to provide a sealed, secure housing for critical controls, and when paired with the right switch, they offer unmatched reliability.

This article highlights the FILN ON-OFF control unit: a purpose-built, IP66-rated waterproof junction box pre-fitted with a versatile and robust, high-power 30A rocker switch. It is the definitive solution for anyone needing simple, reliable, and adaptable ON-OFF control for their heavy-duty equipment.

The Core of Protection: What Defines Quality Waterproof Junction Boxes?

Not all enclosures are created equal. When selecting a control station for a harsh environment, the quality of the box itself is paramount. High-performance waterproof junction boxes are defined by several key characteristics that ensure long-term reliability.

First is the material and construction. The FILN junction box is crafted from high-impact, durable black plastic, capable of withstands physical knocks and resisting chemical corrosion. Second is the seal. This unit features a high-quality gasket that creates a tight seal between the lid and the base, which is critical for its IP66 rating. This rating signifies that the enclosure is:

Completely Dust-Tight: It offers total protection against the ingress of dust and other solid particles.
Resistant to Powerful Water Jets: It can safely deflect high-pressure water streams from any angle, making it suitable for washdown areas and extreme weather.

Finally, secure, watertight cable glands ensure that the protective seal is not compromised where the wires enter the box. When you choose quality waterproof junction boxes like this one, you are building a foundation of safety and reliability for your entire electrical system.

Versatile & Robust Control: The 30A Rocker Switch

Housed securely inside the protective enclosure is a heavy-duty 30A rocker switch, designed for superior performance and adaptability. This standard 22×30 mm mounting size switch is not a one-size-fits-all component; it offers crucial options to match your specific application’s needs.

Multiple Face Material Options

You can choose the ideal switch face to balance durability, aesthetics, and cost:

Standard Plastic Face: A durable and cost-effective choice for general-purpose industrial and outdoor applications where pure function is key.
Painted Black Face: Offers a sleek, non-reflective matte black finish for a more modern and professional look on control panels, vehicle dashboards, and equipment.
Stainless Steel Face: The premium option for maximum performance. Stainless steel provides superior durability, exceptional resistance to corrosion, and a high-end look, making it perfect for marine environments, food processing equipment, and outdoor kitchens.

30 Amp High-Current Capability

Regardless of the face material, the switch is rated for a massive 30 Amps. This allows it to directly manage significant electrical loads, making it the perfect ON-OFF control for demanding machinery like industrial motors, high-power lighting, and marine pumps.

Convenient Screw Terminals

For fast, easy, and secure installation, the switch features robust screw terminals. This user-friendly design eliminates the need for special crimping tools and provides a stronger, more vibration-resistant connection than standard spade terminals, ensuring long-term reliability.

Engineered for Practicality: Installation & Versatility

This pre-assembled unit is designed to save time and simplify installation. As a surface-mount solution, these waterproof junction boxes can be easily and securely fastened to any wall, panel, or machine frame without the need for complex and precise panel cutouts.

To ensure it can be integrated into nearly any system, the assembly is compatible with a wide range of voltages. Standard options include:

12V-24V
110V-220V

We also support customized voltage production, allowing for seamless integration into your specific equipment. This versatility makes the FILN waterproof junction box an excellent choice for a vast array of applications, from controlling outdoor lighting systems to serving as a master shut-off switch on a factory floor.

The FILN Advantage: A Customizable and Reliable Solution

Choosing the FILN 30A ON-OFF control station means you are getting a complete, tested, and rated solution with built-in flexibility. There is no need to source a separate box and switch and worry about compatibility or sealing. You can select the perfect switch face for your project, all housed within a proven protective enclosure.

This approach guarantees a higher level of safety and performance. When you need reliable control in tough conditions, trust a solution that is built for the job and tailored to your needs.

Contact us today to learn how our 30A Waterproof Junction Boxes can improve the safety and reliability of your equipment.

FILN 30A Waterproof Box KCD4 Rocker Switch IP66 Aluminum Faced

In the world of high-performance equipment, electrical controls are often a point of failure. Exposure to water, dust, and vibration can compromise standard switches, leading to costly damage and downtime. While a protective box is a good start, true quality lies in the details: the look, feel, and functionality of the switch itself. What if you could have a control solution that was not only incredibly tough but also looked stunningly professional and was easy to install?

That is the principle behind our premier control solution: a rugged, black waterproof box housing the advanced FILN Model 082 Ring-Lit Rocker Switch.

This article showcases this specific product combination, designed for customers who refuse to compromise on performance, aesthetics, or reliability. It’s a solution that pairs an IP66-rated enclosure with a high-current, beautifully illuminated switch, creating a package that excels in any industry.

The Foundation of Reliability: The IP66 Waterproof Box

Every great control system starts with a solid defense. The foundation of this product is its durable black waterproof box, engineered to provide a secure, sealed environment for the high-performance switch it contains. A reliable waterproof box is the first and most important step in protecting your connections.

The key to its protective power is its surface IP66 rating. This industry standard guarantees two critical levels of defense:

Total Dust-Tight Protection: The enclosure is completely sealed against the ingress of dust and other fine particles, making it ideal for workshops, off-road vehicles, and agricultural equipment.
Protection Against Powerful Water Jets: It can withstand high-pressure water streams from any direction. This means it is perfectly safe for marine applications, food processing equipment, and any outdoor device that needs to be hosed down.

This robust waterproof box ensures that no matter how harsh the external environment, the critical electrical connections inside remain perfectly safe and corrosion-free.

Not Just a Rocker Switch, A Statement: The FILN 082 Switch

While the box provides protection, the FILN Model 082 rocker switch provides the performance and style that truly sets this product apart. This is not a standard plastic switch; it is a premium component designed for superior function and appearance.

Sophisticated Aesthetics: Ring Illumination & Three Brushed Metal Finishes

The most striking feature of the FILN 082 is its elegant ring-lit illumination. Unlike a simple dot light, the illuminated ring provides a clear, uniform glow around the switch actuator. This offers a more modern, high-end look, significantly upgrading the appearance of any control panel. It provides instant, unmistakable status recognition.

To further enhance its premium feel, the switch is available in three distinct brushed metal finishes, allowing you to perfectly match your equipment’s aesthetic. The crisp aluminum face is not only durable but adds a touch of class that plastic switches cannot replicate. Combined with a choice of brilliant LED colors (Red, Green, Yellow, Blue, and White), you have complete control over the final look.

Uncompromising Power: 30A High-Current Capability

Beneath its beautiful exterior lies a powerhouse. The FILN 082 is rated for a massive 30 Amps, allowing it to safely control heavy-duty equipment without the need for an external relay in many cases. This high-current capacity makes it one of the most versatile switches on the market, suitable for:

High-power winches and hydraulic pumps
Marine windlasses and bilge pumps
Large banks of off-road or industrial lighting
Commercial appliance motors and heating elements

Simplified, Secure Wiring: 4-Pin Screw Terminals

Ease of installation is a critical design feature. The FILN 082 is equipped with 4-pin screw terminals. This is a significant advantage over standard spade connectors. Wiring is faster, requires no special crimping tools, and creates a much more secure and vibration-resistant connection. When housed within the waterproof box, this feature ensures that installation is not only quick but also results in a reliable, long-lasting electrical bond.

Engineered for Versatility: Voltage Options and Applications

To ensure broad compatibility, this switch and waterproof box assembly is available in several standard voltage configurations:

12V-24V DC: Perfect for all automotive, truck, RV, and marine applications.
110V AC & 220V AC: Ideal for industrial machinery, commercial appliances, and line-voltage controls.

Furthermore, we understand that unique projects require unique solutions. That is why we proudly offer customized voltage production to meet your specific requirements.

This combination of power, style, and versatility makes it the perfect choice for high-end boat consoles, custom vehicle dashboards, industrial control panels, outdoor kitchens, and any application where performance and appearance are paramount.

The Complete Package: Ready for Your Project

The FILN 082 in its IP66 waterproof box is more than a product; it’s a complete control solution. It offers the rugged protection your project demands, the sophisticated aesthetic it deserves, and the user-friendly installation that saves you time and effort.

We are confident that this assembly provides an unmatched combination of features and quality. Whether you are building a single custom project or outfitting a full production line, we are here to provide a solution that exceeds your expectations.

We welcome you to send us an inquiry to discuss how this premium waterproof switch box can elevate your equipment.
