Product Drawings:

Momentary toggle switches are widely used in electrical circuits and various other applications due to their reliability and simplicity. As one of the top manufacturers specializing in producing high-quality toggle switches, FILN offers a diverse selection of switches, including the popular 12MM momentary toggle switch. These switches come with customizable features, offering versatility for different needs.

In this article, we will explore everything there is to know about momentary toggle switches, how they work, the different variations available, and why FILN’s 12MM metal toggle switch is the perfect solution for your circuit needs.

The Main Technology Performance:

What Is a Momentary Toggle Switch?

A momentary toggle switch is a type of switch that is designed to return to its default position once released. Unlike a regular toggle switch that stays in place once flipped, a momentary switch “momentarily” maintains its position only while pressed. As soon as the user releases the switch, it snaps back to its original position, making it ideal for applications that require temporary changes to an electrical circuit.

Types of Momentary Toggle Switches

There are several types of momentary toggle switches based on their functionality and application:

• Push button toggle switch: Common in smaller devices, these are activated by pushing the button.
• Electrical toggle switch: A broader term for any toggle switch used in electrical circuits, including momentary types.
• Momentary action switch: A term often used interchangeably with momentary toggle switches, designed to only remain in the “ON” state while being pressed.

Key Features of FILN’s 12MM Momentary Toggle Switch

FILN’s 12MM metal momentary toggle switch is a compact yet highly functional switch with unique characteristics that make it a preferred choice for various electrical applications. Here are some of its main features:

2 Pin Design

The 12MM momentary toggle switch comes with a 2-pin design for easy installation. The pins are designed to provide a secure connection, ensuring that the switch remains stable even in high-traffic electrical circuits.

Smooth Threading for Easy Assembly

The switch is designed with smooth threading, making the installation process hassle-free. Whether you’re integrating it into a custom panel or replacing an old switch, the ease of use saves time and effort during assembly.

Various Functional Options

FILN’s momentary toggle switch can be configured for several different ON-OFF sequences. The most common configurations include:

• ON-OFF: Toggle the switch to “ON” and it stays there until manually turned back to “OFF.”
• ON-ON: The switch toggles between two “ON” positions.
• ON-(OFF)-ON: The switch moves between two “ON” positions, with an “OFF” in between.
• (ON)-OFF/ON-(OFF): A more advanced design for custom applications.

Durable Materials

FILN manufactures its momentary toggle switches with durable metal materials, ensuring longevity and resistance to wear and tear. The materials used for the switch body and contacts significantly impact the longevity and reliability of the product.

Why Choose FILN for Your Toggle Switch Needs?

FILN has established itself as a trusted supplier of toggle switches, including momentary toggle switches. Here’s why choosing FILN can benefit your project:

Expert Customization Services

FILN offers a comprehensive custom toggle switch service. Whether you need a specific configuration, material, or special design, FILN’s engineers are on hand to help create the ideal switch for your needs. From circuit-specific requirements to industrial applications, customization is key.

Affordable Pricing

As a factory-direct supplier, FILN offers competitive prices, especially for bulk purchases. The cost of a toggle switch varies depending on the materials and features, but customers can expect great value for high-quality products.

Reliable Support

FILN provides one-on-one engineering support to help guide you through the selection and installation process. Whether you’re a beginner or a seasoned professional, their customer service team ensures that you get the right product for your application.

How Does a Momentary Toggle Switch Work in Circuits?

Momentary toggle switches are ideal for circuits that require temporary changes in state, like activating a light or a motor. Here’s how they generally function:

1. Pressing the Switch: When you press the switch, the internal contact is closed, allowing current to flow through the circuit.
2. Release: Once the switch is released, the contact opens, cutting the current and deactivating the circuit.

This behavior makes the switch excellent for applications that demand momentary action, such as remote control systems, alarms, or electronic devices requiring short bursts of power.

Applications of Momentary Toggle Switches

1. Circuit Controls

In electrical circuits, momentary toggle switches are often used for:

• Turning lights on and off momentarily
• Activating alarms or sirens for a short duration
• Resetting devices or systems
• Powering on/off motors or equipment for specific tasks

2. Industrial and Automotive Applications

Momentary switches are widely used in industrial and automotive applications for emergency shutdowns or to initiate temporary actions.

3. Consumer Electronics

Many devices like televisions, radios, and handheld gadgets use momentary toggle switches to handle simple tasks like turning the device on or off.

Why Choose a Push Button Toggle Switch?

A push button toggle switch is one of the most popular variants in the toggle switch family. It allows for easy operation, often requiring just a light push to activate. For applications where a quick response is needed, a push button momentary toggle switch provides a simple and reliable solution.

How to Choose the Right Momentary Toggle Switch for Your Application

Choosing the right momentary action switch depends on several factors:

• Electrical Ratings: Ensure the switch can handle the voltage and current of your circuit.
• Contact Configuration: Decide on the specific ON-OFF pattern needed for your system.
• Material Quality: Ensure the switch is made of high-quality materials for durability and reliability.
• Size and Fit: Make sure the switch fits within your panel or device design.

Understanding the Pricing of Momentary Toggle Switches

The price of momentary toggle switches can vary depending on:

• Material: Metal switches typically cost more due to their durability.
• Functionality: More complex switches with additional features may come at a higher price point.
• Quantity: Purchasing in bulk from manufacturers like FILN ensures better pricing.

Conclusion

Momentary toggle switches are versatile, reliable, and essential components in many electrical systems. FILN offers high-quality, customizable 12MM momentary toggle switches that cater to a wide range of applications. With expert customization, affordable prices, and excellent customer service, FILN is your go-to source for all toggle switch needs.

If you’re looking for a durable and efficient momentary toggle switch for your circuit, FILN has the perfect solution for you.

FAQs

1. What is the difference between a momentary toggle switch and a regular toggle switch?
A momentary toggle switch only stays in its “ON” position while pressed, while a regular toggle switch stays in its position once flipped.

2. Can I customize the functionality of FILN’s momentary toggle switch?
Yes, FILN offers extensive customization options for the switch’s functionality, materials, and more.

3. How does the 12MM momentary toggle switch compare to other sizes?
The 12MM size is compact, making it ideal for smaller electrical applications, while still offering durability and reliability.

4. What is the lifespan of a momentary toggle switch?
A high-quality momentary toggle switch like the ones FILN produces can last for thousands of cycles, depending on the application.

5. Can momentary toggle switches be used in automotive applications?
Yes, momentary toggle switches are commonly used in automotive systems for tasks like engine start/stop or emergency shutdowns.

Product Drawings:

If you’re looking for a durable and reliable toggle switch, look no further than FILN’s 12MM Single-Pole Toggle Switch. As a leading manufacturer of toggle switches, FILN specializes in offering high-quality, customizable solutions for a variety of industries. Whether you’re in industrial settings, the automotive sector, or even consumer electronics, our 12MM toggle switch delivers excellent performance. Let’s explore its key features and why it’s the perfect choice for your next project.

The Main Technology Performance:

What is a Single-Pole Toggle Switch?

A Single-Pole Toggle Switch (often referred to as SPST – Single Pole Single Throw) is a type of switch that controls the flow of electricity to one circuit. In simple terms, it connects or disconnects a circuit from a single power source. These switches are commonly used in situations where a simple on/off control is needed, making them ideal for a wide range of applications.

This type of toggle switch is essential for controlling devices and systems that require a straightforward switching mechanism. For example, it can be used to turn on lights, control machinery, or activate various electrical systems in both household and industrial environments.

Key Features of FILN’s 12MM Single-Pole Toggle Switch

FILN’s 12MM Single-Pole Toggle Switch stands out due to its advanced design and features:

• Size: Compact 12MM diameter, perfect for tight spaces.
• Material: Constructed from high-quality metal, offering excellent durability and strength.
• Connection Type: Features glue-taped wire connections for easy, secure installation.
• Waterproof: IP67 waterproof rating ensures the switch is dustproof and protected against water immersion up to 1 meter.
• Pins: Equipped with 2 pins, ideal for simple on/off control circuits.
• Functionality: The switch operates without illumination, making it a perfect fit for many applications that don’t require backlighting.
• Smooth Installation: The switch’s installation thread is smooth for easy mounting and setup.

Why Choose a Single-Pole Toggle Switch?

Single-pole toggle switches are ideal for applications where only two states are needed—on and off. Compared to other types of switches, single-pole designs are simpler and more compact, making them easy to use and install.

They’re commonly found in industrial machinery, vehicles, and home appliances. Their ease of use and reliability make them a top choice for professionals who need a no-frills solution for switching circuits.

Understanding the IP67 Waterproof Rating

The IP67 rating indicates that FILN’s 12MM toggle switch is completely protected against dust and can be submerged in water up to 1 meter deep for 30 minutes. This waterproof feature is critical for environments that are exposed to moisture, rain, or dust.

For example, if you’re using the toggle switch in a marine environment, outdoor machinery, or equipment exposed to the elements, the IP67 waterproof rating guarantees that your switch will remain operational even in harsh conditions.

Various Toggle Switch Functions Offered by FILN

FILN’s 12MM Single-Pole Toggle Switch is versatile, offering multiple functional options:

• ON-OFF: The most basic function, where the switch either completes or breaks the circuit.
• (ON)-OFF: The switch remains in the ON position until toggled, offering an alternative control method.
• ON-(OFF): Another variation where the switch completes the circuit when toggled into the ON position and remains off when switched to the other position.

Each of these functions can be used depending on your needs, whether you require a basic on/off toggle or a more advanced switch with additional control features.

Applications of Single-Pole Toggle Switches in Different Industries

The 12MM Single-Pole Toggle Switch is used in a variety of industries, including:

• Industrial: These switches are common in control panels, machinery, and power circuits.
• Automotive: Toggle switches are often used to control lights, horns, and other electrical systems in vehicles.
• Marine: In boats and watercraft, they control various circuits exposed to wet conditions.
• Consumer Electronics: Small electronics, like appliances or gadgets, often use toggle switches for power control.

Thanks to its compact size and robust design, FILN’s toggle switch is versatile enough to be used in almost any application requiring simple, reliable circuit control.

Why Choose FILN for Your Toggle Switch Needs?

As a direct manufacturer of toggle switches, FILN offers several benefits:

• Competitive Pricing: By eliminating middlemen, FILN can offer competitive pricing without compromising quality.
• Customization: FILN allows for full customization of the toggle switch, ensuring it meets your exact specifications.
• Bulk Orders: FILN provides significant discounts for large orders, making it ideal for businesses and manufacturers.

How to Order Toggle Switches from FILN

Ordering from FILN is simple and straightforward. Here’s a step-by-step guide:

1. Visit Our Website: Go to FILN Toggle Switch and browse our toggle switch offerings.
2. Choose Your Specifications: Select the type of switch you need, along with any custom features you require.
3. Contact Us: Reach out to our sales team for a quote or any questions.
4. Place Your Order: Once you’ve confirmed the details, we’ll process your order and ship it promptly.

Customization Options for FILN’s Toggle Switches

FILN offers customization options that allow you to tailor the 12MM Single-Pole Toggle Switch to your exact requirements. Whether you need a specific material, functionality, or design, FILN’s engineering team is ready to assist you in creating the perfect switch for your needs.

Durability and Performance of FILN’s Toggle Switches

The 12MM Single-Pole Toggle Switch is built to last. Made from high-quality metal, it offers excellent resistance to wear and tear. It is ideal for use in industrial environments, where switches are subjected to frequent use and harsh conditions.

Pricing and Bulk Order Discounts

FILN offers competitive pricing based on materials, features, and functionality. Bulk orders of toggle switches are eligible for additional discounts, ensuring that businesses save money when purchasing large quantities.

The Role of Engineering Support at FILN

FILN’s dedicated team of toggle switch engineers provides one-on-one support to help you select the right product for your project. Whether you need help with customization or have technical questions, FILN’s engineers are ready to assist.

Customer Feedback on FILN’s Toggle Switches

Many customers appreciate FILN’s high-quality products, especially the durability and waterproof capabilities of the 12MM toggle switch. Positive reviews often highlight the switch’s ease of installation and long-lasting performance.

How to Install FILN’s 12MM Single-Pole Toggle Switch

Installation of the 12MM toggle switch is simple. Follow these basic steps:

1. Connect the wires to the pins.
2. Mount the switch securely with the provided screws.
3. Test the switch to ensure proper functionality.

For additional help, FILN’s technical team is available to guide you through the installation process.

Conclusion

FILN’s 12MM Single-Pole Toggle Switch is an excellent choice for a variety of applications. With its IP67 waterproof rating, customizable options, and durable design, it provides reliable performance for both personal and industrial use. Contact FILN today to learn more about our toggle switches or to place an order.

FAQs

1. What is the difference between SPST and SPDT toggle switches?

SPST (Single Pole Single Throw) switches control one circuit with two positions. SPDT (Single Pole Double Throw) switches control one circuit but offer three positions, making them more versatile.

2. Can FILN’s toggle switches be used outdoors?

Yes, FILN’s toggle switches come with an IP67 waterproof rating, making them suitable for outdoor use, even in harsh weather conditions.

3. How do I customize my toggle switch?

FILN offers full customization options for materials, functionality, and more. Contact FILN for a personalized solution.

4. How do I know if the 12MM toggle switch is the right choice for my project?

FILN’s engineers are available to help you assess your needs and choose the appropriate switch for your specific application.

5. How do I install the 12MM toggle switch?

Installation is straightforward. Connect the wires to the pins, mount the switch, and test its functionality. FILN’s engineers can assist with any installation questions.

Product Drawings:

Toggle switches are essential components used across many industries and applications. They offer reliable, easy-to-use control for electrical circuits. If you’re looking for high-quality toggle switch on off solutions, FILN is a leading manufacturer specializing in premium toggle switches. This article will introduce our toggle switch on off products, explaining their functionality, benefits, and custom options.

The Main Technology Performance:

What is a Toggle Switch On Off?

A toggle switch on off is one of the most commonly used types of electrical switches. As the name suggests, it has two main positions: on and off. It’s designed to control the flow of electricity in a circuit by toggling between these two states. It’s simple yet efficient, making it ideal for a wide range of applications.

Types of Toggle Switches

On-Off Toggle Switch

An On-Off toggle switch is the simplest form of toggle switch, offering two positions to control a circuit. When flipped to “on,” the circuit is completed, allowing electricity to flow. When flipped to “off,” the circuit is broken, cutting off the current. This basic toggle switch is ideal for controlling lights, fans, and other simple electrical devices.

SPDT Toggle Switch

SPDT (Single Pole Double Throw) toggle switch is a more advanced type that offers three positions: “off,” “on,” and an alternate “on” position. SPDT switches are often used when you need to control two different circuits with a single switch, allowing you to toggle between them.

DPDT Toggle Switch

DPDT (Double Pole Double Throw) toggle switch has six terminals and can control two separate circuits, each with two “on” positions. This type of switch is often used in more complex electrical systems where you need to switch between multiple options, providing more flexibility and control.

Electrical Toggle Switch

Electrical toggle switches are designed to manage electrical currents safely and efficiently. These switches are built to handle varying voltage and current levels, making them suitable for industrial, automotive, and home applications.

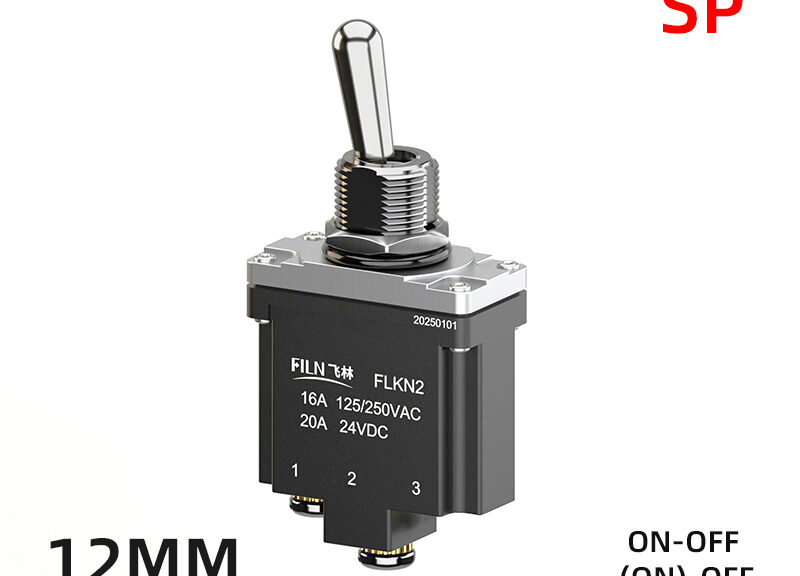

FILN’s 12MM Metal Toggle Switch: Key Features

At FILN, we specialize in producing durable and customizable toggle switches, including our popular 12MM metal toggle switch on off. This switch offers several advantages for users looking for reliability and versatility in their electrical systems. Some key features include:

2-Pin Screw Terminals

Our 12MM toggle switches come with 2-pin screw terminals, making them easy to install and secure within your electrical setup. This type of terminal ensures a stable connection, minimizing the risk of loose wiring.

Smooth Threading

The smooth threading on these switches ensures easy installation and a secure fit. It also helps to prevent damage during setup, offering a reliable and smooth user experience.

Multiple Function Options

The 12MM toggle switch on off can be configured in several functional positions to suit your needs. These configurations include:

• ON-OFF
• (ON)-OFF
• ON-(OFF)

These options provide users with flexibility in how they control circuits and electrical devices, depending on their specific requirements.

Materials Matter: Why Toggle Switch Material is Important

The material used to make the toggle switch on off has a significant impact on its durability, performance, and longevity. Here’s a breakdown of how different materials affect toggle switch functionality:

Metal Toggle Switches

Metal toggle switches offer superior durability and resistance to wear, tear, and environmental factors such as moisture and heat. They are ideal for heavy-duty applications and environments that require high performance under extreme conditions.

Plastic Toggle Switches

While less durable than their metal counterparts, plastic toggle switches are lightweight and cost-effective. They are typically used in smaller, less demanding applications.

FILN’s metal toggle switches are crafted from high-quality materials to ensure they perform well even in demanding conditions.

Benefits of FILN’s Toggle Switches

Durability

FILN’s toggle switch on off products are made from high-quality materials like metal, ensuring durability and long-lasting performance. These switches are designed to handle heavy-duty use, making them perfect for industrial and commercial applications.

Customization Options

At FILN, we understand that every customer has unique needs. That’s why we offer customization options for our toggle switches. Whether you need a specific size, color, or functionality, we can work with you to design a switch that meets your exact specifications.

Cost-Effective Solutions

As a manufacturer, FILN can provide competitive pricing on bulk orders, allowing you to get high-quality toggle switch on off products at a lower cost. The more switches you order, the better the price becomes.

Reliable Engineering Support

Our team of expert engineers is available to provide one-on-one support throughout the design and manufacturing process. Whether you need help with product selection or customizing your switches, FILN’s engineers are here to ensure you get the best possible solution.

Why Choose FILN for Your Toggle Switch Needs?

FILN has built a strong reputation as a professional toggle switch on off manufacturer. Here’s why you should choose us for your toggle switch needs:

• High-Quality Products: FILN uses only the best materials for manufacturing our toggle switches, ensuring that every product meets our high standards.
• Custom Solutions: Our engineers work directly with clients to create customized toggle switches tailored to their specific needs.
• Competitive Pricing: We offer factory-direct pricing, ensuring that you get the best deal on both stock and custom switches.
• Fast Turnaround Time: We understand the importance of timely delivery, and we strive to provide fast shipping for both bulk and custom orders.

Benefits of Choosing FILN’s Toggle Switches

• Durability: Our toggle switches are built to last, with metal constructions that can endure harsh environments.
• Customizability: FILN offers personalized options for both functionality and design, ensuring your switches meet your precise requirements.
• Cost-Effectiveness: As a manufacturer, we offer competitive prices, especially on large orders.
• Fast Turnaround: We pride ourselves on quick delivery times for both custom and stock switches.

How to Order Toggle Switches from FILN

Ordering from FILN is simple and straightforward. Here’s a step-by-step guide:

1. Visit Our Website: Go to FILN Toggle Switch and browse our toggle switch offerings.
2. Choose Your Specifications: Select the type of switch you need, along with any custom features you require.
3. Contact Us: Reach out to our sales team for a quote or any questions.
4. Place Your Order: Once you’ve confirmed the details, we’ll process your order and ship it promptly.

Price Considerations for Toggle Switches

The price of a toggle switch on off depends on various factors such as:

• Material Type: Metal switches generally cost more than plastic switches due to their higher durability and strength.
• Customization: Custom switches with specific features or designs may come at a premium price.
• Order Quantity: FILN offers discounts for bulk orders, so the more switches you order, the better the price.

Conclusion

Toggle switch on off products are essential for controlling electrical circuits across a wide range of applications. FILN’s 12MM metal toggle switch on off offers versatility, durability, and customization options to meet your unique needs. With competitive pricing, excellent customer support, and high-quality manufacturing, FILN is the go-to source for all your toggle switch needs.

FAQs

1. What are the main types of toggle switches available?

The most common types include On-Off toggle switches, SPDT toggle switches, and DPDT toggle switches. Each type offers varying degrees of functionality depending on the needs of your application.

2. Can I customize my toggle switch?

Yes, FILN offers full customization options, including size, functionality, and material choice, ensuring the switch fits your specific requirements.

3. What is the lead time for custom toggle switches?

Lead times vary based on customization complexity, but FILN strives to provide fast turnaround times. Contact us for a precise delivery estimate.

4. Are FILN toggle switches suitable for high-power applications?

Yes, our toggle switch on off switches are designed for high-performance use, with metal options available for heavy-duty and high-power applications.

5. How do I place a bulk order?

To place a bulk order, visit our website, select your desired products, and contact us for a quote. We offer competitive prices on large orders.
