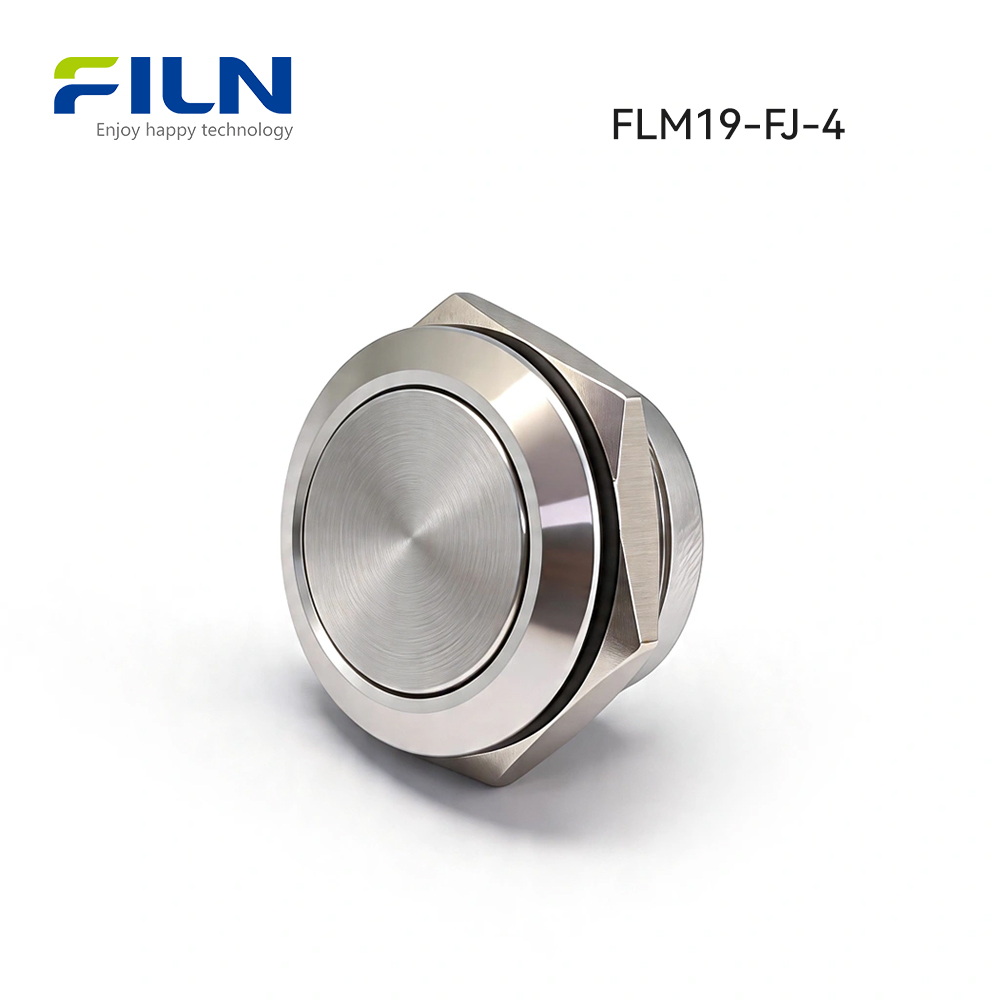

19MM New Short Size Normally Open Push Button Switch
- Name:no push button
- Model: FLM19-10FJM
- Head Type:Flat Head
- Mounting Size:19mm
- Switching Functions:Momentary
- Contact Configuration:1NO
- Rated Voltage: 0.1A(DC)
- Voltage Options:12V(DC)
- Material:Copper, stainless steel
- Download Certification:CE, CCC, ROSH, IP65, UL
- Waterproof grade:IP65
- Wire specification:AGW22
- Email:inquiry@cnylin.com.cn
- Download PDF: 19MM New Short Size IP65 Touch Switch Metal Push Button Switch
Product Parameters:
Production Series | FLM19-10FJM | Light Guide Button | |
Button Shape | round | Actuator | 304 Stainless steel |
Button LED Color | Housing Sleeve | H59 nickel plated brass/304Stainless steel | |
Mechanical Life | The 500 thousand time | Button Pin | H62 copper alloy |
Electrical Life | The 100 thousand time | Rubber Ring | SIL silica gel |
Protection Level | IP67 IK09 | Nut | H59 nickel plated brass |
Rated Voltage | 12V(DC) | Housing | PA66+GF20% nylon |
Rated Current | 0.1A(DC) | Light Source | |
Rated Power | 1.2W(DC) | Resistor | Metal film |
Operating Temperature | -25℃~+85℃ | Contact | AgCdO12 |
How to wire a no push button switch with led?
