Key Takeaways & Buyer Decision Guide
- Product Identity: Heavy-duty 30mm panel mount indicator light featuring a flat head metal profile and integrated wire leads.
- Key Specification: Standard 30mm mounting hole size with an overall outer bezel diameter of 39.5mm for high visibility.
- Material Construction: Durable copper alloy or black-plated zinc-aluminum alloy shell designed for extreme mechanical resilience.
- Voltage Flexibility: Highly customizable operating voltage spanning from 3V up to 480V AC/DC for diverse power environments.
- Protection Rating: IP65 to IP67 ingress protection achieved via a specialized silicone O-ring gasket.
- Mounting & Wiring: Single-nut thread mounting paired with 20cm pre-wired leads for fast and secure electrical connections.
- Target Applications: Industrial control cabinets, power distribution boxes, CNC machinery, and renewable energy systems.
- Customization & OEM: Full factory support for custom wire lengths, special voltages, terminal configurations, and bulk wholesale orders.
- Certifications: Manufactured under ISO9001 standards with compliance approvals including CE, VDE, RoHS, and CCC.
- Procurement Support: Direct factory communication available for engineering inquiries, technical data sheets, and 3D CAD models.

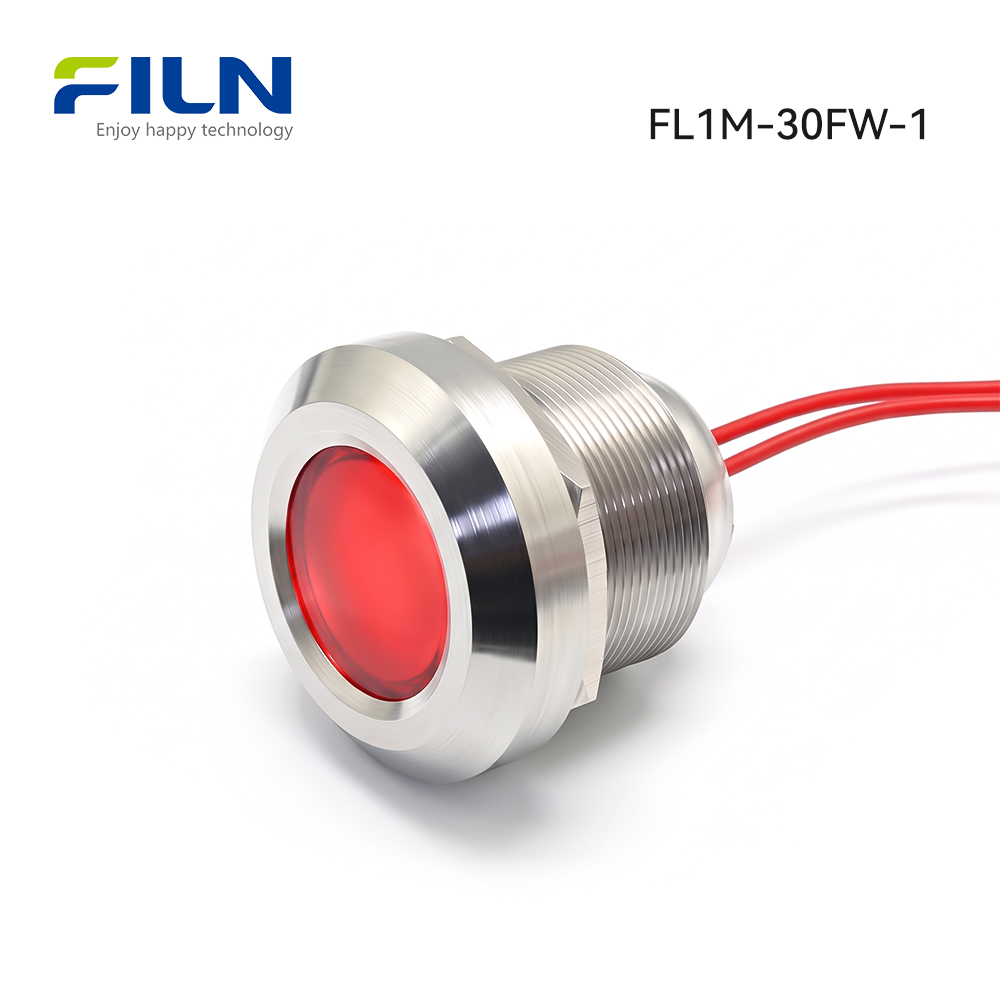

What Is a Panel Mount Indicator Light?
A panel mount indicator light is an essential electrical status device installed on control panels, switchboards, and machine interfaces to visually communicate operational states, power conditions, or fault warnings. FILN manufactures a comprehensive portfolio of signal lamps available in both metal and plastic configurations, spanning mounting sizes from 6mm to 30mm. Termination choices include traditional pin terminals and direct pre-wired configurations. Specifically, metal indicator lights are manufactured with flat, convex, or recessed head profiles to match specific ergonomic and aesthetic requirements across diverse industrial applications.
The featured 30mm model represents an oversized, heavy-duty solution designed for high-visibility operational status indication on large machinery and power distribution units. To explore alternative dimensions or browse the complete collection, please visit the FILN metal indicator light category page. For direct procurement and technical evaluation, view the official product listing at the 30mm LED indicator product page.

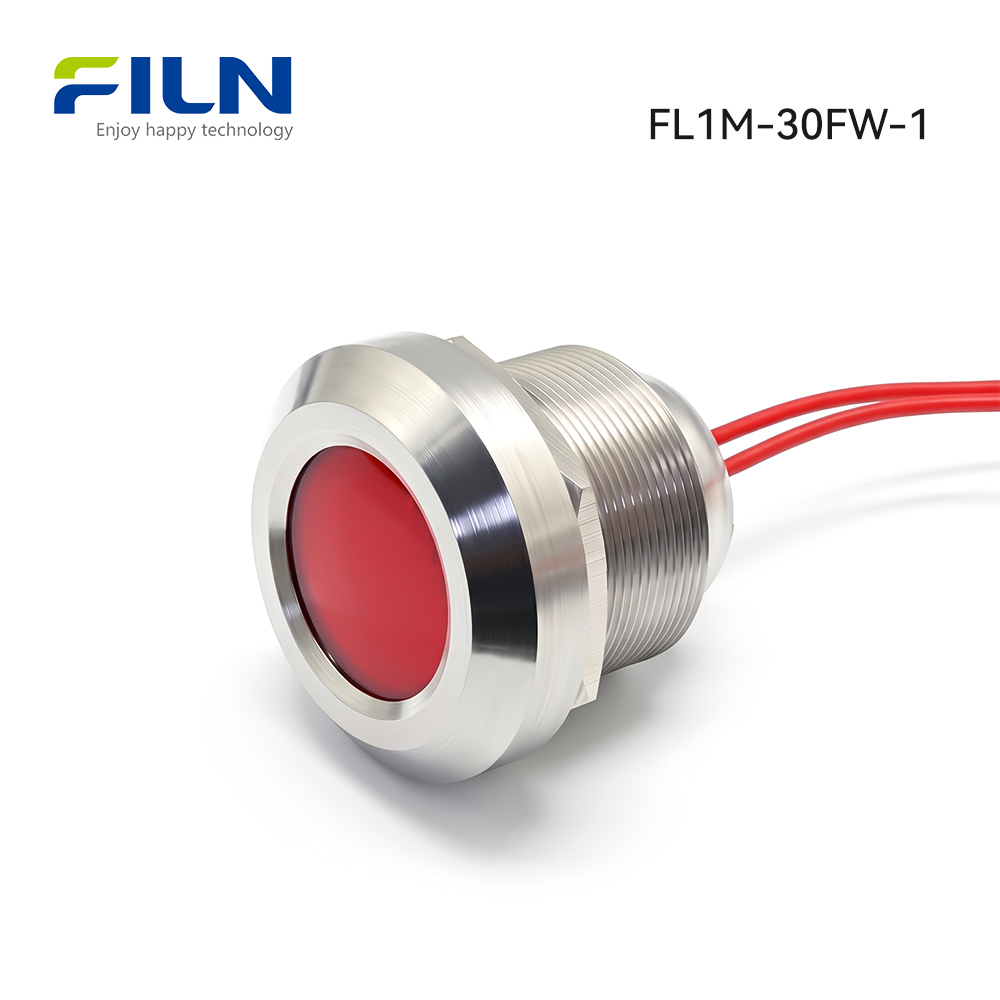

Product Overview & Engineering Principles
The FILN panel mount indicator light functions as a reliable electro-optical signaling device that converts electrical energy into clear visual feedback. Electrically, it utilizes a high-efficiency LED luminescent source paired with an internal current-limiting carbon film resistor, enabling direct connection across wide voltage ranges from 3V to 480V DC or AC without requiring external resistors. Mechanically, the unit relies on a single-nut thread mounting mechanism that clamps securely against control panel plates, reinforced by a precision-engineered silicone O-ring to prevent moisture and dust ingress.
Engineered for demanding industrial environments, this product eliminates the fragility associated with plastic indicator lamps. Its robust copper alloy or plated metal housing resists physical impacts, chemical exposure, and thermal degradation. Certified under strict global compliance frameworks including ISO9001, CE, VDE, RoHS, and CCC, this signal light provides industrial equipment manufacturers with a dependable, long-life component for power status monitoring, alarm signaling, and automation control feedback.
Quick Specifications
| Product Description |
Panel mount indicator light with integrated wire leads |
| Indicator Light Model |

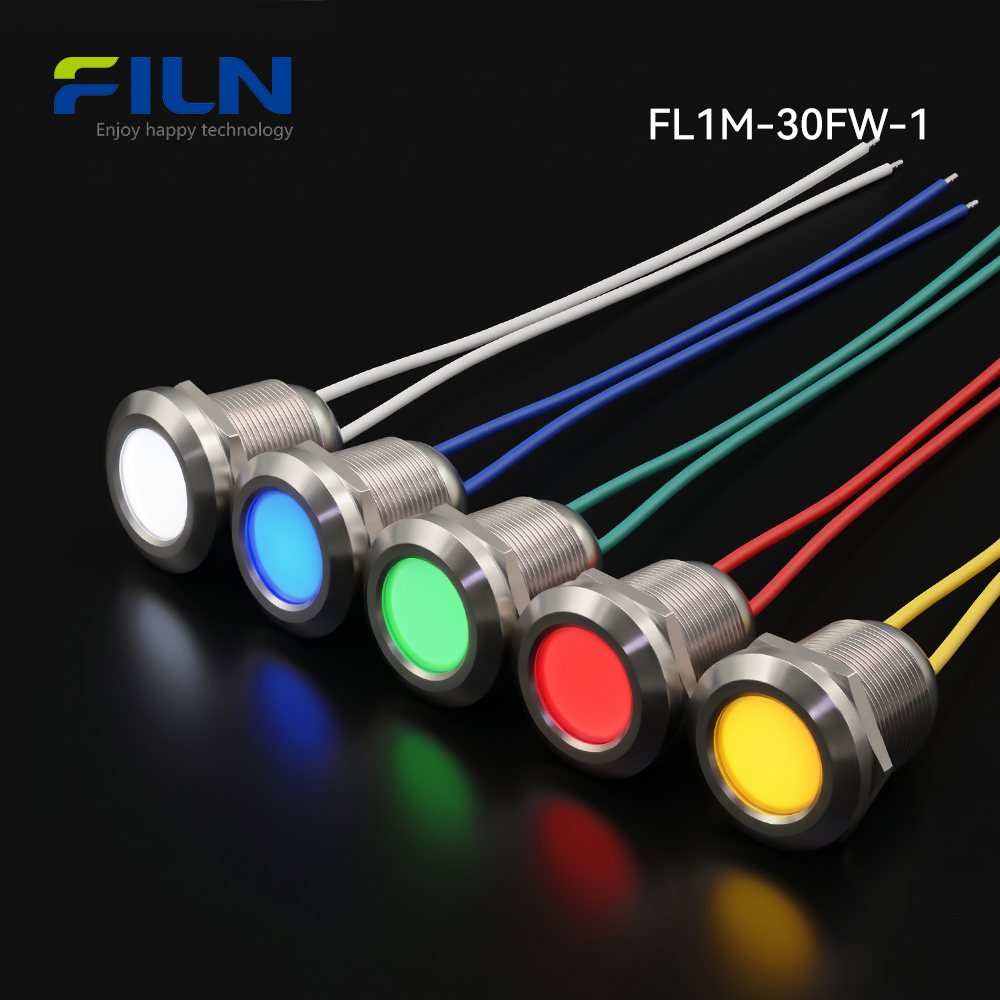

FL1M-30FW-1 |
| Mounting Hole Size |

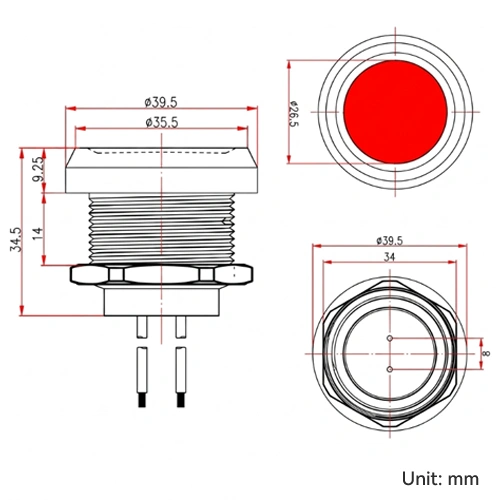

30 mm (approx. 1.18 inches) with 39.5mm outer bezel |
| Operating Voltage |
3V – 480V DC/AC (Fully customizable per client specifications) |
| LED Color Options |

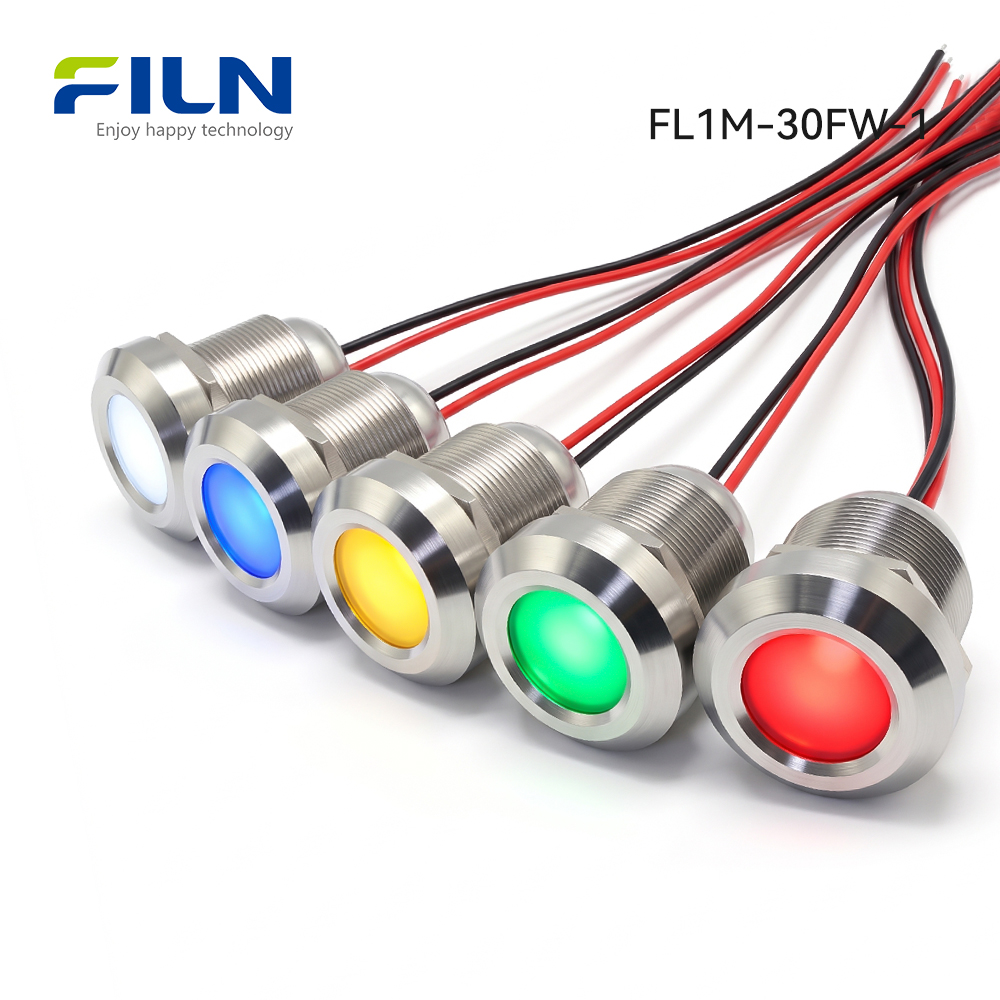

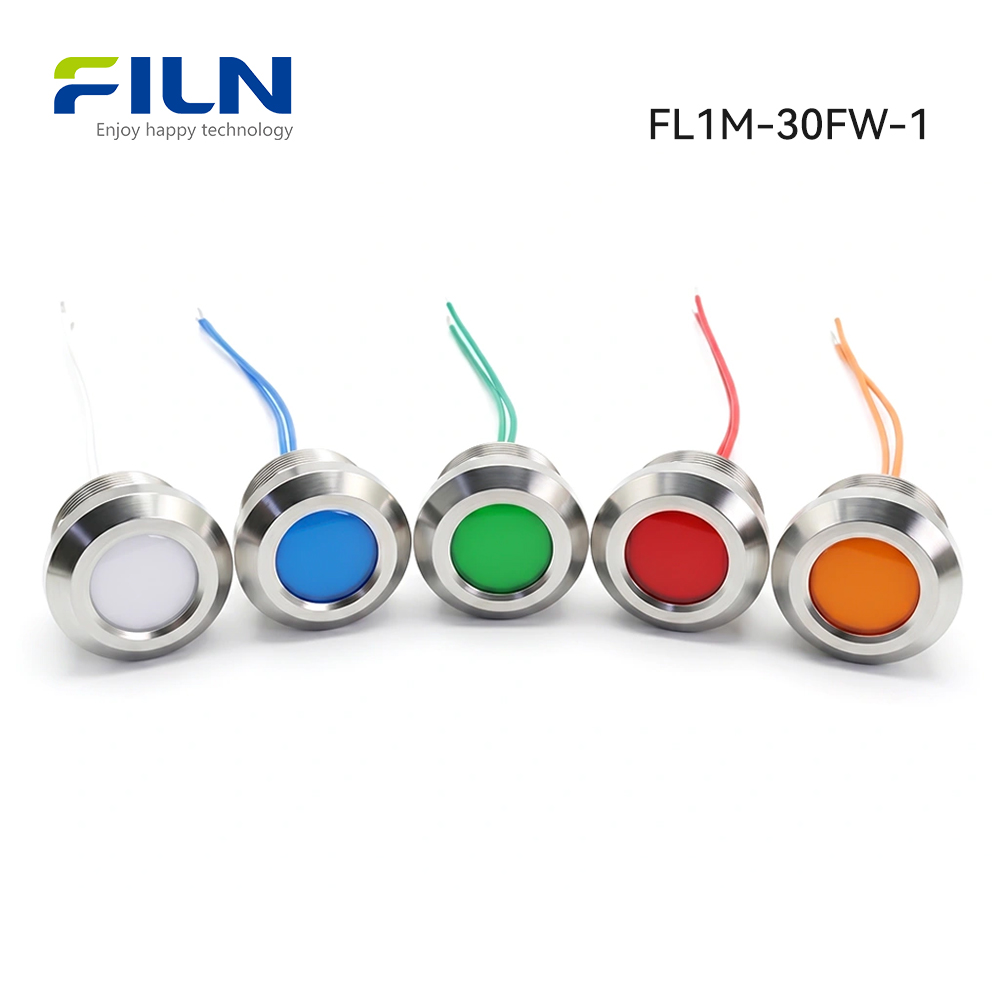

Red (R), Green (G), Yellow (Y), Blue (B), White (W) |
| Waterproof Rating |
IP65 / IP67 (Dependent on proper panel installation) |
| Wiring Type |
2PIN pre-wired lead (Standard length: 20 cm) |
| Head Type |
Flat head profile |
| Surface Quality |
Smooth and flat exterior without burrs, oxidation, cracks, or visible surface defects |
| Included Accessories |

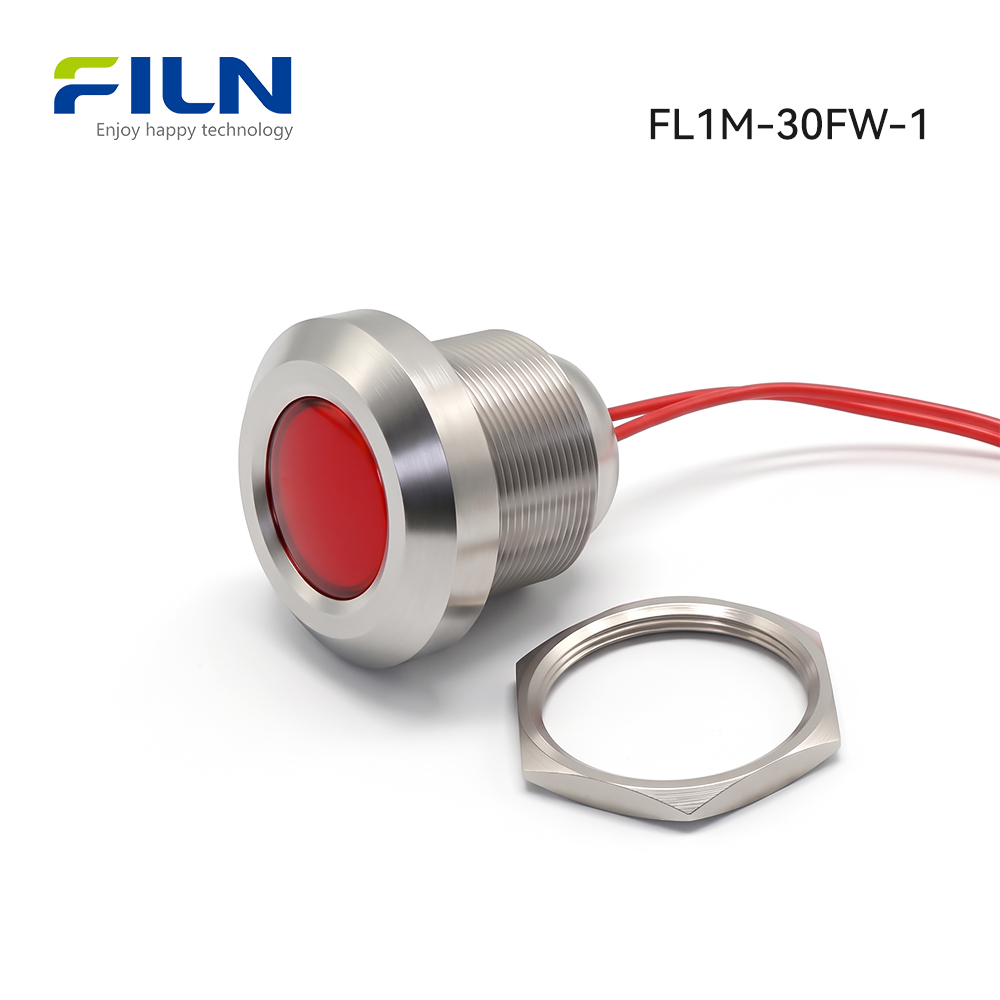

1x Indicator Light, 1x Waterproof O-Ring, 1x Plum Blossom Gasket, 1x M30 Locking Nut |
Performance Parameters
| Rated Operating Voltage |
3V–480V DC/AC (Customized per customer requirements) |
| AC Frequency |
50 / 60 Hz |
| Rated Operating Current |
≤ 20 mA |
| Rated Power Consumption |
Approx. 0.2 W |
| Insulation Resistance |
≥ 100 MΩ (Tested at 500V DC applied between lead wires and housing) |
| Dielectric Strength |
1500V–1800V AC, no electrical breakdown or flashover |
| Operating Life |
50,000 to 100,000 hours of continuous operation |
| Ingress Protection Rating |
IP65 / IP67 environmental sealing |

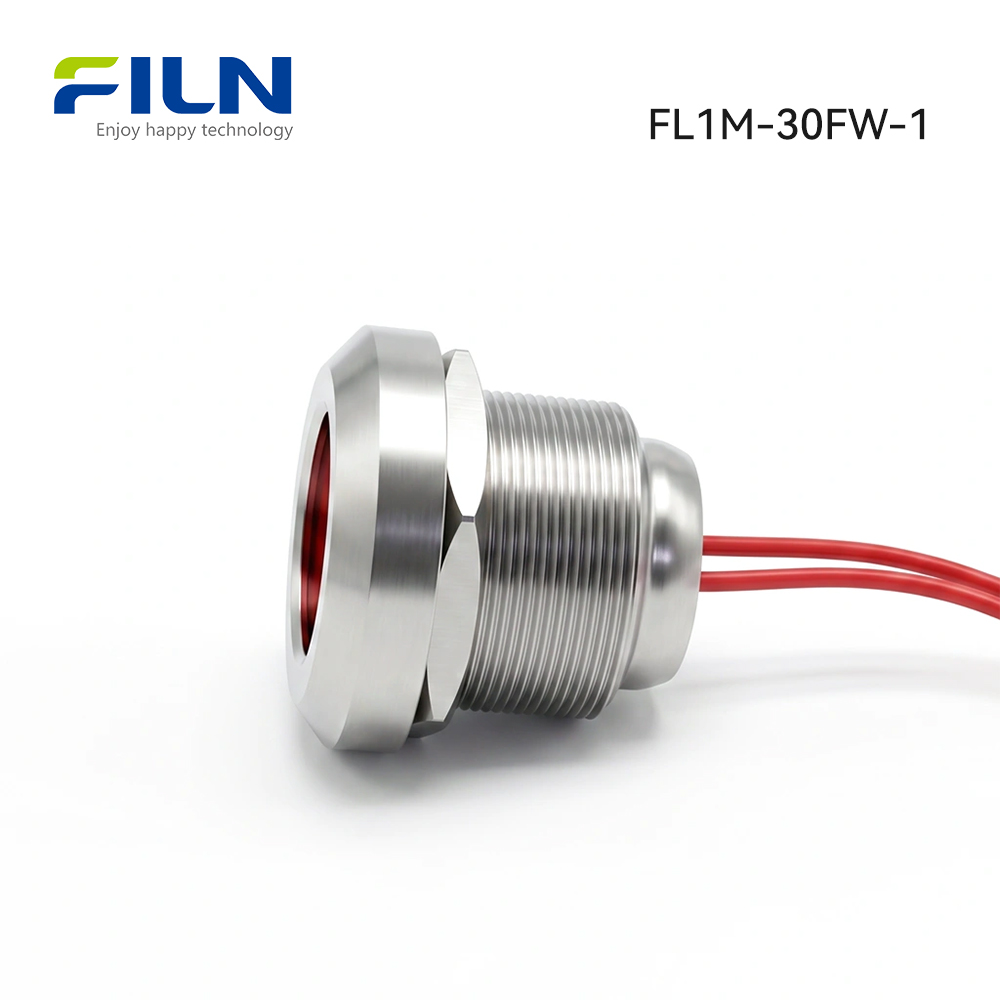

Component Materials & Engineering Purpose
| Component Part |
Material Specification |
Engineering Purpose |
| Shell / Housing |
Copper alloy / Black-plated zinc-aluminum alloy |
Provides mechanical strength, impact resistance, and corrosion protection. |
| Lamp Holder |
PA66 Polyamide |
Ensures high thermal stability and electrical insulation safety. |
| Lampshade / Lens |
Polycarbonate (PC) |
Delivers high optical clarity, UV resistance, and light diffusion. |
| Luminescent Source |
High-brightness LED chip |
Offers energy-efficient illumination and extended operational lifespan. |
| Resistor |
Carbon film resistor |
Regulates operating current and adapts voltage levels safely. |
| Wire / Lead Wire |
PVC insulated copper wire |
Ensures reliable electrical conduction and flexibility during wiring. |
| Locking Nut |
Copper alloy |
Secures firm mechanical fastening against the equipment panel. |
| O-Ring Gasket |
Silicone / Silica gel |
Creates a watertight and dustproof seal achieving IP67 protection. |
| Lock Washer |
Stainless steel |
Prevents loosening caused by sustained mechanical vibration. |
Environmental Performance Specifications
Application Scope: This specification applies to the FL1M series panel mount indicator light designed for demanding industrial environments.
| Operating & Storage Temperature |
-40°C to +80°C |
| Operating Relative Humidity |
≤ 85% RH at +40°C |
| High Temperature Test |
96 hours exposure at 80 ± 2°C |
| Low Temperature Test |
96 hours exposure at -40 ± 2°C |
| Constant Temperature & Humidity Test |
96 hours at 40 ± 2°C, 90% to 95% RH |
| Temperature Cycling Test |
Alternating between -40°C (30 min) and 85°C (30 min), 5 total cycles |
LED Technical Specifications
Absolute Maximum Ratings (Ta = 25°C):
| Maximum Forward Current (IFP) |
20 mA |
| Reverse Voltage (VR) |
5 V |
| Power Dissipation (PD) |
60 mW |
| Operating Temperature (TOPR) |
-40°C to +80°C |
| Storage Temperature (TSTG) |
-40°C to +100°C |
| Lead-Free Soldering Temperature (TSOL) |
Max. 260°C for 3 seconds max. |
Electro-Optical Characteristics (Ta = 25°C):
| Forward Voltage (VF) |
2.8V (Min.) to 3.2V (Max.) at IF = 20 mA |
| Reverse Current (IR) |
5 µA Max. at VR = 5 V |
| Viewing Angle (2θ₁/₂) |
60° typical at IF = 20 mA |
| Luminous Intensity (Iv) |
500 mcd (Min.) to 800 mcd (Max.) at IF = 20 mA |
| Dominant Wavelength (λd) |
520 nm to 525 nm (Green reference) at IF = 20 mA |
Standard Test Conditions
Unless otherwise specified, all electrical and optical parameters are tested and measured under the following standard atmospheric conditions:
- Ambient Temperature: 5°C to 35°C
- Relative Humidity: 45% to 85% RH
- Air Pressure: 86 to 106 kPa (860 to 1060 mbar)
Notes: Luminous intensity and dominant wavelength are calibrated in accordance with CIE international standards for the human eye response curve. Tolerance of luminous intensity measurement is ±15%, and voltage measurement tolerance is ±0.1V.
Applications by Industry
Metal indicator lights utilize high-strength copper alloy or stainless steel metal housings, providing superior impact resistance and an IP67 waterproof and dustproof rating suitable for industrial and heavy commercial environments. While plastic indicators are prone to aging, cracking, and thermal deformation over time, metal indicator lights adapt seamlessly to harsh working conditions, frequent operation, and high-reliability requirements. Below are typical application sectors:
1. Industrial Automation and Machinery Manufacturing
This sector represents the primary application environment for panel mount indicator lights exposed to continuous mechanical vibration, oil contamination, and physical impact.
- CNC Machine Tools & Machining Centers: Control panels utilize red, yellow, and green metal indicator lights where green indicates normal operation, yellow represents standby or warning, and red signifies emergency stop or equipment faults. The metal housing resists cutting fluids and metal debris.
- Automation Production Line Control Cabinets: Large power distribution cabinets and PLC control enclosures install 6mm, 8mm, and 30mm metal indicator lights compatible with AC220V and DC24V power supplies to display power circuit statuses.
- Hydraulic and Pneumatic Equipment: Applied for pump start/stop and pressure limit warnings. Due to high equipment vibration, integrated pre-wired metal indicator lights secure internal LEDs firmly against wire breakage.
2. Outdoor Power & Renewable Energy Distribution Systems
Outdoor equipment is subjected to year-round solar exposure, precipitation, and extreme temperature fluctuations, demanding rigorous weather resistance.
- EV Charging Stations: Outdoor DC and AC charging piles utilize flat head metal status indicator lights. Flashing blue or green indicates charging in progress, solid light indicates completion, and flashing red indicates leakage or ground faults. IP67 waterproof sealing ensures public durability.
- Outdoor Power Distribution & Photovoltaic Combiner Boxes: Solar farms and municipal distribution boxes display high-voltage closing and inverter operating status across a -40°C to 80°C temperature range.
3. Railway, Commercial Vehicles & Marine Equipment
Vehicles and marine vessels endure severe mechanical shock and continuous vibration, alongside high salt-fog corrosive environments.
- Engineering Vehicle Consoles: Excavators, cranes, and bulldozer dashboards utilize signal lamps for oil pressure, water temperature, and braking fault warnings.
- Marine & Port Control Equipment: Cabin instruments and deck control boxes use plated metal indicator lights to resist marine salt corrosion, paired with silicone O-rings to prevent seawater intrusion.
4. Commercial Vending & Public Access Systems
Public-facing equipment is vulnerable to physical impact and vandalism, where plastic components break easily.
- Vending & Ticketing Machines: Paired with vandal-resistant metal pushbuttons to indicate coin insertion, dispensing, and change status.
- Gas Station Dispenser Panels: Complies with hazardous area electrical separation standards, providing safe optical status indication.
5. Medical Equipment & Food Processing Machinery
These industries require frequent chemical washdowns and sterilization, demanding high sanitation standards.
- Food Filling & Packaging Machinery: Subjected daily to high-pressure hot water and chemical cleaning agents; IP67 metal indicator lights resist spray jets without internal component corrosion.
- Medical Sterilization Equipment: High-temperature autoclaves utilize indicator lights to differentiate heating, sterilization, and exhaust phases.
LED Indicator Color Meanings & Application Guide
Indicator light color conventions guide operators in interpreting equipment status instantly. Below is the standard industrial reference for the five primary LED colors offered by FILN:
- Red: Typically signifies emergency, fault, stop, or high-risk hazard conditions (e.g., machine emergency stop or over-pressure warning).
- Green: Denotes normal operation, ready state, power ON, or safe running conditions.
- Yellow / Amber: Indicates caution, standby mode, pre-warning, or intermediate cycle phases requiring operator attention.
- Blue: Frequently used for specific machine status, cooling active, manual mode, or communication link verification.
- White: Represents general power ON, lighting active, or neutral system status without specific hazard implications.
| Color |
Common Meaning |
Typical Equipment Status |
Recommended Application |
| Red |
Danger / Stop / Fault |
Emergency stop, trip, over-temperature |
CNC alarm panel, power disconnect warning |
| Green |
Normal / Safe / ON |
Machine running, circuit closed |
Main power distribution cabinet status |
| Yellow |
Caution / Standby |
Pre-heating, warning, low fluid level |
Hydraulic pump standby indicator |
| Blue |
Specific Status / Mode |
Cooling active, charging in progress |
EV charging station indicator light |
| White |
Neutral / Power Active |
Control power active, lamp test |
General instrumentation panel |
Note: Indicator color conventions can vary by manufacturer, control system design, and regional industry standards. FILN provides single, dual, and tri-color configurations to accommodate complex control panel layouts.
Installation Guide
Proper mechanical installation ensures both structural stability and IP65/IP67 waterproof integrity. Follow these procedural steps for mounting the 30mm panel mount indicator light:
- Panel Preparation: Measure the exact mounting location on your equipment panel and drill a precise 30mm circular hole. Ensure the surrounding metal surface is clean, flat, and free of burrs or oil residue.
- O-Ring Placement: Slide the provided silicone waterproof O-ring onto the threaded body of the indicator light right behind the flat head flange to ensure sealing against moisture and dust.
- Insertion: Insert the indicator light body from the front side of the control panel through the 30mm drilled hole.
- Rear Fastening: From the rear side of the panel, slide on the stainless steel plum blossom lock washer followed by the M30 metal locking nut. Tighten the nut securely using a suitable wrench to compress the O-ring without overtightening.

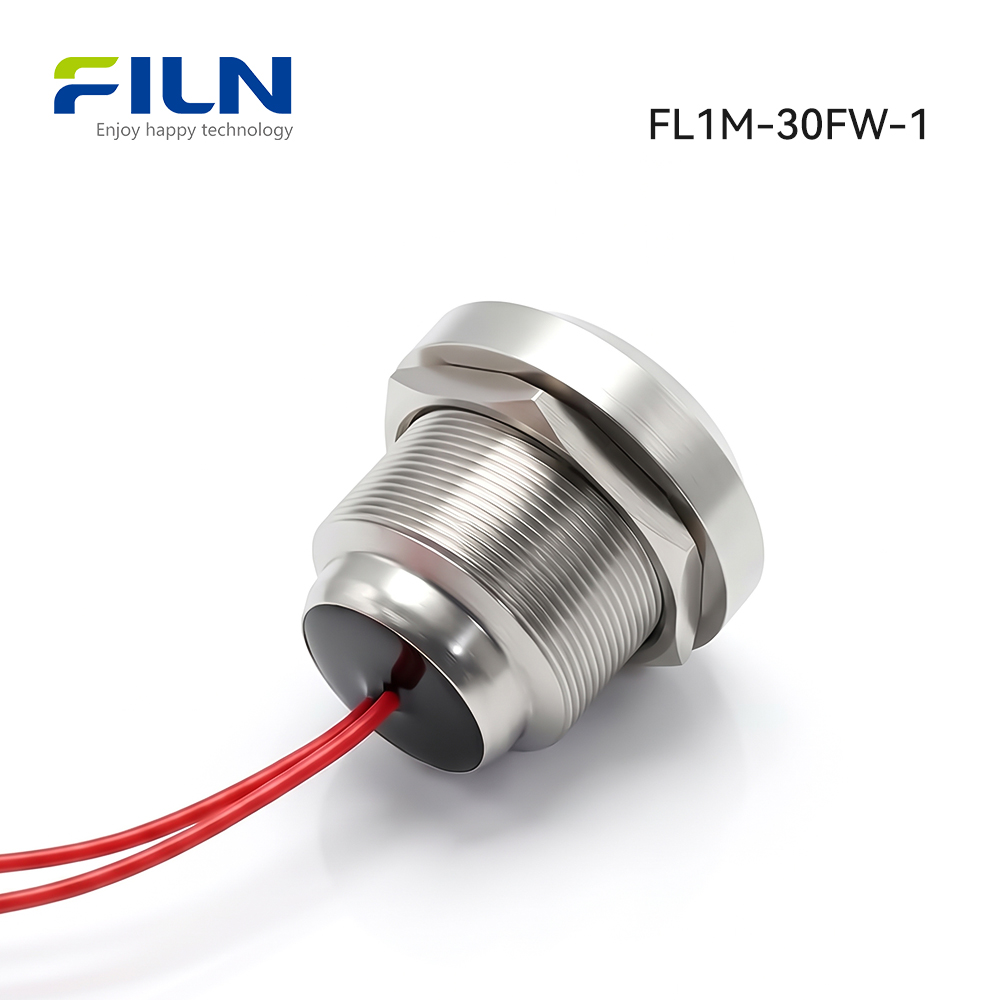

- Wiring Connection: Connect the 20cm pre-wired leads to your power circuit using quick-link terminals, soldering, or insulated connectors. Verify polarity if required, noting that integrated non-polar LED designs simplify wiring.
- Final Inspection: Ensure the unit is firmly fixed without rotational play, inspect the front seal, and test electrical operation after restoring power.
Wiring Guide & Connection Methods
Understanding proper electrical connection techniques ensures long-term operational stability and prevents circuit faults. FILN indicator lights are manufactured in both pin-terminal and pre-wired configurations.
Pre-Wired Indicator Lights: The featured model comes equipped with integrated 20cm lead wires. These wires can be securely connected to the main control circuit using quick-link spring terminals, professional soldering, or insulated wire connectors combined with electrical tape to guarantee connection stability and insulation integrity.
Pin Terminal Indicator Lights: For pin-type models, spade connectors or direct soldering directly onto terminal pins are recommended, protected by heat-shrink tubing to prevent accidental short circuits.
Safety Warning: Before performing any electrical wiring or maintenance, always verify that power is completely disconnected to prevent electrical shock or equipment damage.
Industry Knowledge & Troubleshooting Center
Preventing Phantom Illumination (Faint Glowing): In low-voltage DC circuits (such as 12V or 24V), residual leakage current from solid-state PLC outputs or long cable runs can sometimes cause LED indicators to emit a faint, unintended glow. To resolve this, adding a parallel bleeder resistor or matching resistor across the indicator terminals absorbs the leakage current.
Chemical Washdown Resistance: When deploying IP67 metal indicator lights in food processing or medical environments subject to caustic chemical washdowns, verify that the selected shell material (such as stainless steel or nickel-plated brass) and silicone sealing rings are compatible with your specific cleaning agents.
Vibration Resistance in Heavy Machinery: Continuous heavy vibration can loosen terminal connections over time. Utilizing pre-wired models with secure terminal blocks and spring washers ensures uninterrupted electrical contact in high-vibration engineering vehicles and punch presses.
Buyer Decision Guide & RFQ Checklist
Selecting the correct panel mount indicator light requires evaluating physical compatibility, electrical parameters, and environmental operating conditions.
Specification-to-Decision Framework
- Mounting Hole Size (30mm): Determines physical panel compatibility. Ensure your panel punch matches the exact millimeter cutout requirement.
- Voltage (3V–480V): Determines electrical compatibility. Confirm whether your system operates on AC or DC and select the corresponding built-in resistor specification.
- IP Rating (IP65/IP67): Determines environmental suitability against dust, water jets, or outdoor precipitation.
- Material Selection: FILN provides nickel-plated brass, stainless steel, and zinc-aluminum alloy options. Below is a comparison of metal shell materials:
| Material Type |
Key Advantages |
Limitations |
Recommended Environment |
| Nickel-Plated Brass |
High mechanical strength, cost-effective metal choice, good conductivity. |
Moderate corrosion resistance in extreme marine salt environments. |
Standard industrial control cabinets, automation machinery. |
| Stainless Steel |
Superior corrosion resistance, chemical inertness, premium aesthetic. |
Higher material cost relative to brass or zinc alloy. |
Marine equipment, medical devices, food processing washdown areas. |
| Zinc-Aluminum Alloy |
Lightweight, excellent die-casting precision, black-plated finishes available. |
Lower impact resistance compared to solid stainless steel or brass. |
Commercial appliances, electrical panels, indoor enclosures. |
Pin vs. Wire Terminal Comparison
| Terminal Type |
Advantages |
Disadvantages |
Ideal Use Case |
| Pin Terminals (e.g., FL1M-19FJ-1) |
Easy plugging, modular disconnect capability, customizable wire attachment. |
Exposed pins require insulation boots; vulnerable in high moisture if unsealed. |
Modular control panels and quick-maintenance electrical boxes. Explore the 19mm pin terminal indicator light. |
| Wire Leads (e.g., FL1M-30FW-1) |
Pre-wired for immediate connection, superior waterproof reliability. |
Fixed wire length requires careful pre-measurement during ordering. |
Outdoor equipment, vibrating machinery, wet environments. |
RFQ Checklist for Procurement Managers
When requesting a formal quotation from FILN, providing the following specifications ensures rapid and accurate engineering confirmation:
- Product Type & Model Number (e.g., FL1M-30FW-1)
- Mounting Hole Size (30mm)
- Operating Voltage & Current Type (AC/DC, 3V to 480V)
- LED Color (Red, Green, Yellow, Blue, White)
- Head Type & Shell Material
- Waterproof Requirement (IP65 / IP67)
- Wiring Method & Custom Wire Length (Standard 20cm)
- Certification Requirements & Order Quantity
Providing these specifications helps FILN engineering and sales teams confirm product compatibility and quotation requirements efficiently. You can also explore more options via the 22mm metal indicator light collection or check out similar series like the 8mm flat head indicator FL1M-08FW-1, 10mm flat head indicator FL1M-10FW-1, 12mm flat head indicator FL1M-12FW-1, 14mm flat head indicator FL1M-14FW-1, 16mm flat head indicator FL1M-16FW-1, and 22mm flat head indicator FL1M-22FW-1.
FILN Manufacturing and Engineering Capabilities
FILN operates as a direct electrical component manufacturer with advanced R&D, custom tooling, injection molding, automated assembly lines, and an independent electrical testing laboratory. For B2B buyers, control panel builders, and OEM manufacturers, FILN provides professional engineering support, custom voltage adaptation, custom wire harnesses, small-batch sample support, and robust mass-production capacity backed by rigorous quality control protocols.
Factory Direct Supply & Company Profile
Yueqing Yulin Electronic Co., Ltd, operating under the brand name FILN, is located in Wenzhou, Zhejiang. Established in 2006, FILN is a professional electrical switch and indicator manufacturer integrating research and development, production, and sales. Premium FILN brand products are exported to over 100 countries worldwide. FILN operates a modern 10,000 m² industrial facility equipped with 20+ advanced production lines and an independent testing laboratory. Driven by strict ISO9001 quality management systems, FILN delivers innovative, high-performance electrical components. Our certified product portfolio (UL, CE, RoHS, REACH, TUV, CB, VDE, CCC) is widely implemented in kitchen appliances, energy storage systems, EV charging stations, automotive upgrades, marine consoles, and industrial security systems.
- Production Capabilities: Indicator lights, pushbutton switches, rocker switches, toggle switches, and customized small electrical component manufacturing.
- Quality System & Certifications: ISO9001, CE, VDE, RoHS, SGS, UL, IP65/IP67, TUV, CCC.
- Global Export Markets: Supplied worldwide to industrial distributors, OEMs, and automation system integrators.
- Manufacturing Advantages: Direct professional engineering consultation, expert custom solution development, and reliable bulk wholesale supply.
- Official Contact Links: Visit our website at www.filn.com or email our engineering sales team directly at inquiry@cnylin.com.cn.
Frequently Asked Questions
How to prevent phantom illumination (faint glowing) in 12v LED indicators?
Phantom illumination occurs when low-voltage DC circuits pick up residual leakage current from solid-state PLC outputs or long cable runs. To eliminate this faint glowing, install a suitable parallel bleeder resistor across the indicator terminals to safely shunt the stray leakage current.
Can this IP67 indicator light be washed down with caustic chemicals?
Yes, when configured with a stainless steel housing and silicone O-ring gasket, this IP67 indicator light resists high-pressure water spray and common chemical washdowns used in food processing and medical sterilization equipment.
What is the exact panel cutout size required for this indicator light?
This model requires a precise 30mm mounting hole diameter. The outer bezel head measures 39.5mm in diameter to ensure secure flange contact against the equipment panel.
Are FILN metal indicator lights polarity sensitive?
Most FILN AC/DC indicator lights incorporate non-polar internal rectifier circuitry, allowing connection without strict regard for positive and negative lead polarity during wiring.
What voltage options are available for custom orders?
FILN can customize internal resistors to support operating voltages ranging from 3V up to 480V AC/DC according to your exact electrical specifications.
What is the standard wire length for pre-wired models?
The standard pre-wired lead length is 20cm of PVC-insulated copper wire. Custom wire lengths and specialized connector terminations can be requested for bulk OEM orders.
How does single-nut thread mounting achieve waterproof sealing?
Waterproofing is achieved by placing a compressible silicone O-ring between the flat head flange and the front panel surface, which compresses tightly as the rear M30 metal locking nut is tightened.
What certifications do FILN panel indicator lights carry?
FILN indicator lights comply with international quality frameworks, holding certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and CCC depending on the specific model configuration.
How can I request 3D CAD models or engineering specifications?
Engineering support, technical data sheets, and 3D CAD drawing files can be requested by contacting FILN directly via email at inquiry@cnylin.com.cn or visiting www.filn.com.
