The FILN 19mm flat head metal panel mount leds are robust industrial status signal lamps engineered specifically for electrical control panels, heavy machinery, and automation equipment. Manufactured directly by FILN, these durable metal housing units provide superior mechanical strength and longevity compared to traditional commercial plastic alternatives. Designed for OEM buyers, control panel builders, and industrial wholesale distributors seeking reliable component sourcing, these units support custom operating voltages ranging from 3V to 480V AC/DC. Key specifications include a standard 19mm mounting cutout diameter, 2PIN flat pin terminals measuring 6.3mm in width, and an IP65 ingress protection rating. Procurement managers and electrical engineers should confirm operating voltage specifications, terminal connection types, and environmental exposure requirements prior to placing bulk wholesale orders. FILN delivers direct factory pricing, comprehensive OEM customization support, and detailed technical documentation to streamline supply chain integration.

Key Engineering & Procurement Takeaways

• Product Identity: Industrial-grade 19mm flat head metal panel mount leds designed for clear visual status indication on industrial machinery and electrical enclosures.
• Mounting Specification: Standard 19mm panel cutout size utilizing a single-nut thread mounting mechanism for fast, secure mechanical installation.
• Electrical Versatility: Supports a broad operational voltage range from 3V to 480V AC/DC with customizable internal current-limiting carbon film resistors.

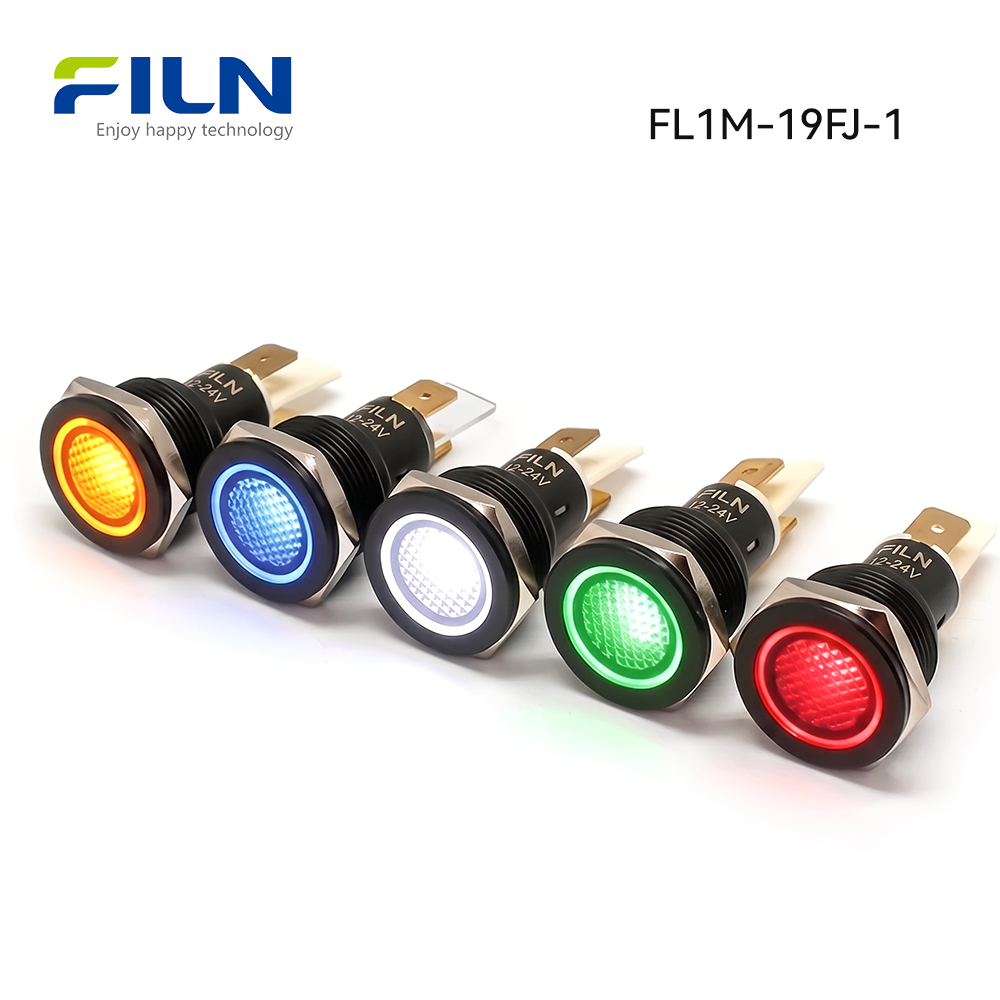

• Shell Material: High-strength copper alloy or black-plated zinc-aluminum alloy body providing exceptional mechanical impact resistance and structural durability.
• Protection Rating: IP65 ingress protection achieved via integrated silicone O-rings, preventing dust ingress and moisture splashing.

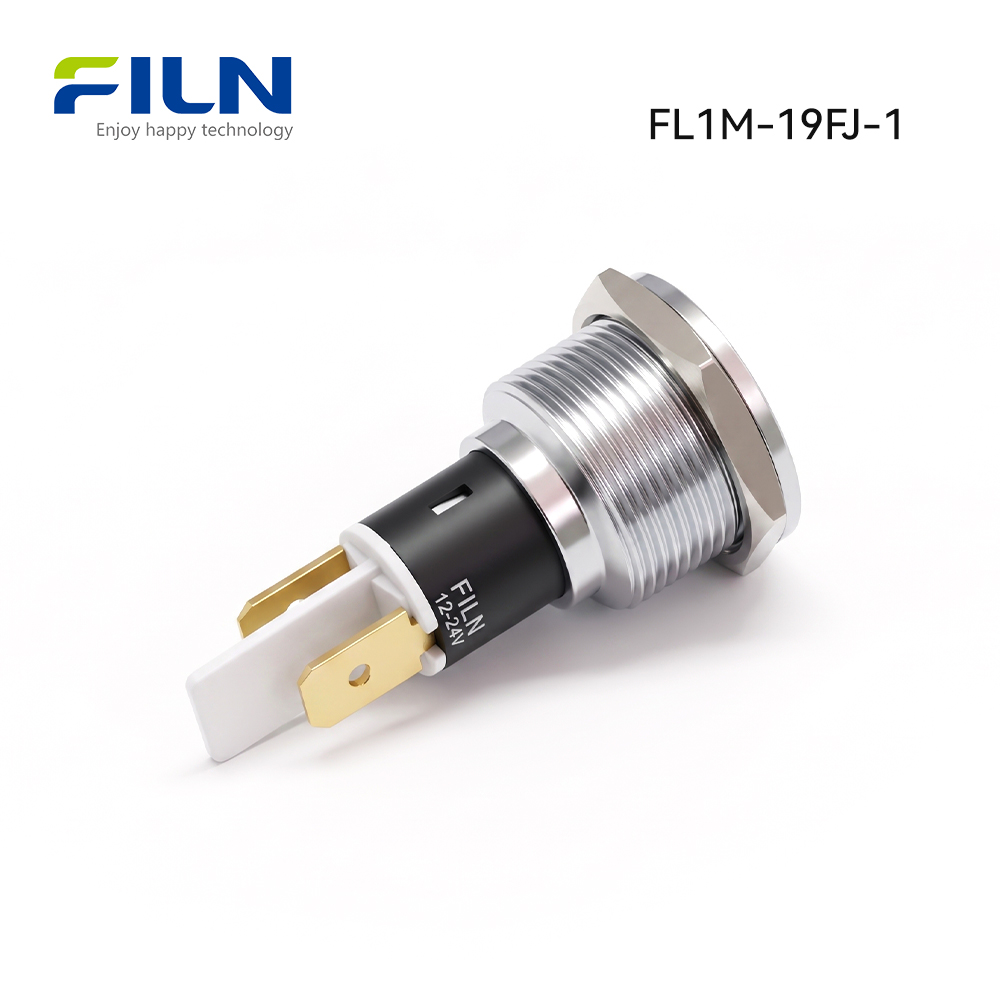

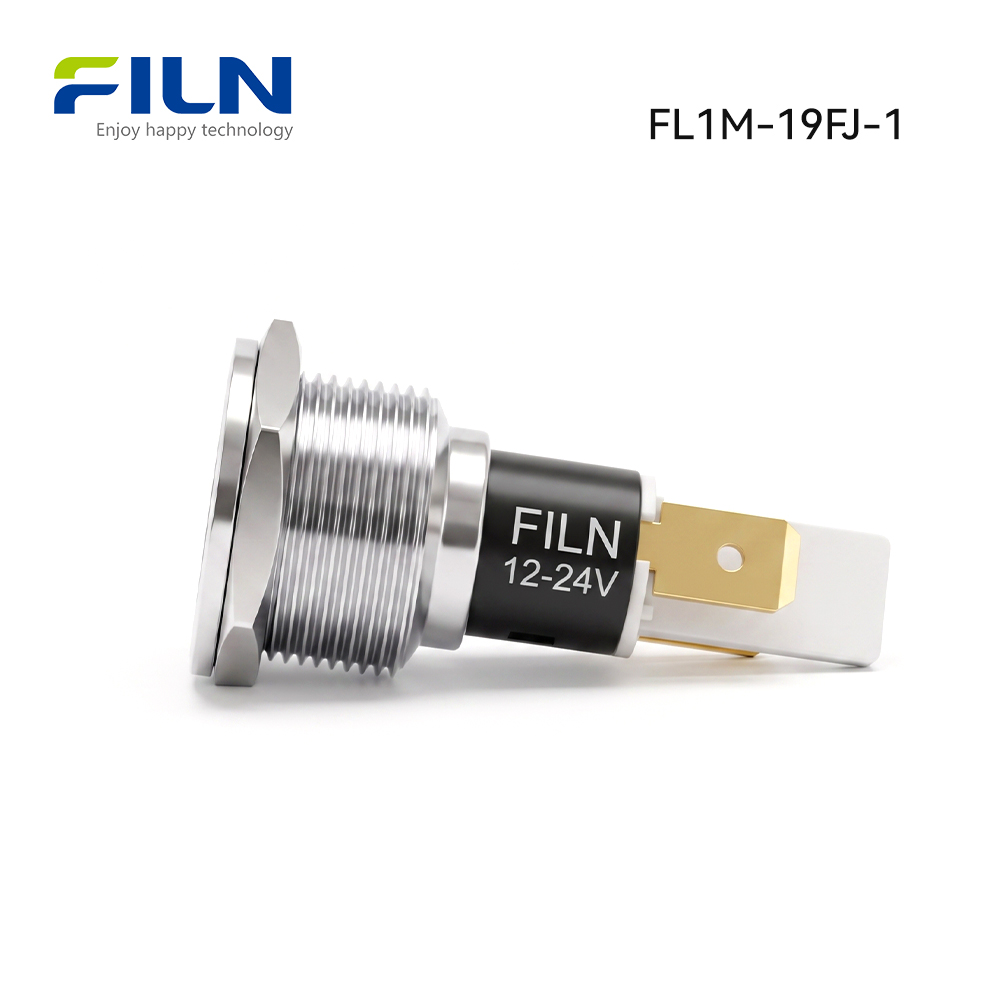

• Terminal Configuration: Dual 2PIN flat solder lug terminals with a 6.3mm width, enabling secure push-on spade connector attachment or direct wiring.

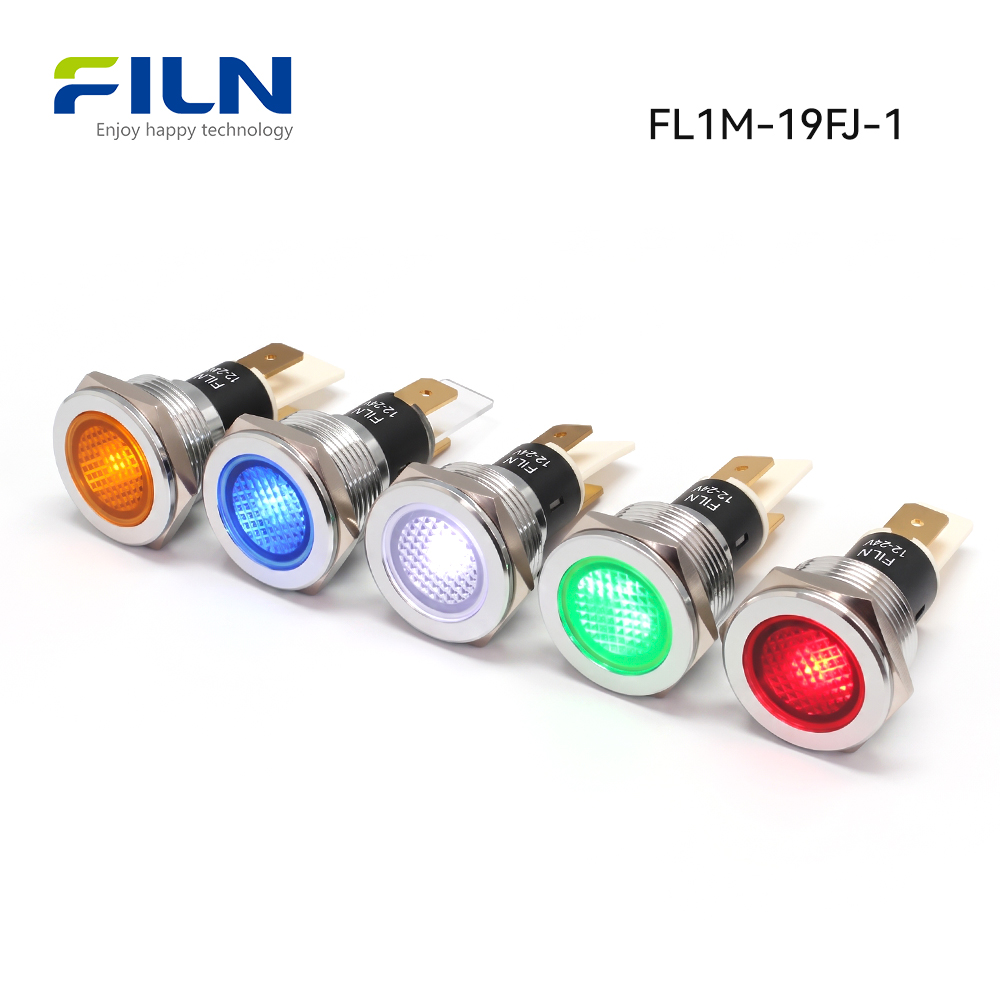

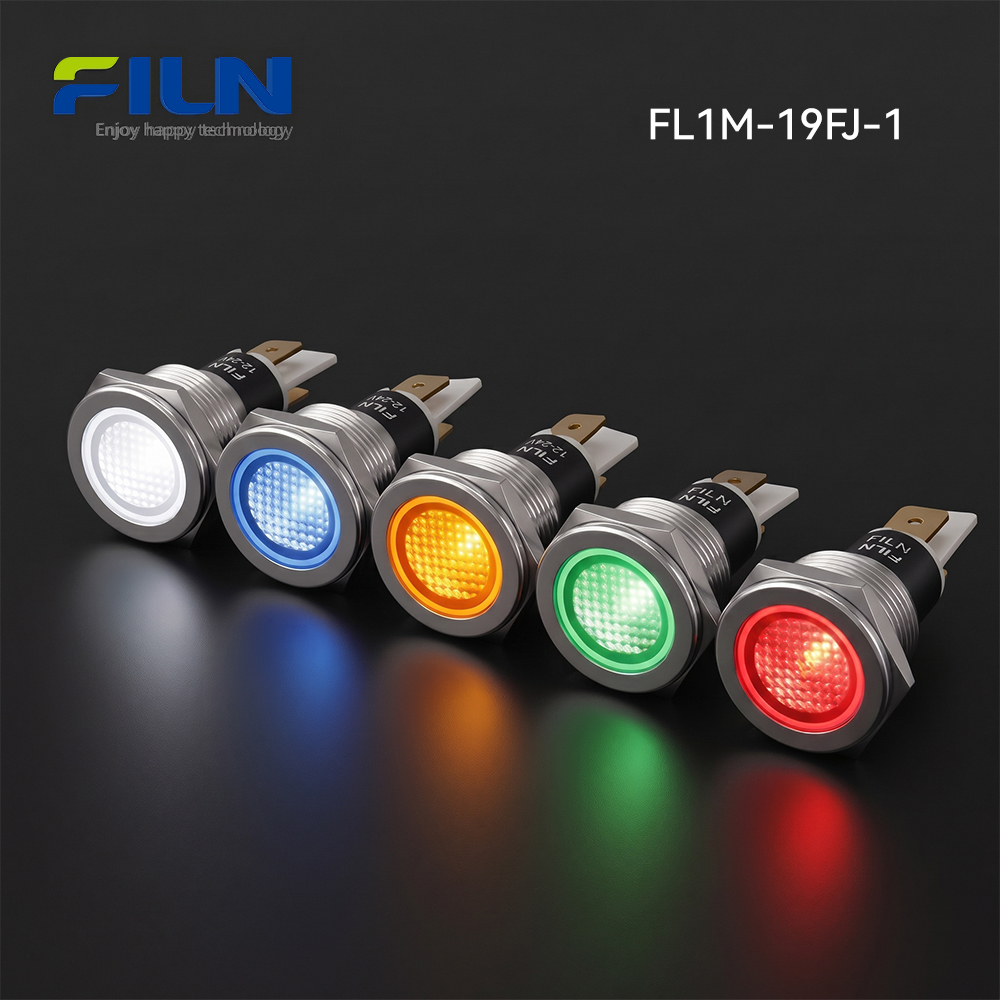

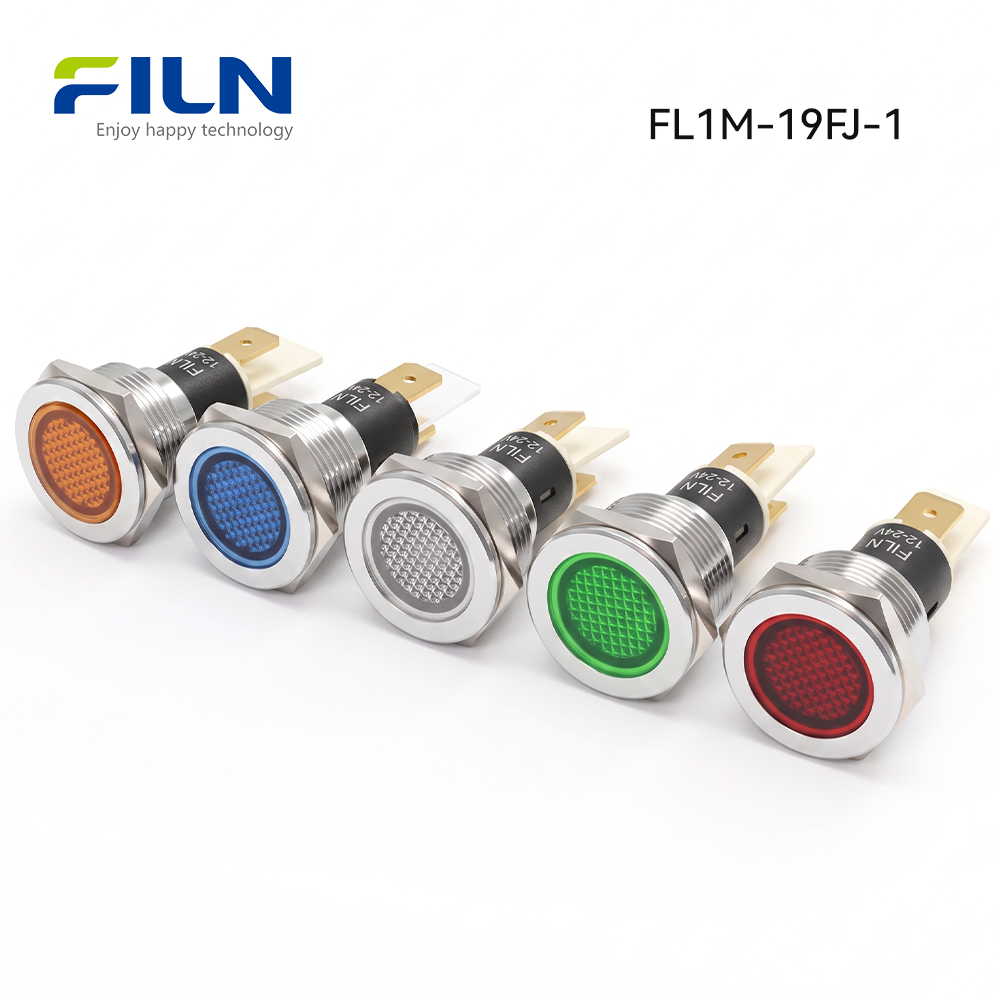

• Optical Performance: High-brightness LED light source available in multiple standard colors including Red, Green, Yellow, Blue, and White.
• Compliance Standards: Manufactured under strict ISO9001 quality management systems with CE, VDE, RoHS, and CCC component certifications.
• Customization Support: Direct factory manufacturing allows tailored voltage configurations, custom terminal options, and specialized labeling for OEM partners.
• Procurement Assurance: Stable bulk wholesale supply, dedicated engineering consultation, and rapid sample fulfillment provided directly by FILN.

What is a Metal Panel Mount LED?

Metal panel mount leds are electromechanical status display devices utilized across industrial control systems to communicate operational states, power conditions, and fault warnings. Unlike fragile plastic alternatives, metal indicator lamps feature durable metallic enclosures built to withstand continuous mechanical shock, high vibration, and harsh environmental exposure. The internal architecture combines a high-brightness LED luminescence source, a protective polycarbonate lens, and a precise current-limiting resistor to ensure consistent visual output across diverse electrical systems.

FILN manufactures a comprehensive range of indicator lights categorized into metal and plastic variants, spanning mounting diameters from 6mm to 30mm. Electrical connection methods include standard pin terminals and direct pre-wired configurations. Specifically, metal indicator lights are offered in flat head, prominent head, and recessed head configurations to match specific aesthetic and operational requirements. The flat head variant features a streamlined surface profile that delivers high-visibility status signals while maintaining a clean panel layout.

Explore our complete catalog of

to find alternative mounting sizes and head styles suited for your engineering project.

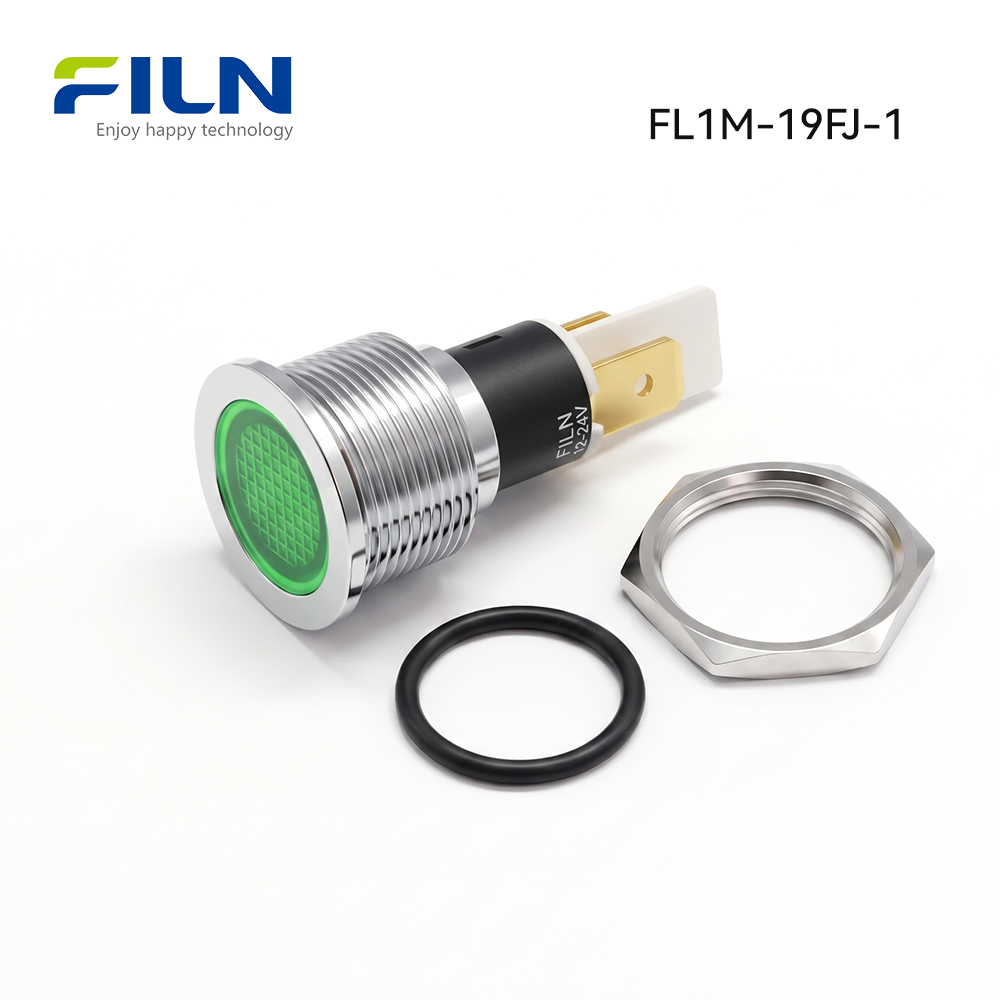

Product Overview: FL1M-19FJ-1

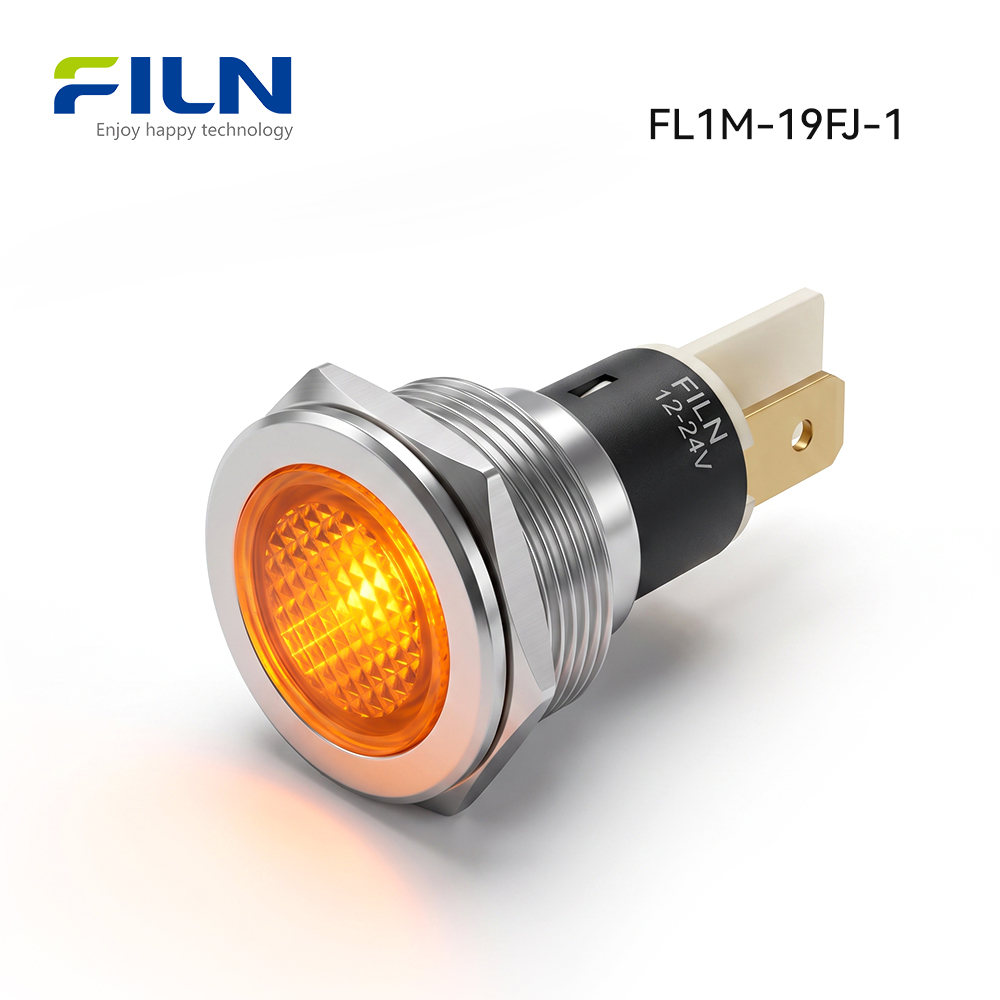

The FL1M-19FJ-1 is a premium 19mm flat head metal panel mount LED designed specifically for professional control panel builders and industrial equipment manufacturers. Mechanically, the unit utilizes a threaded metal body and a securing hex nut for tight panel integration, complemented by an internal silicone sealing ring that establishes an IP65 ingress protection boundary. Electrically, the integrated solid-state LED assembly operates efficiently at low current draws while supporting broad voltage inputs from 3V to 480V AC/DC through internal resistance management.

Industrial advantages include exceptional resistance to thermal degradation, UV-induced yellowing, and physical impact compared to standard commercial plastic indicators. The 2PIN flat pin terminals (6.3mm width) allow rapid slip-on spade connector attachment or direct soldering, facilitating efficient maintenance and replacement in complex control cabinets. Certified under rigorous international electrical standards, this indicator guarantees long operational lifespans exceeding 50,000 hours under continuous industrial duty.

Quick Technical Specifications

Click here to purchase this specific 19mm indicator light model directly.

Performance Parameters & Ratings

Component Materials & Engineering Purpose

Every material utilized in the construction of FILN metal indicator lights is selected to maximize structural integrity, electrical safety, and environmental longevity in demanding industrial workspaces.

Environmental Performance & Test Specifications

This specification defines the general operational range and environmental resilience standards for the metal indicator light series.

LED Technical Specification

1. Absolute Maximum Ratings

Maximum safe operational limits for the internal LED chip, beyond which permanent structural damage may occur:

• Forward Current ($I_{FP}$): 20 mA
• Reverse Voltage ($V_R$): 5 V
• Power Dissipation ($P_D$): 60 mW
• Operating Temperature Range ($T_{OPR}$): -40°C to +80°C
• Storage Temperature Range ($T_{STG}$): -40°C to +100°C
• Lead-Free Soldering Temperature ($T_{SOL}$): 260°C Max. for 3 sec. Max.

2. Electro-Optical Characteristics

Test parameters measured at standard ambient temperature $T_a = 25^\circ\text{C}$:

• Forward Voltage ($V_F$) – Test Condition: $I_F = 20\text{ mA}$ | Range: 2.8 V (Min.) – 3.2 V (Max.)
• Reverse Current ($I_R$) – Test Condition: $V_R = 5\text{ V}$ | Upper Limit: 5 µA (Max.)
• Viewing Angle ($2\theta_{1/2}$) – Test Condition: $I_F = 20\text{ mA}$ | Typical: 60°
• Luminous Intensity ($I_v$) – Test Condition: $I_F = 20\text{ mA}$ | Range: 500 mcd (Min.) – 800 mcd (Max.)
• Recommended Operating Current ($I_F$) | Typical: 20 mA
• Dominant Wavelength ($\lambda_d$) – Test Condition: $I_F = 20\text{ mA}$ | Range: 520 nm – 525 nm
• Junction Temperature ($T_j$) – Max. at $I_F = 20\text{ mA}$: 125°C
• Thermal Resistance ($R_{j-p}$) – Test Condition: $I_F = 20\text{ mA}$ | Typical: 8°C/W

Standard Test Conditions

Unless otherwise specified, all electrical and optical parameters are measured under the following standardized atmospheric conditions in FILN testing laboratories:

• Ambient Temperature: 5℃ ~ 35℃
• Relative Humidity: 45% ~ 85%
• Air Pressure: 86 ~ 106 kPa (860 ~ 1060 mbar)

Technical Notes:

* Luminous intensity and dominant wavelength are calibrated in accordance with CIE international standards for human eye response curves.

* Measurement tolerances: Luminous intensity tolerance ±15%, voltage measurement tolerance ±0.1V.

Industrial Applications & Use Cases

Metal indicator lights utilize high-strength copper alloy or stainless steel metal shells, delivering outstanding impact resistance and IP65 waterproof protection suitable for industrial and heavy-duty commercial environments. While plastic indicators degrade and crack under long-term UV exposure and high temperatures, metal indicators adapt seamlessly to harsh operating conditions requiring high reliability.

1. Industrial Automation & Machinery Manufacturing

CNC machine control panels install red, green, and yellow metal panel mount leds to signal operational status, standby alerts, and emergency stops, with metal shells resisting cutting fluid and metal shavings.

2. Outdoor Power & Renewable Energy Distribution

EV charging stations and solar combiner boxes deploy flat head metal status indicators to display charging progress and fault warnings, withstanding severe weather and public tampering.

3. Rail Transit, Commercial Vehicles & Marine Equipment

Excavator cockpits and marine control consoles utilize pin terminal metal indicators to indicate oil pressure and brake faults, resisting high salt-fog corrosion.

4. Commercial Vending & Access Control Systems

Outdoor ticket kiosks and stainless steel intercom panels feature robust metal indicator lamps to verify transaction states and door lock statuses.

5. Medical Equipment & Food Processing Machinery

Sterilization equipment and food packaging lines rely on IP65 metal indicators that endure daily washdowns without internal component corrosion.

LED Indicator Color Meanings & Application Guide

Indicator light color conventions guide operators in interpreting equipment states quickly. FILN offers single-color, dual-color, and tri-color configurations. Note that color conventions can vary by equipment manufacturer, industry standards, and geographic region.

Installation Guide

Proper mechanical mounting ensures optimal sealing and long-term stability for 19mm metal panel mount leds.

1. Safety First: Cut off all upstream power supplies before starting mechanical installation or wiring.
2. Panel Preparation: Drill a precise 19mm circular mounting hole in the equipment control panel using standard metal hole saws or punch tools.
3. Gasket Placement: Ensure the waterproof silicone sealing O-ring is positioned correctly on the indicator housing thread base.
4. Insertion: Insert the indicator lamp body through the front side of the control panel cutout.
5. Securing: Thread the metal locking nut onto the rear housing threads and tighten securely to compress the waterproof gasket.
6. Inspection: Verify that the head assembly sits flush without tilting or deformation before proceeding to electrical wiring.

Wiring Guide & Connection Methods

Understanding connection techniques is crucial for reliable electrical integration. Metal indicator lights are manufactured in two primary termination formats:

• Pin Terminal Indicators (e.g., FL1M-19FJ-1): Feature dual 6.3mm wide solder lug pins requiring slip-on quick-disconnect spade connectors, direct soldering, or screw terminal blocks for wire attachment.
• Pre-Wired Indicators: Feature factory-attached wire leads extending from the rear base, eliminating internal soldering steps during panel assembly.

Directly wired indicators can use quick-connection terminals to link circuits, or apply solder and wrap with electrical tape to ensure stable electrical connections. Always note electrical safety rules and cut off power before wiring.

WARNING: Always verify electrical polarity and confirm that the circuit power is completely disconnected before connecting wiring to prevent electric shock or component damage.

Industry Knowledge Center

Selecting the correct indicator light involves evaluating operating voltage compatibility, environmental protection ratings, and physical panel constraints. Industrial designers must account for LED forward voltage drop and AC/DC rectification requirements when integrating low-voltage signal lamps into high-voltage distribution networks.

Preventing phantom illumination (faint glowing caused by residual leakage currents in solid-state PLC output modules) often requires installing parallel bleeding resistors. Maintenance teams should routinely inspect panel sealing gaskets to ensure IP65 waterproof integrity remains uncompromised over years of mechanical operation.

Buyer Decision Guide & Material Comparison

FILN provides multiple shell materials to match varying environmental corrosion requirements and mechanical demands:

Procurement RFQ Checklist

Providing these specifications helps FILN engineering and sales teams confirm compatibility and quotation requirements efficiently:

• Product Type & Model (e.g., FL1M-19FJ-1)
• Mounting Hole Size (e.g., 19mm)
• Operating Voltage & Current Type (AC/DC)
• LED Color (Red, Green, Yellow, Blue, White)
• Head Type (Flat, Recessed, Prominent)
• Shell Material (Brass, Stainless Steel, Zinc Alloy)
• Waterproof Requirement & Ingress Rating
• Wiring Method & Terminal Type (Pin vs. Wire)
• Target Market & Compliance Certifications
• Order Quantity & Packaging Requirements

FILN Manufacturing & Engineering Capabilities

FILN operates as a dedicated electrical component manufacturer with comprehensive R&D, tooling design, automated assembly, and rigorous quality testing laboratories. Our engineering team provides custom wire harness integration, specialized voltage adaptations, and rapid sample prototyping to support original equipment manufacturers worldwide.

With strict adherence to ISO9001 quality management protocols, every production batch undergoes dielectric strength testing, waterproof pressure testing, and photometric calibration prior to shipment, ensuring reliable performance for global B2B clients.

Factory Direct Supply & Global Reach

Yueqing Yulin Electronic Co., Ltd, operating under the brand name FILN in Wenzhou, Zhejiang, was established in 2006 as a professional electrical switch manufacturer integrating research, production, and sales. Premium FILN products are distributed across more than 100 countries.

FILN operates a modern 10,000 m² production facility featuring 20+ advanced automated manufacturing lines and an independent testing laboratory. Driven by strict ISO9001 quality control systems, FILN delivers certified products (UL, CE, RoHS, REACH, TUV, CB, CCC) widely utilized in home appliances, energy storage systems, EV charging infrastructure, marine consoles, and industrial automation.

• Production Capabilities: Indicator lights, pushbutton switches, rocker switches, toggle switches, and custom electrical assemblies.
• Quality Approvals: ISO9001, CE, VDE, RoHS, SGS, UL, IP65, TUV, CCC.
• Export Markets: Global distribution across North America, Europe, Australia, and Asia.
• Manufacturing Advantages: Direct engineering consultation, custom solution development, and stable bulk wholesale supply.

Official Website: www.filn.com | Direct Inquiry Email: inquiry@cnylin.com.cn
