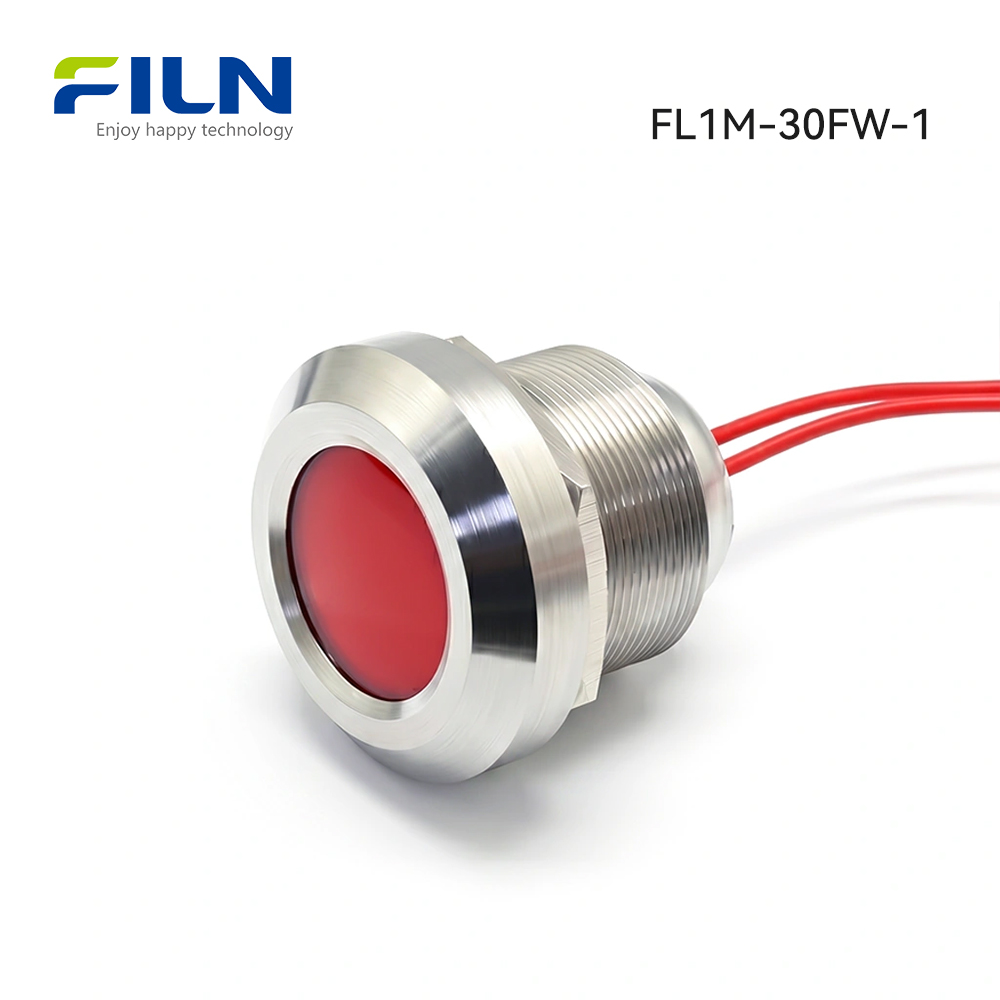

220V Barbecue Rack Red Metal 30MM Indicator Light

The following is a detailed introduction of Barbecue Red 30mm Indicator Light



At the Hong Kong Electronics Fair in the autumn of 2019, a Taiwanese customer came to our booth and asked us to develop a metal high-end waterproof IP68 30MM INDICATOR LIGHT after seeing our products.We have developed this metal 30MM indicator light in 2020, high-end atmosphere.



1.   The head of the 30MM indicator light is made of stainless steel and processed by a CNC lathe to ensure the appearance of the atmosphere and the precision of the product.



2.   A waterproof silicone ring is set in the plastic cap of the 30MM indicator light head, and the bottom of the product is covered with epoxy resin to ensure the IP68 waterproof performance of the product.



3.  30MM indicator light LED adopts ultra-high measurement LED, the color is very beautiful, the indicator light can produce 5 colors of red, yellow, green, blue and white, and can also produce 3V, 6v, 12v, 24v, 48v, 110v, 120v, 220v, 240v, 480v and so on.



4.  The 30MM indicator light is connected directly from the indicator light by a wire, it is very convenient for you to wire it, and the wire is a high temperature resistant Teflon wire.



5.  The quality guarantee period of 30MM indicator light is 5 years. If there is any problem within 5 years, FILN will be replaced for free.



Questions and answers about 30MM indicator light



–  What is the minimum order quantity for 30MM indicator light?

The minimum order quantity of FILN company is 1 pc. If you are a customized product, you should contact us and negotiate with us.



–  Has 30MM indicator light passed any international certification?

FILN’s indicator light has passed the US UL certification, the EU CE certification, etc., and you can sell it in the United States and Europe.



If you have any questions about the indicator light, please contact us, inquiry@cnylin.com.cn



Popular Category: metal indicator light

Product Item FL1M-30FW-1
Panel Mount Diameter 30mm
Contact Way Pins
Install Way screw terminal
Lamp Type LED
Rated voltage AC/DC, 3V、6V、12V、24V、220V、380V
Lamp Color red yellow blue green white
Product Design Flat head
Shell Material brass plated nickel/stainless steel
Base Material PA66 nylon
Terminal Material brass
Applications Coffee machine, kitchen equipment, household appliances,    automobiles, medical equipment, industrial equipment etc
Component Name Material
Lens PC plastic
Metal Body H59 brass or 304 stainless steel
Wahser T10 Cold Rolled Steel
Rubber Ring SIL silica gel
Nut H59 nickel plated brass
Housing PA66 nylon
Light Source LED
Resistor Metal film
Cable PTFE AWG22 0.3mm²
Plug-in C2680 RoHS brass
Items Parameter
Rated Voltage 3V-780V DC or AC
Rated Current 20mA
Rated Power 0.2W
Insulation and Roltage Resistance 1800V
Working Life 100000h
Electrical Life 100000
Cold-resistant -40℃
Heat-resisting 80℃
