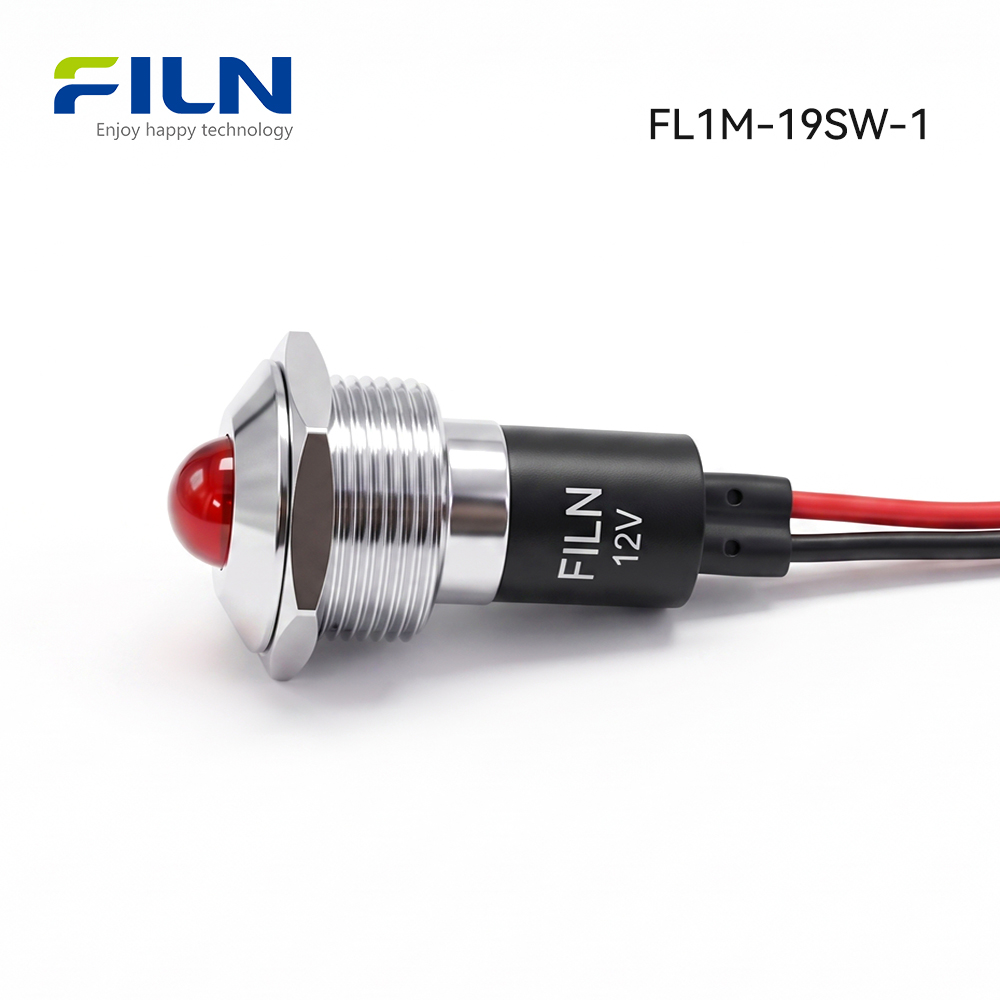

Key Takeaways & Buyer Decision Guide
- Product Identity: The FL1M-19SW-1 is a professional-grade 19mm prominent head metal indicator lamp manufactured by FILN.
- Key Specification: Designed for standard 19mm panel cutouts with wide voltage adaptability ranging from 3V to 480V AC/DC.
- Material Composition: Constructed with a durable copper alloy or black-plated zinc-aluminum shell and an impact-resistant PC prominent lens.
- Protection Rating: Delivers IP65 waterproof and dustproof performance when paired with the included silicone O-ring.
- Mounting & Installation: Single-nut thread mounting allows secure panel fastening with high-visibility protrusion.
- Wiring Configuration: Equipped with 2-pin pre-wired leads utilizing polarity-free LED chips for simplified electrical connection.
- Target Applications: Ideal for industrial control cabinets, automation machinery, EV charging stations, and marine dashboards.
- Customization Support: FILN provides custom wire lengths, specialized voltages, and custom laser marking for OEM clients.
- Global Certifications: Manufactured under ISO9001 quality systems with CE, VDE, RoHS, CCC, and UL compliance.
- Procurement Considerations: Bulk wholesale options and direct factory technical support are available for industrial purchasers.

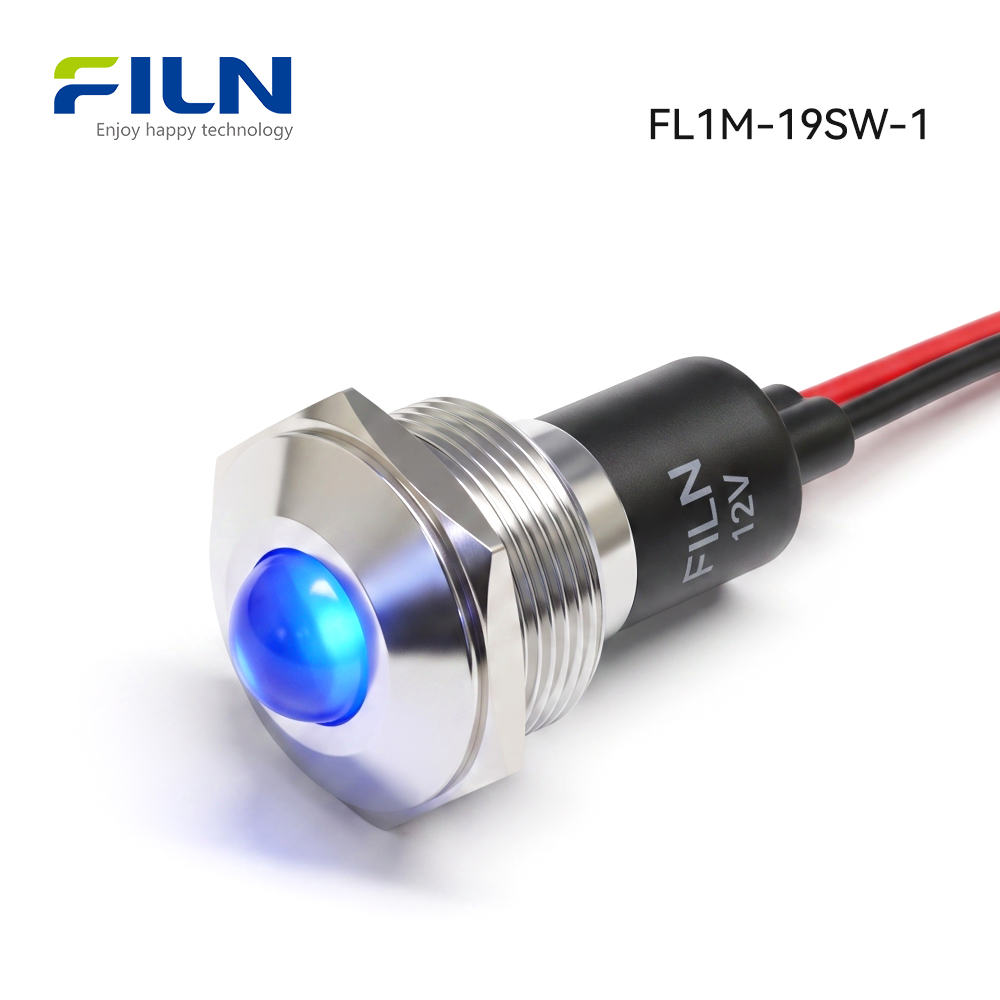

What Is a 120v indicator lamp?
A 120v indicator lamp is a panel-mounted electronic signaling device used to visually display equipment operating status, power supply conditions, or warning alerts within industrial control systems. Indicator lights are generally classified into metal indicator lights and plastic indicator lights, spanning mounting dimensions from 6mm to 30mm. Regarding electrical termination, they are available in pin-terminal variants and direct pre-wired configurations. Metal indicator lights typically offer prominent head, flat head, and recessed head exterior profiles, enabling engineers to select the optimal design based on mechanical protection and visual requirements.
As a specialized manufacturer, FILN offers robust 19mm solutions like the 120v indicator lamp to replace fragile plastic components in demanding industrial environments. The metal housing ensures superior mechanical strength, corrosion resistance, and long-term operational reliability across commercial and industrial machinery.

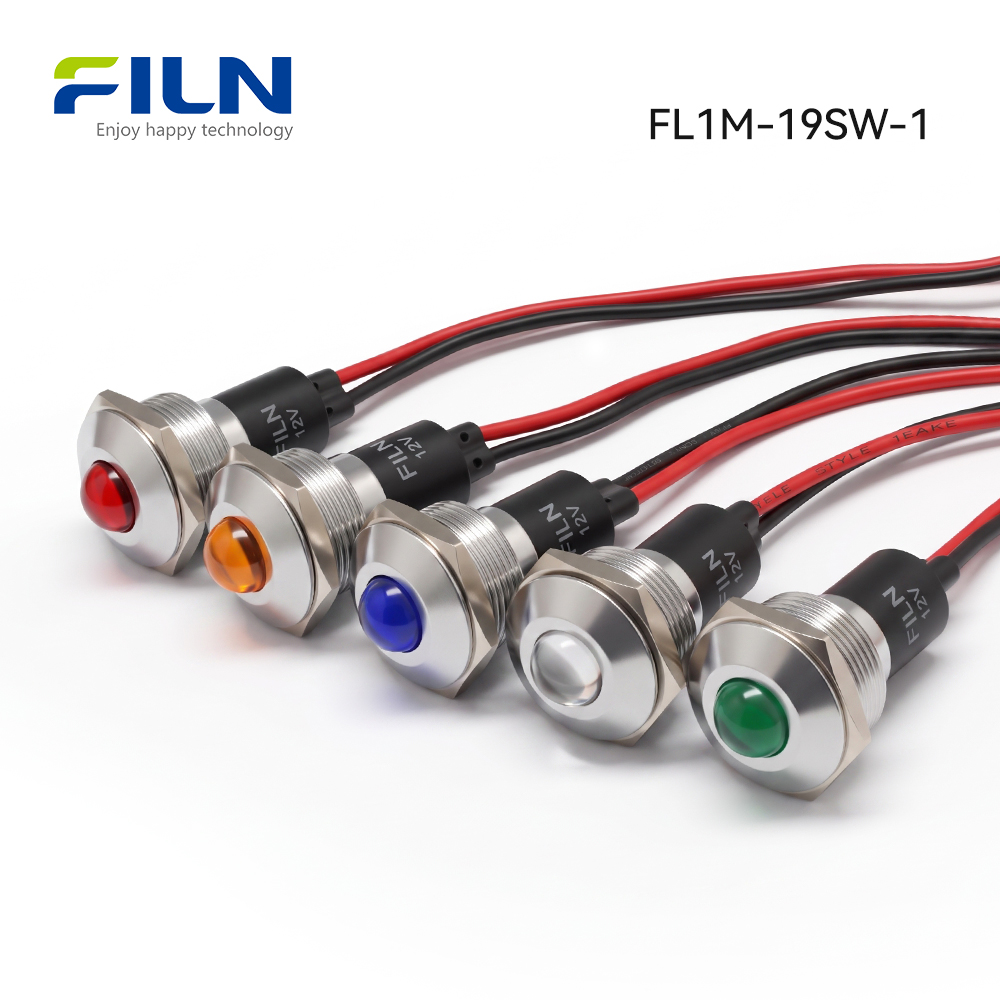

Product Overview & Engineering Principles
The FILN 120v indicator lamp operates on advanced solid-state semiconductor principles, converting electrical energy into clear, uniform optical illumination. Internally, a high-brightness LED chip is paired with a precision carbon film resistor to regulate voltage and current parameters, ensuring stable performance when connected to 120V AC or DC circuits.
Mechanically, the assembly utilizes a threaded metal barrel secured by an M19 locking nut and a high-grade silicone O-ring. This design creates a tight compression seal against control panels, preventing moisture, dust, and cutting fluids from breaching sensitive electrical enclosures. The integrated wire leads eliminate internal soldering failures often caused by heavy machine vibration, making this 120v indicator lamp an optimal choice for industrial automation and heavy-duty equipment panels.
Quick Technical Specifications
| Technical Parameter |
Specification Details |
| Product Description |
Metal indicator light with wires |
| Indicator Light Model |
FL1M-19SW-1 |
| Mounting Hole Size |
19 mm (approx. 0.75 inches) |
| Voltage |
3V – 480V AC/DC (Customizable; optimized for 120v indicator lamp applications) |

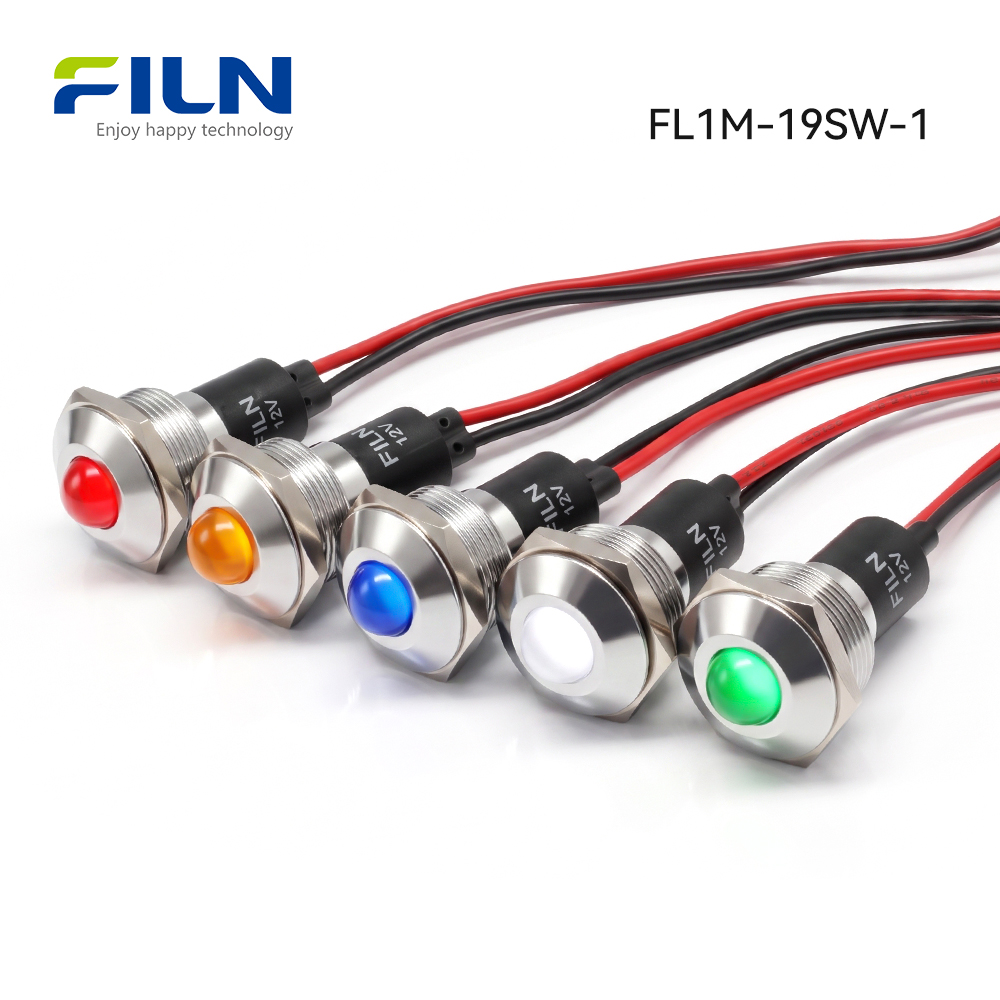

| LED Color |
Red, Green, Yellow, Blue, White (R/G/Y/B/W) |
| Waterproof Rating |
IP65 compliant |
| Wiring Type |
2PIN tail wire lead |
| Head Type |
Prominent head |
| Surface Quality |
The surface shall be smooth and flat without burrs, oxidation, cracks, or visible defects. |
| Assembly Requirements |
The head assembly and base assembly shall be properly fitted in place, ensuring no rotation, detachment, tilt, or deformation. |
Performance Parameters & Electrical Ratings
| Performance Parameter |
Rated Value & Technical Limits |
| Rated Operating Voltage |
3V–480V DC/AC (Custom configurations available upon request) |
| AC Frequency |
50 / 60 Hz |
| Rated Operating Current |
≤ 20 mA |
| Rated Power |
Approx. 0.2 W |
| Insulation Resistance |
≥ 100 MΩ (Tested at 500V DC applied between lead wires and housing) |
| Dielectric Strength / Voltage Proof |
1500V–1800V AC, no breakdown or flashover |
| Operating Life |
50,000 to 100,000 hours (50,000 h – 100,000 h) |
| Ingress Protection Rating |
IP65 |
Component Materials & Engineering Selection
Every material utilized in the construction of the FILN 120v indicator lamp is selected to guarantee structural integrity, environmental resistance, and electrical safety in industrial deployments.
| Component Part Name |
Material Specification |
Engineering Purpose |
| Shell |
Copper alloy / Black-plated zinc-aluminum alloy |
Provides mechanical rigidity, impact resistance, and grounding continuity. |
| Lamp Holder |
PA66 |
Offers high thermal stability and electrical insulation properties. |
| Lampshade / Lens |
PC |
Ensures high light transmittance, shatter resistance, and UV stability. |
| Luminescent Source |
High-brightness LED |
Delivers energy-efficient, long-lasting visual signaling. |
| Resistor |
Carbon film resistor |
Regulates voltage flow for stable operation across 120V systems. |
| Wire / Lead Wire |
PVC |
Provides flexible, secure electrical connection with oil resistance. |
| Nut |
Copper alloy |
Secures the indicator firmly onto control panels under vibration. |
| O-Ring |
Silicone / Silica gel |
Creates an impermeable barrier against water, dust, and debris. |
| Lock Washer / Plum Blossom Gasket |
Stainless steel |
Prevents loosening caused by mechanical shock or thermal expansion. |
Environmental Performance & Testing Standards
The following environmental test parameters govern the operational robustness of the FL1M-19SW-1 series metal indicator lamp across extreme working conditions:
| Environmental Test Type |
Testing Conditions & Parameters |
| Application |
This specification is the general use range of Indicator Light series Metal indicator light. |
| Part Name |
Metal indicator light |
| Operating & Storage Temperature |
-40°C ~ +80°C |
| Operating Relative Humidity |
≤ 85% at +40°C |
| High Temperature Test |
96 hours at 80 ± 2°C |
| Low Temperature Test |
96 hours at -40 ± 2°C |
| Constant Temperature & Humidity Test |
96 hours at 40 ± 2°C, 90% ~ 95% RH |
| Temperature Cycling Test |
Alternate between -40°C (30 min) and 85°C (30 min), 5 cycles total |
LED Chip Technical Specifications
1. Absolute Maximum Ratings (Maximum safe operational limits for the LED chip, beyond which permanent damage may occur):
- Forward Current ($I_{FP}$): 20 mA
- Reverse Voltage ($V_R$): 5 V
- Power Dissipation ($P_D$): 60 mW
- Operating Temperature Range ($T_{OPR}$): -40°C to +80°C
- Storage Temperature Range ($T_{STG}$): -40°C to +100°C
- Lead-Free Soldering Temperature ($T_{SOL}$): 260°C Max. for 3 sec. Max.
2. Electro-Optical Characteristics (Test parameters measured at ambient temperature $T_a = 25^\circ\text{C}$):
| Parameter |
Test Condition |
Specification Limit / Typical Value |
| Forward Voltage ($V_F$) |
$I_F = 20\text{ mA}$ |
2.8 V (Min.) – 3.2 V (Max.) |
| Reverse Current ($I_R$) |
$V_R = 5\text{ V}$ |
5 µA (Max.) |
| Viewing Angle ($2\theta_{1/2}$) |
$I_F = 20\text{ mA}$ |
60° (Typical) |
| Luminous Intensity ($I_v$) |
$I_F = 20\text{ mA}$ |
500 mcd (Min.) – 800 mcd (Max.) |
| Recommended Operating Current ($I_F$) |
— |
20 mA (Typical) |
| Dominant Wavelength ($\lambda_d$) |
$I_F = 20\text{ mA}$ |
520 nm – 525 nm |
| Junction Temperature ($T_j$) |
$I_F = 20\text{ mA}$ |
125°C (Max.) |
| Thermal Resistance ($R_{j-p}$) |
$I_F = 20\text{ mA}$ |
8°C/W (Typical) |
Standard Test Conditions
Unless otherwise specified, all electrical and optical parameters for the 120v indicator lamp are measured under controlled standard atmospheric conditions:
- Ambient Temperature: 5°C ~ 35°C
- Relative Humidity: 45% ~ 85%
- Air Pressure: 86 ~ 106 Kpa (860 ~ 1060 mbar)
Notes: Luminous intensity and dominant wavelength are calibrated in accordance with the CIE international standard of human eye response curve. Tolerance of luminous intensity measurement: ±15%, tolerance of voltage measurement: ±0.1V.
Applications by Industry
Metal indicator lights utilize high-strength copper alloy or stainless steel metal housings, featuring outstanding impact resistance and IP67 waterproof/dustproof protection ratings, making them widely applied across industrial and premium commercial fields. While plastic indicator lights are prone to aging, cracking, and high-temperature deformation under long-term use, metal indicator lights adapt seamlessly to harsh working conditions, frequent operations, and high-reliability requirements. Below is an industry-by-industry breakdown of typical application scenarios:
1. Industrial Automation & Mechanical Manufacturing
This sector represents the core application field with the highest usage volume for metal indicator lights, characterized by continuous mechanical vibration, oil contamination, and hard-object impacts.
- CNC Machine Tools & Machining Centers: Control panels are installed with red, yellow, and green metal indicator lamps where green indicates normal operation, yellow signifies standby/pre-warning, and red denotes emergency stop or equipment faults. The metal shell effectively resists cutting fluids and metallic debris erosion.
- Automation Production Line Control Cabinets: Large distribution cabinets and PLC control enclosures incorporate 6mm and 8mm metal indicator lamps compatible with AC220V and DC24V power supplies to directly display power status across channels.
- Hydraulic & Pneumatic Equipment: Applied for oil pump start/stop and pressure over-limit alerts. Because equipment experiences severe vibration, integrated pre-wired metal indicator lamps feature securely fixed internal LEDs and resistors that resist wire breakage or loosening compared to pin-terminal variants.
2. Outdoor Power & New Energy Distribution Systems
Outdoor equipment is constantly exposed to weather elements and wide temperature swings, demanding stringent weatherability and temperature resistance.
- New Energy Charging Piles: Outdoor DC and AC charging stations are equipped with prominent metal status indicator lamps. Blue or green flashing lights indicate active charging, continuous glowing represents full charge, and flashing red alerts to ground faults or leakage. IP67 waterproof and vandal-resistant properties suit high-frequency public deployment.
- Outdoor Distribution Boxes & Solar Combiner Boxes: Photovoltaic stations and municipal outdoor distribution boxes utilize indicators to display high-voltage closing and inverter operating status across working temperature ranges from -40°C to 80°C.
3. Rail Transit, Engineering Vehicles & Marine Equipment
Vehicles and vessels encounter heavy shock and vibration during operation, while maritime environments present severe salt fog corrosion risks.
- Engineering Vehicle Cockpits: Instrument panels on excavators, cranes, and bulldozers utilize indicators for oil pressure, water temperature, headlight, and braking fault warnings, adapting perfectly to dusty and severe vibration environments.
- Marine & Port Control Equipment: Ship cabin instruments and deck control boxes employ electroplated stainless steel metal indicator lamps to resist salt fog corrosion, supplemented by silicone sealing rings preventing seawater ingress.
4. Commercial Self-Service Devices & Public Anti-Vandal Facilities
Equipment in public spaces is susceptible to physical impacts and vandalism, where standard plastic fixtures break easily.
- Vending & Ticketing Machines: Paired with metal anti-vandal pushbuttons to indicate coin insertion, dispensing, and change-return status.
- Gas Station Dispenser Panels: Hazardous fuel zones require explosion-safety considerations; metal lamp shells provide reliable electrical isolation and safety enhancement.
- Outdoor Access Control & Intercoms: Stainless steel intercom faceplates incorporate red and green indicator lamps to differentiate locked and unlocked door states.
5. Medical Equipment & Food Processing Machinery
These industries require frequent chemical washdowns and disinfection, demanding high waterproof and hygienic standards.
- Food Bottling & Packaging Equipment: Subjected to daily high-pressure hot water and chemical detergent washdowns; IP67 metal indicator lamps resist spray jets, protecting internal components from corrosion and contamination.
- Medical Sterilizers & Laboratory Benches: High-pressure sterilizing autoclaves utilize indicator lamps to differentiate heating, sterilizing, and exhaust operational cycles.
Application Summary: Standard plastic indicator lights yellow and become brittle under prolonged outdoor UV exposure, while workshop oils corrode plastic housings and continuous vibration loosens terminal pins. Metal indicator lamps utilize copper alloy housings, silicone waterproof O-rings, and tail pre-wired lead structures to resolve these issues, serving as the preferred high-reliability component for industrial equipment.

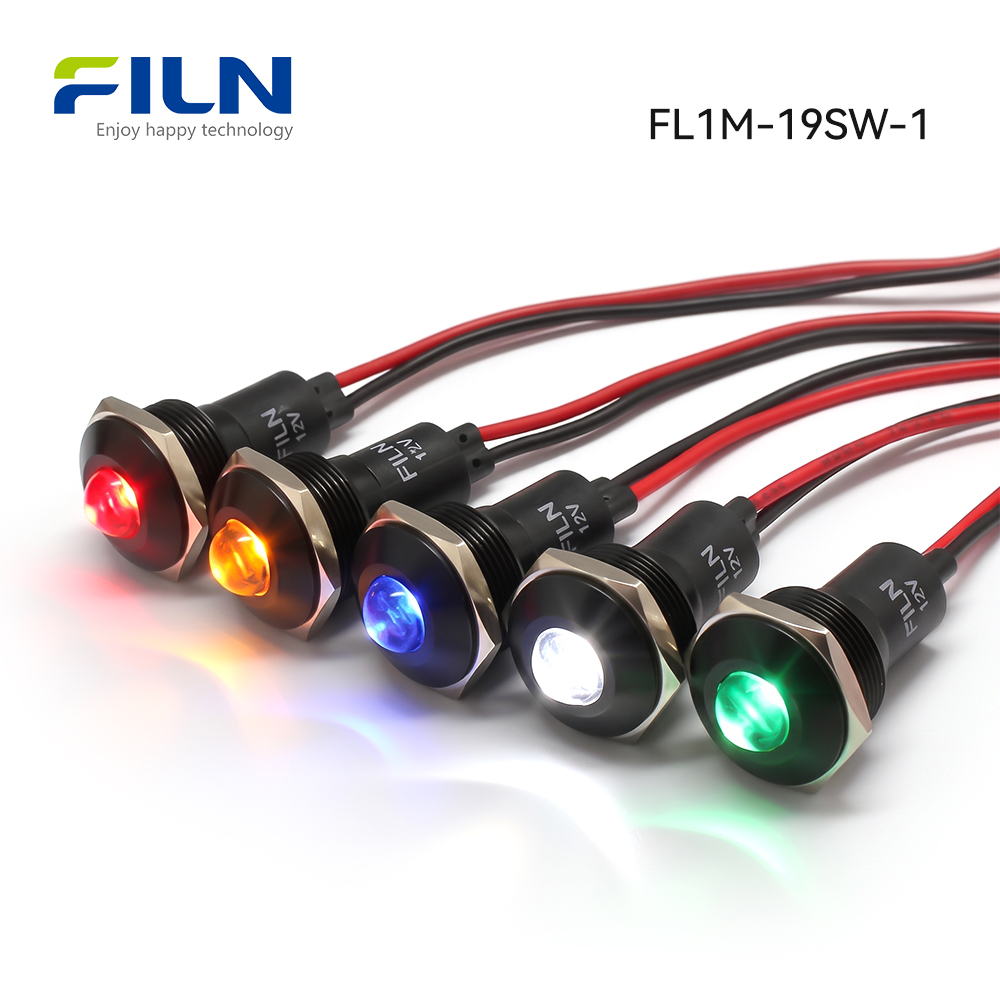

LED Indicator Color Meanings and Application Guide
Indicator color selection is critical for operator safety and ergonomic efficiency in control panel design. Color conventions may vary depending on equipment manufacturer specifications, industry standards, and regional regulations. FILN supplies single-color, dual-color, and tri-color configurations to match specific system requirements.
1. Red: Commonly signifies danger, emergency, or stop conditions. Typical status includes faults, emergency stop engaged, or over-pressure alerts. Recommended for alarm panels, trip warnings, and stop pushbuttons.
2. Green: Commonly signifies normal, safe, or operating conditions. Typical status includes main power ON and normal cycle running. Recommended for main power status and running indicators.
3. Yellow / Amber: Commonly signifies caution, warning, or standby modes. Typical status includes standby operation or approaching thermal thresholds. Recommended for pre-heating stages and pause states.
4. Blue: Commonly signifies mandatory action or informational feedback. Typical status includes active charging or cooling systems running. Recommended for EV chargers and pneumatic control modes.
5. White: Commonly signifies neutral or general operational status. Typical status includes control voltage active or cabinet doors open. Recommended for general illumination feedback and auxiliary power.
| Color |
Common meaning |
Typical status |
Typical application |
Recommended environment |
Important notes |
| Red |
Danger / Emergency |
Fault / Stop |
Alarm panels |
Industrial machinery |
Verify standard compliance |
| Green |
Normal / Safe |
Power ON |
Running status |
Control cabinets |
High visibility lens |
| Yellow |
Caution / Warning |
Standby |
Pre-heat stage |
Automation lines |
Amber variants available |
| Blue |
Mandatory action |
Charging active |
EV chargers |
Outdoor equipment |
Distinct optical wavelength |
| White |
Neutral status |
Voltage active |
Auxiliary power |
Electrical enclosures |
Clear illumination feedback |
Installation Guide
Proper mechanical mounting ensures that the 120v indicator lamp maintains its IP65 waterproof rating and secure panel fit. Follow these sequential steps for installation:
- Prepare Mounting Hole: Drill or punch a precise 19mm circular mounting hole in the equipment control panel. Ensure burrs and metal shavings are thoroughly cleaned from the edges.
- Position Waterproof Gasket: Slide the provided silicone waterproof O-ring onto the threaded barrel of the indicator light from the rear of the mounting flange.
- Insert Indicator Light: Insert the indicator light assembly from the front side of the control panel through the 19mm aperture.
- Secure Locking Nut: Thread the M19 metal locking nut onto the barrel from the rear side of the panel. Tighten securely using a standard socket or wrench to compress the silicone gasket against the panel surface.
- Connect Wiring: Connect the tail wire leads to the 120V circuit following standard electrical safety protocols.
Wiring Guide & Connection Methods
Pin-terminal indicator lights require soldering or specialized female spade connectors attached directly to terminal pins. In contrast, pre-wired indicator lights feature integrated tail wire leads. Directly pre-wired indicator leads can be connected to the circuit using quick-connection wire terminals, soldered securely, or wrapped with electrical tape to ensure connection stability.
Note: Always cut off power and ensure electrical safety before performing any wiring operations.
Industry Knowledge Center
Selecting high-reliability signaling components prevents unexpected control panel downtime. Industrial indicator lights bridge communication between complex PLC logic and human operators. When specifying a 120v indicator lamp, engineers must evaluate electrical transient protection, ambient operating temperatures, and ingress protection requirements. Proper maintenance involves periodic inspection of terminal connections and cleaning exterior lenses to maintain clear visibility in dusty industrial settings.
Buyer Decision Guide & RFQ Checklist
FILN provides multiple metal shell options to suit distinct operating environments. The following comparison outlines housing material characteristics:
| Shell Material |
Advantages |
Limitations |
Recommended Environment |
| Nickel-Plated Brass |
Cost-effective, robust mechanical strength, good conductivity |
Susceptible to corrosion in heavy saline environments |
General industrial machinery, indoor control cabinets |
| Stainless Steel |
Superior corrosion resistance, high aesthetic finish |
Higher raw material cost |
Food processing, marine equipment, medical devices |
| Black-Plated Zinc-Aluminum |
Matte black finish, lightweight, durable |
Coating can scratch under extreme physical abuse |
Automotive dashboards, premium audio gear |
RFQ Checklist for Procurement Managers
Providing these specifications helps FILN engineering and sales teams confirm product compatibility and quotation requirements more efficiently:
- Product Type & Model (e.g., FL1M-19SW-1)
- Mounting Hole Size (e.g., 19mm)
- Operating Voltage & Frequency (e.g., 120V AC/DC)
- LED Color (Red, Green, Yellow, Blue, White)
- Head Type (Prominent)
- Housing Material (Brass nickel-plated, Stainless steel, Zinc alloy)
- Waterproof Requirement (IP65)
- Wiring Method & Lead Length (2PIN tail wire)
- Target Market & Certifications Required (CE, RoHS, UL)
- Order Quantity & Packaging Requirements
FILN Manufacturing & Engineering Capabilities
FILN operates as an established manufacturer with robust R&D, custom tooling, and automated production capabilities. For B2B buyers and OEM clients, FILN provides tailored engineering support, custom wire harnesses, specialized operating voltages, and rigorous quality control testing. Every production batch undergoes strict electrical and waterproof verification before global export.
Factory Direct Supply & Global Export
Yueqing Yulin Electronic Co., Ltd, brand name FILN located in Wenzhou, Zhejiang, was established in 2006 as a professional electrical switch manufacturer integrating R&D, production, and sales. Its premium FILN brand products are sold in over 100 countries. FILN operates a modern 10,000 m² facility with 20+ advanced production lines and an independent testing lab. Driven by scientific processes and the ISO9001 quality system, FILN ensures industry-leading innovation and electrical performance. Our certified products (UL, CE, RoHS, REACH, TUV, CB) are widely used in kitchen appliances, energy storage, EV charging, automotive, marine, and security systems.
Production capabilities: Indicator lights, pushbutton switches, rocker switches, toggle switches, and other small electrical components with full custom production capabilities.
Quality system: Certified under ISO9001, CE, VDE, RoHS, SGS, UL, IP65, and TUV standards.
Export markets: Global distribution.
Manufacturing advantages: Professional engineers available for direct technical liaison, specialized in custom solution troubleshooting.
Website link: www.filn.com | Email link: inquiry@cnylin.com.cn
Frequently Asked Questions
How to prevent phantom illumination (faint glowing) in 12v LED indicators?
Phantom illumination or faint glowing can occur due to induced AC voltages or residual leakage current from solid-state PLC outputs. Adding an appropriate bleed resistor or parallel RC snubber circuit across the indicator terminals drains stray leakage current and eliminates ghosting.
Can this IP67 indicator light be washed down with caustic chemicals?
Yes, when properly installed with its silicone O-ring, the stainless steel or nickel-plated brass variants feature IP65/IP67 protection, making them resistant to routine industrial washdowns. However, prolonged exposure to extreme caustic chemicals should be evaluated with FILN engineering.
What is the difference between pin-terminal and pre-wired metal indicator lights?

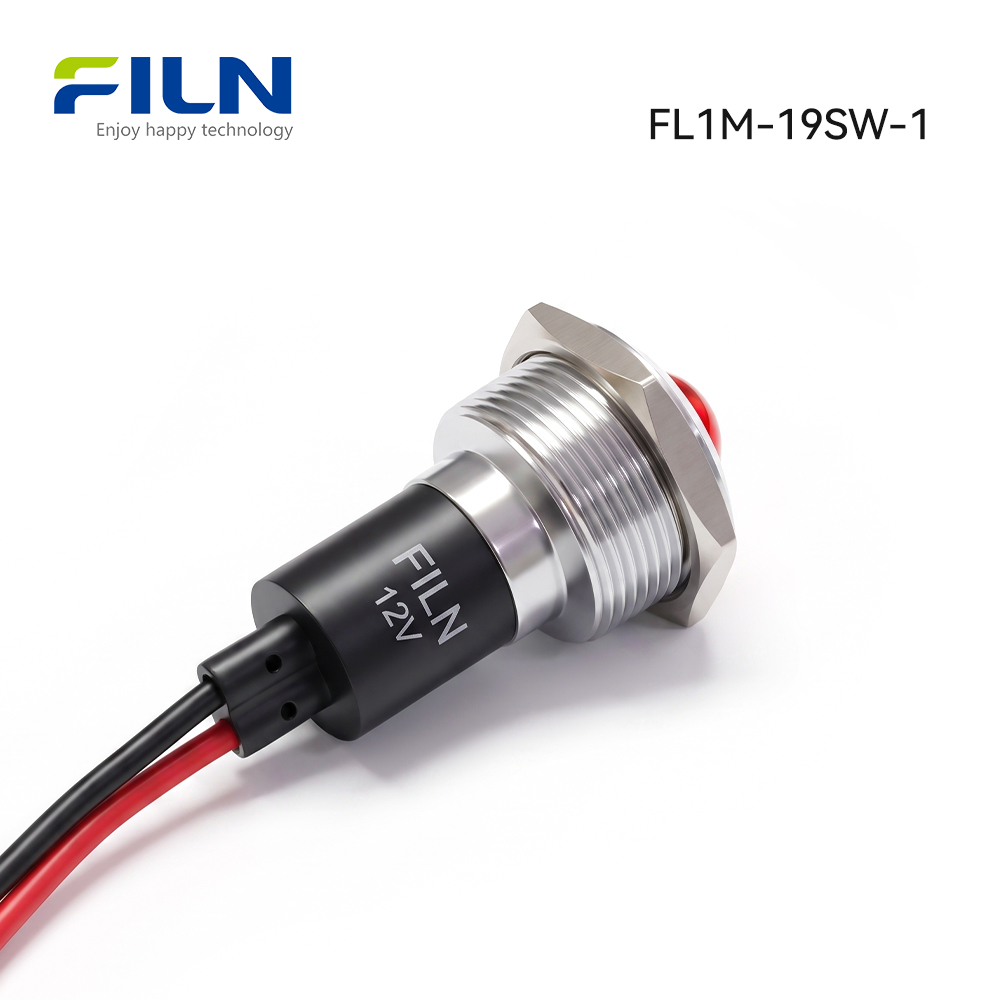

Pin-terminal indicators require soldering or female spade connectors attached directly to exposed pins. Pre-wired indicators come equipped with integrated wire leads, saving installation time and protecting internal connections from vibration and moisture.
Does the 120v indicator lamp require a separate external resistor?
No. FILN builds internal current-limiting carbon film resistors directly into the indicator assembly, allowing direct connection to 120V AC or DC power sources without external components.
Are FILN metal indicator lights polarity sensitive?
No. The internal LED assemblies utilize polarity-free rectifier circuits, allowing direct connection to both AC and DC power sources without concern for positive and negative wire orientation.
What panel thickness is supported by the 19mm mounting hardware?

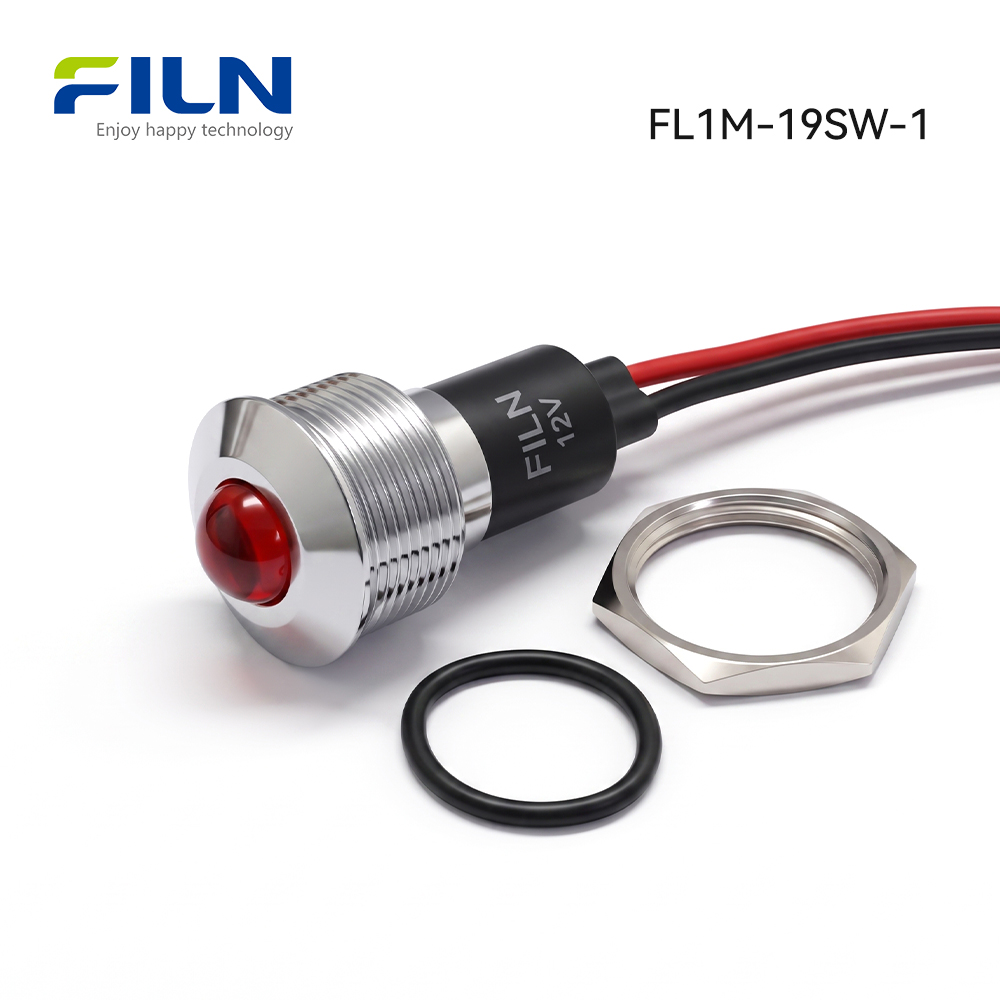

The standard M19 threaded mounting barrel accommodates control panel thicknesses ranging from 1mm up to 6mm, secured tightly with the included metal locking nut and silicone gasket.
Can FILN customize wire lengths for OEM orders?
Yes. As a direct manufacturer, FILN offers flexible custom wire lengths, specialized connector attachments, and custom wire harness assembly upon request for bulk OEM projects.
What certifications do FILN industrial indicator lights carry?
FILN products are manufactured under ISO9001 quality systems and hold international safety certifications including CE, VDE, RoHS, CCC, and UL compliance depending on specific model configurations.
Recommended Similar Products
Explore additional mounting sizes and terminal configurations within the FILN indicator light series:
