10MM Blue 12V LED Panel Indicator Lights

12V LED Panel Indicator Lights Detailed Parameters

Component Name Material
Lens PC Plastic
Metal Body H59 Brass Or 204 Stainless Steel
Washer T10 Cold Rolled Steel
Rubber Ring SIL Silica Gel
Nut H59 Nickel Plated Brass
Housing PA66 Nylon
Light Source LED
Resistor Metal Film
Cable PTFE AWG22 0.3mm²
Items Parameter
Rated Voltage 3V-780V DC Or AC
Rated Current 20MA
Rated Power 0.2W
Insulation And Voltage Resistance 1800V
Working Life 100,000H
Electrical Life 100,000
Cold-resistant -40℃
Heat-resisting 80℃
Plug-in C2680 ROHS Brass

The parameter of the 12V LED panel indicator lights?

  • The mounting dimension of the 10MM blue 12V LED panel indicator lights is 10mm, the install way is thread style.
  • The plastic material of the 12V LED panel indicator lights is Nylon PA66 and PC, which high temperature resistance is 160 degrees.
  • The plastic housing of the 12V LED panel indicator light adopts metal simulation process, the outer ring looks like metal and the cost is cheap.
  • LED panel indicator lights is twin-core and non-polarity, Under the circumstance of DC and AC, you don’t need to distinguish the positive and negative pole. The service life of the LED is 50,000 hours.
  • The LED panel indicator light has a variety of colors, such as red, yellow, green, blue, white, orange, etc. We can customize two-color of red, green and three-color indicator light.
  • The way of the LED panel indicator light is direct lead style. It can reduce cost and improve product quality. The wire adopts the material of PVC 105 degrees. If you need high temperature resistance material, you can choose Teflon and silicone wire, which high temperature resistance is more than 200 degrees.
  • The LED panel indicator light wire can be connected with various types of terminals.
Panel Indicator Lights

How to ensure the quality of the 12V LED panel indicator lights?

  1. The LED panel indicator light of Filn had passed the certifications of CE, UL, ROHS, ISO90001, which can ensure the quality of the product.
  2. Filn has a professional laboratory of LED panel indicator light, it can ensure the indicators standards comply with international standards, such as waterproof test, tension test, pressure test, aging test and so on.
  3. Filn has 23 years’ producing experience of the indicator light and has a fully automated production line to ensure the consistency of the indicators.
Indicator test

How to connect the wire with the 12V LED panel indicator lights?

The LED panel indicator lights are non-polarity.

So just attach the indicator wire to the device wire, then wrap the connection with tape.

When the product with a terminal can also be directly connected, and then turn on the device to see the indicator light is on or not, if it is on, it means the indicator has been working.

How to purchase the 12V LED panel indicator light?

Plastic indicator wiring

If you need to customize the wire of the LED panel indicator light or have special requirements, you can email to us at [email protected]

Indicator buyer

When the purchased quantity is less, you can place an order at www.cnfiln.com directly. We will arrange the delivery on the same day. Besides, we have no MOQ requirements, you can purchase the indicator light from 1 piece.



As a distributor of indicator lights, Filn produces more than 1000 kinds of indicator lights, which can diversify your sales.

Filn can supply indicator light samples free of charge for your test. Please don’t hesitate to contact us at [email protected].

Filn delivery fast

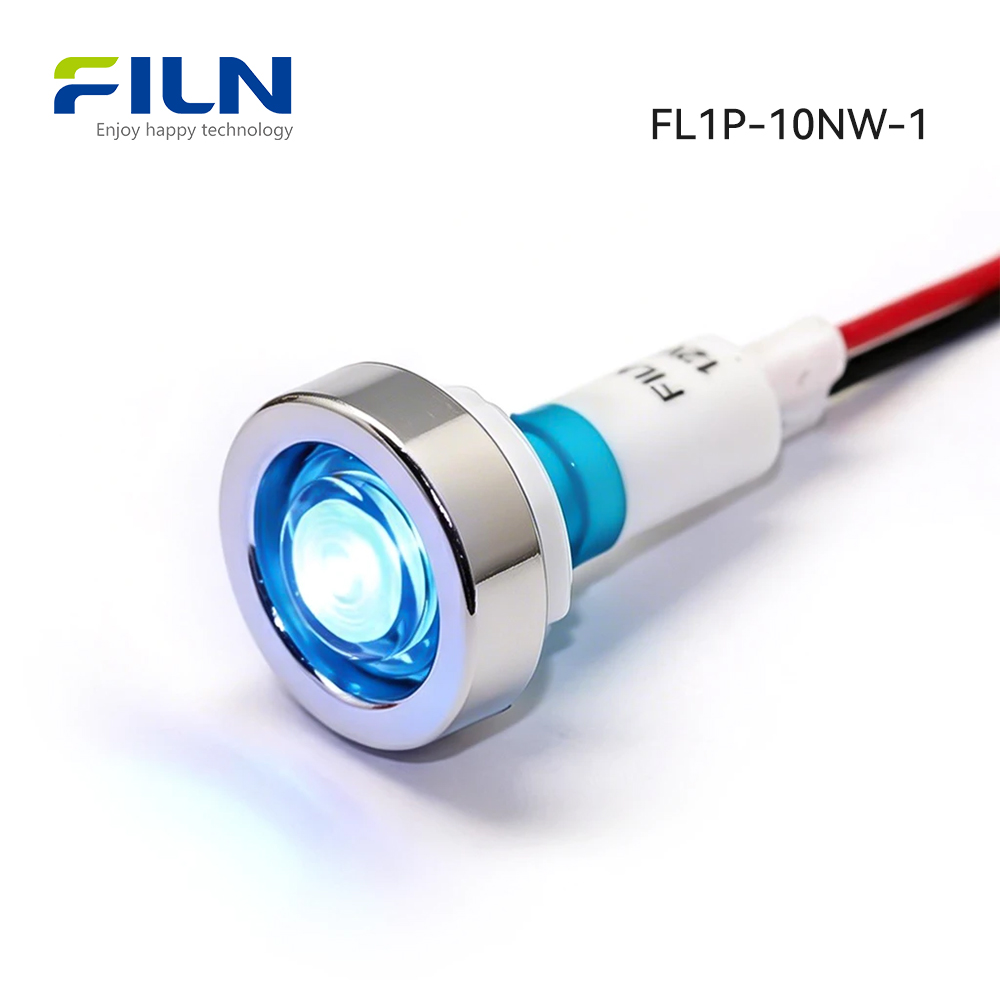

Product Item FL1P-10NW-1
Panel Mount Diameter 10MM
Contact Way With Wire
Install Way Screw Terminal
Lamp Type LED
Rated Voltage AC / DC, 3V, 6V, 12V, 24V, 220V, 380V
Lamp Color Red, Yellow, Blue, Green, White
Product Design Flat Head
Shell Material PC
Base Material PA66 Nylon
Terminal Material Brass
Applications Coffee machine, Kitchen equipment, Household appliances, Automobiles, Medical equipment, Industrial equipment etc.
