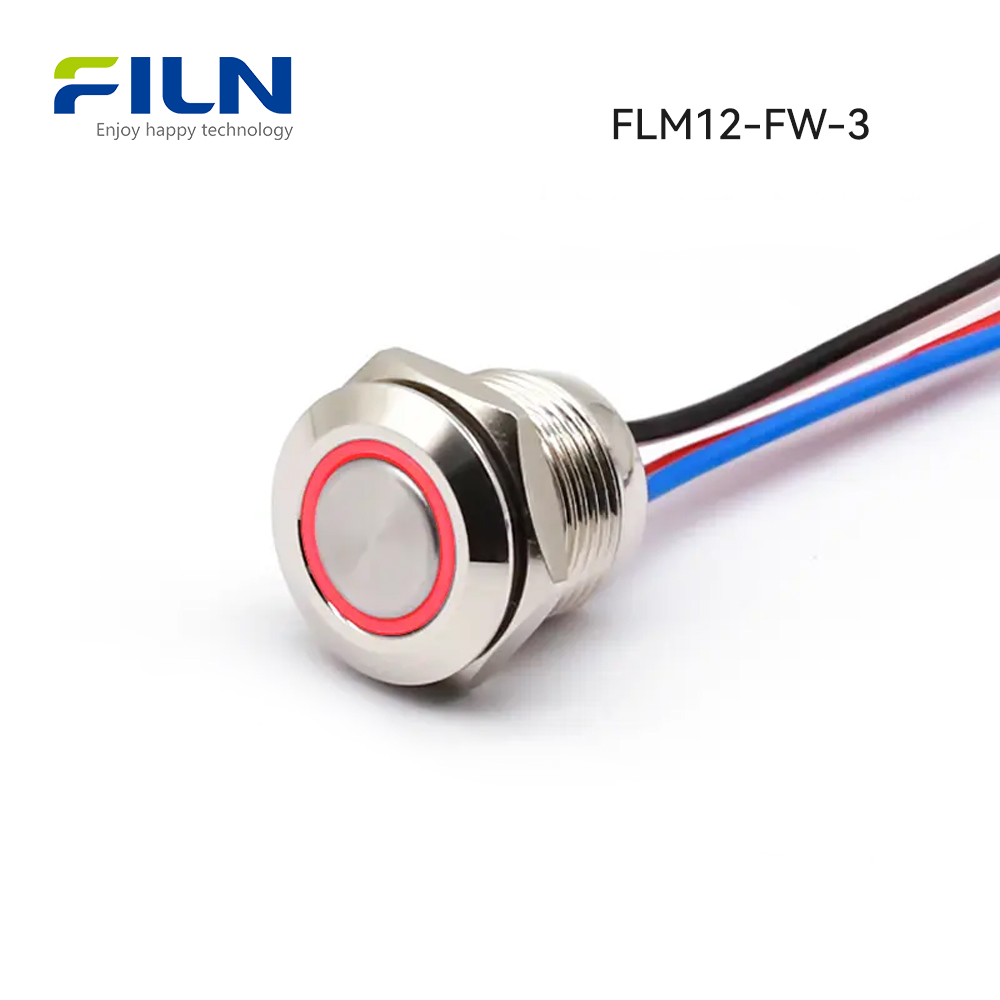

Ultra Short Waterproof Push Button Switch 12MM Wireline Switches

Waterproof Push Button Switch Ultra Short Overview

FILN Push button switches are essential components in various devices, providing a simple yet effective way to control electronic functions.

The ultra-short waterproof push button switch is a compact and reliable component designed for various industrial and commercial applications. With a 12mm mounting diameter, this switch is ideal for environments where space is limited and durability is essential. Its wireline design ensures easy integration and robust performance.

Key Features

• Ultra Short Design: Saves space in compact control panels and devices.
  The ultra short profile of these switches makes them perfect for applications where space is limited. Despite their compact size, they are designed to be user-friendly, with an ergonomic shape that ensures ease of use. The design allows for quick and effortless activation, even in tight spaces.
• Waterproof: Ensures reliable operation in wet or dusty environments, with typically high ingress protection ratings.
• 12mm Mounting Diameter: Standard size for easy installation in a variety of applications.
  Why 12MM? The 12MM size strikes an ideal balance between compactness and usability. It allows the switch to be easily integrated into various systems without taking up too much space.
• Wireline Connection: Facilitates straightforward wiring and secure electrical connections.

Technical Specifications

Applications

1. Outdoor Equipment: Suitable for devices exposed to the elements, such as outdoor lighting systems and garden tools.
2. Marine Equipment: Ideal for use in boats and marine installations where exposure to water is common.
3. Automotive: Commonly used in vehicle control panels and dashboard systems.
4. Industrial Machinery: Ensures safe and reliable operation of machinery in challenging environments.

Ultra Short Waterproof Push Button Switch Benefits

• Compact Size: The ultra-short profile is perfect for installations where space is at a premium.
• High Durability: Waterproof design ensures long-lasting performance in harsh conditions.
• Ease of Installation: The 12mm mounting diameter is a standard size, making it compatible with most control panels and devices.
• Reliable Operation: Wireline connections provide secure and stable electrical connections, reducing the risk of failure.

Switch Installation Instructions

1. Panel Preparation: Drill a 12mm hole in the control panel or device at the desired location.
2. Switch Mounting: Insert the switch into the hole and secure it with the provided mounting hardware.
3. Wiring: Connect the wires according to the manufacturer’s guidelines, ensuring proper insulation and secure connections.
4. Testing: Verify the functionality of the switch by pressing it to ensure it operates correctly.

Maintenance Tips

• Regular Inspection: Periodically check the switch for signs of wear or damage.
• Cleaning: Keep the switch clean and free of debris to ensure reliable operation.
• Functionality Test: Regularly test the switch to ensure it is functioning correctly.

The ultra-short waterproof push button switch with a 12mm mounting diameter and wireline connection is a versatile and durable solution for a variety of applications. Its compact design, high durability, and ease of installation make it an excellent choice for environments where space and reliability are crucial.

Ultra Short Waterproof Push Button Switch FAQs

1. What makes these switches ultra short?
   • Their compact design with a minimal height profile allows them to fit into tight spaces, making them ultra short.
2. How does waterproofing improve functionality?
   • Waterproofing ensures the switch can operate reliably in wet or humid conditions, preventing water damage and malfunction.
3. Can these switches be used in harsh environments?
   • Yes, their robust construction and waterproof features make them suitable for harsh and outdoor environments.
4. What are the installation requirements?
   • Installation involves drilling a 12MM hole, wiring the switch according to the manufacturer’s instructions, and ensuring proper sealing for waterproof integrity.
5. Are there different color options available?
   • Yes, these switches can be customized with different colors and labels to suit various applications and preferences.
