Applications by Industry
The FILN metal indicator light series utilizes high-strength copper alloy or stainless steel metal shells, delivering exceptional impact resistance and an IP67 waterproof and dustproof rating across industrial and high-end commercial sectors. While plastic indicators are prone to aging, cracking, and high-temperature deformation over time, metal indicator lights are specifically engineered for harsh operating environments, frequent operation, and high-reliability requirements.
1. Industrial Automation & Machinery Manufacturing
This sector represents the core application environment where control panels face continuous mechanical vibration, cutting fluids, and physical impacts.
- CNC Machine Tools & Machining Centers: Control panels feature red, yellow, and green metal indicator lights where green denotes normal operation, yellow indicates standby/warning, and red signals emergency stop or fault conditions. The metal shell resists cutting fluid and metal chip corrosion.
- Automation Production Line Control Cabinets: Large distribution cabinets and PLC panels utilize 6mm and 8mm metal indicators compatible with AC220V and DC24V power supplies to display power status clearly.
- Hydraulic & Pneumatic Equipment: Applied in oil pump start/stop and pressure overload warnings. Integrated terminal metal indicators maintain secure internal LED and resistor connections under heavy equipment vibration, preventing wire breakage compared to pin-socket types.
2. Outdoor Power & Renewable Energy Distribution Systems
Outdoor equipment experiences prolonged sun exposure, rain, and extreme thermal swings, demanding robust weather resistance.
- EV Charging Piles: Outdoor DC and AC charging stations utilize flat head metal status indicators where blinking blue/green signifies active charging, steady light indicates completion, and blinking red warns of leakage or ground faults. IP67 waterproof and vandal-resistant construction suits public high-frequency use.
- Outdoor Distribution Boxes & Solar Combiner Boxes: Photovoltaic stations and municipal outdoor cabinets display high-voltage closing and inverter operating status across an operating range of -40°C to +80°C.
3. Rail Transit, Engineering Vehicles & Marine Equipment
Vehicles and marine vessels endure severe vibrational shocks and high salt-fog corrosive atmospheres.
- Engineering Vehicle Dashboards: Excavators, cranes, and bulldozers utilize dashboard indicators for oil pressure, water temperature, lighting, and braking faults in dusty and high-shock environments.
- Marine & Port Control Equipment: Ship cabins and deck control boxes use plated stainless steel metal indicators to resist salt-fog corrosion, supported by silicone O-rings preventing seawater ingress.
4. Commercial Self-Service & Public Security Facilities
Public equipment requires high durability against physical impacts and tampering.
- Vending & Ticketing Machines: Paired with metal vandal-resistant push buttons to indicate coin insertion, dispensing, and change status.
- Gas Station Dispenser Panels: Hazardous explosive environments benefit from metal indicator shells that provide proper electrical grounding and safety isolation.
- Outdoor Access Control & Video Intercoms: Stainless steel intercom panels utilize red and green indicator lights to distinguish locked and unlocked door states.
5. Medical Equipment & Food Processing Machinery
Industries requiring frequent high-pressure washdown and chemical sterilization demand high hygiene and waterproof standards.
- Food Filling & Packaging Equipment: Daily high-pressure hot water and chemical cleaning is withstood by IP67 metal indicator lights without internal component corrosion.
- Medical Sterilizers & Lab Consoles: High-temperature autoclaves utilize indicator lights to differentiate heating, sterilization, and exhaust cycles.
Frequently Asked Questions
1. How to prevent phantom illumination (faint glowing) in 12v LED indicators?
Phantom illumination or faint glowing in 12V LED indicators is typically caused by residual leakage current from solid-state PLC outputs, triacs, or long parallel wiring capacitance. To eliminate this issue, install an appropriately sized bleeder resistor or anti-ghosting resistor in parallel across the indicator terminals to bleed off stray leakage current.
2. Can this IP67 indicator light be washed down with caustic chemicals?
Yes, stainless steel models equipped with silicone O-ring seals withstand daily high-pressure washdowns and standard industrial chemical cleaning agents used in food processing and medical environments without compromising ingress protection.

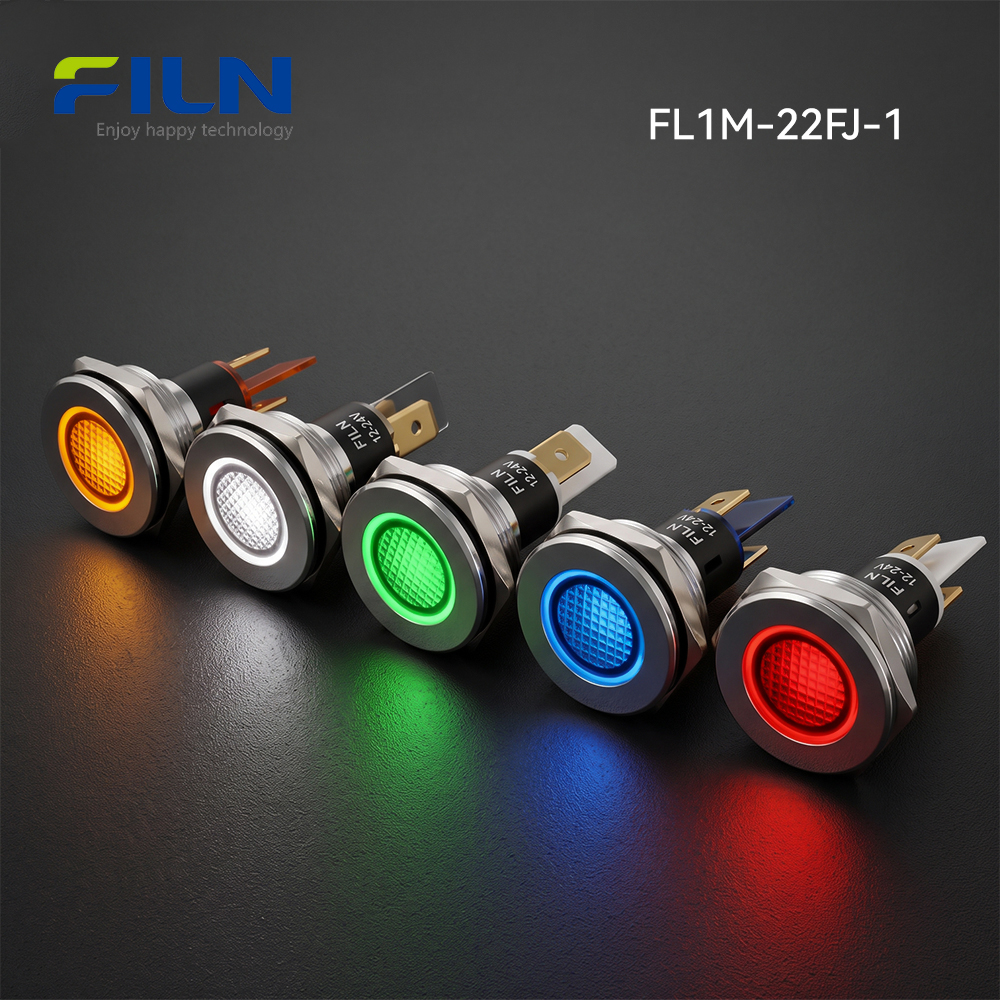

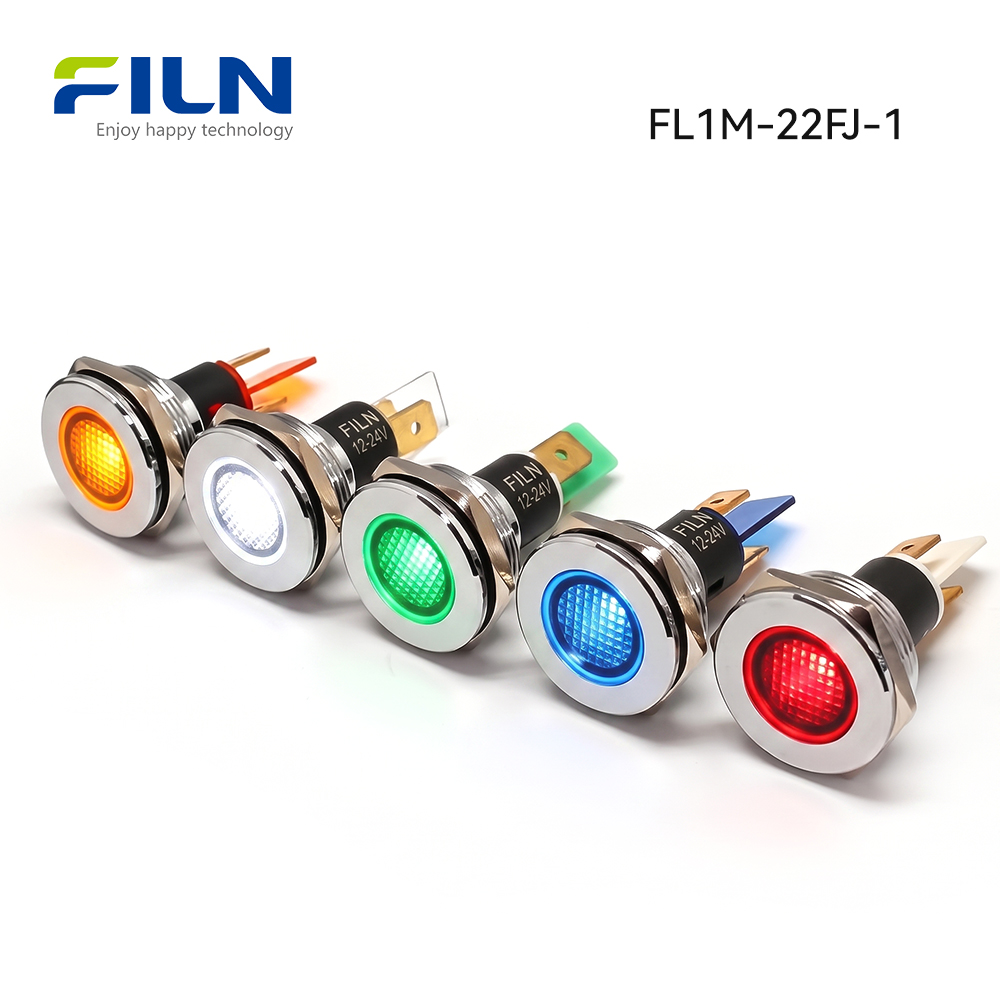

3. What is the standard panel cutout size for model FL1M-22FJ-1?
The required panel mounting hole diameter is exactly 22mm (approximately 0.87 inches), making it fully compatible with standard industrial enclosures and control console punch patterns.

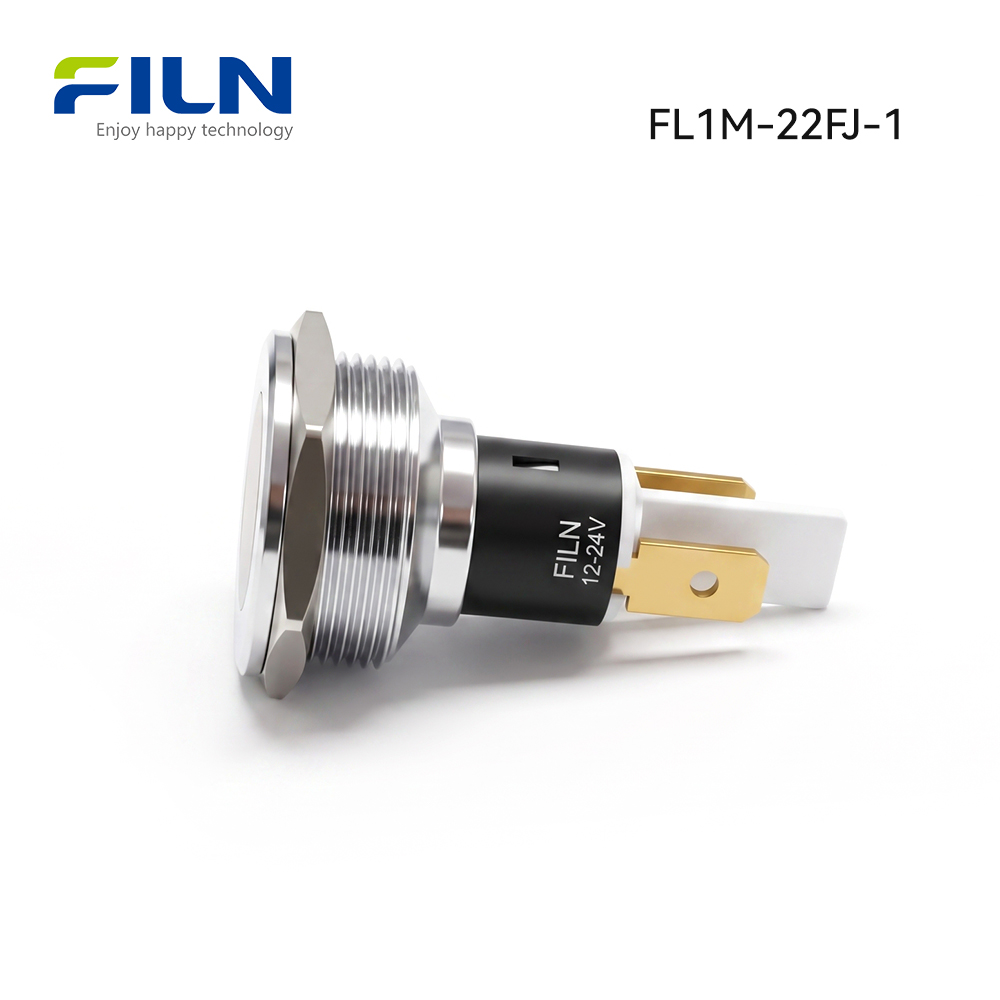

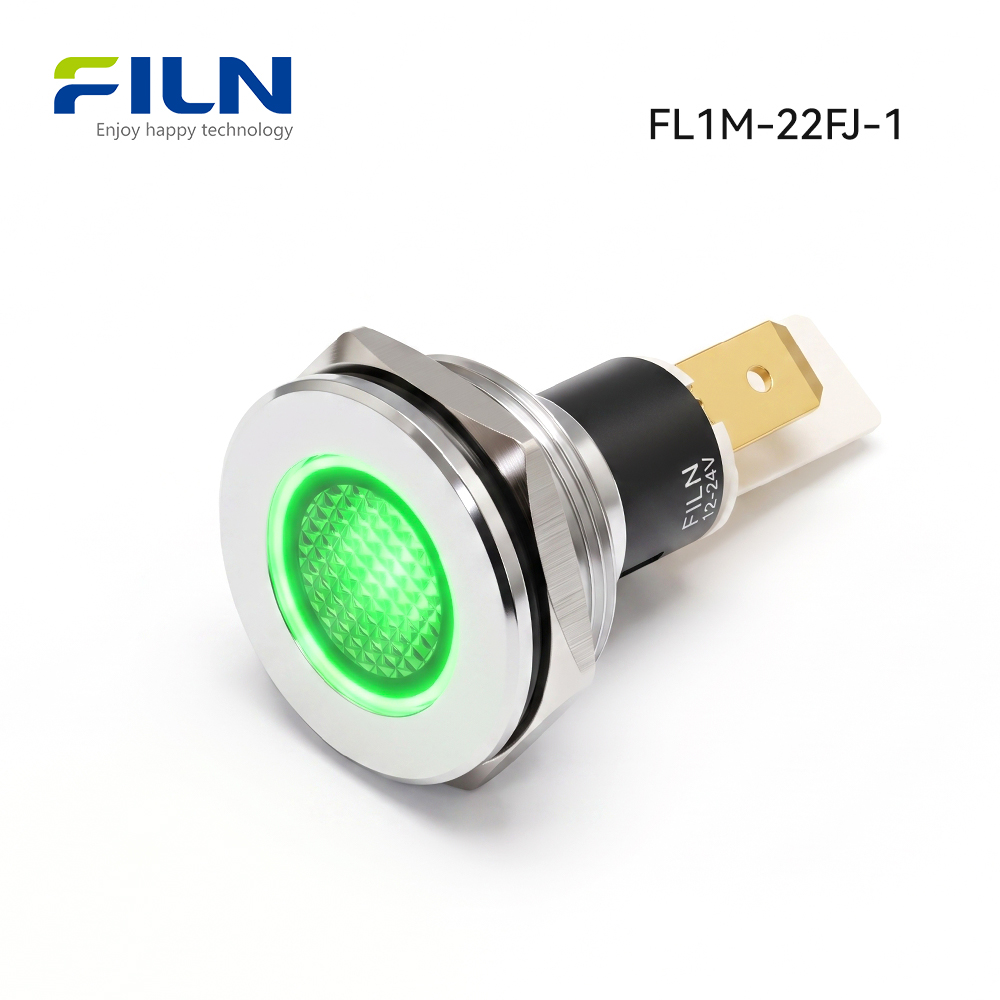

4. What operating voltage range is supported by this indicator light green model?
This model supports a versatile operating voltage range from 3V to 480V DC/AC, with internal resistors tailored to the specific voltage specified during order placement.

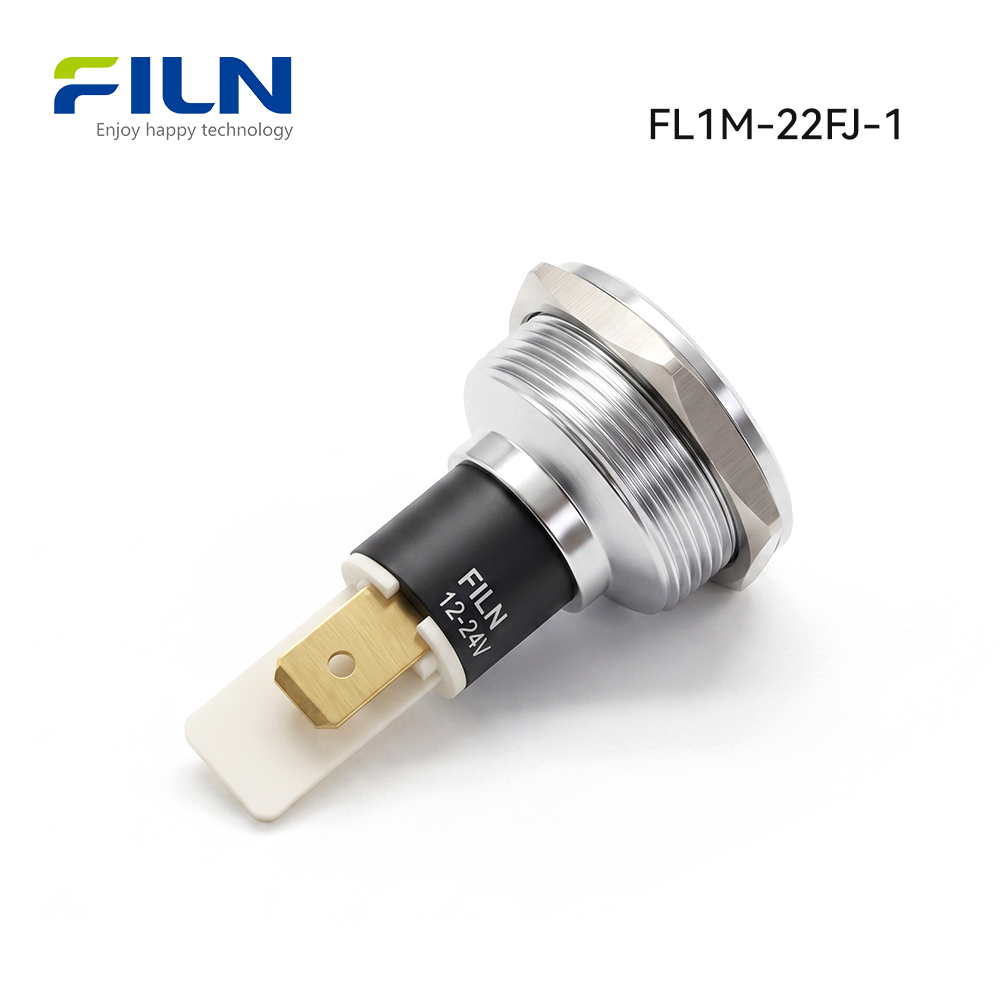

5. What is the difference between terminal pin and wire lead connection types?
Terminal pin models (such as the 2-pin 6.3mm width pins) allow quick push-on spade connector attachment and easy modular replacement. Wire lead models come with pre-attached PVC cables, saving installation time in tight spaces where soldering or connectors are less convenient.
6. Are custom wire lengths available for bulk OEM orders?
Yes, FILN offers full OEM/ODM customization services, allowing bulk buyers to specify custom wire lengths, specialized connector plugs, and custom wire harnesses.
7. What international certifications do FILN metal indicator lights carry?
FILN metal indicator lights are manufactured under ISO9001 quality systems and carry CE, VDE, RoHS, SGS, UL, and CCC certifications, ensuring compliance with global export standards.

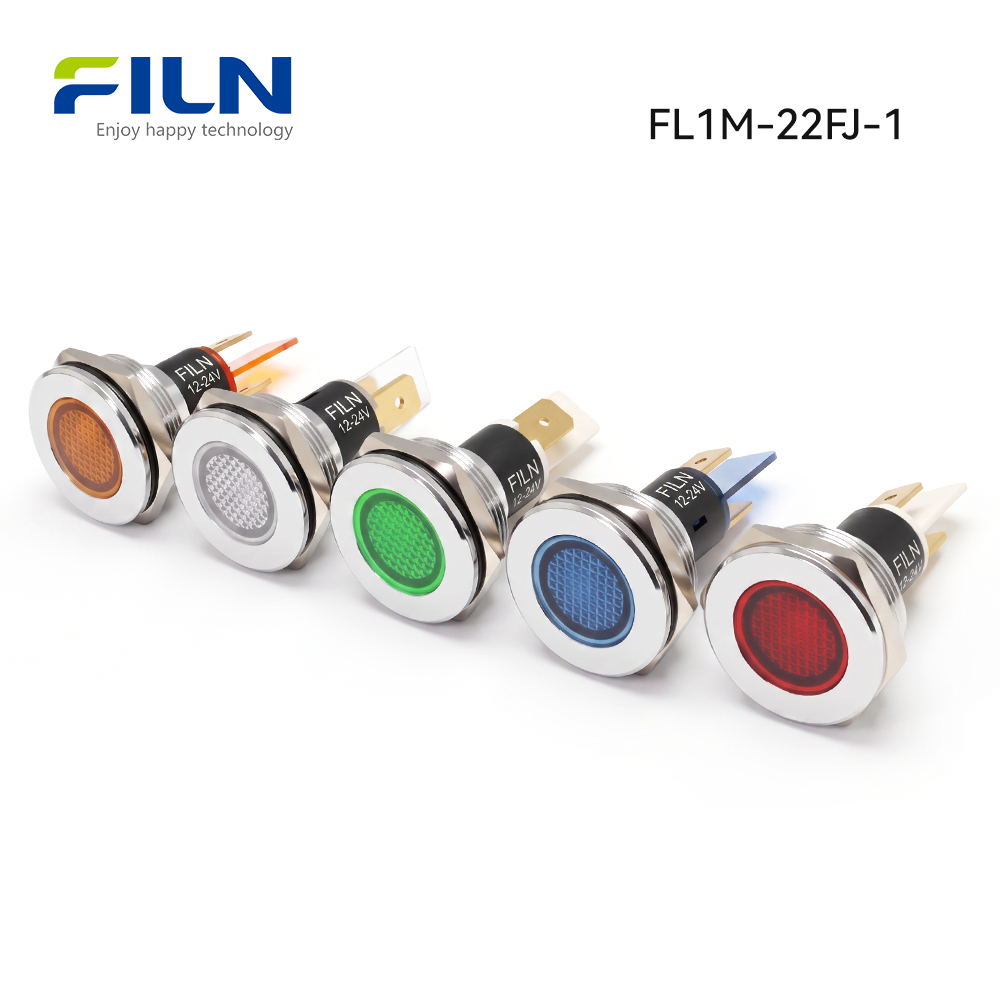

8. How does the flat head design affect light distribution?
The flat head design provides a flush, low-profile panel aesthetic with a wide 60-degree viewing angle, ensuring bright and clear status visibility from multiple operator vantage points.

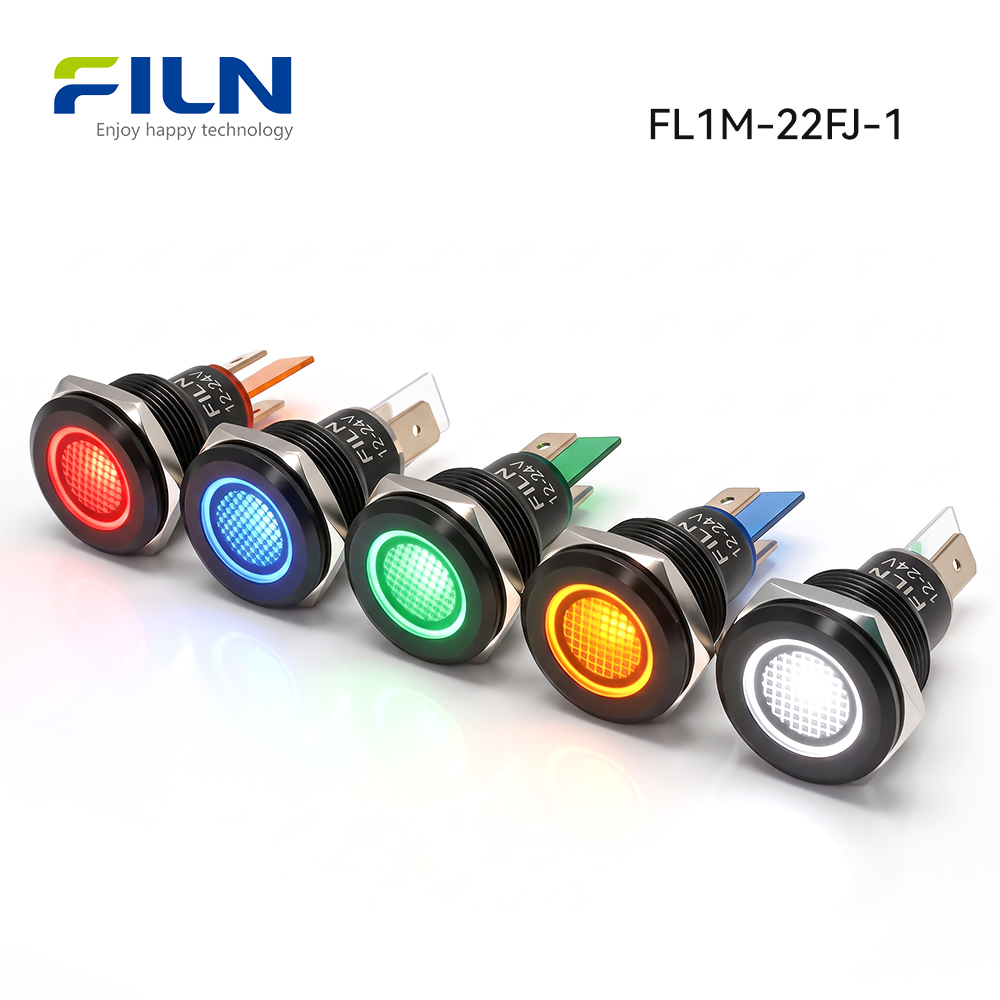

9. What materials are available for the indicator shell?
FILN offers nickel-plated brass, stainless steel, and black-plated zinc-aluminum alloy shells, catering to varying requirements for corrosion resistance and mechanical strength.

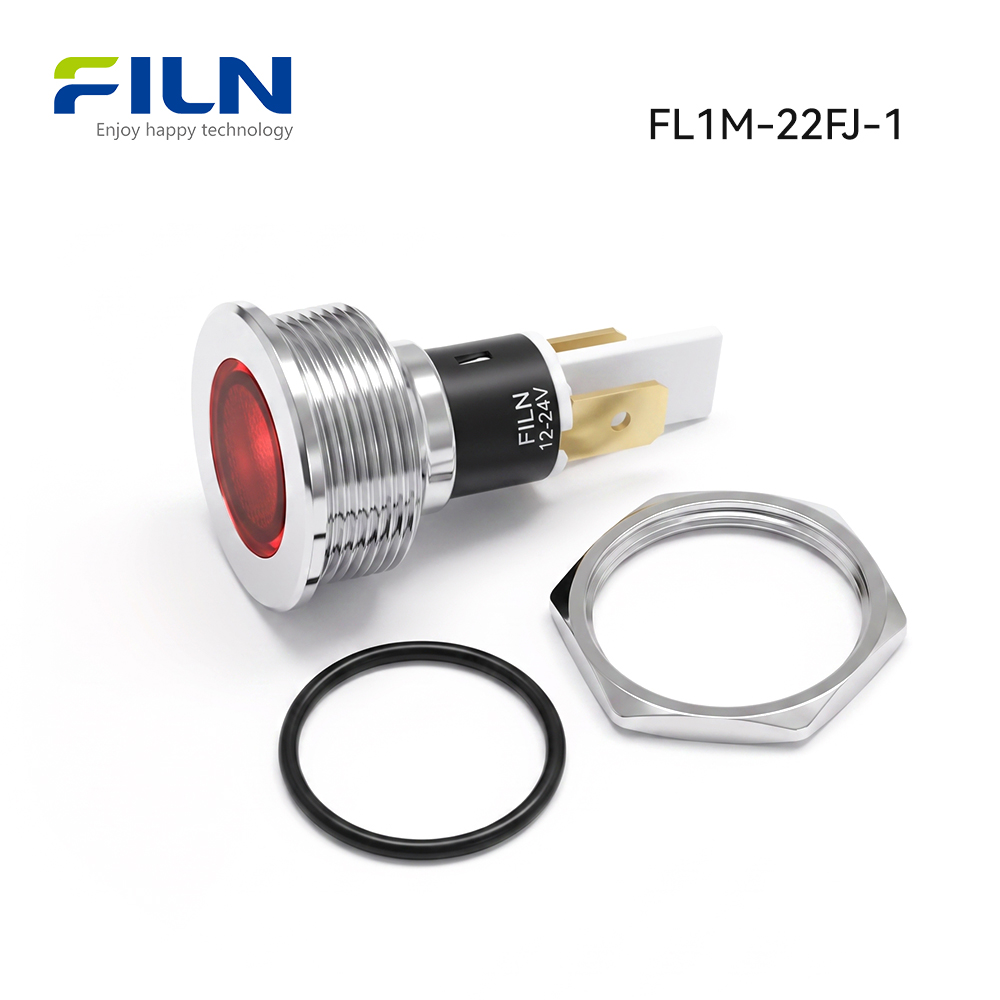

10. How is the waterproof seal achieved during installation?
Waterproofing is achieved by placing the included silicone O-ring between the indicator bezel and the front panel surface, then tightening the rear mounting nut to compress the seal and achieve an IP67 rating.
11. What is the typical lifespan of the LED luminescent source?
The high-brightness LED chipset is rated for an operational lifespan of 50,000 to 100,000 hours under standard electrical and environmental operating conditions.
12. Can FILN provide 3D CAD models for engineering integration?
Yes, engineers and procurement managers can request 3D CAD drawings and technical specification datasheets directly by emailing inquiry@cnylin.com.cn.
13. Is the indicator light compatible with both AC and DC power supplies?
Yes, internal configuration can be tailored for either AC or DC circuits, supporting frequencies of 50/60 Hz for alternating current applications.
14. What is the maximum panel thickness supported by the mounting hardware?
The standard threaded barrel accommodates panel thicknesses ranging from 1mm up to 6mm, with custom extended barrels available upon request for thicker enclosures.
15. How do metal indicators compare to plastic indicators in durability?
Metal indicators offer superior resistance to physical impact, UV degradation, high temperatures, and chemical exposure compared to standard plastic indicators which can become brittle or yellow over time.
16. What is the lead time for custom bulk orders?
Standard catalog items ship promptly from factory inventory, while custom voltage, wire length, or laser-marked OEM orders typically require standard manufacturing lead times confirmed during quotation.
17. Do you provide samples for testing before mass production?
Yes, FILN supports sample requests for engineering evaluation and prototype testing prior to committing to bulk wholesale production runs.
18. What is the purpose of the stainless steel plum blossom lock washer?
The plum blossom gasket bites into the mounting surface and nut threads, preventing the assembly from loosening under continuous machine vibration.
19. Can the indicator light be used in outdoor photovoltaic combiner boxes?
Yes, the wide operating temperature range (-40°C to +80°C) and IP67 weather resistance make it ideal for solar energy installations and outdoor combiner boxes.
