Indicator Light 22mm 24v High Head Metal LED Pilot Lamp 3-480V| FILN

Summary

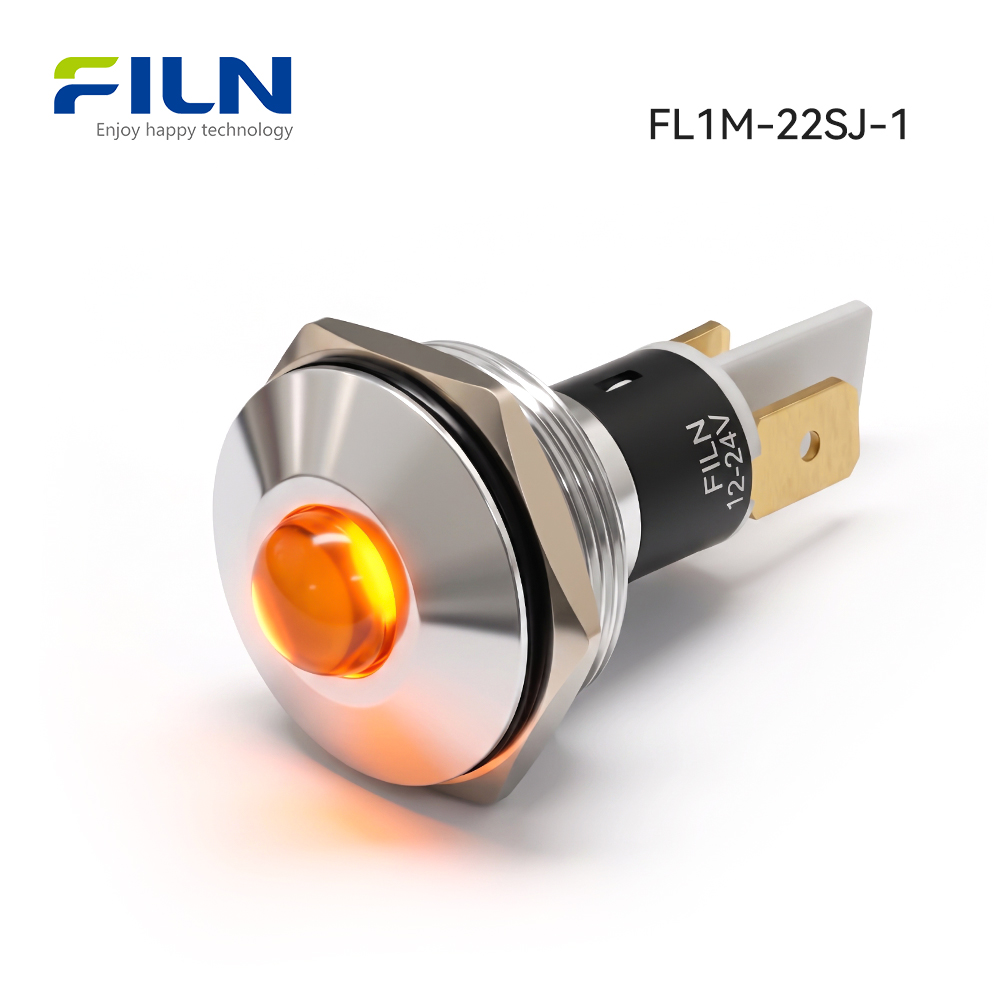

The indicator light 22mm 24v model FL1M-22SJ-1 is a heavy-duty industrial pilot lamp engineered and manufactured by FILN. Designed for electrical engineers, control panel builders, and B2B industrial equipment manufacturers, this high head metal indicator light provides clear visual status signaling across machinery, automation switchboards, and power distribution units. Featuring a durable copper alloy shell, an IP65 waterproof rating, and a secure 2PIN plug terminal configuration, it ensures reliable operation in demanding environments. FILN supports comprehensive bulk wholesale, OEM, and ODM customization options, providing flexible voltage ratings from 3V to 480V AC/DC and multiple LED color choices. Industrial buyers should confirm operating voltage requirements, mounting specifications, and environmental conditions prior to placing bulk orders to ensure optimal compatibility.

Key Takeaways

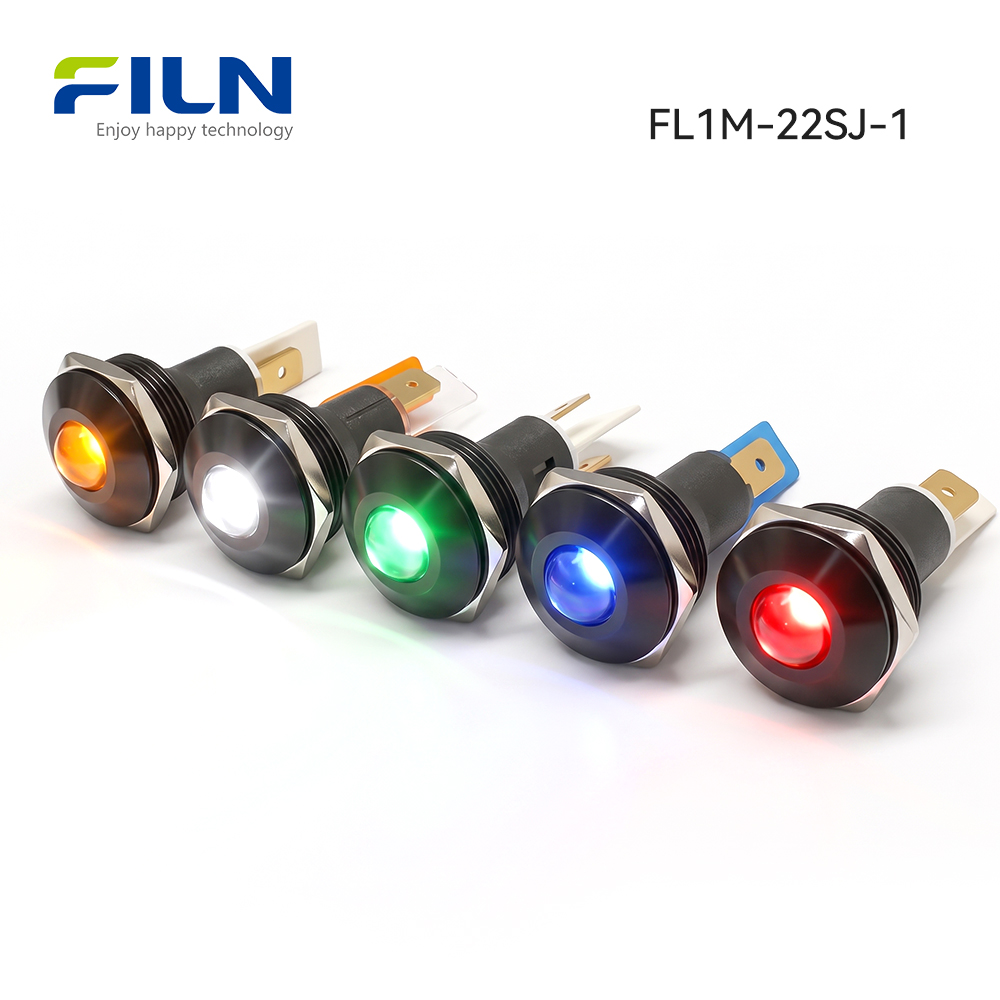

• The indicator light 22mm 24v model FL1M-22SJ-1 features a high head design for enhanced 180-degree optical visibility on crowded control panels.
• Constructed with a robust copper alloy shell, offering superior mechanical strength and impact resistance compared to standard plastic indicators.

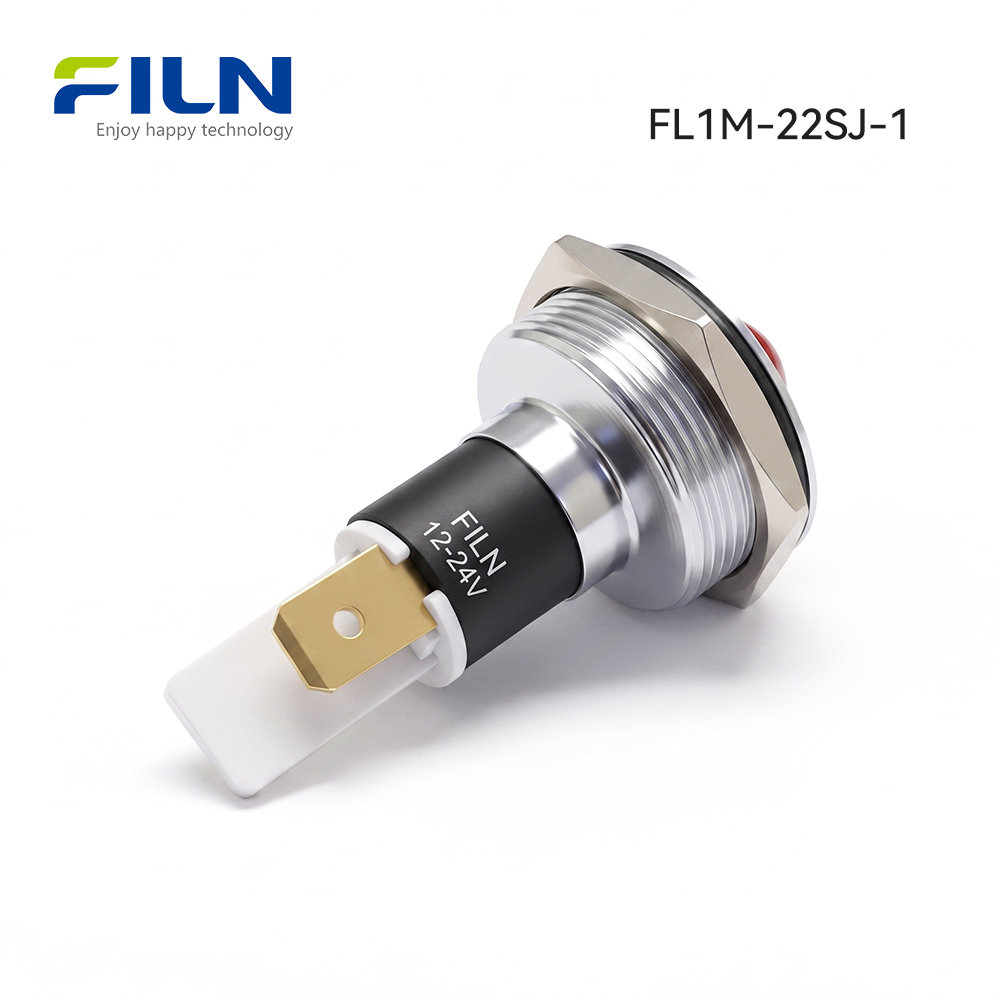

• Equipped with a dependable 2PIN plug terminal configuration for secure electrical connection and streamlined maintenance.

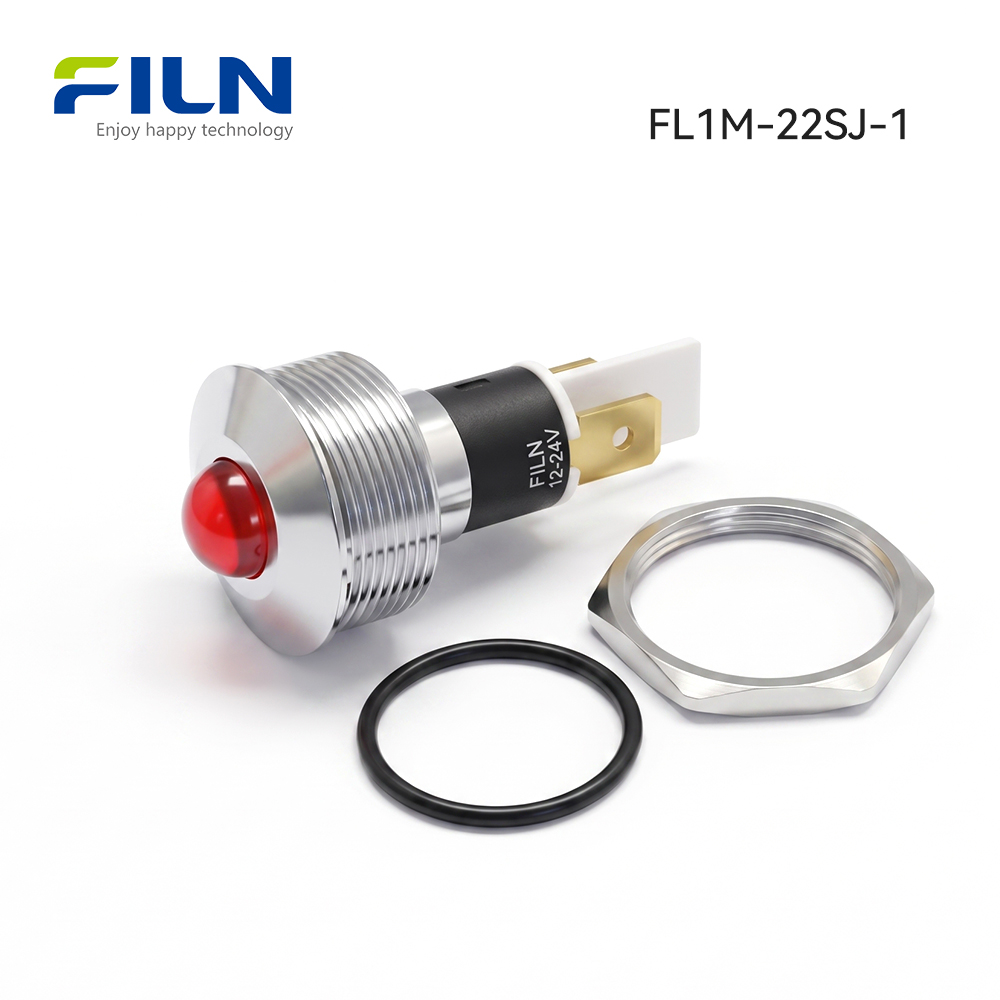

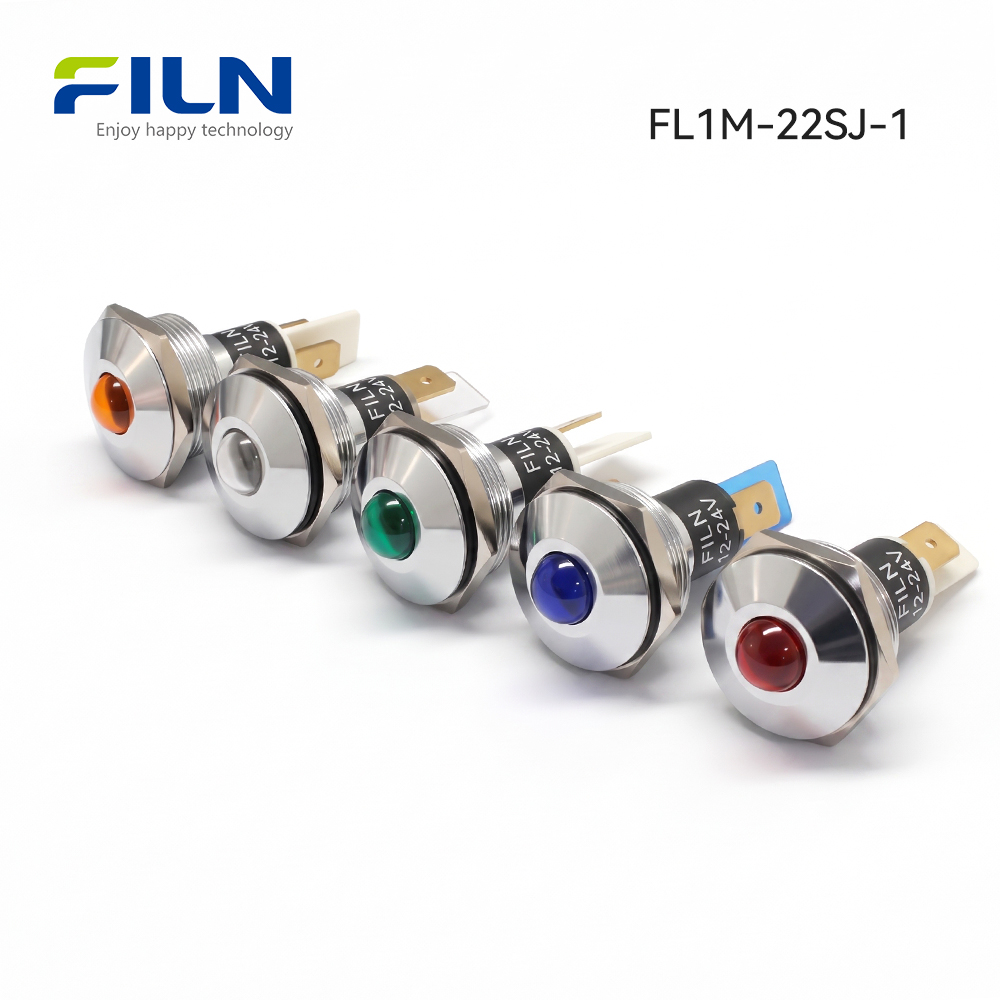

• Achieves an IP65 waterproof rating when installed with the included silicone sealing gasket and precision locking nut.

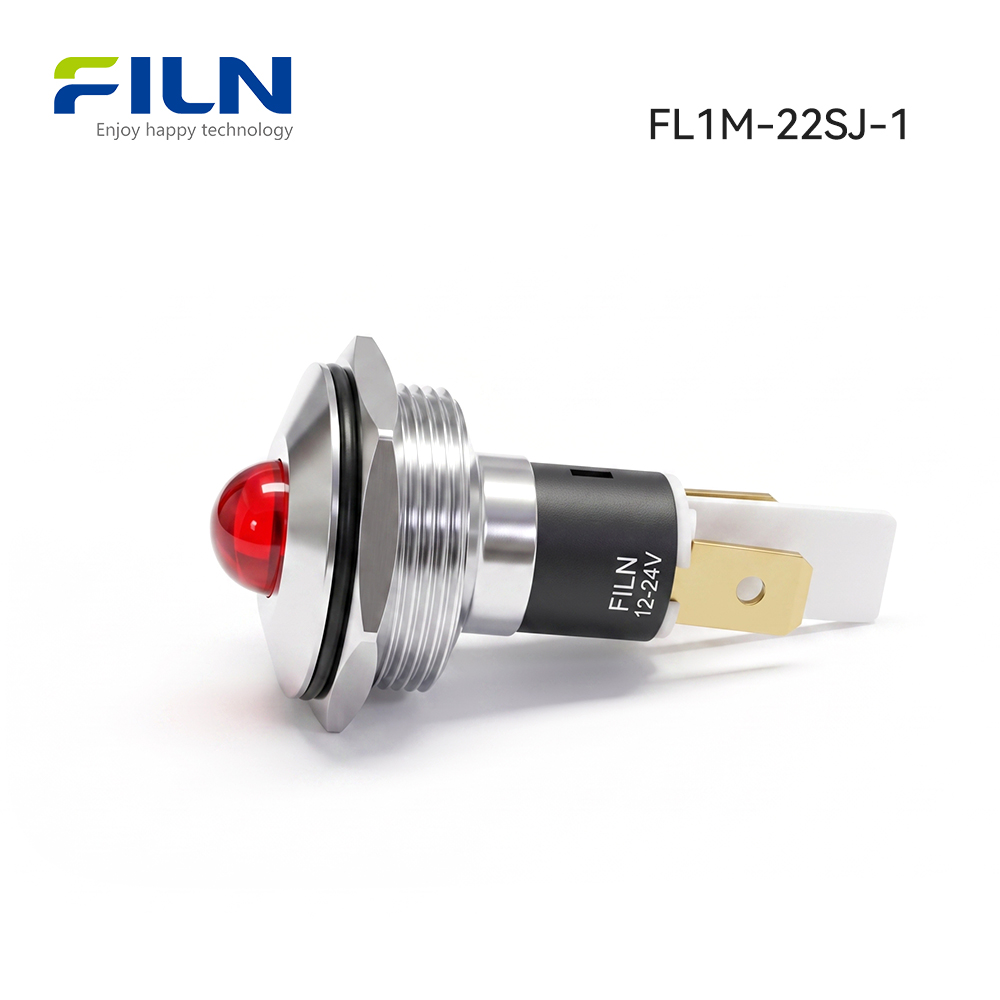

• Supports flexible operating voltages ranging from 3V to 480V AC/DC with customizable voltage specifications upon request.

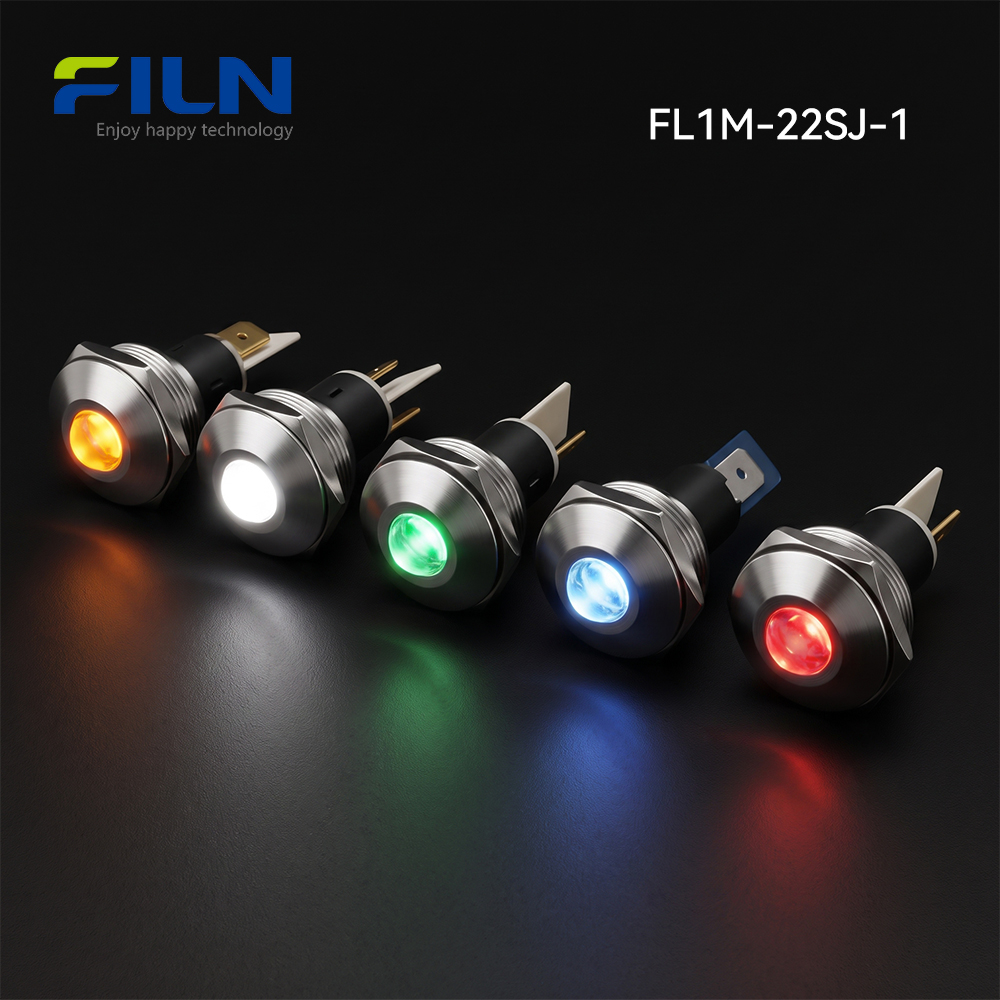

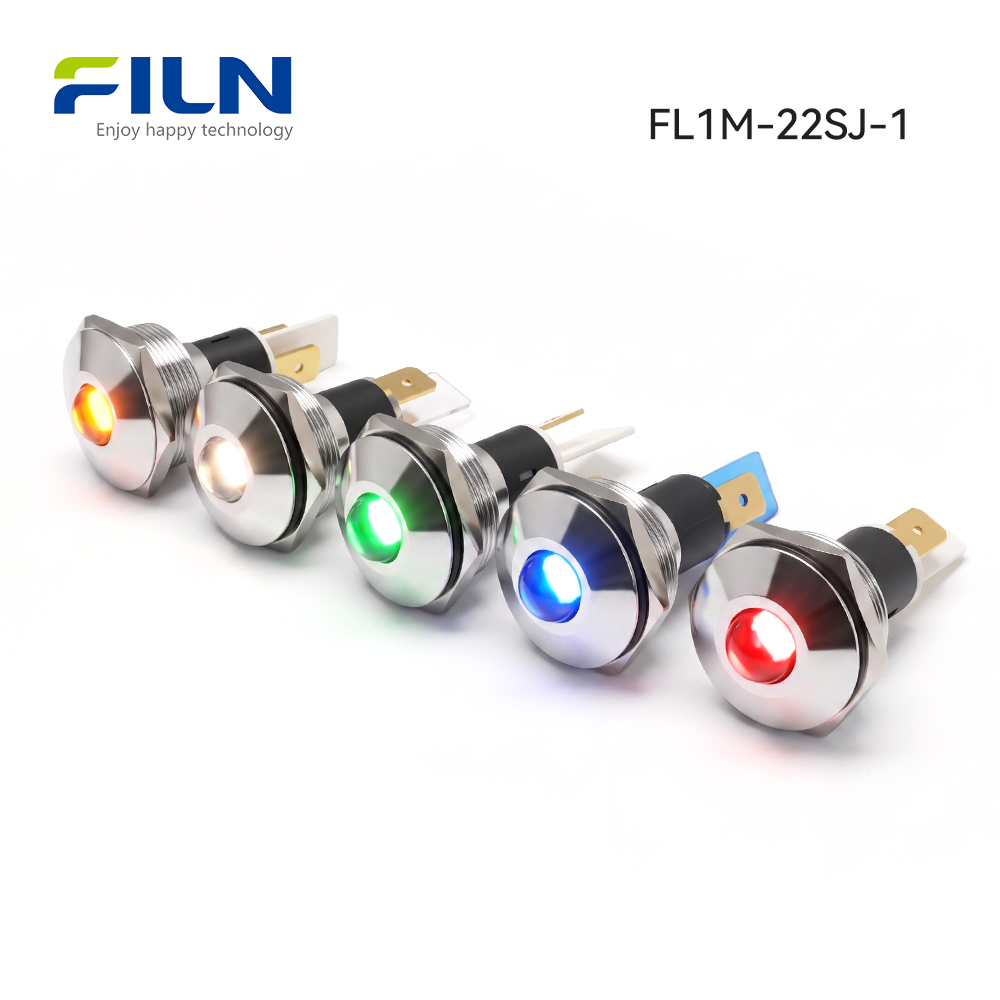

• Available in standard LED illumination colors including Red, Green, Yellow, Blue, and White for distinct operational status signaling.
• Designed for single-hole panel mounting with a standardized 22mm diameter cutout, simplifying equipment assembly.
• Manufactured directly by FILN with stringent quality controls, catering to global B2B wholesale, OEM, and custom industrial projects.

What is indicator light 22mm 24v

The indicator light 22mm 24v is a specialized electrical pilot device designed to visually communicate equipment operating status, power conditions, and fault alerts in industrial machinery. Structurally, it consists of a robust metal housing, a high-brightness internal LED light source, a protective lens, terminal pins, and a threaded mounting collar. Its primary purpose is to provide operators and maintenance personnel with instant visual feedback regarding circuit conditions. Indicator lights are manufactured in two core material categories: metal indicator lights and plastic indicator lights, spanning physical mounting sizes from 6mm to 30mm. Regarding electrical termination, buyers can choose between 2PIN plug-in terminal models and pre-wired lead configurations. Metal indicator lights feature three distinct head profiles—flat head, high raised head, and recessed head—allowing engineers to select the optimal physical appearance and visibility profile for specific application requirements.

Product Overview

The indicator light 22mm 24v model FL1M-22SJ-1 operates on core electromechanical principles to convert electrical signals into clear optical status indications. Electrically, when voltage is applied across the 2PIN terminals, current flows through the internal current-limiting resistor and high-brightness LED chip, generating concentrated light emission directed through the molded polycarbonate lens. Mechanically, the precision-machined copper alloy shell secures the internal optical components while providing structural rigidity against physical shock, vibration, and environmental ingress. Main applications encompass industrial automation control boards, electrical power distribution cabinets, CNC machine tools, and heavy equipment dashboards. Key industrial advantages include long operational lifespan, minimal power consumption, excellent thermal dissipation, and resistance to physical wear. Certified to rigorous international standards including CE, VDE, and RoHS, this indicator light delivers dependable performance for OEM system integrators worldwide.

Quick Specifications

Performance Parameters

Component Materials

The selection of high-grade engineering materials ensures the indicator light 22mm 24v maintains structural integrity and electrical reliability in corrosive or high-vibration industrial environments.

Environmental Performance

This specification defines the operational limits and environmental endurance standards for the indicator light series metal indicator light.

LED Specification

Absolute maximum ratings and electro-optical characteristics of the embedded LED chip utilized within the indicator light 22mm 24v.

Standard Test Conditions

Unless otherwise specified, all electrical and optical parameters are measured under standard atmospheric testing conditions:

• Ambient Temperature: 5℃ ~ 35℃
• Relative Humidity: 45% ~ 85%
• Air Pressure: 86 ~ 106 kPa (860 ~ 1060 mbar)

Notes: Luminous intensity and dominant wavelength are calibrated in accordance with CIE international standards for the human eye response curve. Measurement tolerances are ±15% for luminous intensity and ±0.1V for operating voltage.

Applications by Industry

Metal Indicator Light Application Guide: Metal indicator lights utilize high-strength copper alloy or stainless steel outer shells, offering exceptional impact resistance and an ingress protection rating of up to IP67 against dust and moisture, making them widely deployed across industrial and high-end commercial sectors. While conventional plastic indicator lights are prone to thermal aging, embrittlement, and high-temperature deformation over prolonged use, metal indicator lights are specifically engineered for harsh operating environments, frequent operation, and high-reliability requirements. Typical application sectors include:

1. Industrial Automation & Machinery Manufacturing

This sector represents the largest and most core application field for metal indicator lights, characterized by continuous mechanical vibration, oily environments, and debris impact.

• CNC Machine Tools & Machining Centers: Control panels utilize red, green, and yellow metal indicator lights where green denotes normal operation, yellow signifies standby/warning, and red indicates emergency stop or fault conditions. The metal shell withstands cutting fluids and metal shavings.
• Automation Production Line Control Cabinets: Large distribution and PLC control cabinets integrate 6mm, 8mm, and 22mm metal indicator lights supporting AC220V and DC24V to clearly display power circuit status.
• Hydraulic & Pneumatic Equipment: Applied to oil pump start/stop and pressure overload monitoring. Integrated wire-lead metal indicator lights feature robust internal LED and resistor connections that resist wire breakage under high-vibration conditions compared to pin-terminal variants.

2. Outdoor Power & Renewable Energy Distribution Systems

Outdoor equipment subjected to intense sunlight, precipitation, and extreme temperature fluctuations demands exceptional weather resistance.

• New Energy Charging Piles: Outdoor DC and AC charging stations are equipped with flat head metal status indicator lights. Flashing blue/green denotes active charging, solid light indicates completion, and flashing red warns of leakage or grounding faults. IP67 waterproof construction and vandal resistance ensure reliable public operation.
• Outdoor Distribution & Solar Combiner Boxes: Solar photovoltaic power plants and municipal outdoor distribution boxes utilize indicators to display high-voltage closing and inverter running status across a -40℃ to 80℃ temperature range.

3. Rail Transit, Engineering Vehicles & Marine Equipment

Vehicles and marine vessels experience severe mechanical shock, vibration, and saline maritime corrosion.

• Engineering Vehicle Dashboards: Excavator, crane, and bulldozer control panels employ indicators for oil pressure, water temperature, headlights, and braking fault alerts, withstanding heavy dust and vibration.
• Marine & Port Control Equipment: Cabin instrumentation and deck control boxes utilize electroplated stainless steel metal indicators to resist salt-fog corrosion, paired with silicone sealing rings to prevent saltwater ingress.

4. Commercial Vending & Public Security Facilities

Public-access equipment is vulnerable to physical impact and vandalism, where plastic components easily crack.

• Vending & Ticketing Machines: Paired with vandal-resistant metal push buttons to indicate coin insertion, dispensing, and change status.
• Gas Station Dispenser Panels: Hazardous explosive environments require robust electrical isolation, which metal housings achieve effectively.
• Outdoor Intercom & Access Control: Stainless steel intercom panels incorporate red and green indicators to display lock release status.

5. Medical Equipment & Food Processing Machinery

These industries require frequent chemical washing, sterilization, and strict cleanliness standards.

• Food Bottling & Packaging Equipment: Subjected daily to high-pressure hot water and chemical washdowns; IP67 metal indicators resist spray corrosion.
• Medical Sterilizers & Lab Benches: High-temperature autoclaves utilize indicator lights to distinguish heating, sterilization, and exhaust phases.

Summary: While standard plastic indicators degrade and yellow under ultraviolet exposure or crack from vibration, FILN metal indicator lights utilize copper alloy shells, silicone waterproof O-rings, and robust internal construction to provide an optimal, failure-resistant solution for industrial equipment.

LED Indicator Color Meanings and Application Guide

Indicator light colors convey critical operational states across industrial machinery. Below is an engineering guide to standard color conventions used with the indicator light 22mm 24v series.

Note: Indicator light color conventions can vary by equipment manufacturer, control system design, industry standard, and regional requirements. FILN offers single-color, dual-color, and tri-color configurations to match custom engineering specifications.

Recommended Similar Products

Depending on your panel cutout requirements, FILN manufactures a comprehensive range of metal indicator lights across multiple sizing tiers:

Installation Guide

Proper installation ensures reliable electrical contact and maintains the IP65 waterproof integrity of the indicator light 22mm 24v on equipment control panels.

1. Tools Preparation: Gather a punch tool, drill with a 22mm hole saw or step drill bit, wire stripper, crimping tool, and multimeter.
2. Panel Preparation: Measure and mark the precise mounting location on the control panel sheet metal.
3. Mounting Hole Execution: Drill a clean 22mm diameter hole through the panel, removing all burrs and metal shavings to ensure a flat seating surface.
4. Gasket Placement: Place the waterproof silicone sealing ring onto the threaded body of the indicator light from the front.
5. Product Insertion: Insert the indicator light body through the 22mm panel hole from the front side.
6. Secure Fastening: Thread the metal locking nut onto the rear housing barrel and tighten securely against the rear of the panel.
7. Electrical Wiring: Connect the 24V power supply leads to the 2PIN terminals using appropriate receptacle connectors or soldered joints.
8. Post-Installation Inspection: Verify circuit polarity, ensure mechanical rigidity, and test LED illumination before energizing the main system.

Wiring Guide & Terminal Comparison

Understanding terminal connection types is essential for efficient control panel assembly. Pin-terminal indicators require quick-disconnect receptacles or direct soldering, whereas pre-wired indicators feature integrated wire leads that can be connected using quick-link wire connectors, solder, or electrical insulation tape to guarantee joint stability. Note: Always disconnect main power supplies and verify zero energy state before performing electrical wiring.

Industry Knowledge Center

Industrial indicator lights are essential human-machine interface components. Understanding their operational principles, selection criteria, and maintenance guidelines ensures long-term system reliability. Engineers must evaluate electrical load parameters, operating voltage thresholds, and environmental sealing requirements. Common failure modes such as LED dimming or terminal oxidation are typically prevented by selecting high-grade copper alloy housings and adhering to strict ambient temperature limits.

Buyer Decision Guide & Material Selection

Selecting the correct metal indicator light requires evaluating environmental exposure, electrical compatibility, and mechanical mounting constraints. FILN provides metal indicator shells in Nickel-Plated Brass, Stainless Steel, and Zinc-Aluminum Alloy to suit diverse operating environments.

FILN Manufacturing and Engineering Capabilities

Yueqing Yulin Electronic Co., Ltd. (FILN) maintains advanced in-house manufacturing, R&D, and rigorous testing capabilities to support global B2B clients. FILN provides dedicated engineering communication, custom voltage configuration, OEM/ODM production support, and rigorous electrical testing for every batch produced. For procurement managers, this translates into reliable supply chain continuity, verified compliance standards, and custom technical support tailored to specific industrial applications.

Factory Direct Supply

Yueqing Yulin Electronic Co., Ltd., brand name FILN, located in Wenzhou, Zhejiang, was established in 2006 as a professional electrical switch manufacturer integrating R&D, production, and sales. Its premium FILN brand products are sold in over 100 countries. FILN operates a modern 10,000 m² facility with 20+ advanced production lines and an independent testing lab. Driven by scientific processes and the ISO9001 quality system, FILN ensures industry-leading innovation and electrical performance. Our certified products (UL, CE, RoHS, REACH, TUV, CB) are widely used in kitchen appliances, energy storage, EV charging, automotive, marine, and security systems.

• Production Capabilities: Indicator lights, pushbutton switches, rocker switches, toggle switches, and other small electrical components with full custom manufacturing support.
• Quality System: Certified under ISO9001, CE, VDE, RoHS, SGS, UL, IP65, and TUV standards.
• Export Markets: Global sales distribution across North America, Europe, Asia, and South America.
• Manufacturing Advantages: Professional engineering consultation and expert custom solution development for complex electrical challenges.
• Official Website: www.filn.com
• Inquiry Email: inquiry@cnylin.com.cn

Frequently Asked Questions
