Blue LED Indicator Light Chrome Plated Brass Panel Mount 2PIN Wired Signalling Lamp FILN

KEY TAKEAWAYS FOR PROCUREMENT ENGINEERS

• Factory-Direct Sourcing: Procure directly from FILN, a specialized manufacturer established in 2006, ensuring competitive wholesale pricing and scalable OEM/ODM capabilities.
• High-Visibility Geometry: The high-dome configuration of this Blue LED Indicator Light guarantees exceptional side-angle visibility, surpassing conventional flat or recessed indicators.
• Pre-Wired Efficiency: Equipped with an integrated 2PIN wire lead layout featuring dual 20cm lines (40cm total), slashing assembly line labor and wiring errors.
• Broad Voltage Adaptation: Engineered to support operational parameters ranging from 3V to 220V AC/DC, providing absolute compatibility with standard industrial infrastructure.
• Severe Weather Proofing: Dual IP65/IP67 sealing achieved via an engineered silicone O-ring prevents moisture, oil, and dust ingress during high-pressure washdowns.
• Rugged Metallurgy: Built with a heavy-duty chrome-plated brass or zinc-aluminum alloy shell that outperforms brittle plastic indicators under high mechanical impacts.
• Certified Compliance: Comprehensively certified under CE, VDE, RoHS, ISO9001, and CCC frameworks to meet rigid international safety standards.
• Zero Minimum Order: Flexible B2B procurement policies with no MOQ requirements enable smooth prototyping, testing, and just-in-time logistics.

WHAT IS A BLUE LED INDICATOR LIGHT?

An industrial Blue LED Indicator Light is a ruggedized optoelectronic component designed to transmit precise system-state data to equipment operators. Operating as a critical pilot signal within human-machine interfaces (HMI), this heavy-duty metal component converts electrical energy into an intense, monochromatic blue visual output. Its primary function centers on signaling specific, non-hazardous operational parameters, such as a process completion state, active remote control engagement, or specialized system readiness inside power distribution grids.

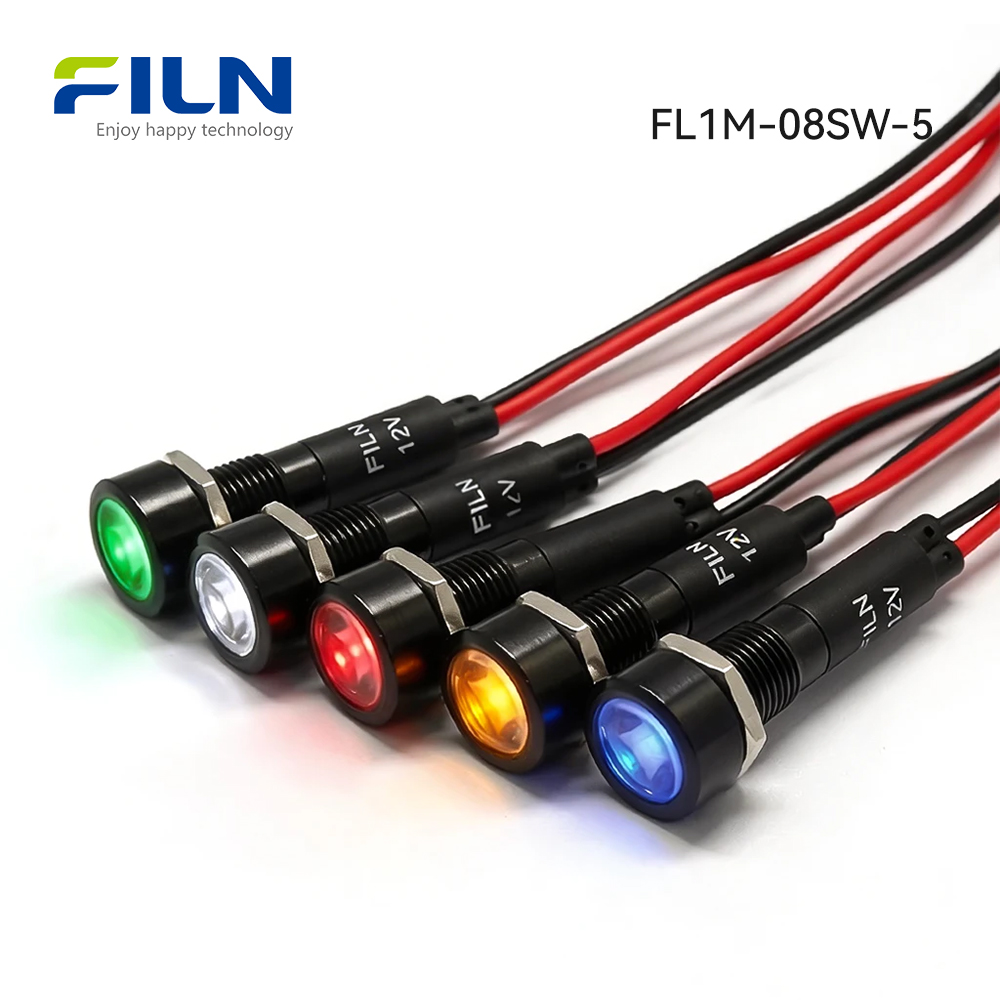

FILN provides an expansive selection of signaling options divided into two primary structural families: metal indicator lights and plastic indicator lights. Panel mounting apertures span precise diameters from 6mm up to 30mm, ensuring complete mechanical integration with both compact instrument arrays and massive power plant control faces. To accommodate diverse manufacturing workflows, electrical terminations are available in either traditional solder pin type terminals or pre-assembled integrated wire lead type configurations.

The metallic signaling line is manufactured across three distinctive aesthetic and ergonomic profiles: flat head, prominent round/convex head, and recessed/concave head geometries. These architectural options allow automation system integrators to select the optimal component matching their specific tactile and spatial requirements. The high-dome version featured on this page projects the optical output clear of the bezel face, maximizing viewing angles across complex control facility floor layouts.

PRODUCT OVERVIEW & TECHNICAL PRINCIPLES

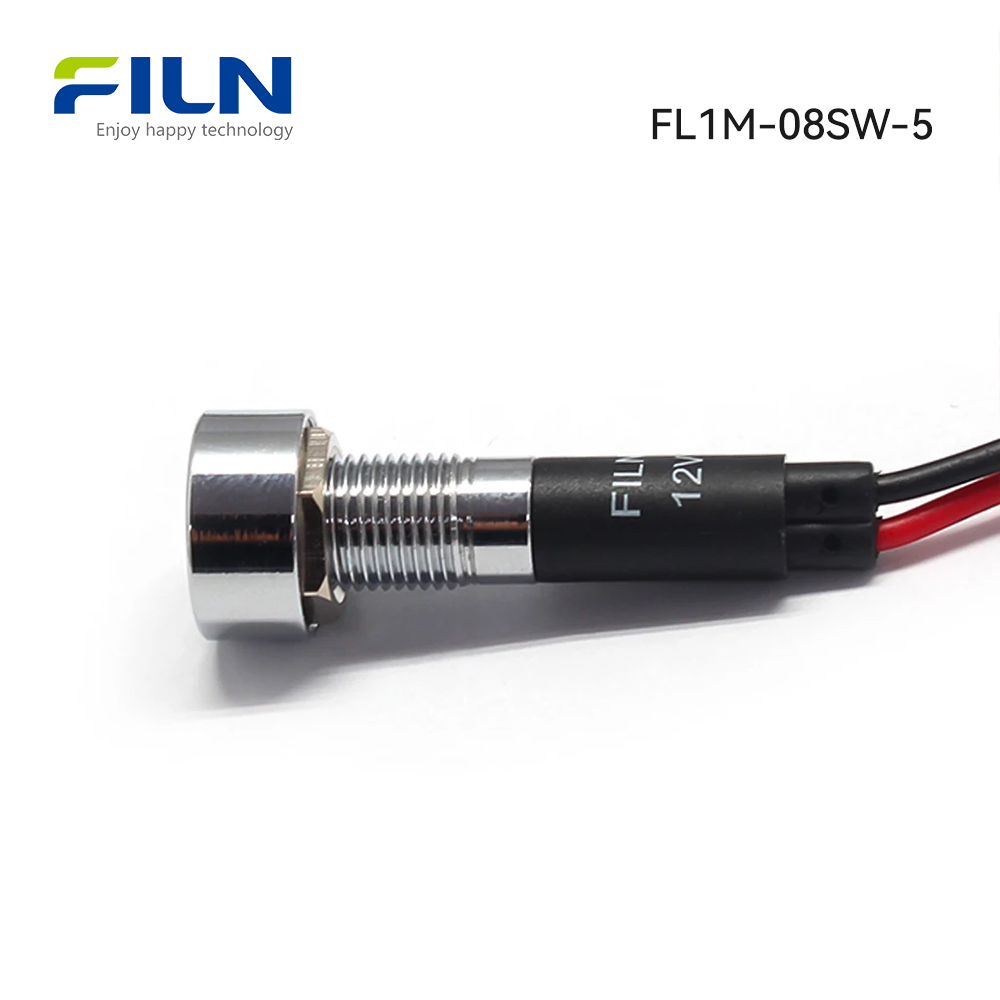

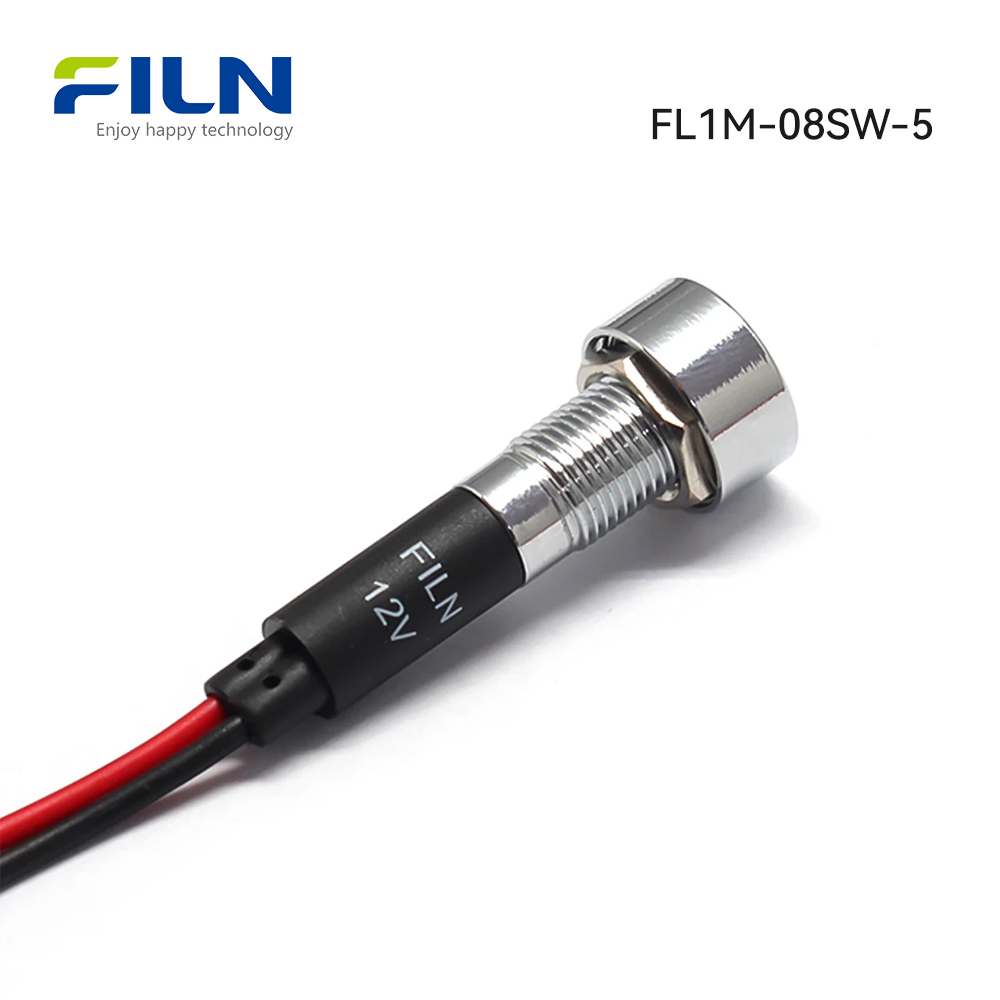

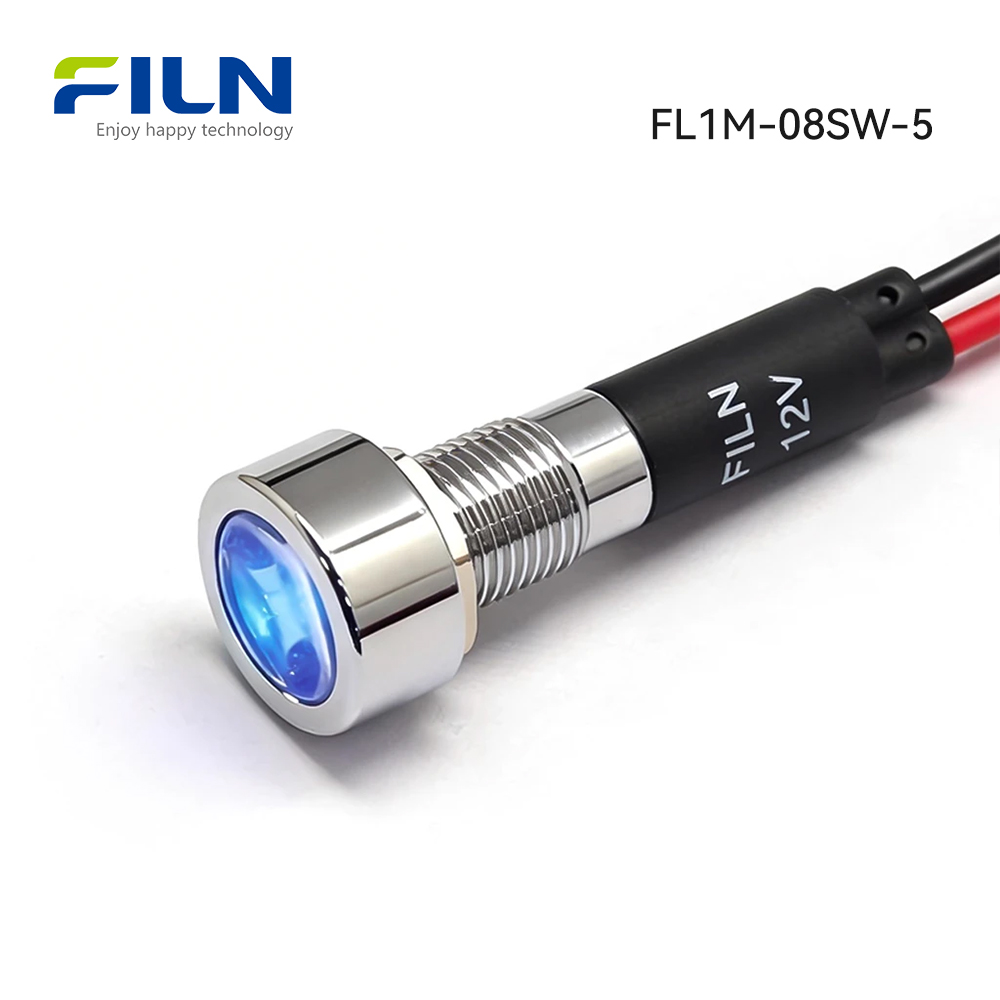

The FILN FL1M-08SW-5 Blue LED Indicator Light serves as a self-contained, panel-mounted signaling assembly. Mechanical stability is achieved via a single-nut thread engagement system that clamps securely onto any 8mm or 0.315-inch industrial panel cutout. Internally, the component joins a high-grade InGaN (Indium Gallium Nitride) semiconductor chip with an optimized current-limiting carbon film resistor, guaranteeing uniform luminance and eliminating flickering across long-term deployments.

From an electrical standpoint, the integrated circuitry is engineered to manage fluctuating source currents, protecting the solid-state emitter from voltage spikes. The 2PIN dual-conductor wiring setup consists of independent 20cm leads that maintain absolute electrical isolation from the exterior conductive housing. This internal isolation layout eliminates grounding hazards, allowing control panel builders to safely execute rapid electrical hookups inside high-density multi-circuit switchgear boxes.

The primary advantages of this industrial component stem from its premium material composition. The exterior shell is machined from high-strength copper alloy with a brilliant chrome plating that resists airborne oxidants, common solvents, and structural impacts. Sealed to IP65/IP67 standards via a resilient silicone O-ring, it stands as an optimal choice for automated food-processing equipment, medical sterilizers, and commercial outdoor vehicle systems requiring consistent, long-term operations.

QUICK SPECIFICATIONS TABLE

CRITICAL PERFORMANCE PARAMETERS

ENGINEERED COMPONENT MATERIALS MATERIAL SELECTION

ENVIRONMENTAL RELIABILITY STRESS EVALUATION

This specification defines the universal deployment environmental parameters for the FILN Metal Indicator Light series. Every production batch undergoes rigorous laboratory environmental validation to confirm steady operation inside intense manufacturing environments.

SOLID-STATE LED SEMICONDUCTOR SPECIFICATIONS

1. Absolute Maximum Ratings (Emitter Safe Limits)

2. Electro-Optical Characteristics (Measured at Ambient Temperature Ta=25°C)

CALIBRATED STANDARD TEST LAB CONDITIONS

Unless explicitly noted otherwise within our technical documentation, all critical electrical, physical, and optical parameters are systematically measured under the following standardized laboratory atmospheric controls:

Technical Engineering Notes: Luminous intensity outputs and dominant peak optical wavelengths are fully calibrated in compliance with the CIE international standard human eye response curve matrix. Measurement safety tolerances are restricted to ±15% for luminous intensity output and ±0.1V for absolute forward voltage verification.

APPLICATIONS BY INDUSTRIAL ENVIRONMENT

Industrial metal indicator lights, constructed with heavy-duty chrome-plated copper alloy casings, deliver excellent mechanical impact resistance. Certified with an IP67 protection rating against liquid and dust penetration, these rugged components excel across tough industrial operations where conventional plastic lamps suffer from thermal cracking, UV degradation, or stress fracturing under machine vibration.

1. Industrial Automation & Machinery Manufacturing

This domain represents the primary deployment footprint for premium Blue LED Indicator Light systems. Automated shop floors expose electrical controls to constant structural vibration, flying metal fragments, and aggressive cutting fluids. Inside CNC machining centers and high-speed milling blocks, these high-dome metal lamps are integrated directly into control stations to show specific processes like active coolant cycle deployment, automatic tool changer lock, or structural fault alerts. The robust metal exterior shields the sensitive internal electronics from oil film buildup and flying debris.

2. Outdoor Electrical Infrastructure & Renewable Energy Distribution

Outdoor grid installations expose control boxes to intense UV rays, persistent rain, and steep thermal shifts. On commercial DC/AC EV charging infrastructure, a prominent high-dome Blue LED Indicator Light serves as an external status beacon, signaling that an active vehicle charging cycle is currently underway or indicating an insulation fault condition. Protected by a tight silicone seal, these units are fully shielded from outdoor moisture intrusion and vandal attacks in public stations.

3. Transit Systems, Engineering Vehicles & Marine Environments

Heavy machinery operates under continuous structural vibrations, while marine vessels face highly corrosive saltwater spray. On earthmoving control boards and deep-sea control panels, FILN pre-wired indicator light assemblies withstand persistent mechanical shocks. Selecting a corrosion-resistant chrome-plated brass or stainless steel alloy housing ensures long-term operational integrity and complete salt fog immunity.

4. Public Self-Service Terminals & Vandal-Prone Systems

Vending platforms, ticketing equipment, and automated fuel dispensers require heavy-duty components to resist physical impact and structural abuse. Integrating a metal Blue LED Indicator Light alongside anti-vandal pushbuttons provides a durable user interface. The tight metal housing prevents internal component dislodgement and ensures high electrical isolation in hazardous fuel-dispensing zones.

5. Medical Systems & Food Processing Machinery

Hygiene-sensitive sectors rely on aggressive daily high-pressure spraydowns and caustic chemical washdowns. The IP67-rated metal indicators block hot water jets and sanitation chemicals, maintaining crystal-clear optical clarity inside industrial food packaging lines and medical pressure-cooker sterilizers without structural cracking.

CHROMATIC SIGNALING SIGNIFICANCE IN MODERN CONTROL INTERFACES

Industrial signaling standards mandate specific color codes across human-machine interfaces to avoid confusion on the shop floor. Utilizing a dedicated Blue LED Indicator Light serves as a targeted signal indicating an authorized process command, an active maintenance cycle, or an operator action requirement. This distinct blue wavelength stands out clearly against common red and green ambient alarms, preventing visual fatigue for control tower personnel.

To help engineers structure their panel safety layouts, the global functional meanings of the five primary industrial colors are detailed below:

• RED: Emergency Status / Immediate Action Required. Signals immediate system failures, over-temperature thresholds, or active emergency stop engagement.
• GREEN: Normal Operational Profile / Safe System State. Confirms that all circuits are functioning within standard bounds and the line is running smoothly.
• YELLOW / AMBER: Marginal Alert / Pre-Critical Threshold. Identifies an abnormal system state, operational delay, or a thermal parameter approaching critical safety limits.
• BLUE: Mandatory Intervention / Defined System Reset. Signals that an operational sequence requires an manual adjustment or a localized safety reset.
• WHITE: Neutral Monitoring / Voltage Presence Tracker. Acts as a simple power-on confirmation signal across high-voltage distribution networks.

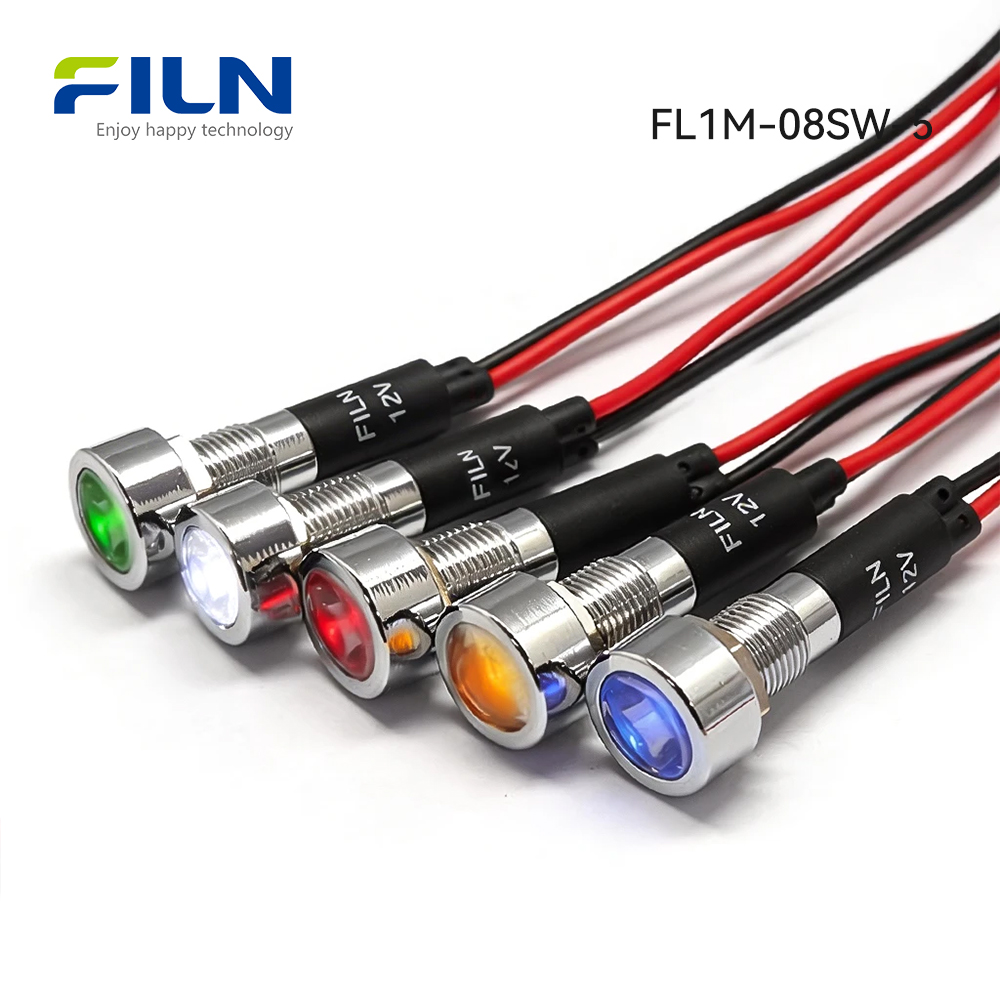

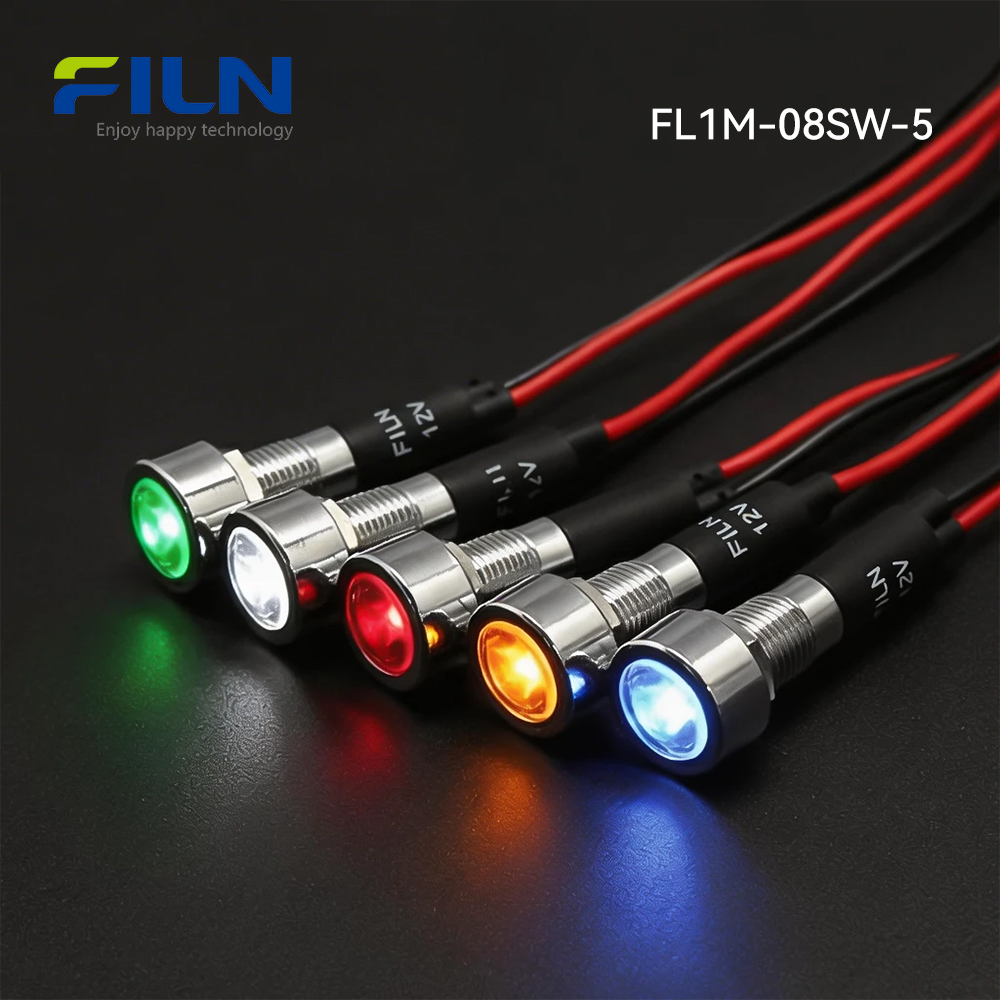

To accommodate advanced automated control interfaces, FILN manufactures specialized bi-color and tri-color LED indicator lights within single compact housings. These multi-color configurations allow engineers to track complex operational stages through a single panel hole, optimizing space and cutting overall hardware costs on dense control panel assemblies.

STEP-BY-STEP MECHANICAL PANEL INSTALLATION

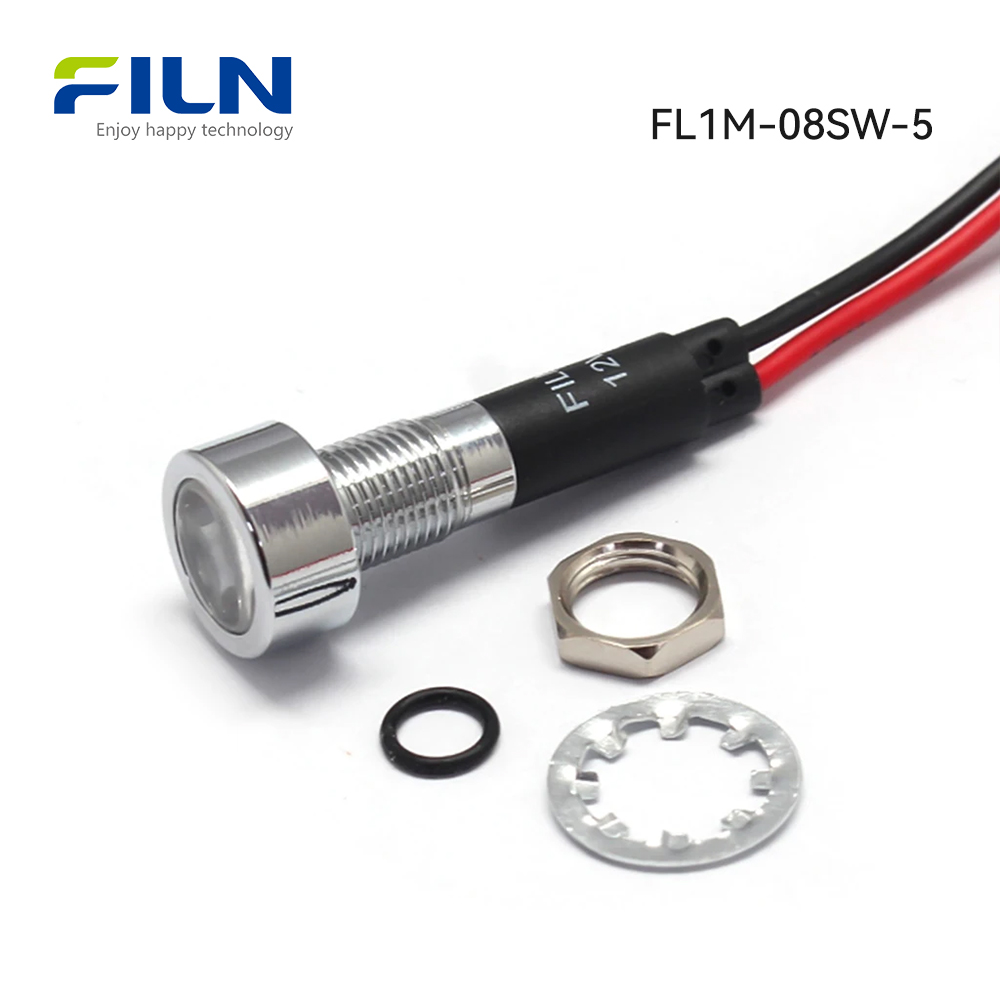

Properly mounting the FILN FL1M-08SW-5 high-dome indicator light involves a straightforward mechanical sequence. This panel-mount component utilizes an integrated single-nut thread engagement layout to establish an airtight, dustproof structural fitment on the control board face.

1. Panel Cutout Preparation: Punch or drill a precise 8mm circular aperture through the target control panel board, ensuring all internal edges are completely deburred.
2. Sealing Gasket Alignment: Position the included silicone rubber O-ring seal onto the threaded metal body of the indicator lamp, sliding it flush up against the front bezel face.
3. Front Face Insertion: Feed the 2PIN wire leads from the front side of the panel down through the 8mm cutout, sliding the main metal body in until the silicone washer meets the panel.
4. Rear Locknut Engagement: Slide the stainless steel locking washer and the brass hex nut over the wire leads from behind, threading them onto the rear metal housing.
5. Torque Tightening: Tighten the rear hex nut to compress the front silicone washer firmly, creating a reliable, vibration-proof IP65/IP67 hermetic barrier.
6. Circuit Line Connection: Strip the pre-wired conductor ends and splice them into the active status monitoring circuit board using standard terminal locks.

ELECTRICAL WIRING APPLICATION GUIDE

Managing electrical connections efficiently depends heavily on the termination layout chosen for the indicator light. Pre-wired indicators feature integrated wire leads extending from a sealed epoxy base, which speeds up assembly and shields the internal current-limiting components from ambient moisture or oil contamination. Field technicians can easily wire these leads into existing terminal blocks, secure them with lever-lock terminal connectors, or solder them directly onto a busbar interface covered by heat-shrink tubing.

To help integration teams choose the best termination style for their production workflows, the core engineering trade-offs of different wiring layouts are detailed below:

INDUSTRIAL SIGNALING KNOWLEDGE BASE

Modern industrial automation setups require control panel components that deliver steady performance across extended running hours. Choosing high-brightness solid-state LEDs over legacy incandescent bulbs provides excellent resistance to mechanical shocks, minimizes current draw, and lowers thermal footprints inside sealed electrical enclosures.

A common issue for engineers is “phantom illumination,” where an indicator shows a faint glow even when the control switch is open. This faint glowing is typically caused by induced stray voltages or minor leakage currents traveling along long parallel wire runs inside dense wire trays. FILN counteracts this issue by optimizing the internal resistance profiles of our Blue LED Indicator Light assemblies, ensuring the emitter activates only when the true driving voltage threshold is reached.

To keep system downtimes to a minimum, field technicians should follow a straightforward maintenance routine. This includes checking for tight locknut torques on high-vibration machinery, inspecting wire lead jackets for thermal cracking, and wiping down front lenses to maintain clear visibility. If an indicator stops glowing completely, technicians should test for incoming line voltage using a standard multimeter, verify the ground circuit continuity, and check that current spikes haven’t tripped the main sub-circuit protection fuse.

B2B BUYER STRUCTURAL PROCUREMENT GUIDE

Sourcing engineers must evaluate multiple mechanical and environmental factors when selecting indicating lamps to ensure long-term field reliability. The primary choice centers on matching the structural environment with either chrome-plated copper alloys or plastic housings. While engineering plastics work well for light-duty commercial appliances, heavy-duty industrial machinery exposed to oil spray and impacts requires a rugged metal indicator.

The panel cutout diameter directly affects the mechanical layout of the control face. Choosing a compact 8mm mounting profile like the FL1M-08SW-5 allows system designers to build high-density signaling arrays without sacrificing structural space. Additionally, selecting a high-dome lens over a flat profile ensures operators can spot critical system alerts from side angles across the shop floor.

Finally, technical buyers must confirm that components carry valid safety certifications to ensure smooth compliance approvals. Sourcing indicators with CE, VDE, RoHS, and CCC marks verifies that the parts have undergone thorough laboratory testing for dielectric strength and flame safety. Working with an established manufacturer like FILN guarantees consistent batch quality, steady electrical performance, and access to custom engineering support for specialized industrial projects.

WHY PROCUREMENT ENGINEERS TRUST FILN MANUFACTURING

FILN stands as a premier direct manufacturer of high-performance signaling components, serving industrial control panel builders and automated equipment manufacturers worldwide. By running a fully integrated production facility, we eliminate third-party supply chain markups, passing the direct cost savings on to our B2B customers. Our zero-MOQ policy allows engineering teams to order exact quantities for rapid prototyping or small-batch custom machine builds.

Our advanced production lines deliver short lead times and flexible custom modifications, including tailored wire lead lengths, specialized connectors, and custom voltage resistors. Every production run undergoes strict quality control in our independent testing lab to verify ingress sealing and dielectric endurance. Backed by comprehensive global certifications, FILN provides reliable components and expert engineering support to keep your manufacturing lines running smoothly.

FACTORY DIRECT SUPPLY CAPABILITIES

Yueqing Yulin Electronic Co., Ltd., operating under the global brand name FILN, was established in 2006 as an integrated electrical switch and signaling lamp manufacturer. Based in Wenzhou, Zhejiang, the company runs a modern 10,000 square meter facility equipped with more than 20 advanced automated production lines. Backed by a strict ISO9001 quality management system, FILN exports high-performance electrical components to B2B buyers in over 100 countries, including the United States, Canada, Germany, and the United Kingdom.

Our manufacturing footprint includes a broad catalog of small electrical parts, such as metal indicator lights, push-button switches, rocker switches, and toggle switches. Our independent testing lab ensures that all product lines carry valid international certifications, including UL, CE, RoHS, REACH, TUV, and CB marks. These certified components are widely utilized across demanding sectors, including commercial kitchen appliances, green energy storage, EV charging grids, automotive testing, and marine systems.

FILN’s core advantage lies in our custom engineering support, pairing technical buyers directly with experienced design specialists to solve complex wiring and panel space challenges. For custom pricing requests, 3D STEP files, or detailed product drawings, connect with our sales engineering office through our official websites or email channels.

FREQUENTLY ASKED QUESTIONS (TECHNICAL KNOWLEDGE BASE)
