10mm Yellow LED IP67 120 Volt Panel Indicator Light

10mm Yellow LED IP67 120 Volt Panel Indicator Light Design Concept

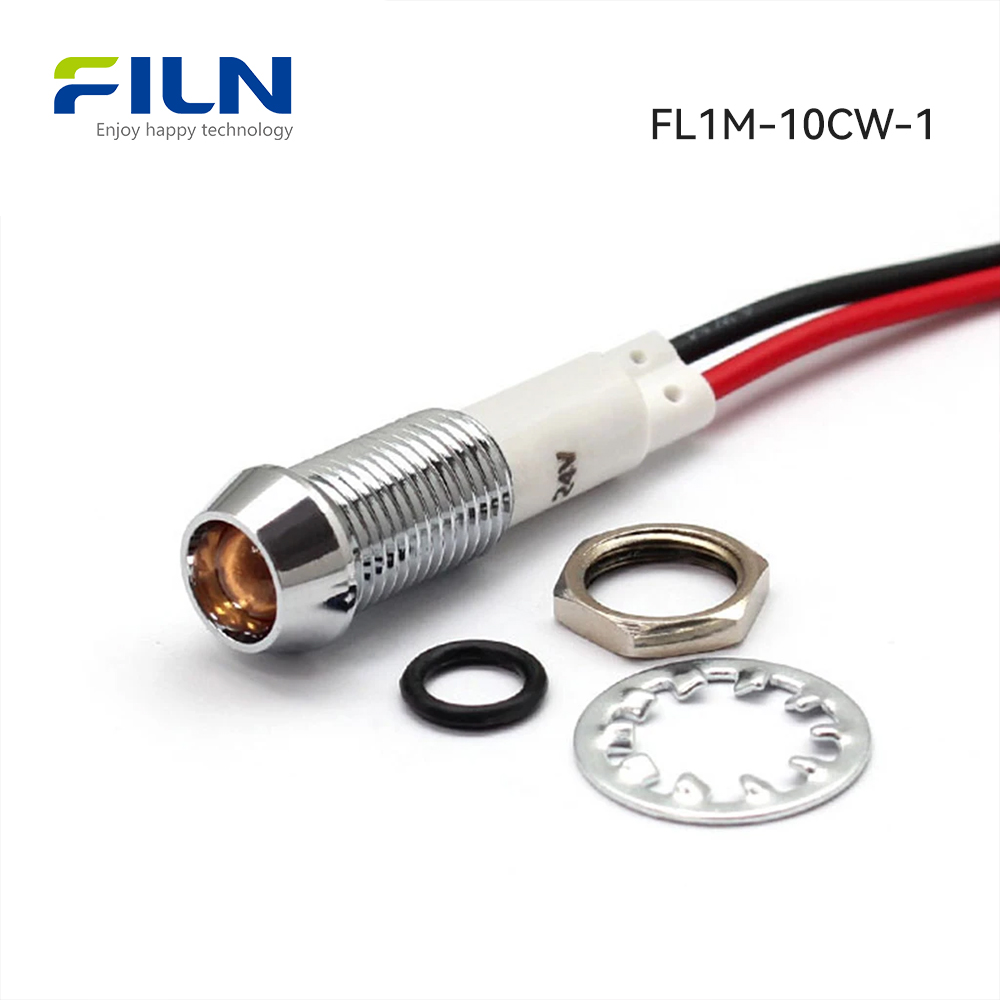

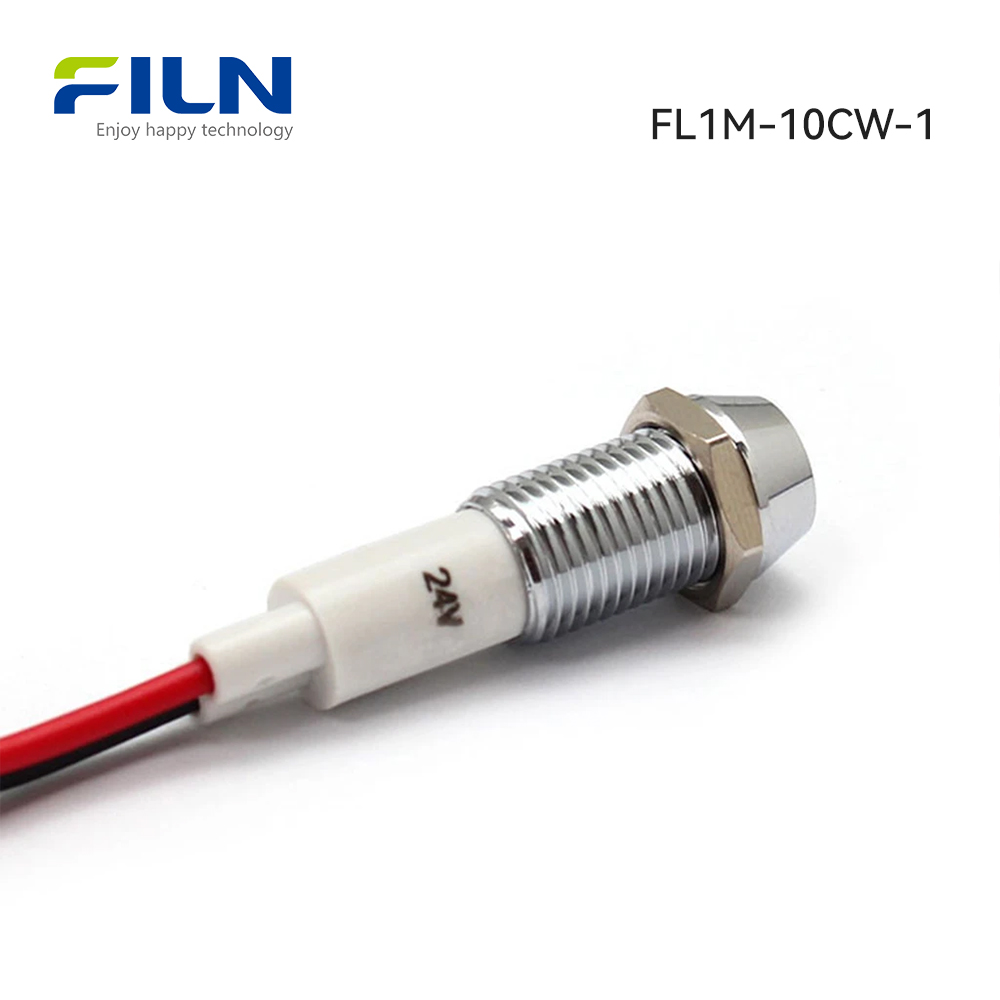

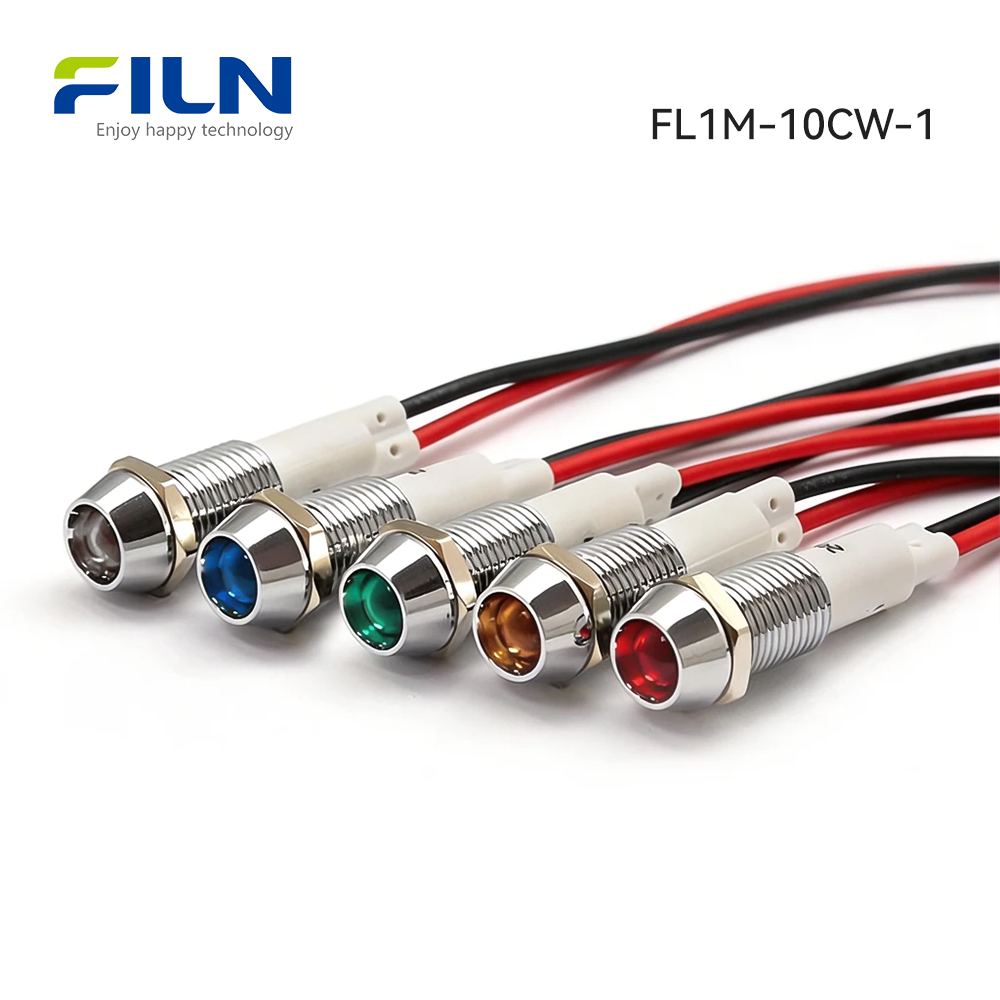

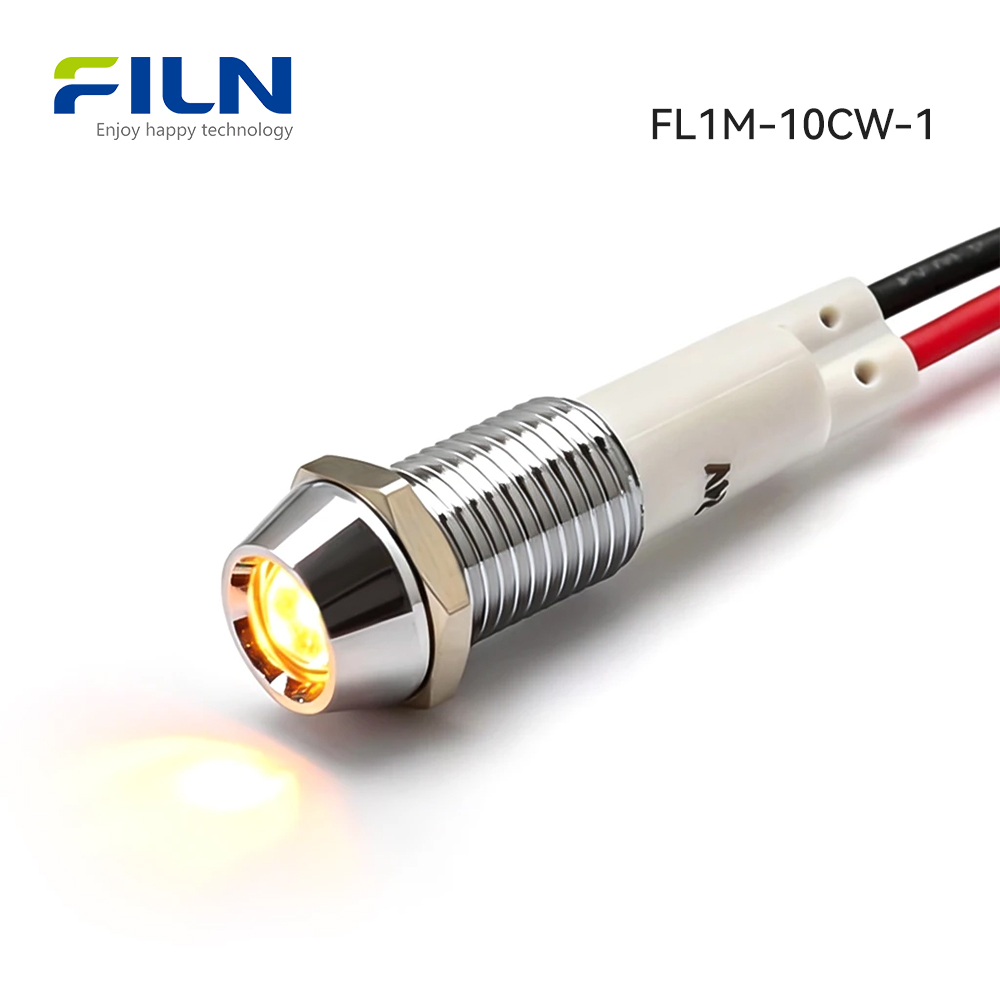

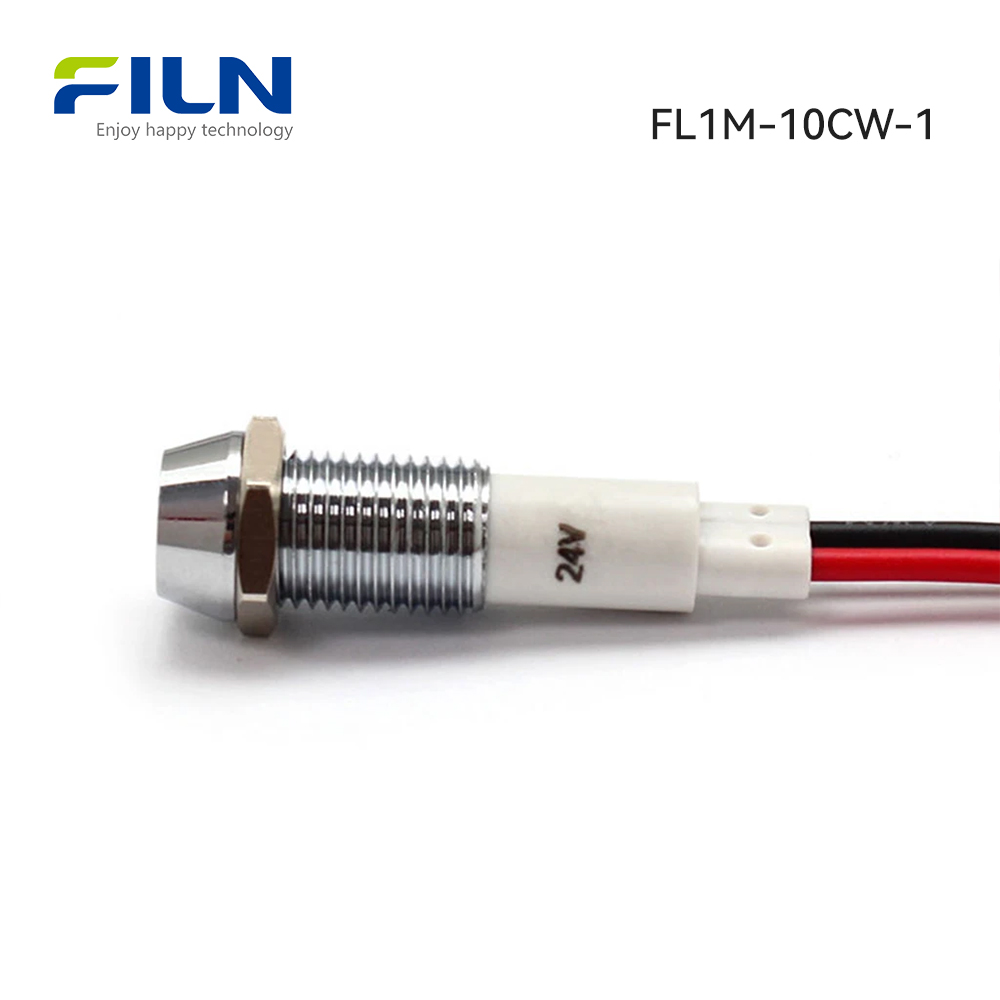

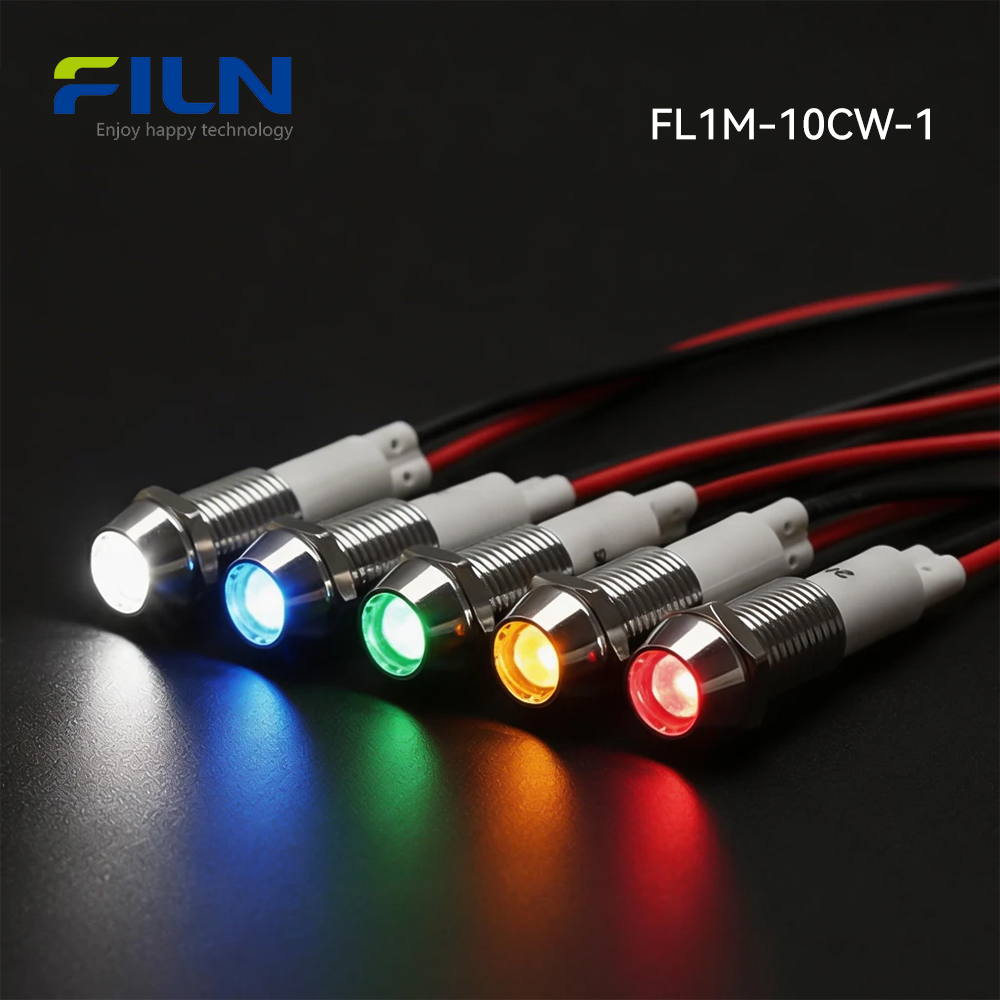

The 120 volt panel indicator light has an opening of 10 mm. The upper part of the panel is designed with a concave lamp holder. The lampshade is made of PC material with high transmittance. The opening size is 10 mm. The shell material is brass, nickel plated. The total length is 40 mm, in addition, it can also produce a black shell, the black material is aluminum alloy anodized black, the base is made of temperature-resistant and flame-retardant nylon PA66 material, which is waterproof, dustproof, corrosion-resistant and high-temperature resistant. 200 mm, other wire lengths can be customized. The interior adopts two-way stepless super bright LED to extend the service life. When matched with the lampshade, the light is soft and not dazzling.

The main working parameters of this 120 volt panel indicator light, the temperature range is -25 degrees to 125 degrees, and the rated maximum current is 20mA. Contact resistance is less than or equal to 20 milliohms, insulation resistance is 1000 milliohms, withstand voltage AC1500V (50Hz) per minute, and working life is 50000 hours.

This 120 volt panel indicator light is mainly suitable for all kinds of small household appliances, coffee machines, electronic equipment, automation equipment, instruments, communication equipment, automobiles, motorcycles, photography, toys, refrigerators, freezers, welding machines, generators, Audio equipment, commercial kitchen equipment, car covers, medical equipment and other electrical circuits for various light indicator signals, warning signals, accident signals and other signals.

Q&A for 120 Volt Panel Indicator Light

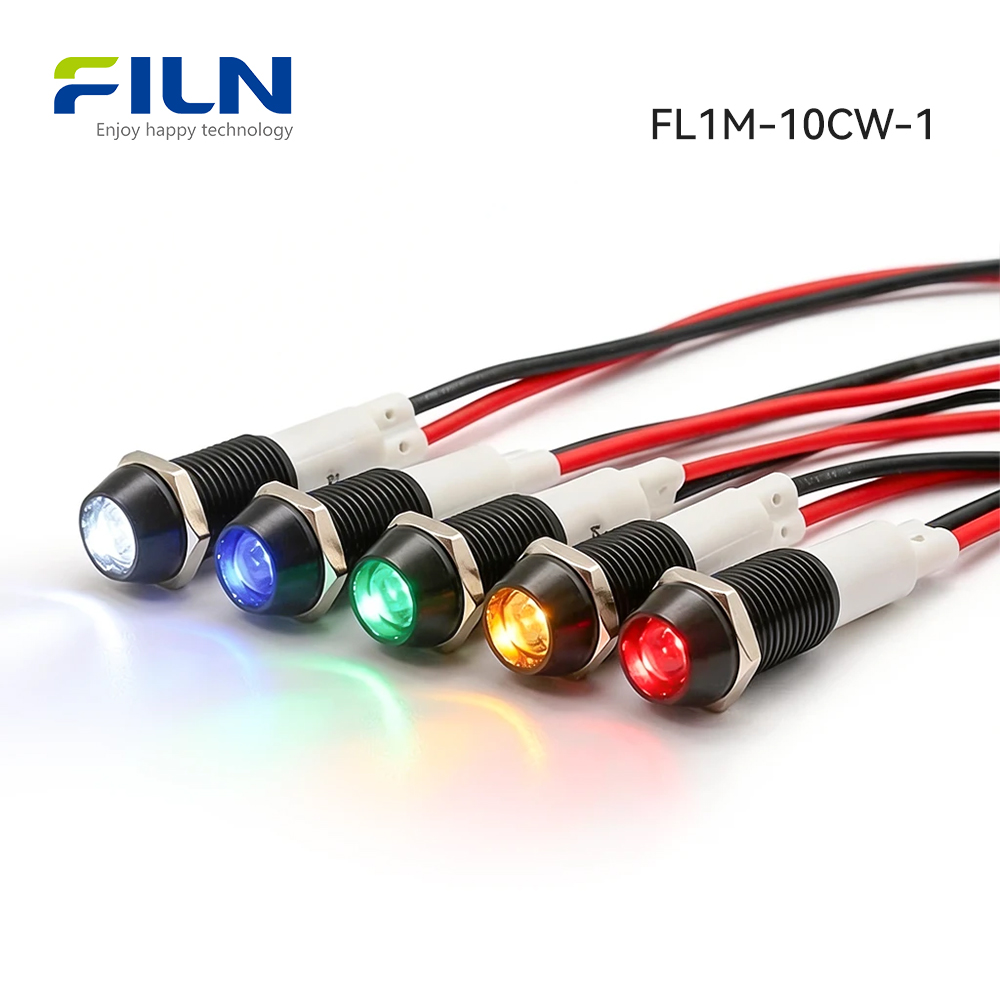

–  Q: Will the black housing of this 120 volt panel indicator light scratch?

A: We use anodizing technology, which is corrosion resistant and durable.

–  Q: Can the UL line be used for 120 volt panel indicator light?

A: The wire gauge can be customized according to customer requirements. This indicator can use 1007 AWG 22 wire, and the thickest wire can be AWG20.

–  Q: Is this 120 volt panel indicator light available on Amazon?

A: Yes, our US distributors all sell this 120 volt panel indicator light on Amazon.

–  Q: What is the pitch of this 120 volt panel indicator light? Can the thread length be customized?

A: This is the M10x0.75mm thread pitch, the thread length is 14.7mm, there are other length requirements that can be customized.

–  Q: In addition to 120V, can the panel indicator be used for other voltages?

A: Yes, we accept various customized voltages.

–  Q: Can I use this 120 volt panel indicator light on 110V?

A: Yes, our working voltage error is plus or minus 10%.

–  Q: The packaging of this 120 volt panel indicator light and how many is each box?

A: We use separate sealing tape packaging, a box of 50, a box of 1,000.

–  Q: Does this 120 volt panel indicator light have spring gaskets and waterproof silicone rings?

A: Yes, we are equipped with spring gaskets and O-shaped waterproof gaskets in each gasket.

If you have any inquiry about 120 volt panel indicator light products, please feel free to contact us inquiry@cnylin.com.cn

Comprehensive Guide to 120 Volt Panel Indicator Light

120 Volt Panel Indicator Lights are essential components in various applications, ranging from industrial machinery to home appliances. This comprehensive guide delves into the multifaceted world of 120 Volt Panel Indicator Lights, answering key questions on their usage, troubleshooting, latest technological advancements, outdoor application, replacement, and wiring procedures. Whether you’re looking to purchase a new light, replace an existing one, or simply gain a deeper understanding of these versatile devices, this article will guide you through every step, ensuring an informed and smooth experience with 120 V LED Panel Mount Indicators. The insights provided here will equip you with the knowledge to make confident decisions, harness new technologies, and explore innovative applications of 120 Volt Panel Indicator Lights.

120 Volt Panel Indicator Light: What Is It and Where Is It Used?

Definition and Functionality

120 Volt Panel Indicator Light, also known as 120 V LED Panel Mount Indicators, are electrical devices that provide visual signaling. These lights are used to show the operational status of machinery, systems, or electrical circuits. For more details on specific designs, you can visit this link.

Applications

These indicator lights are widely used in industrial applications, home appliances, automotive dashboards, and other areas where a clear indication of power status or operation mode is required.

Advantages

120 Volt Panel Indicator Lights are efficient, long-lasting, and easily customizable. They come in various colors and styles, allowing for easy integration into different systems.

How to Choose a Suitable 120v Indicator Light?

Size and Mounting Options

The size of the indicator light and the mounting options should align with the specific needs of your application. Explore various 120 Volt LED Indicator Light sizes here.

Color and Brightness

Choosing the right color and brightness level is essential for visibility. 120v Red Indicator Lights are often used for alerting or emergency indications.

Compliance and Safety

Ensure that the indicator light meets relevant standards and safety regulations. High-pressure LED indicator lights are an example of lights designed to withstand challenging conditions.

How to Wire a 120v Indicator Light?

Understanding the Circuit

Understanding the 120v LED Indicator Light Circuit is crucial before starting the wiring process. Familiarize yourself with the wiring diagram and identify the terminals.

Wiring Steps

1. Disconnect the power source.
2. Connect the positive wire to the positive terminal.
3. Connect the negative wire to the negative terminal.
4. Secure the connections.
5. Test the light before finalizing the installation.

For more detailed instructions, please refer to this guide.

Where Can I Buy a 120v Indicator Light?

Online Stores

Many online platforms offer a wide range of 120 Volt LED Indicator Lights. Browse the selection here.

Retail Locations

Physical retail stores may carry a selection of 120 Volt Panel Indicator Lights, including specialty electronic shops.

Manufacturer Direct

Buying directly from a manufacturer can provide customization options and bulk pricing benefits. Check out this site for more information.

Is a 120v Indicator Light Available at Lowe’s?

Availability

120v Indicator Light Lowe’s availability may vary by location and demand. It is advisable to check with the local store or online to verify the availability of specific products.

Alternatives

Other retail stores may offer similar products, or you can explore options here.

Advantages and Disadvantages

Shopping at Lowe’s may offer in-store assistance and immediate purchase, but online retailers might have a broader selection.

How to Replace a 120 Volt LED Indicator Light?

Identify the Problem

First, identify if the 120 Volt LED Indicator Light needs replacement. If malfunctioning, check the connections and circuit before deciding to replace.

Replacement Process

1. Disconnect the power.
2. Remove the old indicator light.
3. Connect the new 120 Volt LED Indicator Light.
4. Test the new light.

For specific replacement parts, consider visiting this link.

How to Incorporate 120v Indicator Light into DIY Projects?

Planning

Plan the project by deciding where the 120 Volt Panel Indicator Light will be placed and what it will indicate.

Sourcing Materials

Source the required materials, including the indicator light. This link offers various options.

Execution

Follow the wiring instructions and secure the indicator light into your project. Ensure proper safety measures.

Examples

Many DIY enthusiasts incorporate 120 Volt Panel Indicator Lights into custom-built furniture, art installations, and home automation projects.

How to Troubleshoot a 120 Volt Panel Indicator Light?

Common Issues

Common issues with a 120 Volt Panel Indicator Light include flickering, dimming, or complete failure.

Troubleshooting Steps

1. Check connections and wiring.
2. Inspect the circuit for damage.
3. Replace bulbs or components if necessary.
4. Consult with a professional if the problem persists.

For specific indicator lights designed for challenging environments, you may find suitable options here.

What are the Latest Technologies in 120 Volt Panel Indicator Lights?

Energy Efficiency

New technologies have made 120 Volt Panel Indicator Lights more energy-efficient, contributing to lower electricity consumption.

Smart Capabilities

Integration with smart systems allows remote control and monitoring of the indicator lights.

Durability and Design

Advancements in materials and manufacturing have led to more robust and aesthetically pleasing designs, such as those found here.

What are the Safety Considerations for Using 120 Volt Panel Indicator Lights?

Electrical Safety

Ensure proper grounding and insulation to avoid electrical shocks or short circuits.

Compliance

Select 120 Volt Panel Indicator Lights that meet relevant safety standards and certifications.

Professional Installation

For complex installations, consider professional assistance. A flameproof indicator light is an example of a specialized product that may require expert handling.

How to Recycle or Dispose of a 120 Volt Panel Indicator Light?

Recycling Options

Some materials within the 120 Volt Panel Indicator Light can be recycled. Check with local recycling centers for details.

Disposal

If recycling is not an option, dispose of the 120 Volt Panel Indicator Light according to local regulations, ensuring environmental safety.

Alternative Uses

Consider repurposing the indicator light for DIY projects or donate to educational institutions for learning purposes.

Final Thoughts

The 120 Volt Panel Indicator Light serves various purposes across industrial, commercial, and residential applications. Understanding its functionality, wiring, troubleshooting, and safety considerations is crucial for effective utilization. By keeping abreast of the latest technologies, users can optimize their use of this versatile and essential tool. Always consult with professionals for complex installations and adhere to safety guidelines. Whether you’re a professional engineer, a DIY enthusiast, or someone looking to buy a 120 Volt Panel Indicator Light, this guide aims to answer your most common questions.

What Are the Different Types of 120 Volt Panel Indicator Lights?

Standard LED Indicators

Standard 120 Volt Panel Indicator Lights are widely used in various applications, offering energy efficiency and durability.

High-Pressure LED Indicators

High-pressure LED indicator lights are designed to withstand tough environmental conditions.

Customizable LED Indicators

For specific needs, customizable LED indicators can be tailored in size, color, and mounting options, like the ones found here.

Waterproof LED Indicators

Waterproof designs like 110v waterproof green indicator light are essential for applications exposed to moisture.

High-Voltage LED Indicators

For applications requiring higher voltage levels, 380v high-voltage LED metal indicator lights are available.

How Do I Know If a 120 Volt Panel Indicator Light Is Failing?

Visual Signs

Flickering, dimming, or uneven brightness may indicate a failing 120 Volt Panel Indicator Light.

Electrical Symptoms

Unusual buzzing, voltage fluctuations, or unexpected power consumption can be signs of failure.

Testing

Using a multimeter to test the voltage and continuity can confirm if the 120 Volt Panel Indicator Light is failing.

Professional Inspection

If you’re unsure, consulting with a professional technician is advised.

How Long Do 120 Volt Panel Indicator Lights Last?

Average Lifespan

The average lifespan of 120 Volt Panel Indicator Lights can range from 30,000 to 50,000 hours, depending on the quality and usage.

Factors Affecting Lifespan

• Quality: High-quality materials and manufacturing processes extend lifespan.
• Usage: Continuous or harsh environment usage can reduce the lifespan.
• Maintenance: Regular inspection and maintenance can prolong the life of the light.

Warranty Information

Consider checking the warranty information, as some manufacturers offer extended warranties on their products.

What Are the Costs Associated with 120 Volt Panel Indicator Lights?

Initial Purchase Cost

The initial cost for a 120 Volt Panel Indicator Light can vary widely based on specifications, brand, and quantity. For bulk purchases, consider options like this.

Operating Costs

LED panel mount indicators, such as 120 Volt Panel Indicator Lights, are known for their energy efficiency, which can lead to lower operating costs.

Maintenance Costs

Regular maintenance is typically minimal but can add to the overall cost if replacements or repairs are frequent.

Customization Costs

Custom designs or specific features can increase the overall cost of the 120 Volt Panel Indicator Light.

How to Connect Multiple 120 Volt Panel Indicator Lights?

Parallel Connection

Connecting multiple 120 Volt Panel Indicator Lights in parallel ensures that if one light fails, others continue to work.

Series Connection

Connecting in series might not be recommended for 120 Volt Panel Indicator Lights, as the failure of one light could affect the entire circuit.

Wiring Guidelines

1. Plan the layout.
2. Use appropriate wire gauge.
3. Connect positive terminals together.
4. Connect negative terminals together.
5. Ensure secure connections.
6. Test the circuit.

For specific examples of multiple connections, you may refer to the manufacturer’s guidelines or consult with professionals.

Are There Battery-Powered 120 Volt Panel Indicator Lights?

Battery Options

Battery-powered 120 Volt Panel Indicator Lights are less common but may be available for specific applications.

Advantages

• Portability: Easy to move and install without the need for a direct power source.
• Backup: Can serve as a backup when the main power source fails.

Disadvantages

• Battery Life: Frequent replacement or recharging may be required.
• Limited Power: May not be suitable for high-demand applications.

Are 120 Volt Panel Indicator Lights Safe for Home Use?

Safety Considerations

120 Volt Panel Indicator Lights are generally safe for home use if installed correctly and used according to guidelines.

Application in Homes

These lights can be used in home appliances, security systems, or decorative projects.

Professional Installation

For complex installations, hiring a professional technician ensures safety and compliance with local regulations.

DIY Safety

If undertaking a DIY project with 120 Volt Panel Indicator Lights, following proper instructions and safety guidelines is essential. For specialized products like 14mm 28v panel LED white indicator light, manufacturer guidelines should be followed.

Conclusion

The 120 Volt Panel Indicator Light is a versatile and essential component in various applications, from industrial machinery to home DIY projects. Understanding the types, functionality, wiring guidelines, troubleshooting, safety considerations, and latest technologies helps users make informed decisions. Whether purchasing, installing, maintaining, or innovating with 120 Volt Panel Indicator Lights, this comprehensive guide aims to address common questions and provide insights into this valuable tool. Proper utilization, adherence to safety guidelines, and exploration of new technologies can lead to optimized performance and creative applications of these lights.

How to Choose the Right 120 Volt Panel Indicator Light for Your Needs?

Understanding the Requirements

Assess the specific needs, such as application, environment, color, size, and power consumption.

Consider the Application

Choose the right type based on where and how the 120 Volt Panel Indicator Light will be used. For instance, for industrial use, high-voltage LED metal indicator lights may be suitable.

Check for Certifications

Ensure the product complies with relevant certifications and standards, such as IP67 for waterproofing.

Compare Brands and Models

Research and compare various brands, models, and specifications like the 8mm 120v panel mount indicator light.

Consider Additional Features

Extra features like customizable colors, brightness control, or special mounting options may be necessary.

Consult Professionals

If in doubt, consult a professional or technician for recommendations.

Can 120 Volt Panel Indicator Lights be Used Outdoors?

Outdoor Applications

Yes, 120 Volt Panel Indicator Lights can be used outdoors, but specific considerations must be addressed.

Choosing Outdoor-Grade Lights

Selecting outdoor-grade 120 Volt Panel Indicator Lights like IP67 120-volt panel indicator light can ensure durability and weather resistance.

Consider Environmental Factors

Consider weather conditions, temperature fluctuations, and exposure to water or dust.

Safety Precautions

Proper installation, grounding, and adherence to local regulations are crucial for outdoor applications.

Maintenance

Regular cleaning and inspection can prolong the life of outdoor 120 Volt Panel Indicator Lights.

How to Replace a Failing 120 Volt Panel Indicator Light?

Identifying the Problem

First, verify that the 120 Volt Panel Indicator Light is indeed failing, through visual inspection or testing.

Selecting a Replacement

Choose an appropriate replacement, considering specifications, size, and type, such as 120 Volt LED Indicator Light.

Disconnect Power

Ensure that the power is switched off before attempting to replace the light.

Removing the Old Light

Carefully remove the old 120 Volt Panel Indicator Light, taking note of how it was connected.

Installing the New Light

Install the new light, following the manufacturer’s instructions or professional guidelines.

Testing the Replacement

After installation, test the new 120 Volt Panel Indicator Light to ensure it is working correctly.

How to Troubleshoot 120 Volt Panel Indicator Light Issues?

Conduct a Visual Inspection

Look for obvious signs of damage, wear, or improper connections.

Test with Tools

Use a multimeter or other tools to test for electrical issues like short circuits or voltage fluctuations.

Check Connections

Loose or corroded connections can lead to malfunction. Tighten or clean them if needed.

Refer to Manufacturer Guidelines

Refer to the manufacturer’s troubleshooting guide or contact their support if issues persist.

Consult a Technician

If the problem is complicated, seeking professional help is advisable.

What Are the Latest Technologies in 120 Volt Panel Indicator Lights?

Energy-Efficient Designs

New designs are focusing on energy efficiency, reducing power consumption without compromising performance.

Smart Connectivity

Integration with smart devices allows for remote control and monitoring of 120 Volt Panel Indicator Lights.

Advanced Customization

Manufacturers are offering advanced customization options, including programmable colors, patterns, and brightness.

Increased Durability

New materials and manufacturing techniques are leading to increased durability, even in harsh environments.

Innovations in Design

Sleek and innovative designs are emerging, allowing 120 Volt Panel Indicator Lights to be more aesthetically pleasing, such as the 12mm metal audio equipment 220v white indicator light.

How to Wire a 120 Volt Panel Indicator Light?

Choose the Correct Wiring

Select appropriate wiring based on the specifications of the 120 Volt Panel Indicator Light.

Prepare the Tools

Gather necessary tools like wire strippers, screwdrivers, and multimeters.

Follow the Manufacturer’s Instructions

Follow the guidelines provided by the manufacturer for proper wiring, including how to wire a 120v indicator light.

Connect the Wires

Connect the positive and negative wires to the corresponding terminals of the 120 Volt Panel Indicator Light.

Secure the Connections

Ensure that the connections are tight and well-insulated to prevent any potential issues.

Test the Installation

After wiring, test the 120 Volt Panel Indicator Light to ensure it operates correctly. If you’re wiring a specialized model, following specific guidelines like for 120v led indicator light circuit is essential.

Safety Considerations

Always adhere to safety guidelines and local regulations when wiring a 120 Volt Panel Indicator Light. If in doubt, consult a professional technician.

By understanding various aspects related to 120 Volt Panel Indicator Lights, including types, applications, troubleshooting, innovations, and wiring guidelines, users can make well-informed decisions. Choosing the right product, following safety guidelines, and embracing new technologies can lead to optimized performance and innovative applications of these essential lights.

120 Volt Panel Indicator Light Price Analysis in the USA

When it comes to purchasing 120 Volt Panel Indicator Lights in the USA, it’s essential to be aware of the price range. This article provides a comprehensive breakdown of the approximate price range for various types of 120 Volt panel indicator lights based on a quick search.

Price Distribution

Let’s take a look at the price distribution of 120 Volt Panel Indicator Lights from different sellers:

Amazon.com

• Product Name: Blue Sea Systems LED Indicator Lights
• Price: Not specified

Indicatorlight.com

• Product Name: 10MM 120V 240V Panel Neon Indicator Lights Lamp
• Price: $0.82 USD

Newark

• Product Name: 120VAC LED Single Color Indicators
• Price: $27.59 USD

Mouser Electronics

• Product Name: 120 V LED Panel Mount Indicators
• Pricing information not provided

Stack-Light.com

• Product Name: Panel Indicator Lights – Flat Head LED
• Price: Starting from $5.85 USD

Please note that the prices mentioned above are approximate and may vary depending on the specific seller, quantity, and any additional features or specifications of the 120 Volt panel indicator lights. It’s recommended to visit the respective websites or contact the sellers directly for accurate and up-to-date pricing information.

Visual Representation

To better understand the price distribution, let’s take a look at the flow chart and pie chart below

Comparison Table

For a quick glance at the price distribution across different sellers, refer to the table below:

Conclusion

In conclusion, when purchasing a 120 Volt Panel Indicator Light, it’s crucial to conduct thorough research and compare prices across various sellers to ensure you get the best deal. The price range for these lights can vary significantly, so it’s important to consider factors such as brand, features, and specifications when making a purchase decision.

Remember to visit the respective websites or contact the sellers directly for accurate and up-to-date pricing information. The flow chart and pie chart provide a visual representation of the price distribution, while the comparison table offers a quick overview of the prices from different sellers.

Make an informed decision and find the perfect 120 Volt Panel Indicator Light that fits your requirements and budget.
