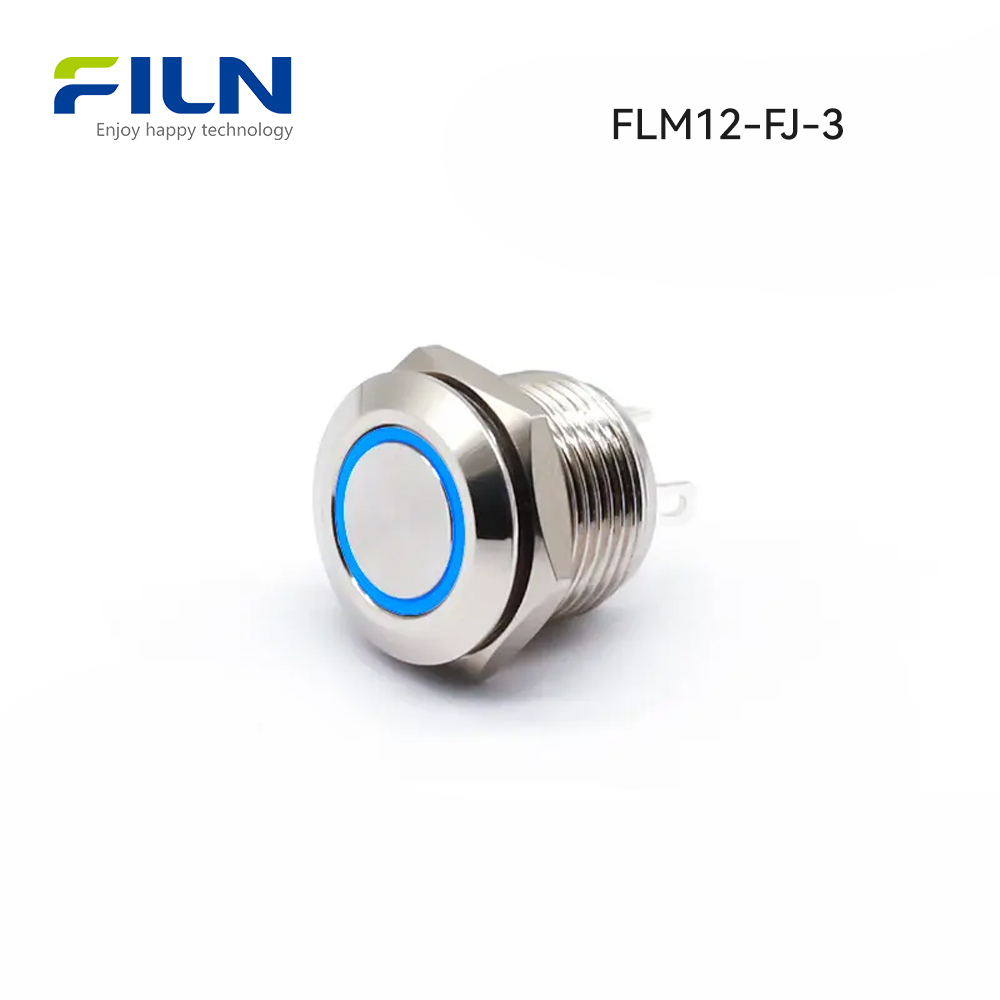

Ultra-thin Push Buttons 4Pin IP67 Stainless Steel Metal Button Switch

Push Buttons Overview

FILN Push button switches are essential components in various devices, providing a simple yet effective way to control electronic functions.

Ultra-thin push buttons with 4-pin configurations are essential components in various electronic devices, offering reliable performance and a sleek design. These buttons are known for their durability and resistance to harsh environmental conditions, making them ideal for both indoor and outdoor applications.

Ultra-thin Push Buttons Key Features

1. Ultra-Thin Design:
   • The ultra-thin profile of these buttons allows for seamless integration into modern, compact devices without adding bulk.
   • Ideal for applications where space is a premium, such as handheld devices and slim panels.
2. 4-Pin Configuration:
   • The 4-pin design ensures stable and reliable electrical connections.
   • Provides multiple connection points, enhancing the versatility and functionality of the switch.
3. IP67 Rating:
   • IP67 certification guarantees protection against dust and immersion in water up to 1 meter for 30 minutes.
   • Suitable for use in environments exposed to moisture, dust, and other contaminants.
4. Stainless Steel Construction:
   • The use of stainless steel ensures high resistance to corrosion and mechanical wear.
   • Provides a robust and aesthetically pleasing finish, perfect for industrial and consumer applications.

Technical Specifications

Applications

• Industrial Controls: Used in control panels and machinery due to their durability and reliability.
• Consumer Electronics: Ideal for smartphones, tablets, and other handheld devices requiring a sleek, durable button.
• Automotive: Employed in vehicle control systems, dashboards, and infotainment systems.
• Outdoor Equipment: Perfect for outdoor kiosks, marine equipment, and other applications exposed to the elements.

Ultra-thin Push Buttons Benefits

• Durability: Withstands harsh conditions, ensuring long-term functionality.
• Aesthetic Appeal: The sleek, stainless steel finish adds a premium look to any device.
• Versatility: Can be used in a wide range of applications due to the robust construction and reliable performance.
• Environmental Resistance: IP67 rating ensures protection against dust and water, making it suitable for rugged environments.

Switch Installation Instructions

1. Panel Preparation: Drill a 12mm hole in the control panel or device at the desired location.
2. Switch Mounting: Insert the switch into the hole and secure it with the provided mounting hardware.
3. Wiring: Connect the wires according to the manufacturer’s guidelines, ensuring proper insulation and secure connections.
4. Testing: Verify the functionality of the switch by pressing it to ensure it operates correctly.

Maintenance Tips

• Regular Inspection: Periodically check the switch for signs of wear or damage.
• Cleaning: Keep the switch clean and free of debris to ensure reliable operation.
• Functionality Test: Regularly test the switch to ensure it is functioning correctly.

Conclusion

The ultra-thin push buttons with a 4-pin configuration and IP67 rating offer a combination of durability, reliability, and sleek design. Their stainless steel construction ensures they can withstand harsh conditions while maintaining an attractive appearance. These features make them ideal for a wide range of applications, from industrial controls to consumer electronics and automotive systems. Whether you need a button for a rugged outdoor device or a sleek handheld gadget, these push buttons provide a reliable solution.

Ultra-thin Push Buttons FAQs

1. What makes these push buttons ultra-thin?
   • Their minimal height profile allows them to fit into tight spaces, making them ultra-thin.
2. How does the IP67 rating enhance functionality?
   • The IP67 rating ensures the switch is dust-tight and waterproof, allowing it to function reliably in harsh environments.
3. Can these buttons be used outdoors?
   • Yes, their waterproof and durable construction makes them suitable for outdoor use.
4. What are the installation requirements?
   • Installation involves drilling an appropriate size hole, wiring the switch according to the diagram, and ensuring proper sealing.
5. Are there customization options available?
   • Yes, these switches can be customized with different colors, finishes, and labels to suit various applications and preferences.
