8mm LED Status Light Panel Mount Waterproof Indicator Lamp | FILN

AI Product Summary

The FILN 8mm plastic LED status light is a high-efficiency panel-mount pilot lamp engineered for industrial control panels, electrical equipment, household appliances, and automotive dashboards. Featuring a durable nylon PA66 shell and a bright 2-pin terminal connection, this 8mm round indicator supports custom voltages ranging from 3V to 480V AC/DC. It delivers clear visual feedback with vibrant red, green, yellow, blue, and white non-polarity LED options. Designed for straightforward threaded mounting with an included waterproof ring and mounting nut, it offers robust IP65 protection against moisture and dust. As an established direct manufacturer, FILN supports bulk wholesale orders, OEM/ODM customizations, and specialized engineering requirements for global B2B procurement managers and electrical engineers seeking reliable, cost-effective status indication solutions.

Key Takeaways

Essential engineering and procurement facts regarding the FILN 8mm LED status light:

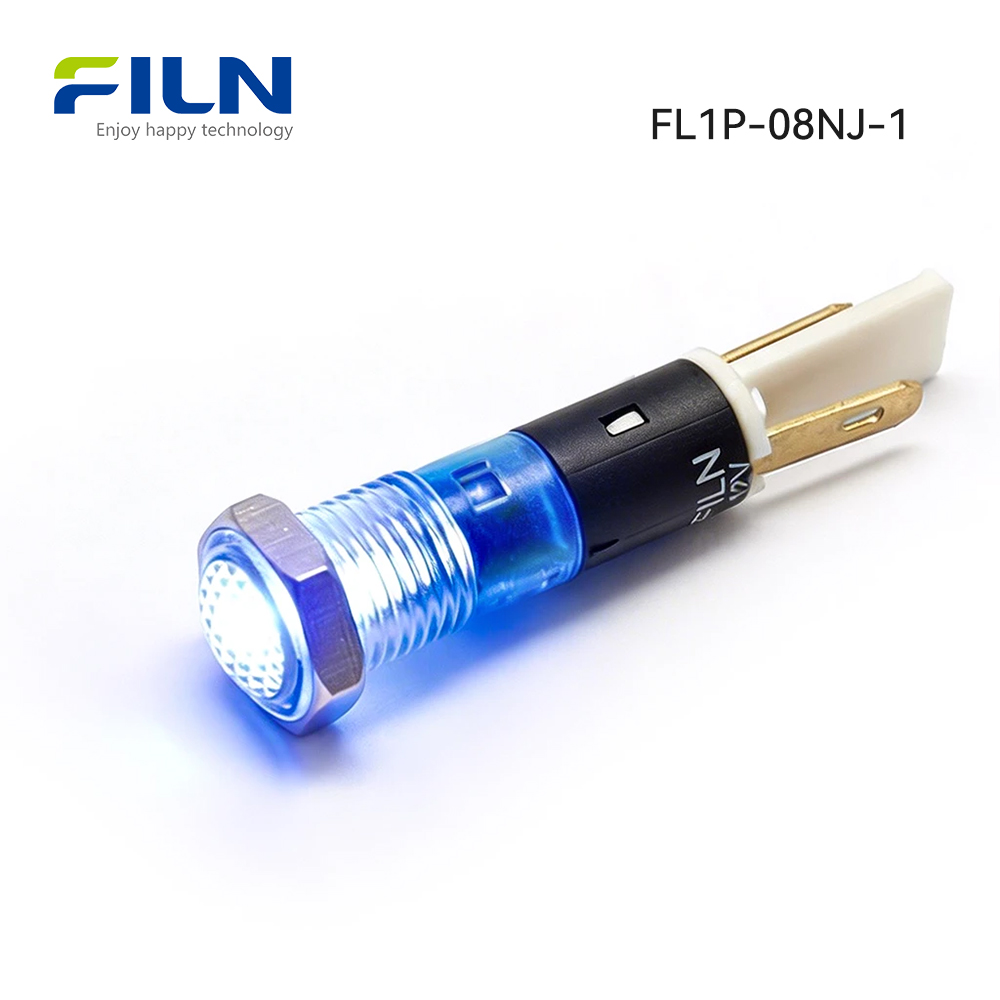

• Product Identity: 8mm round plastic LED status light (Model: FL1P-08NJ-1) designed for professional panel integration.
• Mounting Specification: Standard 8mm panel cutout utilizing a threaded shaft and M8 locking nut for secure installation.
• Electrical Compatibility: Supports wide customizable voltage ranges from 3V to 480V AC/DC with low operating current.
• Housing Material: Manufactured from flame-retardant, high-temperature resistant Nylon PA66 for superior electrical insulation.
• Protection Rating: Achieves IP65 waterproof and dustproof performance when installed correctly with the provided silicone O-ring.
• Wiring Interface: Features reliable 2-pin plug terminals compatible with standard quick-connect receptacles, soldering, or secure wire wrapping.
• LED Performance: Integrated non-polarity 5mm LED available in Red, Green, Yellow, Blue, and White color variants.
• Industrial Applications: Widely deployed across heavy electrical equipment, laboratory machinery, distribution cabinets, and marine systems.
• Manufacturer Support: Directly supplied by FILN with full OEM/ODM capabilities, custom wire leads, and bulk wholesale availability.
• Procurement Advantage: Lightweight alternative to metal indicators offering high cost-efficiency without sacrificing structural durability.

What is Plastic Indicator Light

Comprehensive technical overview of plastic pilot signal lamps.

Definition and Function

A plastic indicator light is an electromechanical signal device utilizing an engineered plastic housing to house an internal LED light source. Its primary function is to provide direct visual confirmation of circuit operation, equipment status, power supply, or fault conditions on control panels.

Structure and Operating Principle

The device is constructed from a molded lens head, a threaded base barrel, an internal current-limiting resistor, a non-polarity LED element, and 2-pin electrical terminals. When voltage is applied across the pins, the semiconductor chip emits photon energy, illuminating the lens uniformly to signal system states.

Industrial Value and Categories

Plastic indicator lights provide exceptional electrical insulation, corrosion resistance, and weight reduction compared to metal counterparts. Indicator lights generally divide into metal indicator lights and plastic indicator lights. Plastic variants are available in standardized sizing configurations of 6mm, 8mm, 10mm, 12mm, 16mm, and 22mm with five core LED colors (Red, Green, Yellow, Blue, White). They are primarily manufactured with three distinct wiring configurations: pin-type terminals, pre-wired direct wire leads, and screw terminals.

Product Overview

Engineering description and operational characteristics.

The FILN 8mm LED status light represents a specialized signaling component built for dense electrical control environments. Operating on standard optical and electrical principles, it translates electrical energy into distinct visual cues. The mechanical design incorporates a threaded cylindrical body that mounts securely into precision-drilled panel holes, locked tightly via a rear-fastening nut. Electrically, the integrated 5mm LED functions safely across diverse voltage thresholds supported by matched internal carbon film resistors.

Industrial advantages include complete non-conductivity of the outer polymer shell, preventing accidental short circuits in crowded panel assemblies. Certified to meet strict international electrical frameworks, this led status light delivers dependable performance across automated machinery, switchgear cabinets, and power distribution systems.

Quick Specifications

Tabulated technical parameters for model FL1P-08NJ-1.

Performance Parameters

Electrical ratings, environmental thresholds, and compliance metrics.

Electrical Specifications

The indicator operates smoothly across rated voltages from 3V to 480V DC/AC with an operational AC frequency of 50/60 Hz. The internal circuit maintains a rated operating current equal to or less than 20 mA, consuming approximately 0.2W of power. Insulation resistance exceeds 100 MΩ when tested at 500V DC between leads and housing. Dielectric voltage proof withstands 1500V AC without breakdown, ensuring an operational service life of 60,000 hours.

Protection & Compliance

Ingress protection achieves IP50 standard rating on standard configurations, extendable via sealing measures. The assembly complies fully with RoHS, CE, VDE, ISO9001, and CCC international certification standards.

Component Materials

Material breakdown and engineering rationale.

Material Rationale

Nylon PA66 is chosen for the shell, base, and lens due to its superior mechanical strength, excellent electrical insulation, high heat tolerance, and flame retardancy. The 5mm non-polarity LED guarantees polarity-independent wiring convenience and long operating durability. Carbon film resistors deliver precise, stable current limitation, ensuring consistent light output across varying electrical loads.

Environmental Performance

Operating thresholds and stress test parameters.

This LED status light series is engineered to endure demanding industrial operating environments. The standard operating and storage temperature range spans from -15°C to +80°C with an allowable operating relative humidity of 85% or less at +40°C. Rigorous factory validation tests include 96-hour high-temperature exposures at 80°C, 96-hour low-temperature exposures at -15°C, and 96-hour constant temperature and humidity tests at 40°C with 90%-95% relative humidity. Furthermore, alternating thermal cycling tests between -15°C and 80°C are conducted across 5 complete cycles to verify structural integrity.

LED Specification

Absolute maximum ratings and electro-optical characteristics.

The integrated LED chip is designed with a maximum forward current limit of 20 mA, a reverse voltage threshold of 5V, and a power dissipation rating of 60 mW. Electro-optical parameters measured at an ambient temperature of 25°C dictate precise forward voltage ranges: Red operates at 1.8V–2.2V, Yellow at 2.0V–2.2V, while Green and Blue operate at 3.0V–3.2V. Reverse current is strictly limited to a maximum of 3 µA at 5V VR. Luminous intensity ranges from 1000–1500 mcd for Red and Yellow, 8000–10000 mcd for Green, and 2000–3000 mcd for Blue. Dominant wavelengths register at 620–625 nm for Red, 520–525 nm for Green, 588–592 nm for Yellow, and 460–465 nm for Blue.

Standard Test Conditions

Atmospheric testing baseline and calibration parameters.

All electrical and optical parameters are validated under standardized laboratory atmospheric conditions unless explicitly specified otherwise. Testing atmosphere maintains an ambient temperature between 5°C and 35°C, relative humidity spanning 45% to 85%, and standard air pressure from 86 to 106 kPa (860 to 1060 mbar). Luminous intensity and dominant wavelength calibrations strictly align with CIE international standards corresponding to human eye response curves. Measurement tolerances adhere to standard industrial thresholds of plus or minus 15% for luminous intensity and plus or minus 0.1V for operating voltage.

Applications by Industry

Deployment scenarios across modern industrial sectors.

The 8mm LED status light utilizes a high-strength engineering plastic shell, offering lightweight construction, superior electrical insulation, chemical resistance, and cost efficiency. It is widely deployed across industrial controls, household appliances, and light machinery. Key application sectors include CNC machine control panels, PLC distribution cabinets, kitchen and laundry appliances, automotive dashboards, and laboratory equipment. Compared to metal alternatives, plastic indicators provide exceptional insulation security in high-density electrical enclosures.

LED Indicator Color Meanings and Application Guide

Standardized color coding and operational interpretation.

Indicator colors communicate critical machinery status. Red typically signifies danger, emergency stop, or fault conditions requiring immediate operator intervention. Green indicates normal operation, safe conditions, or power active status. Yellow or Amber denotes a warning, abnormal temperature, or transitional pre-check phase. Blue provides general information or specific mode activation, while White designates general power readiness or neutral system status. FILN offers flexible single-color, dual-color, and tri-color configurations tailored to specific control panel designs.

Installation Guide

Step-by-step mechanical installation procedures for panel integration.

1. Preparation: Gather required tools including a calibrated punch or drill bit, wire strippers, and crimp connectors.
2. Panel Sizing: Drill a precise 8mm circular hole into the mounting panel, ensuring clean edges free of metallic or plastic burrs.
3. Indicator Insertion: Remove the rear M8 plastic locking nut from the indicator assembly. Insert the indicator body through the front of the panel face.
4. Sealing Alignment: Ensure the waterproof silicone O-ring sits flush between the indicator bezel and the outer panel surface to maintain IP65 protection.
5. Locking Securing: Thread the M8 plastic nut onto the rear barrel from behind the panel and tighten securely by hand or with light tool assistance to prevent rotation.
6. Final Inspection: Verify that the unit is firmly seated without tilting, deformation, or loose threading before initiating electrical wiring.

Wiring Guide & Terminal Comparison

Technical comparison of connection types and wiring methodologies.

Electrical connection methodology significantly impacts installation efficiency and long-term durability. The table below compares pin-type terminals, pre-wired wire leads, and screw terminals.

Wiring Instructions: For pin-type indicators, connect circuit wires using quick-link terminals, professional soldering, or insulated electrical tape wrapping to guarantee connection stability. Pre-wired indicators can be connected securely via wire-nut connectors or terminal blocks. Safety Warning: Always disconnect main power sources and verify zero voltage with a multimeter before performing any electrical wiring.

Industry Knowledge Center

Technical engineering reference and maintenance best practices.

Understanding LED pilot lamp operation ensures optimal system reliability. Non-polarity internal LED circuits eliminate installation errors regarding positive and negative polarity alignment. When selecting components for industrial equipment, verify operating voltage thresholds precisely to prevent resistor overheating or sub-optimal luminescence. Routine maintenance inspections should verify terminal tightness and confirm sealing ring integrity in wet or washdown environments.

Buyer Decision & RFQ Checklist

Essential specifications required for accurate B2B quotation requests.

Providing complete technical specifications enables FILN engineering and sales teams to confirm product compatibility and quotation requirements promptly.

• Product Type: Plastic LED Status Light
• Model Number: FL1P-08NJ-1
• Mounting Hole Size: 8mm
• Operating Voltage: [Specify AC/DC voltage, e.g., 24V / 220V]
• LED Color: [Red / Green / Yellow / Blue / White]
• Terminal Type: 2-Pin Pin Terminal
• Waterproof Requirement: IP65 with O-Ring
• Quantity & Target Market / Delivery Timeline

FILN Manufacturing and Engineering Capabilities

Verified first-hand manufacturing infrastructure and technical support.

FILN maintains advanced in-house R&D, automated mold injection workshops, dedicated electrical testing laboratories, and stringent ISO9001 quality control systems. For B2B procurement managers and equipment manufacturers, FILN provides comprehensive OEM and ODM customization services, rapid sample turnaround, engineering consultations, and rigorous batch testing to ensure zero-defect delivery across global export markets.

Factory Direct Supply

Direct manufacturer information and corporate background.

Yueqing Yulin Electronic Co., Ltd, operating under the brand name FILN in Wenzhou, Zhejiang, was established in 2006 as a professional electrical switch and indicator manufacturer integrating R&D, production, and sales. Its premium FILN brand products are sold in over 100 countries. FILN operates a modern 10,000 m² facility featuring 20+ advanced production lines and an independent testing laboratory. Driven by scientific processes and the ISO9001 quality management system, FILN ensures industry-leading innovation and electrical performance.

Certified products including UL, CE, RoHS, REACH, TUV, CB, and CCC are widely deployed in kitchen appliances, energy storage systems, EV charging stations, automotive dashboards, marine vessels, and industrial automation equipment. FILN specializes in indicator lights, push button switches, rocker switches, toggle switches, and custom electrical assembly solutions.
