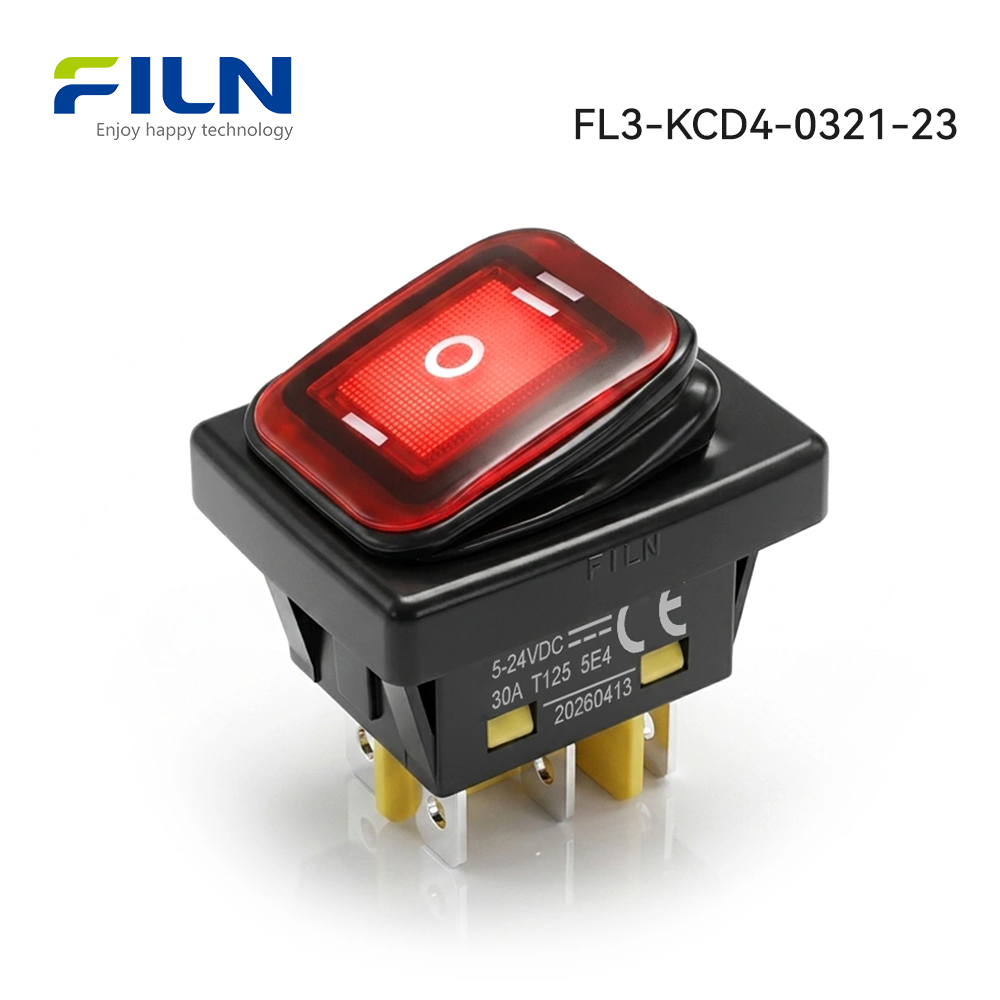

FILN KCD4 Third Gear Momentary On Off On Rocker Switch 6Pin

Regarding this momentary on off on rocker switch, the biggest advantage is that it can make a large current 30A, one-piece waterproof cover made of silicone waterproof material. Copper feet, high temperature resistant shell. There are CE, ROHS, and other certifications.

You can also customize your trademark symbol, which can be printed on the shell, and the II/O/I logo can also be customized to the symbol you want.

The 250v 30A rocker switch has UL, CE, ROSH and other certifications to ensure that the quality of the rocker switch meets international standards. It can also be sold and used in the United States and the European Union.

waterproof mini off momentary on rocker switch

FILN KCD4 Third Gear Momentary On Off On Rocker Switch 6Pin

FILN Third Gear Momentary on off on Rocker Switch product introduction

The installation size of Third Gear Momentary on off on Rocker Switch is 22X30mm, you only need to open a 22x30mm hole on the rocker switch panel to get it in. The general thickness of the rocker switch panel is about 0.8 to 4mm, otherwise the waterproof rocker switch It will not be stuck tightly, resulting in poor waterproof effect.

Third Gear Momentary on off on Rocker Switch has 6 colors, among which red, green, yellow, blue, and white can be used as a lighted rocker switch. The black 30A rocker switch is without light.

Third Gear Momentary on off on Rocker Switch is waterproof, and the waterproof level is IP65. You can use the waterproof rocker switch on medical equipment or kitchen equipment.

The maximum current of Third Gear Momentary on off on Rocker Switch can be produced to 30A 250v. You can directly install Third Gear Momentary on off on Rocker Switch on mechanical equipment with power below 5000W.

On off on momentary rocker switch wiring, the voltage can produce 3V, 6V, 12V, 24V, 110V, 120V, 220V, 250V, 380V, etc. In Europe, 110V, 120V 30A rocker swtich are usually used, and in China, 220V, 250V are usually used. UL rocker switch.

on off on momentary rocker switch wiring is two-way, the function is ON OFF ON, it can also produce resetting ON OFF (ON), (ON) OFF (ON) functions.

The plastic base of the 12v 30A rocker switch is made of nylon double material, and the temperature resistance can reach 260 degrees, which ensures that the contacts of the rocker switch will not melt when the contacts contact the heating plastic when the current is high.

The button shell can be black-plated, silver-plated, stainless steel, etc.

KCD3 2 prong rocker switch

How to on off on momentary rocker switch wiring?

6 feet 3 gears with light on off on momentary rocker switch conventional wiring diagram

KCD4 three-stage six-pin waterproof rocker switch wiring mode: 1: Two pins are connected to the power supply, the other two pins (lamp pins) are connected to the device, the switch is pressed, the switch light is on, the device starts, the switch is off, the switch light is dark, and the device is closure. 2: Connect the two light pins to the power supply and the other two pins to the device to keep the switch light on. Press the switch to start the device, turn off the switch, and the device shuts down.

FILN KCD4 Third Gear Momentary On Off On Rocker Switch 6Pin

What are the advantages of the momentary on off on rocker switch produced by FILN?

1.Momentary on off on rocker switch production and delivery are very fast, and the delivery time of 1000 regular momentary on off on rocker switches will be about 2 days.

2.Momentary on off on rocker switch is not ordered, you can purchase 1 rocker switch or more.

3.The switching time of customized ship is very fast, such as momentary on off on rocker switch, usually can be shipped on the second day of the order.

4.The ship type switch international certification certificate is complete, with UL CE ROSH ISO9001 and other quality management system certifications

5.There is a professional R&D team for designing ship-type switches, which can provide overall solutions

6.The communication is barrier-free. FILN has 20 years of overseas sales experience and professional sales technical engineers, who can solve any problems about ship switches in the first time.

Ip67 4 pin rocker switch

Where are momentary on off on rocker switch used?

This momentary on off on rocker switch is generally a small high-capacity power switch used in water dispensers, treadmills, computer audio, battery cars, motorcycles, massage machines, toy cars and other home appliances and office equipment. It can also be used in kitchen equipment. Wait.

If you are using a high-power product, you should choose a copper foot 30A, such as: electric welding machine, heater, electric baking pan, electric oven, electric oven, etc.

How to buy this momentary on off on rocker switch?

If you are interested in momentary on off on rocker switch, you can send us an email according to your requirements, such as product pictures, lamp color, voltage, current, etc., or you can place an order directly on www.cnfiln.com Remark your needs, we will contact you within 24 hours and confirm with you, and then send it to you after confirmation.

If you have a courier account, our company can also send you free samples

Product Item KCD4-0312-23
Panel Mount Diameter 22*30mm
Contact Way solder pin
Install Way Buckle
Lamp Type LED
Rated voltage 3v, 5v, 6v, 12v, 24v,13v, 110v, 120v, 220v, 240v, 250v, 380v
Lamp Color Red,white,blue,green,black,yellow
Shell Material brass plated nickel
Base Material PA66 nylon
Terminal Material brass
Applications Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment etc
Current 20A, 30A
