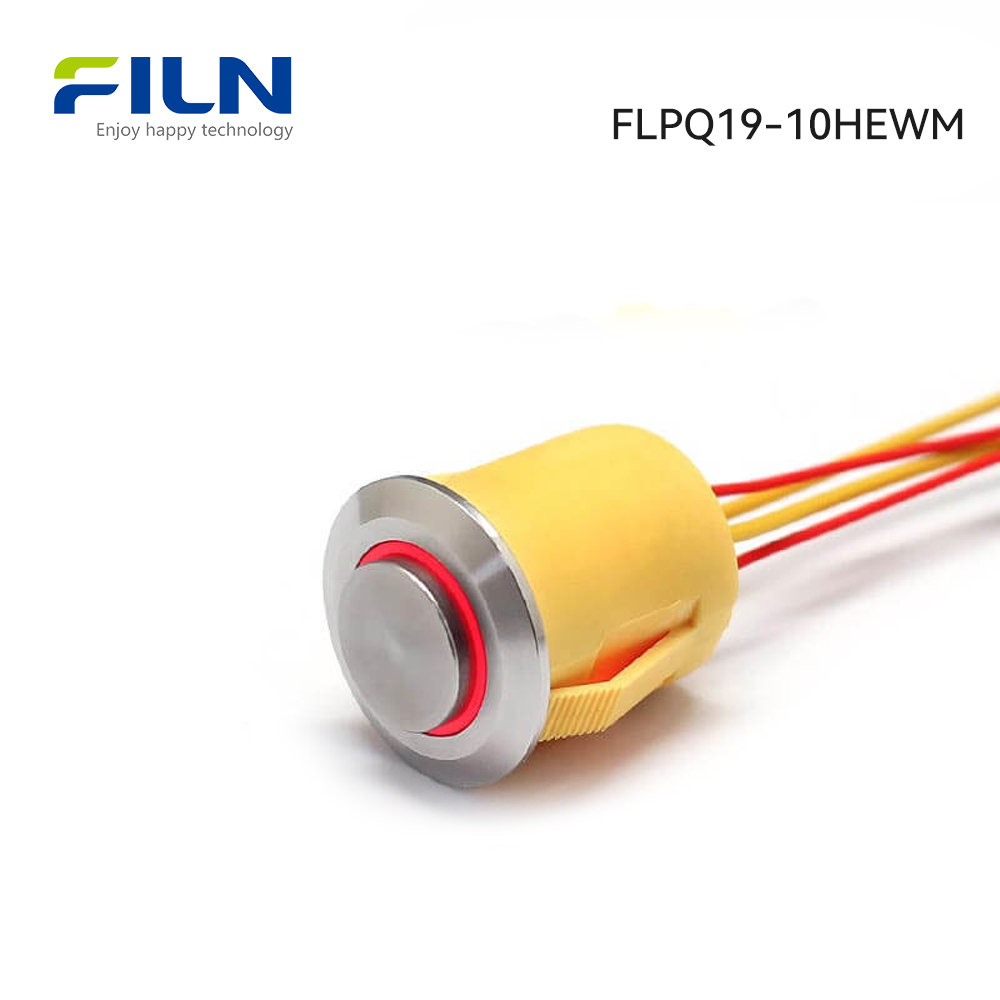

19MM New Waterproof Momentary 230V AC Push Button Switch

  • Mode: FLPQ19-10HEWM
  • Voltage: 2V, 3V, 5V, 6V, 12V, 24V, 110V, 120V, 220V, 230V, 240V, 250V, 380V
  • Current: 10A
  • Keyword: 230V AC Push Button Switch
  • Color: Red, Blue, Orange, Green, White
  • Material: Copper, Stainless steel, Zinc alloy
  • Certification: CE, CCC, ROSH, IP67, UL
  • Waterproof grade: IP67
  • Wire specification: AGW22
  • Email: [email protected]
  • Download PDF: 19MM new waterproof momentary 230V AC push button switch

230V AC push button switch parameters

Production Series FLPQ19-10HEWM Light Guide Button PC plastic
Button Shape Round Actuator 304 Stainless steel
Button LED Color Red blue orange green white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical LIfe The 500 thousand time Button Pin 22AWG PVC wire(0.3MM2)
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK09 Nut H59 nickel plated brass
Rated Voltage 36V(DC) 250(AC) Housing PA66+GF20% nylon
Rated Current 5A(DC)5A(AC) Light Source LED
Rated Power 180W(DC)1250W(AC) Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

The description of the 230V AC push button switch is as follows.

The mounting hole size of the product is 19mm, except for the size, we can produce the size of 22mm, however, most of the productions are metal push-buttons. The housing material of the buckle button like the picture is plastic, it is a new and developed button switch product.

The head shape of the AC push button switch is a high-flat head, besides, it also has a flat head.

The metal material of the product is divided into three types of copper, stainless steel, zinc alloy. The copper’s cost is relatively low while stainless steel has the function of corrosion resistance.

Besides, the appearance of the zinc alloy can be plated into different colors. The head in the picture adopts stainless steel, and its shell material is plastic, which can reduce the corresponding cost with constant quality.

The plastic material of the product is PC and PA66, its high temperature resistance is 160 degrees, and usage environment temperature is between minus 40 degrees and 55 degrees.

push button switch material
  • The product can achieve five colors, such as red, yellow, blue, green,and white, and its end has four wires, which has the function of 1NO, self-lock and self-reset.
  • The current of the 19mm 230V AC push button switch is 10A/250V AC.
  • The product can achieve a variety of voltages, such as 3V, 6V, 12V, 24V, 110V, 220V, etc, we can also customize other special voltages. The mechanical life of the 230V AC push button switch is 50,000 times.
  • The product had passed the certifications of CE, ROSH, etc, please contact us directly if you want to know more.
  • The wire material of the product is Teflon, its high temperature resistance is 220 degrees, the wire’s end can be connected with a variety of different terminals according to customer’s demand.
230v push button switch with light

What are the features of the 19mm 230V AC push button switch?

The advantages of the new research and development product are mainly reflected in three aspects as below.

  1. The first aspect is the waterproof performance since the end is direct out wire way and the bottom is topped with waterproof black glue, water doesn’t leak in from the outside, the waterproof rating is up to IP67.
  2. The second aspect is that the installation is simple. Regular push-buttons are threaded and pin connected. The installation way is changed into buckle mode, change the plug-in mode into direct outline way. Card the button directly into the panel, it is very convenient. The end doesn’t need to weld other wires, and the wire’s end can connect the terminals directly. Besides, we can customize other wire specification materials if you need them.
  3. The third aspect is the product’s cost and performance, as we all know, plastic is more cost-effective than the price of stainless steel and brass.
230V AC Metal Push Button Switch

How does the 19mm 230V AC push button switch work?

The 230V AC push button switch is a kind of manually controlled master ordering electrical appliance.

It is mainly used to issue operation commands, turns on or off the control circuit, and control the operation of mechanical and electrical equipment.

The operational principle of the push-button is very easy. For the normally open contacts, the circuit is disconnected before the push-button is not pressed. After the push-button is pressed, the normally open contact is connected and the circuit is connected. For the normally closed contacts, the contact is disconnected when the push-button is not pressed. After the push-button is pressed, the contact is disconnected and the circuit is cut off.

Due to the need to control different circuits, a push-button also carries multiple pairs of simultaneous contacts.

How to purchase the 230V AC push button switch?

Free button samples

You can directly buy our products through our online store at www.cnfiln.com. Or you can purchase the 230V AC push button switch via offline email communication.

Per weight of this product is about 0.03kg, we can choose the delivery way depending on the customer’s purchase quantity.

One box is packed in 200 pieces, and one carton is packed in 800 pieces. The product of 230V AC push button switch has no MOQ. We can provide the samples free of charge for your test.

Button switch production workshop

Except for the push-button switch, Filn is also specialized in the production of rocker switches, indicator lights, etc.

Filn had passed the certifications of UL, TVU, CE, ISO90001. In addition, the company also has a professional push-button design and R&D team, which can provide a perfect solution within 48 hours.

If you’re interested in our products or you want to buy them, or you need the samples, please contact us directly. Our email address is [email protected].
