Premium Industrial Metal Indicator Pilot Lamp with Lead Wires CE VDE Certified | FILN

Key Takeaways for Procurement Engineers

• Direct Factory Sourcing: Manufactured by FILN, guaranteeing streamlined B2B wholesale pricing, consistent quality tracking, and comprehensive engineering support.

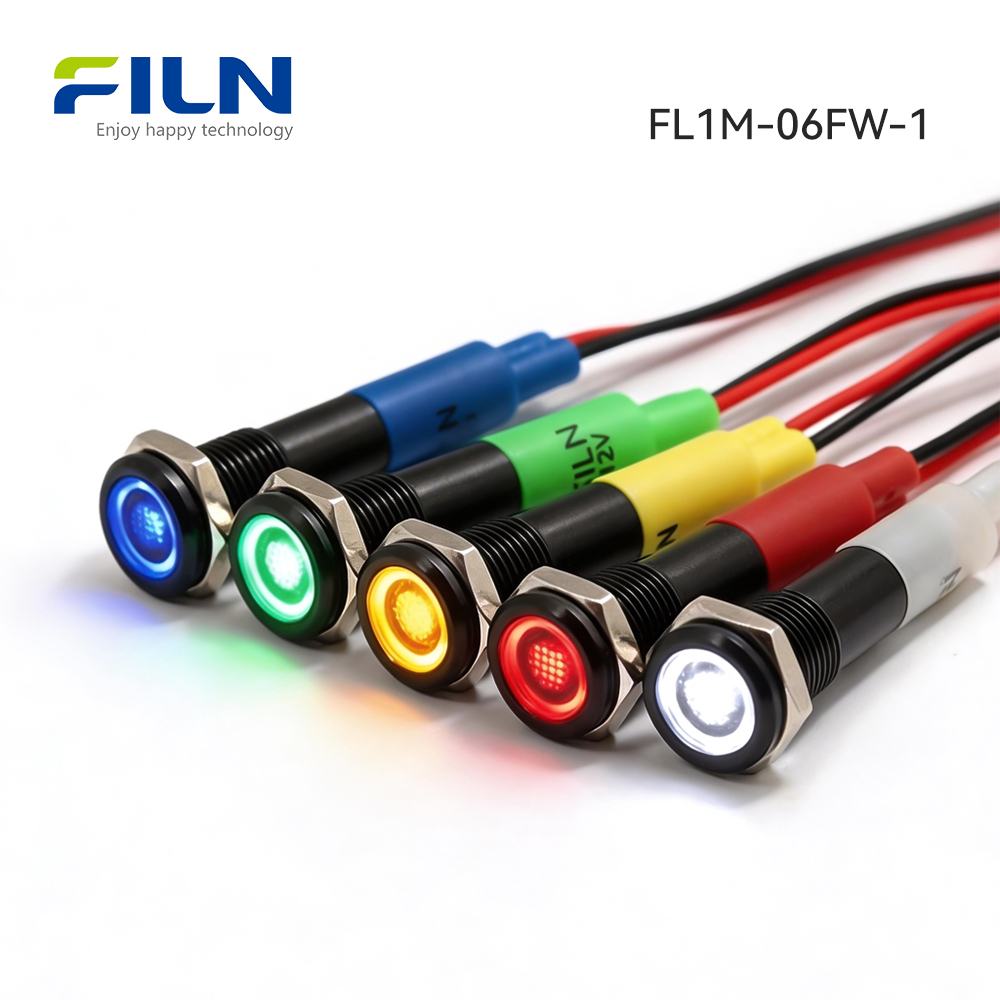

• Premium Shell Engineering: Offered in heavy-duty silver chrome-plated brass or sleek black anodized zinc alloy for elite physical durability.
• Customizable Electrical Configurations: Accommodates full-range operating voltages from 3V up to 220V AC/DC to match diverse automation requirements.
• Strict International Compliance: Fully certified under CE, VDE, RoHS, CCC, and ISO9001 standards for seamless international deployment.
• Robust Environmental Shielding: Engineered with a premium silicone O-ring and internal resin sealing to deliver true IP67 waterproof protection.
• Pre-Wired Efficiency: Equipped with dual 20cm 2PIN wire leads (40cm total circuit path) to minimize field assembly time and errors.
• Ultra-Compact Footprint: Standard 6mm mounting diameter facilitates high-density arrangement on dense control panel faces.
• Extended Operational Lifespan: High-efficiency internal LED architecture delivers up to 100,000 hours of continuous luminous signaling.

What is an Industrial Indicator Pilot Lamp?

An indicator pilot lamp is an essential optoelectronic hardware component designed to visually communicate system statuses, operational faults, and critical parameters on industrial machine interfaces. These critical components are categorized into heavy-duty metal housings or economic plastic housings, with mounting sizes ranging broadly from 6mm up to 30mm to fit standard panel cutouts. Electrical terminations are configured either as quick-connect solder pins or pre-wired integrated lead wires depending on the physical demands of the machine architecture.

For severe industrial configurations, metal pilot lights feature distinct physical profiles including flat heads, prominent convex heads, or recessed concave heads to suit specific visibility angles and operator touch profiles. The robust metal casing serves as a highly resilient protective shield, safeguarding the sensitive interior Solid-State LED chip from structural impacts, chemical degradation, and vibrational fatigue common to modern assembly lines.

Technical Product Overview

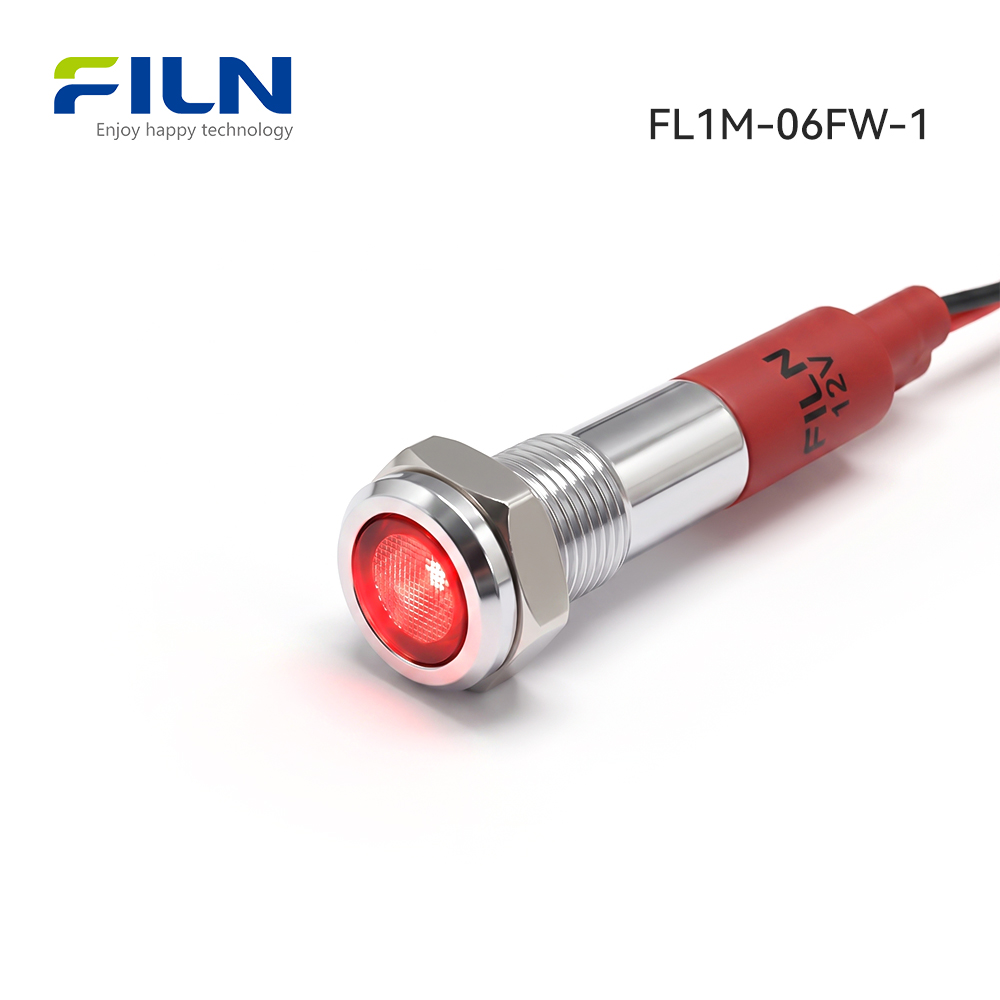

The FILN 6mm metal indicator pilot lamp operates on an advanced electro-optical principle where incoming electrical current flows through an integrated carbon film current-limiting resistor to excite a high-efficiency solid-state gallium nitride LED semiconductor. This action generates low-thermal monochromatic illumination refracted perfectly through a high-impact polycarbonate lens, guaranteeing daylight-visible signaling performance.

Mechanically, the device is secured via a single-nut panel-mount configuration coupled directly with a high-elasticity silicone sealing washer, achieving robust IP67 ingress protection against liquid jetting, heavy condensation, and particulate entry. Industrial engineers implement these compact pilot lights across power sub-stations, high-precision laboratory test grids, heavy automation control enclosures, and commercial marine control panels to sustain reliable, failure-free operational feedback.

Quick Technical Specifications

Performance Parameters

Component Material Construction

Environmental Performance Profiles

This technical specification dictates the general use range of the indicator pilot lamp series produced by FILN.

Solid-State LED Optoelectronic Specifications

1. Absolute Maximum Ratings

2. Electro-Optical Performance Characteristics

Measured at an ambient thermal baseline of Ta = 25°C:

Standard Laboratory Evaluation Conditions

Barring unique test criteria, all electrical and optical parameters detailed on this technical datasheet are recorded under the following standardized laboratory atmospheric baselines:

Note: Luminous intensity readings and peak dominant color wavelengths are strictly cross-calibrated with the CIE international human eye response curve standards. Measurement tolerances are held within ±15% for luminous intensity output and ±0.1V for absolute voltage profiling.

Industrial Applications Deployment Matrix

The implementation of a heavy-duty metal indicator pilot lamp provides crucial survivability benefits over standard plastic versions. While cheap plastic components degrade, discolor, crack, or melt when subjected to UV radiation, heavy factory grease, and intense vibration, FILN copper-alloy and zinc-aluminum housings endure severe environments.

1. Industrial Automation & CNC Machinery

In CNC processing facilities and automated assembly bays, 6mm and 8mm metal pilot lights populate localized machine operator panels and heavy-duty PLC enclosures. Their robust metal structures withstand continuous coolant spray, flying metallic shards, and structural vibrations, safely identifying axis statuses and active emergency stop routines without structural failure.

2. Outdoor EV Charging Stations & Renewables

Commercial EV fast-charging pillars and outdoor solar combiners deploy these IP67-rated metal indicators to safely communicate charge status and insulation faults. Operating smoothly between -40°C and +80°C, they resist environmental cracking from freeze-thaw cycles and withstand direct sunlight exposure and vandalism in unmonitored public areas.

3. Heavy Logistics, Transit & Marine Operations

Earth-moving vehicles, construction cranes, and marine control consoles experience intense physical shocks and high-salinity exposure. Installing chrome-plated brass pilot lamps with internal resin back-filling prevents structural wire fatigue, ensuring continuous monitoring of oil pressure, engine heat, and electrical safety in harsh environments.

4. Public Infrastructure & Hazardous Fuel Dispensing

Public vending interfaces, ticketing kiosks, and commercial fuel dispensers utilize metal housings to achieve excellent explosion protection and mechanical isolation. Their anti-vandal flush profiles prevent forced removal, protecting critical public access infrastructure while maintaining high visibility for transaction processing.

5. Food Processing & Medical Sterilization Enclosures

Food packaging systems and autoclave equipment require high-pressure hot water and chemical washdowns daily. IP67-sealed metal indicator assemblies prevent moisture ingress and chemical corrosion, ensuring reliable operation without color shifting or material degradation.

Chromatic Signaling Standards & Configurations

In industrial automation, the selection of the correct illumination color on an indicator pilot lamp is critical for clear, immediate communication with machinery operators. Standardized color codings prevent operator confusion, minimize system downtime, and enhance workplace safety.

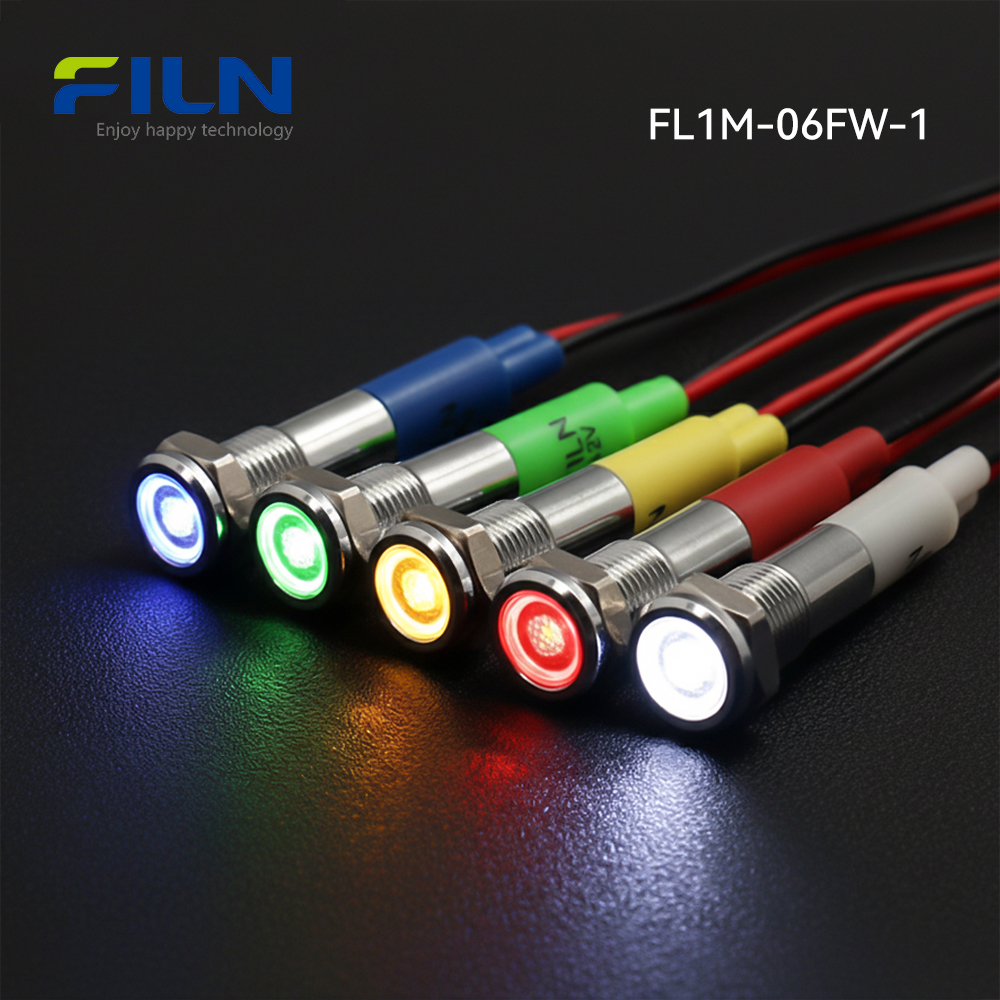

• Red (R): Indicates critical alerts, system faults, emergency stops, or immediate hazards requiring immediate intervention.
• Green (G): Signals normal system operation, energized safe loops, or fully prepared processing stages.
• Yellow/Amber (Y): Provides early warnings, unexpected thermal trends, or transient conditions that require monitoring.
• Blue (B): Denotes mandatory supervisor actions, specific process modifications, or remote overrides.
• White (W): Serves as a neutral indicator for line power presence, continuous system logging, or simple status tracking.

To support intricate, multi-tiered machinery status reporting within limited panel spaces, FILN offers specialized dual-color and triple-color integrated LED networks. These compact configurations allow a single 6mm or 8mm physical indicator housing to shift dynamically across multiple distinct colors, saving valuable panel space and simplifying complex modern interface designs.

Panel Mount Mechanical Installation Guide

Follow this step-by-step procedure to mount your metal indicator lamp on a control panel face safely and correctly:

1. Isolate Power Feed: Ensure the entire control panel grid is fully powered down and locked out according to industrial safety regulations before beginning work.
2. Execute Panel Cutout: Drill a clean 6.0 mm (or 8.0 mm for larger models) circular hole through the target panel section, ensuring all metal burrs are completely removed.

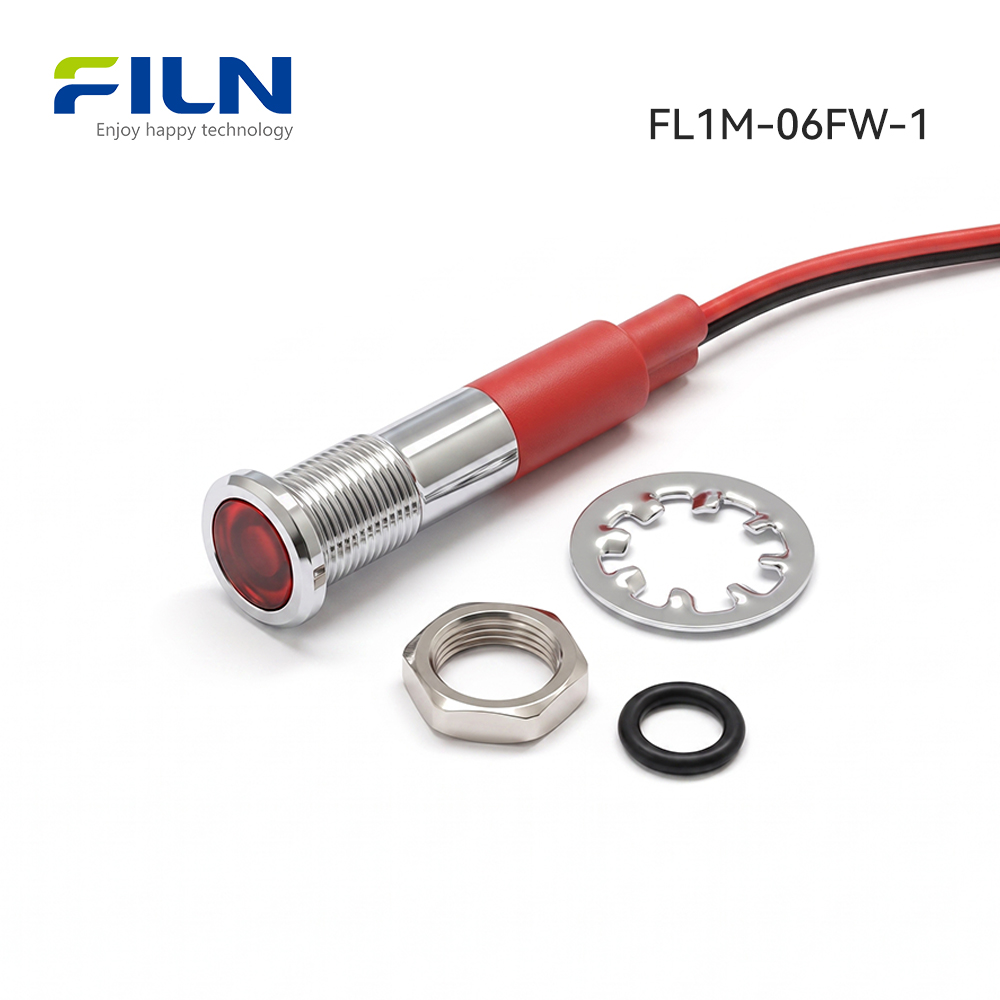

3. Seat Sealing Ring: Position the provided silicone rubber waterproof O-ring onto the metal body of the indicator lamp, sliding it flush against the upper bezel flange.
4. Insert Through Cutout: Slide the pre-wired lead wires and threaded metal body through the prepared hole from the front exterior side of the panel face.
5. Apply Locking Gasket: From the rear interior side of the panel, slide the star-shaped plum blossom locking washer over the lead wires and onto the threaded barrel.
6. Secure Hex Nut: Thread the heavy-duty M6 hex retention nut by hand, then tighten securely with a standard wrench to achieve an airtight, vibration-proof IP67 seal.

Electrical Termination & Wiring Guidelines

Electrical connection methods depend on whether your chosen indicator pilot lamp features standard rigid solder pins or integrated insulated wire leads. Rigid pin terminals require careful hand soldering or matched quick-disconnect crimp lugs, making them ideal for localized PCB sub-assemblies.

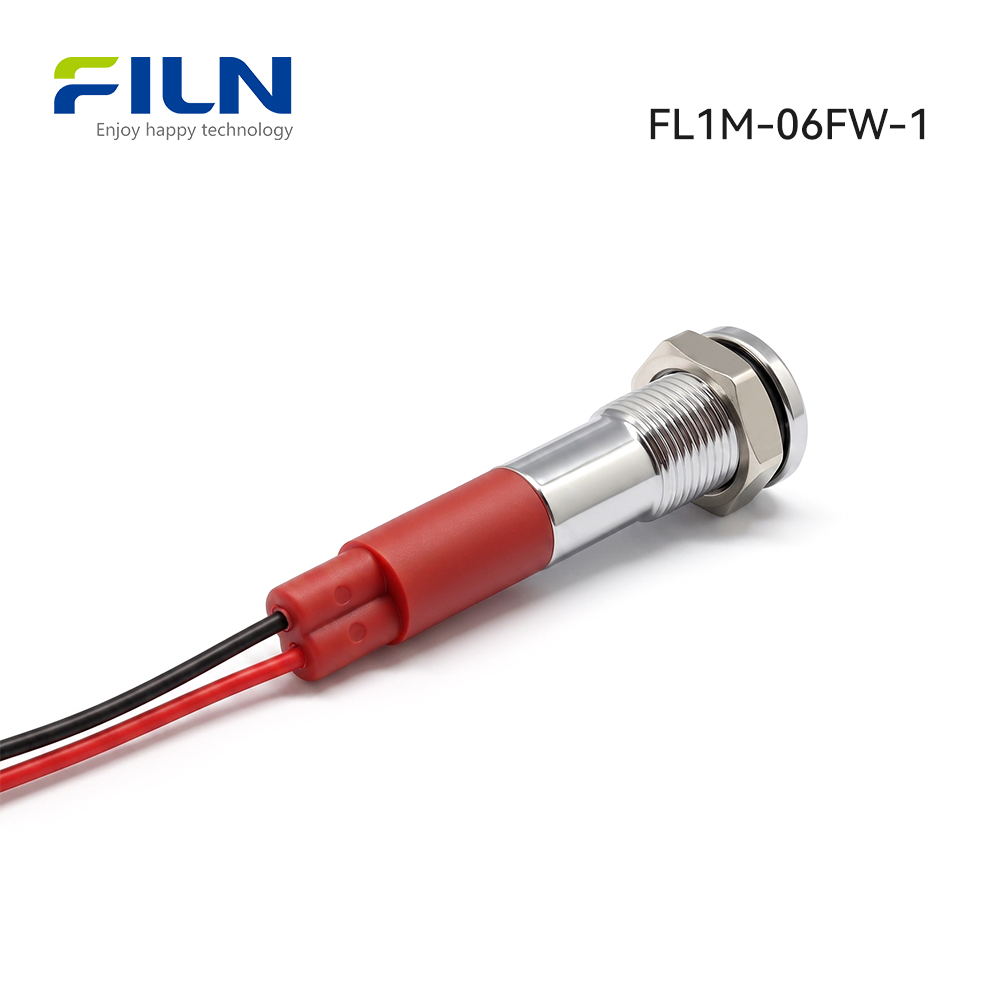

Pre-wired indicators featuring integrated 2PIN lead wires simplify terminal wiring significantly. These flexible leads can be joined directly to circuit rails using spring-loaded inline blocks, soldered splices covered with heat-shrink tubing, or standard wire nuts wrapped with heavy industrial electrical tape.

CRITICAL SAFETY NOTE: Always verify that your incoming line voltage matches the rated voltage printed on the product housing. Connecting a low-voltage indicator directly to high-voltage lines will instantly destroy the internal LED chip.

Industrial Ingress Protection & Reliability Center

Understanding the distinction between IP65 and true IP67 environmental sealing is crucial for maximizing long-term component reliability. An IP65 rating signifies protection against low-pressure water splashes from any angle, which is suitable for basic indoor factory environments.

In contrast, an IP67 rating ensures complete dust isolation and guarantees absolute hermetic sealing against water immersion up to 1 meter for 30 minutes. FILN incorporates premium silicone seals and a specialized internal resin backfilling process to protect the internal LED and carbon resistor from corrosive moisture, preventing premature field failures.

B2B Buyer Specification Guide

When sourcing an indicator pilot lamp for high-volume OEM manufacturing, procurement officers must balance several critical physical and electrical specifications:

• Housing Material: Choose chrome-plated brass for standard rugged applications, or black-anodized zinc-aluminum for a premium matte appearance.
• Termination Method: Pre-wired configurations speed up field installation, while pin terminals provide direct integration for compact control enclosures.
• Voltage Leveling: Match the internal current-limiting resistor directly to your system voltage (e.g., 12V DC, 24V DC, or 220V AC) to avoid component damage.
• Sizing Matrix: Utilize ultra-compact 6mm cutouts to save space on dense panel faces, or upgrade to 8mm models for increased focal visibility.

Why Automation Engineers Specify FILN Components

Global industrial manufacturers specify FILN signaling hardware due to our vertically integrated factory infrastructure. By operating advanced, modern manufacturing facilities, we eliminate the costly markups and extended lead times associated with third-party distributors.

FILN supports engineering teams by enforcing a strict zero MOQ policy for standard catalog models, accelerating prototyping phases. Our engineering lab provides rapid OEM modifications, including custom wire lead lengths, specialized terminal connections, and unique voltage matching, ensuring perfect integration into your machinery layout.

Factory-Direct B2B Supply Capabilities

Established in 2006 in Wenzhou, Zhejiang, Yueqing Yulin Electronic Co., Ltd. (operating under the global premium brand name FILN) has developed into a leading high-technology manufacturer of heavy-duty electrical control components. Our state-of-the-art 10,000 square meter production facility houses over 20 automated production lines and a fully independent component validation laboratory. Guided by strict ISO9001 quality management systems, FILN delivers exceptional innovation and reliable electrical performance across more than 100 countries.

Our comprehensive, certified product portfolio includes industrial metal indicator lamps, heavy-duty push button switches, rugged rocker switches, and professional toggle switches. These components carry globally recognized certifications, including UL, CE, RoHS, REACH, TUV, and CB, ensuring seamless integration into high-performance EV charging hubs, power storage systems, marine bridge layouts, and commercial food equipment.

FILN specialized application engineers provide direct B2B technical consultations, working closely with procurement teams to solve complex customization challenges. For detailed technical data, custom engineering drawings, or bulk pricing inquiries, please visit our global website at www.filn.com or email our sales department at inquiry@cnylin.com.cn.

Recommended Industrial Signaling Configurations

For applications requiring a larger visual display, consider our 8mm pre-wired flat-head indicator lamp (Model FL1M-08FW-1). This model features an expanded lens area that provides wider visibility across large factory floors, combined with the same convenient 2PIN direct wiring system.

When selecting terminal connections, procurement engineers must evaluate the advantages of pre-wired versus pin-terminal models. Pre-wired indicators feature factory-soldered, insulated leads that save significant installation time and eliminate field wiring errors. Alternatively, our 8mm solder pin indicator lamp (Model FL1M-08FJ-1) offers a more compact physical profile, making it ideal for tight enclosures where wire lengths must be customized on-site.
