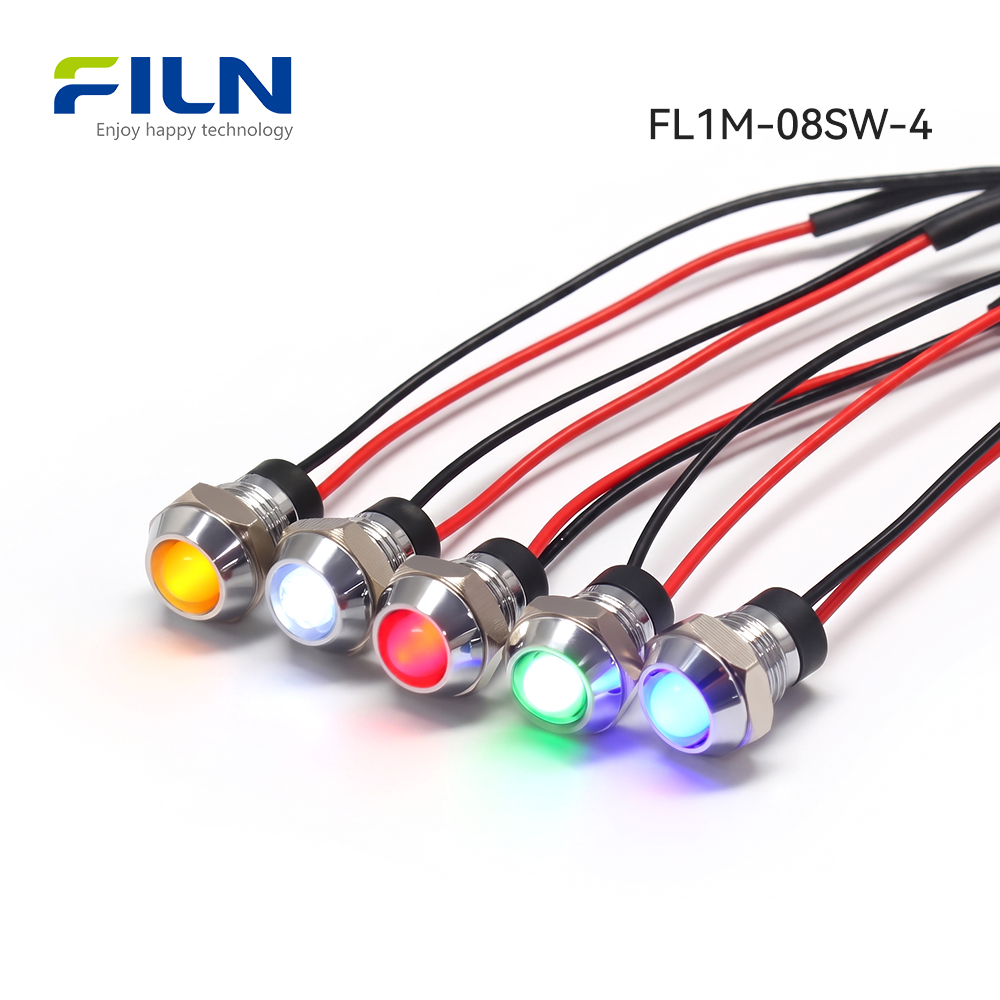

8MM Metal Led Light Indicator with Wire Lead and Concave Waterproof Design | FILN

Key Technical Takeaways

• Factory-Direct Manufacturing: Procure directly from the specialized FILN facility to eliminate intermediary costs and enable completely custom wiring lengths or specific voltage adaptations.
• Ultra-Compact Profile: The 8mm mounting profile is optimized for restricted spacing within densely populated electrical control panels and specialized instrumentation arrays.
• Pre-Wired 2PIN Configuration: Eliminates secondary terminal soldering steps via standard 40cm overall length wire leads, reducing field assembly mistakes and deployment labor.
• Superior Optical Clarity: The convex head styling maximizes visual dispersion, creating a clear focal projection analogous to a cat-eye element for swift status verification.
• Robust Metal Construction: Heavy-duty copper alloy housing provides superior impact resistance over standard plastic alternatives, ensuring long-term architectural stability.
• Substantial Voltage Versatility: Supports operating ranges from 3V up to 220V AC/DC configurations, serving both low-voltage digital logical applications and high-voltage distribution frameworks.
• Validated Ingress Protection: Integrated silicone gaskets paired with a precise hex nut closure mechanism secure a stable IP65 moisture and dust-proof seal.
• Extensive Environmental Tolerances: Operates reliably across an industrial temperature range of -40°C to +80°C, remaining unaffected by severe thermal cycling.
• Certified Compliance: Comprehensively tested and fully certified under CE, VDE, RoHS, ISO9001, and CCC verification programs for international trade and deployment.

What is an Industrial LED Light Indicator?

An industrial led light indicator is a heavy-duty panel-mounted signaling hardware device engineered to transmit real-time operational statuses to equipment operators. These visual indicators convert electrical inputs into precise luminous streams, defining whether a system is powered, faulted, or cycling. FILN offers a comprehensive spectrum of signaling mechanisms, split fundamentally into metal indicator light housings and plastic indicator light housings, ranging from 6mm to 30mm layout variants.

For specialized connectivity architectures, buyers can choose between integrated solder pins or a heavy-duty direct-wire lead interface. The metal indicator light variants are meticulously sculpted into flat head, prominent convex head, or recessed concave head external aesthetics. This ensures industrial designers can seamlessly select the exact mechanical configuration necessary for specialized human-machine interfaces.

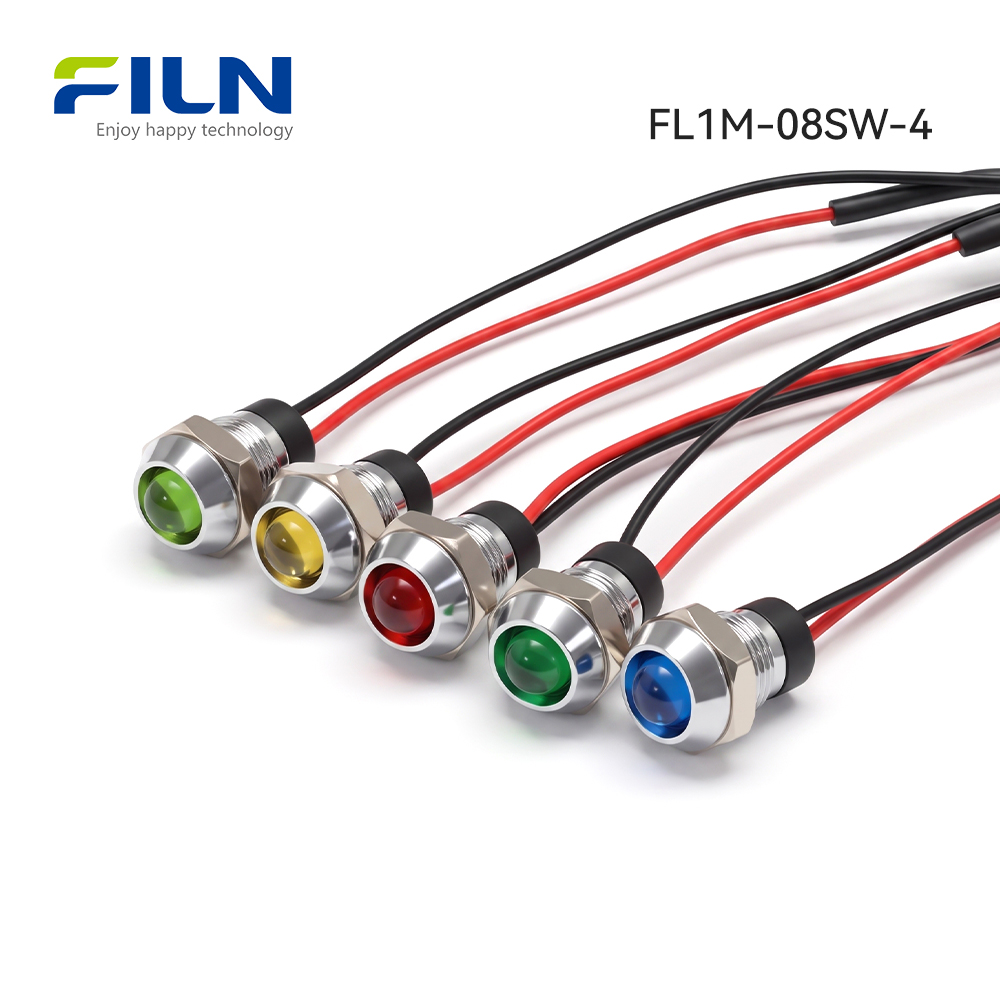

Comprehensive Product Overview

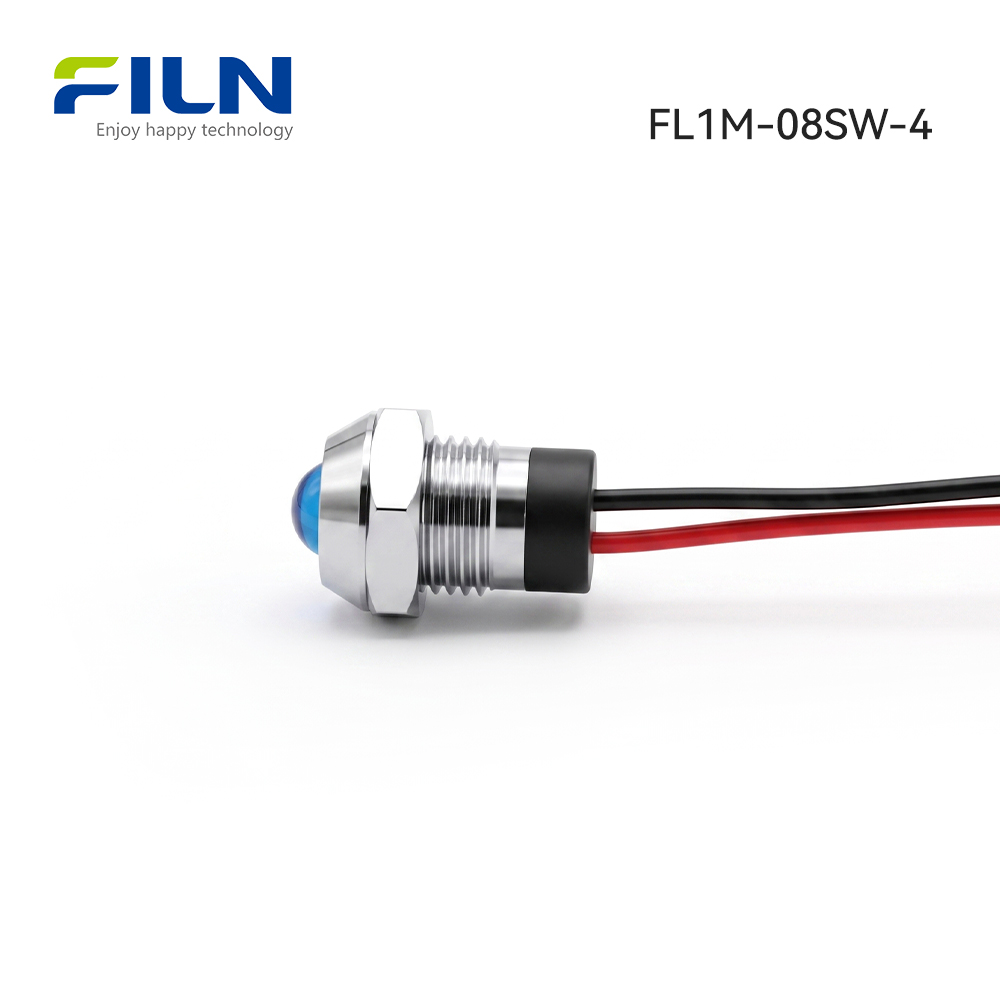

The 8mm convex led light indicator serves as a robust solid-state panel luminaire engineered to function reliably within hazardous industrial configurations. Operating on a semiconductor junction principle, the integrated diode configuration focuses light out through a highly resilient polycarbonate lens element. This achieves high-intensity illumination while drawing less than 20mA of current. This low power layout significantly limits thermal generation inside sealed control panel enclosures.

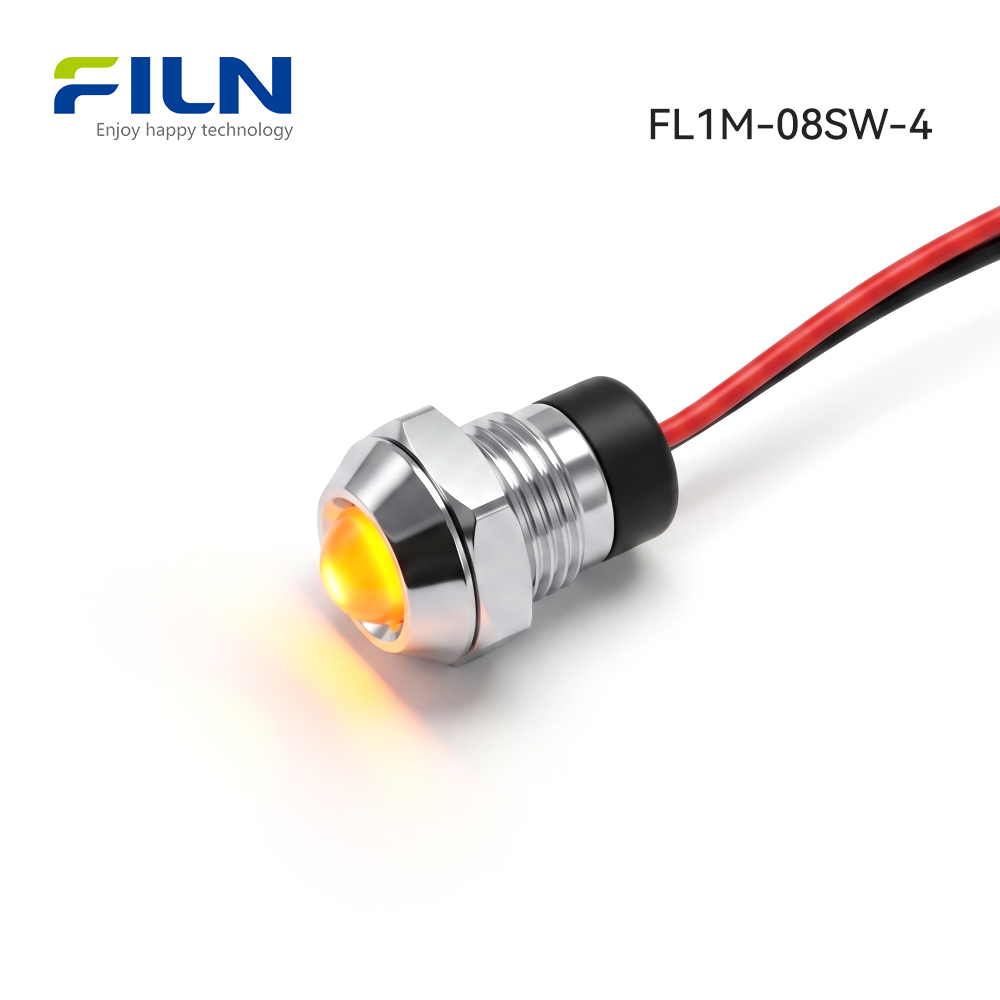

Encased in a precision-machined copper alloy body, this blue led indicator light resists high mechanical impacts and continuous machinery vibrations. The 2PIN direct-wire lead assembly removes the need for terminal soldering, preventing fractures caused by chronic field stress. Complete compliance with major standards like CE, VDE, and RoHS guarantees that these components easily integrate into equipment bound for North American, European, and Asian target markets.

Quick Specifications Table

Performance Parameters

Component Materials Breakdown

Environmental Performance Metrics

This technical specification defines the general operating parameters for the FILN metal led light indicator series. It ensures stable operations when deployed across global applications.

LED Die Component Technical Specification

1. Absolute Maximum Ratings

2. Electro-Optical Characteristics

Evaluated under standard structural ambient temperatures of T_a=25°C:

Standard Baseline Test Conditions

Unless explicitly modified by external engineering documentation, all structural parameters are captured under these standard environmental baselines:

• Ambient Structural Temperature: 5°C to 35°C Range
• Relative Testing Humidity: 45% to 85% Scale Range
• Barometric Pressure Threshold: 86 Kpa to 106 Kpa (860 mbar to 1060 mbar)

Technical Measurement Notes: Luminous output intensities and color wavelengths are fully calibrated in compliance with the international CIE human eye photopic response curve matrix. The standard tolerance parameter for physical light measurements holds at ±15%, while voltage verification tolerances are held to within ±0.1V.

Deployment Applications Across Industries

The FILN heavy-duty metal led light indicator features an impact-resistant brass alloy housing with an IP67 rating. While standard plastic indicator alternatives face early failure due to UV cracking and heat fatigue, this metal indicator light delivers durable status tracking across harsh environments.

Industrial Automation & Production Assemblies

CNC machine tools and heavy-duty factory workstations depend on these indicators for status mapping. For example, a blue led indicator light frequently tracks specific auxiliary mode cycles or safety interlock statuses. This ensures the panel remains functional even when exposed to cutting fluids, metal shards, and constant operational vibrations.

Outdoor Power & Renewable Infrastructure Systems

EV charging stations, solar combiners, and city distribution boards use these metal indicators for clear visibility in bright sunlight. The wide -40°C to +80°C operating range ensures reliable performance through intense heat and extreme sub-zero conditions.

Transit Systems, Heavy Machinery, & Marine Interfaces

Excavator dashboards, control systems, and marine bridges use pre-wired indicators to survive constant mechanical shaking. The chrome-plated metal housings protect internal connections against salt air corrosion and moisture ingress.

Commercial Self-Service Terminals & Vandal-Resistant Displays

Vending kiosks, ticketing counters, and fuel dispensers use these robust indicators to prevent vandalism. This configuration keeps public-facing terminal interfaces secure and functional over long operational life cycles.

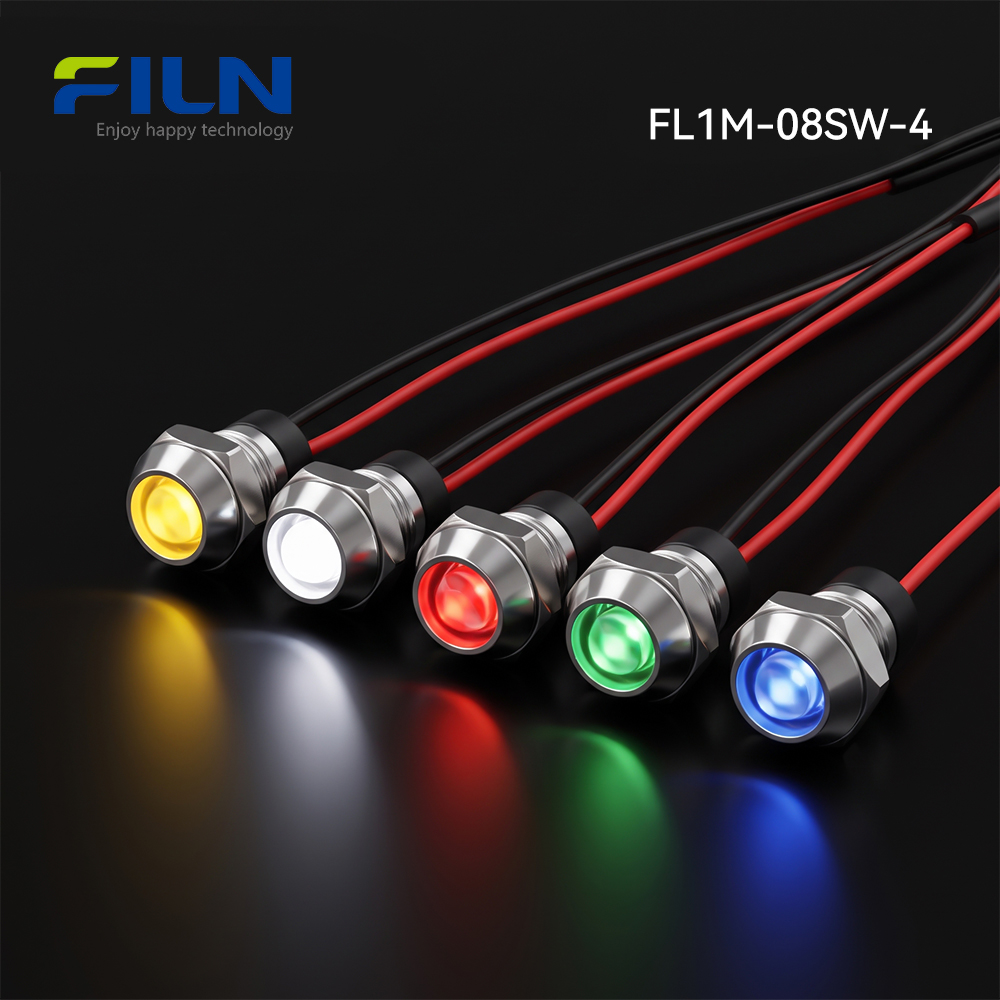

Chromatic Signaling Frameworks (R/G/Y/B/W)

Modern control panel designs rely on standard color meanings to speed up operator response times and prevent mistakes:

• Red (R): Signals an immediate emergency fault, system failure, or critical shutdown that requires swift intervention.
• Green (G): Confirms a normal system state, verifying that automated processes are running safely within parameters.
• Yellow (Y): Acts as a warning alert, flagging conditions like thermal overloads or pressure drops that need monitoring.
• Blue (B): The blue led indicator light highlights specific operator actions, such as mandatory preset configurations, manual resets, or fluid replenishments.
• White (W): Serves as a neutral power monitor, confirming that mainline voltages are present across distribution sub-circuits.

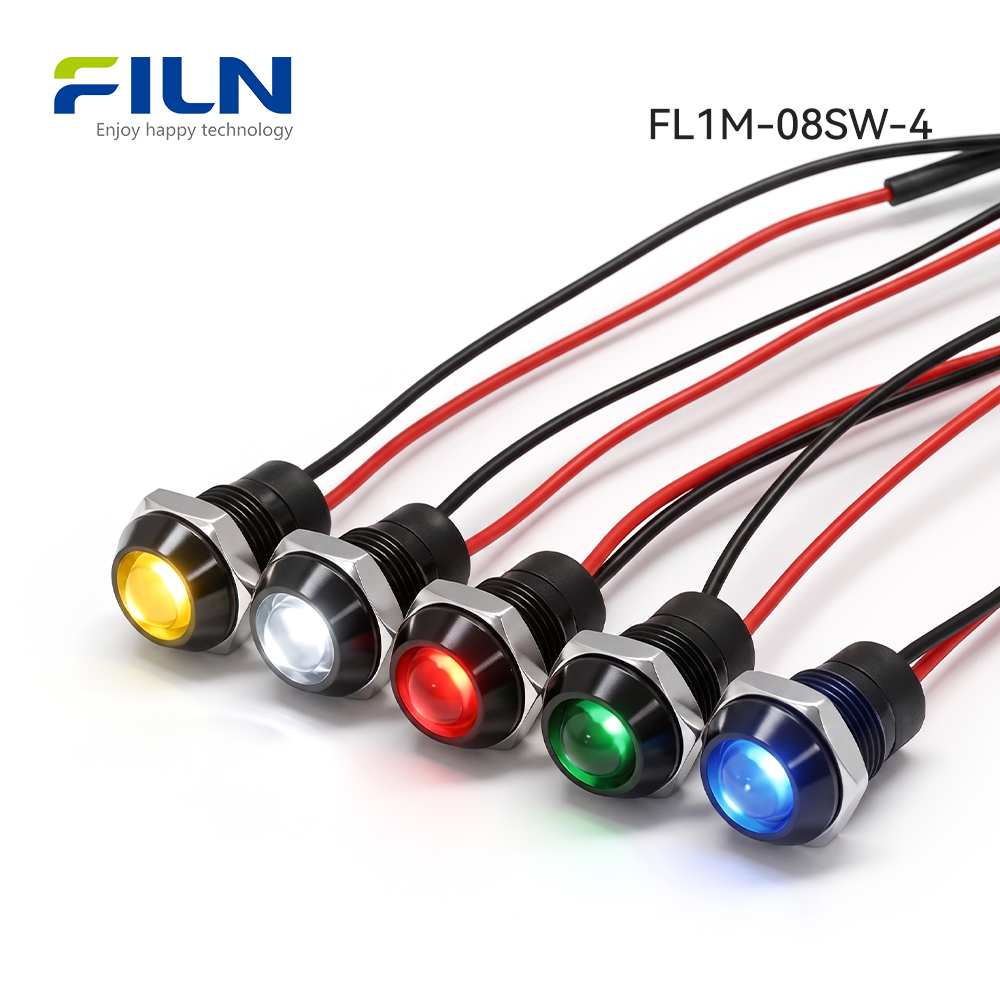

To support more complex tracking requirements, FILN offers dual-color and triple-color LED configurations. These multi-color systems help engineering firms save panel space by providing multiple status states within a single 8mm layout footprint.

Step-by-Step Installation Guide

Follow these engineered deployment steps to cleanly install the 8mm panel-mount led light indicator assembly:

1. Panel Hole Punching: Drill a clean 8mm (0.315 inch) circular hole into the instrument plate, making sure to remove any sharp edge burrs.

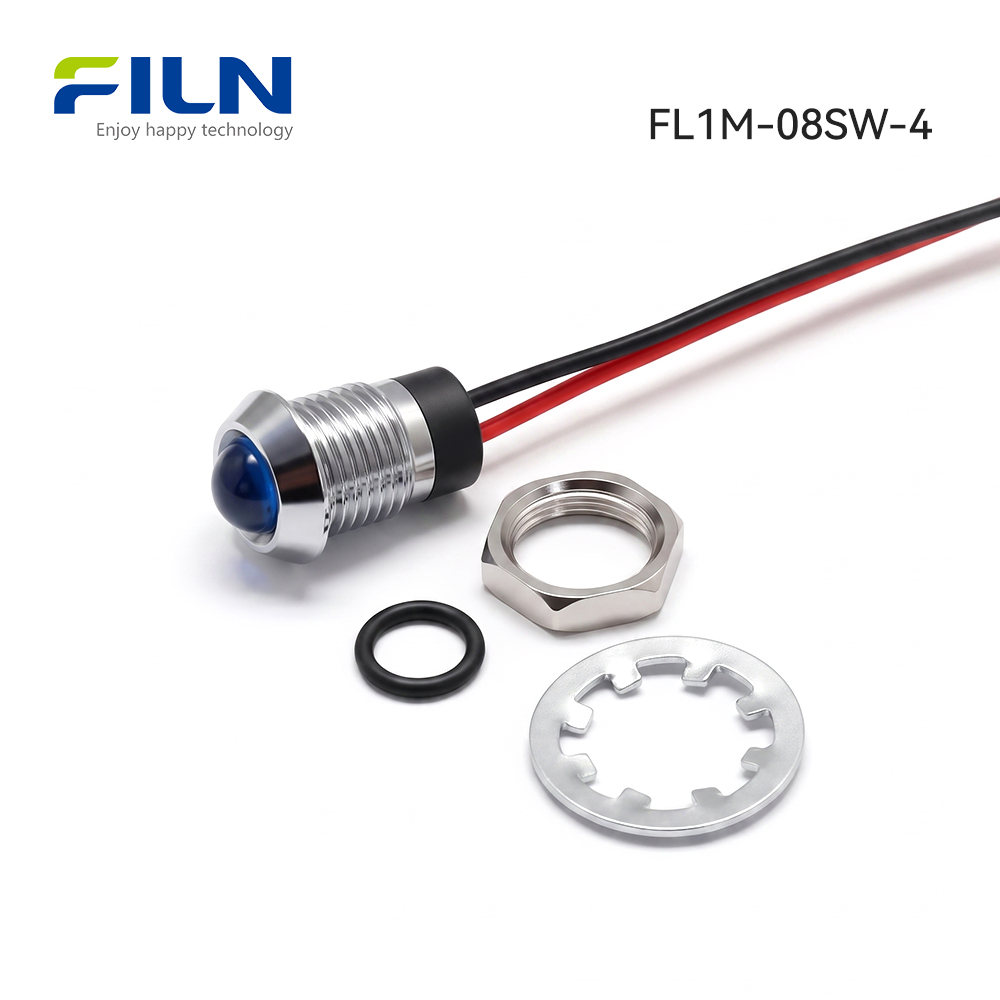

2. Sealing Preparation: Slide the included high-grade silicone sealing ring onto the threaded metal body of the indicator light.
3. Front Insertion: Push the pre-wired 2PIN wire lead tail through the panel opening from the front faceplate side until the convex head rests flat.
4. Rear Security Fastening: Slide the stainless steel locking washer onto the body from behind, then hand-tighten the M6 hex locking nut.
5. Final Mechanical Tensioning: Torque the nut with a wrench to compress the front silicone gasket. This achieves an airtight IP65/IP67 moisture barrier.

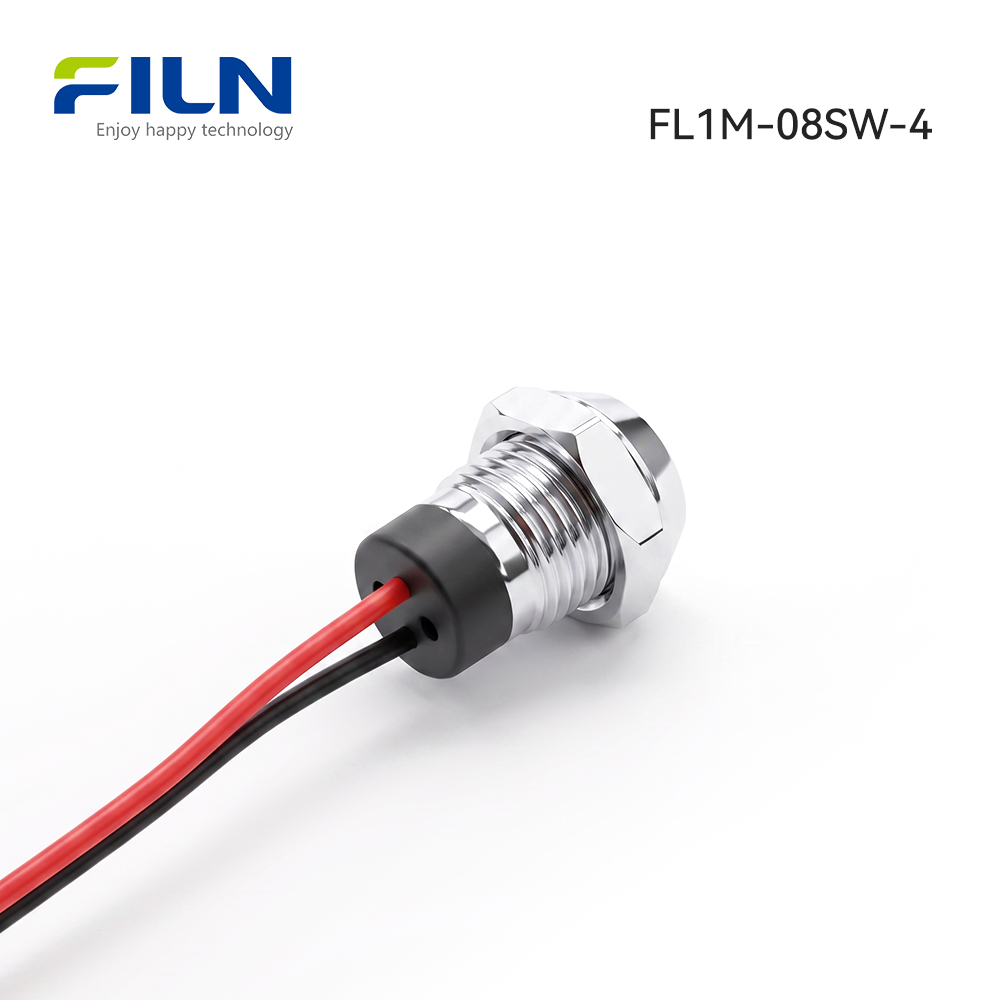

Electrical Wiring Guide

Proper electrical termination protects against circuit faults and maintains long-term signal line integrity. This 2PIN direct-wire configuration uses flexible, pre-stripped 20cm individual lead wires (giving an overall length of 40cm) to streamline panel wiring layouts. Connections can be completed using quick-disconnect terminal blocks, direct soldering with heat-shrink insulation, or professional electrical wrap.

CRITICAL SAFETY WARNING: Always isolate the main power source before starting installation or handling electrical wiring. Verifying zero voltage across terminal points helps prevent component damage and protects technicians from electrical shock risks.

Industrial Knowledge Base

A common issue in automation engineering is phantom illumination (faint glowing) in low-voltage LED indicator loops. This problem occurs when stray induced currents or small leakage flows travel along long, bundled control wires. Because high-efficiency solid-state indicators require minimal power to activate, even micro-amperage leakage can cause the lens to glow faintly. This can confuse operators tracking system statuses.

FILN solves this issue by optimizing internal resistor networks and offering optional zener diode shunts. This ensures the indicator lens activates only when the true control voltage threshold is reached. Regular maintenance should include checking the seal compression torque and cleaning the polycarbonate lens with mild solutions to prevent chemical dulling.

B2B Procurement Decision Matrix

When sourcing panel-mount signal indicators for industrial projects, procurement managers should evaluate these core design factors:

• Housing Material Durability: Choose copper alloy or stainless steel for systems exposed to high impacts, washdowns, or continuous outdoor weather.
• Lens Profile Visibility: Standard flat profiles fit flush to save space, while prominent convex heads offer wider viewing angles for critical safety tracking.
• Termination Strategy: Pre-wired 2PIN assemblies speed up large-scale equipment integration, while spade terminals simplify field servicing.

For larger 8mm product lines, visit our centralized hub at the 8mm LED Indicator Light Selection Center. To check full cross-reference pricing, review details on the Direct Procurement Portal.

Additionally, you can view specific variations such as our Standard Convex 8mm Wire Lead Indicator or the Mid-Length Body Metal Indicator variants.

Why Procurement Teams Partner with FILN

Factory Direct Supply & Capacity

Yueqing Yulin Electronic Co., Ltd. (operating under the global FILN brand) was established in 2006 in Wenzhou, Zhejiang. As a specialized manufacturer of rugged electrical switches and indicators, our high-durability products serve clients in over 100 countries. FILN operates a modern 10,000 m² facility running more than 20 advanced production lines alongside an independent quality verification laboratory. Guided by rigorous ISO9001 management, FILN maintains high reliability across all production batches.

Our comprehensive production includes indicator lights, industrial push buttons, rocker switches, and toggle configurations. We specialize in custom solutions for power storage, EV charging, marine controls, and commercial food equipment. Our engineering team handles design issues directly, providing 3D CAD modeling files and component data sheets to streamline procurement.

Explore our engineering resources at www.filn.com or submit project files directly to inquiry@cnylin.com.cn.
