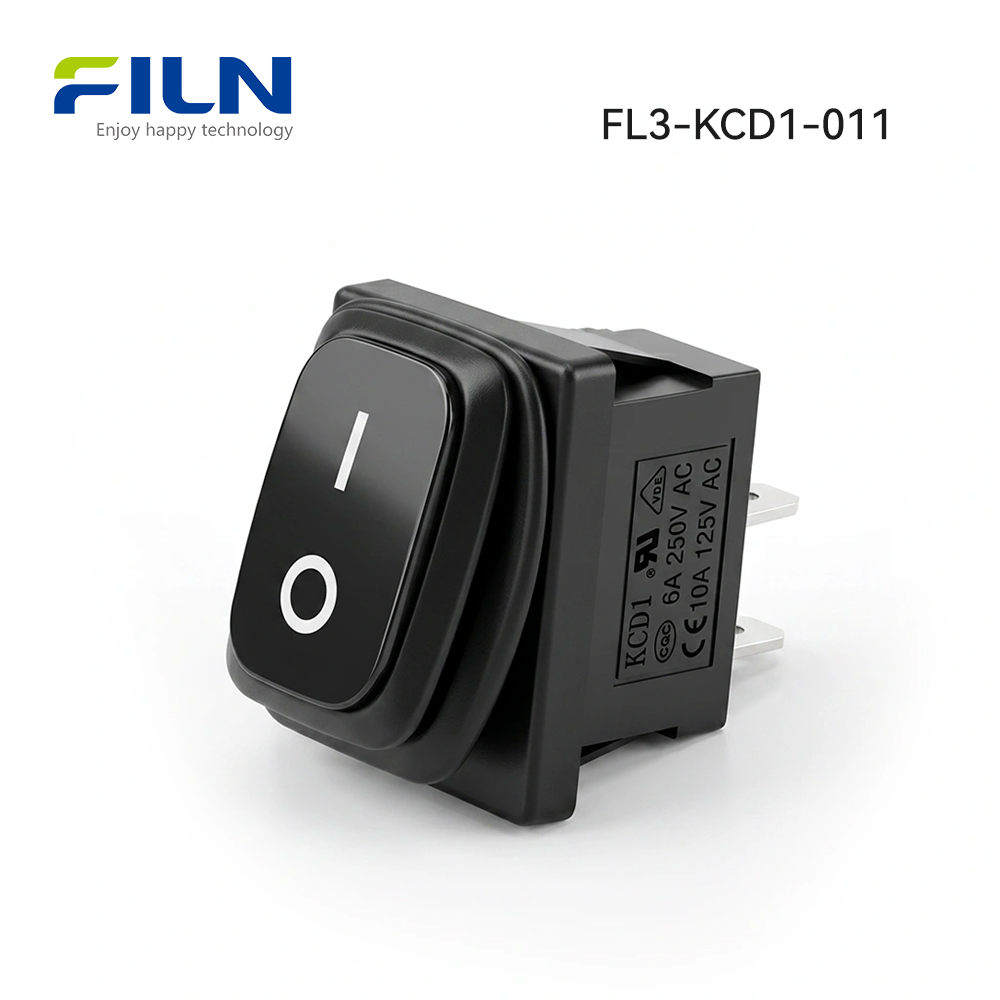

2 Pins ON OFF 10A AC Waterproof Black Rocker switch

  • Mode: FL3-KCD1-0111
  • Voltage: 3V, 5V, 6V, 12V, 24V, 13V, 110V, 120V, 220V, 240V, 250V, 380V
  • Keyword:Black rocker switch
  • Color: Red, White, Blue, Green, Yellow, Black
  • Material: PC
  • Certification: CE CCC ROSH IP67 UL
  • Waterproof grade: IP67
  • Email: inquiry@cnylin.com.cn
  • Download PDF: FL3-KCD1-0111-11X

The description of the 2 pins ON OFF 10A/AC waterproof black rocker switch.

The biggest feature of the 2 pins black rocker switch is waterproof, it can be used outdoors.

1.The mounting hole diameter, the 2 pins 10A rocker switch is a waterproof black rocker switch based on the 15*21 regular rocker switch, its mounting hole is 13*19.5mm. It is same as the regular. However, it has the waterproof function. The thickness of the panel should be below 0.8mm, just clutch the 2 pins rocker switch on the panel then the installation is completed.

2.The AC rocker switch is design with waterproof, and the waterproof rating is IP67, let transparent cover of the rocker switch and waterproof cap of waterproof rocker switch clutch on the lamp base of the rocker switch, it is sealed trough a waterproof cap. The waterproof cap adopts the oil-resistant and waterproof silicone material, it can be used on the kitchen equipment.

3.The current of the AC black rocker switch is 6A, provided that the voltage is 250V, it can be used on the mechanical equipment with power below 1250W.

If you want 10A rocker switch, we can change the material of rocker switch’s side pin, middle pin, and drawboard from brass to purple copper, then change the silver point’s size from 2.5mm to 3.5mm, by this way, the current of the rocker switch has been increased. Filn can customize any achievable products according to your needs.

Waterproof-rocker-switch

4.The 2 pins rocker light switch is without lamp, while the 3 pins rocker light switch is with lamp. The lamp can achieve different colors and a variety of voltages, such as 3V, 12V, 24V, 36V, 110V, 220V, 380V.

5.The illuminant body of the waterproof rocker switch is LED, so it can achieve five colors of red, green, yellow, blue, white, etc. The black rocker switch is waterproof and without lamp.

6.The service life of the AC black rocker switch with power of 1250W is 100,000 times. If the power is higher than 1250W, the service life will become shorten, while the power is below 500W, the service life will become longer.

7.The head of the AC black rocker switch adopts nylon PC material, lamp base and rocker switch’s base adopts nylon PA66 material,

which is inflaming retarding and high-temperature resistant. When the rocker switch is welded with wire lamp pin, it does not cause the rocker switch’s base to melt. Waterproof cap adopts silicone material while the metal pin adopts copper H62 material.

8.The black rocker switch has the functions of ON OFF, ON OFF ON, and ON ON, of course it has the reset ON OFF function.

The waterproof rocker switch ON OFF without lamp has two pins and ON ON has three pins. The lighted waterproof rocker switch ON OFF has three pins, ON OFF ON has three pins.

9.The waterproof rocker switch of Filn had passed the certifications of UL, CE, ROSH, etc. These international certifications proved that the functions of the rocker light switch meet the international standards. Meanwhile it guarantee the product’s quality, it can be used and sold in the US and European markets.

认证Waterproof rocker switch

How to wire a 2 pins black rocker switch?

Since the waterproof black rocker switch only has 2 pins, so the wiring way is very simple.

One pin connects to the power’s one pole, and the other pin connects to the device’s one pole while device’s the other pole connects to the power. This can form a circuit controlled by the waterproof rocker switch, press the key to control the circuit’s on and off. The connection method is very simple and easy to operate.

AC-rocker-switch

What are the advantages of FILN BLACEK ROCKER SWITCH?

1.There is no MOQ for the rocker light switch and waterproof rocker switch of Filn, you can purchase the product from one piece.

2.Filn accept customization service, such as we can weld the wire directly on the rocker switch, or connect to the corresponding terminal connector, etc.

3.The black waterproof rocker switch of Filn had passed the certifications of UL, CE, ROSH, etc, all the products are produced according to the ISO90001 quality management system standards, ensuring the product’s quality and consistence.

4.Filn has a professional team of engineers to design rocker switch, there is also a team of engineers specializing in producing rocker switch mould. They can complete the design of the 10A waterproof rocker switch and the mould development within 30-40 days.

5.Filn’s sales staff are all engineers who can solve and respond to customer’s questions about the rocker switch at the fastest possible time.

10A rocker switch

Where does the 10A black rocker switch used?

It has a wide range of applications, such as kitchen equipment, water dispenser, treadmill, computer speaker, battery car, motorcycle, ion TV set, coffee maker, row plug, massage machine, and some industrial equipment.

How can i buy a 2 pins black rocker switch ?

1.If you need to custom the waterproof rocker switch or have any other requirements, such as weld wire, or how to use the product, or you want to purchase the product in bulk, etc. You can email our engineer Louis, he will provide you a satisfactory solution, his email address is inquiry@cnylin.com.

2.If you need a large amount of quantity, you can email our international trade sales, they have over 10 years of overseas sales experience, and will give you best price and premium service, their email address is sales2@filn.com.cn.

3.If you need a small quantity of small rocker switch, you can place an order at www.cnfiln.com, Filn will arrange the delivery on the same day.

4.Filn will provide the samples free of charge for your test.

Product Item FL3-KCD1-0111
Panel Mount Diameter 19.5*13mm
Contact Way solder pin
Install Way Buckle
Lamp Type NO LED
Rated voltage 3v, 5v, 6v, 12v, 24v,13v, 110v, 120v, 220v, 240v, 250v, 380v
Lamp Color Red,white,blue,green,black,yellow
Shell Material brass plated nickel
Base Material PA66 nylon
Terminal Material brass
Applications Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment etc
