Key Takeaways for Engineers and Procurement Managers
- Product Identity: 14mm recessed head metal indicator lamps featuring direct 2PIN wire leads for reliable industrial panel mounting.
- Electrical Range: Fully customizable operating voltage from 3V to 480V AC/DC with ultra-low current consumption under 20mA.
- Material Composition: Durable copper alloy or zinc-aluminum shell paired with an integrated silicone O-ring for enhanced structural integrity.
- Protection Rating: IP65 to IP67 waterproof and dustproof performance when correctly installed with the provided sealing gasket.
- Mounting Specification: Standard 14mm panel mounting hole utilizing a single threaded nut and plum blossom washer mechanism.
- Wiring Configuration: 2PIN wire lead configuration allows rapid connection via quick-link terminals, soldering, or insulating tape.
- Global Certifications: UL certified under certificate number E498776, alongside CE, VDE, RoHS, ISO9001, and CCC compliance.
- Target Applications: Widely deployed in electrical distribution cabinets, experimental equipment, yachts, and automotive modifications.
- Customization Support: Comprehensive OEM and ODM capabilities offered by FILN for custom wire lengths and multi-color LEDs.
- Procurement Advantage: Factory-direct wholesale pricing and stable supply chains backed by a 10,000 m² manufacturing facility.
What Are Metal Indicator Lamps?
Indicator lamps are essential visual status feedback devices utilized in industrial electrical equipment, control panels, and automation machinery. Their primary function is to communicate operational states—such as power activation, system readiness, standby modes, or fault warnings—to machine operators and maintenance personnel. Structurally, industrial indicator lamps are categorized into metal and plastic variants, with mounting sizes ranging from 6mm to 30mm. Furthermore, they are available in pin-type and direct wire-lead connection formats. Metal indicator lamps feature flat, prominent raised, or recessed head profiles to suit diverse ergonomic and visual requirements.

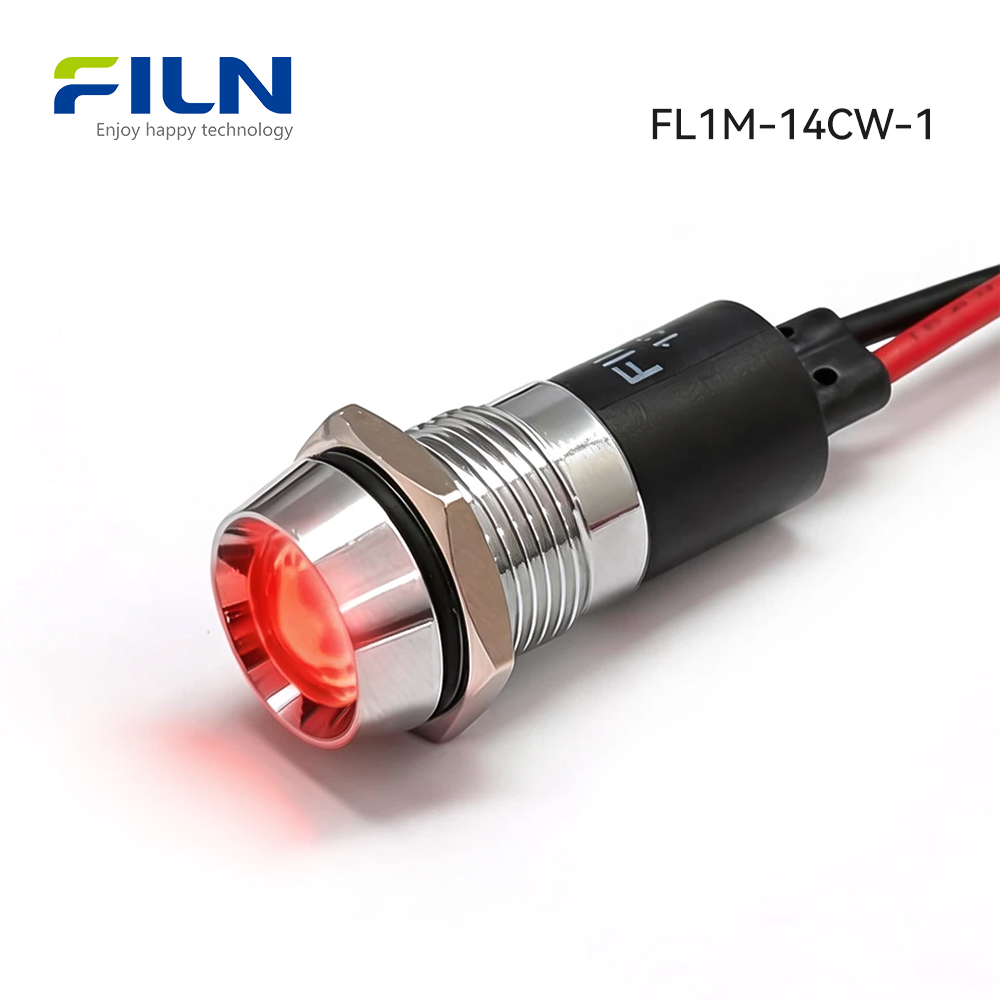

The 14mm recessed head model provides focused illumination from a sunken lens design, minimizing accidental physical contact and glare. Compared to standard plastic indicators, metal indicator lamps offer superior impact resistance, high-temperature tolerance, and longevity in demanding industrial environments. They prevent cracking, UV degradation, and mechanical deformation under continuous operational stress.
Product Overview and Engineering Design
The FILN 14mm recessed head indicator lamps integrate precise electrical engineering with durable mechanical construction. Operating on standard LED illumination principles, the internal circuit converts electrical input into bright, consistent optical signals while limiting current draw through integrated resistance elements. This ensures minimal heat generation and extended operating lifespans exceeding 50,000 hours.
The mechanical assembly utilizes a threaded housing secured by a rear mounting nut and a high-grade silicone O-ring, creating an effective barrier against moisture and particulate ingress. Industrial automation systems, electrical distribution cabinets, and transport infrastructure rely on this design for uninterrupted visual monitoring. Rigorous quality control procedures, including dielectric strength tests and thermal cycling evaluations, guarantee consistent performance across global markets.
Procurement professionals seeking comprehensive data can request full specification sheets, 3D CAD modeling files, or bulk wholesale quotations directly from our engineering team by emailing inquiry@cnylin.com.cn.
Quick Technical Specifications
| Product Description |
Metal indicator lamps with wires / Pilot light indicator |
| Model Identifier |
FL1M-14CW-1 |
| Mounting Hole Size |
14mm (0.551 inches) |
| Operating Voltage |
3V – 480V DC/AC (Customizable) |
| LED Color Options |
Red, Green, Yellow, Blue, White, Bi-color, Tri-color |
| Waterproof Rating |
IP65 / IP67 |
| Wiring Type |
2PIN Wire Lead Type (Direct Attached Wires) |
| Head Feature |
Recessed Head (Sunken Lens Profile) |
| Surface Quality |
Smooth finish, burr-free, oxidation-free, crack-resistant |
| Included Accessories |
1x Indicator Lamp, 1x Waterproof O-Ring, 1x Washer, 1x M14 Nut |
Performance Parameters and Electrical Ratings
| Rated Working Voltage |
3V – 240V DC/AC (Custom voltages available upon request) |
| AC Frequency |
50 Hz to 60 Hz |
| Rated Working Current |
Less than or equal to 20mA (≤20mA) |
| Rated Power Consumption |
Approximately 0.2W |
| Insulation Resistance |
≥100MΩ (Tested between wire conductor and housing at DC 500V) |
| Dielectric Strength |
1500V to 1800V AC, with no breakdown or flashover |
| Working Life |
50,000 to 100,000 hours of continuous operation |
| Ingress Protection Rating |
IP67 compliant under proper installation |
Component Materials and Selection Rationale
Every material used in the construction of the indicator lamps is selected to ensure structural stability, electrical isolation, and resistance to environmental corrosion. The following breakdown outlines the specific components and their engineering functions:
| Accessory Name |
Material Composition |
Engineering Purpose |
| Shell / Housing |
Copper Alloy / Black-Plated Zinc-Aluminum Alloy |
Provides robust mechanical strength, impact resistance, and grounding capability. |
| Lamp Holder |
Polyamide 66 (PA66) |
Offers excellent thermal stability, flame retardancy, and internal electrical insulation. |
| Lampshade Lens |
Polycarbonate (PC) |
Ensures high optical light transmission, impact resistance, and color fidelity. |
| Luminescent Source |
High-Brightness LED Diode |
Delivers energy-efficient optical output with low operating current and long service life. |
| Internal Resistor |
Carbon Film Resistance |
Regulates voltage drop and stabilizes current flow across diverse operational inputs. |
| Wireway / Leads |
Polyvinyl Chloride (PVC) insulated wire |
Provides flexible electrical routing and reliable insulation against environmental wear. |
| Mounting Nut |
Copper Alloy |
Secures the assembly firmly against panel surfaces without stripping thread integrity. |
| O-Ring Seal |
Silica Gel (Silicone) |
Maintains elastic compression to block water and dust penetration at the panel interface. |
| Plum Blossom Gasket |
Stainless Steel |
Prevents loosening under heavy mechanical vibration and continuous industrial operation. |
Environmental Performance and Durability Testing
This specification defines the general operating boundaries and environmental resilience parameters for the metal indicator lamps series:
| Application Range |
General industrial panel installation and signal monitoring |
| Operating & Storage Temperature |
-40°C to +80°C |
| Operating Relative Humidity |
≤85% at +40°C |
| High Temperature Test |
96 hours at 80°C ± 2°C |
| Low Temperature Test |
96 hours at -40°C ± 2°C |
| Constant Temperature & Humidity |
96 hours at 40°C ± 2°C, 90% to 95% relative humidity |
| Temperature Cycling Test |
Alternating between -40°C (30 min) and 85°C (30 min), 5 cycles total |
LED Technical Specifications and Optical Characteristics
1. Absolute Maximum Ratings (Safety Limits):
- Max Forward Current (IFP): 20 mA
- Reverse Voltage (VR): 5 V
- Power Dissipation (PD): 60 mW
- Operating Temperature Range (TOPR): -40°C to +80°C
- Storage Temperature Range (TSTG): -40°C to +100°C
- Lead Soldering Temperature (TSOL): Maximum 260°C for up to 3 seconds
2. Electro-Optical Characteristics (Tested at Ambient Temperature Ta = 25°C):
| Parameter |
Test Condition |
Specification Value |
| Forward Voltage (VF) |
IF = 20mA |
2.8V (Min) to 3.2V (Max) |
| Reverse Current (IR) |
VR = 5V |
5 µA (Max) |
| Viewing Angle (2θ1/2) |
IF = 20mA |
60 degrees (Typical) |
| Luminous Intensity |
IF = 20mA |
500 mcd (Min) to 800 mcd (Max) |
| Recommended Working Current (IF) |
Operational |
20 mA (Typical) |
| Dominant Wavelength (Color) |
IF = 20mA |
520 nm to 525 nm (for green variant) |
| Junction Temperature (Tj) |
IF = 20mA |
125°C (Max) |
| Thermal Resistance (RJP) |
IF = 20mA |
8°C/W (Typical) |
Standard Test Conditions and Calibration Protocols
Unless otherwise specified, all electrical and optical parameters are measured under the following standard atmospheric conditions:
- Ambient Temperature: 5°C to 35°C
- Relative Humidity: 45% to 85%
- Air Pressure: 86 kPa to 106 kPa (860 mbar to 1060 mbar)
Calibration Notes: Luminous intensity and dominant wavelength are calibrated in accordance with the CIE international standard of human eye response curves. Measurement tolerances include a ±15% variance for luminous intensity and a ±0.1V variance for operating voltage measurements.
Applications by Industry and Operating Environment
Metal indicator lamps utilize high-strength copper alloy or stainless steel housings, offering exceptional impact resistance and IP67 waterproof protection. While plastic indicators are prone to aging, thermal cracking, and deformation over time, metal indicator lamps are engineered for harsh operational environments characterized by frequent mechanical operation and high reliability requirements.
1. Industrial Automation and Machine Manufacturing
This sector represents the primary deployment area for industrial indicator lamps, where control panels face continuous mechanical vibration, oil splashes, and physical wear.
- CNC Machine Tools: Control panels utilize red, yellow, and green indicator lamps where green indicates normal operation, yellow signals standby, and red denotes emergency stop or fault conditions. Metal shells resist cutting fluids and metal debris.
- Automation Control Cabinets: Large electrical panels install 14mm indicator lamps operating on AC220V or DC24V to display power circuit status.
- Hydraulic and Pneumatic Equipment: Applied for oil pump monitoring and pressure limit warnings. The wire-lead internal design resists wire detachment under heavy vibration compared to standard pin terminals.
2. Outdoor Power and Renewable Energy Distribution Systems
Outdoor equipment is exposed to solar radiation, moisture, and extreme temperature fluctuations, requiring superior weatherproofing.
- Electric Vehicle Charging Stations: DC and AC charging piles utilize recessed and flat metal indicator lamps where flashing blue or green indicates charging status, and flashing red signals ground faults. IP67 sealing protects public infrastructure against vandalism and weather.
- Photovoltaic Combiner Boxes: Solar power stations use indicator lamps to display high-voltage closing and inverter status across operating temperatures from -40°C to +80°C.
3. Railway Transport, Commercial Vehicles, and Marine Equipment
Vehicles and marine vessels experience severe mechanical shock, vibration, and salt-fog corrosion.
- Engineering Vehicles: Excavators and cranes utilize dashboard indicator lamps for oil pressure, coolant temperature, and brake status monitoring.
- Marine Control Systems: Deck control boxes utilize metal indicator lamps treated against salt-spray corrosion, paired with silicone O-rings to prevent seawater infiltration.
4. Commercial Self-Service Terminals and Public Infrastructure
- Vending and Ticketing Machines: Paired with vandal-resistant metal switches to display transaction and dispensing status.
- Access Control Intercoms: Stainless steel access panels feature dual-color indicator lamps to display door lock engagement.
LED Indicator Color Meanings and Application Guide
Indicator color selection is critical for operator safety and ergonomic system design. Conventions vary across industries, but standard engineering practices define primary color meanings as follows:
| Color |
Common Industrial Meaning |
Typical Equipment Status |
Recommended Application |
| Red |
Danger, emergency, stop |
Fault, emergency stop activated, alarm state |
Machine shut-off switches, error panels |
| Green |
Safe, normal, go |
System operational, power active, cycle complete |
Main power ON indicator lamps, run cycles |
| Yellow / Amber |
Caution, attention required |
Standby, temperature warning, low fluid level |
Pre-heating stages, warning panels |
| Blue |
Mandatory action, status info |
Cooling active, charging in progress, mode active |
EV chargers, auxiliary function displays |
| White |
Neutral, general indication |
Control power present, lighting circuit active |
General instrumentation panels |
Note: Color conventions can vary by equipment manufacturer, control-system design, and regional standards. FILN also offers dual-color and tri-color configurations for complex status monitoring.
Installation Guide for Panel Builders
Proper mechanical installation ensures structural stability and maintains the IP67 waterproof rating of the indicator lamps assembly. Follow these structured steps:
- Tool Preparation: Gather a hole punch or drill suited for metal/plastic panels, a torque wrench, wire strippers, and electrical insulation material.
- Panel Preparation: Drill or punch an exact 14mm circular mounting hole in the target control panel surface. Ensure the edge is deburred and smooth.
- Gasket Positioning: Place the provided silicone waterproof O-ring onto the threaded body of the indicator lamps just beneath the recessed head flange.
- Insertion: Insert the indicator lamps housing from the front side of the control panel through the 14mm mounting hole.
- Rear Securing: Slide the stainless steel plum blossom washer onto the threaded shaft from the rear, then thread and tighten the M14 metal locking nut securely.
- Electrical Connection: Connect the 2PIN wire leads to the power source using quick-link terminals, soldering, or approved electrical connectors. Ensure power is disconnected before wiring.
- Final Inspection: Verify that the seal is compressed uniformly and that the indicator lamps are firmly locked without wobbling.
Wiring Methods and Safety Guidelines
Understanding connection configurations ensures stable electrical performance across different models. Pin-type indicator lamps utilize standard terminal blades requiring quick-disconnect receptacles or soldered wire attachments. Conversely, direct wire-lead indicator lamps feature factory-attached PVC cables that streamline assembly.
Direct wire-lead indicator lamps can be connected to main circuits using quick-link wire connectors, soldered joints, or wrapped electrical tape to guarantee connection stability. Important Safety Notice: Always disconnect the main power supply and verify zero voltage using a multimeter before performing any electrical wiring or maintenance.
Industry Knowledge Center
Indicator lamps serve as the critical human-machine interface (HMI) frontline. Selecting components engineered to international standards prevents premature electronic failure and reduces costly field service interventions. Engineers must evaluate operating voltage compatibility, surge resistance, and housing material integrity when designing control systems.
Common maintenance involves verifying insulation resistance and inspecting panel seals in wet or corrosive environments. If a low-voltage LED indicator lamps exhibit faint glowing (phantom illumination) while powered off, it is typically caused by residual leakage current from solid-state control outputs, which can be resolved by adding an appropriate bleeder resistor.
Buyer Decision Guide and Material Comparison
Selecting the correct metal indicator lamps requires evaluating environmental exposure, panel constraints, and electrical parameters. FILN manufactures metal indicator lamps in nickel-plated brass, stainless steel, and zinc-aluminum alloys.
| Shell Material |
Advantages |
Limitations / Considerations |
Recommended Environment |
| Nickel-Plated Brass |
Cost-effective, excellent mechanical strength, easy to machine. |
Moderate corrosion resistance in extreme saline environments. |
Indoor automation panels, machinery, commercial equipment. |
| Stainless Steel |
Superior corrosion resistance, high aesthetic appeal, extreme durability. |
Higher raw material cost. |
Marine vessels, food processing plants, medical equipment. |
| Zinc-Aluminum Alloy |
Lightweight, versatile black-plating options, robust impact resistance. |
Requires protective coating to prevent oxidation. |
Control cabinets, charging piles, automotive dashboards. |
Pin vs. Wire Lead Comparison:
| Terminal Type |
Advantages |
Ideal Use Case |
| Pin Type (e.g., FL1M-12CJ-1) |
Modular plug-in connection, easy maintenance replacement. |
Standard electrical panels with quick-disconnect blocks. |
| Wire Lead Type (FL1M-14CW-1) |
Pre-wired factory assembly, superior vibration resistance, waterproof seal. |
Vibration-heavy machinery, outdoor enclosures, vehicles. |
Related Product Recommendations:
Ready to Purchase: Order the 14mm Metal Indicator Lamps Directly
RFQ Checklist for Procurement Managers:
When requesting a quotation, providing the following specifications helps FILN engineering and sales teams confirm compatibility quickly:
- Product Model (e.g., FL1M-14CW-1)
- Mounting Hole Size (14mm)
- Operating Voltage & Type (AC/DC 3V-480V)
- LED Color (Red, Green, Yellow, Blue, White, Bi/Tri-color)
- Head Type (Recessed Head)
- Shell Material (Brass, Stainless Steel, Zinc-Aluminum)
- Waterproof Requirement (IP65/IP67)
- Wiring Method & Wire Length
- Target Market & Expected Delivery Date
Submit inquiries directly via email to inquiry@cnylin.com.cn for quotation, data sheets, or 3D CAD models.
FILN Manufacturing and Engineering Capabilities
Yueqing Yulin Electronic Co., Ltd, operating under the brand name FILN in Wenzhou, Zhejiang, was established in 2006 as a professional electrical switch manufacturer integrating research, development, production, and sales. FILN operates a modern 10,000 square meter facility equipped with over 20 advanced production lines and an independent testing laboratory. Driven by rigorous ISO9001 quality management systems, FILN delivers innovative, high-performance electrical components to customers in over 100 countries.
Core Production Capabilities: Specializes in indicator lamps, pushbutton switches, rocker switches, toggle switches, and custom electrical manufacturing solutions.
Quality Assurance & Certifications: FILN products hold international certifications including UL (Certificate Number E498776), CE, VDE, RoHS, SGS, ISO9001, IP65/IP67, TUV, and CCC compliance.
Engineering & Customization Support: Professional R&D engineers assist clients with custom wiring solutions, voltage adaptations, and specialized industrial housing designs.
Official Website: www.filn.com | Direct Inquiry Email: inquiry@cnylin.com.cn
Factory Direct Supply and Global Export
Yueqing Yulin Electronic Co., Ltd, brand name FILN located in Wenzhou, Zhejiang, was established in 2006 as a professional electrical switch manufacturer integrating R&D, production, and sales. Its premium FILN brand products are sold in over 100 countries. FILN operates a modern 10,000 m² facility with 20+ advanced production lines and an independent testing lab. Driven by scientific processes and the ISO9001 quality system, FILN ensures industry-leading innovation and electrical performance. Our certified products (UL, CE, RoHS, REACH, TUV, CB) are widely used in kitchen appliances, energy storage, EV charging, automotive, marine, and security systems.
Production Capabilities: Indicator lamps, pushbutton switches, rocker switches, toggle switches, and various customized manufacturing solutions.
Quality System: Certified under ISO9001, CE, VDE, RoHS, SGS, UL, IP65/IP67, and TUV.
Export Markets: Global distribution across North America, Europe, Asia, and Oceania.
Manufacturing Advantages: Professional engineers available for dedicated project docking, adept at custom solutions for complex circuit requirements.
Website Link: www.filn.com | Email Link: inquiry@cnylin.com.cn
Frequently Asked Questions
1. How to prevent phantom illumination (faint glowing) in 12V LED indicators?
Phantom illumination occurs when residual leakage current from solid-state control outputs or long cable capacitance energizes the LED. This can be resolved by installing a suitable bleeder resistor in parallel with the indicator input terminals to bleed off stray current.
2. Can this IP67 indicator light be washed down with caustic chemicals?
The IP67 rating ensures protection against temporary immersion and dust ingress. When subjected to daily caustic washdowns in food processing environments, stainless steel housing variants are recommended to prevent chemical surface degradation.
3. What is the standard wire length supplied with the FL1M-14CW-1 indicator lamps?
The standard wire length is pre-configured for industrial panel wiring, but FILN offers custom wire lengths and specialized connector attachments upon request during the RFQ process.
4. Is the FL1M-14CW-1 certified for international export markets?
Yes, this indicator lamps model holds UL certification (Certificate Number E498776), alongside CE, VDE, RoHS, and CCC compliance, making it fully acceptable for industrial equipment exported to North America and Europe.
5. What panel thickness is compatible with the 14mm mounting shaft?
The threaded metal shaft and mounting nut accommodate standard industrial enclosure panels ranging from 1mm up to 6mm in thickness.
6. Can FILN customize operating voltages beyond standard options?
Yes, FILN engineering supports fully customizable voltage ratings spanning from 3V up to 480V AC/DC to match specific control system requirements.
7. What accessories are included in the standard packaging?
Each package includes one metal indicator lamps unit, one silicone waterproof O-ring, one stainless steel plum blossom washer, and one M14 mounting nut.
8. How do I request technical datasheets or 3D CAD models?
Engineering drawings, datasheets, and 3D models can be requested directly by emailing the FILN technical support team at inquiry@cnylin.com.cn.
