KEY TAKEAWAYS
- Industrial Identification: Specifically designated as model FL1M-08CW-2, featuring an 8mm panel cutout profile.
- Voltage Versatility: Standardized for 12v indicator light applications with native support for engineering customization from 3V to 250V AC/DC.
- Heavy-Duty Shell Construction: Available in silver-plated copper alloy or black-anodized zinc-aluminum alloy to prevent mechanical fracturing under stress.
- Pre-Wired 2PIN Interface: Dual-conductor pre-insulated wire harness measures 20cm per lead (40cm total length) for rapid circuit termination.
- Environmental Ingress Protection: Achieves a true IP65 and IP67 rating via a compression-molded silicone waterproof O-ring and rear epoxy potting.
- Optical Configuration: Distinctive concave head design minimizes lateral glare while optimizing direct axial visibility across five major LED colors (Red, Green, Yellow, Blue, White).
- Secure Threaded Mounting: Utilizes a single hex-nut retention system with a stainless steel plum blossom lock washer to eliminate torque-induced rotation.
- Global Certification Alignment: Fully compliant with UL, CE, RoHS, TUV, and REACH regulatory parameters for direct integration into international machinery.
WHAT IS A 12V INDICATOR LIGHT?
A 12v indicator light is a specialized optoelectronic component engineered to communicate the operational status of an electrical circuit by emitting a localized luminous signal. Structurally, these units consist of an internal solid-state light-emitting diode (LED) coupled with a current-limiting resistor, enclosed within a protective housing designed for panel integration. In industrial architectures, the primary purpose of a 12v indicator light is to serve as a reliable real-time diagnostic and human-machine interface (HMI) checkpoint, signaling parameters such as power presence, system faults, or active automation sequences.
Industrial signal lamps are categorized into two primary construction styles: metal indicator lights and plastic indicator lights. Panel mounting options vary broadly between 6mm and 30mm diameter installations to accommodate dense control grids or large-scale machinery faces. Electrically, these units provide dual termination configurations, allowing engineers to select between rigid solder terminal pins or direct pre-wired lead configurations depending on the assembly workflow.
The external aesthetics of metal indicator lights are explicitly tailored to distinct visualization and mechanical requirements, offering flat-head, prominent convex-head, or recessed concave-head physical architectures. Selecting the proper head configuration ensures optimal integration with surrounding panel switchgear and meets specialized visibility criteria.
PRODUCT OVERVIEW

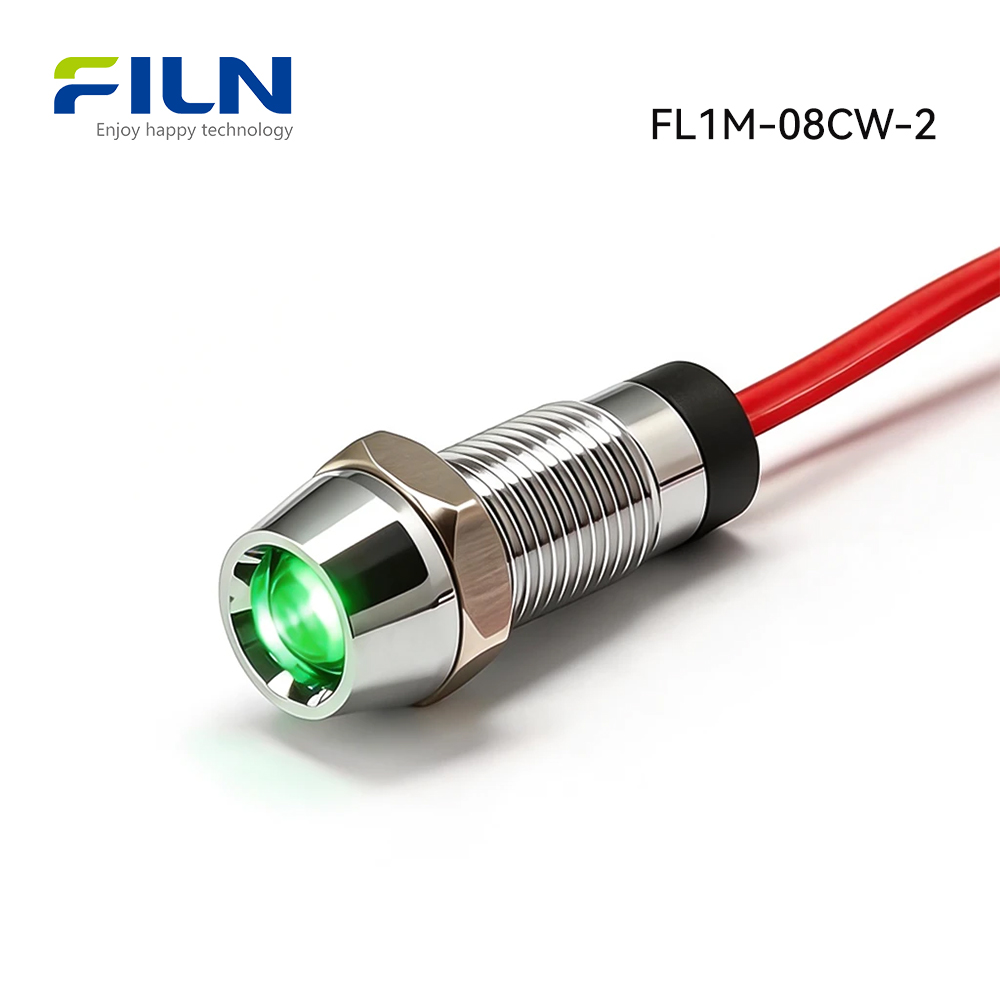

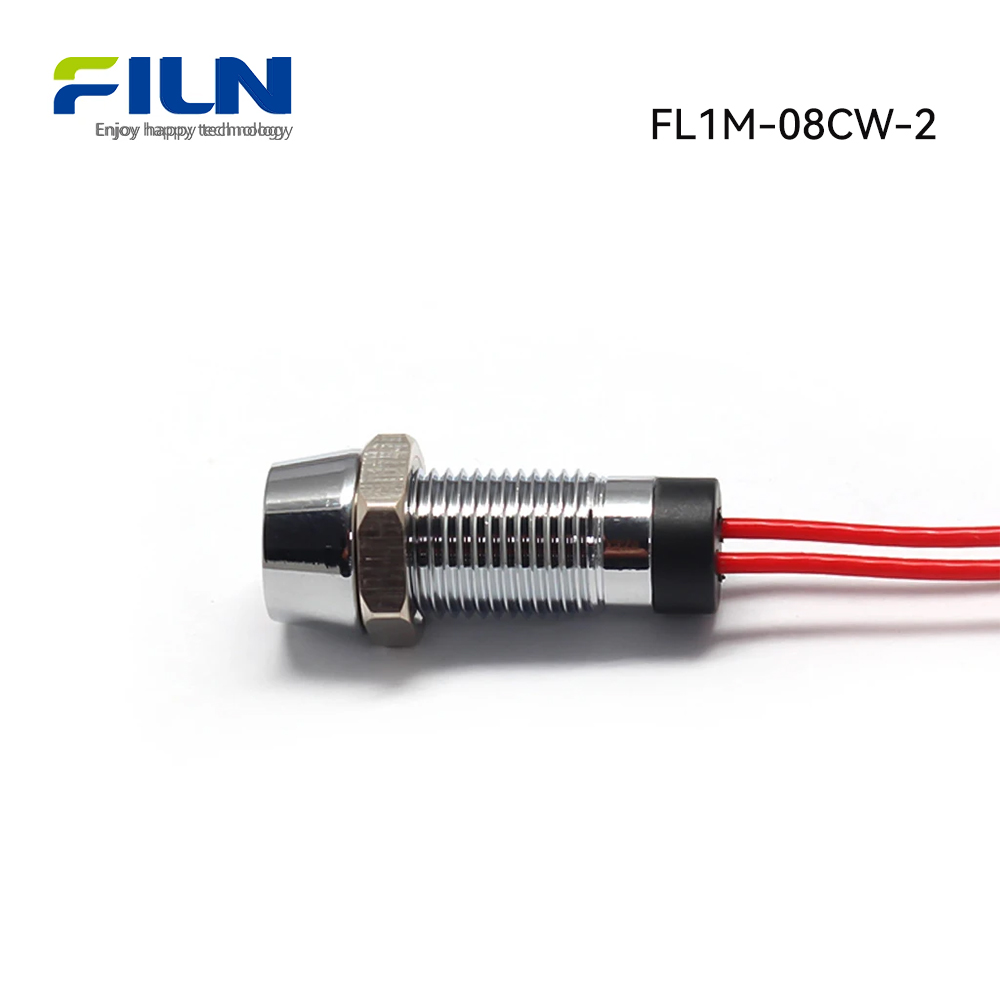

The FILN FL1M-08CW-2 is a premium 12v indicator light designed to fulfill the extreme reliability demands of modern automation and electrical distribution networks. Operating on a solid-state electroluminescence principle, the internal high-brightness LED array converts electrical energy directly into photon emission with minimal thermal dissipation. The built-in carbon film resistor matches internal current characteristics perfectly to the specified operating voltage, eliminating the threat of premature over-current failure.
Housed within an 8mm CNC-machined copper alloy or black-finished zinc-aluminum alloy shell, this metal indicator light delivers significant mechanical advantages over common polymer variants. While plastic units suffer from ultraviolet degradation, stress-cracking, and thermal warping under industrial exposure, the FL1M-08CW-2 maintains structural integrity against external impacts and chemical washdowns. This resilient architectural design guarantees an extended operating lifespan exceeding 50,000 hours in demanding environments.
Engineered primarily for industrial equipment enclosures, electronic test bays, and control cabinets, the unit features an integrated silicone sealing gasket that compresses tightly behind the panel face during thread mounting. Backed by full CE, and RoHS certifications, this signal lamp provides engineers and purchasing professionals with verified performance metrics and strict adherence to global safety and environmental guidelines.
QUICK SPECIFICATIONS
| Technical Specification Parameter |
Engineering Value / Material Choice |
| Product Description |
Metal indicator light with wires |
| Model Designation |
FL1M-08CW-2 |
| Mounting Hole Diameter |
8.0 mm / 0.315 Inches |
| Rated System Voltage |
12V DC (Standard Configuration); 3V to 250V AC/DC Customizable |

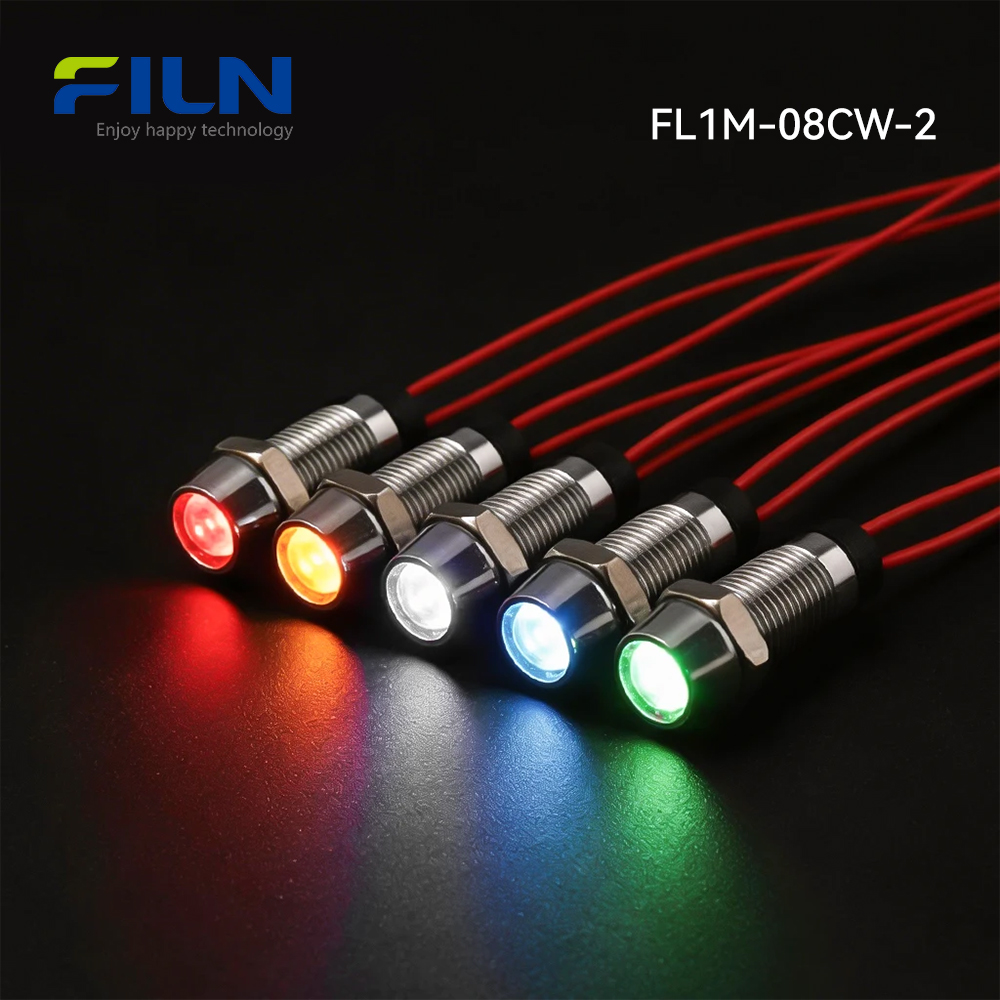

| LED Emitting Colors |
Red (R), Green (G), Yellow (Y), Blue (B), White (W) |
| Ingress Protection Rating |
IP65 / IP67 Sealing Certified |
| Wiring Termination Type |
2PIN Dual Wire Lead Type (Direct Connection) |
| Lead Wire Specifications |
20cm Individual Lead Length (40cm Combined Total) |
| Head Profile Geometry |
Concave Head / Recessed Profile |
| Surface Quality Standard |
Smooth finish, uniformly flat, absence of burrs, oxidation-free, crack-free |
| Mechanical Assembly Criteria |
Head and base modules locked securely; zero rotation, no detachment, zero tilt |
COMPONENT MATERIALS
| Component Accessory Name |
Material Composition |
Engineering Purpose and Mechanical Advantage |
| External Enclosure Shell |
Copper Alloy (Nickel Plated) / Zinc-Aluminum Alloy (Black Anodized) |
Provides mechanical impact resistance, prevents oxidation, and maintains structural integrity. |
| Internal Lamp Holder |
PA66 Polyamide Nylon |
Offers high electrical insulation resistance and excellent thermal stability. |
| Optical Protective Lens |
PC Polycarbonate |
Ensures high light transmissivity combined with premium impact and heat resistance. |
| Luminescent Light Source |
High-Brightness Solid-State LED Array |
Delivers intense, reliable illumination with minimal current draw and maximum operational life. |
| Internal Current Resistor |
Carbon Film Resistor Matrix |
Provides accurate current limitations to protect the LED from electrical overstress. |
| Conductor Insulation Wireway |
PVC Insulated Copper Wire Strands |
Ensures flexible electrical routing combined with highly reliable dielectric insulation. |
| Mounting Retention Nut |
Nickel-Plated Copper Alloy |
Guarantees durable threaded engagement capable of sustaining high installation torque. |
| Sealing Waterproof O-ring |
Silica Gel (Silicone Elastomer) |
Maintains a continuous elastic compression barrier against moisture and dust ingress. |
| Anti-Rotation Lock Washer |
Stainless Steel |
Bites firmly into the rear panel surface to neutralize vibrations and torque shifting. |
LED SPECIFICATION DATA SHEET
1. Absolute Maximum Ratings
| Optical Semiconductor Rating Envelope |
Critical Maximum Threshold Limit |
| Maximum Continuous Forward Current (IFP) |
20 mA |
| Maximum Allowed Reverse Voltage (VR) |
5 V |
| Total Internal Power Dissipation (PD) |
60 mW |
| Operating Ambient Temperature Range (TOPR) |
-40°C to +80°C |
| Solid-State Storage Temperature Matrix (TSTG) |
-40°C to +100°C |
| Lead-Free Reflow Soldering Temperature (TSOL) |
Maximum 260°C for a duration not exceeding 3 seconds |
2. Electro-Optical Characteristics
| Electro-Optical Characteristic Parametric Metric |
Testing Verification Baseline |
Performance Target Window |
| Forward Voltage Drop (VF) |
IF = 20mA |
2.8V (Minimum Boundary) to 3.2V (Maximum Ceiling) |
| Reverse Leakage Current Leak (IR) |
VR = 5V |
5 μA Maximum upper limit |
| Luminous Dispersion Viewing Angle (2θ½) |
IF = 20mA |
60° Typical spatial distribution |
| Luminous Intensity Metric Amplitude |
IF = 20mA |
500 mcd (Minimum) to 800 mcd (Maximum Range) |
| Recommended Drive Current (IF) |
Continuous Wave |
20 mA Typical target operational driving current |
| Dominant Spectral Wavelength (λd) |
IF = 20mA |
520 nm to 525 nm Green spectrum baseline reference |
| Internal Junction Temperature (Tj) |
IF = 20mA |
Maximum 125°C core thermal limit |
| Thermal Resistance Coefficient (RJP) |
IF = 20mA |
8 °C/W Junction-to-Pin thermal coupling |
STANDARD TESTING CONDITIONS
Unless explicitly modified within specific engineering technical documentation orders, all optical and electrical measurements recorded for the FL1M-08CW-2 series are calibrated and verified under an unvarying matrix of standardized atmospheric properties.
| Atmospheric Reference Variable |
Calibrated Factory Target Envelope |
| Ambient Laboratory Temperature |
5°C to 35°C continuous thermal window |
| Relative Atmosphere Humidity Profile |
45% to 85% relative moisture matrix |
| Ambient Barometric Air Pressure |
86 to 106 Kpa (Equivalent to 860 to 1060 mbar barometric pressure) |
Metrology Compliance Notes: Luminous intensity profiles and dominant color wavelengths are strictly evaluated and calibrated in complete compliance with the CIE international standards representing standard human eye response curves. The absolute allowed tolerance for luminous intensity measurement stands at ±15%, with a forward voltage monitoring tolerance controlled tightly within ±0.1V.
INDUSTRIAL APPLICATIONS BY SECTOR
Featuring ultra-robust metal housings fabricated from high-tensile copper alloy or electroplated stainless steel, FILN metal indicator light models are engineered to withstand extreme mechanical stress, continuous vibration, and fluid washdowns. Achieving an IP67 rating, these units eliminate the failure modes common to plastic alternative components, such as environmental stress cracking, UV embrittlement, and heat distortion under load.
1. Factory Automation & CNC Machine Tools
In heavy industrial manufacturing, control panel configurations rely on multi-colored indicator layouts to signal active status. The FL1M-08CW-2 concave metal indicator resists aggressive machine cutting fluids, abrasive metallic shavings, and constant airborne lubricants. Pre-wired tail configurations ensure internal LED elements and resistor junctions remain rigidly anchored, mitigating vibration-induced disconnection common in pin-type connectors.
2. Outdoor Infrastructure & EV Charging Infrastructure
Outdoor grid installations face brutal environmental transitions, ranging from freezing winter cold down to -40°C up to intense direct sunlight generating solar soaking temperatures of +80°C. Utilizing a concave flush profile, the 12v indicator light protects charging terminals and municipal power distribution panels from physical vandalism while providing status feedback (Active, Fault, Complete) through distinct color-coded optical illumination.
3. Marine Deck Machinery & Heavy Engineering Vehicles
Excavators, cranes, and ocean-going vessel instrumentation panels are subject to high-salinity air exposure and continuous kinetic shock. Nickel-plated metallic bodies coupled with silica gel seals completely insulate internal electronics against salt-spray corrosion and pressurized water contact, guaranteeing continuous operational tracking for safety-critical dashboard parameters.
4. Commercial Self-Service Terminals & Secure Access Controls
Publicly accessible interactive kiosks, fuel dispensing pumps, and automated tellers require vandal-resistant control components. Incorporating an 8mm metal indicator light into steel security faces provides structural resistance against physical impact and attempts to pry components loose, ensuring long-term system availability in unmanned municipal locations.
5. Medical Autoclaves & Sanitary Food Processing Systems
Food packaging and pharmaceutical production lines demand daily high-temperature chemical sanitization procedures. The IP67 fluid-tight compression seal prevents moisture tracking behind the control fascia, while the chemical resistance of the metal shell prevents material degradation from caustic foam cleaners and sterilization heat cycles.
CHROMATIC SIGNALING STANDARDS AND APPLICATIONS
Industrial optical indicators adhere to strict global safety protocols, such as IEC 60204-1, to ensure clear operator communication. The five primary LED colors engineered for the FL1M-08CW-2 series correspond to specific operational conditions:
- Red (R) – Critical Danger / Emergency Stop: Signals immediate hazardous situations, critical failures, or emergency thermal shutdowns. Red commands immediate operator intervention to mitigate risk.
- Green (G) – Normal Condition / Safe Mode: Verifies that machinery is operating within nominal processing parameters or that a sequence has concluded successfully. Green indicates a safe environment for automated sequences.
- Yellow (Y) – Warning / Marginal Parameter Exception: Represents an evolutionary status alert, indicating a parameter drift outside nominal limits (e.g., pressure thresholds or fluid low limits) without immediate shutdown.
- Blue (B) – Mandatory Operator Action: Used to signal that a specific required manual step must be executed before a system can proceed, distinct from simple error states.
- White (W) – Neutral System Monitoring / Power Confirmation: Functions as a general status tracker confirming circuit energization or live phase power distribution across electrical mains.
To satisfy complex modern signaling architectures, FILN designs custom bi-color and tri-color multi-chip integrated metal indicator configurations. These multi-wavelength options enable a single 8mm panel location to cycle through multiple operational states, maximizing dashboard density while minimizing drilling footprints.
ENGINEERING INSTALLATION PROTOCOL

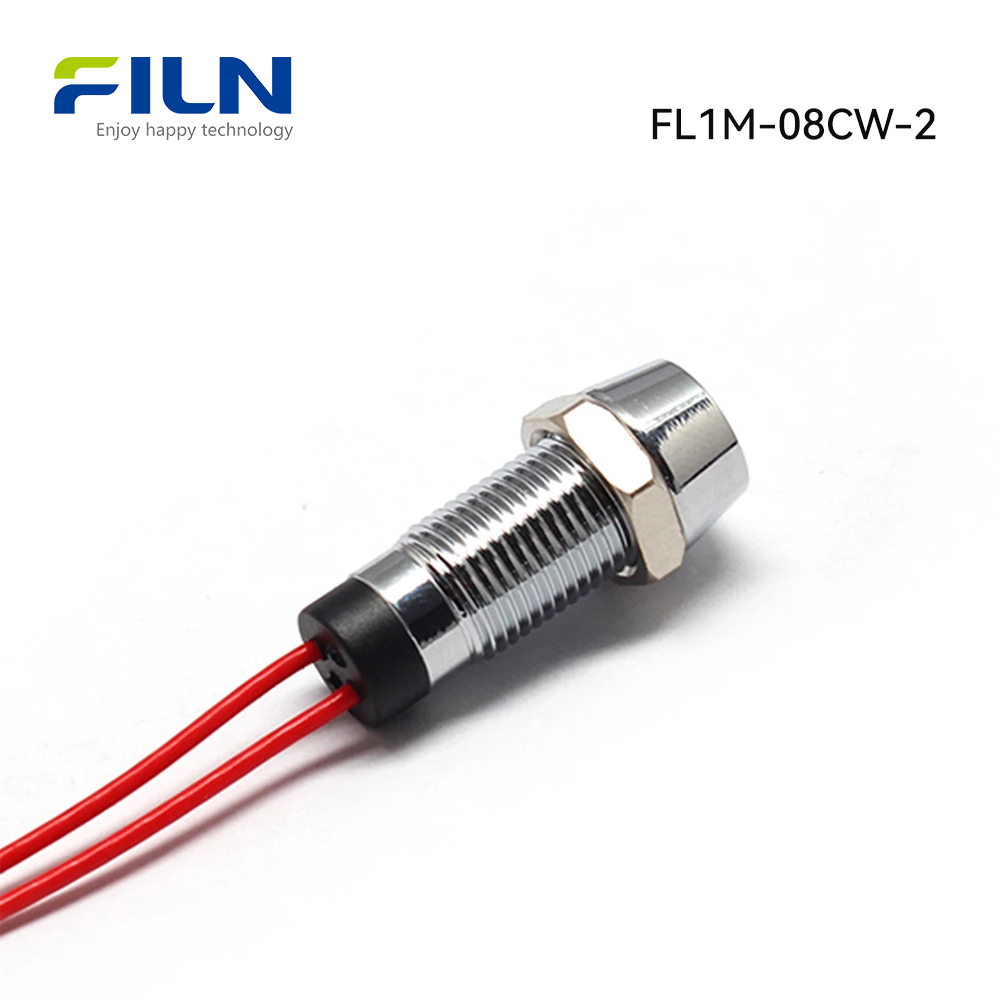

Correct mechanical deployment of the FL1M-08CW-2 metal indicator light ensures the longevity of its ingress seal and maintains the integrity of the control panel structure. Follow this standardized installation sequence:
- Panel Punch Out Execution: Machine a clean circular mounting orifice precisely measuring 8.0mm in diameter through the chosen substrate panel plate. Ensure all edge burrs are thoroughly removed.
- Gasket Pre-Assembly Verification: Slide the provided silicone rubber waterproof sealing ring over the rear terminal wire lines, seating it flush against the upper flange rim of the metal housing.
- Substrate Ingress Insertion: Guide the 2PIN wire lead wire harness down through the 8mm cutout orifice from the exterior side of the panel, pressing the concave metal face firmly against the outer surface.
- Mechanical Torque Lock Retention: From the rear of the panel, pass the stainless steel plum blossom lock washer over the wires, followed by the brass hex retention nut. Tighten the nut to secure the assembly against vibration.
- Electrical Termination Interconnect: Route the dual 20cm conductor lines to their respective power circuit points using certified electrical termination procedures.
CRITICAL SAFETY PROTOCOL NOTICE:
Prior to executing any physical handling or wiring configuration of the electrical indicator light system, the upstream supply breaker must be locked out and tagged out. Verify the complete absence of voltage across all legs using a calibrated digital multimeter before proceeding.
WIRING TERMINATION COMPLIANCE GUIDE
Electrical termination methods for signal components depend on the housing configuration. Pin-type variants require direct manual soldering or the use of matching slide-on spade receptacle connectors. This configuration demands precise heat control to prevent internal thermal transfer from compromising the structural integrity of the internal PA66 lamp base material.

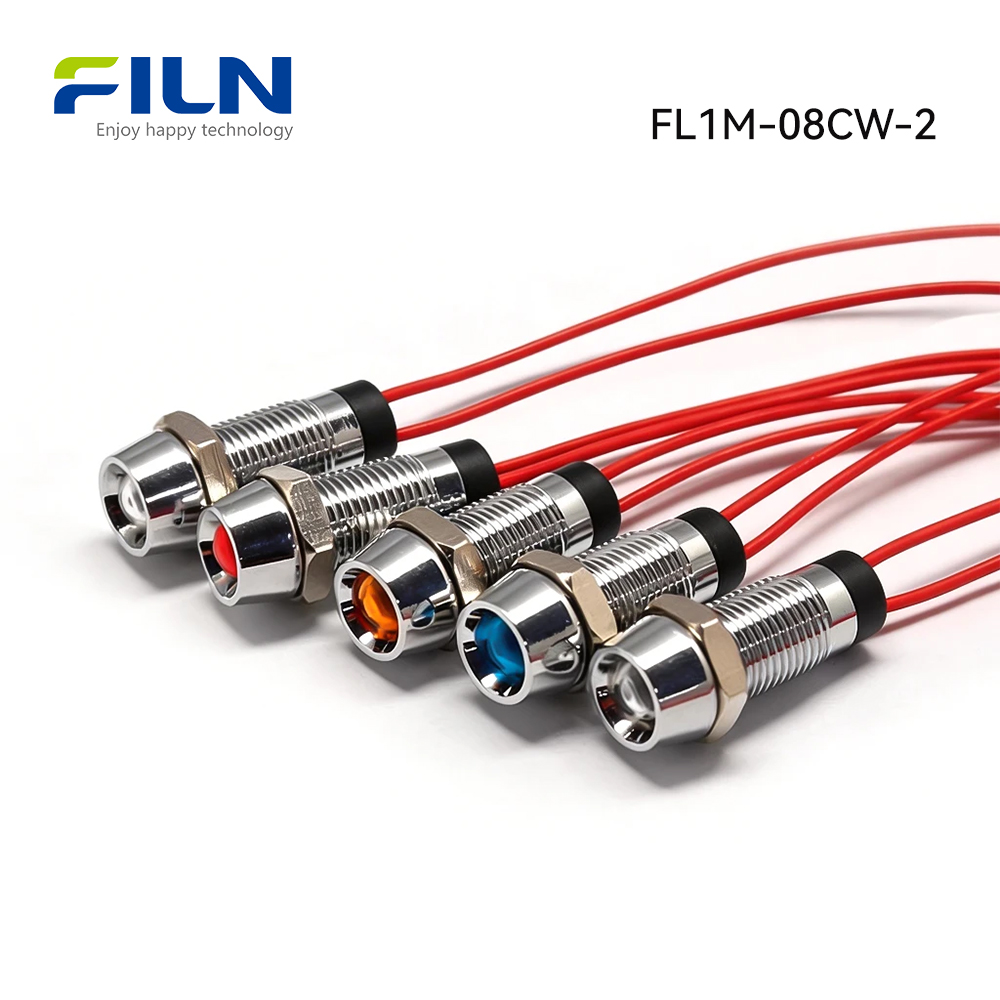

The pre-wired FL1M-08CW-2 12v indicator light simplifies installation with its factory-integrated dual-core conductor design. The 20cm dual wire leads allow for rapid circuit integration using three main electrical connection methods:
- Lever-Actuated Quick Splicing Terminals: Stripped wire ends can be inserted directly into common lever splice connectors for a secure, clamp-retained connection without specialized tools.
- Flux Core Thermal Soldering: Lead wire junctions can be soldered directly to matching panel lines and protected with adhesive-lined polyolefin heat shrink tubing to seal against moisture.
- Mechanical Crimp Splices & Insulating Wrap: Standard insulated butt splices can be crimped over the wire joints, wrapped with high-dielectric vinyl electrical tape to prevent short circuits.
INDUSTRY KNOWLEDGE CENTER
Modern industrial automation systems rely on solid-state indicators to ensure reliable operator feedback. Understanding the underlying operational parameters prevents common system design errors and optimizes overall reliability:
- Voltage Sag Accommodation: Solid-state LEDs function down to specific forward voltage limits. If line drops below 2.8V, the emission threshold fails, causing signaling dropout or dimming.
- Harmonic Distortion and AC Residual Leakage: High-density control networks can couple stray currents into long wiring runs. This induction can cause low-current LEDs to glow faintly even when turned off. Specifying precise internal ballast resistors eliminates this phantom illumination.
- Preventative Maintenance Protocol: Clean external polycarbonate lenses quarterly using non-abrasive, chemically neutral cleaners to remove airborne grease and dust accumulation, ensuring optimal visibility.
- Troubleshooting Inactive Status: If an indicator fails to illuminate, check line voltage at the 2PIN junction. If proper 12v power is verified but the LED remains unlit, inspect the circuit for reverse-polarity installation.
BUYER’S TECHNICAL SELECTION MATRIX
Procurement teams and system designers should evaluate specific environmental and electrical criteria to select the optimal metal indicator light configuration:
| Environmental Operating Condition |
Recommended Shell Material |
Optimum Housing Selection Criteria |
| Indoor Control Desks / Light Machinery |
Polyamide Plastic / ABS Polymer |
Suitable for basic clean environments with minimal risk of impact or chemical washdowns. |
| Heavy Automated Lines / High-Vibration Panels |
Nickel-Plated Copper Alloy Metal |
Delivers high impact resistance, durable threaded panel retention, and long-term structural stability. |
| High-Aesthetic Consoles / Custom Instrument Panels |
Zinc-Aluminum Alloy (Black Anodized) |
Provides a matte black industrial finish that eliminates reflections while ensuring full metallic impact protection. |
| Marine Electronics / Corrosive Chemical Processing |
316L Stainless Steel Housing |
Offers elite protection against salt spray and acid pitting, preventing corrosion-induced failures. |
WHY GLOBAL ENGINEERS SPECIFY FILN
FILN operates as a specialized direct manufacturer of high-reliability control components, providing scalable production and engineering support to simplify procurement workflows:
- Factory-Direct Logistics Architecture: Direct connection to production lines eliminates distributor markups and accelerates order fulfillment.
- Flexible Order Scaling (No MOQ): Prototyping and small-batch production runs are supported without requiring minimum order quantities.
- Custom Engineering Support (OEM/ODM): Rapid modification capabilities allow for specialized wire lengths, custom operating voltages, and alternative thread pitches.
- Verified Certification Compliance: Component lines carry active UL, CE, RoHS, TUV, and REACH registrations to guarantee international regulatory compliance.
FACTORY DIRECT SUPPLY AND MANUFACTURING
Established in 2006, Yueqing Yulin Electronic Co., Ltd. (operating under the global brand name FILN) is located in Wenzhou, Zhejiang. The company functions as an integrated electrical components manufacturer combining research and development, automated production, and technical sales. FILN operates a modern 10,000 m² manufacturing facility equipped with over 20 advanced production lines and an independent testing laboratory, serving client networks across more than 100 countries.
The factory produces specialized component lines, including indicator lamps, metal push-button switches, rocker switch arrays, and toggle switch mechanisms. Adhering to strict ISO9001 quality management guidelines, FILN supports industrial buyers with reliable performance metrics and dedicated technical integration assistance.
To request technical datasheets, pricing matrices, or customized engineering samples, contact the engineering support team directly through the primary corporate channels:
FREQUENTLY ASKED QUESTIONS
Q1: What is the exact panel cutout dimension required for the FL1M-08CW-2 indicator?
A1: The mechanical footprint requires a precise 8.0mm (0.315 inches) circular orifice drilled through the substrate panel face.
Q2: Can this 12v indicator light be driven directly by 240V AC electrical currents?
A2: The base version is optimized for 12V DC. However, FILN offers factory customization to integrate internal current-limiting resistors supporting up to 250V AC/DC inputs.
Q3: What specific ingress protection certifications does this metal indicator light carry?
A3: The unit achieves certified IP65 and IP67 ratings, confirming complete resistance to dust penetration and temporary fluid submersion.
Q4: What are the lengths and gauges of the factory pre-installed wire harness leads?
A4: The model features a 2PIN direct configuration with individual insulated lead conductors measuring 20cm each, providing a total wire path length of 40cm.
Q5: What mechanical advantages does a concave head profile provide over standard flat profiles?
A5: The recessed concave head focuses light along the central axis, minimizing lateral glare on high-density control panels.

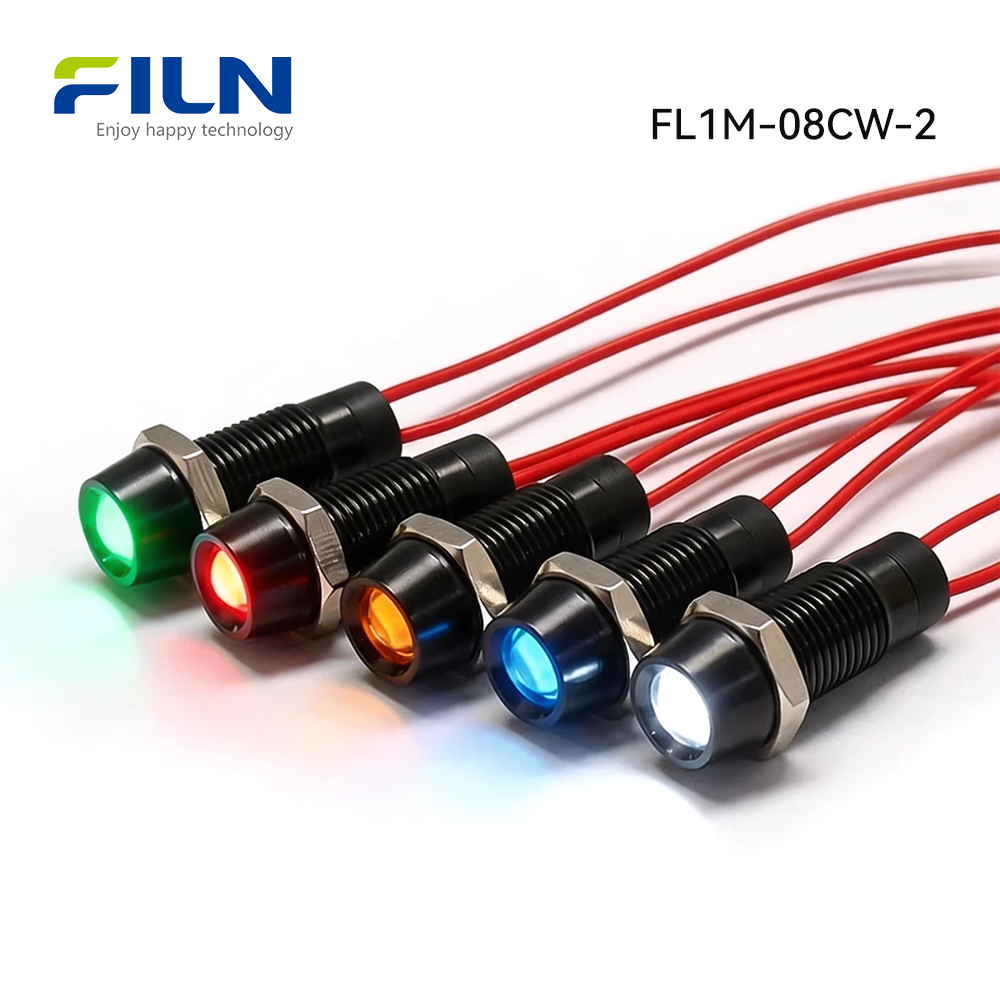

Q6: Is it possible to procure the FL1M-08CW-2 with a non-reflective black surface treatment?
A6: Yes. Buyers can specify either the standard polished silver copper alloy shell or a matte black anodized zinc-aluminum alloy body.
Q7: What is the rated operational lifespan of the internal solid-state light-emitting diode?
A7: The high-efficiency LED array is rated for an operating lifespan of 50,000 to 100,000 hours under nominal current conditions.
Q8: Does FILN require a minimum order quantity for custom wire-lead variations?
A8: No. FILN operates with a no-MOQ policy, supporting engineering prototyping, small-batch builds, and volume OEM production scales.
Q9: Are these signaling components fully compliant with European Union environmental standards?
A9: Yes, all component materials are fully compliant with active European RoHS and REACH environmental and hazardous material parameters.

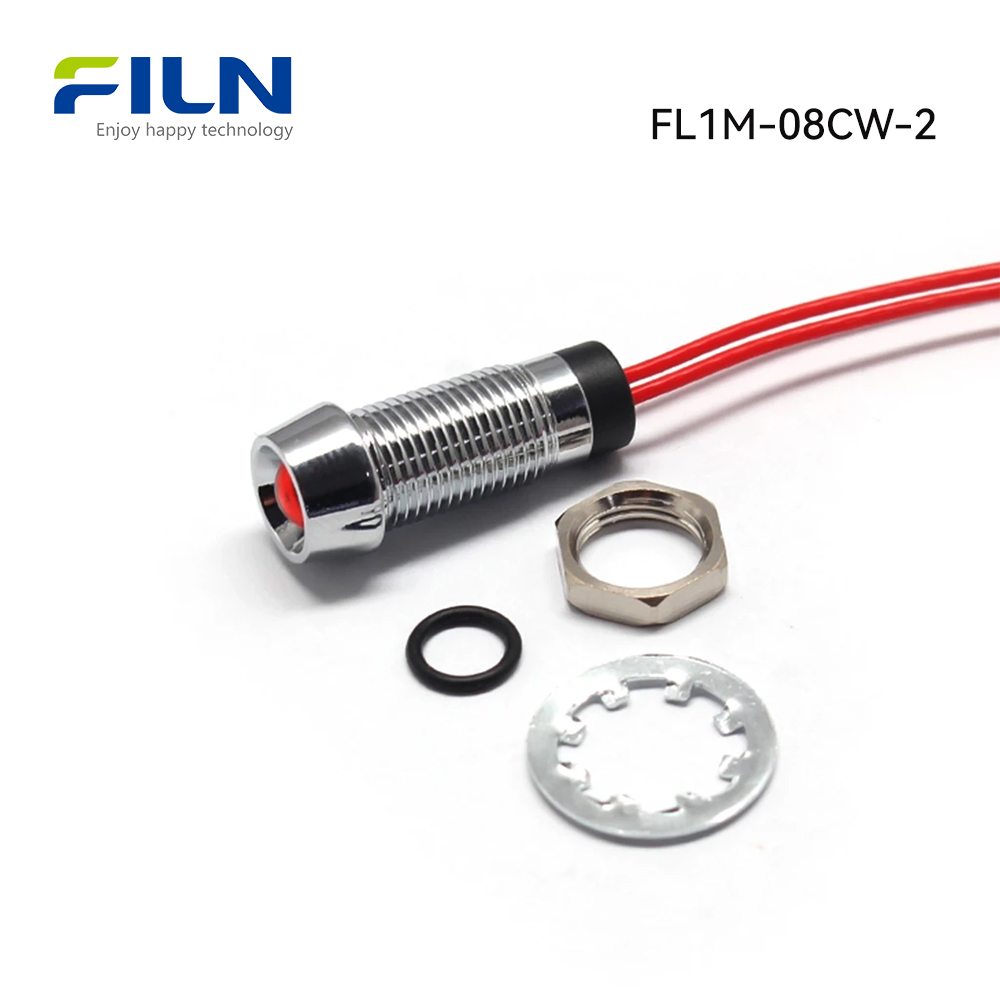

Q10: What specific anti-vibration hardware is supplied with the threaded mounting assembly?
A10: Each unit includes a dedicated silicone compression washer and a stainless steel plum blossom lock washer to prevent rotation under mechanical stress.
Q11: Can the FL1M-08CW-2 operate in sub-zero outdoor environmental conditions?
A11: Yes, the structural materials are engineered to maintain stable electrical and mechanical performance down to -40°C.
Q12: What is the continuous forward operating current threshold for the internal LED chip?
A12: The optical semiconductor operates at a nominal forward current of 20 mA to optimize brightness and lifespan.
Q13: Which international third-party laboratories have certified this indicator series?
A13: The indicator lights carry active product certifications from UL, CE, TUV, CB, and VDE registries.
Q14: How does high environmental humidity affect the insulation performance of this component?
A14: The internal PA66 base and epoxy rear encapsulation maintain insulation resistance above 100MΩ at up to 85% relative humidity.
Q15: Does the polycarbonate optical lens offer UV stabilization for outdoor applications?
A15: Yes, the high-purity PC polycarb compound includes UV stabilizers to prevent yellowing or embrittlement from solar exposure.
Q16: What is the maximum allowed lead temperature during rapid soldering processes?
A16: The conductor paths can withstand terminal soldering temperatures up to 260°C for a maximum duration of 3 seconds.
Q17: What are the primary failure modes when replacing a plastic pilot lamp with a metal indicator light?
A17: Metal indicators eliminate common plastic failure modes like cracked housings and loose connections by providing rigid threaded retention and pre-wired terminations.
Q18: What is the dominant emission wavelength for the green LED variant?
A18: The green optical chip produces a precise dominant spectral wavelength centered between 520nm and 525nm.
Q19: Can this component handle high-frequency AC system harmonics without flickering?
A19: Yes, the internal carbon film resistor matrix helps dampen minor line harmonics, maintaining stable light output across 50Hz to 60Hz networks.
Q20: How can I request customized wiring lengths for large-scale control enclosure builds?
A20: Custom specifications can be submitted directly to our engineering team at inquiry@cnylin.com.cn during the design stage.
