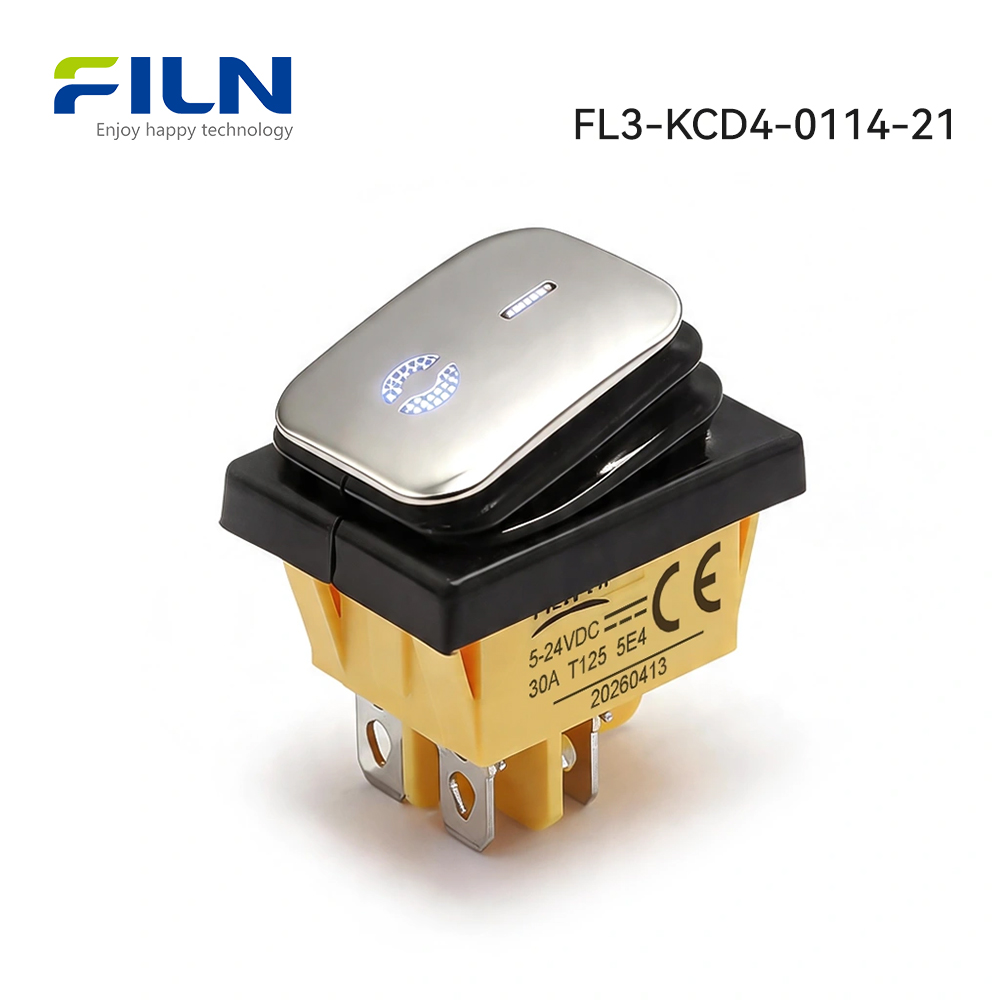

4 Pins SPST RV 12V Waterproof Blue lighted rocker switch

  • Mode: KCD4-0114-21
  • Voltage: 3V, 5V, 6V, 12V, 24V, 13V, 110V, 120V, 220V, 240V, 250V, 380V
  • Keyword: 12V Lighted Rocker Switch
  • Color: Red, White, Blue, Green, Yellow, black
  • Material: Stainless steel
  • Certification: CE CCC ROSH IP67 UL
  • Waterproof grade: IP67
  • Email: inquiry@cnylin.com.cn
  • Download PDF: KCD4-0114-21

The features of the lighted rocker switch

The lighted rocker switch has an exclusive patented design, the surface of stainless steel cover adopts the design of friction-proof, explosion-proof and rust-proof, making the service life more longer and secure. The waterproof rating can up to IP67 benefit by the unique waterproof frame design. Besides, the rated power of the switch up to 30A 250V benefit by the purple copper thick silver layer.

The description of the 4 pins SPST RV 12V waterproof blue lighted rocker switch.

1.The 4 pins SPST rocker switch has 4 pin. The function of the switch is SPDT ON OFF. In addition, we also produce the product with the function of ON ON 6 pins DPDT, ON OFF ON 6pins DPDT, and reset function OFF-(ON), (ON)-OFF-(ON) dual reset function.

2.The waterproof lighted rocker switch’s cover is stainless steel, it is anti-friction, explosion-proof, anti-rust design, making the switch’s service life more longer and secure. In addition to the stainless steel, we can also make ordinary transparent cover, black solid cover, spray white paint with light cover, spray black paint with light cover.

3.If you want the blue light rocker switch spray white paint with lamp cover, or spray black paint with lamp cover, we can customize the lamp’s symbol shape.

4.There is no MOQ of the 12V lighted rocker switch, factory direct selling and has no intermediate cost, we also accept customized services such as welding wires and connecting terminals.

5.The 4 pins 12 volt white 30AMP marine rocker switch is suitable or the marine rocker switch panel, which size is between 0.8 and 4mm. You just need to open a hole of 30*22 on the switch panel and clutch the switch smoothly.

4 Pins SPST RV 12V Waterproof Blue lighted rocker switch

6.The waterproof leather cover of 30AMP rocker switch is with frame type, making the rocker switch rubber and rocker switch fit closer. The silicone material is oil-proof and waterproof, so that the switch reaches the IP67 waterproof rating. These type of switches can be used in kitchen equipment, yachts, cars, outdoor tools, etc.

7.The waterproof lighted rocker switch can achieve five colors of red, green, blue, yellow, white. It can achieve a variety of voltages, such as 3V, 6V, 12V. 24V. 36V, 110V, 220V, 380V, we also accept customization.

8.The plastic base of the 12 volt rocker switch is nylon double material, its temperature resistance can reach 260 degrees, ensuring that the rocker switch does not melt when contact point is in contact with the heating plastic at high current. It is suitable for high temperature equipment such as water heater, electric blast furnace, chocolate machine, hair dryer, etc.

9.The service life of the 4 pins lighted rocker switch is 100,000 times. If it is higher than 5000 W, the service life will become shorter, while it is below 1000W, the service life will become longer.

How to hook up a lighted rocker switch?

The 2 middle pins of the 4 pins lighted rocker switch is lamp pins, if you want to keep the rocker switch light on alone, you connect 2 middle pins to the power. The other 2 pins are connect with the device. This can realize the function of rocker switch light normally bright, and switch control equipment

SPST-lighted-rocker-switch接线

How to buy the RV lighted rocker switch?

1.We have our own official website www.cnfiln.com, you can search for the specifications you need and email us your requirement, we will reply to you at once.

2.We also have online sales platform, such as Aliexpress, Alibaba, Amazon, you can search Filn and place orders directly. If you have any questions, please contact our customer service staff on the relevant platforms, they will respond to your questions in time.

4 Pins SPST RV 12V Waterproof Blue lighted rocker switch

The advantages of the 4 pins lighted rocker switch produced by Filn.

1.The waterproof rating of the waterproof rocker switch can up to IP67.

2.The high rating rocker switch can withstand the high power of 30A and high current.

3.The rocker switch of Filn had passed the certifications of UL, CE, it can be sold in the European and American markets.

4.The marine rocker switch’ price is reasonable and practical.

5.We service 24-hour team service, and can reply your questions about technology, transportation, delivery date.

6.We provide factory outlet price, there is intermediate cost.

Spst-lighted-rocker-swtich

7.We usually prepare inventory and material for the conventional 12V rocker Switch,220V rocker switch , 110V rocker switch, we can meet customer’s emergency demand.

8.We have four technical engineers with 20 years of experience in research and development, providing professional solutions and design suggestions for customers to to develop and customized products.

9.Our company has heavy laboratory, UL certified experimental equipment, life test bench, temperature resistance test machine, aging test machine, microscope tester, tensile tester, pressure resistance test table, etc., professional equipment time sampling to detect the quality of our products, ensuring the safety and stability of each batch products.

10.We have stable staff, and provide staff training regarding the process, and equipment operation safety training.

11.Our rocker switch is semi-automated production, which greatly accelerates the progress of pure manual production, accelerates the delivery period, and can meet the customer’s demand of urgent orders in the first time.

12.Our rocker switch workshop is also equipped with cable cutter, terminal machine, and other customized service equipment, to achieve one-stop service needs for end customers.

13.Filn has 20 years of experience in rocker light switch producing, we also have a professional rocker switch R&D team, they can provide the solutions about the rocker switch within 24 hours. Filn also has over 10 years of overseas sales experience, they can communicate and solve international trade problems timely. If you have any questions about the rocker switch, please contact us immediately, our email address is inquiry@cnylin.com.cn.

Product Item KCD4-0114-21
Panel Mount Diameter 22*30mm
Contact Way solder pin
Install Way Buckle
Lamp Type LED
Rated voltage 3v, 5v, 6v, 12v, 24v,13v, 110v, 120v, 220v, 240v, 250v, 380v
Lamp Color Red,white,blue,green,black,yellow
Shell Material brass plated nickel
Base Material PA66 nylon
Terminal Material brass
Applications Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment etc
Current 15A, 20A, 30A
