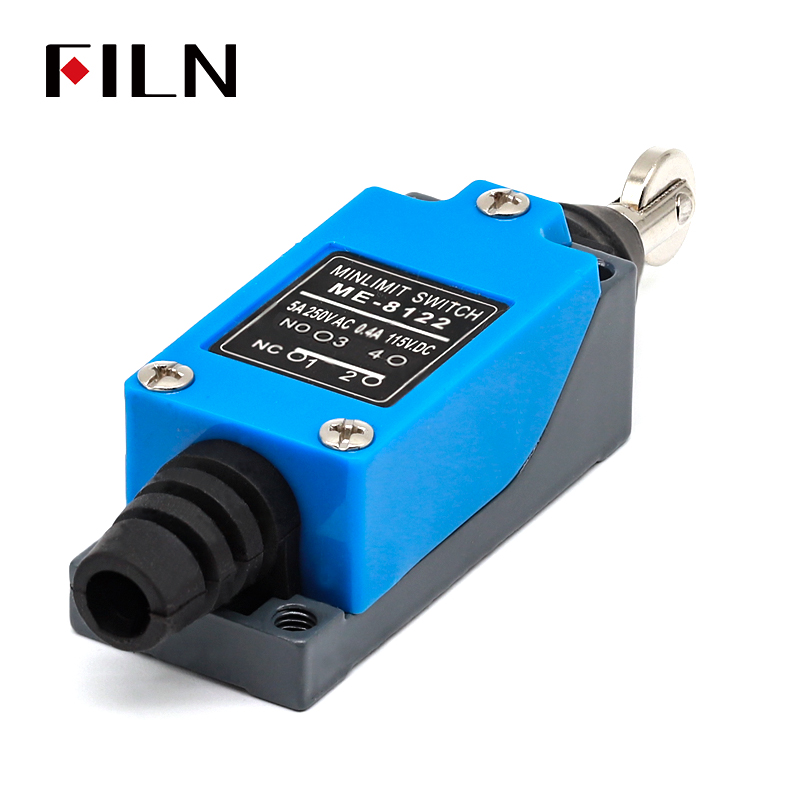

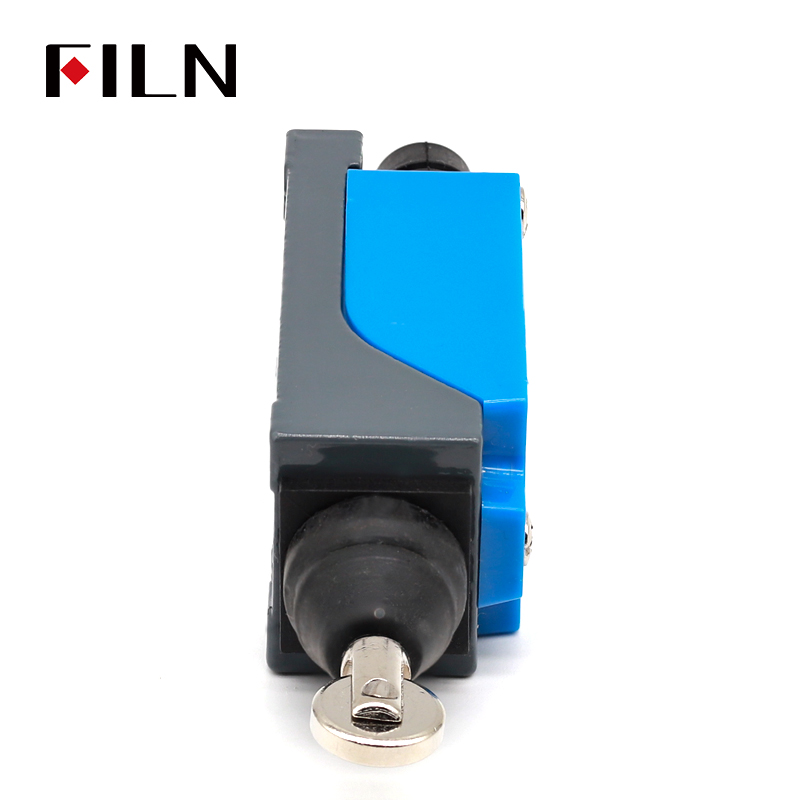

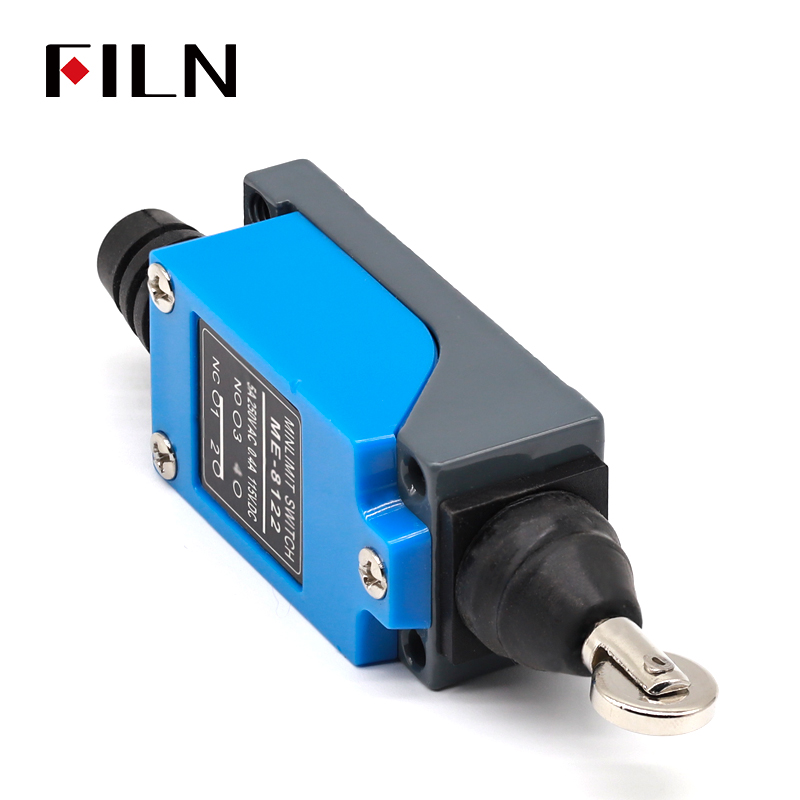

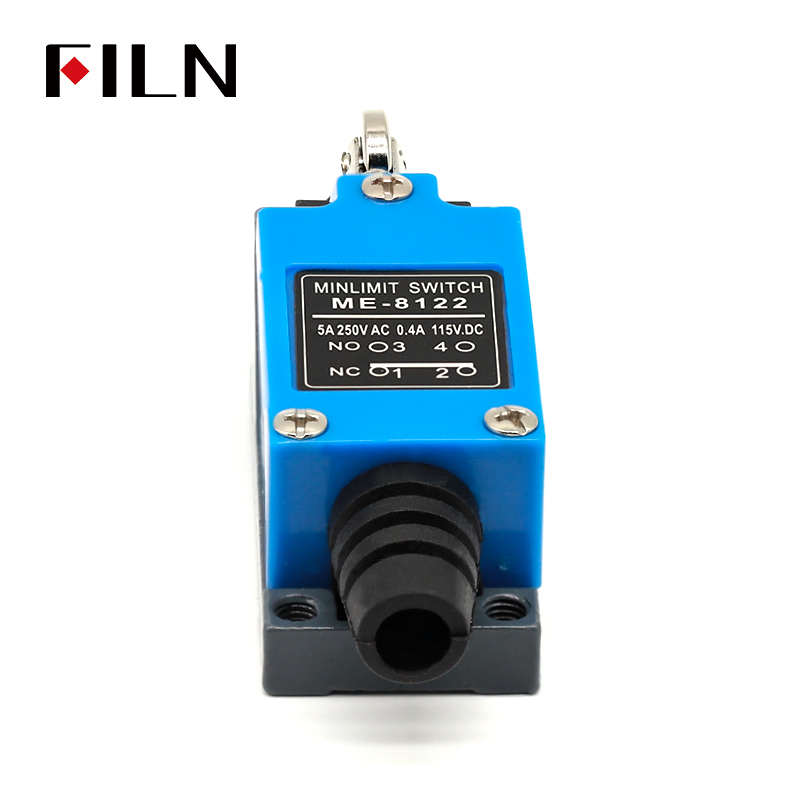

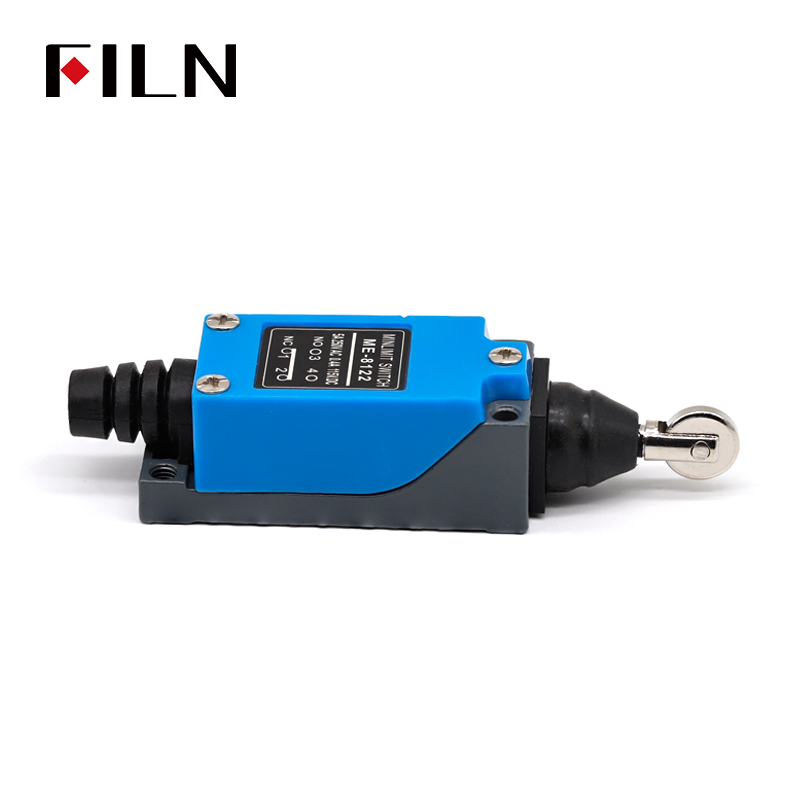

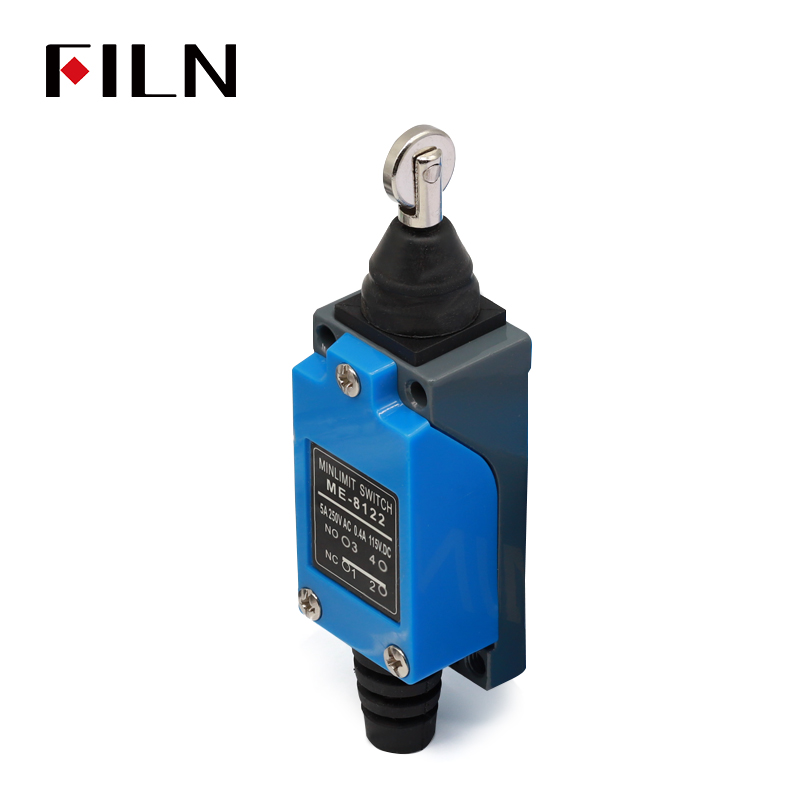

FILN Garage Door Limit switch Roller-Lever Limit Switches

Product Drawings Of Garage Door Limit switch:

Product Parameters:

Related products:

Ratings：

Introduction to Garage Door Limit Switches

Garage doors are more than just a way to protect your car and belongings. They are a critical part of your home’s security and convenience. One of the most important safety features of a garage door is the limit switch. A garage door limit switch ensures that the door opens and closes to the correct extent, preventing accidents and damage.

An FAQ about what is a limit switch

Understanding How Garage Door Limit Switches Work

A garage door limit switch is a safety device that works in tandem with a garage door opener. It has two primary functions: to signal when the door has reached its fully open position and when it has reached its fully closed position. The switch is typically mounted on the garage wall and connected to the opener via a cable.

When the garage door reaches the end of its travel, the tension on the cable actuates the switch, signaling the opener to stop the door. If the door were to continue moving past this point, it could result in damage to the door, the opener, or even injury to someone nearby.

Why Limit Switches Are Crucial for Garage Doors

Limit switches are essential for several reasons:

1. Safety: They prevent the garage door from traveling too far and causing injury or damage.
2. Regulatory Compliance: Many regions require limit switches for new garage door installations to meet building codes.
3. Reliability: By ensuring the door opens and closes fully, limit switches contribute to the reliable operation of the garage door system.

Installing a Garage Door Limit Switch

Installing a garage door limit switch is a straightforward process but should be done carefully to ensure proper function:

1. Identify the Correct Position: The switch should be placed so that it is triggered when the door reaches its full open and closed positions.
2. Secure the Switch: Mount the switch securely to the wall, ensuring it is aligned with the door’s travel.
3. Connect the Wiring: Connect the switch to the garage door opener according to the manufacturer’s instructions.

Troubleshooting Common Limit Switch Issues

If your garage door is not opening or closing correctly, the limit switch could be the culprit. Here are some common issues and how to troubleshoot them:

1. Door Opens Too Far or Not Far Enough: Adjust the limit switch’s position to ensure it is triggering at the correct points in the door’s travel.
2. Door Reverses Unexpectedly: This could be a sign that the limit switch is faulty and needs to be replaced.
3. Noisy Operation: If the switch is not properly secured or aligned, it may cause noise during operation.

Replacing a Garage Door Limit Switch

Replacing a limit switch is a relatively simple task that can often be done without professional help:

1. Identify the Correct Replacement: Ensure the new switch is compatible with your garage door opener.
2. Follow Manufacturer’s Instructions: Each brand may have specific instructions for replacing the switch.
3. Test the New Switch: After installation, test the door’s operation to ensure the new switch is functioning correctly.

Common Issues with Garage Door Limit Switches

Limit switches are generally reliable, but they can encounter problems over time. Here are some common issues and their solutions:

1. Limit Switch Not Triggering: If the garage door doesn’t stop when it reaches the open or closed position, the limit switch may not be triggering. Check the wiring for any loose connections or damage.
2. Premature Triggering: If the door stops before fully opening or closing, the limit switch might be set incorrectly. Adjust the switch’s position or sensitivity according to the manufacturer’s guidelines.

Testing a Garage Door Limit Switch

Before replacing a limit switch, it’s a good idea to test it to confirm that it’s the source of the problem:

1. Visual Inspection: Check for any visible damage or loose wires.
2. Manual Test: Some limit switches can be manually tested by pressing the switch with a small tool. If the door reverses or stops, the switch may be functioning correctly.
3. Professional Test: For a more thorough test, consider using a multimeter to check for continuity in the switch’s circuit.

Safety Standards and Regulations

Garage door safety is regulated in many regions to protect users from potential harm. Limit switches are often a mandatory requirement for new installations:

1. Underwriters Laboratories (UL): Look for UL certification, which indicates that the limit switch meets safety standards.
2. Local Building Codes: Check your local building codes to ensure your garage door setup, including the limit switch, complies with regulations.

Interaction with Other Garage Door Components

Limit switches work in conjunction with other components like the garage door opener and safety sensors:

1. Garage Door Opener: The opener relies on the limit switch to know when to stop the door’s travel.
2. Safety Sensors: If the door is obstructed while closing, the sensors can signal the opener to reverse the door, but the limit switch ensures it doesn’t go too far in reverse.

Signs of a Failing Limit Switch

Pay attention to these signs that indicate a limit switch may be failing:

1. Garage Door Not Opening or Closing Fully: This is a clear sign that the limit switch is not signaling the correct stopping points.
2. Unusual Noises: If the door makes strange noises during operation, it could be due to a misaligned or worn-out limit switch.
3. Door Operation Is Inconsistent: If the door sometimes opens fully and sometimes not, the limit switch may be inconsistently triggering.

Choosing the Right Garage Door Limit Switch

When selecting a limit switch, consider the following:

1. Compatibility: Ensure the switch is compatible with your garage door opener model.
2. Quality: Opt for a high-quality switch from a reputable manufacturer to ensure reliability.
3. Ease of Installation: Some switches are easier to install than others; consider your comfort level with DIY projects.

Different Types of Garage Door Limit Switches

There are a few different types of limit switches available, each with its own advantages:

1. Standard Limit Switch: The most common type, activated by a cable connected to the garage door.
2. Wireless Limit Switch: These switches communicate wirelessly with the garage door opener, offering more flexibility in installation.
3. Smart Limit Switch: Some modern switches can connect to home automation systems, providing additional features and remote monitoring.

Adjusting the Sensitivity of a Limit Switch

Some limit switches offer adjustable sensitivity, which can be useful in certain situations:

1. Fine-Tuning: Adjust the switch’s sensitivity if the door is stopping at slightly off positions.
2. Special Tools: Some switches require special tools for adjustment; check the manufacturer’s instructions.

Role in the Garage Door Opener System

The limit switch plays a pivotal role in the garage door opener system:

1. Control Signal: It sends a control signal to the opener to stop the door at the correct point.
2. Safety Mechanism: It serves as a failsafe, preventing the door from moving past its safe operating range.

Hazards of a Malfunctioning Limit Switch

A malfunctioning limit switch can pose several hazards:

1. Damage to the Door: If the door opens or closes too far, it can cause damage to the door or its components.
2. Injury Risk: A door that doesn’t stop when it should could potentially cause injury to someone underneath it.
3. System Malfunction: A faulty limit switch can cause the entire garage door system to malfunction.

Garage Door Limit switch Price Analysis

A thorough search is critical when understanding the pricing of the button switch products you need. The following article follows a quick search, in-depth analysis of the approximate price range of the upper limit switch on each website.

• 1.Indicatorlight.com
• 2.OMCH
• 3.Amazon.com
• 4.Filn online store：www.cnfiln.com

Please note: The above prices are approximate prices and may vary depending on the specific seller, quantity, and any additional functionality or specifications of the Garage Door Limit switch. It is recommended to visit the appropriate website or contact the seller directly to obtain accurate and up-to-date pricing information on the Garage Door Limit switch.

Conclusion

A well-maintained garage door limit switch is essential for the safety and proper functioning of your garage door. By understanding the role of the limit switch, knowing how to install, adjust, and troubleshoot it, you can help protect your home and loved ones from potential accidents. Always consult a professional if you’re unsure about any aspect of garage door maintenance or repair.
