24 Volt Indicator Light 16mm Recessed Metal LED Panel Pilot Lamp | FILN

Executive Summary

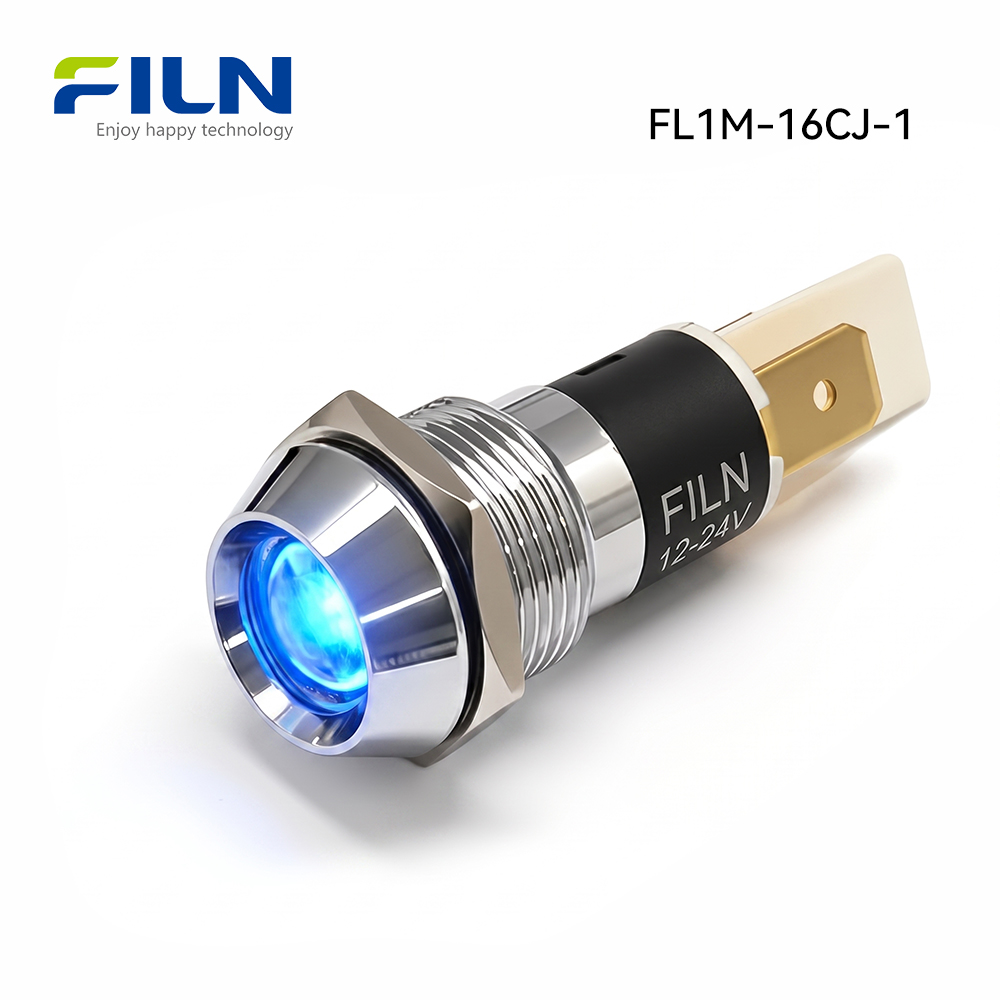

The FILN 24 volt indicator light is a robust industrial-grade status signal device engineered for control panel builders, electrical engineers, and original equipment manufacturers. Featuring a standardized 16mm mounting hole and a durable metal construction, this 2-pin terminal pilot lamp provides clear visual status feedback across industrial automation, electrical machinery, and control cabinets. As a direct manufacturer, FILN supports comprehensive OEM and ODM customization for bulk wholesale procurement, offering flexible voltage options and reliable factory-direct supply.

Procurement managers and system integrators can request custom configurations, technical datasheets, 3D STEP models, or bulk wholesale quotations directly through our engineering support team to streamline industrial integration.

Key Takeaways

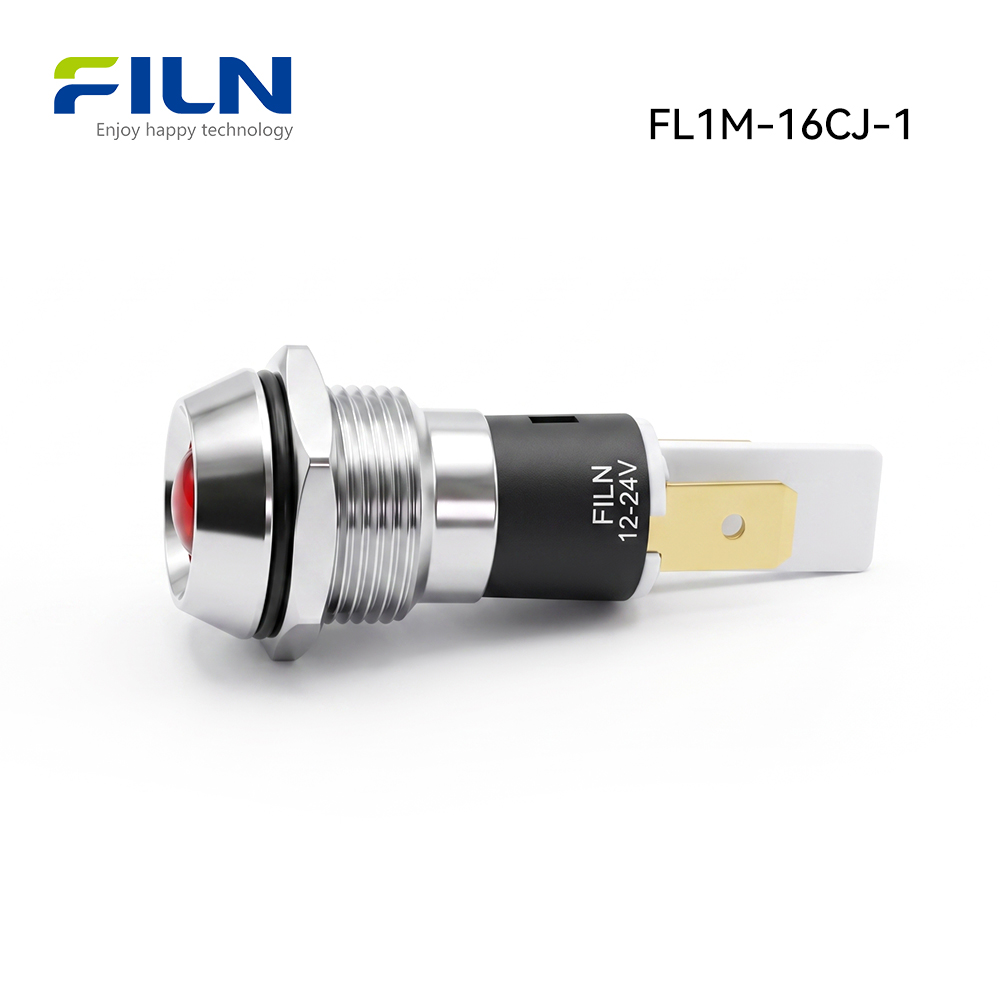

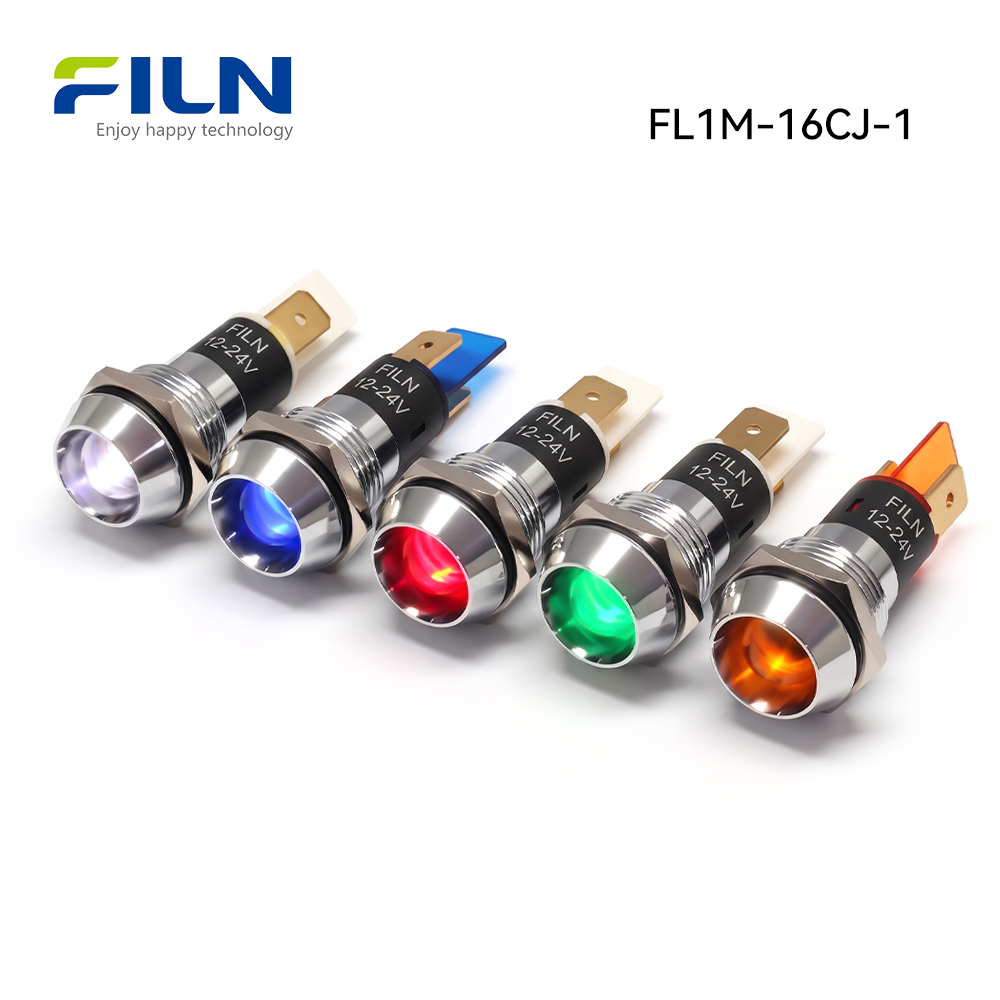

• Constructed with a durable metal shell (copper alloy or zinc-aluminum alloy) providing superior impact resistance compared to standard plastic indicators.

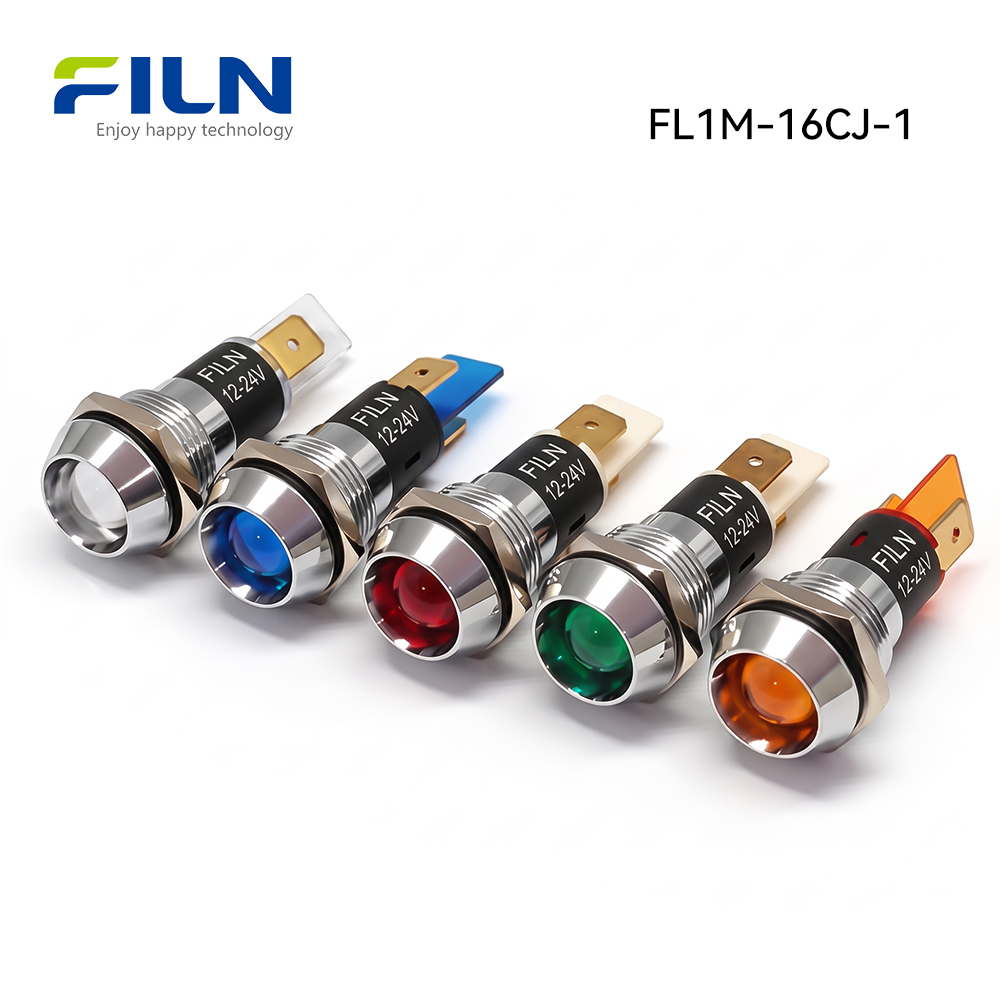

• Engineered specifically for a 16mm mounting hole diameter, allowing seamless integration into standard industrial control panels.
• Operates reliably on a 24 volt indicator light circuit, with customizable voltage ratings ranging from 3V to 480V DC/AC.

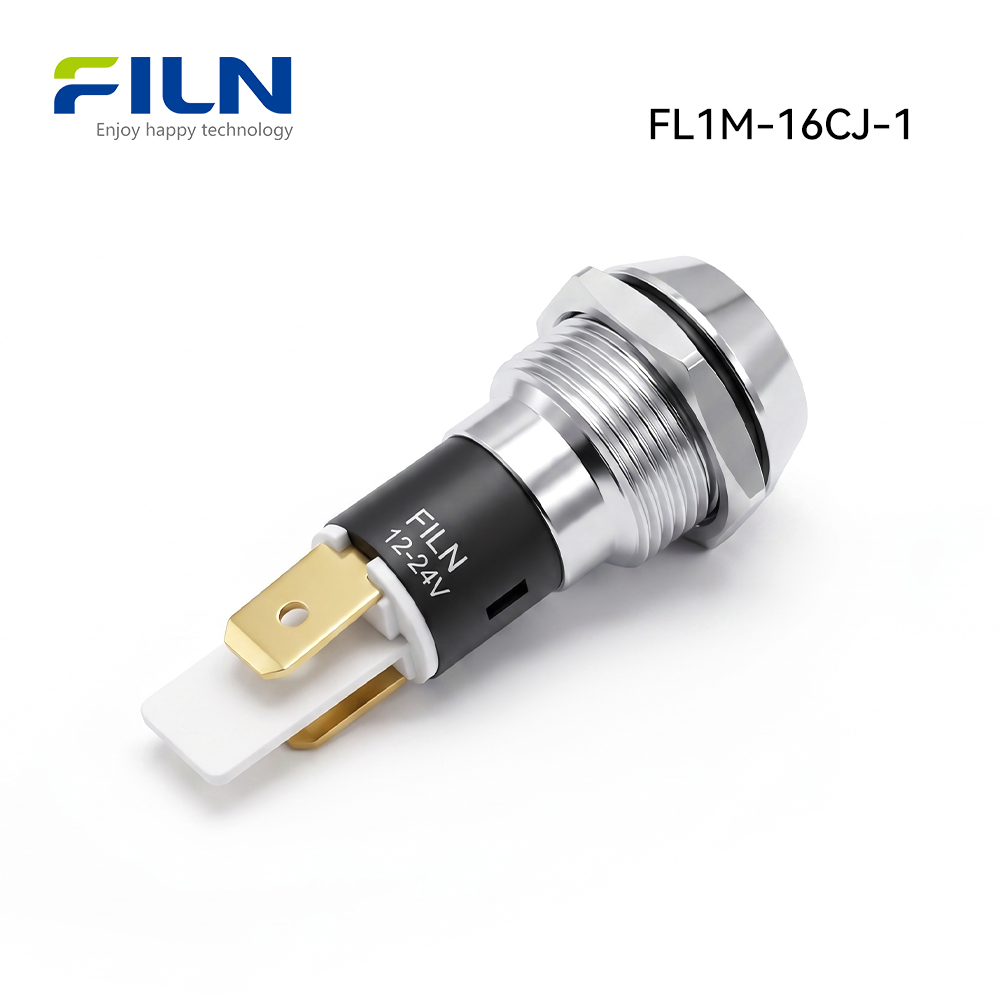

• Features secure 2-pin plug-in terminals for dependable electrical connections and straightforward wiring.

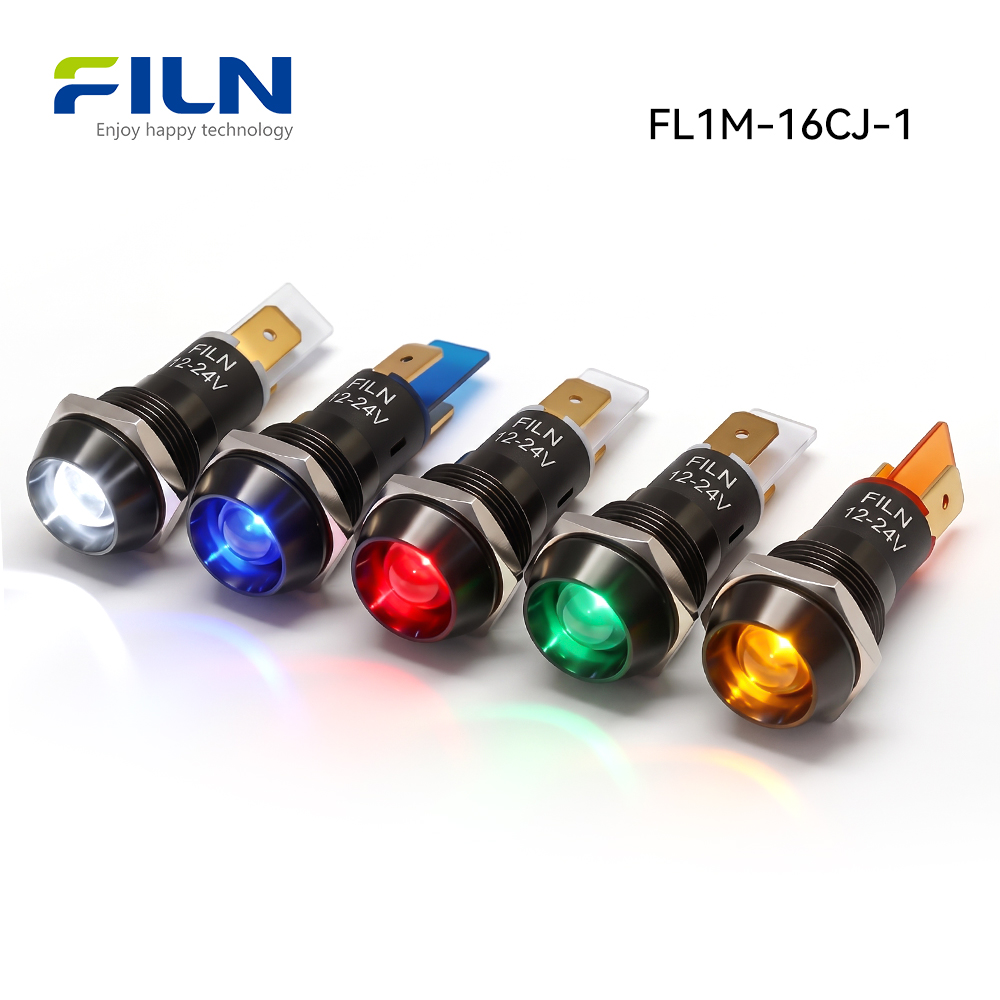

• Equipped with a recessed head design where the central luminous area is slightly depressed, ensuring bright and distinct visibility.
• Achieves IP67 waterproof and dustproof protection when installed with the included silicone sealing O-ring and stainless steel plum blossom gasket.

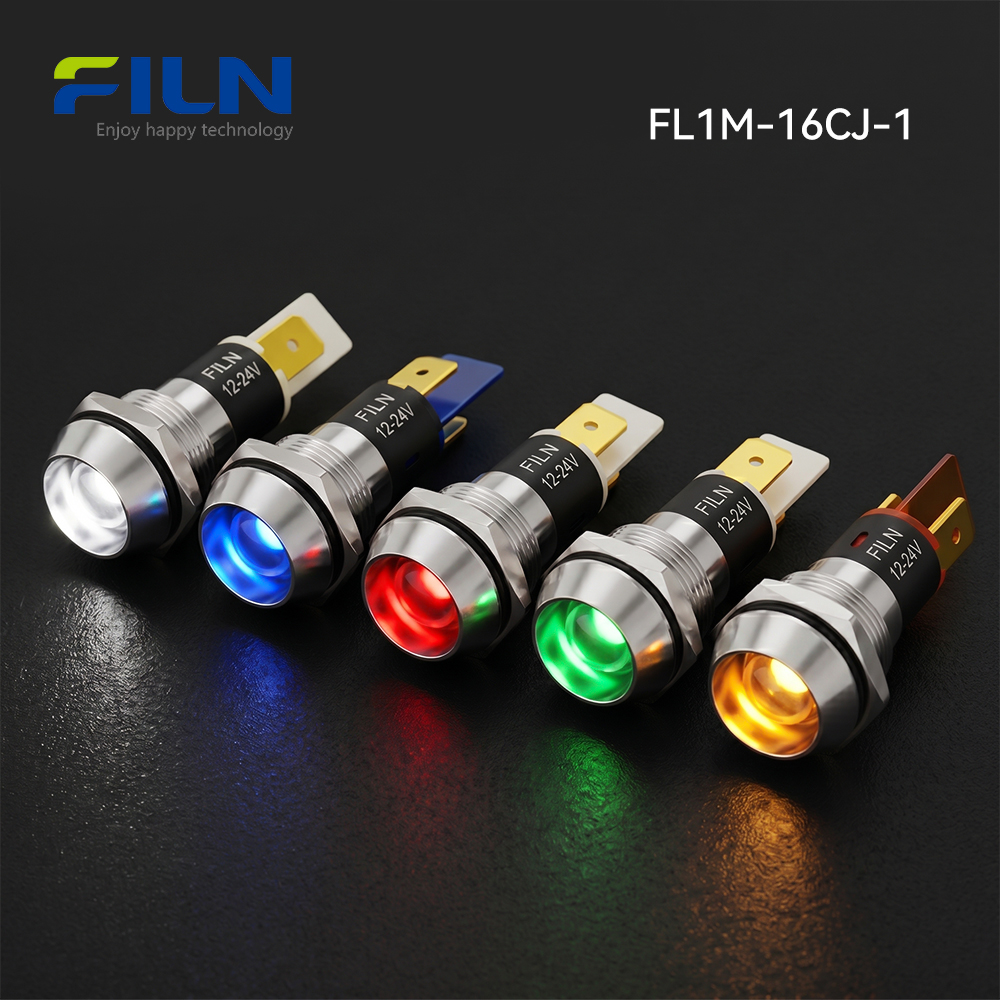

• Available in multiple high-visibility LED color options including Red, Green, Yellow, Blue, and White.
• Backed by strict manufacturing quality controls and international compliance standards including UL certificate number E498776, CE, VDE, RoHS, ISO9001, and CCC.
• Designed for diverse industrial applications including electrical equipment, experimental apparatus, power distribution cabinets, new energy systems, marine switchboards, and automotive modifications.
• Supported by direct factory manufacturing, offering robust wholesale supply, sample support, and custom engineering collaboration for global OEMs.

What is a 24 Volt Indicator Light?

A 24 volt indicator light is an essential electrical status display device used to communicate operating conditions, machine modes, and power states across industrial control systems. FILN manufactures a comprehensive range of industrial indicator lights available in both metal and plastic body configurations. Standard mounting diameters range from 6mm to 30mm, catering to diverse panel thickness requirements and space limitations. Depending on installation and wiring preferences, buyers can select between pin-terminal configurations and direct wire-lead models. Metal indicator lights are manufactured with flat, prominent, or recessed head geometries, allowing engineers to match the aesthetic and functional visibility requirements of their specific application environment.

The recessed head design features a protected luminous center that prevents accidental contact while delivering clear, directional signaling. FILN produces these components using advanced metal machining and automated assembly lines to ensure uniform housing integrity and long-term operational reliability.

Product Overview

The FILN metal indicator light functions as a reliable visual interface for electrical circuits, translating electrical signals into clear optical status indications. Mechanically, the assembly consists of a precision-machined metal outer shell, an internal PA66 lamp holder, a high-brightness LED luminescent source, a stabilizing carbon film resistor, and a secure mounting nut tightened against a silicone O-ring. Electrically, when voltage is applied across the 2-pin terminals, current passes through the internal resistance network to drive the solid-state LED chip while maintaining optimal thermal and electrical parameters.

Industrial advantages include superior resistance to mechanical shock, vibration tolerance, and enhanced thermal dissipation compared to traditional plastic alternatives. This 24 volt indicator light is widely deployed in heavy machinery, power distribution panels, and automation infrastructure where equipment uptime is critical. Verified compliance with international quality benchmarks ensures seamless integration into export-bound industrial machinery.

Quick Specifications

Performance Parameters

Component Materials

Every component of the 24 volt indicator light is selected for optimal mechanical strength, corrosion resistance, and electrical insulation. The following material specification table outlines the exact composition of each structural part:

Environmental Performance

This specification governs the general operational range of the FILN metal indicator light series, ensuring reliable performance in demanding industrial environments.

LED Specification & Electrical Parameters

To ensure circuit compatibility and optical performance, electrical engineers should reference the absolute maximum ratings and electro-optical characteristics of the internal LED assembly.

1. Absolute Maximum Rating

• Max Forward Current (IFP): 20 mA
• Reverse Voltage (VR): 5 V
• Power Dissipation (PD): 60 mW
• Operating Temperature (TOPR): -40°C ~ +80°C
• Storage Temperature (TSTG): -40°C ~ +100°C
• Lead Soldering Temperature (TSOL): Max. 260°C for 3 sec max.

2. Electro-Optical Characteristics (Ta = 25°C)

Standard Test Conditions

Unless otherwise specified, all electrical and optical parameters are measured under the following standard atmospheric test conditions:

• Ambient Temperature: 5°C ~ 35°C
• Relative Humidity: 45% ~ 85%
• Air Pressure: 86 ~ 106 kPa (860 ~ 1060 mbar)

Measurement Notes: Luminous intensity and dominant wavelength are calibrated in accordance with CIE international standards for the human eye response curve. Tolerance for luminous intensity measurement is ±15%, and voltage measurement tolerance is ±0.1V.

Applications by Industry

The FILN metal indicator light utilizes a high-strength copper alloy or stainless steel metal shell, delivering exceptional impact resistance and an IP67 waterproof and dustproof rating suitable for demanding industrial and commercial environments. While traditional plastic indicators are prone to aging, cracking, and high-temperature deformation over prolonged use, metal indicator lights excel in harsh operating conditions, frequent operation scenarios, and high-reliability deployments. Typical application sectors include:

1. Industrial Automation & Machinery Manufacturing

This sector represents the core deployment area for metal indicator lights. Workshops often feature continuous mechanical vibration, cutting fluids, oil mist, and physical impact risks.

• CNC Machine Tools & Machining Centers: Control panels utilize red, yellow, and green metal indicators where green signifies normal operation, yellow denotes standby or warning, and red indicates emergency stop or system fault. Metal housings resist cutting fluid and metallic debris corrosion.
• Automation Production Line Control Cabinets: Large power distribution cabinets and PLC control panels integrate 6mm and 8mm metal indicators compatible with AC220V and DC24V supplies to display circuit status clearly.
• Hydraulic & Pneumatic Equipment: Deployed for oil pump start/stop and pressure limit alerts. The integrated internal wiring and robust LED mounting prevent wire breakage or loosening under severe mechanical vibration.

2. Outdoor Power & Renewable Energy Distribution Systems

Outdoor electrical installations endure extreme weather, intense sunlight, and wide temperature swings, demanding superior weatherability and sealing performance.

• EV Charging Piles: Outdoor DC and AC charging stations incorporate flat metal status indicators where flashing blue/green indicates charging, steady illumination means fully charged, and flashing red warns of ground faults. IP67 sealing prevents moisture ingress during high-frequency public usage.
• Outdoor Distribution & Photovoltaic Combiner Boxes: Solar farms and municipal outdoor cabinets rely on these indicators to display high-voltage closing and inverter status across an operating range of -40°C to +80°C.

3. Rail Transit, Engineering Vehicles & Marine Equipment

Vehicles and marine vessels experience continuous shock and vibration, while maritime environments expose equipment to aggressive salt spray corrosion.

• Engineering Vehicle Dashboards: Excavators, cranes, and bulldozers utilize panel indicators for oil pressure, water temperature, lighting, and braking fault alerts under dusty and high-vibration conditions.
• Marine & Port Control Equipment: Ship cabin instruments and deck control consoles use electroplated stainless steel indicators to resist saltwater corrosion, supported by silicone O-rings that prevent moisture penetration.

4. Commercial Self-Service Equipment & Public Infrastructure

Public-facing devices are susceptible to physical impact and vandalism, making durable metal fixtures mandatory.

• Vending & Ticketing Machines: Paired with metal anti-vandal switches to display coin insertion, dispensing, and change status.
• Gas Station Fuel Dispensers: Meets hazardous area electrical requirements with metal housings providing reliable electrical isolation.
• Outdoor Intercoms & Access Control: Stainless steel access panels feature red and green indicators to denote locked and unlocked states.

5. Medical Equipment & Food Processing Machinery

These industries require frequent chemical washdowns and strict sterilization standards.

• Food Filling & Packaging Lines: Subjected to daily high-pressure hot water and chemical washdowns; IP67 metal indicators withstand spray jets without internal corrosion.
• Medical Sterilization Autoclaves: High-temperature and high-pressure sterilizers utilize indicators to differentiate heating, sterilization, and exhaust phases.

LED Indicator Color Meanings and Application Guide

Indicator light colors convey critical operational states to machine operators and maintenance personnel. Below is an engineering guide to the five primary industrial colors:

1. Red

• Industrial Meaning: Danger, emergency, alarm, or abnormal condition.
• Typical Status: Emergency stop engaged, thermal overload tripped, or pressure limit exceeded.
• Recommended Use: Safety-critical halt conditions requiring immediate operator intervention.

2. Green

• Industrial Meaning: Normal operation, safe condition, or system ready.
• Typical Status: Main power active, spindle running normally, or cycle completed successfully.
• Recommended Use: Indicating normal, healthy equipment states.

3. Yellow / Amber

• Industrial Meaning: Caution, warning, abnormal parameter approaching limit, or standby.
• Typical Status: Coolant level low, pre-heating cycle active, or minor system warning.
• Recommended Use: Alerting personnel to monitor conditions before a fault occurs.

4. Blue

• Industrial Meaning: Mandatory action, specific instruction, or operational mode status.
• Typical Status: Charging in progress (EV chargers) or auxiliary cooling fan active.
• Recommended Use: Neutral status indication that does not imply safety or danger.

5. White

• Industrial Meaning: General power ON, system energized, or neutral status.
• Typical Status: Control cabinet main breaker closed.
• Recommended Use: General illumination or basic power presence confirmation.

Note: Indicator-light color conventions can vary by equipment manufacturer, control-system design, industry standard, country, and application. FILN offers single-color, dual-color, and tri-color indicator configurations to accommodate custom electrical designs.

Installation Guide

Proper mechanical and electrical installation ensures the 24 volt indicator light maintains its IP67 waterproof rating and long operational lifespan. Follow these standardized installation steps:

1. Preparation & Tools: Gather a punch tool, calibrated drill with a 16mm hole saw or step bit, wire strippers, and a torque wrench. Ensure electrical power to the control panel is completely locked out and tagged out.
2. Panel Hole Machining: Drill a clean 16mm circular mounting hole in the control panel surface. Deburr the hole edges thoroughly to prevent scratching the O-ring seal.

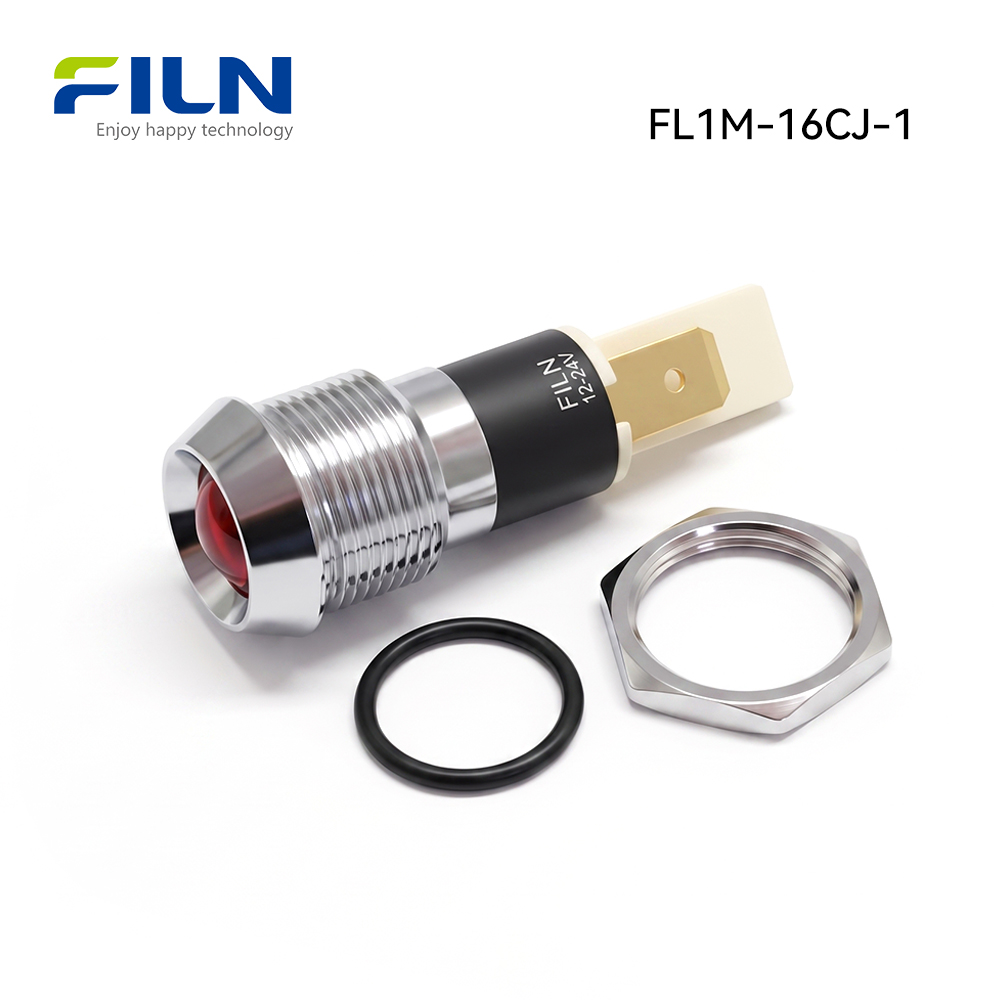

3. O-Ring Placement: Slide the silicone waterproof O-ring onto the threaded body of the indicator light from the front.
4. Insertion: Insert the metal indicator light from the exterior front side of the panel through the 16mm hole.
5. Rear Securing: Place the stainless steel plum blossom gasket and the copper alloy mounting nut onto the threaded barrel from the rear of the panel. Tighten the nut securely to compress the silicone O-ring, achieving IP67 sealing.
6. Electrical Wiring: Connect the 24V supply lines to the 2-pin terminals using insulated quick-disconnect receptacles or soldered connections with protective heat shrink tubing.
7. Post-Installation Inspection: Verify mechanical rigidity, check that the indicator is aligned without skewing, and test electrical functionality before commissioning the equipment.

Wiring Guide

Understanding connection methods for pin-type versus wire-lead indicators ensures electrical safety and long-term joint stability.

Pin-Terminal vs. Wire-Lead Configurations

Wiring Instructions: Pin-terminal indicators utilize standard push-on terminals or soldered connections. Direct wire-lead indicators can be connected to the main circuit using quick-link wire connectors, soldered joints, or wrapped with electrical tape, ensuring absolute joint stability and insulation. Safety Notice: Always disconnect electrical power and verify zero energy state before performing any wiring operations.

Industry Knowledge Center

Industrial indicator lights operate on solid-state LED technology combined with internal dropping resistors. Selecting the correct voltage rating (such as a dedicated 24 volt indicator light) prevents under-voltage dimming or over-voltage thermal degradation. Maintenance teams should periodically inspect panel gaskets for compression set and verify that terminal connections remain free of oxidation in corrosive environments. For phantom illumination issues caused by PLC leakage current, adding a parallel bleeder resistor typically resolves faint glowing.

Buyer Decision Guide & RFQ Checklist

When selecting metal indicator lights, engineers must evaluate mounting hole dimensions, operating voltage compatibility, environmental protection ratings, and shell materials.

Metal Shell Material Comparison

RFQ Information Checklist

Providing these specifications helps FILN engineering and sales teams confirm product compatibility and quotation requirements more efficiently:

• Product Type & Model (e.g., FL1M-16CJ-1)
• Mounting Hole Size (e.g., 16mm)
• Operating Voltage & Current Type (AC/DC, e.g., 24V)
• LED Color (Red, Green, Yellow, Blue, White)
• Head Type & Shell Material
• Waterproof Requirement (IP65 / IP67)
• Wiring Method (2-Pin Terminal or Wire Leads with length)
• Target Market & Expected Delivery Date

FILN Manufacturing and Engineering Capabilities

FILN operates as a dedicated industrial electrical component manufacturer with advanced R&D, precision tooling workshops, and automated assembly lines. Our engineering department provides robust OEM and ODM custom solutions, supporting global clients with rigorous quality control, electrical testing, and rapid sample prototyping. Whether you require custom wire harnesses, specialized operating voltages, or unique laser-etched symbols, FILN delivers reliable factory-direct engineering support.

Factory Direct Supply

Yueqing Yulin Electronic Co., Ltd., operating under the brand name FILN and located in Wenzhou, Zhejiang, was established in 2006 as a professional electrical switch manufacturer integrating research, development, production, and sales. Premium FILN brand products are distributed across more than 100 countries worldwide. FILN operates a modern 10,000 m² manufacturing facility equipped with 20+ advanced production lines and an independent testing laboratory. Driven by rigorous scientific processes and the ISO9001 quality management system, FILN ensures consistent innovation and superior electrical performance.

Our certified product lineup—including UL (Certificate No. E498776), CE, VDE, RoHS, ISO9001, CCC, and IP67 ratings—is widely utilized in home kitchen appliances, energy storage systems, EV charging infrastructure, automotive modifications, marine switchboards, and security systems. We specialize in miniature electrical components such as indicator lights, push button switches, rocker switches, and toggle switches, alongside fully customized production solutions.

• Core Product Lines: Indicator lights, push button switches, rocker switches, toggle switches, and customized small electrical components.
• Quality Certifications: ISO9001, CE, VDE, RoHS, SGS, UL (E498776), IP65/IP67, TUV, CCC.
• Global Export Markets: Supplied internationally across North America, Europe, Australia, and Asia.
• Manufacturing Advantages: Professional engineering collaboration dedicated to solving complex custom application challenges.

Official Website: www.filn.com | Direct Inquiry Email: inquiry@cnylin.com.cn

Frequently Asked Questions

How to prevent phantom illumination (faint glowing) in 24V LED indicators?

Phantom illumination often occurs when residual leakage current from solid-state PLC outputs or long control wire capacitance energizes the low-power LED. Installing an appropriately sized parallel bleeder resistor across the indicator terminals bypasses the leakage current and resolves the faint glowing issue.

Can this IP67 indicator light be washed down with caustic chemicals?

Yes, the stainless steel or copper-alloy nickel-plated shell combined with a silicone O-ring provides IP67 protection, making the indicator resistant to standard industrial washdowns and chemical cleaning agents commonly used in food processing and medical equipment.

What is the mounting hole diameter required for model FL1M-16CJ-1?

This indicator light requires a standard 16mm (0.63 inch) circular mounting hole drilled into control panels with a recommended panel thickness range suitable for secure single-nut fastening.

What voltage options are available for this metal indicator light?

While optimized as a 24 volt indicator light, FILN offers customizable voltage ratings ranging from 3V up to 480V DC/AC to match specific industrial power distribution requirements.

Does FILN provide UL certification for these indicator lights?

Yes, FILN holds UL certification under certificate number E498776, alongside CE, VDE, RoHS, ISO9001, and CCC compliance for international industrial deployments.

What is the difference between pin-terminal and wire-lead indicator models?

Pin-terminal indicators (such as the 2-pin FL1M-16CJ-1) use modular push-on connectors for easy maintenance, whereas wire-lead models feature factory-attached cables that provide enhanced moisture resistance and simplified wiring in tight spaces.

How do I request custom wire harnesses or specific cable lengths?

OEM buyers can request customized wire lengths, pre-attached connectors, or custom terminal types by contacting our engineering team directly via email at inquiry@cnylin.com.cn.

What is the typical operating lifespan of the internal LED light source?

The high-brightness solid-state LED luminescent source provides a working life ranging from 50,000 to 100,000 hours under standard operating conditions.

Are samples available for engineering evaluation prior to bulk purchase?

Yes, FILN supports sample requests for engineering evaluation and prototyping. Contact our sales team to arrange sample shipments for your upcoming projects.

How should I secure the indicator light to ensure waterproof sealing?

Insert the silicone O-ring between the front bezel and the panel surface, then tighten the rear mounting nut securely against the stainless steel plum blossom gasket to compress the seal and achieve IP67 protection.
