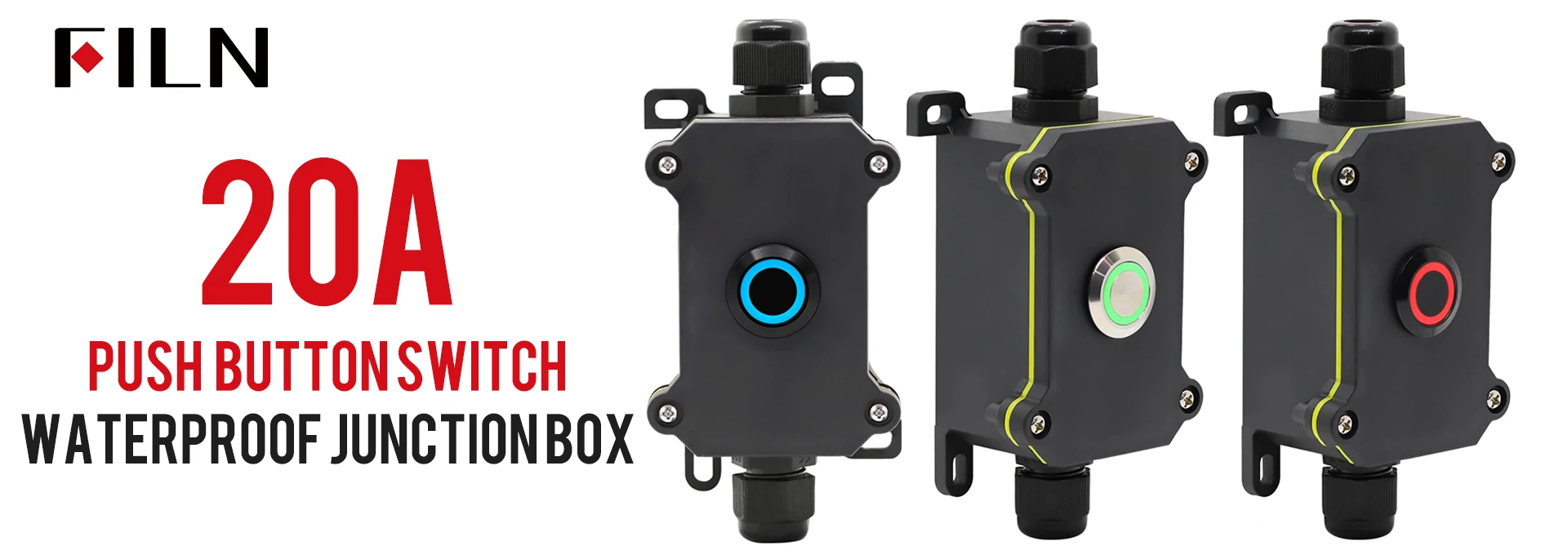

FILN’s Customizable Waterproof Junction Box with 20A Push Button Switch

In the demanding arenas of industrial automation, marine systems, and rugged outdoor infrastructure, the line between operational success and critical failure is often determined by the resilience of the smallest components. For any system exposed to the elements, the control interface is a notorious weak point. The traditional, multi-step process—sourcing a generic enclosure, drilling a hole, fitting a standard switch, and attempting to seal it—is an open invitation to failure from moisture, dust, and vibration.

The modern, definitive solution is a fully integrated, pre-engineered control station built for purpose. This comprehensive guide provides an expert-level analysis of the FILN Waterproof Junction Box, a masterfully designed system pre-configured with a powerful, hermetically sealed 20A push button switch. We will not only explore the advanced technology of this combination but also reveal how its deep customization options—including a choice of striking matte black or classic silver metal switch shells—empower you to create the precise control point your project demands. This is not just a product; it is a bespoke solution backed by 26 years of manufacturing excellence.

Why Choose FILN? A Legacy of 26 Years in Switch Manufacturing

In today’s market, many suppliers are simply resellers. FILN is different. We are a dedicated manufacturer with 26 years of hands-on experience specializing in the design, engineering, and production of push button and indicator switches. This legacy is not just a number; it is the foundation of our expertise and the driving force behind our innovation.

Our quarter-century journey has been dedicated to solving the very challenges our customers face. We’ve seen firsthand how switches fail in the field and have relentlessly engineered solutions to prevent those failures. Features like the true 20A current rating in a compact push button, the impenetrable epoxy-sealed terminals, and the use of heavy-gauge wiring are not marketing points—they are the direct results of decades of research, development, and a deep understanding of what reliability truly means in a harsh environment.

When you choose a FILN product, you are choosing a component built by specialists. You are leveraging 26 years of focused knowledge to ensure your project is equipped with a control system that is not only powerful and customizable but fundamentally reliable.

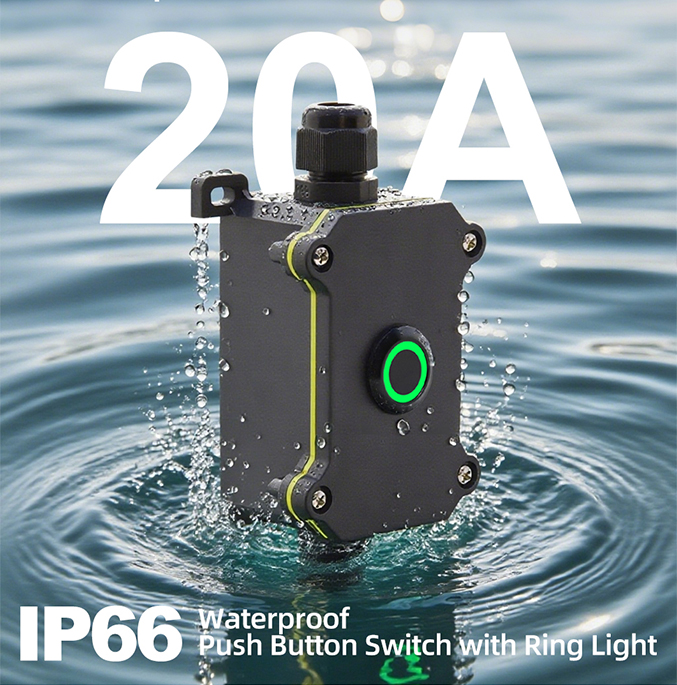

The Foundation of Reliability: The IP66 Waterproof Junction Box

The integrity of any control system begins with its enclosure. The Waterproof Junction Box that forms the core of this solution is a testament to robust design. Its purpose is to serve as an impregnable fortress for the sensitive electrical connections within. Crafted from high-impact, UV-stabilized polycarbonate, each Waterproof Junction Box is built to endure years of exposure to sunlight, temperature extremes, and physical impact.

The key to its impenetrable nature is the precision-engineered silicone gasket system, which creates a flawless compression seal. This meticulous design allows the Waterproof Junction Box to achieve its certified IP66 rating, guaranteeing absolute protection against the finest dust particles and the force of powerful, high-pressure water jets. By starting with an exceptionally durable and perfectly sealed Waterproof Junction Box, we establish a foundation of unwavering reliability for the entire control unit.

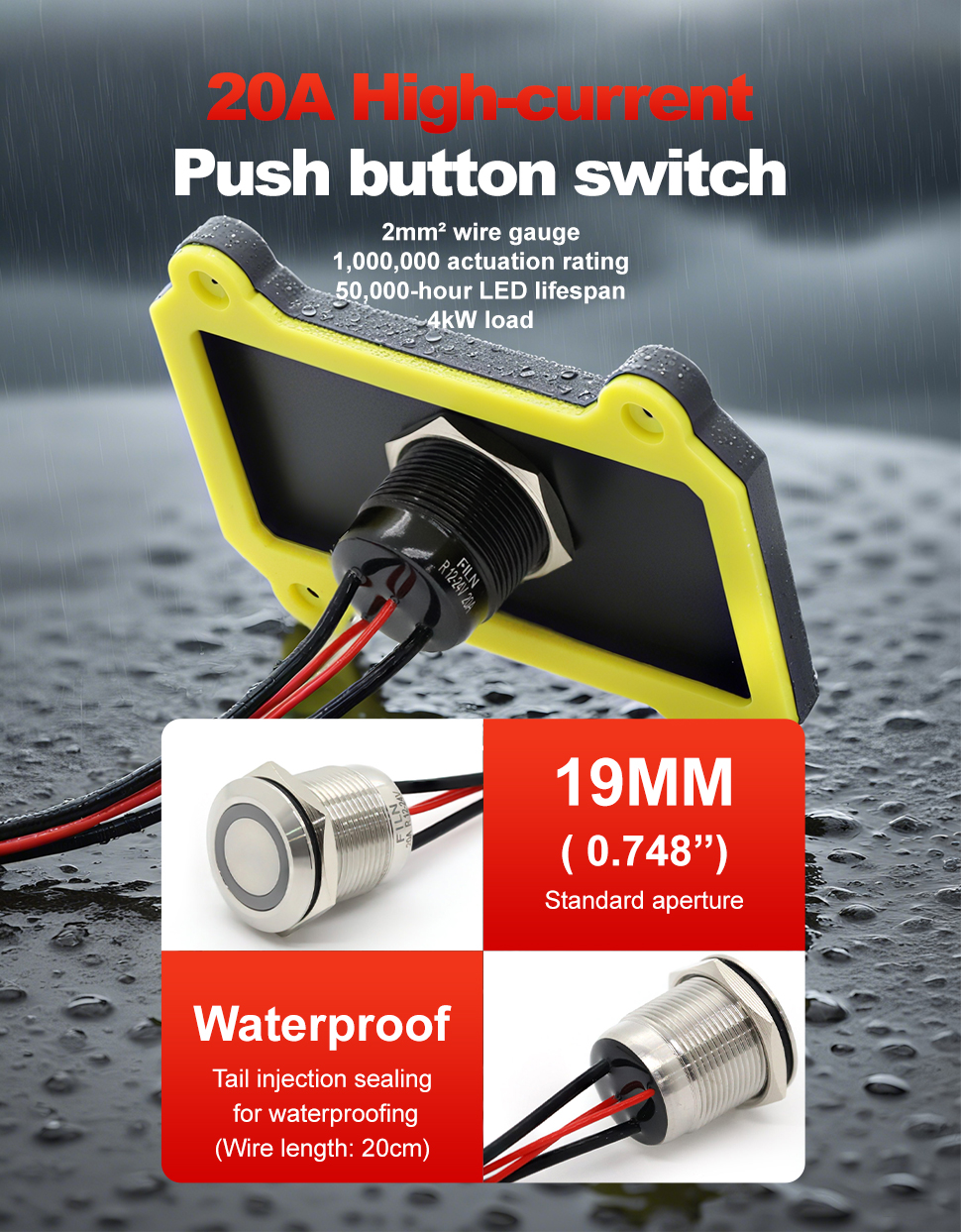

The Control Center: An Advanced 20A Push Button Switch Forged by Experience

What transforms this protective enclosure into a dynamic, high-performance control station is the integrated 20A push button switch. This component is a direct reflection of FILN’s 26 years of manufacturing expertise. It is a heavy-duty piece of engineering designed specifically for high-power applications and flawless integration into our Waterproof Junction Box.

1. True 20A High-Current Power

Our extensive experience has shown that under-rating is a primary cause of electrical failure. That’s why we engineered this switch to handle a genuine 20-amp load. This allows for direct, confident control of demanding equipment like industrial motors, marine anchor windlasses, high-draw pumps, solenoids, and entire arrays of high-intensity lighting. This capability often eliminates the need for bulky external relays, simplifying your wiring design, reducing costs, and removing a potential point of failure.

2. Unmatched Customization: Black and Silver Shell Options

A professional finish requires attention to detail. Leveraging our manufacturing flexibility, we offer the metal 20A push button switch in two distinct and durable finishes:

• Matte Black Shell: This anodized finish is perfect for applications demanding a modern, low-profile, or tactical aesthetic. The non-reflective surface minimizes glare and integrates seamlessly into dark or minimalist control panels and dashboards, making it a favorite for custom vehicles and modern marine designs.
• Classic Silver Shell: This timeless, high-tech look is achieved with durable materials like stainless steel or nickel-plated brass. The bright finish provides excellent visual contrast and withstands harsh cleaning agents and physical wear, making it the ideal choice for busy industrial control stations and premium boat helms.

This level of aesthetic choice, born from our flexible production lines, allows you to perfectly match the control point to your equipment’s design, enhancing its overall value and professionalism.

3. Absolute Sealing: A Multi-Layered Approach to Protection

Based on our field data, we know that water doesn’t just attack from the outside. That’s why we employ a dual-protection strategy. First, the switch itself is IP67 rated, with an internal O-ring sealing the actuator. Second, the rear terminals are permanently encapsulated in epoxy resin. This creates a hermetic barrier that is impervious to moisture, dust, oil, and chemicals, and provides extreme resistance to vibration.

This robust sealing is paired with pre-wired, heavy-gauge 2mm² wires. This thick wire is essential for safely managing a 20A current over distance, preventing overheating and ensuring your equipment receives stable power. The entire assembly inside the Waterproof Junction Box is a testament to a design philosophy that leaves nothing to chance.

A Synergy of Possibilities: The Box and Switch Combination

The true power of this product is realized when the expert components are combined. A FILN Waterproof Junction Box fitted with a 20A push button switch becomes a single, cohesive unit that unlocks possibilities unachievable with standard parts. It’s a platform for creating specific, real-world solutions.

• For Complex Industrial Control: Imagine a machine control panel using three of these Waterproof Junction Box units. One with a green latching switch for “System On,” one with a yellow momentary switch for “Jog Function,” and a large, red E-Stop version. All are uniformly sealed and built to withstand daily washdowns.
• For Advanced Marine Systems: A yacht’s flybridge panel featuring a row of these units. A silver-shell, blue-ring illuminated switch for controlling underwater lights; a black-shell, non-illuminated momentary switch for the horn; and a latching, red-illuminated switch for the bilge pump, providing clear visual status from a distance.
• For Rugged Utility Vehicles: A control box on a snow plow or utility truck, allowing the operator to manage hydraulic lifts and lighting with large, glove-friendly push buttons that are completely immune to snow, ice, and road salt.

Because FILN’s 26 years of experience is in manufacturing, not just distribution, these complex and specific configurations are not just possible; they are our specialty.

Your Project, Your Specifications: Let’s Build Your Solution

This is not a one-size-fits-all product. It is a platform for your unique solution. We invite you to leverage our 26 years of expertise and move from Browse to creating. As a direct manufacturer, we are uniquely positioned to build the exact control assembly you need, to your exact specifications.

Take the next step and transform your design into reality. Send us your inquiry. Our experienced engineering team is ready to review your requirements and provide a personalized, factory-direct quote.

To receive a fast and accurate quote, please include the following details in your inquiry:

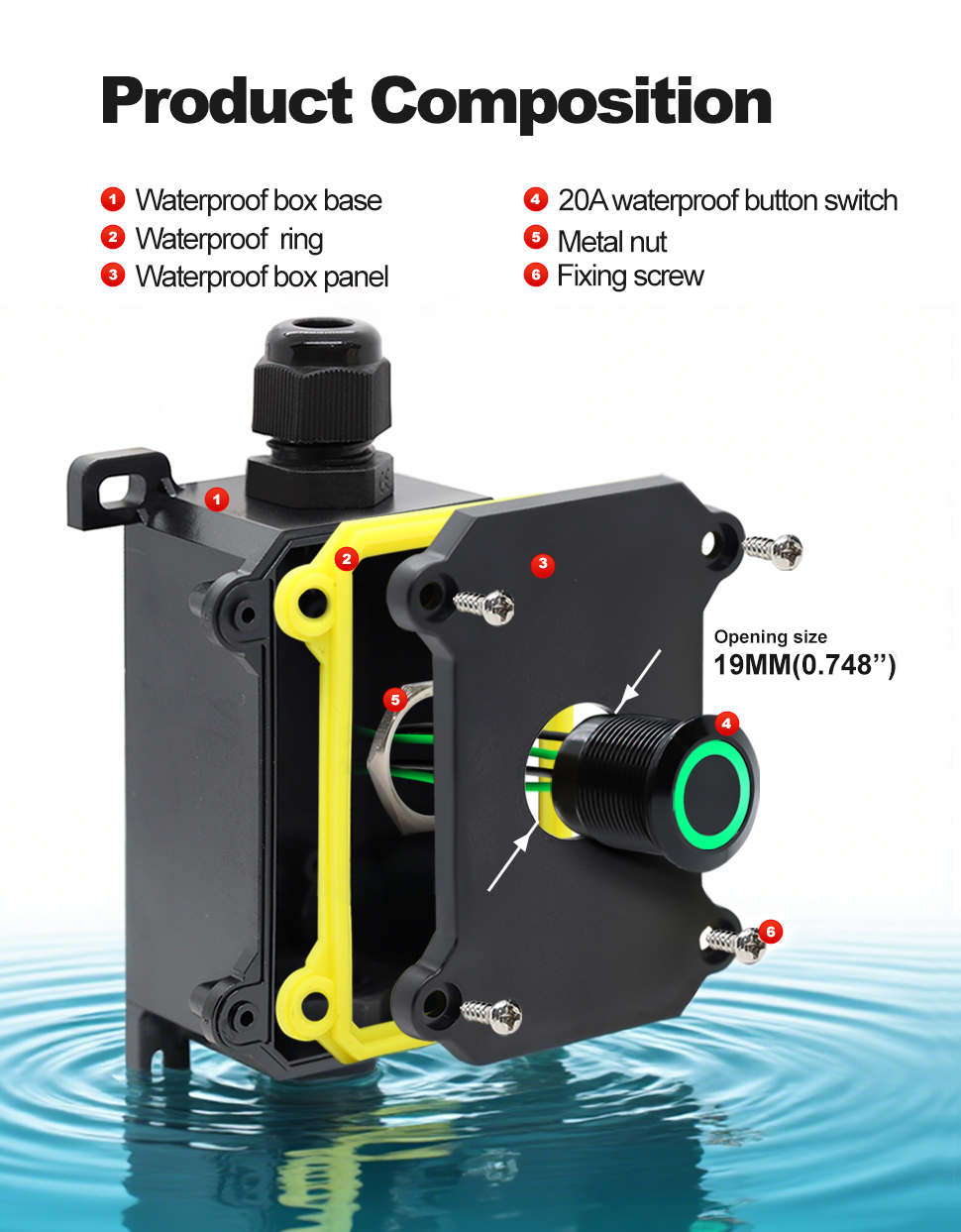

1. Product: Waterproof Junction Box with 19mm Push Button Switch
2. Switch Shell Color: Matte Black or Classic Silver
3. Switch Function: Momentary (press-and-hold) or Latching (press-on, press-off)
4. LED Illumination: Yes/No? If yes, specify color (Red, Green, Blue, White, etc.) and style (Ring, Dot, Power Symbol).
5. Required Quantity:
6. Any Other Custom Needs: (e.g., specific wire length, pre-installed connectors, custom etching on the button)

Don’t settle for a standard component that “almost” fits. Partner with a manufacturer with 26 years of experience to get the exact control solution your project deserves. Send your inquiry to FILN today and let’s build something great together.
