Toggle Switches: A Comprehensive Guide

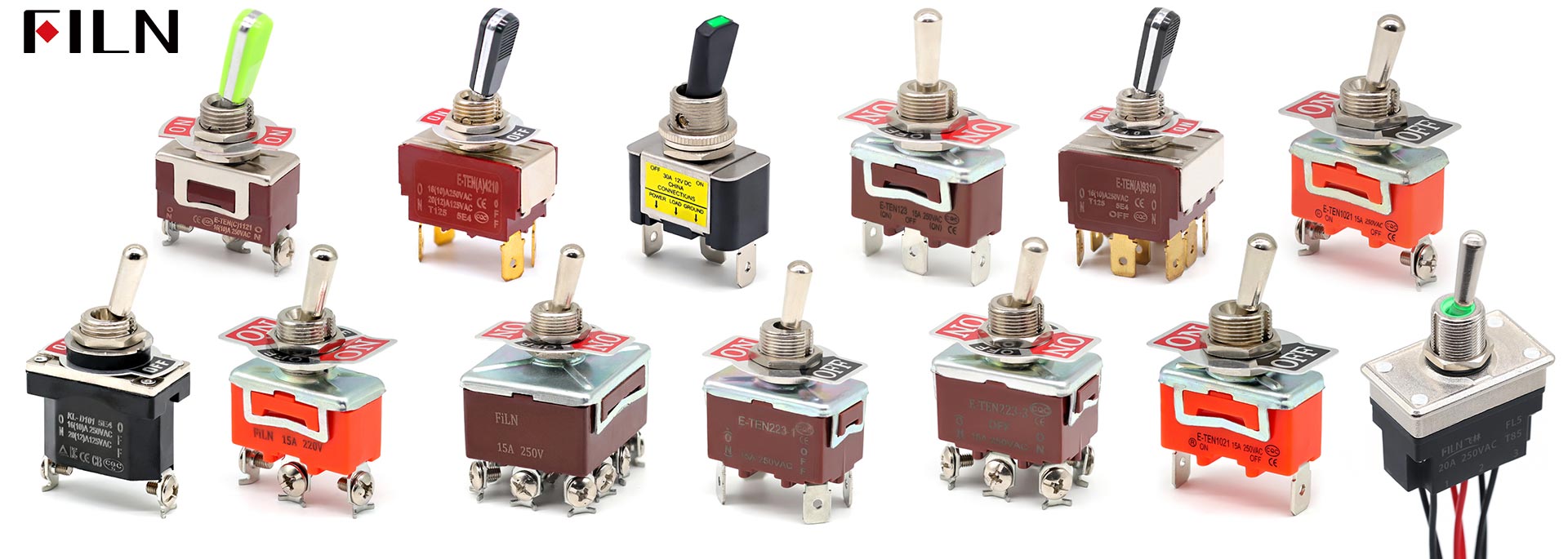

What is the toggle switch?

Toggle switches are indispensable components in the world of electrical and electronic systems. They play a crucial role in controlling the flow of electricity and enabling various functions within a wide range of devices and applications.

Toggle switches provide a simple and intuitive way to switch circuits on or off, or to select between different operational modes. Their design is both functional and user-friendly, allowing for easy manipulation by operators.

These switches are available in a plethora of configurations, including different current and voltage ratings, terminal types, colors, and functions. This diversity enables them to meet the specific requirements of various industries and applications.

For instance, in home appliances like fans and lamps, toggle switches ensure convenient control of the devices’ operation. In industrial machinery, they can precisely manage complex processes and power distribution.

Whether it’s in automotive systems, electronic equipment, or smart home technologies, toggle switches serve as reliable interfaces that allow users to interact with and control electrical circuits with ease and accuracy.

In summary, toggle switches are fundamental elements that contribute significantly to the functionality and usability of electrical and electronic systems across multiple domains.

Product Details of Toggle Switches

Max. Voltage Ratings

Toggle switches are rated for various voltages to accommodate different electrical systems, each serving specific purposes and applications.

The common voltages like 250V, 220V, and 110V are frequently encountered in household and industrial settings. These voltages are typically used to power a wide range of appliances and equipment in our daily lives and in industrial processes. For instance, in a household, 220V might be used to operate major appliances like refrigerators and air conditioners. In an industrial context, 250V could be utilized for machinery and manufacturing equipment.

Voltages such as 12V and 5V are primarily for low-voltage applications, especially in the automotive and electronics domains. In automotive systems, 12V is commonly used to power various components like lights, the audio system, and some control circuits. In the world of electronics, 5V is often employed in small devices, circuit boards, and computer components.

Specialized industrial and heavy machinery often rely on voltages like 24V and 380V. 24V is frequently used in certain industrial control systems and equipment where a balance between power and safety is required. 380V, on the other hand, is typically found in large industrial machines and heavy-duty equipment that demand significant power to operate efficiently and perform complex tasks.

In conclusion, the diverse range of maximum voltage ratings for toggle switches ensures that they can be appropriately selected and utilized in a wide variety of electrical systems, meeting the specific voltage requirements of different applications and ensuring safe and efficient operation.

Max. Current Ratings

The values of “Max. Current” for toggle switches represent the maximum amount of electrical current that the switch can safely handle and conduct without overheating or causing damage.

For example:

A toggle switch rated at 15a can handle a maximum current of 15 amps. This means it is suitable for circuits where the expected current flow does not exceed 15 amps.
A 40a rated switch can handle a much higher current and is typically used in applications where larger amounts of power are being controlled, such as in heavy-duty industrial equipment.

The choice of the appropriate maximum current rating for a toggle switch depends on the specific electrical circuit and the current that is expected to pass through it. Using a switch with a lower current rating than the actual current in the circuit can lead to overheating, failure of the switch, and potentially pose safety hazards. On the other hand, using a switch with a much higher current rating than necessary might increase costs and take up more space unnecessarily.

Toggle switches come with varying maximum current ratings to suit different applications:

15A: Suitable for general household and light industrial use.
20A: Ideal for heavier loads and more demanding applications.
10A: Common for home appliances and electronic devices.
1A, 2A, 5A, 6A,13A,16A: For lighter loads and specific equipment.
12A, 30A, 40A, 45A: Designed for high-power applications and heavy-duty machinery.

Toggle Switch Color Options

Aesthetic and Visual Identification: Different colors can make the switch stand out or blend in with the surrounding environment for a more aesthetically pleasing or coordinated look. For example, in a device with a black or gray color scheme, a black or gray toggle switch might be chosen to maintain a uniform appearance.
Functional Categorization: In some cases, colors can be used to categorize or differentiate switches based on their functions. For instance, red might be used for emergency stop switches to draw immediate attention.
Brand or Product Identity: Specific colors can be associated with a particular brand or product line to create a recognizable and consistent image.
User Preference: Some users may have personal color preferences, and having a variety of colors available allows for customization to meet these preferences.
Industry Standards or Conventions: Certain industries or applications may have established color codes for toggle switches to indicate specific meanings. However, this is less common for the colors listed.

For example, in a home audio system, a blue toggle switch might be used for a specific audio input selection, while in an industrial control panel, a yellow switch could be designated for a cautionary function.

In conclusion, while the color of a toggle switch does not typically have a universal, strictly defined meaning, it can play various roles in terms of appearance, function identification, and user or industry-specific preferences.

Black, Red, Blue, White: Classic and versatile choices.
Silver, Gold: Offering a touch of elegance.
Yellow, Green, Brown, Gray, Orange: For a pop of color or to match specific themes.
Metal, Plastic, Stainless steel: Reflecting the material used in construction.

Toggle Switch Functionality

The functionality of toggle switches is tailored to meet specific needs:

Function	Description
On-off	Allows for simply turning the circuit on or off.
On-off-on	Provides three positions: on in one direction, off in the middle, and on in the other direction.
On-on	Keeps the circuit on in both switch positions.
1p2t	One pole, two throw; allows for selecting between two circuits.
Latch	Remains in the position it is switched to until manually changed again.
Easy installation	Indicates that the switch is designed for straightforward setup.
Light wall switch	Specifically designed to control lights on a wall.
Control light	Suggests the main function is to manage the operation of a light.
Safety	Implies the switch has features to ensure safe operation.
Dpdt	Double pole, double throw; can control two separate circuits.
Durable	Suggests the switch is built to last and withstand regular use.
2p3t	Two poles, three throw; offers more complex circuit control options.
2p2t	Two poles, two throw; provides control over two circuits.
Light controller	Used to control various aspects of a light’s operation.
Mom-off-mom	Momentary on in one direction, off in the middle, and momentary on in the other direction.

Material Composition

The construction materials of toggle switches vary to ensure durability and performance:

Material	Advantages	Disadvantages
Metal (e.g., Copper, Brass, Aluminum, Stainless Steel)	Excellent conductivity, durability, high heat resistance.	Higher cost, heavier weight.
Plastic (e.g., PC, ABS, Pa66, Nylon)	Lightweight, cost-effective, corrosion resistant.	Lower heat resistance, less durable compared to metals.
Glass and Tempered Glass	Good insulation, aesthetic appeal.	Fragile, limited structural strength.
Rubber	Flexibility, provides good grip and shock absorption.	Limited heat resistance, prone to degradation over time.
Composite Materials (e.g., Pa66/pc, Aluminum Alloy)	Combine the properties of the constituent materials, customizable.	May have complex manufacturing processes.

Metal Materials:

Copper and Brass: Offer excellent electrical conductivity, making them suitable for applications where low resistance is crucial. However, they are more expensive and prone to tarnishing.
Stainless Steel: Highly resistant to corrosion and provides durability, but has lower conductivity than copper or brass.

Plastic Materials:

PC (Polycarbonate): Has high impact resistance and can withstand various environmental conditions.
ABS (Acrylonitrile Butadiene Styrene): Good mechanical properties and is easily molded.

Glass and Tempered Glass:

Mainly used for insulation or decorative purposes due to their transparency and dielectric properties.

Rubber:

Commonly used for providing insulation and grip in certain applications where flexibility is needed.

The choice of material for toggle switches depends on factors such as the application requirements, cost considerations, environmental conditions, and aesthetic preferences.

Position and Switch Type

The position and type of toggle switches determine their application and operation:

Switch Type	Description
SPST (Single Pole Single Throw)	Has one pole and one contact position. It simply turns the circuit on or off.
SPDT (Single Pole Double Throw)	One pole with two contact positions. It can switch the current between two different circuits.
Single pole	Refers to a switch with only one input or control point.
3-way	Usually allows for three different circuit states or connections.
4-way	Offers four distinct circuit connection options.
5-way	Provides five possible circuit configurations.
Double pole	Has two separate input or control points.
Single pole/double throw	Similar to SPDT, with one pole and two throw positions.
Double pole/double throw	Has two poles and each pole can be switched to two different positions.

For example, an SPST switch might be used to control a single light, turning it on or off. An SPDT switch could be used to select between two different power sources for a device. The choice of switch type depends on the specific circuitry and functionality needed in a given application.

Terminal Types

The terminal types facilitate easy wiring and integration:

Terminal Type	Description and Differences
Solder	Requires soldering to attach wires. It provides a secure and permanent connection but is more time-consuming and requires soldering skills.
Screw terminals	Allows for wires to be fastened by screws, offering a relatively easy and adjustable connection. It’s suitable for thicker wires and can be disconnected and reconnected easily.
PCB terminal	Specifically designed to be mounted on a printed circuit board (PCB). It provides a compact and standardized connection for PCB-based circuits.
Quick connect terminal	Enables quick and effortless wire attachment without the need for tools. It’s convenient for rapid installations but might not be as secure as some other options for high-vibration or heavy-duty applications.
PC terminal	May refer to a specific type of plastic or polymer-based terminal with its unique design and properties.
Silver Plating	A plating finish on the terminals that enhances conductivity and corrosion resistance.

For example, in a high-vibration environment like an industrial machine, screw terminals or soldered connections might be preferred over quick connect terminals to ensure a stable connection. In a PCB-based device, PCB terminals are the obvious choice for seamless integration. The selection of the terminal type depends on factors such as the application, wire size, ease of installation, and the need for reconnection or disconnection.

Pin Configuration

The number of pins in a toggle switch determines the number of electrical connections it can make. Different pin counts offer varying degrees of functionality and are chosen based on the specific requirements of the circuit or device in which the toggle switch is being used.

A 2-pin toggle switch is the simplest and is commonly used for basic on-off operations. It has two terminals for connecting a single circuit.

A 3-pin toggle switch might be used for applications where a choice between two different circuits is needed, such as in some audio or lighting setups.

A 4-pin toggle switch could be employed in more complex circuits where multiple functions or options need to be controlled.

A 6-pin toggle switch is suitable for even more elaborate circuits or when multiple connections and combinations are necessary.

9-pin and 12-pin toggle switches are used in highly specialized and complex electronic systems where a large number of connections and control options are required. These are often found in advanced industrial equipment, aerospace applications, or sophisticated electronic devices.

For instance, in a simple home lighting circuit, a 2-pin or 3-pin toggle switch might suffice. However, in a complex industrial control panel, 6-pin or higher pin count toggle switches could be used to manage multiple processes and functions.

The choice of the pin count depends on the complexity and specific requirements of the electrical system where the toggle switch is to be incorporated.

Toggle Switches IP Level

The Ingress Protection (IP) level indicates the degree of protection against intrusion:

IP Level	Solid Object Protection	Water Protection
IP11 toggle switch	Protects against objects larger than 50mm.	Protects against vertically dripping water.
IP21 toggle switch	Protects against fingers or objects larger than 12.5mm.	Protects against vertically dripping water.
IP22 toggle switch	Protects against fingers or objects larger than 12.5mm.	Protects against water dripping at an angle up to 15 degrees.
IP32 toggle switch	Protects against tools or wires with a diameter of 2.5mm or more.	Protects against water dripping at an angle up to 15 degrees.
IP33 toggle switch	Protects against tools or wires with a diameter of 2.5mm or more.	Protects against water spray at an angle up to 60 degrees.
IP41 toggle switch	Protects against objects larger than 1mm.	Protects against vertically dripping water.
IP53 toggle switch	Protects against dust limited ingress.	Protects against water spray at an angle up to 60 degrees.
IP55 toggle switch	Protects against dust limited ingress.	Protects against low-pressure water jets from any direction.
IP65 toggle switch	Provides complete protection against dust ingress.	Protects against low-pressure water jets from any direction.
IP67 toggle switch	Provides complete protection against dust ingress.	Can be submerged in water up to 1 meter for up to 30 minutes without damage.

Toggle Switch LED Indicator

Toggle Switch with LED	Advantages	Disadvantages
	Clearly indicates the switch’s on/off status, even in low light conditions.	Generally more expensive than non-LED versions.
	Adds a visual cue, making it easier to identify the switch’s position at a glance.	May consume a small amount of additional power.
	Can enhance the aesthetic appeal of the device or panel.	In some cases, the LED might be too bright and cause distraction.

Toggle Switch without LED	Advantages	Disadvantages
	Usually less costly.	Doesn’t provide a direct visual indication of its status in the dark.
	No power consumption associated with an LED.	May require additional indicators or checking to determine the switch position.
	Simpler design and potentially more durable as it has fewer components.	Less visually distinct, especially in poorly lit environments.

For example, in a home theater setup where light control is important and the switch might be used in a dark room, a toggle switch with LED would be beneficial for easy identification. However, in a simple power supply where cost and simplicity are key, a non-LED toggle switch might be the preferred choice.

Application Fields

Toggle switches have a wide range of applications across various fields:

In the Home: They are used in lighting fixtures, ceiling fans, and electrical outlets to control the power supply.
Electric Equipment: Found in power tools, electrical generators, and charging devices.
Instrumentation: Such as in scientific and measurement instruments to toggle different functions or settings.
Automation Machines: Help control the operation and functions of automated manufacturing equipment.
Indoor Settings: Common in indoor ventilation systems and air conditioning units.
Industrial: Utilized in large-scale industrial machinery and production lines for power and process control.
Residential: For example, in doorbells, security systems, and intercoms.
Machines: Including sewing machines, woodworking machines, and 3D printers.
Home Appliances: Like refrigerators, ovens, and washing machines to turn them on and off.
Cars: Found in the vehicle’s dashboard and interior lighting systems.
General-purpose: Applied in various general electrical circuits where simple on/off control is needed.
Residential / General-purpose: Can be used in both residential and non-specific common electrical applications.
Smart Home Systems: Control smart lighting, smart plugs, and other connected devices.
Excavators: Operate various functions and systems within the heavy machinery.
Electronic Equipment: From laptops and desktops to audio equipment.
Bedroom: Control bedside lamps and other bedroom electronics.
PCB (Printed Circuit Boards): Integrated into small-scale electronic circuits for specific functions.

For instance, in a factory, toggle switches might be used to start and stop conveyor belts, while in a smart home, they could control the power to individual smart outlets.

Conclusion

Understanding the various aspects of toggle switches is essential for making informed decisions when selecting the right switch for a particular application. This guide has provided a detailed overview of the product details, highlighting the importance of factors such as current ratings, color options, functionality, materials, and customization services. Whether for home use or industrial applications, the right toggle switch can enhance safety, performance, and convenience.
