The Engineer’s Guide to
16mm Metal Indicator Lights
A deep-dive technical perspective on selecting, deploying, and maintaining high-performance 16mm visual signaling components for industrial excellence.
Strategic Roadmap
What is a 16mm Metal Indicator Light?
A 16mm metal indicator light is a robust industrial signaling device engineered for a standard 16mm panel mounting hole. Unlike common plastic alternatives, the 16mm metal indicator light is constructed from high-grade copper alloy or stainless steel, providing exceptional mechanical strength (IK10) and chemical resistance. It serves as the primary visual interface for machine status, alerts, and system health in high-vibration and harsh environments.
Engineering Note: For panels where space is a premium but durability is non-negotiable, the 16mm diameter provides the optimal balance between high visibility and layout efficiency.
Key Features & Performance Specs
The FILN 16mm metal indicator light series is defined by engineering precision:
Copper alloy shell with chrome/nickel plating for extreme anti-corrosion.
Advanced silicone O-ring protection against dust and temporary immersion.
Rated for 50,000+ hours with current draw kept under ≤20mA for efficiency.
Maintains structural integrity and illumination from -40℃ to +80℃.

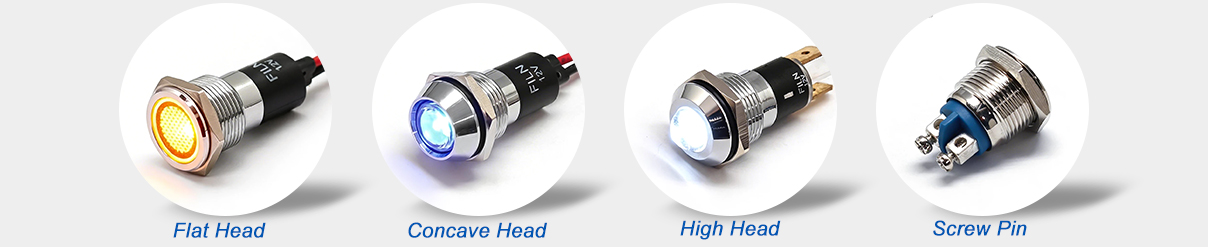

Selecting the Head Style: Aesthetics vs. Viewing Angle
High Head (Prominent)
The 16mm metal indicator light with a high head features an extended lens protruding from the bezel.
Visibility: 180° viewing angle. Visible from the far side.
Usage: View High Head Models →
Flat Head (Flush)
A flush mount design that aligns perfectly with the panel surface for a sleek, industrial look.
Visibility: High frontal clarity; ideal for HMI panels.
Usage: View Flat Head Models →
Concave Head (Recessed)
The lens is recessed into the metal shell, providing physical protection for the lamp face.
Visibility: Concentrated beam; high impact protection.
Usage: View Concave Models →
Wiring Logic: Comparative Analysis
| Category | Pin Terminal (SJ/FJ/CJ) | Pre-wired (SW/FW/CW) |
|---|---|---|
| Connection | 2.8mm Quick-connect or soldering | Factory soldered PVC/Silicone leads |
| Rear Sealing | Open rear (IP65 frontal only) | Epoxy potted (True IP67 rear) |
| Vibration | Moderate resistance | Superior; impossible to shake loose |
| Link | Short Pin Model | Pre-wired Model |
Technical Deep Dive: Materials & Standards
Understanding the component makeup of a 16mm metal indicator light is vital for long-term project stability. FILN uses vertical integration to control material quality from raw brass to final assembly.
- Housing: Copper alloy with Chrome plating (Silver) or Anodized Aluminum (Black).
- Resistor: Precision carbon film resistor calibrated for voltages from 3V to 380V.
- Base: Heat-resistant PA66 Nylon ensures the light doesn’t deform under continuous load.
Global Certifications
FILN 16mm series is built to international standards:
✓ CE & RoHS Compliant
✓ VDE & SGS Certified
✓ ISO9001 Management
Technical FAQ
Q1: Can the 16mm indicator support dual or tri-color LED?
A: Yes. FILN specializes in customization. We can provide bi-color (Red/Green) or tri-color (R/G/B) configurations within the same 16mm metal housing.
Q2: What is the benefit of the Screw Terminal version?
A: The screw terminal allows for secure physical locking of wires without soldering, ideal for field maintenance and high-vibration power cabinets.
Q3: How deep does the rear housing go?
A: Our standard models range from 28-35mm, but we offer short-body models specifically for slim HMI panels.
Q4: Is it visible in direct sunlight?
A: Yes. By using high-lumen LED chips and high-transparency PC lenses, the FILN 16mm metal indicator remains clearly visible even in outdoor bright-light conditions.
