8mm Metal Indicator Light – Technical Overview, Custom Options & Applications

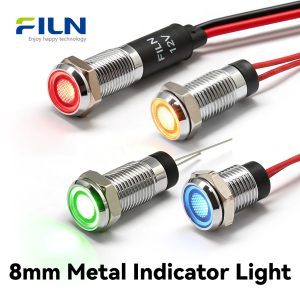

The 8mm metal indicator light is one of the most widely used panel-mounted signaling devices in industrial equipment, control systems, and electrical applications. Designed with a compact 8mm mounting size and durable metal housing, it provides reliable visual indication in demanding environments.

FILN offers full customization options, including voltage, wiring methods, LED colors, head styles, housing finishes, and terminal configurations. This flexibility allows our metal indicator lights to meet diverse project requirements across different industries.

1. Compact 8mm Mounting Design

The 8mm installation diameter makes this metal indicator light suitable for equipment where panel space is limited. Despite its compact size, it maintains strong structural stability and clear visual performance.

Available length options range from:

• Minimum length: 14mm

• Maximum standard length: 36.3mm

This size range ensures compatibility with different panel thicknesses and installation environments.

2. Metal Head Structure Options

Our indicator light series is engineered to bridge the gap between human operators and machine status. By offering three distinct head profiles, we ensure that your control panel meets the specific aesthetic and functional demands of any environment.

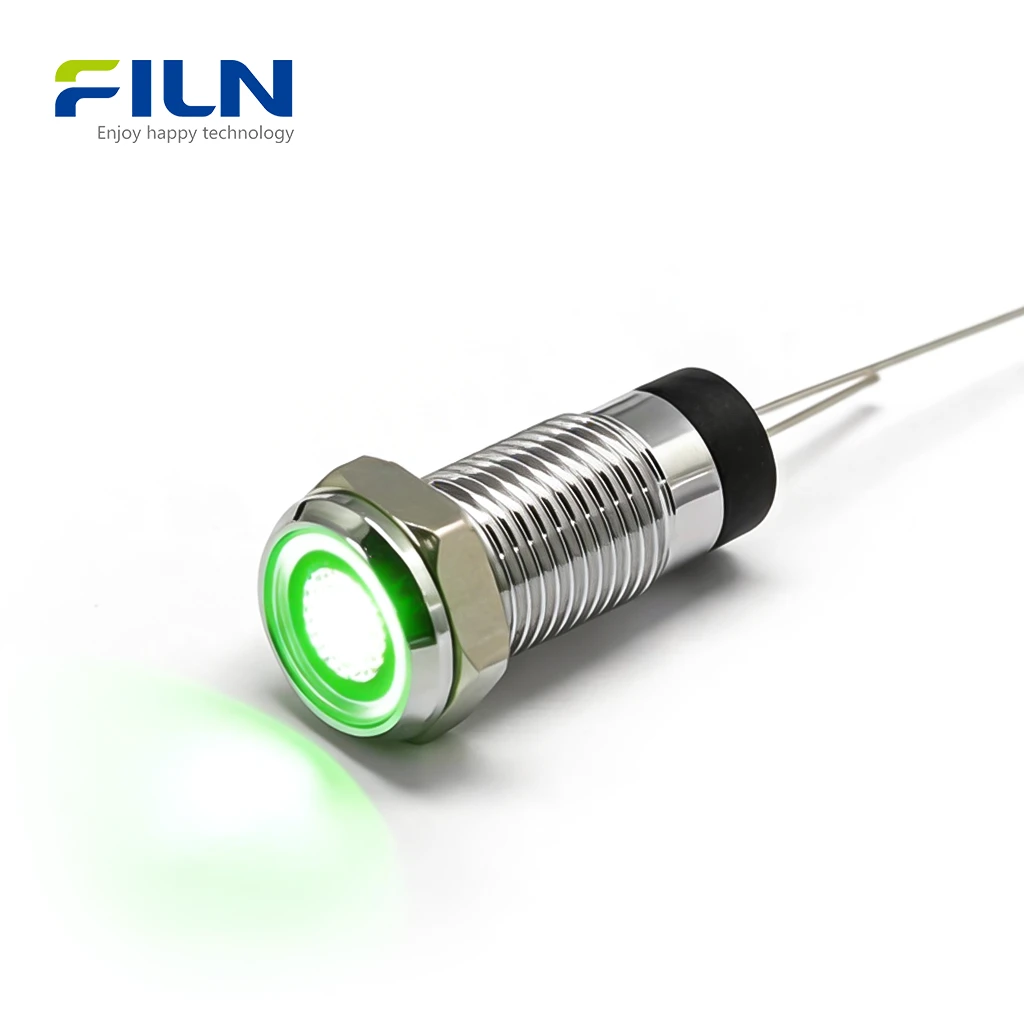

2.1 Flat Head Indicator Light — The Minimalist Precision

Design Philosophy: Designed for seamless integration. The flat-head profile sits flush with the mounting surface, creating a “zero-elevation” look that complements modern, high-tech interfaces.

• Visual Characteristics: Clean lines and a flush-mount finish that eliminate visual clutter.

• Key Advantages: Its smooth surface is incredibly easy to sanitize and prevents dust accumulation—making it as hygienic as it is stylish.

• Ideal Applications: Medical diagnostic equipment, laboratory instrumentation, smart home control hubs, and premium CNC consoles.

2.2 High Head Indicator Light — The Maximum Visibility

Design Philosophy: Engineered for immediate recognition. The extended lens structure ensures that status signals are projected beyond the panel plane, capturing attention from every angle.

• Visual Characteristics: A prominent, 3D-domed or cylindrical profile with enhanced lateral light dispersion (360° visibility).

• Key Advantages: Provides a superior visual “pop,” making it indispensable in high-activity areas where operators need to monitor machine status from a distance.

• Ideal Applications: Industrial automation lines, outdoor power distribution cabinets, heavy-duty switchgear, and emergency warning systems.

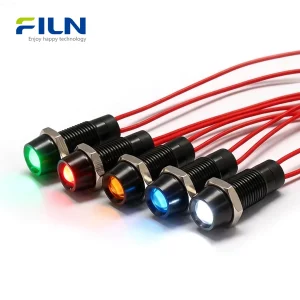

2.3 Concave Head Indicator Light — The Rugged Protector

Design Philosophy: Safety through structural shielding. By recessing the lens within a protective bezel, this design prioritizes durability and prevents accidental activation or physical damage.

• Visual Characteristics: A recessed lens structure that sits safely behind a raised protective rim.

• Key Advantages: Drastically reduces the risk of lens cracking due to impact. The “cradle” design also minimizes glare from overhead lighting, ensuring the light’s color remains distinct and focused.

• Ideal Applications: Heavy machinery, mining equipment, construction site controls, and harsh environments subject to mechanical vibration or flying debris.

3. Voltage Customization (AC & DC Support)

FILN provides full voltage customization for the 8mm metal indicator light.

Common voltage options include:

3V/ 6V/ 12V/ 24V/ 110V/ 220V

Both AC and DC circuits are supported.

LED indicator lights require stable current control. To ensure safe operation, internal resistors or customized circuit designs can be integrated depending on application requirements.

This flexibility allows seamless integration into various electrical systems worldwide.

4. Comprehensive Wiring Connection Types

To ensure seamless integration across diverse industrial applications, the 8mm metal indicator light is designed with three primary wiring configurations. Each method is engineered to solve specific spatial, environmental, and assembly challenges.

4.1 Pin Type: Precision for PCB Integration

The Pin Type (also known as solder pin or needle terminal) is the go-to solution for high-density electronic layouts.

• Design Focus: Features slim, rigid metal pins optimized for PCB (Printed Circuit Board) mounting.

• Key Advantages:

  • Permanent Stability: Provides a robust, vibration-resistant electrical connection once soldered.

  • Space Efficiency: The compact footprint is ideal for miniaturized electronic devices and control motherboards.

  • Automated Assembly: Compatible with wave soldering processes, reducing manual labor costs for mass production.

• Best For: Internal communication modules, medical instruments, and compact consumer electronics.

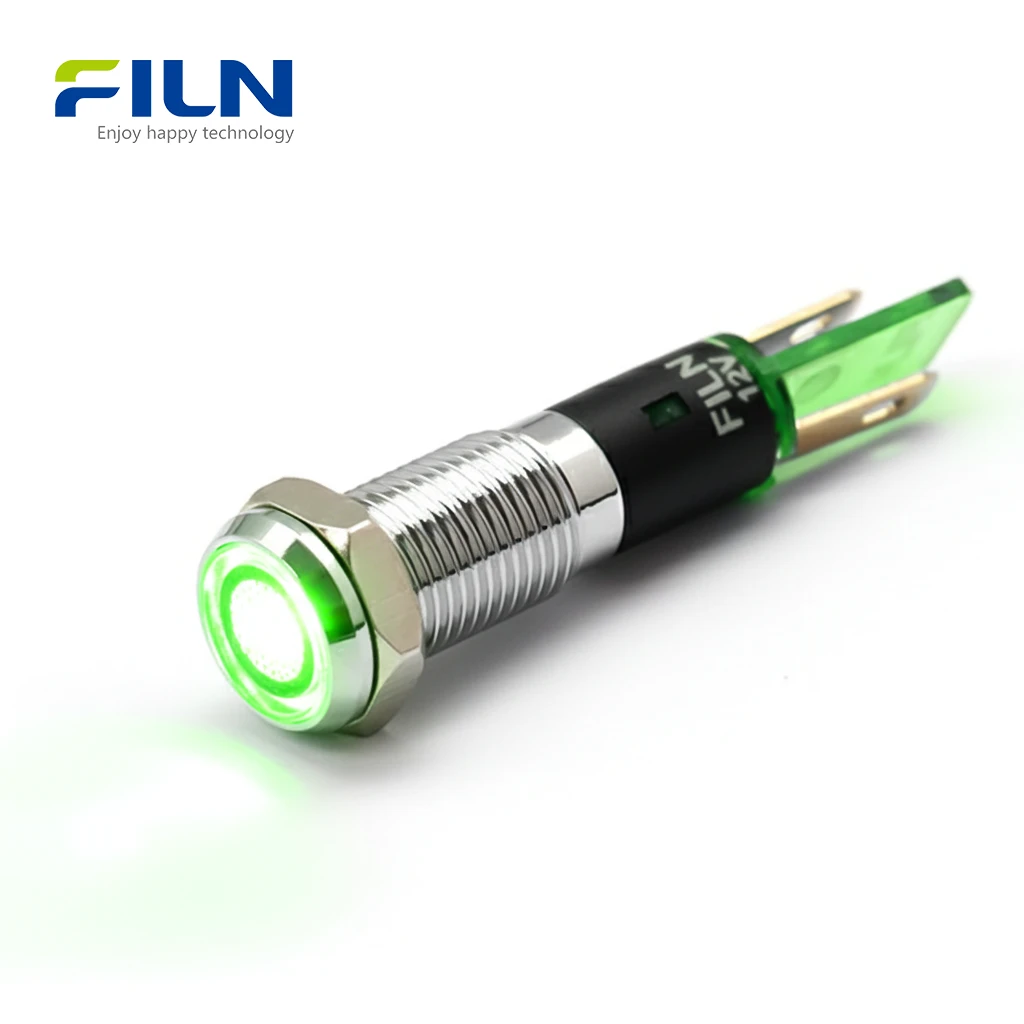

4.2 Terminal Type: The Industrial Standard

The Terminal Type (often utilizing 2.8mm or 4.8mm quick-connect tabs) is designed for speed and reliability in heavy-duty environments.

• Design Focus: Equipped with flat metallic “blades” or lugs designed for push-on connectors or manual soldering.

• Key Advantages:

  • Rapid Installation: Allows for “Plug-and-Play” assembly using female spade terminals, significantly shortening production time on assembly lines.

  • Field Serviceability: Components can be swapped out quickly without specialized desoldering tools.

  • Secure Locking: Often features a small hole in the tab for a mechanical “click-lock” connection, ensuring the wire stays put under tension.

• Best For: Industrial equipment panels, power distribution cabinets, and automotive dashboards.

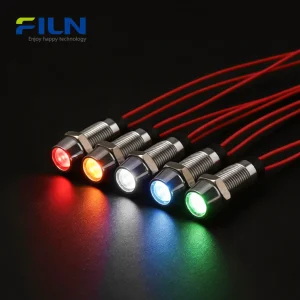

4.3 Wire Type (With Cable): Maximum Flexibility

The Pre-wired Type is the most versatile option, removing the need for onsite soldering or crimping at the indicator itself.

• Design Focus: Features factory-sealed wires directly integrated into the indicator body, often enhancing the IP67/IP68 waterproof rating.

• Advanced Customization:

  • Variable Lengths: Whether you need 100mm for a small box or 2 meters for a large rack, the cable length is fully customizable to your blueprint.

  • Tailored Terminations: We can pre-install various connectors such as JST, Dupont, Molex, or waterproof aviation plugs to match your existing wiring harness.

  • Cable Specifications: Options for different gauges (AWG) and insulation materials (PVC, Silicone, or Teflon) depending on heat and chemical exposure.

• Key Advantages: Simplifies installation in complex systems with limited spatial access and provides a superior moisture barrier.

• Best For: Outdoor signage, marine equipment, and complex automation machinery where “wire-to-board” or “wire-to-wire” flexibility is required.

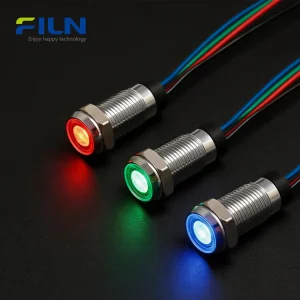

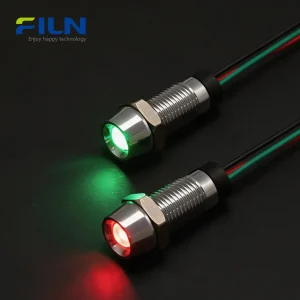

6. Common Anode and Common Cathode Explained

For multi-color indicator lights, wiring configuration is important.

Common Anode (Shared Positive)

All LED positive terminals are connected together.The circuit controls each color by switching the negative side.

Common Cathode (Shared Negative)

All LED negative terminals are connected together.The circuit controls each color by switching the positive side.

The choice depends on the control system design. Both configurations are available for compatibility with different circuits.

7. Premium Housing Material Options

The external housing of an 8mm metal indicator light is the first line of defense against harsh industrial environments. We offer two distinct finishes, each engineered to provide a balance of structural integrity and professional aesthetics.

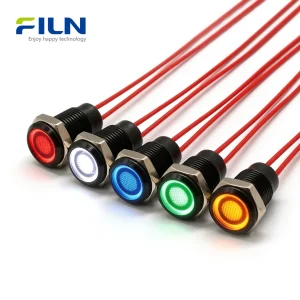

7.1 Silver Stainless Steel: The Industrial Standard

Our silver-toned housings are typically crafted from high-grade 304 or 316 Stainless Steel, designed for environments where durability is non-negotiable.

• Corrosion-Resistant Performance: Stainless steel naturally resists oxidation, making it the ideal choice for high-humidity areas, marine applications, or industries exposed to mild chemical cleaners.

• Professional, High-End Appearance: The natural metallic luster provides a “clean-room” look that integrates seamlessly with modern control panels and medical equipment.

• Mechanical Strength: Its high hardness rating protects the internal LED components from physical impact and accidental bumps, ensuring the indicator remains functional in heavy-duty workshops.

• Best For: Food processing equipment, outdoor charging piles, and medical diagnostic machinery.

7.2 Black Anodized Metal: Modern Aesthetic & High Contrast

The black housing undergoes a specialized anodizing process that creates a dense, protective oxide layer on the metal surface.

• Enhanced Visual Contrast: The deep matte black finish makes the colored LED light (Red, Green, Blue, etc.) “pop” more vividly. This reduces visual noise and ensures the signal is seen immediately by operators.

• Durable Surface Treatment: Unlike paint, the anodized layer is chemically bonded to the metal. It is highly resistant to scratching, fading, and peeling, even under frequent use.

• Modern Industrial Design: Ideal for high-tech applications where a minimalist or “stealth” aesthetic is required. It effectively hides fingerprints and light surface dust.

• Best For: High-end consumer electronics, customized automotive dashboards, and sophisticated server rack monitoring.

8. Installation Instructions

The 8mm metal indicator light is designed for easy panel mounting.

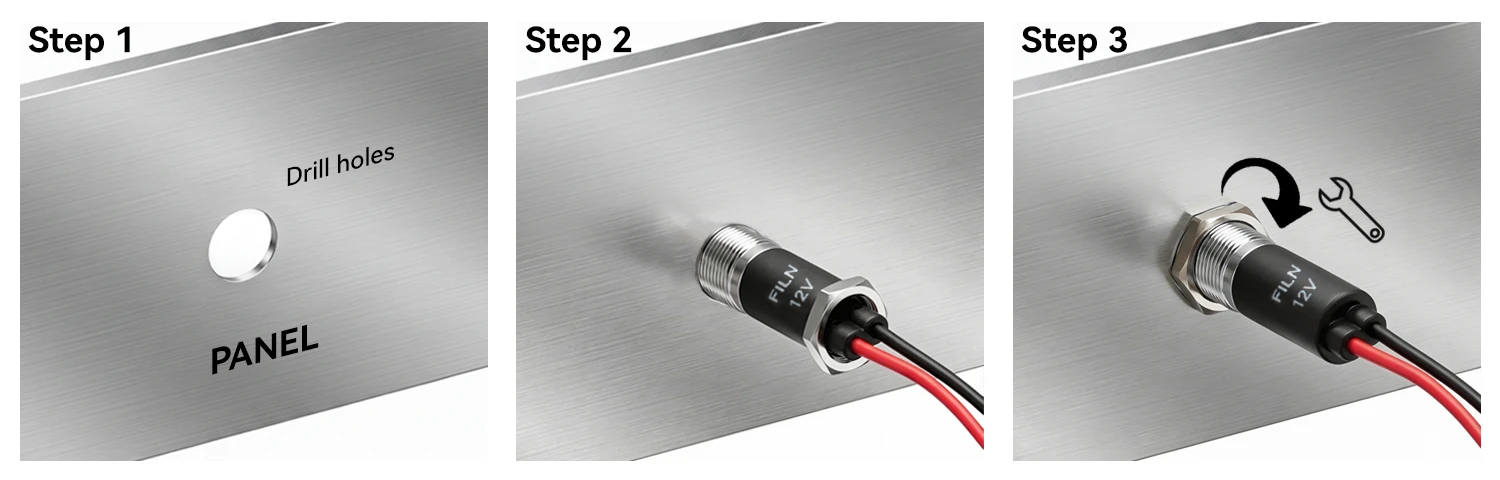

Basic installation steps:

• Drill an 8mm mounting hole
• Insert the indicator light into the panel
• Tighten the fixing nut
• Connect the wires according to circuit design

Proper installation ensures secure fixation and stable performance.

9. Application Areas

The 8mm metal indicator light is commonly used in:

• Industrial control panels
• Machinery equipment
• Power distribution systems
• Automation systems
• Marine equipment
• Medical devices
• Electrical cabinets

Its compact design and metal construction make it suitable for demanding environments.
