12MM Metal Indicator Light: The Ultimate Engineering & Purchasing Bible
Master the technical nuances of 12mm LED signals—from metallurgical selection and IP68 sealing to global compliance standards for 2026 industrial projects.
20+ Years Excellence
UL/CE/VDE Certified
1. Anatomy of a High-Performance 12mm Indicator
To choose the best 12mm indicator light, one must look beneath the surface. A professional-grade indicator consists of four precision-engineered layers:
A. The Optical Lens
Made from fire-retardant Polycarbonate (PC). We treat our lenses with UV-stabilizers to prevent yellowing or cracking when exposed to direct sunlight for years.
B. The LED Chipset
We source only high-lumen Sanan chips. Unlike cheaper alternatives, these maintain color consistency even when operating at 10% duty cycles in dimmable setups.
C. Internal Resistance
Every FILN 12mm light uses a 1/4W or 1/2W metal film resistor, ensuring the LED doesn’t overheat—a common cause of failure in 220V applications.

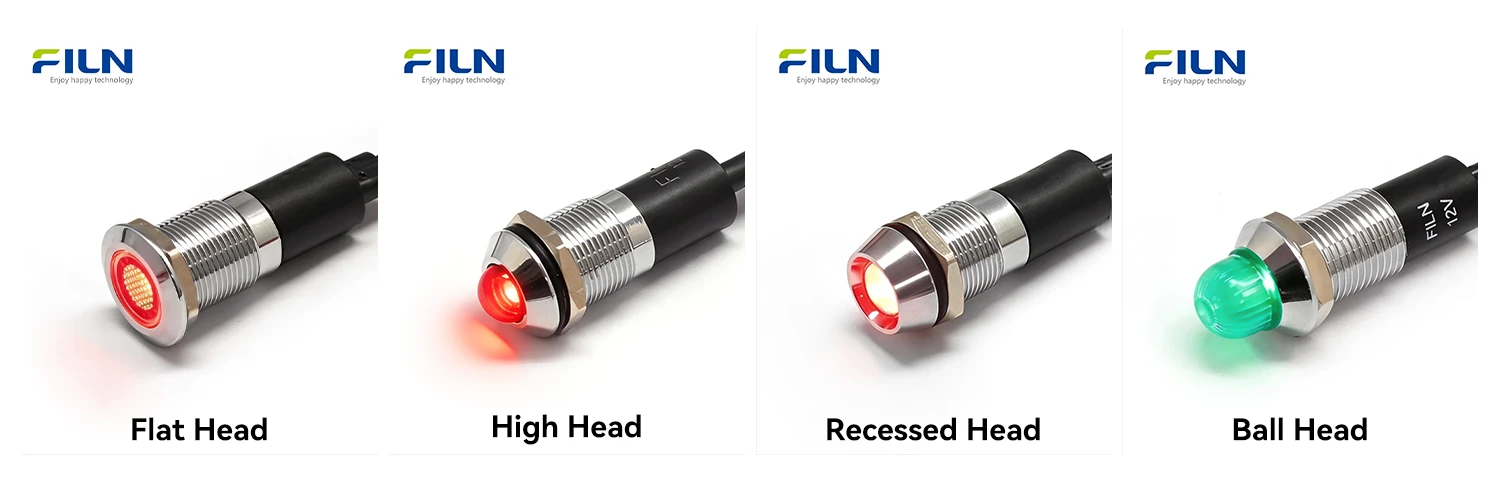

At FILN, we understand that head shape dictates visibility, protection, and user experience. Here are our four primary engineering designs:
1. Flat Head
Best For: Medical & Lab equipment.
- Hygiene: Flush profile, easy to wipe down.
- Space: Zero snagging, ideal for handhelds.
- Aesthetic: Modern, integrated look.
2. High Head
Best For: Factory floors & Alarms.
- 180° View: Visible from any side angle.
- Safety: Impossible to miss for fault signals.
- Alerts: Stands out in peripheral vision.
3. Recessed
Best For: Vandal-prone & Mining.
- Impact: Metal rim shields the lens (IK10).
- No Glare: Focuses light directly forward.
- Tough: Our most durable mechanical design.
4. Ball Head
Best For: Kitchen & Auto Dash.
- Diffusion: Eliminates “hot spots.”
- Tactile: Premium, ergonomic rounded glow.
- Soft Light: High visibility without eye strain.
2. Metallurgy: Engineering for Extreme Stress
Material selection is the difference between a 1-year and a 10-year lifespan. For 2026, FILN has updated its 12mm shell offerings:
| Environment | Recommended Shell | Technical Justification |
|---|---|---|
| Standard Factory Floor | Nickel-Plated Brass | Excellent wear resistance and professional aesthetic for indoor control panels. |
| Coastal/Maritime | 316 Stainless Steel | High molybdenum content prevents chloride pitting and salt-air corrosion. |
| Food Processing | 304 Stainless Steel | FDA compliant material that withstands high-pressure chemical wash-downs. |
| Luxury Audio/Auto | Anodized Black Aluminum | Deep matte finish with zero light reflection, perfect for high-end user interfaces. |
3. Optical Engineering: Bi-Color & RGB Logic
In modern UI design, panel space is at a premium. Why use three 12mm holes when one can do the job? FILN specializes in multi-status 12mm metal indicators:
Bi-Color (The Status Switcher)
Available in Common Cathode or Common Anode. Use Red for “Error” and Green for “Normal Operation.” It simplifies the dashboard and reduces wiring complexity by 30%.
RGB (The Full Spectrum)
Controlled via PWM or PLC. Our 12mm RGB indicators allow you to program custom signals—like Magenta for “Low Fluid” or Cyan for “System Update”—all within a single metal housing.
4. Critical Safety: 110V-380V High-Voltage Mastery
Most 12mm lights fail when exposed to the voltage spikes found in heavy industrial grids. FILN’s high-voltage indicators are built differently:
- Voltage Tolerance: Engineered to handle a ±15% fluctuation in grid voltage without flickering.
- Thermal Isolation: We use an internal structural barrier to isolate the resistor’s heat from the LED chip, extending the lifespan to 100,000 hours in AC environments.
- 380V AC Specialization: Ideal for phase monitoring in power distribution. No need for external step-down transformers—connect directly to the busbar.
5. Global Standards: Why Certifications Matter
Exporting equipment to the US or EU? If your 12mm indicator isn’t certified, your entire machine could fail inspection. FILN ensures global compliance:
UL
North American safety standard. Essential for fire prevention and electrical safety.
CE / VDE
European market access. Guarantees electromagnetic compatibility and low-voltage safety.
RoHS
Hazardous substance-free. Crucial for eco-friendly manufacturing and long-term sustainability.
Troubleshooting: Solving Common 12mm LED Issues
Even the best components face challenges. Here is how to diagnose common problems:
Problem: The LED is dim or flickering.
Solution: Check the input voltage. If you are using a 24V indicator on a 12V system, luminosity drops by 70%. Ensure your wire gauge is sufficient for long-distance runs to prevent voltage drop.
Problem: Water ingress behind the panel.
Solution: Ensure the O-ring gasket is seated correctly between the head and the panel. For wash-down environments, upgrade to our IP68 epoxy-filled series.
Problem: The metal shell is rusting.
Solution: If you are using nickel-plated brass in a high-salt environment, it will oxidize. Switch to 316 Stainless Steel immediately.
Expert Technical FAQ
1. Can 12mm metal indicators be used in temperatures below -40°C?
Yes. FILN’s specialized low-temperature series uses aerospace-grade lubricants and cold-resistant wire insulation, functioning perfectly down to -55°C.
2. What is the difference between IP67 and IP68 for these lights?
IP67 means protection against immersion in water for 30 minutes. IP68 allows for continuous submersion. FILN achieves IP68 by completely potting the rear pins in high-grade resin.
3. Is the light visible in direct sunlight?
For outdoor use, we recommend our High-Head (Prominent) shape with high-intensity LED chips (over 10,000 mcd) to ensure visibility even in high-glare environments.
4. Do you offer custom wire harnesses?
Absolutely. We can customize 12mm indicators with JST, Molex, or Deutsch connectors, and any wire length from 50mm to 10 meters.
