High quality internal components
These switches require an 11/16″ mounting hole for the plastic washer, nuts and washer included.
At the same time, FILN also produces different styles of guitar button switches with different welding methods

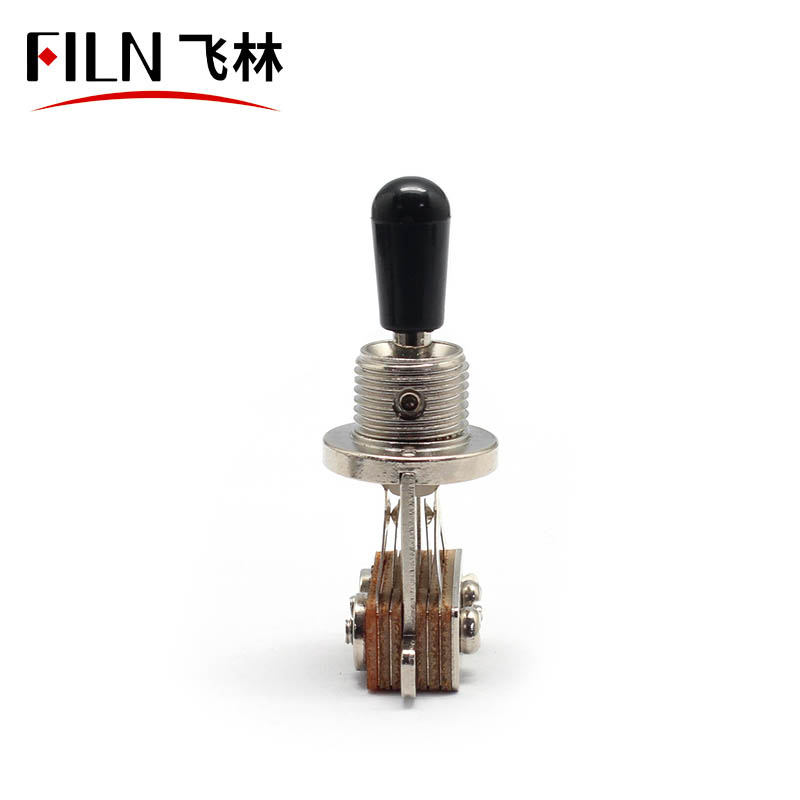

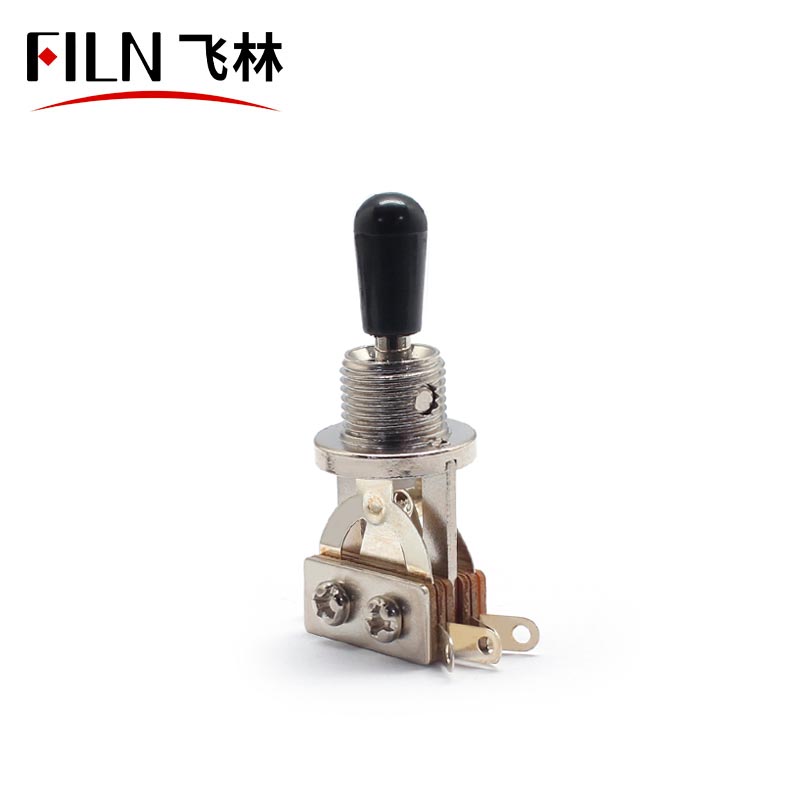

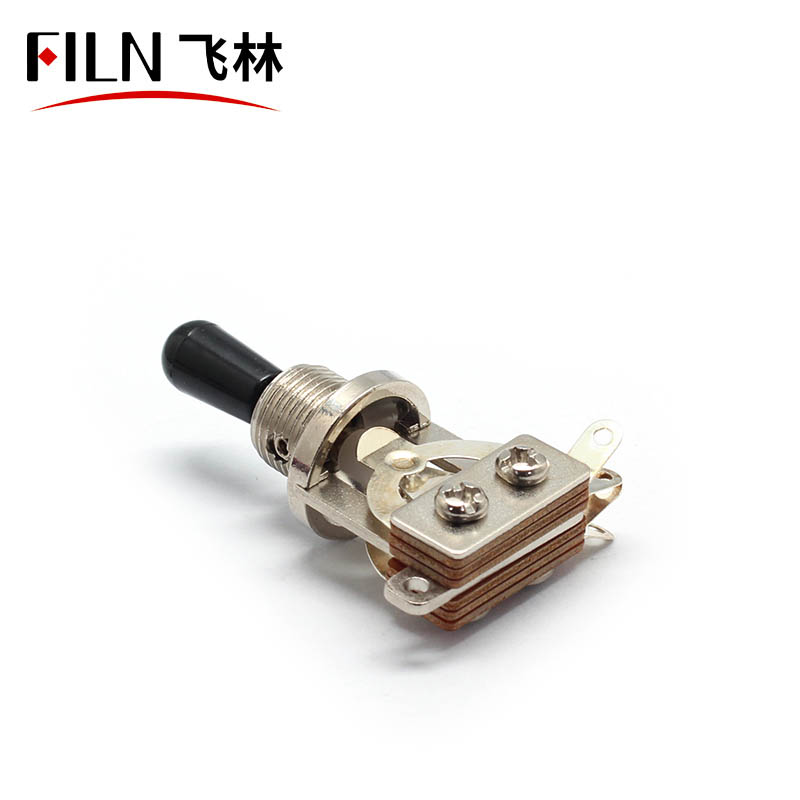

3-way Guitar Pickup Setup Toggle Switch Guitar Effects Switch
- Voltage:30V 125V 250V
- Current:AC 4A / DC 4A / AC 2A
- Contact resistance:≤5mΩ
- Insulation resistance:≥100MΩ, 500V DC
- Withstand voltage:1000V AC / min
- Action force:2.5 ± 0.8Kgf
- Life:≥10000cycles
- Download PDF: 3-way Guitar 2 pickup setup Toggle Switch Guitar Effects Switch
| rating | 250V AC 2A； 125V AC 4A； 30V DC 4A |
| accessory | 2 nuts and 2 washers |
| terminal | solder/pcb |
| life | ≥10000cycles |
| color | blue（black） |
| panel mounting hole | 12mm |
| terminal material | copper plated nickle |
| Place of original | China（mainland） |
| thread height | 7/16″(height can be customized） |
| contact resistance | ≤50mΩ |
| insulation resistance | ≥500MΩ 500V DC |
