120v ROCKER SWITCH,The biggest feature of the 120V rocker switch is that waterproof cap has plastic inside, it is more sealed and waterproof when installed on the panel.

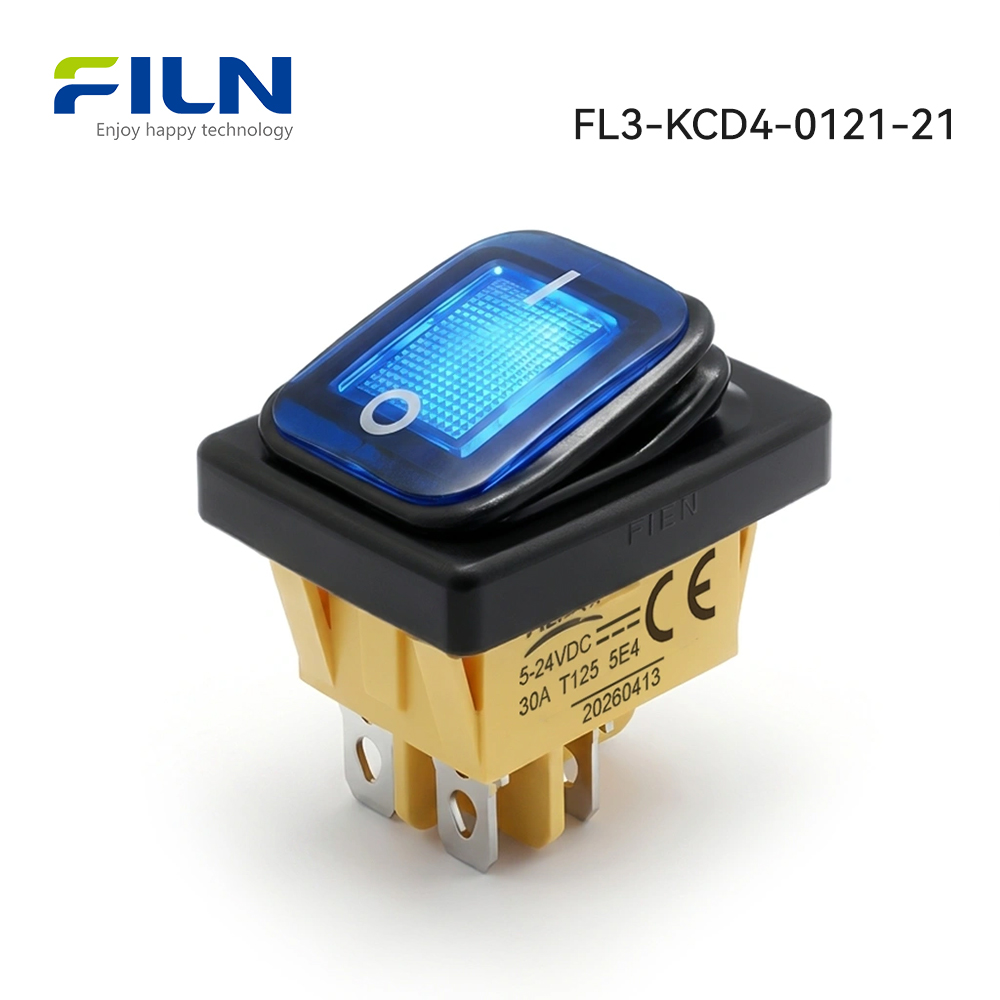

20A ON OFF Waterproof IP67 AC 120V Rocker Switch
- Mode: KCD4-0112-21
- Voltage: 3V, 5V, 6V, 12V, 24V,13V, 110V, 120V, 220V, 240V, 250V, 380V
- Keyword:120V rocker switch
- Color: Red, White, Blue, Green, Yellow, Black
- Material: Stainless steel
- Certification: CE CCC ROSH IP67 UL
- Waterproof grade: IP67
- Email: firstname.lastname@example.org
- Download PDF: 20A ON OFF Waterproof IP67 AC 120V Rocker Switch
Table of Contents
What is a 20A ON OFF waterproof IP67 AC 120V rocker switch?
1.The mounting size of the 120V rocker switch is 30*22mm, and the installation way is buckle. You just need to open a hole of 30*22mm on the panel, then install 120V AC rocker switch into the hole, the ears on both sides of on off 120V rocker switch will jam the panel, it is very convenient to use. The panel thickness should be between 0.8 and 2mm. Please refer to 120V 4pins rocker switch wiring diagram.
2.The waterproof rating of 120V rocker switch is IP67, the seal was formed through a waterproof cap, the waterproof cap is made of silicone material, which is waterproof and oil-resistant, it can be used on the kitchen equipment.
3.The current of the 120V AC rocker switch is 20A, we can produce the product with the current of 15A and 30A.
4.The voltage of the rocker switch is between 3 and 220V, the common voltages are 3V, 6V, 12V, 24V, 110V, 120V, 220V, 250V. Among which 110V and 120V rocker switch is popular in US market while 220V and 250V rocker switch is popular in China market.
5.The 20A 120V rocker switch have 5 colors of red, green, yellow, blue, white. 120V red rocker switch is the most commonly used.
6.The service life of the IP67 120V rocker switch is 100,000 times with the power below 1,000W. If the power is higher than 1,000W, the service life will become shorten, while the power is below 500W, the service life will become longer.
7.The waterproof rocker switch of Filn had passed the certifications of UL, CE, ROSH. These international certifications demonstrate the product meet the international standards, ensuring the product’s quality. It can be sold and used in the US and European markets.
8.The head of the 120V waterproof rocker switch adopts nylon PC material, the lamp seat and switch base both adopt nylon PA66 material. It is flame-retardant and high-temperature resistant. When the rocker switch is welded with a wire lamp pin, the rocker switch base will not to melt. The waterproof cap adopts silicone material, and the metal pin adopts brass H62 material.
9.The rocker switch has three functions of on off, on on and on off on 120V rocker switch.
How do you wire a 120v rocker switch?
Firstly, connect the two side pins of the 120V rocker switch to the power’s positive and negative poles. Connect the two lamp pins to the device. Press 120 V rocker switch, the switch key light up, and the device starts. Press the switch again, LED is off and the device is closed. Under these wiring way, the switch is not normally bright.
The advantages of the 120V rocker switch of Filn?
1.There is no MOQ, we can provide the samples free of charge for your test.
2.Filn can provide customized services that can directly weld wires on the rocker switch, then directly connect the wiring.
3.The 120V rocker switch of Filn had passed the certifications of UL, CE, ROSH, ensuring the quality and consistency of the product.
4.Filn has a professional team of engineers who design the rocker switch, and also has a team of engineers specializing in producing rocker switch mould.
They can complete the product’s design and mould development within 30 to 40 days.
5.Filn’s sales staff are all sales engineers who can solve and respond to customer’s any questions regarding the rocker switch.
If you need our product or you’re interested in our product or need the samples, etc. Please contact us directly, our email address is email@example.com.
|Panel Mount Diameter||22*30mm|
|Contact Way||solder pin|
|Rated voltage||3v, 5v, 6v, 12v, 24v,13v, 110v, 120v, 220v, 240v, 250v, 380v|
|Shell Material||brass plated nickel|
|Base Material||PA66 nylon|
|Applications||Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment etc|
|Current||15A, 20A, 30A|
