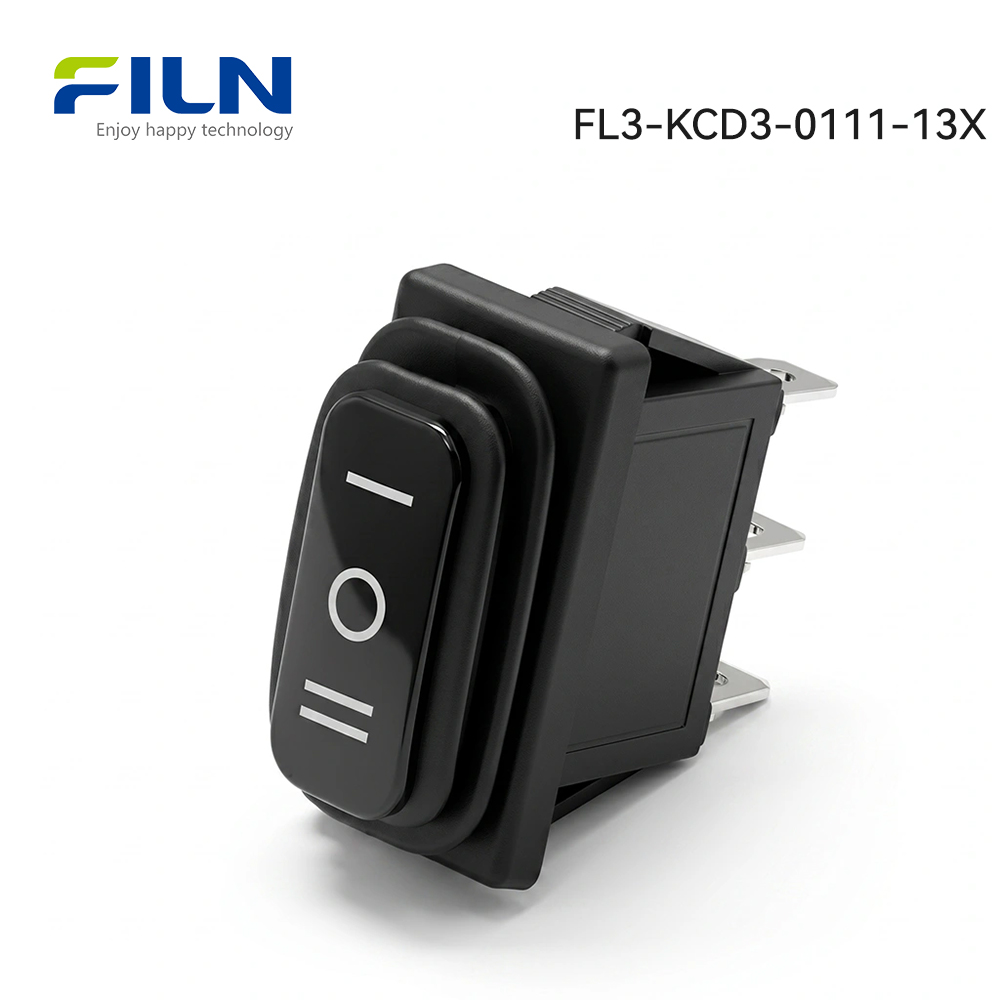

Dual Rocker Switch KCD3 on-off-on Waterproof IP67 110V 48V

  • Mode: FL3-KCD3-0111-11
  • Voltage: 3V, 5V, 6V, 12V, 24V, 13V, 110V, 120V, 220V, 240V, 250V, 380V
  • Color: Black
  • Keyword: Dual RockeS witch
  • Material: PC
  • Certification: CE CCC ROSH IP67 UL
  • Waterproof grade:  IP67
  • Email:inquiry@cnylin.com.cn
  • Down load PDFFL3-KCD3-0111-11(长方形三档无灯)规格书

Dual Rocker switch Product Introduction



The dual rocker switch is a waterproof model based on a dual rocker switch with a common 10x28mm mounting hole. This model can be used for ON OFF ON 3 gears, or ON OFF with light.

Or ON OFF ON with lights, all black is generally without lights, lights with lights are generally available on the buttons, different color buttons will have transparent colors, such as red lights with transparent red Button.

Our model can be made in 5 luminous colors, red, green, yellow, blue, white, and black are generally without lights. There are also some customers who want different button colors but without lights. We can also do this.

Regarding the voltage, we usually talk about the voltage of the lamp, which can be 12v, 24v, 110v, 220v, 380v, etc. Of course, some customers want 3v, 5v, 48v, etc. We can also customize it for them. We are a factory, which is very simple for us. .

At present, our dual rocker switch has passed the certifications of CE, UL and environmental protection certification.

Water can conduct electricity. In our daily life, it is inevitable that some water will splash in when we use the switch seat. This has a great potential for electricity use. Therefore, most people now use waterproof switches, which are waterproof dual. Rocker switch is one of them. So, if you buy a waterproof dual rocker switch? What are the precautions when we use the waterproof dual rocker switch in the future?

Waterproof dual rocker switch, as the name suggests, is a dual rocker switch that can be used in the environment or can be operated with wet hands.

Waterproof dual rocker switch, there are other names, such as: wave switch, rocker switch, rocker switch, rocker switch, IO switch, power switch, because the rocker switch looks like a ship, so it is called this way.

Waterproof dual rocker switch has a wide range of applications, such as water dispensers, coffee pots, rice cookers, kettles, etc. For now, there are many brands and types of waterproof dual rocker switches on the market

Top ten dual rocker switch brands

1: TCL-Legrand (China’s well-known trademark, TCL-Legrand International Electric (Huizhou) Co., Ltd.);

2: Simon switch socket (Spain in 1916, the world famous brand of communication wiring, Simon Electric China Co., Ltd.);

3: Siemens (started in 1847 in Germany, the world’s largest electrical and electronic company);

4: Panasonic (China’s well-known trademark, Japan’s Matsushita Electric (China) Co., Ltd.);

5: Schneider (one of Schneider Electric’s preferred brands in the global power distribution field, Tianjin Merlin Rilan Electric Group);

6: Fudao Switch (founded in Zurich, Switzerland in 1937, the world-renowned electrician brand, Fudao Group);

7: Honeywell-Lonon (Guangdong famous brand, Honeywell Lonon Electrical System Technology (Guangdong) Co., Ltd.);

8: LOVOV switch socket (first-line brand/brand, Guangdong Zhongshan Luofu Group);

9:Matsumoto SOBEN (Guangdong famous trademark, Matsumoto Electric Industrial Co., Ltd.)

10: In the future of FILN Electronics, although we have a little gap with these companies, we believe that we have been close to them.

The dual rocker switch connects and disconnects the circuit by alternately pressing the two ends of the operating button like a rocker. It is usually used to turn on and off the main power of the device.

Since the action of the operation button is regarded as shaking up and down, the English word “rock” is regarded as “shake” and is called a rocker switch. Sometimes it is more directly called a rocker switch.

The dual rocker switch product line is divided into multiple types according to the opening and closing current value, the number of circuits and the external dimensions. There are also products with sealing and resetting functions.

Generally speaking, dual rocker switches tend to have higher on/off current values ​​and larger sizes. However, the manufacturer has independently improved the switching mechanism to produce a small but large current switching product.

Since the state of the operation button directly indicates the on/off state, if the operation button is activated/deactivated, it can be visually confirmed to avoid malfunction.

The dual rocker switch is divided into three types according to the rated current value (the upper limit of the opening and closing current value), which is divided into three types: 10, 16, and 20A, and its size also changes with the rated current value.

Specifically, from the perspective of the operation buttons protruding from the surface when the panel is installed, product 10a is 15mm×21mm, product 16a is 15mm×21mm, product 17mm×24mm or 25 mm×32mm, and product 20a is 27mm×37mm.

Product 16A has three sizes, but it used to be 25 mm x 32 mm. Now, miniaturization has been achieved using the above-mentioned switching mechanism. In addition, there are a variety of products that can be turned on/off with two buttons, the product can be illuminated with an operation button, and the product has a reset function and can be automatically turned on by an external signal.

During work, sometimes the dual rocker switch needs to be soldered, so can the dual rocker switch be soldered to the PCB?

The dual rocker switch is usually installed on the operation panel, so it is usually not necessary to arrange it on the PCB. The central plastic partition is configured to avoid short circuits in the wiring (there is a tendency to move or open and close the panel).

Since there are four plastic snap points glued on the mounting panel, it is only necessary to make square openings of the same size on the panel. If you need to install a dual rocker switch on the PCB, you only need the size drawing of the component mechanism to make it correspond to the corresponding slot on the PCB.

Like other plug-ins, the corresponding line can be routed to the corresponding terminal. This type of electromechanical component is related to the shape of the product. The installation method of the components meets the structural requirements and can be installed according to the requirements of the structural engineer.

Feiling dual rocker switch has passed UL, CE, ROHS and other certifications. The quality is guaranteed and life-long after-sales. If you have any doubts or questions in the process of using our products, you can contact us directly. Regardless of whether you bought it from our distributors or other platforms, you can ask us.

More FILB popular product: push button momentary switch

Product Item FL3-KCD3-0111-11
Panel Mount Diameter 28*11mm
Contact Way solder pin
Install Way Buckle
Lamp Type NO LED
Rated voltage 3v, 5v, 6v, 12v, 24v,13v, 110v, 120v, 220v, 240v, 250v, 380v
Lamp Color black
Shell Material brass plated nickel
Base Material PA66 nylon
Terminal Material brass
Applications Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment etc
Current 5A
