Product Parameters:

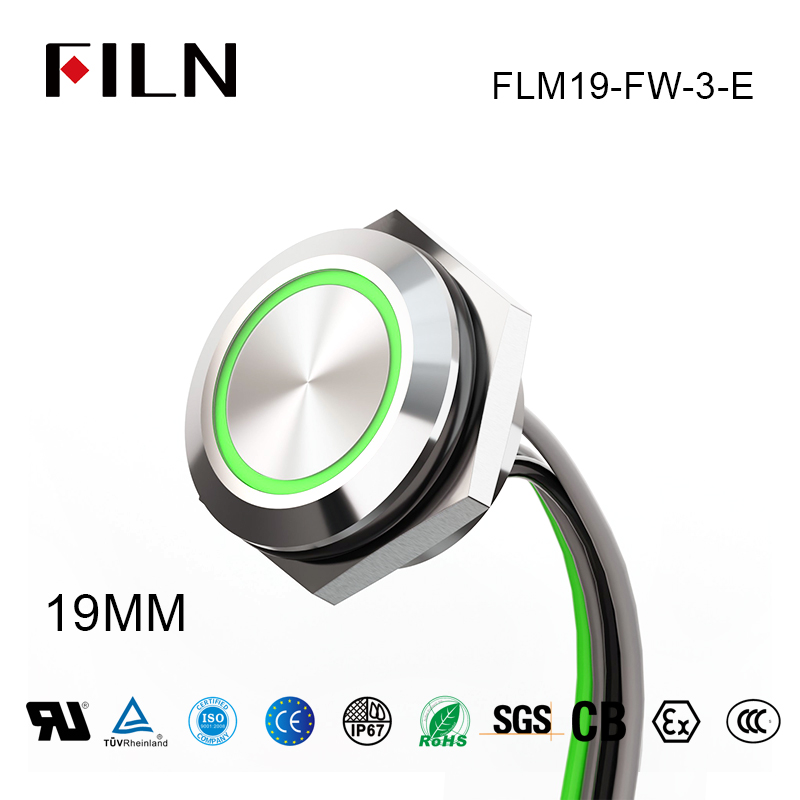

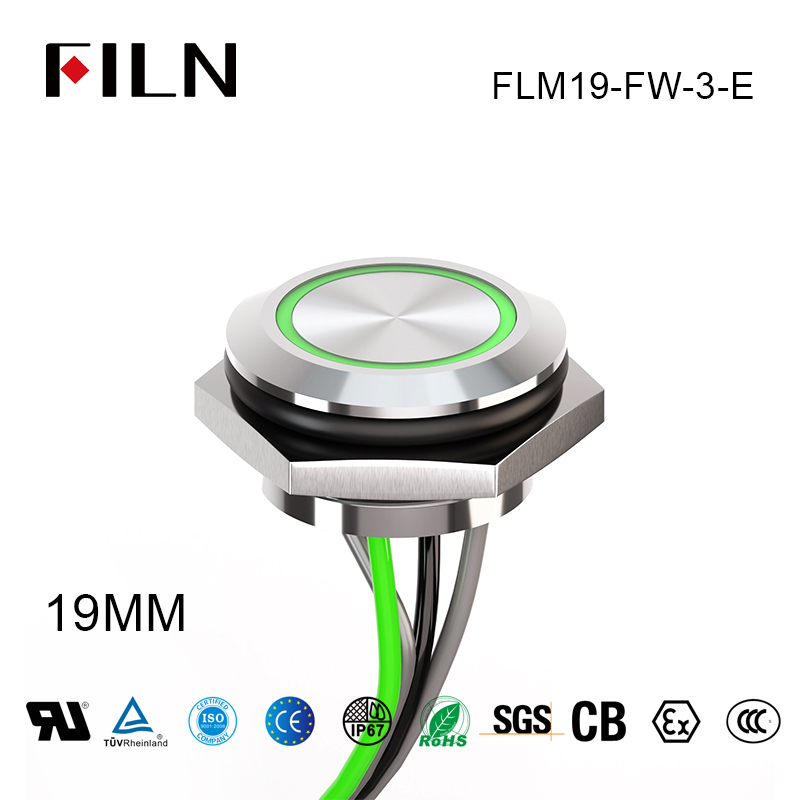

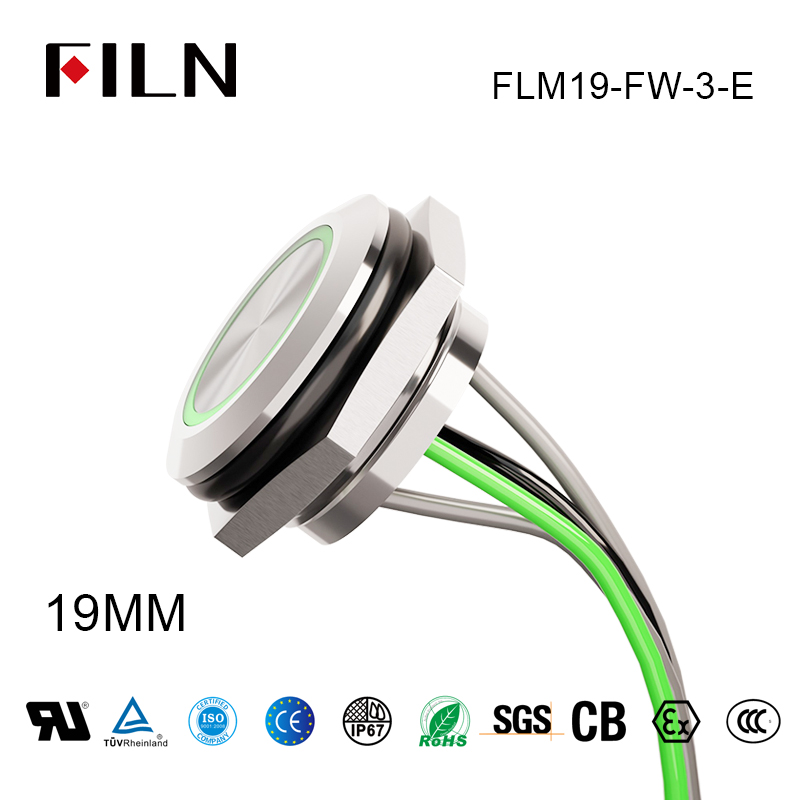

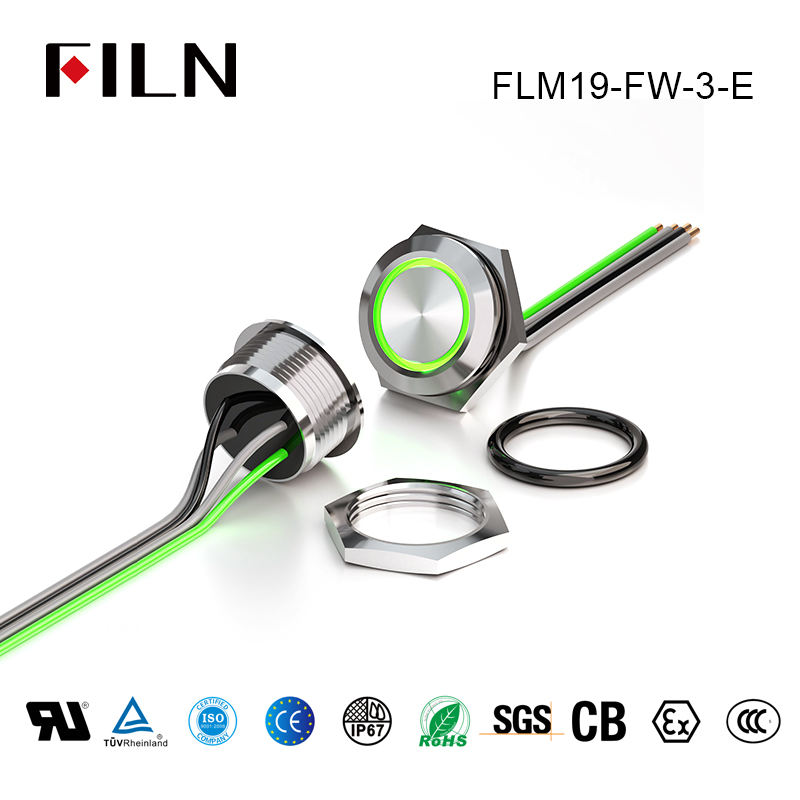

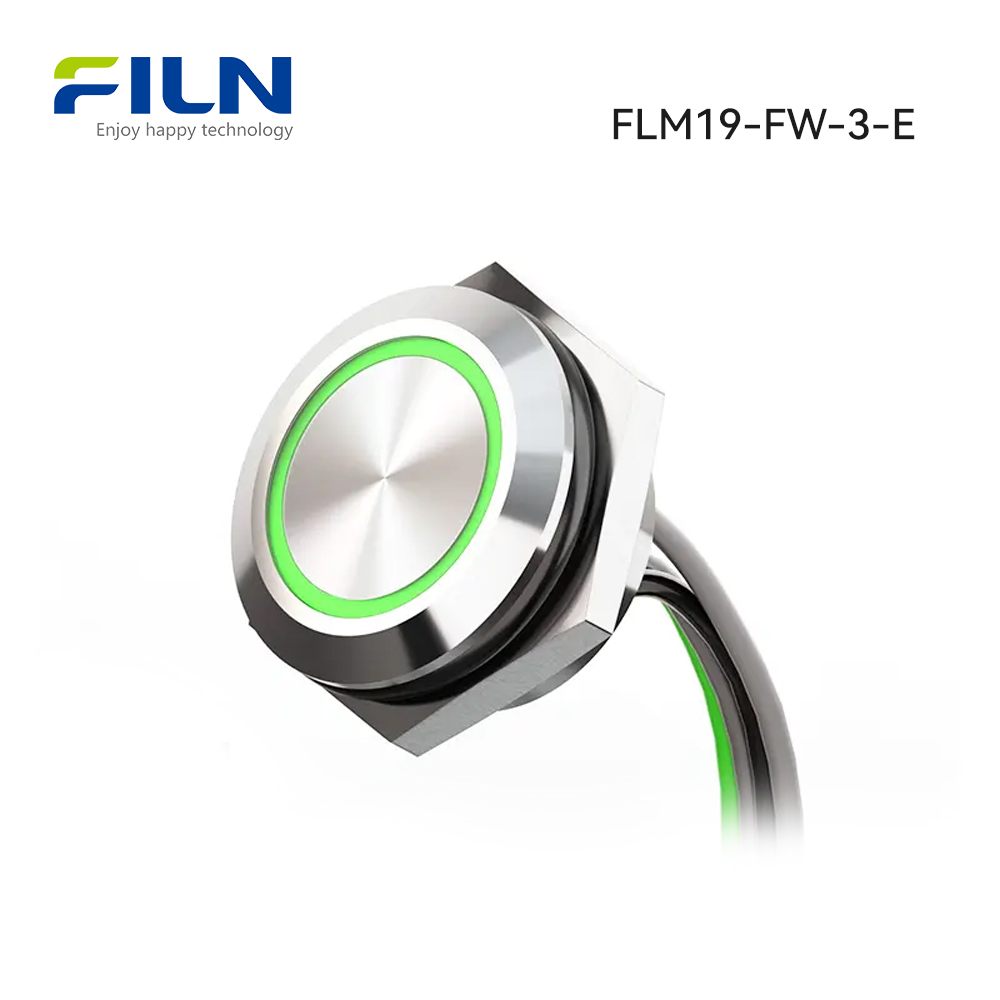

19MM Metal Ultra Short Switch with Wiring Compact Durable Push Button
-
- Mode: FLM19-FW-3-E
- Installation dimension: 19mm
- Head Type: Flat Head
- Function: Momentary
- Voltage: 36V (DC) 250V(AC)
- Current: 5A (DC) 5A (AC)
- Color: Red, Blue, Green, Yellow, White
- Material: Copper, Stainless steel
- Waterproof grade: IP65
- Email: inquiry@cnylin.com.cn
| Production Series | FLM19-FW-3-E | Light Guide Button | PC plastic |
| Button Shape | round | Actuator | 304 Stainless steel |
| Button LED Color | Red blue green yellow white | Housing Sleeve | H59 nickel plated brass/304Stainless steel |
| Mechanical Life | The 500 thousand time | Button Pin | H62 copper alloy |
| Electrical Life | The 100 thousand time | Rubber Ring | SIL silica gel |
| Protection Level | IP65 IK08 | Nut | H59 nickel plated brass |
| Rated Voltage | 36V（DC）250V(AC) | Housing | PA66+GF20% nylon |
| Rated Current | 1A（DC）5A(AC) | Light Source | LED |
| rated Power | 180W（DC）1250W(AC) | Resistor | Metal film |
| Operating temperature | -25℃~+85℃ | Contact | AgCdO12 |
Table of Contents
Introduction
When you need a reliable, compact, and easy-to-install push button switch, the FILN 19MM Ultra-Short Metal Button Switch with wiring is the perfect solution. Known for its ultra-compact design and low-profile wiring, this switch is ideal for applications where space is limited, yet performance is key.
Key Features of the FILN 19MM Ultra Short Button Switch:
- Ultra-Compact Design: This 19MM button switch is designed to be space-saving while offering a reliable, high-performance solution. It fits seamlessly into tight spaces, making it ideal for a variety of applications.
- Flat Head with Ring Light: The button has a flat head with a distinctive ring light, available in multiple LED colors to fit your design needs. The ring light not only enhances the button’s aesthetics but also ensures visibility, even in low-light environments.

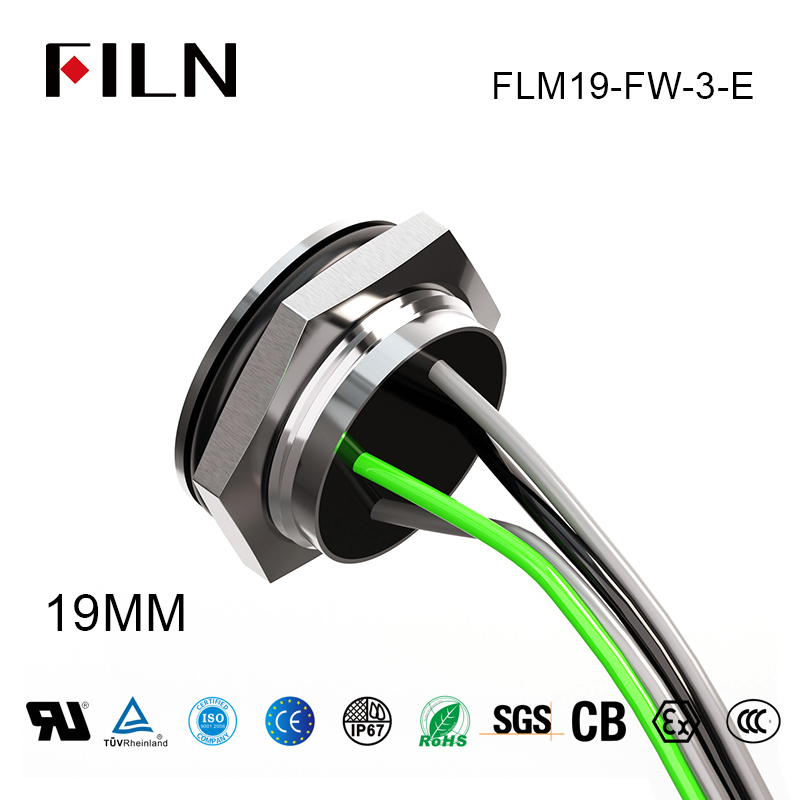

- Low-Profile Wiring: The compact wiring switch has a streamlined, low-profile design, making it easy to wire into your projects without taking up unnecessary space. The wiring is specially designed for easy installation and secure connection.
- Waterproof and Durable: With a sealed, glued-back design and high-quality wiring, this switch provides excellent waterproofing and durability. It’s perfect for environments that require resistance to moisture or exposure to harsh conditions.
- Easy Installation: The button switch comes pre-wired, saving you time during installation. Its direct-wiring design ensures that you can quickly integrate it into your system without the need for complicated connections.
Related products:
Ideal Applications:
- Industrial Equipment: Perfect for machinery, automation systems, or control panels where space is limited but safety and performance are essential.
- Consumer Electronics: Ideal for custom-designed products, including small electronics, where a low-profile switch is needed.
- Marine or Outdoor Applications: Its waterproof design makes it a reliable choice for environments that require protection against water, dust, or other harsh elements.
Why Choose FILN for Your Button Switch Needs?
FILN specializes in custom button switch manufacturing, with a focus on providing high-quality, reliable products for a wide range of industries. With one-on-one expert consultation, we work closely with clients to create tailored solutions for their specific needs.
We also offer wholesale and retail options for our customers, ensuring you get the best value for your purchase. If you’re looking for a compact, ultra-short switch with wiring, FILN’s 19MM metal button switch is the ideal choice for your project.
For more information, contact FILN today, or check out our online store for a variety of button switch options.
Customizable Options for Your Specific Needs
At FILN, we understand that every project has unique requirements. That’s why our 19MM Ultra Short Metal Button Switch is fully customizable to suit a variety of applications. Whether you need a different LED color, a specific wire length, or adjustments to the mounting options, we are here to accommodate your needs.
Available Customization Features:

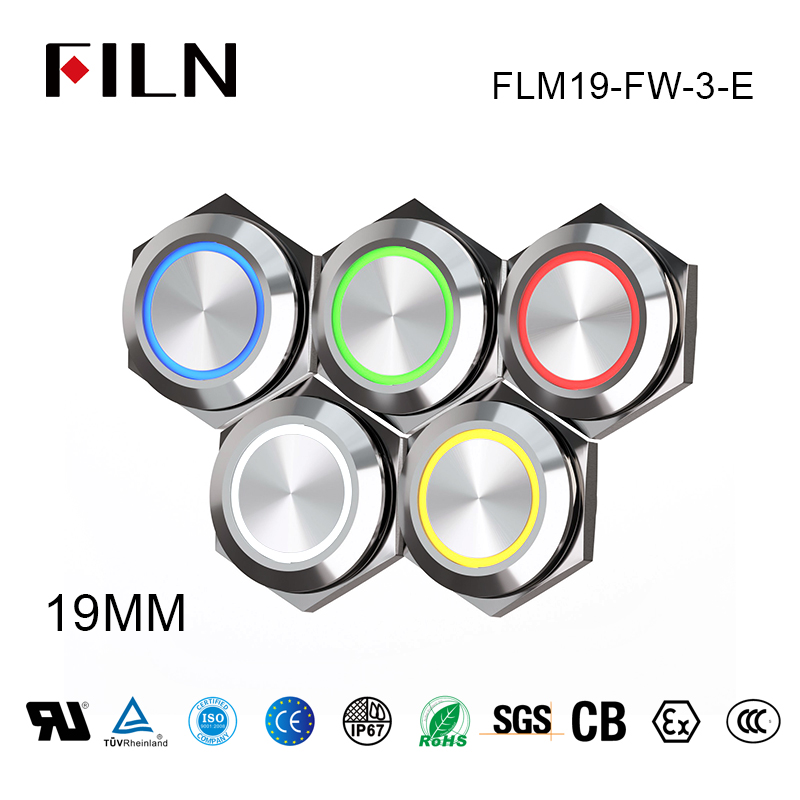

- LED Color Options: Choose from a range of colors to match your project’s design or functionality needs. Whether it’s red, blue, green, or white, our button switches are customizable to provide the perfect illumination for your environment.
- Wire Length Customization: Depending on your installation requirements, we can adjust the wire length to ensure a clean and convenient setup. This feature is especially useful for tight spaces where the wiring needs to be managed effectively.
- Mounting Options: If you require specific mounting solutions, we offer tailored options to ensure that the button fits perfectly into your application, whether it’s surface-mounted or integrated into a custom panel.
- Private Labeling: For large-scale orders or specific branding needs, we offer private labeling and custom branding on the switches, allowing you to maintain a cohesive product appearance for your brand.
The Benefits of Choosing FILN for Button Switch Solutions
- High-Quality Manufacturing: FILN is committed to producing top-quality products. Our 19MM Ultra Short Metal Button Switch is made using premium materials, ensuring reliability and long-lasting performance. This makes it an excellent choice for both industrial and consumer electronics.
- Global Reach: As a wholesale and retail supplier, we are able to fulfill orders of all sizes. Whether you’re ordering a small batch or large quantities, we ensure timely delivery and competitive pricing.
- Expert Support: With our team of button switch engineers available for one-on-one consultations, we guide you through every step of the process, ensuring that your custom button switches meet your exact requirements.
- Fast Turnaround: We understand that time is of the essence in many projects. That’s why we provide efficient production timelines without compromising on quality. Whether it’s a small order or a large custom batch, FILN ensures that you receive your buttons quickly.
- Comprehensive Testing: Each 19MM ultra-short metal button switch undergoes rigorous testing to ensure it meets industry standards for durability, functionality, and safety. Whether it’s waterproof, shockproof, or resistant to harsh temperatures, you can count on the reliability of our switches in any environment.
Why Opt for the Ultra-Short, Compact Button Switch?
With the trend toward more compact devices and systems, the Ultra Short 19MM Button Switch with wiring is an essential choice for modern-day applications. Its small form factor and low-profile wiring design allow it to fit into spaces where traditional switches might not work, making it ideal for advanced machinery, consumer gadgets, and innovative product designs.
Whether you’re in the automotive, electronics, or industrial sector, the combination of customizability, easy installation, and reliable performance makes FILN’s ultra-short metal button switches a great addition to your next project.
Order Your Ultra Short 19MM Metal Button Switch Today!
Ready to upgrade your design with a compact, durable, and customizable button switch? Visit our online store to place your order or get in touch with our team of experts to discuss your needs. At FILN, we’re dedicated to providing the best solutions for your unique requirements.
Contact us today for more information or to discuss bulk order pricing and customization options!
