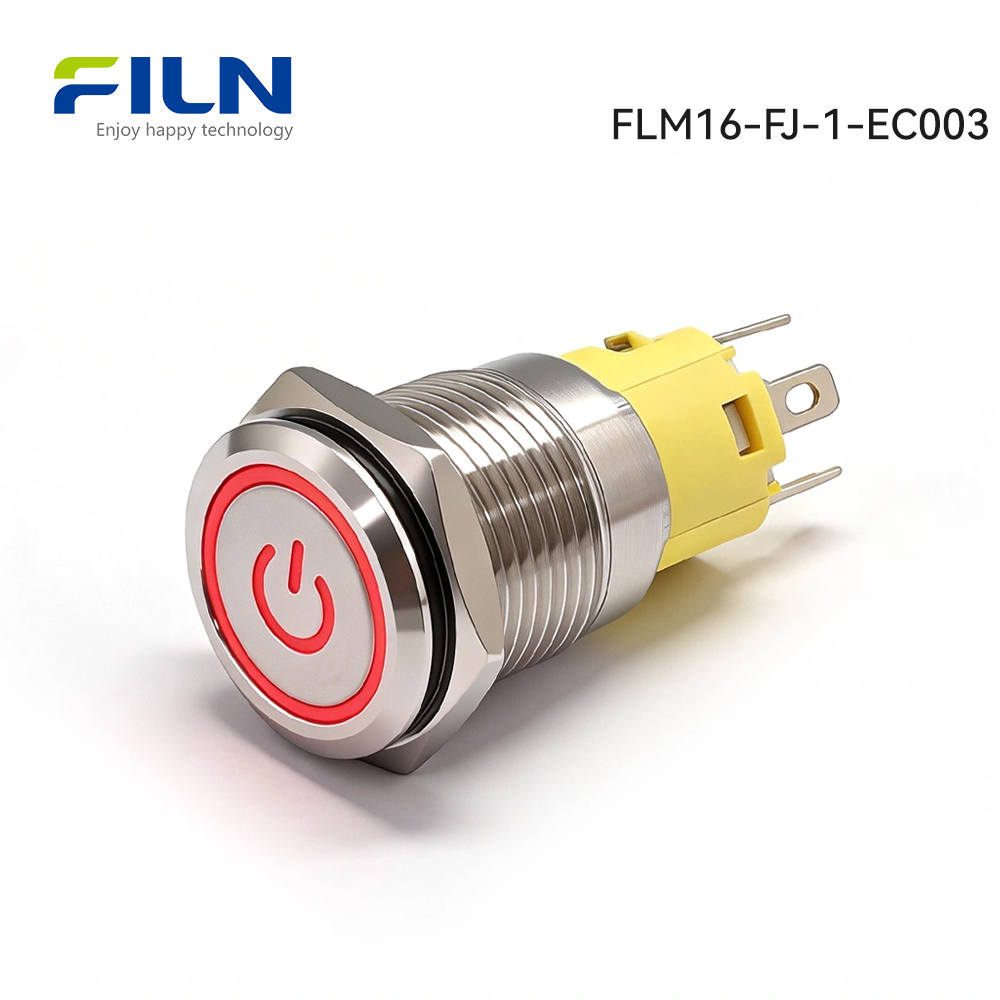

FILN 16MM 12V Push Button Switch With LED Latch

  • Name:push button switch for car
  • Model:FLM16-10FEJ
  • Head Type: Flat Head
  • Mounting Size: 12mm
  • Switching Functions: Momentary
  • Contact Configuration: 1NO
  • Rated Voltage: 5A
  • Voltage Options:3V, 5V, 6V, 12V, 24V, 120V, 220V
  • Indicator Light: Yes
  • Color: Red, Blue, Green, Yellow, White, Black
  • Material: ABS plastic,Copper, Stainless steel
  • Download Certification:CECCC, ROSH, IP67, UL
  • Waterproof grade:IP67
  • Wire specification: AGW22
  • Email: inquiry@cnylin.com.cn
  • Download PDFfiln 16mm waterproof IP67 push button switch

Product Drawing

waterproof ip67 push button

Product Parameters:

Production Series FLM16-10FEJ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK09 Rnut H59 nickel plated brass
Rated Voltage 36V(DC) 250(AC) Housing PA66+GF20% nylon
Rated Current 5A(DC)5A(AC) Light Source LED
Rated Power 180W(DC)1250W(AC) Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

How to wire a push button switch for car with LED

The biggest difference between a push button switch with LED and a switch without lights is that the customer can judge the device operation with the button lighting.

The corresponding relationship between the button light on and the operation of the equipment will also have different effects because of different wiring methods.

The following is the corresponding connection diagram between the light lighting of the push button and the equipment operation of the 1NO1NC push button under different connection modes.

wire a push button starter switch
wire a push button starter switch
Button State Device LED Lights
Normal OFF OFF
Press ON ON

In the static state, the light of the push button switch with LED is out and the device is not operating. Press the push button switch, the light of the product is on and the device starts to operate.

Button State Device LED Lights
Normal ON ON
Press OFF OFF

In the static state, the light of the push button switch with LED is on and the device starts to operate. Press the push button switch, the light of the product is out and the device stop operating.

wire a push button switch
wire a starter switch
Button State Device LED Lights
Normal OFF ON
Press ON ON

In the static state, the device is not operating. Press the push button switch, the light of the product is on and the device starts to operate.

Button State Device LED Lights
Normal ON ON
Press OFF ON

In the static state, the device starts to operate. Press the push button switch, the light of the product is on while the device stop operating.

Customization Advantages of FILN push button switch for car

The FILN push button switch for car is a versatile product that can be customized according to the needs of different customers. This flexibility opens up an array of advantages for users, making it a sought-after component in various applications.

The page shows a 16mm push button switch. to install it, you just need to make about 16.2mm mounting holes in the panel and put the metal push button switch with LED in it. Put the 16mm waterproof ring on the back of the panel, it has the function of waterproof; finally tighten the 16mm metal nut to fix it in place.

There are at least 5 common colors of pushbutton switch with light, which are red, green, yellow, blue and white. FILN can customize two-color and three-color pushbutton switch according to customer’s requirements.

FILN can customize a variety of voltages, such as 2V, 3V, 6V, 12V, 24V, 110V, 120V, 220, etc. 12V push button switch is the most used, because most of the equipment may not use the voltage is not so large, so 12V is very suitable for some toys, small equipment.

push button switch material

Button metal shell material is divided into 304 stainless steel, brass nickel-plated and black zinc aluminum alloy. 304 stainless steel corrosion-resistant, can be used in harsh environments. Brass nickel plating is also more cost-effective. Black zinc aluminum alloy is suitable for use on equipment with black surface.

As shown in the picture, this 16mm push button switch is ring shaped with power symbol. Of course, you can also do ring lights, individual power symbols, or even any symbols. The metal button has two types of heads, flat and high flat, and can be customized with various graphics and symbols.

The 12v push button switch is waterproof, its waterproof rating is IP67, if you need a higher waterproof rating, you can choose IP68 waterproof push button switch. There are also functions can be switch latch can also be momentary.

The pin size of the product is 2.8, you can choose to solder or connect with 2.8 female terminal. We also have a special pushbutton switch connection base. 8.

The mechanical life of the product is 100,000 times. When the current is 5A, it can be used directly in machines with power up to 750W. FILN has a 5-year warranty, and Filn will replace the product for any quality problems during the warranty period.

High quality push button switch
