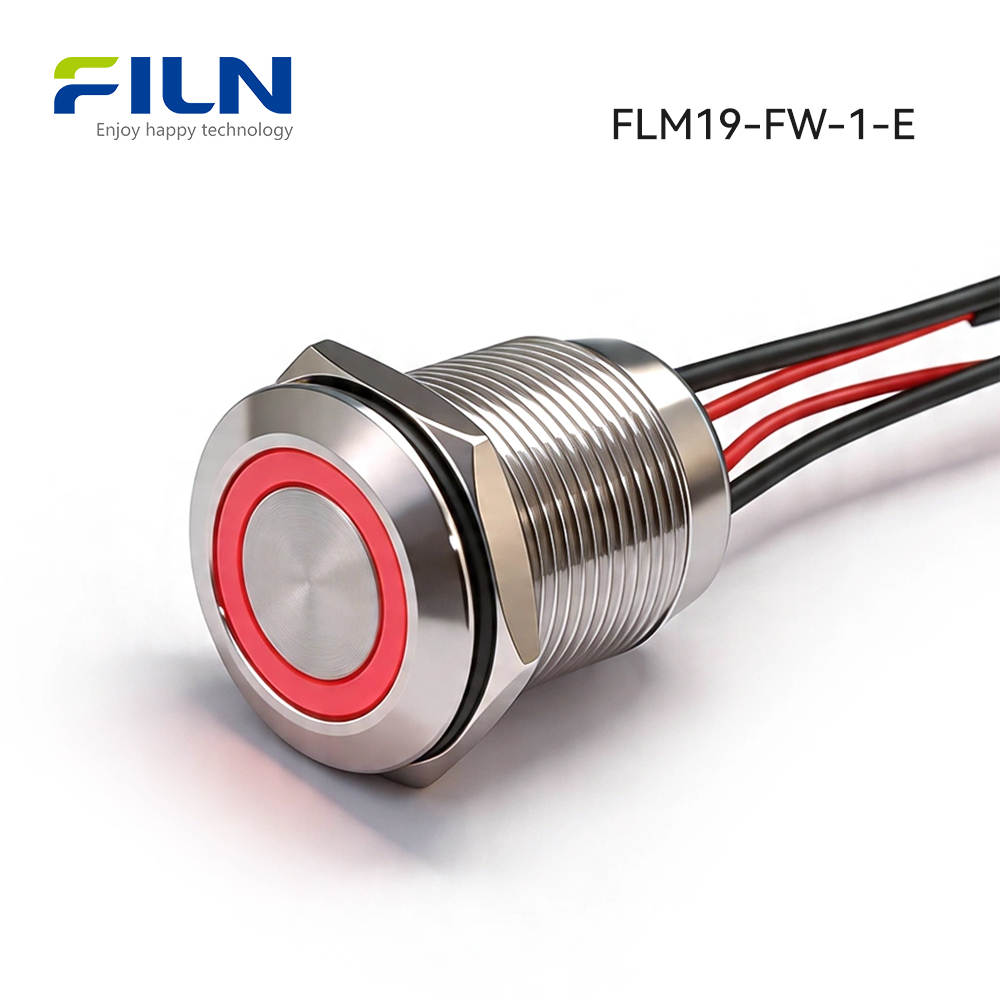

19MM Waterproof IP67 12V Red Marine Push Button Switch
- Name:marine push button switches
- Head Type: Flat Head
- Mounting Size: 12mm
- Switching Functions: Momentary
- Contact Configuration: 1NO
- Rated Voltage: 10A (DC) 10A (AC)
- Voltage Options:2V, 3V, 6V, 12V, 24V, 110V, 120V, 220V, 380V
- Indicator Light: Yes
- Color: Red, Blue, Green, Yellow, White, Black
- Material: ABS plastic,Aluminum alloy,Copper, Stainless steel, Zinc alloy
- Download Certification:CE, CCC, ROSH, IP67, UL
- Waterproof grade:IP67
- Wire specification: AGW22
- Download PDF: 19MM Waterproof IP67 12V Red marine Push Button Switch
|Production Series||FLM19-10FEWM||Light Guide Button||PC plastic|
|Button Shape||Round||Actuator||304 Stainless steel|
|Button LED Color||Red blue orange green white||Housing Sleeve||H59 nickel plated brass/304Stainless steel|
|Mechanical Life||The 500 thousand time||Button Pin||22AWG PVC wire(0.3MM2)|
|Electrical Life||The 100 thousand time||Rubber Ring||SIL silica gel|
|Protection Level||IP67 IK09||Nut||H59 nickel plated brass|
|Rated voltage||36V（DC） 250（AC）||Housing||PA66+GF20% nylon|
|Rated Current||5A（DC）5A（AC）||Light Source||LED|
|Rated Power||36W（DC）125W（AC）||Resistor||Metal film|
How to wire a marine push button switches with led?
marine push button switches Circuit Configurations
In electrical circuits, how you wire amarine push button switches can affect not only the operation of the switch itself but also connected devices. Here, we explain two different circuit configurations for a latching button, focusing on LED indicators and device operation.
marine push button switches draw Graph One: LED Off When Idle, Device Off
In the first setup, the LED light on the push-button switch is off under normal conditions, and the connected device does not operate unless the button is pressed.
- Power positive (12V) connects to Button Switch Wire 1
- Button Switch Wire 2 connects to LED positive
- LED negative connects to Device positive
- Device negative connects to Power negative
- Under normal conditions, i.e., when the button is not pressed, the circuit remains open. This means no power flows through the LED or the device.
- Once the button is pressed, the circuit closes, causing the LED to light up and the device to operate.
- It appears that the device and LED are wired in series in this configuration.
- This configuration ensures that the device only operates when explicitly turned on.
- The LED serves as an indicator that the device is operational.
- You must press the button to initiate any activity, which can be an additional safety feature.
marine push button switches draw Graph two : LED On When Idle, Device Off
In the second setup, the LED light on the marine push button switches is on under normal conditions, but the connected device does not operate unless the button is pressed.
- Power positive (12V) connects to both Button Switch Wire 1 and LED positive
- Button Switch Wire 2 connects to Device positive
- Power negative connects to both LED negative and Device negative .
- In this configuration, the LED remains on as it is directly connected to the power supply.
- However, the device remains off under normal conditions as it is only connected via Button Switch Wire 2.
- The device and the LED appear to be wired in parallel in this setup.
- This configuration allows for constant illumination of the LED, serving as a ready indicator.
- Pressing the button completes the circuit for the device, making it operational while the LED stays on.
- This setup could consume more energy as the LED is always on.
Both circuit setups are viable options depending on your needs, but they offer different advantages and disadvantages. Knowing how the 12V push-button switch operates in each setup helps you choose the right configuration for your application.
Customization Advantages of FILN marine push button switches
The FILN marine push button switches is a versatile product that can be customized according to the needs of different customers. This flexibility opens up an array of advantages for users, making it a sought-after component in various applications.
Why Customization is Important for marine push button switches?
Customization is not just a luxury but a necessity in the ever-competitive market. Manufacturers are under constant pressure to provide products that meet specific customer needs. In the case of the FILN marine push button switches, customization has a significant impact in terms of functionality, aesthetics, and adaptability.
- Industry requirements differ: Different sectors have different requirements for push button switches. For example, the medical industry might require switches that are easily sterilizable, while the automotive industry may need switches that can withstand harsh conditions.
- Consumer Preferences: End-users may prefer specific symbols or lights that make the switches easier to use or identify, enhancing the user experience.
- Technological Advances: As technology progresses, the requirement for switches also changes. Customization ensures that the product remains relevant.
Customizable Button Symbols
One of the most prominent features that can be customized in a FILN marine push button switches is the button symbol. Customers can opt for various light symbols depending on their specific needs.
- User Experience: A customized symbol can dramatically improve user experience by providing easy identification of the button’s function.
- Branding: Companies can also opt for symbols that align with their brand identity, ensuring consistency in product design.
- Regulatory Compliance: In some industries, there are specific symbols that are required by law to ensure safety and compliance.
Customizable Voltage Options
Another crucial aspect of customization is the voltage of the push button switch. FILN offers various voltage options, such as 110v push button switches, to cater to the varied needs of customers.
- Geographic Requirements: Different countries have different standard voltages. Custom voltage options allow for the global distribution of products.
- Device Compatibility: Customizable voltage ensures that the switches can be easily integrated into different systems without requiring additional components.
- Energy Efficiency: The ability to customize voltage can help in creating energy-efficient systems.
FILN’s commitment to customization offers not just product variety but also competitive advantage. Whether it’s custom symbols, voltages, or connectors, the FILN marine push button switches can be tailored to meet the unique demands of your project, making it a smart choice for a multitude of applications.
Table of Contents
The mounting hole size of the product is 19mm, and the installation style is screw thread.
You just need to open the hole of the size 19.2mm on the panel, then put the waterproof IP67 12V red marine push button switch in the installation hole.
Put on the 19mm silicone waterproof ring and then screw the 19mm copper cap. It can be fixed and also be waterproof.
Marine Push Button Switches: Comprehensive Guide to Understanding, Selecting, and Wiring
Marine Push Button Switches are indispensable components in the nautical world, designed to withstand the unique challenges of marine environments. This comprehensive guide delves into everything you need to know about these switches, from understanding their construction and unique characteristics to the intricacies of wiring and selection. We’ll explore various brands, including blue sea push button switches, and offer insights into waterproofing, LED integration, quality considerations, and more. If you’re a marine professional, a boating enthusiast, or simply curious about the technological facets of marine applications, this article provides an in-depth understanding that’s sure to steer you in the right direction.
What Are Marine Push Button Switches and What Makes Them Unique?
Marine Push Button Switches are specifically designed switches used in maritime applications. They’re manufactured to withstand harsh environments like saltwater, humidity, and extreme temperatures, making them suitable for boats and marine equipment.
Understanding the Construction and Durability
Marine switches are built with corrosion-resistant materials to handle saltwater conditions. They often include rubber seals or other waterproofing measures to prevent moisture infiltration. Visit this link to learn about waterproof momentary switches.
Types and Usage in Different Marine Applications
From controlling navigation lights to handling complex machinery onboard, marine push button switches are integral to boats. They come in various forms such as blue sea push button switches, carling push button switches, and bocatech switches.
Compliance and Standards
Ensure that marine switches comply with the relevant maritime regulations and standards. Choosing certified products guarantees the reliability and safety of these switches.
How Do You Wire Marine Push Button Switches?
Wiring marine push button switches requires attention to the specific application, the type of switch, and compliance with marine wiring standards.
Selecting the Right Switch
Selecting the best marine switches involves considering factors like waterproof ratings, electrical load, and design. Bluewater switches and blue sea push button switches are popular choices.
Wiring Procedure and Guidelines
Follow the instructions on how to wire a push-button switch here. It’s essential to use proper marine-grade wiring and connectors.
Ensure all work is performed with safety in mind, including disconnecting power when working and using appropriate tools and protective equipment.
How to Choose the Right Marine Push Button Switch Panel?
Selecting the right push button switch panel is a crucial task as it hosts multiple switches to control various boat functions.
Understanding the Needs and Requirements
Identify the specific needs of your marine application. Consider the number of switches, labels, backlighting, and waterproofing features like those available in waterproof momentary push button switch.
Popular Brands and Options
Brands like bocatech switches and carling push button switches offer quality switch panels. Look for features such as customization, easy installation, and attractive design.
Ensure proper installation by following the manufacturer’s instructions, using marine-grade materials, and considering the layout for ease of access and aesthetics.
How Do Marine Switches Differ from Automotive Push Button Switches?
Though marine and automotive switches may look similar, they differ significantly in design and functionality.
Comparison in Material and Design
Marine switches must endure harsher conditions than automotive ones. Check out these automotive push button switches here for comparison.
Marine switches are designed to handle different voltage and current ratings suitable for marine applications. Automotive switches may not fulfill these requirements.
Safety and Regulation Compliance
Marine switches comply with specific maritime regulations, while automotive switches follow automotive industry standards.
What Are the Most Reliable Marine Push Button Switch Brands?
Choosing a reliable brand ensures the quality and durability of marine push button switches.
Top Brands in the Market
Some top brands in the marine switches industry are blue sea, carling, bluewater, and bocatech switches. Many of them offer different types like the 19mm red LED marine push button switch available here.
Evaluate brands based on reputation, product variety, quality certifications, and customer reviews.
Some brands offer customization, allowing you to tailor marine push button switches to your specific needs and preferences.
What Are the Considerations for Selecting Waterproof Push Button Switch?
Selecting a waterproof push button switch involves understanding the level of water protection needed and the specific application.
IP Rating and What It Means
The IP rating determines the level of water resistance. Understanding this rating is crucial in selecting a suitable waterproof push button switch like this one.
Material and Design
Opt for materials that resist corrosion and designs that seal against water ingress. Check out different options like metal momentary push button switches here.
Consider the specific marine application and choose switches designed to meet those requirements.
How to Connect a Marine Push Button Switch with LED?
Marine push button switches with LED provide visual feedback and enhance aesthetics. Connecting them requires proper planning and understanding.
Connection Diagram and Procedure
Find detailed instructions on how to connect a push-button switch with LED here. Follow the schematic carefully to ensure proper functionality.
Choosing the Right LED Specifications
Consider voltage, color, brightness, and compatibility when selecting an LED marine push button switch.
Testing and Troubleshooting
Always test the connections and functionality after installation, and make necessary adjustments as needed.
How Is the Push Button Switch Wired in Marine Applications?
Wiring a push button switch in marine applications involves specific procedures and considerations.
Standard Wiring Procedure
Find the standard procedure on how the push button switch is wired in marine applications here.
Custom Wiring Solutions
Depending on the application, custom wiring solutions may be required. Consider consulting a marine electrician or following product-specific guidelines.
Maintenance and Regular Checks
Regular inspections and maintenance ensure the long-term reliability and safety of the wiring and switches.
How Does a Marine Push Button Switch Work?
Understanding how a marine push button switch works is essential for proper operation and troubleshooting.
Basic Working Principle
Learn the basic working principle of a push-button switch here.
Types of Marine Push Button Switches
There are different types like momentary, maintained, and waterproof push button switch. Understand their functionality to choose the right one.
Troubleshooting Common Issues
Knowledge of how marine push button switches work helps in troubleshooting common issues and performing repairs when necessary.
What Are the Different Types of Marine Push Button Switch Panels?
Marine push button switch panels come in various designs, sizes, and functionalities to suit different needs.
Standard and Custom Panels
Choose from standard panels or customize them according to your specific requirements. Options include panels with waterproof metal push button stop switches, like this one.
Features and Accessories
Consider features like backlighting, labels, and protective covers. Accessories like a 24v waterproof metal push button switch available here enhance functionality.
Installation and Compatibility
Ensure the selected panel is compatible with your marine system and follows proper installation guidelines.
How to Determine the Best Marine Switches for Your Boat?
Determining the best marine switches involves analyzing various factors that align with
your boat’s specific needs and preferences.
Understanding Boat’s Electrical System
Analyze your boat’s electrical system to determine the correct voltage, current, and other specifications.
Assessing Functional Needs
Assess the functional needs like navigation lights, engine controls, etc., and choose switches that align with these requirements.
Quality and Brand Considerations
Choose quality brands like blue sea push button switches or bocatech switches and ensure they comply with relevant marine standards.
Budget and Aesthetic Preferences
Consider your budget and aesthetic preferences to choose switches that match the overall design of your boat. Visit the main website here for a comprehensive range of options.
What Are the Benefits of Using Blue Sea Push Button Switches and Other Marine Switches?
Using reputable brands like blue sea push button switches offers numerous benefits that enhance the efficiency and aesthetics of marine applications.
Quality and Durability
Brands like blue sea are known for quality and durability, ensuring long-lasting performance even in harsh marine environments.
Variety and Customization
These brands offer a wide variety of options, including waterproof push button switch and bluewater switches, catering to various needs.
Compliance and Support
Top brands often comply with international standards and provide customer support, ensuring proper guidance and after-sale service.
Innovative features like LED indicators, tactile feedback, and modern designs enhance user experience and control over marine applications. Explore the options for switch push button on-off here.
Marine push button switches are essential components in maritime applications, and understanding them is crucial for making informed decisions. From the types and wiring considerations to the best brands and waterproofing features, this guide covers all aspects of marine push button switches, offering insights and guidance to both professionals and enthusiasts. Whether you are selecting a blue sea push button switch or looking for a waterproof push button switch for your boat, always consider quality, compliance, and suitability for your specific needs. Utilize the resources and links provided to ensure proper selection, installation, and maintenance of marine switches for optimal performance and safety on the water.
Marine Push Button Switches Price in the USA
When it comes to purchasing marine push button switches in the USA, it’s important to consider the price range offered by different suppliers. Let’s explore the options available and their corresponding prices.
Supplier Price Ranges and Brands/Notes
Here’s a table summarizing the price ranges and notable brands/notes for marine push button switches:
|Home Depot||$10 – $150||Lutron|
|Made-in-China||$0.01 – $100||Based on specific parameters|
|Mouser Electronics||Varies||Depends on model and features|
Exploring Different Suppliers
At Home Depot, you can find marine push button switches with prices ranging from $10 to $150. They offer a variety of brands, including Lutron. Home Depot is a reliable source for high-quality switches that meet your marine needs.
If you’re looking for more affordable options, Made-in-China is a viable choice. The price range for marine push button switches from China can vary from as low as $0.01 to $100. The specific parameters and features of the switches will determine the final price. It’s important to consider the quality and reliability when opting for cheaper alternatives.
Mouser Electronics is known for its extensive range of electronic components, including marine push button switches. However, the price for these switches varies depending on the specific model and features. It’s advisable to check with Mouser Electronics directly for accurate pricing information.
Factors Affecting Pricing
It’s crucial to note that the prices mentioned above are approximate and can vary based on several factors, including the supplier, retailer, and location. Other factors that may influence the price include the quality, durability, and additional features of the marine push button switches.
When considering the price of marine push button switches in the USA, it’s essential to explore different suppliers and their offerings. Home Depot provides a wide range of options with prices ranging from $10 to $150, while Made-in-China offers more affordable alternatives with prices varying from $0.01 to $100. Mouser Electronics, on the other hand, provides a diverse selection of switches with prices that depend on the specific model and features.
Remember to consider your specific requirements and budget when making a purchase. Always check with the supplier or retailer for the most accurate and up-to-date pricing information on marine push button switches.
*Disclaimer: The prices mentioned in this article are for informational purposes only and may be subject to change.
The description of the waterproof IP67 marine push button switch.
- The product has a variety of voltages, such as 2V, 12V, 24V, 110V, 120V, 220V, 380V, etc., we can customize different voltages according to customer’s demands.
- The metal shell material of the product is divided into zinc alloy, stainless steel, brass.
- Stainless steel product has the corrosion-resistant function, using 316 material, which can be used in a relatively harsh environment, such as the seaside, kitchen equipment, outdoor, etc.
- The metal appearance of the brass product is beautiful after plating treatment, and the cost is relatively low, which is used indoors, such as test equipment and automation equipment.
- The zinc alloy product has the advantage that the metal appearance can be plated in a variety of different colors, such as red, green, black etc. After plating, the whole push button has color, which is more personalized.
- The product has a variety of colors, such as red, green, yellow, blue, white, etc., we can also produce two-color or three-color push button switch.
- The maximum current of the product can be 10A 250V, and the wire is connected with 1.5 square meters. The mechanical life of the push button is 100,000 times.
- Switches can be divided into reset marine push button switch and marine push button switch with lock according to the function.
- The bottom design of the product is epoxy resin glue filling design, and the bottom is all waterproof, which can reach the waterproof rating IP68, which is particularly suitable for places with water or humid environment.
- The 12V marine push button switch wiring is designed to directly lead out, and the wiring is very convenient to connect various terminals according to your needs.
How does the 19mm 12V marine push button switch work?
The product has two types of reset and with lock, and the operate mode is different.
- The operate mode of the product with lock is that install the push button switch on the mechanical equipment, then connect the wire and the power is on, press the button, the machine starts. Press the button again, the machine power is shut down.
- The operate mode of the reset product is that install the switch on the mechanical equipment, then connect the wire and the power is on, press the button, the machine starts. When release the push button, the push button switch is automatically reset and the machine power is off and stops working.
How to connect the wire with the 19mm 12V marine push button switch?
Install the product to the control panel and connect the 12V voltage.
Press the 12V push button switch, the device starts, and the light on the push button is on.
The device will turn off when pressing the switch again.
Connect the positive pole wire of the device to the switch load pin , the other load pin is connected to the LED wire of the push button switch and the positive pole of the device.
Connect the negative pole of the device to the negative pole of the push button’s LED light pin. Please refer to the picture description below.
Where to buy the marine Push Button Switch?
1. If you need to custom the marine push button switch CH or button connection, you can email our push button technical engineer, who will give you a satisfactory solution, and his email address is firstname.lastname@example.org.
2. Your purchase volume is relatively large, you can email to our international trade sales staff who have 10 years of overseas sales experience and will give you excellent price and service, their email address is email@example.com.
4. Filn will provide the samples free of charge for your test.
The product of Filn had passed the certifications of UL, CE, ROSH, ISO90001. It also has a professional push button test laboratory, which can ensure the push button’s quality. The product’s quality guarantee period is 5 years, and Filn will replace the product for free if there is any quality issues during the warranty period.
Filn has 11 years of experience in push button production, also has a professional R&D technology team, who can customize various styles of push button switches according to your requirement.
If you have any questions about the marine push button switch, please contact us immediately. We will give you a satisfactory reply within 24 hours. Our email address is firstname.lastname@example.org.
