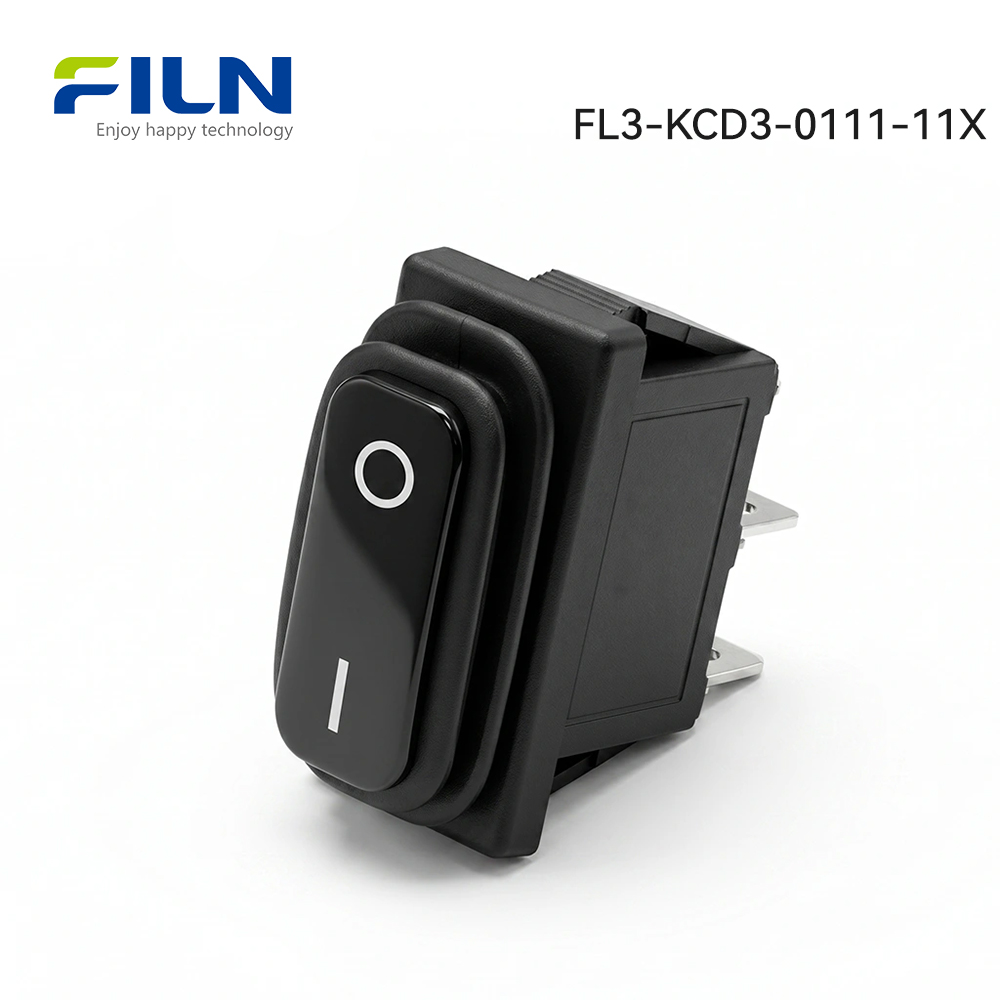

FILN KCD3 15A 250V Waterproof 2 Prong Rocker Switch

Product drawings

KCD3 2 prong rocker switch

Product Parameters:

Product Item FL3-KCD3-0111-11
Panel Mount Diameter 11*28mm
Contact Way solder pin
Install Way Buckle
Lamp Type NO LED
Rated voltage 3v, 5v, 6v, 12v, 24v,13v, 110v, 120v, 220v, 240v, 250v, 380v
Lamp Color black
Shell Material brass plated nickel
Base Material PA66 nylon
Terminal Material brass
Applications Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment etc
Current 5A

How to wire a 2 prong rocker switch?


Since this waterproof black rocker switch has only 2 legs, the connection method is very simple.

One pin is connected to one pole of the power source, the other pin is connected to one pole of the device, and the other pole of the device is connected to the power source. A circuit controlled by the KCD3 2 prong rocker switch is formed, and the control circuit can be turned on and off by pressing the button. The connection method is very simple, the operation is simple, and everyone knows it.

KCD3 2 prong rocker switch

FILN round rocker switch Customization

Advantages of Customization:

  • Personalization: Symbols tailored to individual preferences.
  • Customizable Voltage and Color: Tailored voltage and color options.
  • Diverse Wiring Options: Multiple wiring methods to suit diverse needs.
  • More Affordable Pricing: Cost-effective pricing choices.


  • Industrial Applications
  • Home Automation
  • Automotive Integration
  • Medical Devices
  • Consumer Electronics
  • Public Infrastructure
  • Commercial Use
  • Security Systems
  • Hospitality Industry
  • Transportation Use
FILN KCD3 15A 250V Waterproof 2 Prong Rocker Switch

Related products:

FILN KCD3 15A 250V Waterproof 2 Prong Rocker Switch Product Introduction

1.Mounting aperture: This 2-pin 2 Prong Rocker Switch is a waterproof 2 prong rocker switch developed on the basis of an 11×28 ordinary rocker switch. Its mounting hole is 11x28mm. It is the same as the conventional one. It’s just more waterproof. The panel thickness should be below 0.8mm. As long as the FILN 2 prong rocker switch is stuck on the panel, the installation is successful, and the follow-up is a wiring problem.

2.Waterproof KCD3 2 prong rocker switch is a waterproof design. The waterproof grade of the rocker switch is IP67. It is made of the transparent cover of the rocker switch and the waterproof cap of the rocker switch is buckled on the lamp holder of the rocker switch, and the waterproof cap forms a seal. , The waterproof cap is made of silicone material, which is waterproof and oil-proof, and can be used on kitchen equipment.

250V 2 prong rocker switch

3.Current: The current of AC BLACKE ROCKER SWITCH is 16A, and it can be used on mechanical equipment below 2000W under the condition of 120V. If you want 20A ROCKER SWITCH, you can change the side foot and middle foot of the rocker switch and the springboard by The brass is changed to red copper, and then the contact silver point is changed from 2.5MM to 3.5MM, so that the current of the ship switch can be increased. FILN can accept your needs to customize any achievable product.

4.Voltage: 250V 2 prong rocker switch is without light, but the 3-pin type is with light, it can be made in different colors, then the voltage can be 3v 12v 24v 36v 110v 220v 380v, this voltage we refer to the lamp Voltage.

5.Color: The luminous body in the waterproof 2 prong rocker switch is LED, so it can produce 5 colors of red, green, yellow, blue and white. This BLACK rocker siwtch is a waterproof rocker switch without lights.

6.Service life: 2 prong rocker switch can be used 100,000 times under the power of 2000W, if it is higher than 2000W, the service life will be shorter, if it is below 2000W, the service life will be longer.

7.Certification: FILN waterproof rocker switch has passed U.S. UL, CE ROSH and other certifications. These international certifications prove the international standards for various functional symbols of FILN 2 prong rocker switch and guarantee the quality of 250v 2 prong rocker switch. It can also be used in the United States. And sold and used in the European market.

8.Material: The head of the FILN 2 PRONG ROCKER SWITCH is made of nylon PC material, and the lamp holder and the rocker switch base are made of nylon PA66 material, which is flame-retardant and high temperature resistant. When the rocker switch is welded with wires and lamp feet, it will not cause The base of the boat-shaped Aqua is melted, the waterproof cap is made of silicone material, and the metal foot of the boat-shaped switch is made of brass H62.

9.Function: Black rocker switch can be ON OFF, ON OFF ON, and ON ON, of course, it can also be reset ON OFF. The non-lamp waterproof rocker switch ON OFF is 2-pin, and ON ON is 3-pin.

The ON OFF of the lighted model is 3-pin, and the ON OFF ON is also 3-pin.

KCD3 2 prong rocker switch

What are the advantages of the 2 prong rocker switch produced by FILN?

1.There is no MOQ for the rocker light switch produced by FILN. No matter if you use a few or a few hundred, or order in bulk, we can accept it.

2.Accept customization. For example, if you want the rocker switch to be directly wired, FILN can provide customized services. You can directly solder the wire on the rocker switch, and you can directly connect it when you go back. Or equipped with corresponding terminal connectors, etc., can meet your needs.

3.The KCD3 2 prong rocker switch produced by FILN not only has UL, CE, ROSH and other international certifications, but all round rocker switches are produced in accordance with ISO9001 quality management system standards, ensuring product quality and consistency.

4.The development speed is fast. FILN has a professional team of engineers for R&D and design of rocker switches, as well as a team of engineers specializing in the production of rocker switch abrasives. The design of the 250v 2 prong rocker switch and the development of abrasives are basically completed within 30-40 days.

5.Quickly respond to ship-type switch issues. FILN’s sales staff are all sales engineers, and can respond to any customer’s questions about ship-type switches as quickly as possible.

2 Where are prong rocker switches used?

It can be used in many places, such as kitchen equipment, water dispensers, treadmills, computer speakers, battery cars, motorcycles, ion TVs, coffee makers, power strips, massage machines, and some industrial equipment. It has a wide range of uses.

Ip67 4 pin rocker switch

How to buy this 2 prong rocker switch?

1.If you need to customize the Waterproof 2 prongrocker switch or have any other special requirements, such as wire bonding, how to use it, want to buy in bulk, etc., you can write an email to our button technical engineer Louis, and he will give you a satisfactory solution , His email is

2.If you need a large quantity, you can directly write an email to our international trade sales staff. They have more than 10 years of overseas sales experience and will give you good prices and quality services. Their email address is sales2

3.If you need a small amount of KCD3 2prong rocker switch, you can place an order directly on, and FILN will ship it on the same day.

4.If you need samples for testing, FILN will provide samples for free.
