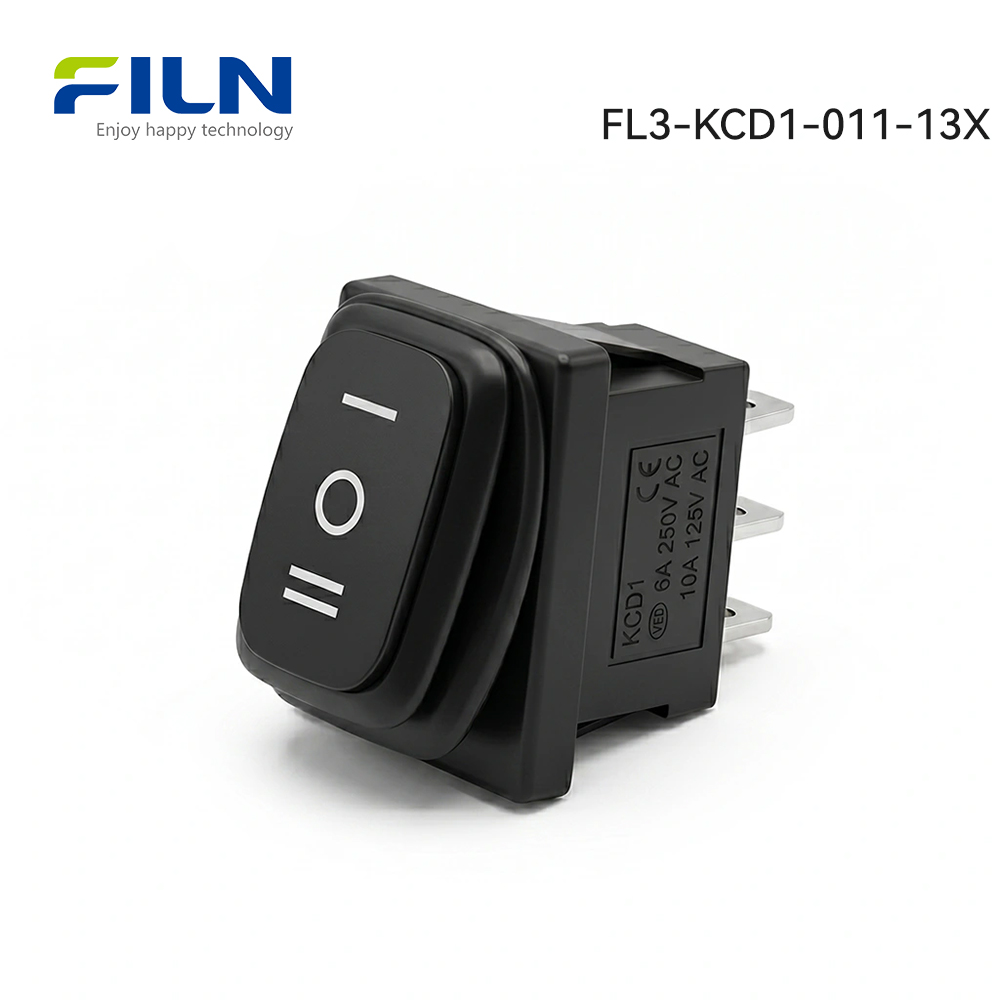

3 Way Black On Off On Rocker Switch 240V Rocker Switch
- Name:Kcd1 Switch
- Model:FL3-KCD1-0111
- Panel Mount Diameter:19.5*13mm
- Rated Voltage:5A
- Voltage Options:3V, 5V, 6V, 12V, 24V,13V, 110V, 120V, 220V, 240V, 250V, 380V
- Color:Red, White, Blue, Green, Yellow, Black
- Material:ABS plastic, Stainless Steel
- Download Certification:CE, CCC, ROSH, IP65, UL
- Waterproof grade:IP65
- Email: inquiry@cnylin.com.cn
- Download PDF: FL3-KCD1-0111-11X
Product Parameters:
Product Item | FL3-KCD1-0111 |
Panel Mount Diameter | 19.5*13mm |
Contact Way | solder pin |
Install Way | Buckle |
Lamp Type | LED |
Rated voltage | 3V, 5V, 6V, 12V, 24V,13V, 110V, 120V, 220V, 240V, 250V, 380V |
Lamp Color | Red, white, blue, green, black, yellow |
Shell Material | brass plated nickel |
Base Material | PA66 nylon |
Terminal Material | brass |
Applications | Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment etc |
How to wire a kcd1 switch ?
The wiring of the on off on kcd1 switch is very simple, first, it is a switch of an SPDT switch combination, the middle of the switch is a public pin, on both sides are dynamic contact and when they are pressed down, the switch is energized. The brief wiring diagram is shown in the figure below.
FILN kcd1 switch Customization
Table of Contents
The advantages of the kcd1 switch.
1.There is no MOQ, you can purchase from 1 piece or you can buy more kcd1 switch.
2.The kcd1 switch had passed the certifications of CE, ROSH, it can be sold in European regions.
3.Quickly customize caps of various symbols to meet the use needs of different scenarios.
4.Filn has 15 years of overseas sales experience of rocker switch, understanding the process of foreign trade in various countries, we provide 7*24 hours of online service.
5.Filn has a professional production team, the kcd1 switch adopts fully automated production, we can deliver 20000 pieces product to customers within 5 business days.
6.We can provide the overall solutions.
7.The warranty period of the kcd1 switch is 5 years, Filn will replace the problem produces if there is any quality problems.
Related products:
The features of the 3 way rocker switch kcd1
he 3 way rocker switch kcd1 is a small-volume 3 gears on off on rocker switch, its panel opening size is 19*13mm, the switch combination is SPDT, the middle is closed state, press the two side respectively, they can be energized, also cooperate with the waterproof design, the head’s waterproof rating can reach IP65, the maximum current can reach 16A 240VAC.
The description of the 3 way black on off on kcd1 switch.
1.3 way on off on rocker switch 240V is a waterproof rocker switch designed without light, the panel’s opening size is 19*13mm, and the panel’s thickness is 2 to 5mm, the size of the weld pin is 4.8*0.5. Meanwhile, it is nickel-plated corrosion-resistant and oxidation-resistant, the internal uses silver contact of 0.2mm, the maximum current can reach 16A 240VAC. The springboard uses high quality environmentally friendly tin plating, it is economic and durable used on some home appliances, it is not easy to produce sparks using for a long time.
2.The cover of the 240V rocker switch adopts LG high sticky material, it has the colors of red, green, yellow, blue, black, white, and the original printing is “ I O II”, we can customize special silver characters according to customer’s requirements.
What is a on off on 240V rocker switch ?
The 240V rocker switch is usually used on some home appliances, such as egg steamer, toaster, home humidifier. When the switch is on the position of “O”, it is not energized. When the switch is on the position of “I”, device starts to work, when the switch is on the position of “II”, it has higher temperature. We can control desired result through following the predetermined procedure.
How to buy a 16A 240V ROCKER SWITCH?
100 pieces of 16A 240V rocker switch are packed in one box, and 2000 pieces are packed in one carton, the weight of 100 pieces product is 1kg. If you need a small amount of 16A 240V rocker switch, you can place an order directly at www.cnfiln.com ,or you can purchase from our online Aliexpress store. We can arrange the delivery as soon as receiving your orders.
If you want to customize the products, or you need the surrounding supporting wiring harness, you can list your requirements, such as connect the wire in advance, install custom fast connection terminals, special pressure. You can email us, our email address is inquiry@cnylin.com.cn
Filn has 20 years of experience in 16A 240V rocker switch producing, and also has a professional rocker switch R&D team. We can customize rocker switch scheme for you within 24 hours. Filn has over 10 years of overseas sales experience, we can communicate and solve the international trade problem. If you have any questions about rocker switch, please contact us immediately, our email address is inquiry@cnylin.com.cn.
