Comprehensive Guide to 12V Rocker Switches
Dive into the world of the 12V rocker switch, an unassuming yet essential component in a plethora of electrical systems. From automotive to marine applications, DIY home projects, and industrial machinery, the versatility and reliability of these switches are unmatched. This comprehensive guide covers every facet, including their operation, installation, types, common issues, and safety considerations. Whether you’re a seasoned professional or a curious DIY enthusiast, join us as we delve into everything you need to know about 12V rocker switches and their role in powering our world.
What is a 12V Rocker Switch?
A 12V rocker switch, also known as a 12-volt toggle switch, is a type of on/off electrical switch that is commonly used in automotive, marine, and industrial applications. It is named after its rocker mechanism that rocks back and forth like a see-saw when activated.
Functionality
These switches operate at 12 volts, making them ideal for use in vehicles and boats that typically run on 12-volt electrical systems. The switch moves in a rocking motion, toggling between an “on” and “off” position, providing control over electrical circuits.
Design and Construction
In terms of design, most 12V rocker switches have a rounded or rectangular shape with a switch lever that moves up and down. They are typically made of durable materials like plastic and metal, capable of withstanding high-use environments.
Applications
They are widely used due to their easy-to-understand operation, durability, and versatility. A 12V switch for cars, for example, might control the car’s interior lights, fog lights, or other electrical components. Similarly, a 12-volt switch panel could be used on a boat to control navigation lights, bilge pumps, or other marine equipment.
Ratings
A 12V rocker switch’s rating refers to the maximum current and voltage it can handle. Most of these switches are designed to handle a 12V DC load, but the current rating can vary. Therefore, it is crucial to consider the load requirements of your specific application when choosing a switch.
How Does a 12V Rocker Switch Work?
The operation of a 12V rocker switch, or a 12-volt inline switch, is based on a simple principle of interrupting the electrical circuit. When in the “on” position, the switch allows the electrical current to flow through the circuit. When in the “off” position, it disrupts the circuit, stopping the flow of current.
Mechanical Action
A 12V rocker switch typically contains a lever that moves up and down. When the lever is pushed down, the switch closes the circuit, allowing current to pass. When the lever is pushed up, the circuit is opened, and the current flow is stopped.
Electrical Contacts
Internally, the switch contains electrical contacts that are either connected or separated by the movement of the lever. When the switch is in the “on” position, the contacts touch, allowing the electrical current to flow. When the switch is in the “off” position, the contacts are separated, preventing the flow of current.
Internal Wiring
The wiring of a 12V rocker switch is relatively straightforward. It typically has two or three terminals. The power supply wire is connected to one terminal, and the load wire (leading to the device being controlled) is connected to another terminal. If there is a third terminal, it is often used for grounding.
Switch Types
There are two main types of 12V rocker switches: SPST (Single Pole Single Throw) and DPDT (Double Pole Double Throw). An SPST switch has two terminals and can control one circuit, while a DPDT switch has six terminals and can control two separate circuits simultaneously.
Safety Mechanism
Many 12V rocker switches come with built-in safety features like waterproofing and overload protection. Some may also have an LED light that indicates whether the switch is in the on or off position.
How to Wire a 12V Rocker Switch?
Wiring a 12V rocker switch like a 12v toggle switch or a 12v switch push button involves a few simple steps. However, it’s essential to ensure that you’re working safely around electricity.
Tools Required
You’ll need a few basic tools for this task: wire strippers, a screwdriver, electrical tape, and wires. It’s also advisable to have a multimeter on hand to check the connections.
Power Off
Before you begin, ensure the power supply to the circuit is turned off to avoid the risk of electrical shock.
Identify the Terminals
Next, identify the terminals on the back of the 12V rocker switch. Typically, there will be three terminals labeled “power,” “load,” and “ground.” Some switches may only have two terminals (power and load).
Connect the Wires
Connect the power supply wire to the power terminal on the switch. Connect the load wire (leading to the device you’re controlling) to the load terminal. If there’s a ground terminal, connect a wire from this terminal to a grounded part of your vehicle or boat.
Secure the Connections
Use your screwdriver to secure the wires in place on the terminals. Then, cover the connections with electrical tape to prevent any accidental contact or short circuits.
Test the Switch
Finally, turn the power supply back on and test the 12V rocker switch to ensure it’s operating correctly.
Wiring a 12V rocker switch is relatively simple, but if you’re not confident working with electrical systems, consider seeking the help of a professional.
How to Test a 12V Rocker Switch?
Testing a 12V rocker switch, whether it’s a 12v switch for car use or a 12 volt inline switch, can be done using a multimeter, a device used to measure electrical current, voltage, and resistance.
Set the Multimeter
Set your multimeter to the continuity setting. This setting is typically denoted by a waveform or diode symbol on the multimeter.
Identify the Terminals
Identify the terminals on your 12V rocker switch. Most will have three terminals: power, load, and ground. For the purpose of this test, you’ll be focusing on the power and load terminals.
Connect the Probes
Connect the multimeter’s probes to the power and load terminals on the switch. It doesn’t matter which probe goes to which terminal.
Check for Continuity
With the switch in the “off” position, the multimeter should read “infinite” or “OL,” indicating that there’s no continuity (i.e., the circuit is open). When you flip the switch to the “on” position, the multimeter should read zero, indicating that there is continuity (i.e., the circuit is closed).
If the readings are not as described, it may indicate that the switch is faulty and needs to be replaced.
Testing a 12V rocker switch with a multimeter is a simple process, but if you’re unsure or uncomfortable, consider consulting with a professional.
Where to Buy a 12V Rocker Switch?
12V rocker switches, including 12 volt inline switches and 12v toggle switches, are widely available and can be purchased from a variety of sources.
Online Stores
Many online platforms, such as Amazon, eBay, and Alibaba, offer a vast array of 12V rocker switches. Shopping online provides the convenience of home delivery and the ability to compare different models and prices.
Automotive Parts Stores
Physical automotive parts stores are another good place to buy 12V rocker switches. Staff at these stores can often provide valuable advice on the best switch for your specific needs.
Electronics Stores
Stores specializing in electronics components often carry a range of switches, including 12V rocker switches. These stores are ideal if you’re looking for a specific type or model of
switch.
Direct from Manufacturers
If you require a large number of switches, you might consider buying directly from manufacturers. This route can often provide cost savings, particularly for bulk orders.
Remember, when buying a 12V rocker switch, it’s essential to choose a model that suits your specific needs, considering factors like current rating, design, and any extra features like waterproofing or LED indicators.
Are All 12V Rocker Switches the Same?
While all 12V rocker switches share the fundamental operation principle, they are not all the same. They can differ in various aspects, including their construction, ratings, and additional features.
Material and Design
12V rocker switches can vary in terms of their construction materials and design. Some are made of heavy-duty plastic, while others feature metal components. The design of the switch can also differ, ranging from simple round or rectangular shapes to more complex designs with custom symbols or text.
Ratings and Specifications
12V rocker switches also differ in their electrical ratings and specifications. While all are designed to operate at 12 volts, they can have different current ratings, typically ranging from a few amps to several tens of amps.
Additional Features
Some 12V rocker switches come with additional features that enhance their functionality. For example, some switches are waterproof, making them suitable for marine or outdoor applications. Others might have built-in LED lights that indicate the switch’s status.
Types of Switches
The type of switch can also differ. Some switches are SPST (Single Pole Single Throw), meaning they can control one electrical circuit. Others are DPDT (Double Pole Double Throw), capable of controlling two separate electrical circuits simultaneously.
Mounting Options
Mounting options can also vary. Some switches are designed to be panel-mounted, requiring a cut-out in the panel to install. Others might be designed for surface mounting, requiring only screws or adhesive to attach to a surface.
Can a 12V Rocker Switch Be Used for 24V?
While a 12V rocker switch is designed to operate at 12 volts, it can potentially be used in a 24-volt system under certain conditions.
Consider the Ratings
The key factor to consider is the switch’s voltage rating. If a switch is rated for 12 volts, it means it has been tested and certified to function correctly and safely at this voltage. Using it in a 24-volt system could potentially exceed its design specifications, leading to failure or even safety risks.
Possible Risk
Using a 12V rocker switch in a 24V system might lead to premature wear and tear or could cause the switch to fail unexpectedly. In the worst-case scenario, it could result in a fire or electrocution.
Check with Manufacturer
If you’re considering using a 12V rocker switch in a 24V system, it’s advisable to check with the switch manufacturer first. They can provide accurate information about whether their switch is suitable for this purpose.
Use a Voltage Reducer
Another solution is to use a voltage reducer in conjunction with the 12V rocker switch. This device can step down the 24V power supply to 12V, allowing the switch to operate safely.
How to Repair a 12V Rocker Switch?
Repairing a 12V rocker switch is generally not recommended due to the risk of electrical shock or fire. Instead, if a 12V rocker switch fails, it’s generally better and safer to replace it with a new one. Here’s a simple process for replacing a faulty 12V rocker switch.
Identify a Replacement
The first step is to identify a suitable replacement switch. Consider factors like the voltage and current ratings, the number of terminals, the type of switch (SPST, DPDT, etc.), and any additional features you require.
Remove the Faulty Switch
Turn off the power supply to the switch and remove it from its location. If it’s a panel-mounted switch, you may need to unscrew it from the panel. Then, disconnect the wires attached to the switch’s terminals.
Install the New Switch
Connect the wires to the new switch’s terminals, following the same arrangement as the old switch. Then, install the new switch in the location of the old one.
Test the New Switch
Finally, turn on the power supply and test the new switch to ensure it’s working correctly.
While it might be tempting to try and repair a faulty 12V rocker switch, it’s generally safer and more cost-effective to replace it with a new one.
What are the Uses of a 12V Rocker Switch?
12V rocker switches are extremely versatile and can be used in a wide range of applications due to their simple operation, reliable performance, and compact size.
Automotive Applications
In automotive applications, a 12V switch for cars can control various electrical systems, such as lights, power windows, windshield wipers, and auxiliary power outlets.
Marine Applications
For marine uses, a 12-volt switch panel is commonly used on boats to control navigation lights, bilge pumps, radios, and other onboard electrical devices.
Industrial Applications
In industrial settings, 12V rocker switches can control machinery, lighting, and other electrical systems. They are often preferred due to their durability and ease of use.
Home Applications

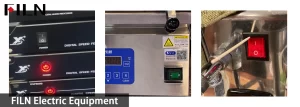

At home, 12V rocker switches can be used in DIY projects, home automation systems, or to control low-voltage lighting systems.
Recreational Vehicles and Campers
In recreational vehicles and campers, these switches can control interior lights, water pumps, fans, and other devices that run on the vehicle’s 12-volt electrical system.
Despite their simple design, 12V rocker switches play an integral role in many electrical systems, offering an easy and reliable way to control electrical circuits.
Are 12V Rocker Switches Waterproof?
Some 12V rocker switches are indeed waterproof, making them suitable for use in environments where they may be exposed to water or moisture, such as boats, outdoor equipment, or wet industrial environments. However, not all 12V rocker switches are waterproof, so it’s essential to check the switch’s specifications before purchase.
Waterproof Ratings
Waterproof 12V rocker switches usually come with an IP (Ingress Protection) rating that indicates their level of protection against water and dust. For example, an IP65-rated switch is dust-tight and can withstand water jets, while an IP67-rated switch is dust-tight and can be submerged in water up to a meter deep for 30 minutes.
Design Features
Waterproof switches often come with design features that enhance their water resistance. These might include rubber seals or gaskets around the switch lever, a waterproof casing, or sealed terminals.
Applications
Waterproof 12V rocker switches are ideal for use in marine applications, outdoor equipment, or any environment where the switch might be exposed to water or moisture. They can provide reliable operation, even in challenging conditions.
Alternatives
If a switch is not waterproof but will be used in a wet or moist environment, consider using a waterproof cover or housing to provide additional protection.
In conclusion, while some 12V rocker switches are waterproof, it’s essential to check the switch’s specifications to ensure it’s suitable for your particular needs.
Overall Perspective
In this in-depth exploration of 12V rocker switches, we’ve covered a broad range of topics, from their basic operation and typical applications to considerations when purchasing and installing them.
These switches are an integral component of many electrical systems, thanks to their reliability, versatility, and ease of use. Whether you’re using a 12V switch in a car, a boat, an industrial machine, or a home DIY project, understanding these aspects can help ensure you choose and use the right switch for your needs.
Remember that safety is paramount when dealing with electrical systems. Always follow the manufacturer’s instructions, and consider seeking professional advice if you’re unsure.
As technology continues to advance, we can expect to see even more innovative and convenient features incorporated into these humble but essential devices. No matter what the future holds, the fundamental principles of a 12V rocker switch’s operation will likely remain the same, making them a staple in electrical systems for many years to come.
This comprehensive guide provides valuable insights into 12V rocker switches, answering some of the most frequently asked questions and delving into various perspectives on each topic. By combining technical details with practical advice, it offers a well-rounded understanding of these ubiquitous electrical devices. Whether you’re a seasoned professional or a curious newcomer to the world of electronics, this guide offers useful information to help you navigate the world of 12V rocker switches.
Note: It’s important to always seek professional advice when dealing with electrical systems and components, particularly when installing or replacing parts like switches. Always follow safety guidelines and regulations.
What is the 12V Rocker Switches price?
Are you in need of a 12V rocker switch? Wondering how much it will cost you? Look no further! In this article, we will dive into the world of 12V rocker switches and explore their price range. So, let’s get started!
12V Rocker Switches: An Introduction
Before we dive into the price details, let’s have a quick refresher on what 12V rocker switches are.
Simply put, a 12V rocker switch is an electrical switch that is operated by a rocking motion. It consists of a lever that rocks back and forth, allowing you to control the flow of electricity. These switches are commonly used in various applications such as automotive, marine, and home automation.
Now that we have brushed up on the basics, let’s explore the different types of 12V rocker switches available in the market.
Types of 12V Rocker Switches
There is no shortage of options when it comes to 12V rocker switches. Here are some popular types:
- On-Off Rocker Switches: These switches allow you to turn a circuit on or off with a simple rocking motion.
- On-On Rocker Switches: If you need to toggle between two different circuits, an On-On rocker switch is your go-to choice. Just rock it to switch between the circuits.
- Round Rocker Switches: With their compact design, round rocker switches are often used in automotive applications. They are great for space-constrained installations.
- Power Rocker Switches: Need a switch for high-power applications? Power rocker switches are designed to handle higher loads and are commonly found in appliances and industrial equipment.
- Illuminated Rocker Switches: If you require visibility in low light conditions, illuminated rocker switches are your best bet. These switches come with built-in lights that illuminate when in the “on” position.
Now that we are familiar with the different types of 12V rocker switches, let’s dive into the price range.
Understanding the Price Range
The price of a 12V rocker switch can vary depending on various factors such as the type, brand, and additional features. To give you a better understanding, let’s take a look at the following table and bar chart:
Price Range of Different Types of 12V Rocker Switches:
| Switch Type | Low Price | High Price |
|---|---|---|
| On-Off | $6.99 | $8.49 |
| On-On | N/A | $8.49 |
| Round Rocker | $6.99 | $8.99 |
| Power Rocker | $6.98 | $11.88 |
| Illuminated Rocker | $1.60 | $11.45 |
Please note that these prices are subject to change. It is always a good idea to check with the retailer or platform for the most up-to-date prices.
Making an Informed Decision
When it comes to purchasing a 12V rocker switch, it’s essential to consider your specific needs and budget. Here are a few tips to help you make an informed decision:
- Identify your requirements: Determine the type of rocker switch that suits your needs. Are you looking for a basic on-off switch or one with more advanced features?
- Compare prices: Take a close look at the price range provided in the table and bar chart. Consider the features and quality offered by different brands and compare prices accordingly.
- Balance cost and functionality: Remember, the most expensive switch isn’t always the best for your needs. Find a switch that strikes the right balance between cost and functionality.
- Read customer reviews: Before making a purchase, read customer reviews to get insights into the quality and performance of the switch you are considering.
By keeping these factors in mind, you can make a wise decision and find the perfect 12V rocker switch for your requirements.
Conclusion
In conclusion, 12V rocker switches come in various types, each with its unique features and price range. Whether you need a simple on-off switch or a versatile illuminated rocker, there is a switch out there to meet your needs. Remember to consider the price, features, and quality while making a decision. Happy switch shopping!
This article is part of our comprehensive series on electrical switches, providing valuable information and insights to help you make informed choices.
