Key Takeaways
- FILN FL1P-08NW-1 is one of the 8mm round plastic control panel LED lights made by the FILN indicator light factory.
- Mounting hole for these control panel LED lights: 8mm. Head: standard round (circular), not high-head.
- Wiring on these control panel LED lights: 2PIN wire leads, 15cm (approx. 5.9 in); AWG and wire color are confirm-with-FILN items.
- Mounting: metal nut tightened from the rear; a waterproof sealing ring is included in the pack.
- Pack: 1× plastic indicator light, 1× waterproof ring, 1× metal nut.
- Voltage for control panel LED lights is customizable 3–480V; confirm AC or DC and the exact rating on the RFQ.
- LED colors for control panel LED lights: Red, Green, Yellow, Blue, White; polarized or non-polar beads (non-polar needs no polarity).
- Stated marks: CE, VDE, RoHS, CCC; ISO9001 is the company quality system. Request certificates for the exact build.
- These control panel LED lights are lighter than metal indicators and offer high cost-performance.
- The sealing ring helps panel sealing, but the actual IP rating must be confirmed with FILN.
- MOQ, price, and lead time for control panel LED lights are quoted per RFQ; samples, datasheet PDF, and 3D/CAD are available on request.
What Is a Plastic Indicator Light?
A plastic indicator light is a panel-mounted status lamp that places an LED and current-limiting resistor inside an insulating polymer body. Many control panel LED lights are built this way; the device is also called a plastic LED pilot light. On equipment fronts, these control panel LED lights turn an electrical state into a visible color cue that operators read at a glance.
Structure: a lens and head, a plastic body with an external thread, an LED, a resistor, and a wiring exit. Purpose and value of control panel LED lights: fewer operating errors, faster troubleshooting, and a consistent status language across a machine family. Principle: rated voltage drives the LED through the resistor, and light exits the round head.
Indicators fall into two categories: metal and plastic. Metal bodies suit harsher fronts and may offer flat, convex, or concave heads. Plastic control panel LED lights focus on size, color, and wiring flexibility. FILN plastic sizes include 6mm, 8mm, 10mm, 12mm, 16mm, and 22mm. All five colors are offered, along with three plastic wiring methods: pin-type, wire-lead, and screw terminal.
Typical applications for control panel LED lights include large electrical equipment, laboratory instruments, distribution cabinets, new-energy systems, yachts, household appliances, and automotive modification. This page covers 8mm round wire-lead control panel LED lights with nut mounting.

More 6mm plastic indicator lights →
Product Overview

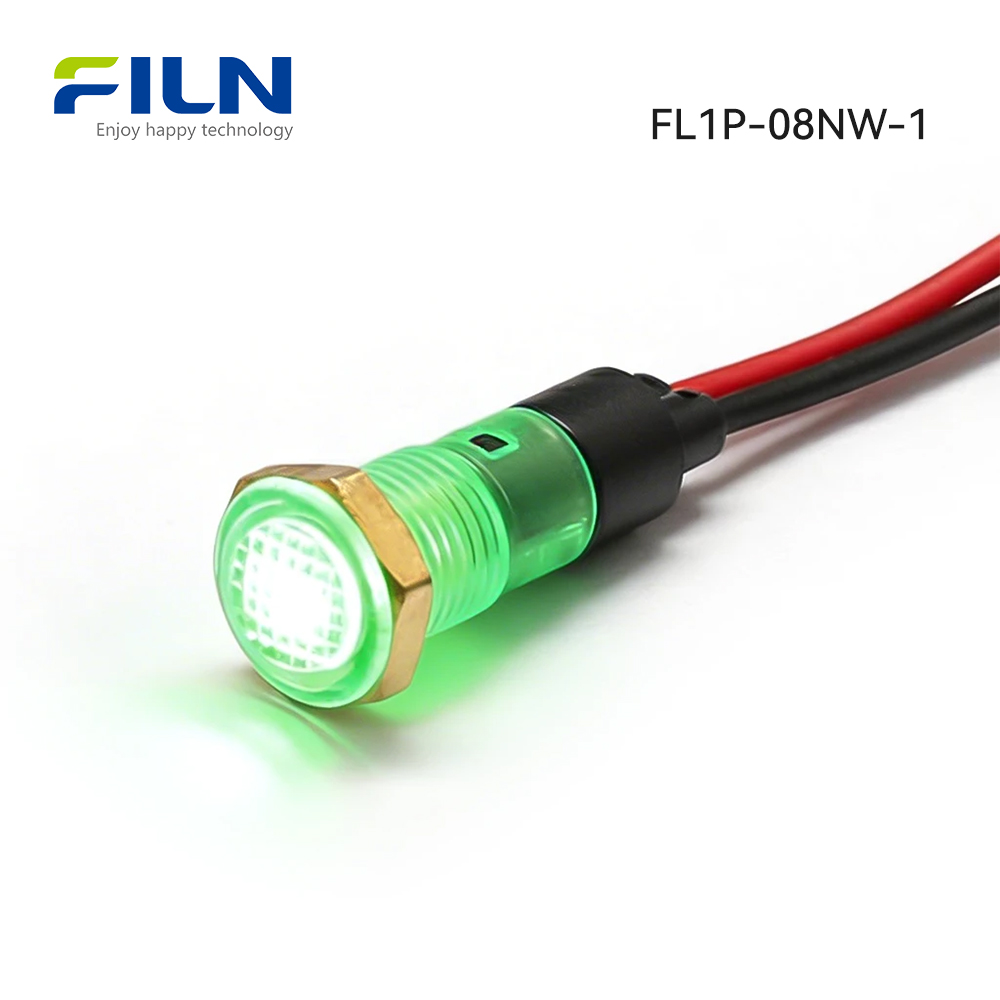

FILN FL1P-08NW-1 belongs to the most common 8mm round plastic control panel LED lights on the market. Once installed, it appears as a round lamp on the panel with bright, obvious light, while the 15cm 2PIN wire leads run behind the panel to the terminal block or harness.
Mechanically, the lamp goes into the 8mm hole from the front, and the metal nut clamps it from the rear. The waterproof ring sits between the head and the panel surface to help seal the cutout. Electrically, the internal resistor is matched to the ordered voltage, so every build of these control panel LED lights is a controlled configuration.
Advantages of these control panel LED lights: lighter than metal indicators, high cost-performance, qualitative high-temperature tolerance for typical equipment use, and wide adoption across industries. Stated marks are CE, VDE, RoHS, and CCC; ISO9001 is the company quality system of Yueqing Yulin Electronic Co., Ltd.
Buyers can purchase control panel LED lights directly from the FILN catalog page or request a factory quotation.
Quick Specifications
The table below lists every product parameter supplied for these control panel LED lights (model FL1P-08NW-1).
| Parameter |
Value |
| Brand / manufacturer |
FILN (Yueqing Yulin Electronic Co., Ltd.) |
| Model |
FL1P-08NW-1 |
| Type |
2PIN wire-lead plastic control panel LED lights |
| Mounting hole |
8mm |
| Head type |
Round (standard circular head) |
| Wiring |
2PIN wire leads, 15cm (approx. 5.9 in); AWG/wire color confirm with FILN |
| Voltage |
3–480V customizable; confirm AC/DC and exact rating |
| Mounting |
Nut mounting (metal nut on rear thread) |
| Pack contents |
1× plastic indicator light, 1× waterproof ring, 1× metal nut |
| LED colors |
R/G/Y/B/W (Red, Green, Yellow, Blue, White) |
| LED bead options |
Polarized (positive/negative) or non-polar (no polarity needed) |
| Certifications stated |
CE, VDE, RoHS, CCC; ISO9001 (company QMS) |
| Installed appearance |
Round lamp on the panel, bright and obvious, 2PIN leads behind |
| Applications |
Large electrical equipment, lab equipment, distribution cabinets, new energy, yachts, household appliances, automotive modification, other signal-indicator equipment |

Use the drawing to check head size, thread length, and rear clearance for control panel LED lights before punching. Ask FILN for a datasheet or 3D model if a dimension is unclear.
Performance Parameters
Values marked series typical come from the FILN pack for plastic control panel LED lights and are configuration-dependent. Confirm them for the exact voltage and color of your control panel LED lights.
| Parameter |
Value |
| Rated voltage |
3–480V customizable, AC or DC per order (50/60 Hz for AC) |
| Rated current (series typical) |
≤ 20 mA |
| Rated power (series typical) |
Approx. 0.2 W |
| Insulation resistance (series typical) |
≥ 100 MΩ at 500 V DC |
| Dielectric strength (series typical) |
1500 V AC, no breakdown or flashover |
| Operating life (series typical) |
60,000 hours |
| Ingress protection |
Confirm with FILN; sealing ring included, no IP65/IP67 claim |
| Certifications stated |
CE, VDE, RoHS, CCC; ISO9001 company QMS |
Component Materials
| Component |
Material / type |
Why it matters |
| Body / head / lens |
Nylon PA66 (series typical; confirm) |
Insulation, heat resistance, low weight, cost efficiency |
| Light source |
LED, polarized or non-polar |
Sets color and polarity rule |
| Current limiting |
Carbon film resistor (series typical) |
Matches LED current to the ordered voltage |
| Wire leads |
2PIN, 15cm leads on these control panel LED lights; AWG and color confirm with FILN |
Routes the signal to the harness |
| Waterproof ring |
Sealing ring/gasket (material confirm with FILN) |
Helps seal the cutout between head and panel |
| Nut |
Metal nut |
Clamps the lamp firmly to the panel |
The metal nut gives these control panel LED lights a firmer clamp than plastic-only retention, while the PA66 body keeps the lamp light and insulated.
Environmental Performance
| Item |
Series-typical value (confirm with FILN) |
| Operating / storage temperature |
−15°C to +80°C |
| Operating humidity |
≤85% RH at +40°C |
| High-temperature test |
96 h at 80±2°C |
| Low-temperature test |
96 h at −15±2°C |
| Damp heat |
96 h at 40±2°C, 90–95% RH |
| Temperature cycling |
−15°C 30 min / 80°C 30 min, 5 cycles |
The waterproof ring improves sealing at the cutout, but wash-down, outdoor, or marine deck duty needs a confirmed IP rating. Ask FILN before specifying control panel LED lights for wet locations, because sealed control panel LED lights need a confirmed rating.
LED Specification
| LED item |
Stated for this page |
| Colors of control panel LED lights |
Red, Green, Yellow, Blue, White |
| Polarized beads |
Available; observe + / − on DC circuits |
| Non-polar beads |
Available; wire without regard to polarity |
| Dual-color / tri-color |
Where applicable only; confirm with FILN |
| VF, Iv, wavelength, viewing angle |
Configuration-dependent; request the datasheet |
Order control panel LED lights to the color legend on your drawing, and keep polarized and non-polar lots in separate bins because the wiring rule differs.
Standard Test Conditions
| Condition |
Series-typical value |
| Ambient temperature |
5°C to 35°C |
| Relative humidity |
45%–85% |
| Air pressure |
86–106 kPa |
Measurements on control panel LED lights follow this standard atmosphere unless the customer specification states otherwise. Request a test report when qualifying control panel LED lights formally.
Applications by Industry
| Industry |
Typical use of control panel LED lights |
| Large electrical equipment |
Control panel LED lights for power, run, and fault status |
| Laboratory and test equipment |
Ready, busy, and limit indication on instruments |
| Distribution cabinets |
Control panel LED lights for phase, trip, and mode on doors |
| New energy |
Control panel LED lights for inverter and charger alarms |
| Yachts |
Interior system and lighting status (confirm IP for wet areas) |
| Household appliances |
Power and function indication on high-volume fronts |
| Automotive modification |
Accessory status lamps (confirm DC rating and polarity) |
| Other equipment |
Any device that needs a clear signal indicator |
Compared with metal indicators, plastic control panel LED lights are lighter and more economical for indoor and protected panels. Choose metal when the specification calls for a metal bezel; otherwise plastic control panel LED lights are usually the efficient choice.

LED Indicator Color Meanings and Application Guide
Color conventions vary by OEM, industry, country, and design, so fix each meaning on the equipment legend before ordering control panel LED lights. Consistent colors across control panel LED lights reduce operator errors.
| Color |
Common meaning |
Typical panel use |
Selection note |
| Red |
Fault, alarm, danger |
Stop, trip, over-temperature |
Confirm steady vs flashing |
| Green |
Normal, run, ready |
Run and power-OK lamps |
Avoid for fault states |
| Yellow |
Warning, standby |
Attention before alarm |
Define escalation to red |
| Blue |
Special or mandatory action |
Maintenance or remote mode |
Label meaning clearly |
| White |
Neutral, power present |
General status |
Pair with a printed legend |
Dual-color and tri-color control panel LED lights are available only where applicable; confirm with FILN.
Installation Guide
Tools: 8mm punch or drill, deburring tool, wrench for the metal nut, and a multimeter. Isolate power before cutting or wiring control panel LED lights. Check panel thickness against the drawing so the nut can fully engage the thread.
- Cut a matching 8mm round hole for the control panel LED lights and deburr it.
- Fit the waterproof ring on the lamp so it sits between the head and the panel front (typical arrangement; confirm with the drawing).
- Insert the lamp from the top/front of the panel into the hole.
- Slide the metal nut onto the lamp from below/rear and turn it up along the thread until the lamp is fixed firmly against the panel.
- Wire the 15cm 2PIN leads normally, then power up at the rated voltage and check the light.
Polarity: observe + / − with polarized beads; non-polar beads need no polarity. Inspection of installed control panel LED lights: head flush, ring seated evenly, nut tight, leads strain-relieved.
Common mistakes when fitting control panel LED lights: an oversized hole, a twisted or missing sealing ring, over-tightening the nut, reversing a polarized lamp, and applying an unconfirmed voltage.

Wiring Guide
FL1P-08NW-1 uses 2PIN wire leads, 15cm long. Disconnect power before termination and follow local electrical codes. Joints on control panel LED lights can use quick-connect terminals, insulated solder joints, or properly insulated twists and tape where the harness standard allows.
Pin-type versus wire-lead plastic indicators (this SKU is the wire-lead version):
| Topic |
Pin-type control panel LED lights |
Wire-lead control panel LED lights (this SKU) |
| Pros |
Very compact rear; direct PCB or socket fit; no lead to dress |
Flexible routing; no PCB needed; easy harness or terminal-block connection |
| Cons |
Needs a planned socket or PCB; less routing freedom |
Leads need strain relief; length fixed unless customized |
| Application scope |
Instruments, compact modules, PCB-backed panels |
Distribution cabinets, appliances, vehicles, general OEM panels |
Match control panel LED lights to the circuit voltage and AC/DC type. Request a different lead length or a connector for control panel LED lights on the RFQ.
Industry Knowledge Center
How it works: the LED converts current into light, and the resistor holds that current within limits for the rated voltage. A low-voltage lamp on a higher-voltage circuit fails at once, so voltage matching is the first check when selecting control panel LED lights.
Standards for control panel LED lights: equipment directives and color codes depend on the destination market. Use the stated marks only for the configuration certified, and request the certificate file for each build.
Maintenance of control panel LED lights: clean the lens with a dry or lightly damp cloth, avoid solvents that attack plastic, re-check nut tightness and ring seating after service, and inspect lead insulation.
Phantom glow: control panel LED lights can glow faintly when switched off if leakage current, induced voltage, or a high-impedance PLC output still feeds the LED. Confirm isolation, add an engineer-approved bleed resistor or load, separate lead routing from mains cables, and check whether a polarized or non-polar bead was supplied.
Buyer Decision Guide and RFQ Checklist
How to Choose
Fix the cutout and rear depth first, then the voltage and AC/DC type, then color and head style, then the paperwork. For these control panel LED lights, that means an 8mm hole, a round head, 15cm 2PIN leads, and a metal nut with a sealing ring.
Buying Considerations
Purchasing teams buying control panel LED lights typically compare color consistency, certificate availability, sample approval, packaging, OEM marking, and export documentation. MOQ, price, and lead time depend on configuration and are confirmed by FILN for each RFQ.
Sizing Guide
| Hole |
Typical use |
Note |
| 6mm |
Dense instrument fronts |
More 6mm plastic indicator lights |
| 8mm (this page) |
Control panel LED lights for equipment and cabinets |
Round head, wire lead, metal nut |
| 10 / 12mm |
Larger lens, better visibility |
Confirm wiring and mounting style |
| 16 / 22mm |
Standard pilot-device cutouts |
Often a different body style |
Certification Guide
Stated for this offering: CE, VDE, RoHS, CCC; ISO9001 covers the company quality system. UL, TUV, or SGS are not claimed for this SKU. Request certificates that match your exact build of control panel LED lights.
Material Selection: Plastic vs Metal
| Housing |
Advantages |
Limits |
| Plastic PA66 control panel LED lights (this page) |
Light, insulating, cost-efficient |
Confirm IP for wet duty |
| Nickel-plated brass |
Industrial look, robust thread |
Heavier, higher cost |
| Stainless steel |
Corrosion resistance |
Higher cost |
| Zinc alloy |
Shaped decorative bezels |
Finish wear by environment |
Application Matching
Wire-lead control panel LED lights suit terminal-block cabinets and harness-based equipment; pin-type lamps suit PCB-backed fronts. Indoor panels suit plastic control panel LED lights well, while wet or outdoor duty requires a confirmed IP rating.
Specification-to-Decision Framework
| Spec |
Why it matters |
Confirm before ordering |
| 8mm hole |
Retention and fit |
Punch size and panel thickness |
| 3–480V |
Prevents LED damage |
AC/DC, exact volts, frequency |
| 15cm 2PIN leads |
Harness reach |
Length, AWG, color, connector |
| Nut + sealing ring |
Clamp and sealing |
Real IP need |
| Color |
Operator safety |
Legend and lot consistency |
RFQ Checklist
Product type; model (FL1P-08NW-1); mounting hole; voltage; AC/DC; LED color; head type; material; waterproof requirement; wiring method; wire length; connector; certification requirement; quantity; packaging; OEM; logo; custom marking; target market; application environment; expected delivery date.
Send this list for control panel LED lights by email. Providing these specifications helps FILN engineering and sales teams confirm product compatibility and quotation requirements more efficiently.
FILN Manufacturing and Engineering Capabilities
- Manufacturer: in-house production and assembly keep each build of control panel LED lights under configuration control.
- R&D and engineering support: help with drawings, voltage, polarity, and lead options shortens sample loops for control panel LED lights.
- OEM / ODM: custom voltage, color, lead length, marking, and packaging for control panel LED lights.
- Testing and QC: factory inspection and an in-house lab check control panel LED lights before shipment.
- Certification support: FILN helps confirm the documents for a build; company marks do not automatically apply to every SKU.
- Samples, small batches, and mass production of control panel LED lights, with export communication for US, Canada, Germany, UK, and Australia buyers.

Factory Direct Supply
Yueqing Yulin Electronic Co., Ltd. (brand FILN), based in Wenzhou, Zhejiang, has combined R&D, production, and sales since 2006. The company sells into 100+ countries from a facility of about 10,000 m² with 20+ production lines, an independent testing lab, and an ISO9001 quality system.
Its product scope covers indicator lights, push-button switches, rocker switches, toggle switches, and custom small electrical parts. As the factory behind these control panel LED lights, FILN gives buyers direct engineering contact. Company-level marks are separate from the marks stated for this SKU (CE, VDE, RoHS, CCC).

Company website: www.filn.com · Email: inquiry@cnylin.com.cn · Buy this 8mm indicator
Frequently Asked Questions
What are FILN control panel LED lights used for?
FILN control panel LED lights show power, run, fault, and mode status on large electrical equipment, lab instruments, distribution cabinets, new-energy systems, yachts, household appliances, and automotive modification projects. Model FL1P-08NW-1 is an 8mm round plastic indicator with 15cm 2PIN wire leads. Learn about the manufacturer at www.filn.com.
What mounting hole do these control panel LED lights need?
These control panel LED lights need an 8mm round cutout. Deburr the hole before fitting, and check that the panel thickness lets the metal nut fully engage the thread. Ask FILN for the drawing if your panel is unusually thick or thin.
How do I install 8mm nut-mount control panel LED lights?
Cut an 8mm round hole and fit the waterproof ring under the head. Insert the lamp from the front of the panel, slide the metal nut on from the rear, and turn it up the thread until the lamp sits firm. Then connect the 2PIN leads and test at the rated voltage.
What is included in each pack of control panel LED lights?
Each pack contains 1× plastic indicator light, 1× waterproof ring, and 1× metal nut. The 15cm 2PIN wire leads come pre-attached to the lamp. Extra rings, nuts, or connectors can be listed on the RFQ if your assembly line needs spares.
How long are the wire leads on these control panel LED lights?
The 2PIN wire leads are 15cm (approx. 5.9 in) long. AWG and wire color are not stated on this page, so confirm them with FILN. Different lengths or crimped connectors can be quoted as an OEM option.
What voltage can I order for control panel LED lights?
Voltage is customizable from 3V to 480V, and there is no fixed default rating. State AC or DC, the exact voltage, and the frequency for AC circuits so the internal resistor is matched correctly. Email your voltage requirement with your RFQ.
Which colors are available for control panel LED lights?
Red, Green, Yellow, Blue, and White are available. Choose colors to match your equipment legend, because color meanings vary by OEM, industry, and country. Dual-color or tri-color versions are offered only where applicable and must be confirmed with FILN.
Do control panel LED lights need correct polarity when wiring?
It depends on the bead. Polarized LED beads must be wired with correct positive and negative orientation on DC circuits. Non-polar LED beads can be wired either way with no polarity needed. State which bead you want on the purchase order.
Does the waterproof ring make these control panel LED lights IP65 or IP67?
No IP65 or IP67 rating is claimed. The waterproof ring helps seal the gap between the head and the panel, but the actual ingress rating depends on the build and the installation. Confirm the IP rating with FILN before using the lamp in wet or outdoor locations.
What certifications are stated for these control panel LED lights?
This offering states CE, VDE, RoHS, and CCC, and ISO9001 is the company quality system. Request the certificate files that match your exact voltage and color build. Details on company qualifications are available at https://www.filn.com.
Pin-type or wire-lead: which control panel LED lights should I choose?
Choose pin-type control panel LED lights for PCB-backed or socket-based fronts with shallow depth. Choose wire-lead lamps such as this model when the connection point is a terminal block or harness some distance behind the panel. The wiring section above compares the pros, cons, and application scope of each.
How do plastic control panel LED lights compare with metal indicators?
Plastic control panel LED lights are lighter than metal ones, insulating, and usually more cost-effective for indoor equipment panels. Metal indicators suit harsher fronts or designs that call for a metal bezel. Both types are available from FILN, so choose based on environment, appearance, and budget.
Can plastic control panel LED lights handle high temperatures?
The plastic body tolerates the heat found in typical industrial equipment. The series-typical operating range for FILN plastic indicators is −15°C to +80°C, but this is configuration-dependent and should be confirmed with FILN for your build and duty cycle.
Why do control panel LED lights glow faintly when switched off?
A faint glow usually comes from leakage current, induced voltage on long parallel leads, or a high-impedance controller output. Check isolation, separate the leads from mains cables, and consider an engineer-approved bleed resistor. Contact FILN engineering with your circuit details.
Can I buy these control panel LED lights directly?
Yes. You can buy these 8mm round control panel LED lights directly from the FILN product page. For bulk, custom voltage, or OEM marking, send an RFQ so FILN can confirm the configuration and quote.
What are the MOQ, price, and lead time for control panel LED lights?
MOQ, price, and lead time depend on voltage, color, quantity, and customization, so FILN confirms them for each RFQ. No fixed figures are published here. Send your quantity and target date to inquiry@cnylin.com.cn.
What OEM customization is available for control panel LED lights?
FILN can discuss custom voltage within 3–480V, LED color, lead length, connectors, logo or custom marking, and packaging. List every requirement on the RFQ so engineering can confirm feasibility. Company background is available at www.filn.com.
How should I maintain control panel LED lights?
Wipe the lens with a dry or lightly damp cloth and avoid solvents that can attack plastic. During scheduled service, check that the metal nut is tight, the sealing ring is seated evenly, and the lead insulation is intact. Replace any lamp with a cracked lens.
