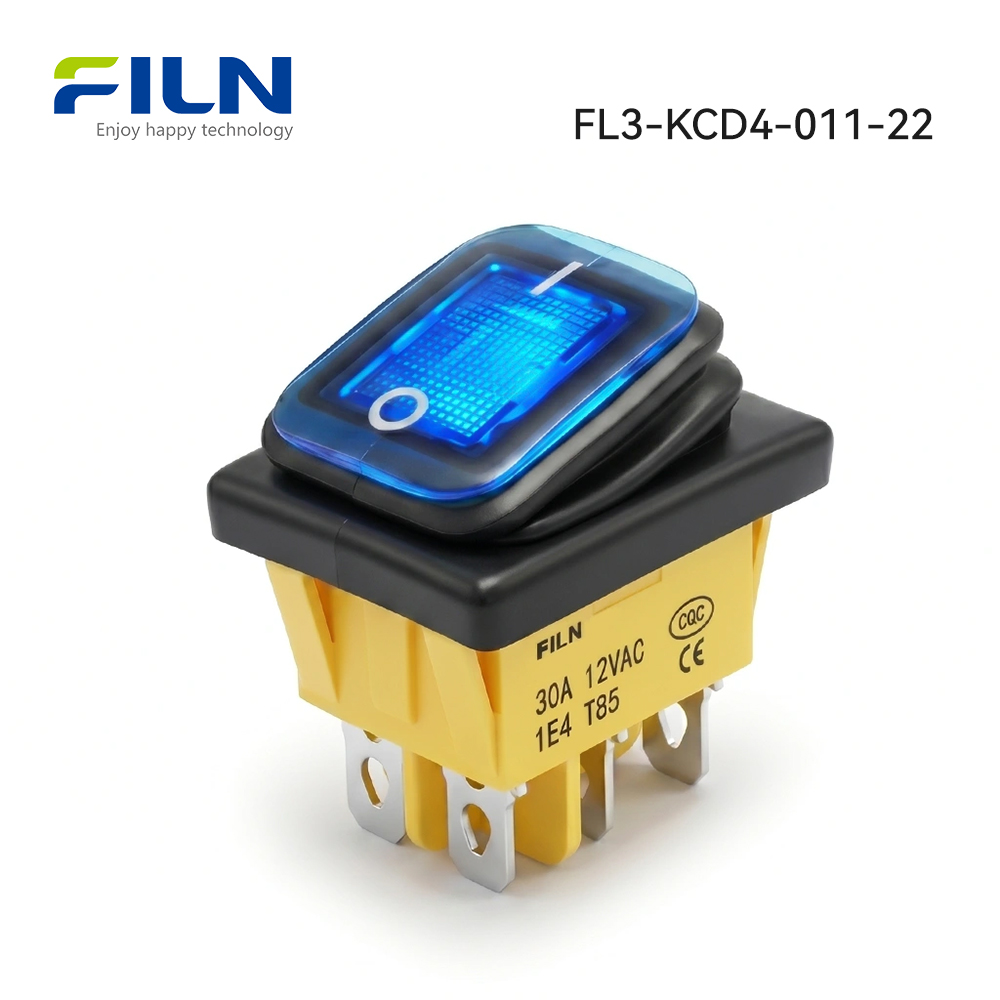

110V yellow 6pin kcd4 onon momentary rocker switch

  • Mode:KCD4-0112-22
  • Voltage:3v, 5v, 6v, 12v, 24v,13v, 110v, 120v, 220v, 240v, 250v, 380v
  • Color:red、white、blue、green、yellow、black
  • Material:stainless steel
  • Certification:CE CCC ROSH IP67 UL
  • Waterproof grade:IP67
  • Email:inquiry@cnylin.com.cn
  • Download PDF: KCD4-0112-22规格书

What is waterproof rocker switch ?
It designed based on normal rocker switch with waterproof function, so it can prevent the water from inside rocker switch when it used outdoor and water surface.
When start designing the rocker switch ?
FILN company began to product and design KCD4 waterproof switch series in 2016. It is very popular all over the world especially in the UAS market.
The introduction of KCD4 waterproof rocker switch series as follows :
How many kinds of voltage can the waterproof rocker switch have?
The range of voltage could be 3V,6v,12v,24v,36v,110v,220v,380v,440V.
What current of rocker switch can be reach ?
It has designed a high-current ship-type switch that could reach 30A at 12v and 250V. Its power can reach 5000W.
What is the size of the mounting hole of the rocker switch?
It has 3 sizes can be chosen, like 28X22, 30X22 ,31X22mm.
How about the waterproof degree of switch ?
It can be reach IP67 and IP68.
How many colors of switch ?
It can be made red, yellow,green, blue,white,black and orange etc. We also can use LED as the light source.
How many types of rocker switch for the use function ?
It has ON-OFF, ON-ON,ON-(OFF),ON-(ON),ON-OFF-(ON),(ON)-OFF-(ON) etc 7 function.
How many different styles are there on the surface of the rocker switch? Can the Rocker Switch be customized with a customer logo?
The rocker switch surface has stainless steel surface, painted surface, and plastic surface, and can support the customization of various logos on the rocker switch surface.
What international certifications are there for rocker switches?
Rocker switch has CE, UL, CQC, ROSH certification, etc.
Where are waterproof rocker switches usually used?
Waterproof rocker switch is used very widely, usually used in kitchen equipment, yacht equipment, automation equipment, electrical products, baby carriages, cars, motorcycles, refrigerator refrigeration, etc.
What is the MOQ of the rocker switch ?
FILN is a direct factory that produces waterproof switches, so there is no MOQ limit, and you can order from one.

Product ItemKCD4-0112-22
Panel Mount Diameter22*30mm
Contact Waysolder pin
Install WayBuckle
Lamp TypeLED
Rated voltage3v, 5v, 6v, 12v, 24v,13v, 110v, 120v, 220v, 240v, 250v, 380v
Lamp ColorRed,white,blue,green,black,yellow
Shell Materialbrass plated nickel
Base MaterialPA66 nylon
Terminal Materialbrass
ApplicationsCoffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment etc
Current15A, 20A, 30A
