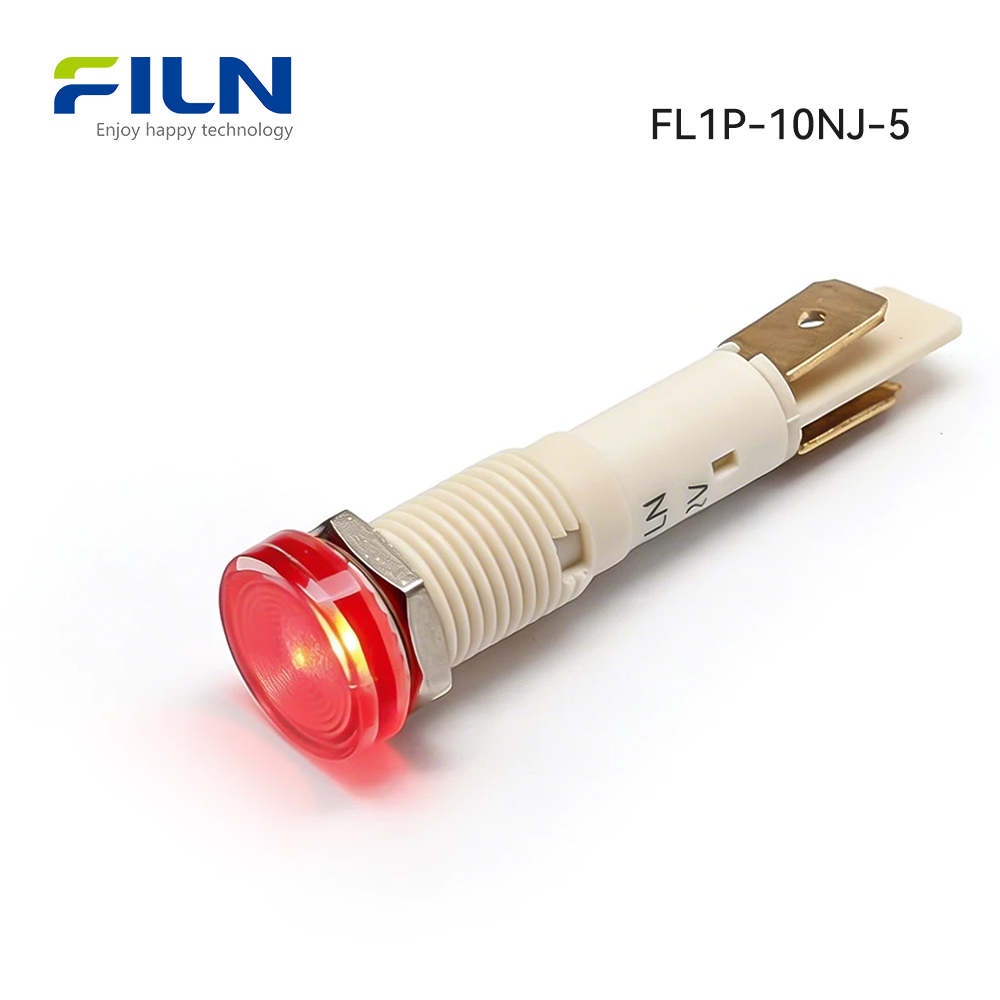

10mm 48v LED Plastic Signal Pilot Lamp Indicator

10mm 48v led plastic signal indicator light lamp

The FL1P-10NJ-5 indictor light product is introduced as follows

  1. 10mm 48V indicator light metal shell adopts numerical control technology processing, to ensure the appearance of the atmosphere beautiful, high precision
  2. 48V led indicator light LED adopts a non-polar LED, which can be used by customers without any positive or negative level. The service life of LED is 50,000 hours
  3. Signal indicator IP68, installation aperture is 8MM 5/16 inches
  4. Socket head indicator voltage can do 3V6V 12V 24V110V 220V 380V and so on
  5. 48V ip66 plastic indicator light can be red, yellow, green, blue and white in 5 colors
  6. Signal indicator light voltage can do 3V6V 12V 24V110V 220V 380V and so on
  7. 10mm plastic indicator light can be red, yellow, green, blue and white in 5 colors

Indicator lights are very versatile and are usually used in The coffee machine,The water heater ,Water dispenser,Baked Fried furnace,Meat grinder ,automation ,Test equipment, Disinfection cabinet,The dishwasher,Barbecues, Cleaning machine,Food machinery,The freezer,A blender,blender,The fault,Modified car,Shoe machine,Refrigeration equipment,Insulated rice stand,Cooking stove,Waterproof air case,Induction cooker,Lampblack purifier,Cooking noodles barrels,Vending machines,Charging pile,The solar energy,Power box ,The subway,The dashboard, wine,Audio equipment ,Distribution box,Sound effector,The cinema,Medical equipment,Car panel,player,Audio equipment,Distribution box,Medical equipment ,Power amplifier player,Education, school lab,The generator,Electric welding machine,Cable tray,inverter,Voltage regulator,Access control device,Automobile and motorcycle accessories, Industrial air purifier,FILN indicator light through the United States UL certification, Germany VDE certification, European Union CE certification, ISO90001 quality management system certification and so on, the quality is stable, the style is complete, can be customized according to the customer’s needs of different styles of indicator light.

If you need anything, please contact us at inquiry@cnylin.com.cn

The Comprehensive Guide to Pilot Lamp Indicator, Indicator Lights and Pilot Lights

Pilot lamp indicators, often referred to as indicator lights or pilot lights, are an essential component in modern machinery, domestic appliances, and control systems. This comprehensive guide will explore the vast world of pilot lamp indicators, unraveling their functionality, diverse applications, specifications, and much more. From understanding their vital role in safety and monitoring to exploring the latest technological advancements, we will delve into every aspect that makes these indicators an indispensable part of our daily lives. Whether you’re an engineer, homeowner, or just curious about how these devices work, this article offers a detailed insight that will illuminate the subject like never before. Read on to discover the multifaceted world of pilot lamp indicators.

Step 1: What are the 10 most asked questions about Pilot Lamp Indicator?

  1. What is a pilot lamp indicator, and how does it function?
  2. How do you wire a pilot lamp indicator 220v, and what safety precautions should be taken?
  3. What are the various pilot lamp symbols, and how are they used in electrical systems?
  4. How are pilot lights used in houses, and what are their common applications?
  5. What is the role of the pilot light in electrical systems, and how do you troubleshoot it?
  6. What is an AC power indicator light, and how is it different from a regular pilot light?
  7. How do you choose the right pilot indicator light for specific applications?
  8. What are some common brands and models of pilot lamp indicators and their features?
  9. How do you install and maintain pilot lamp indicators in different environments?
  10. Where can you purchase pilot lamp indicators, and what should you consider while buying?

Step 2: What is a pilot lamp indicator, and how does it function?

Understanding the Pilot Lamp Indicator

A pilot lamp indicator is a small light used to signal the status of a device or system. These lights are often found in electrical panels, machines, and various household appliances. They function as visual cues for operators, technicians, or users, indicating whether a system is operating correctly or not.

Functions and Applications

The pilot lamp indicator serves various functions in different contexts. In industrial settings, it may indicate the operating status of machinery, while in residential environments, it may signal whether an appliance is on or off. A pilot lamp indicator can also be part of a complex system, providing alerts for specific conditions.

Types and Variations

There are different types of pilot lamp indicators, including LED, incandescent, and neon. Each has unique characteristics and applications. LED indicators, for example, are known for their energy efficiency and long lifespan. You can find more information about LED pilot light indicators here.

Connection with Electrical Systems

The pilot lamp indicator is typically connected to an electrical circuit, functioning as a simple yet crucial component. Understanding the wiring and connections is essential for safe operation. Special attention must be paid to voltage compatibility and appropriate handling to avoid electrical hazards.

Technology and Innovation

With advancements in technology, pilot lamp indicators have evolved to provide more precise information. Some models offer color-coded lights, digital displays, or even connectivity with smartphones and computers. These enhancements have made pilot lamp indicators more user-friendly and versatile.

Safety Considerations

Safety is paramount when dealing with pilot lamp indicators. Proper installation, maintenance, and handling must be observed to avoid accidents and malfunctions. It’s essential to follow the manufacturer’s instructions and consult with professionals if needed.

Environmental Impact

Modern pilot lamp indicators often utilize environmentally friendly technologies like LEDs. These lights consume less energy and have a reduced carbon footprint compared to traditional incandescent or neon lights. Embracing such technology is not only cost-effective but also contributes to sustainability.

Economic Factors

Pilot lamp indicators are available in various price ranges, depending on their features, quality, and brand. Investing in a good-quality indicator may be more economical in the long run as it is likely to be more durable and reliable.

Regulation and Compliance

There may be specific regulations governing the use and installation of pilot lamp indicators in different regions or industries. Complying with these laws is vital to ensure safety, legal conformity, and operational effectiveness.

The Importance of Brand and Quality

Choosing a reputable brand and high-quality pilot lamp indicator is crucial for optimal performance and safety. Reliable brands usually offer better support, warranties, and quality control, ensuring a satisfactory user experience.

Step 3: How do you wire a pilot lamp indicator 220v, and what safety precautions should be taken?

Wiring a 220v Pilot Lamp Indicator

Wiring a pilot lamp indicator 220v requires knowledge of electrical circuits, the right tools, and safety precautions. It’s essential to follow a proper wiring diagram and adhere to the manufacturer’s instructions. The wiring process typically involves:

  1. Identifying the Wires: Determine the hot, neutral, and ground wires according to the color codes.
  2. Connecting the Wires: Attach the wires to the corresponding terminals on the pilot lamp indicator.
  3. Securing the Connections: Use wire nuts or proper connectors to secure the connections.
  4. Checking the Voltage: Ensure that the voltage rating of the pilot lamp indicator matches the supply voltage.
  5. Testing the Connection: Turn on the power to check if the indicator is functioning correctly.

For more details on 220v pilot lamp indicators, you may refer to this page.

Safety Precautions

Turn Off Power

Always turn off the power to the circuit you’re working on to avoid electric shocks.

Use the Right Tools

Use insulated tools specifically designed for electrical work to ensure safety during installation.

Follow the Manual

Adhering to the manufacturer’s instructions and wiring diagram ensures proper installation and reduces the risk of accidents.

Wear Protective Equipment

Wearing gloves, safety glasses, and other protective gear can help prevent injuries.

Inspect the Wiring

Regularly inspect the wiring and connections of the pilot lamp indicator to ensure they are in good condition.

Seek Professional Help

If you’re unsure about any step in the wiring process, it’s wise to seek professional help to avoid mistakes and potential hazards.

Variations and Special Cases

Some pilot lamp indicators may come with unique features or requirements that necessitate specific wiring methods. Be aware of these variations and consult the manual or a professional if needed.

Importance of Quality Wiring

Quality wiring ensures the pilot lamp indicator functions efficiently and safely. Poor connections or incorrect wiring can lead to malfunctions, electrical fires, or other dangers.

Regulations and Compliance

Compliance with local electrical codes and regulations is crucial when wiring a pilot lamp indicator 220v. Failure to comply may lead to legal issues or compromise safety.

Environmental Considerations

Using energy-efficient wiring methods and materials can reduce energy consumption and contribute to environmental sustainability.

Long-Term Maintenance

Proper wiring ensures the long-term reliability of the pilot lamp indicator. Regular maintenance and inspections help in early detection of any issues, ensuring smooth operation.

Step 4: What are the various pilot lamp symbols, and how are they used in electrical systems?

Understanding Pilot Lamp Symbols

Pilot lamp symbols are graphical representations used in electrical schematics to identify the presence and function of a pilot lamp indicator within a circuit. These symbols are vital for designing, understanding, and troubleshooting electrical systems.

Common Pilot Lamp Symbols

LED Pilot Lamp Symbol

The LED pilot lamp symbol typically represents a diode with arrows pointing outward, indicating light emission. You can learn more about LED pilot lamps here.

Incandescent Pilot Lamp Symbol

This symbol might resemble a traditional light bulb and is used to represent incandescent pilot lamps in a circuit diagram.

Neon Pilot Lamp Symbol

A neon pilot lamp symbol might include specific markings or variations to differentiate it from other types of lamps.

Usage in Different Systems

Industrial Applications

In industrial schematics, pilot lamp symbols might be used to show the location of indicator lights on control panels, machines, and equipment.

Residential Usage

In household electrical plans, these symbols can indicate the placement and type of pilot lights in various appliances and fixtures.

Automotive Systems

Pilot lamp symbols might also be found in automotive electrical diagrams, representing indicators on the dashboard or other parts of the vehicle.

Importance in Design and Troubleshooting

Clarity in Design

Using standardized pilot lamp symbols helps in clear communication among engineers, technicians, and other stakeholders involved in the design and implementation of electrical systems.

Effective Troubleshooting

Understanding pilot lamp symbols aids in efficient troubleshooting and repair. It helps identify the correct parts and understand the flow of the circuit.

Compliance with Standards

Adhering to international or national standards for symbols ensures consistency and understanding across different regions and industries.

Educational Perspective

Pilot lamp symbols are taught in electrical engineering and related fields as part of the fundamental understanding of electrical diagrams and schematics.

Innovations and Technological Advancements

With advancements in technology, new symbols might be introduced to represent innovative features or functions in modern pilot lamp indicators.

Cultural and Regional Variations

Different regions might have variations in pilot lamp symbols due to cultural influences or local standards. Being aware of these differences is essential for international projects or collaboration.

Consideration of Special Needs

Special symbols or markings might be used to address the needs of visually impaired or other special needs individuals, enhancing accessibility and usability.

Environmental Considerations

Pilot lamp symbols might also include information or variations representing energy-efficient or environmentally friendly features.

Step 5: How are pilot lights used in houses, and what are their common applications?

Pilot Lights in Houses: An Overview

Pilot lights are commonly used in households as indicators for various appliances and systems. These small lights serve as visual cues for the operation, status, or condition of a device. They play a crucial role in enhancing user awareness and convenience.

Applications in Home Appliances

Heating Systems

Pilot lights are often found in heating systems like furnaces and water heaters. They might indicate whether the system is on, off, or in a specific operating mode.

Kitchen Appliances

Many kitchen appliances like ovens, microwaves, and stovetops have pilot lights to show when they are heating, cooking, or in standby mode.

Electrical Panels

In household electrical panels, pilot lights might indicate the status of specific circuits or provide warnings for potential issues.

Security Systems

Pilot lights in security systems can signal the activation, deactivation, or any breach in the security setup.

You can explore a wide variety of pilot light indicators suitable for household applications here.

Safety and Convenience

Guiding Users

Pilot lights in houses guide users by providing visual feedback on the status of appliances, enhancing convenience and efficiency.

Preventing Accidents

By indicating the operation of potentially hazardous appliances like stoves or heaters, pilot lights contribute to safety by preventing accidental burns or other injuries.

Alerting to Malfunctions

Pilot lights might change color or flash to signal malfunctions or required maintenance, allowing for timely intervention and repairs.

Aesthetics and Design

Modern pilot lights come in various colors, shapes, and styles, contributing to the aesthetic appeal of appliances and interiors. They can be customized to match the décor and design theme of the house.

Energy Considerations

Energy-efficient pilot lights, such as LEDs, are preferable in household applications to minimize energy consumption. They are both cost-effective and environmentally responsible.

Technological Advancements

With smart home technology, pilot lights can be integrated with other systems, allowing remote monitoring and control via smartphones or computers. This integration enhances user experience and convenience.

Maintenance and Replacement

Regular maintenance and prompt replacement of pilot lights ensure their continued functionality and effectiveness. Proper handling and adherence to manufacturer guidelines are vital for longevity.

Regulations and Standards

Compliance with local regulations and standards is essential when installing or replacing pilot lights in houses. It ensures safety and compatibility with other electrical systems.

Consideration of Special Needs

Pilot lights designed to cater to individuals with special needs, such as visual or hearing impairments, can enhance accessibility and usability in household settings.

Economic Factors

The cost of pilot lights in houses varies depending on the type, brand, and features. Investing in quality pilot lights may offer better performance and durability, providing value for money.

Step 6: What is the role of the pilot light in electrical systems, and how do you troubleshoot it?

Role of the Pilot Light in Electrical Systems

Pilot lights play a vital role in electrical systems, acting as indicators that provide information about the operational status, conditions, or warnings. Their functions extend across various domains, from industrial machinery to household appliances.

Key Functions

Status Indication

Pilot lights signal whether a device or circuit is on or off, providing essential information to users or technicians.

Warning and Alerts

They can act as alarms or warnings for specific conditions like overheating, low battery, or malfunctions, enabling timely intervention.

Diagnostic Aid

In complex systems, pilot lights might be part of a diagnostic setup, helping technicians identify issues or monitor performance.

For specific pilot lights suited for electrical systems, you may explore this collection.

Troubleshooting Pilot Lights

Checking the Bulb

If the pilot light is not working, the bulb might be burnt out and require replacement.

Inspecting the Wiring

Loose or damaged wiring can lead to malfunctioning pilot lights. Inspecting and fixing the connections might resolve the issue.

Verifying the Power Supply

Ensure that the power supply to the pilot light is active and matches the voltage requirements of the light.

Comprehensive Guide to Pilot Lamp Indicators: Understanding the Basics and Applications

10 Most Asked Questions About Pilot Lamp Indicators

  1. What are pilot lamp indicators and how do they function?
  2. How can pilot lamp indicators be used in both domestic and industrial applications?
  3. What are the types and specifications of pilot lamp indicators, including pilot light indicator 220v?
  4. What are the symbols used with pilot lamp indicators (pilot lamp symbol) and how are they important?
  5. What’s the role of pilot lights in house settings and in various electrical systems?
  6. How does a pilot light electrical setup work and what safety measures should be taken?
  7. What is the significance of AC power indicator lights and how are they implemented?
  8. How to choose the right pilot lamp indicator for specific needs and where can they be purchased?
  9. What are the latest trends and technologies in the field of Indicator Lights and Pilot Lights?
  10. How to maintain and troubleshoot pilot lamp indicators?

Understanding Pilot Lamp Indicators and Their Functionality

Definition and Basics

Pilot lamp indicators, also known as indicator lights or pilot lights, are visual signaling devices used to indicate the operational status of equipment. They can be found in both domestic and industrial environments. Often used in control panels, pilot lamp indicators provide immediate feedback on the system’s condition, such as power on, fault, or warning statuses.

Functioning and Components

These indicators consist of a small lamp or LED, enclosed in a housing that can be color-coded for different functions. The 12v pilot green LED indicator light is an example of a specific type of pilot lamp. The lamp may be connected to the control circuit of the equipment, illuminating when a particular condition is met.

Importance in Safety and Monitoring

Pilot lamp indicators play a critical role in safety, allowing operators to quickly assess the status of equipment. They help in monitoring and diagnosing issues, reducing the risk of accidents, and ensuring that machinery is operating within safe parameters.

Application in Various Industries

From household appliances to large industrial machines, pilot lamp indicators are versatile and essential. They are utilized in power plants, manufacturing units, vehicles, and even in home appliances like ovens or heating systems.

Different Forms and Variations

Pilot lamp indicators come in various shapes, sizes, and specifications, like the 220v 14mm blue 6.3pin new LED metal indicator light. The choice of the lamp depends on the application, voltage, color, and other factors.

Connection with Other Devices

Many pilot lamp indicators are designed to integrate seamlessly with other devices. They can be part of a more complex control system, working alongside switches, relays, and sensors.

Compliance and Standards

These indicators must adhere to specific standards and regulations, ensuring they meet quality, safety, and efficiency requirements. Proper certification and compliance with international standards are vital in their manufacturing and application.

The technology behind pilot lamp indicators is continually evolving. With advancements in LED technology and smart controls, modern pilot lamp indicators offer more features, reliability, and energy efficiency.

Global Impact and Environmental Considerations

Pilot lamp indicators not only contribute to safety and efficiency but also have a global impact. The move towards energy-saving LEDs and eco-friendly materials reflects the industry’s commitment to environmental sustainability.

Economic Aspects and Market Dynamics

The market for pilot lamp indicators is growing, driven by industrial automation, increased safety standards, and technological advancements. The competitive landscape and pricing strategies also play a significant role in shaping the industry.

it’s not over yet.

Pilot Lamp Indicator Prices in the USA

When it comes to finding the perfect pilot lamp indicator, one of the key factors to consider is the price. In this article, we will explore the price range of pilot lamp indicators in the USA, providing you with valuable insights to help you make an informed decision.

Search Results

Unfortunately, there is no specific price range available for pilot lamp indicators in the USA. However, we have gathered information from various sources to give you a better understanding of the market.

Sources

OMCH

OMCH offers a wide range of indicator lights and pilot lights, with over 300 types to choose from. While they provide a diverse selection, specific pricing information is not available. It is recommended to visit their website or contact them directly for accurate pricing details.

Alibaba.com

If you’re looking for wholesale options, Alibaba.com is a great platform to explore. They offer 12mm 12V 24V LED indicator light panels that are suitable for various applications. The price range for these panels is approximately $0.46 – $0.51 USD per piece. Keep in mind that prices may vary depending on the quantity and specific features you require.

c3controls

c3controls specializes in 30mm indicating, push-to-test, and multi-voltage pilot lights. Their products come with different light modules, including LED, incandescent, and neon options. While specific pricing information is not provided, their pilot lights are UL listed and rated 4/4X, ensuring high-quality and reliable performance.

Amazon.com

For a wide variety of LED indicator lights, Amazon.com is a popular online marketplace to explore. They offer a range of options, but specific pricing information is not available. It is recommended to browse their website or reach out to sellers directly for accurate pricing details.

Conclusion

In conclusion, the price range for pilot lamp indicators in the USA can vary depending on the specific source and product features. While we couldn’t find a specific price range, we have provided insights from various sources to give you an idea of what to expect.

Please note that the prices mentioned in this article are approximate and may vary based on factors such as the seller, quantity, and additional features or specifications of the pilot lamp indicators. To get accurate and up-to-date pricing information, it is recommended to visit the respective websites or contact the sellers directly.

Remember to consider your specific requirements and budget when making a purchasing decision. We hope this article has provided you with valuable information to help you find the perfect pilot lamp indicator at the right price.

Product Item FL1P-10NJ-5
Panel Mount Diameter 10mm
Contact Way Pins
Install Way screw terminal
Lamp Type LED
Rated voltage AC/DC,3V、6V、12V、24V、220V、380V
Lamp Color red yellow blue green white
Product Design Flat head
Shell Material PC
Base Material PA66 nylon
Terminal Material brass
Applications Coffee machine, kitchen equipment, household appliances,    automobiles, medical equipment, industrial equipment etc
Component name material
lens PC plastic
Metal body H59 brass or 204 stainless steel
wahser T10 Cold Rolled Steel
rubber ring SIL silica gel
nut H59 nickel plated brass
housing PA66 nylon
Light source LED
Resistor Metal film
Cable PTFE AWG22 0.3mm²
plug-in C2680 RoHS brass
items parameter
Rated voltage 3V-780V DC or AC
rated current 20mA
rated power 0.2W
Insulation and voltage resistance 1800V
working life 100000h
electrical life 100000
cold-resistant -40℃
heat-resisting 80℃

Inquiry Now
